Clear PVC/PE Pharmaceutical Thermoforming Film
HSQY clear rigid PVC/PE pharmaceutical thermoforming film is designed for blister packaging and medical packaging applications requiring transparency, thermoformability, dimensional stability and customized roll specifications.
The current HSQY product-level information identifies this product as PVC Rigid Lamination Film For Medical with product code PVC/PE Laminated Film -01. Clear and colored options are available, with customized dimensions according to the packaging and thermoforming process.
The current product-level thickness range is listed as 0.1–1.5mm with an MOQ of 1000kg. Because pharmaceutical blister applications normally require a specific gauge, roll width, forming performance and sealing system, the exact specification should be confirmed according to the customer's blister machine and package design.
For medicines requiring higher moisture or oxygen protection than a standard PVC-based forming web can provide, HSQY also lists other structures such as PVC/PVDC/PE and PVC/EVOH/PE. These should be treated as separate barrier structures and selected according to the required package-protection level.
Clear PVC Pharmaceutical Film for Thermoforming Video
PVC Pharmaceutical Thermoforming Film Images

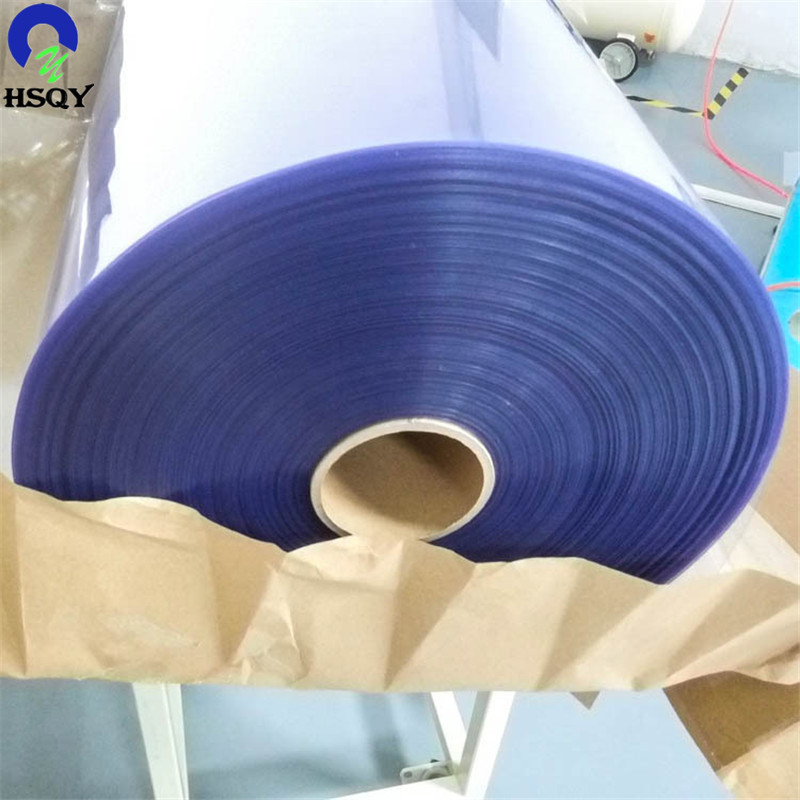

![clear rigid PVC pharmaceutical thermoforming film roll]( "Clear PVC Pharmaceutical Film Roll")
Clear PVC Pharmaceutical Film Roll
![PVC PE rigid laminated thermoforming film for medical packaging]( "PVC PE Laminated Thermoforming Film")
PVC/PE Laminated Thermoforming Film
PVC/PE Pharmaceutical Film Specifications
| Property |
Current Product Information |
| Product Name |
Clear PVC/PE Pharmaceutical Thermoforming Film |
| Model |
PVC Rigid Lamination Film For Medical |
| Brand |
HSQY |
| Product Code |
PVC/PE Laminated Film -01 |
| Primary Structure |
PVC/PE According to Current Product-Level Code |
| Current Product-Level Thickness |
0.1–1.5mm |
| Legacy Detail Thickness |
0.15–1.5mm – Confirm Exact Available Range |
| Width |
Customized; Legacy Detail Content Lists ≥840mm |
| Density |
1.35g/cm³ According to Current Detail Content |
| Core Diameter |
76mm According to Current Detail Content |
| Color |
Transparent / Colored / Customized |
| Primary Process |
Thermoforming |
| Primary Page Application |
Pharmaceutical and Medical Packaging |
| Optional Barrier Structures Mentioned by HSQY |
PVC/PVDC/PE, PVC/EVOH/PE and Other Customized Structures Subject to Confirmation |
| Current Documentation References |
GMP, ISO and SGS References – Confirm Exact Product and Facility Documents |
| MOQ |
1000kg |
| Payment Terms Listed on Current Page |
30% Deposit / 70% Balance Before Shipment |
| Delivery Terms |
FOB / CIF / EXW / DDU |
| Current Listed Lead Time |
10–14 Days After Deposit |
Technical Data Clarification:
The current HSQY product header identifies this SKU as PVC/PE Laminated Film -01, while older body content describes the material as PVC/PET with PE Protective Film. These are not equivalent technical descriptions.
Before publishing a final structure or issuing a pharmaceutical specification, confirm whether PE is a permanent laminated/sealing layer or whether a removable PE protective film is applied to the PVC surface. The exact structure should then be used consistently across the H1, product attributes, specification table, TDS and quotation.
What Is Pharmaceutical Rigid PVC Thermoforming Film?
Rigid PVC is widely used as a thermoformable forming web for blister and unit-dose packaging. During blister production, the rigid web is heated and formed into individual cavities before the product is loaded and the package is closed with a compatible lidding material.
For pharmaceutical applications, important film properties include consistent thickness, thermoforming behavior, transparency, dimensional stability, surface quality, roll quality and compatibility with the blister forming and sealing process.
The exact material should be selected according to the packaged product's moisture sensitivity, oxygen sensitivity, cavity depth, expected shelf life, climate zone and regulatory requirements.
Key Features of PVC/PE Pharmaceutical Thermoforming Film
Thermoforming Capability: Rigid PVC provides the structural forming layer required for suitable blister and thermoformed packaging applications.
Clear Product Visibility: Transparent grades can provide visual inspection of the packaged product and formed blister cavity.
Custom Thickness: The current product-level specification lists a broad thickness range, allowing the final gauge to be selected according to forming depth, stiffness and packaging-machine requirements.
Custom Width: Roll dimensions can be matched to the forming-web width required by the customer's packaging equipment.
Color Options: Transparent and colored configurations are currently listed for projects requiring product identification, light management or differentiated packaging.
Mechanical Support: Rigid PVC provides stiffness and physical support to the formed blister structure.
Customized Structures: When standard PVC/PE does not provide the required barrier performance, other multilayer structures can be evaluated separately.
Standard PVC vs. High-Barrier Pharmaceutical Blister Films
Not every pharmaceutical product requires the same barrier level. Standard PVC-based thermoforming film and high-barrier blister structures should be treated as different packaging solutions.
| Structure |
Main Function |
Selection Consideration |
| Rigid PVC |
Basic thermoforming web with good forming capability and product visibility. |
Appropriate where the packaged product does not require a high moisture or oxygen barrier. |
| PVC/PE |
Multilayer configuration where the PE layer may provide additional sealing, flexibility or forming functionality depending on the exact construction. |
Confirm whether PE is a permanent laminate layer and what function it performs in the specific HSQY construction. |
| PVC/PVDC |
Adds enhanced moisture and oxygen barrier compared with basic PVC. |
Used where the pharmaceutical product requires increased barrier protection. |
| PVC/PVDC/PE |
Multilayer barrier structure combining thermoforming support with a dedicated barrier component. |
Evaluate exact layer arrangement, coating weight, forming depth and barrier targets. |
| PVC/EVOH/PE |
Multilayer structure incorporating an EVOH oxygen-barrier layer. |
Select according to required gas barrier, moisture exposure and package design. |
Do not describe the standard PVC/PE product as a high-barrier film unless the exact structure and OTR/WVTR test data demonstrate the required barrier performance.
Thermoforming Performance for Pharmaceutical Blister Packaging
Thermoforming performance depends on more than the material name. Buyers should evaluate the forming web together with their blister machine, tooling, cavity dimensions and line conditions.
Film Gauge: Select thickness according to cavity depth, rigidity and required package strength.
Heating Window: Establish stable heating conditions that allow uniform forming without excessive thinning or distortion.
Cavity Depth: Deeper blisters place greater forming demands on the rigid web and multilayer structure.
Thickness Distribution: Evaluate wall thinning at corners and deep-draw areas after forming.
Roll Flatness: Consistent roll geometry and tension support stable feeding through automatic packaging equipment.
Machine Trial: Test the selected material on the actual blister line before final commercial qualification.
Blister Sealing and Lidding Compatibility
Pharmaceutical blister packaging normally combines a thermoformed forming web with a compatible lidding system. Reliable package performance depends on both materials and the sealing process.
Lidding Material: Provide the exact aluminium foil or other lidding specification used on the blister line.
Seal-Coat Compatibility: Confirm that the selected forming web and lidding seal system are compatible.
Seal Temperature: Establish the operating window required for reliable seals without damaging the formed web.
Dwell Time and Pressure: Determine appropriate sealing conditions on the actual packaging machine.
Package Integrity: Validate the complete blister package under the intended storage, transport and shelf-life conditions.
Pharmaceutical Packaging Applications
Tablet Blister Packaging: Clear rigid forming films can be evaluated for suitable tablet blister applications according to the required barrier and package design.
Capsule Blister Packaging: Film gauge, cavity depth and barrier requirements should be matched to the capsule size and drug stability requirements.
Unit-Dose Packaging: Customized forming-web dimensions can support suitable unit-dose packaging lines.
Nutraceutical Packaging: Rigid blister films can also be evaluated for supplements where the applicable packaging and regulatory requirements are met.
Selected Medical Packaging: Medical applications should be evaluated separately according to sterilization, barrier and regulatory requirements rather than assumed from pharmaceutical blister-film performance.
Original Application Images
The original page includes the following broader thermoforming and PVC application images. They are preserved here, while the SEO focus of this page remains pharmaceutical thermoforming and blister packaging.
![PVC thermoforming packaging application]( "Thermoforming Packaging Application")
Thermoforming Packaging Application
![PVC rigid film pharmaceutical blister packaging application]( "Pharmaceutical Blister Packaging")
Pharmaceutical Packaging Application
![PVC rigid film printing application]( "PVC Printing Application")
PVC Printing Application
How to Choose Pharmaceutical PVC Thermoforming Film
Drug Sensitivity: Identify whether the packaged product is sensitive to moisture, oxygen, light or other environmental factors.
Barrier Requirement: Provide target WVTR, OTR or shelf-life requirements where available.
Structure: Confirm whether standard PVC, PVC/PE or a dedicated barrier structure is required.
Thickness: Provide the exact forming-web gauge required by the blister package and machine.
Roll Width: Specify the exact web width required by the packaging equipment.
Core Size: The current detail content lists a 76mm core; confirm the required core and maximum roll diameter.
Blister Cavity: Provide cavity length, width and forming depth for deeper-draw applications.
Lidding Foil: Identify the sealing foil and heat-seal coating used with the forming web.
Packaging Machine: Provide machine brand, model and line speed where possible.
Regulatory Documentation: Specify the required pharmacopeia, migration, quality-system or destination-market documentation.
Information Needed for a Fast Pharmaceutical Film Quote
1. Required material structure
2. Required thickness
3. Required roll width
4. Core diameter and maximum roll diameter
5. Tablet, capsule or other packaged product
6. Blister cavity dimensions and forming depth
7. Target WVTR / OTR or shelf-life requirement
8. Lidding foil specification
9. Blister packaging machine brand and model
10. Required regulatory or quality documentation
11. Required quantity
12. Destination country or shipping port
Packaging and Delivery
Sample Packaging: The current page lists A4-size sample sheets packed in protective bags and cartons.
Bulk Packaging: Roll or sheet packaging should be selected according to the final product form, dimensions and customer handling requirements.
Pallet Packing: Current detail content lists approximately 500–2000kg per plywood pallet depending on product dimensions and packing configuration.
Container Loading: Container loading should be optimized according to roll width, roll weight and pallet configuration.
Delivery Terms: FOB, CIF, EXW and DDU are currently listed.
Current Listed Lead Time: Approximately 10–14 days after deposit, subject to final structure, quantity and production requirements.
Production and Packing
![PVC pharmaceutical film kraft packaging]( "PVC Film Kraft Packing")
Kraft Packing
![PVC pharmaceutical film pallet packing]( "PVC Film Pallet Packing")
Pallet Packing
Pharmaceutical Packaging Quality Documentation
The current HSQY page references GMP, ISO 9001:2008 and SGS. These references should not automatically be interpreted as proof that every PVC/PE film grade complies with every pharmaceutical primary-packaging regulation.
ISO 9001 concerns quality-management systems and is not, by itself, pharmaceutical product approval. Likewise, an SGS report can cover different test scopes. Buyers should request the actual current documents covering the exact film structure and intended pharmaceutical application.
If your project requires specific pharmacopeial, GMP, ISO 15378, migration, heavy-metal, restricted-substance or destination-market documentation, identify those requirements before product qualification.
![HSQY pharmaceutical packaging quality documentation]( "HSQY Pharmaceutical Packaging Documentation")
International Exhibitions
![HSQY 2017 Shanghai Exhibition]( "2017 Shanghai Exhibition")
2017 Shanghai Exhibition
Frequently Asked Questions
What is pharmaceutical PVC blister film?
Pharmaceutical PVC blister film is a rigid thermoformable web used to form cavities for tablets, capsules and other suitable unit-dose products. The formed web is subsequently sealed with a compatible lidding material.
What is the structure of this HSQY product?
The current product-level code identifies it as PVC/PE Laminated Film -01. Older body content incorrectly or inconsistently describes PVC/PET with PE protective film, so the final layer structure should be confirmed from the applicable technical data sheet before ordering.
Is PE a laminate layer or a removable protective film?
The current page contains conflicting descriptions. Buyers should confirm whether PE is a permanent functional layer within the laminate or a removable surface-protection film because these configurations perform different functions.
What thicknesses are available?
Current product-level information lists 0.1–1.5mm, while older detailed content lists 0.15–1.5mm. Confirm the exact pharmaceutical-grade range and required gauge before production.
What roll width is available?
The product-level information states customized size, while older detail content lists widths of at least 840mm. Provide the exact blister-machine web width so HSQY can confirm availability.
Is standard PVC a high-barrier pharmaceutical film?
Standard rigid PVC is primarily selected for thermoforming and physical protection and should not automatically be described as a high-barrier film. Moisture- or oxygen-sensitive products may require PVDC, EVOH, PCTFE or another dedicated barrier structure.
What is the difference between PVC and PVC/PVDC blister film?
Rigid PVC provides the thermoformable base web, while a PVDC-containing structure adds increased moisture and oxygen barrier. The appropriate structure depends on drug sensitivity and shelf-life requirements.
When should a high-barrier blister film be used?
Higher-barrier materials should be evaluated when the packaged tablet, capsule or other dosage form is sensitive to moisture, oxygen or environmental conditions and standard PVC does not provide sufficient protection.
Can the film be used for tablet blister packaging?
Suitable pharmaceutical PVC forming films can be used for tablet blister applications after the exact structure, thickness, forming characteristics, lidding compatibility and regulatory documentation are qualified.
Can it be used for capsule blister packaging?
It can be evaluated for suitable capsule blister packaging. Provide the capsule size, cavity dimensions, forming depth, barrier requirement and blister-machine specifications before selecting the film.
What information affects thermoforming performance?
Film thickness, polymer structure, heating conditions, cavity geometry, forming depth, line speed and tooling all influence thermoforming performance.
Can the film be heat sealed with pharmaceutical aluminium foil?
Compatibility depends on the forming-web surface, aluminium-lidding heat-seal coating and sealing conditions. Test the exact material combination on the intended blister packaging line.
What OTR and WVTR values does this film provide?
Specific OTR and WVTR values are not published in the current product information. Request the technical data for the exact structure and thickness if barrier performance is a purchasing requirement.
Is this product GMP compliant?
The current page references GMP, but buyers should request the applicable current certificate or manufacturing documentation and confirm its scope before representing the specific film as GMP compliant.
Does ISO 9001 prove pharmaceutical packaging compliance?
No. ISO 9001 is a quality-management-system standard. Pharmaceutical packaging suitability also depends on the material specification, manufacturing controls, regulatory requirements and package qualification for the intended application.
Can custom colors be supplied?
Yes. Transparent and colored options are listed on the current product page. Provide the required color, light-protection requirement and regulatory specification when requesting a custom grade.
What core diameter is available?
The current detailed specification lists a 76mm inner core diameter. Confirm the core, maximum roll diameter and roll weight required by your blister packaging machine.
What is the MOQ?
The current product-level MOQ is 1000kg.
Can I request samples for blister-machine testing?
Contact HSQY with the required structure, thickness, roll width, blister-machine information and application to confirm a suitable sample or trial specification.
What information should I provide for a quotation?
Provide material structure, thickness, width, core size, packaged product, cavity dimensions, barrier requirement, lidding foil, blister-machine model, regulatory requirements, quantity and destination.
Why Choose HSQY for Pharmaceutical Thermoforming Film?
Customized Specifications: Thickness, width, color and roll dimensions can be discussed according to the customer's thermoforming equipment.
Multiple Structure Options: HSQY supplies PVC-based forming films and can discuss higher-barrier structures for products requiring additional protection.
Application Matching: Film selection can be based on cavity geometry, barrier requirements, lidding foil and packaging-machine conditions.
Sample Evaluation: Trial materials can be discussed for forming and sealing evaluation before commercial production.
B2B Supply: HSQY supports pharmaceutical packaging manufacturers, converters, contract packers, distributors and industrial buyers requiring commercial quantities.
About HSQY Plastic Group
HSQY Plastic Group supplies rigid PVC film, PVC laminated films, PVC/PVDC pharmaceutical films, thermoforming materials and other plastic packaging products to international B2B customers.
For pharmaceutical blister film, PVC/PE thermoforming film or higher-barrier PVC-based structures, send HSQY your product specification, blister-machine parameters, barrier requirements and required quantity for technical evaluation and quotation.
