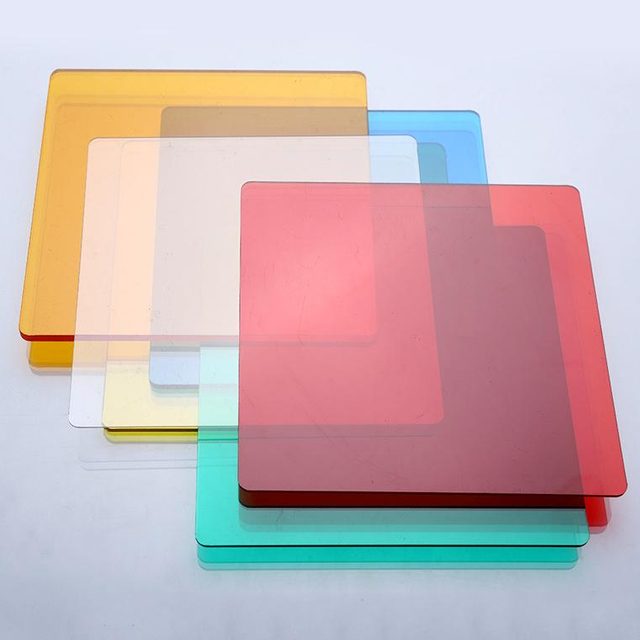

Polycarbonate Soundproof Sheet for Transparent Noise Barriers
Polycarbonate soundproof sheet is a transparent or colored solid PC sheet used as the acoustic element in highway, railway, metro, bridge, tunnel and industrial noise barrier systems. It helps reduce the transmission of traffic and machinery noise while preserving visibility, daylight and the surrounding architectural appearance.
HSQY supplies polycarbonate sound barrier sheets in common thicknesses of 6mm, 8mm, 10mm and 12mm. Clear, lake blue, green, bronze and customized colors are available for infrastructure contractors, noise barrier manufacturers, engineering companies, distributors and industrial enclosure projects.
Depending on the selected thickness and test conditions, HSQY solid polycarbonate sound insulation sheets can provide approximately 29–34dB of reference sound reduction. Final acoustic performance depends on the complete barrier height, panel dimensions, supporting frame, seals, joints, installation method and applicable test standard.
Request Samples and Project Pricing
Polycarbonate Sound Barrier Sheet Product Range
HSQY provides several polycarbonate sheet structures for transparent noise barriers, industrial sound enclosures and architectural sound insulation projects.
Solid, embossed and hollow polycarbonate sheets do not automatically provide the same acoustic performance. The correct structure should be selected according to the noise source, target sound reduction, span, wind load, framing system and required transparency.
Typical Polycarbonate Soundproof Sheet Specifications
The following table describes the typical HSQY product range. Final dimensions, tolerances, acoustic values, coatings and compliance documents should be confirmed for the selected product grade before ordering.
| Property | Typical Details |
| Product Type | Polycarbonate soundproof sheet, transparent noise barrier sheet or PC acoustic barrier panel |
| Base Material | Polycarbonate resin |
| Sheet Structure | Solid, embossed or multiwall configurations, depending on the product |
| Common Thicknesses | 6mm, 8mm, 10mm and 12mm |
| Custom Thickness | Available subject to project quantity, production feasibility and structural requirements |
| Typical Width | Approximately 1200mm for standard sound barrier products; custom width should be confirmed |
| Sheet Length | Customized according to panel design, container loading and installation requirements |
| Color | Clear, lake blue, green, bronze and custom colors |
| Surface Options | Smooth, glossy, embossed, textured and optional coated surfaces |
| Reference Sound Reduction | Approximately 29–34dB for selected 6–12mm solid sheets under specified test conditions |
| UV Protection | Outdoor UV-protected grades are available; confirm one-sided or two-sided protection |
| Transparency | Clear and tinted transparent grades are available; final light transmission depends on thickness, color and coating |
| Impact Performance | High impact resistance compared with conventional transparent glazing materials; confirm the required test standard |
| Optional Treatments | UV protection, abrasion-resistant coating, anti-graffiti surface, bird-protection markings and custom printing |
| Fabrication | Cutting, drilling, CNC machining, cold bending, thermoforming and edge finishing, subject to product grade |
| Fire Performance | Grade-specific; request the test report when a particular flame or building classification is required |
| Applications | Highways, railways, metro lines, bridges, tunnels, industrial enclosures, partitions and public infrastructure |
| Customization | Custom dimensions, colors, surface treatments, fabricated parts and project packaging |
| Sample Support | Samples can be discussed for material, color, transparency and preliminary testing |
| Minimum Order Quantity | Depends on thickness, sheet size, color, coating and project requirements |
Polycarbonate Sheet Thickness and Sound Reduction
Increasing the mass and thickness of a solid polycarbonate panel generally improves its ability to reduce airborne sound transmission. However, the installed barrier result cannot be predicted from thickness alone.
| Sheet Thickness | Reference Sound Reduction | Typical Project Applications |
| 6mm | Approximately 29dB | Urban roads, partitions and light-duty transparent barriers |
| 8mm | Approximately 31dB | Highways, elevated roads and industrial sound enclosures |
| 10mm | Approximately 32dB | Railways, metro lines and infrastructure noise barriers |
| 12mm | Up to approximately 34dB | High-speed rail, heavy-duty barriers and demanding engineering projects |
The values above are product reference data rather than a guarantee for every completed project. Acoustic performance must be confirmed using the agreed testing method, panel dimensions, framing system and installation configuration.
Sound Insulation, Sound Absorption and Noise Reduction
The terms sound insulation, sound absorption and soundproofing describe different acoustic functions. They should not be used interchangeably when specifying a polycarbonate noise barrier.
What Is Sound Insulation?
Sound insulation describes the ability of a panel or building element to reduce sound transmission from one side to the other. Solid polycarbonate sheets primarily function as reflective sound insulation panels in transparent noise barrier systems.
What Is Sound Absorption?
Sound absorption describes how much acoustic energy a material absorbs instead of reflecting. Porous acoustic panels and mineral-filled systems are commonly used for absorption. A smooth solid PC sheet should not automatically be described as a high-absorption material.
Is NRC the Correct Rating for Polycarbonate Sound Barriers?
NRC measures sound absorption and is not the same as an airborne sound insulation rating. Transparent road and railway barrier projects may instead specify metrics such as DLR, Rw, STC or frequency-specific transmission loss, depending on the country and application.
Can a Polycarbonate Sheet Make an Area Completely Soundproof?
No single sheet can make an open area completely soundproof. A noise barrier reduces direct sound transmission, but sound can still travel over the top, around the ends, through openings and through other structural components.
Acoustic Ratings and Test Standards
Project specifications should state both the required acoustic value and the test standard. A number without a test method may not be suitable for comparing products from different suppliers.
| Metric or Standard | Purpose |
| DLR | Single-number sound insulation rating commonly used for road traffic noise barrier acoustic elements |
| Rw | Weighted sound reduction index used to describe airborne sound insulation |
| STC | Sound Transmission Class commonly used for building partitions and architectural assemblies |
| OITC | Outdoor-Indoor Transmission Class used for external transportation and environmental noise |
| EN 1793-1 | Laboratory evaluation of sound absorption performance for road traffic noise-reducing devices |
| EN 1793-2 | Laboratory evaluation of airborne sound insulation performance for noise barrier elements |
| ISO 717-1 | Single-number rating of airborne sound insulation in buildings and building elements |
| EN 1794 | Non-acoustic performance requirements such as mechanical stability, safety and environmental behavior |
Buyers should confirm whether the project requires a test report for the individual sheet, a framed panel or the complete installed noise barrier system.
Key Benefits of Polycarbonate Noise Barrier Sheets
Transparent sound insulation: Helps reduce noise transmission without completely blocking views, daylight or the surrounding landscape.
High impact resistance: Suitable for locations exposed to debris, accidental impact, vandalism and demanding transportation environments.
Lower structural weight: Lighter than conventional glass panels of comparable dimensions, helping reduce handling and supporting-structure loads.
Outdoor weather performance: UV-protected grades can be specified for long-term exposure to sunlight, rain, snow, wind and temperature changes.
Color flexibility: Clear, blue, green, bronze and custom-colored sheets can support architectural and urban design requirements.
Design flexibility: Polycarbonate sheets can be cut, drilled, cold bent or thermoformed into flat and curved noise barrier designs.
Optional surface protection: Abrasion-resistant, anti-graffiti and easy-clean surface options can be evaluated for public infrastructure.
Project customization: Sheet size, thickness, color, surface, markings and packaging can be adjusted according to engineering requirements.
Applications of Polycarbonate Soundproof Sheets
Highway and Expressway Noise Barriers
Transparent polycarbonate sheets can be installed as acoustic elements in highway and expressway sound walls. They help protect nearby residential, commercial and public areas while maintaining driver visibility and reducing the visual mass of the barrier.
Railway and High-Speed Rail Noise Barriers
Thicker solid PC sound barrier sheets can be used along railway lines, high-speed rail systems and railway bridges where acoustic performance, impact resistance, wind pressure and long-term outdoor durability are required.
Metro and Urban Elevated Road Barriers
Clear and tinted polycarbonate panels can be integrated into urban metro lines and elevated roads where noise mitigation must be balanced with natural light, city views and architectural appearance.
Bridge and Tunnel Noise Enclosures
Lightweight transparent panels are suitable for partial tunnel covers, bridge barriers and enclosed traffic corridors where reducing structural weight and preserving daylight are important.
Industrial Machinery Sound Enclosures
Solid PC sheets can be fabricated into transparent panels for machine enclosures, factory partitions, compressor rooms, generator covers and production-line noise-control systems.
Stadiums, Airports and Public Infrastructure
Polycarbonate acoustic panels can be considered for airport facilities, stadium boundaries, bus stations, transport hubs and other public areas requiring a combination of visibility, safety and noise control.
Architectural Partitions and Secondary Glazing
Polycarbonate sheets may also be incorporated into office partitions, workshop dividers, balconies and secondary glazing systems. The acoustic result depends on the complete frame, seals, air space and surrounding construction.
Solid, Embossed and Multiwall Polycarbonate Sheets
Solid Polycarbonate Sound Barrier Sheet
Solid polycarbonate sheet combines mass, transparency and impact resistance. It is generally the primary option for transparent highway, railway and infrastructure sound barrier panels.
Embossed Polycarbonate Soundproof Sheet
Embossed sheets provide a textured appearance that can reduce direct visibility, diffuse light and improve decorative performance. Acoustic values should be confirmed for the exact embossed structure and thickness.
Multiwall Polycarbonate Sheet
Multiwall sheets contain internal air chambers and offer lower weight and improved thermal insulation. They may be suitable for partitions, canopies and selected enclosures, but should not be assumed to provide the same impact, load or acoustic performance as a solid panel of equal thickness.
Double-Layer Polycarbonate Systems
Two separate solid polycarbonate sheets with a designed air gap can provide higher sound insulation than a single sheet. The spacing, panel thickness, frame connection and air sealing must be engineered as one complete assembly.
How to Select a Polycarbonate Noise Barrier Sheet
1. Identify the Noise Source
Specify whether the project is intended to control road traffic, railway, aircraft, industrial machinery, compressors, generators or other noise. Different sources contain different frequency ranges and require different barrier designs.
2. Define the Required Acoustic Rating
State the target DLR, Rw, STC, OITC or frequency-specific transmission loss and the required test standard. Avoid specifying only a general phrase such as “high soundproof performance.”
3. Select the Correct Thickness
Thickness influences acoustic performance, impact resistance, panel stiffness, weight and allowable span. The final choice should be based on acoustic and structural calculations rather than sound reduction alone.
4. Calculate Wind Load and Panel Span
Provide the installation height, panel dimensions, support spacing, local design wind speed, snow load and other structural requirements. Highway bridges and elevated rail projects may require especially detailed calculations.
5. Confirm Outdoor UV Exposure
For outdoor installations, specify whether one or both sides will be exposed to sunlight. Curved barriers, reflective environments and transparent enclosures may require UV protection on both sides.
6. Select the Required Transparency and Color
Clear sheets maximize visibility, while tinted sheets can reduce glare and support architectural design. Color, thickness and surface texture influence light transmission and visual appearance.
7. Evaluate Abrasion and Graffiti Exposure
Public infrastructure may be exposed to repeated cleaning, dust, sand, vandalism and graffiti. An abrasion-resistant or anti-graffiti surface should be considered when long-term optical clarity is required.
8. Consider Bird-Collision Protection
Highly transparent barriers may be difficult for birds to detect. Printed lines, dots or other visible patterns can be incorporated where bird-collision prevention is required by the project or local environmental regulations.
9. Confirm Fire and Safety Requirements
State the required flame, smoke, railway, road safety or building classification. Compliance should be verified using a report for the exact sheet grade and thickness rather than a general statement about polycarbonate.
10. Test Samples Before Project Approval
Samples can be used to evaluate color, light transmission, surface finish, impact response and fabrication. Acoustic and structural approval should rely on appropriate test reports and project engineering.
Polycarbonate vs Acrylic and Glass Noise Barriers
| Comparison | Polycarbonate | Acrylic | Glass |
| Impact Resistance | Very high and suitable for demanding outdoor locations | Good but generally more brittle than PC | Depends on glass type and laminate construction |
| Weight | Relatively lightweight | Relatively lightweight | Heavier and may require stronger support |
| Transparency | High transparency with clear and tinted options | Excellent optical clarity | Excellent optical clarity depending on construction |
| Scratch Resistance | May require a hard coating in abrasive environments | Generally better surface hardness than uncoated PC | Typically strong scratch resistance |
| Fabrication | Easy to cut, drill, cold bend and thermoform | Can be machined and thermoformed with suitable controls | Requires specialized processing and handling |
| Outdoor Use | Suitable when the correct UV-protected grade is selected | Good outdoor weatherability with suitable grade | Good weather resistance with appropriate framing |
| Best Fit | Impact-prone highways, railways, bridges and industrial projects | Projects prioritizing optical appearance and surface hardness | Heavy permanent structures with suitable safety glazing design |
Material selection should be based on tested acoustic performance, impact risk, structural design, optical requirements, environmental exposure and lifecycle maintenance rather than material name alone.
Installation Guidelines for Polycarbonate Sound Barriers
Maintain a Continuous Barrier
Open joints, gaps around posts and unsealed panel edges can significantly reduce the performance of a sound barrier. Connections should be designed to limit direct sound leakage.
Allow for Thermal Expansion
Polycarbonate expands and contracts with temperature. Frames, holes, gaskets and panel engagement should allow movement without excessive stress, buckling or edge damage.
Use Compatible Gaskets and Sealants
Gaskets, sealants and cleaners must be chemically compatible with polycarbonate. Incompatible materials may cause surface damage, stress cracking or loss of transparency.
Avoid Excessive Fastener Pressure
Mechanical fasteners should not clamp the sheet so tightly that thermal movement is prevented. Hole dimensions, edge distance and fixing details should follow the approved engineering drawing.
Confirm the UV-Protected Side
One-sided UV sheets must be installed with the protected surface facing the primary sunlight exposure. Two-sided UV protection should be specified when both surfaces may receive direct or reflected sunlight.
Remove Protective Film at the Correct Stage
Protective masking should remain in place during normal fabrication and handling but should be removed after installation according to the supplier’s instructions. Long exposure to sunlight may make masking difficult to remove.
Cleaning and Maintenance
Use clean water, mild soap and a soft non-abrasive cloth.
Rinse loose sand and dust before wiping the panel.
Do not use abrasive brushes, metal tools or dry wiping methods.
Confirm that graffiti removers and solvents are compatible with the selected sheet or coating.
Inspect panel edges, gaskets, fasteners and frames during routine maintenance.
Replace damaged seals to prevent acoustic leakage and water penetration.
Follow the specific cleaning guide supplied for coated or anti-graffiti grades.
Quality Inspection and Project Documentation
The inspection and document package should be agreed before production, particularly for government infrastructure, railway, bridge and large-scale engineering projects.
Dimensions and tolerances: Thickness, width, length, squareness and fabricated-hole positions.
Appearance: Color, transparency, surface finish, bubbles, scratches, black points and visible defects.
Acoustic data: Test method, sheet thickness, specimen dimensions, frequency range and reported rating.
Mechanical data: Impact performance, tensile properties, flexural properties and relevant structural tests.
UV and weathering: UV-protection configuration, weathering test information and applicable warranty conditions.
Fire performance: Applicable flame, smoke or building classification for the selected grade.
Surface coating: Abrasion, anti-graffiti or hard-coating information when specified.
Packaging: Protective masking, interleaving, pallets, edge protection and container loading plan.
Traceability: Batch identification, inspection records and agreed certificate requirements.
Sustainability and End-of-Life Considerations
Polycarbonate sound barrier panels are durable and can remain in service for long periods when the correct grade, frame and maintenance system are used. Their lower weight may also simplify transportation and installation compared with heavier glazing materials.
Polycarbonate can be mechanically recycled in suitable industrial recycling streams. Actual recyclability depends on coatings, inks, contamination, collection systems and recycling facilities available in the destination market.
Project owners should plan for panel identification, disassembly and material separation where end-of-life recovery is an important requirement.
Information Required for a Polycarbonate Sound Barrier Quote
Send the following information to receive an accurate product recommendation and quotation:
Application, such as highway, railway, bridge, industrial enclosure or architectural partition.
Required sheet thickness, width and length.
Required DLR, Rw, STC, OITC or other acoustic rating.
Required acoustic and mechanical test standards.
Clear, lake blue, green, bronze or custom color.
Smooth, embossed or coated surface.
One-sided or two-sided UV protection.
Abrasion-resistant, anti-graffiti or bird-protection requirements.
Panel drawings, hole positions, edge details and fabrication requirements.
Installation height, panel span and local design wind load.
Project location and outdoor temperature range.
Required fire, railway, road or building compliance documents.
Total project quantity and estimated delivery schedule.
Destination port, trade terms and packaging requirements.
Send Your Project Specifications
Frequently Asked Questions About Polycarbonate Soundproof Sheets
What is a polycarbonate soundproof sheet?
It is a solid or structured polycarbonate sheet used to reduce airborne sound transmission in transparent noise barriers, machinery enclosures, partitions and infrastructure projects. It combines acoustic separation with transparency and impact resistance.
How much noise can a polycarbonate soundproof sheet reduce?
HSQY 6–12mm solid polycarbonate sound barrier sheets provide approximately 29–34dB of reference sound reduction, depending on thickness and test conditions. The completed barrier result also depends on its height, length, frame, seals and installation.
Is a polycarbonate sheet sound absorbing or sound insulating?
A smooth solid polycarbonate sheet primarily acts as a reflective sound insulation material. It reduces sound transmission but normally does not absorb sound in the same way as porous acoustic foam or mineral-filled absorptive panels.
What thickness is best for a highway noise barrier?
Common thicknesses include 8mm, 10mm and 12mm. The correct thickness depends on the target sound reduction, panel dimensions, wind load, support spacing, impact risk and local infrastructure standard.
Is solid or hollow polycarbonate better for noise barriers?
Solid polycarbonate is generally selected for heavy-duty transparent highway and railway noise barriers because of its mass, impact resistance and structural consistency. Hollow sheets may be appropriate for lighter partitions and selected enclosures but require separate acoustic and structural evaluation.
Can two polycarbonate sheets provide better sound insulation?
Yes. A double-layer system with a properly designed air space can provide higher sound insulation than a single sheet. The two panels, air gap, seals and frame must be designed as a complete acoustic assembly.
Is polycarbonate soundproof sheet suitable for outdoor use?
Yes, when an outdoor UV-protected grade is selected. The sheet specification should also consider wind, snow, hail, temperature changes, chemical exposure and the supporting frame.
Will transparent polycarbonate turn yellow outdoors?
Unprotected polycarbonate may lose optical quality under long-term UV exposure. UV-protected outdoor grades are designed to reduce yellowing and performance loss. The protection side and warranty conditions should be confirmed before installation.
Can polycarbonate sound barrier panels be used along railways?
Yes. Polycarbonate panels are used in railway and high-speed rail noise barriers. Projects should specify acoustic performance, aerodynamic pressure, impact resistance, panel retention, fire behavior and the applicable railway safety standards.
Are polycarbonate soundproof sheets fire-retardant?
Fire performance depends on the exact polycarbonate formulation, thickness and test method. Flame-retardant grades are available, but a specific UL, EN or building classification should only be claimed when supported by the corresponding report.
Does polycarbonate scratch easily?
Standard polycarbonate has lower surface hardness than glass. Abrasion-resistant or hard-coated grades should be considered for locations exposed to frequent cleaning, sand, graffiti or public contact.
Can anti-graffiti treatment be added?
Anti-graffiti or abrasion-resistant surface options can be evaluated for infrastructure projects. The cleaning chemical and removal method must be compatible with the selected coating.
Can bird-protection patterns be printed on transparent panels?
Yes. Lines, dots or other visible markings can be discussed to help birds detect the barrier. Provide the required pattern, spacing, color and environmental specification with the project drawing.
Can polycarbonate sound barrier sheets be curved?
Selected solid polycarbonate sheets can be cold bent within an approved minimum radius or thermoformed into curved panels. Thickness, coating, UV orientation and residual stress must be considered.
Can HSQY cut and drill the sheets?
Custom cutting, drilling, CNC machining and edge processing can be discussed. Send a dimensioned drawing showing tolerances, holes, edge distances, corners and surface requirements.
What colors are available?
Typical options include clear, lake blue, green and bronze. Customized colors can be discussed according to the required quantity, light transmission and architectural design.
How should polycarbonate soundproof sheets be installed?
Panels should be installed in an engineered frame with compatible gaskets, sufficient edge engagement, thermal-expansion allowance and sealed joints. The frame and foundation must meet the specified wind and structural loads.
Is polycarbonate better than glass for a noise barrier?
Polycarbonate is often selected where lower weight, high impact resistance and easier fabrication are important. Glass may provide greater surface hardness and different acoustic characteristics. The correct material depends on the complete project specification.
Is polycarbonate sound barrier sheet recyclable?
Polycarbonate can be recycled through suitable industrial recycling channels. Acceptance depends on coatings, printing, contamination, collection systems and local recycling infrastructure.
Can I receive a sample before placing an order?
Sample support is available for customers who need to evaluate material quality, thickness, color, surface finish and transparency. Full acoustic and structural approval should be based on relevant reports and project testing.
What is the minimum order quantity?
The minimum order quantity depends on thickness, dimensions, color, surface coating and fabrication. Standard clear sheets may have different requirements from custom-colored or coated project panels.
How can I get an accurate quotation?
Send the sheet thickness, dimensions, color, acoustic requirement, test standard, total quantity, fabrication drawing, wind-load requirement, project location and destination port. HSQY can then evaluate a suitable specification.
Polycarbonate Soundproof Sheet Manufacturer
HSQY Plastic Group supplies polycarbonate sheets for noise barriers, construction, industrial protection, glazing and fabricated plastic applications. We support global contractors, distributors and project buyers with product selection, custom dimensions, color matching, sample service and export packaging.
For a polycarbonate sound barrier quotation, send us your project drawings, required thickness, acoustic rating, panel dimensions, color, quantity, applicable standards and destination port.
Contact HSQY for Samples and Pricing
