Cast Acrylic Sheets for Signage, Displays and Custom Fabrication
HSQY PLASTIC manufactures and supplies cast acrylic sheets, also known as cell cast acrylic sheets, cast PMMA sheets or cast acrylic panels, for signage, displays, interior decoration, retail fixtures, glazing, aquariums, lighting, fabrication and custom acrylic products.
Cast acrylic is produced from polymethyl methacrylate (PMMA) using a casting process that creates sheets with high optical quality and relatively low internal stress. It is particularly useful for projects requiring CNC machining, laser cutting and engraving, edge polishing, custom colors, thicker gauges or premium visual appearance.
HSQY's current cast acrylic sheet products include approximately 2–50 mm thicknesses, standard 1220 × 2440 mm sheets, additional formats and customized dimensions. Clear, white, black, red, yellow, blue, green, brown and project-specific colors can be discussed together with glossy, frosted, embossed and customized surfaces.
For optical, structural or fabrication-critical applications, buyers should specify more than thickness and color. Light transmission, haze, thickness tolerance, flatness, surface finish, edge quality, machining method and final service environment should also be included in the material specification.
What Is Cast Acrylic?
Cast acrylic is a thermoplastic PMMA material manufactured by polymerizing liquid acrylic monomer in a casting system rather than continuously pushing molten polymer through an extrusion die.
The process can produce sheets, panels and thick acrylic blocks with excellent surface appearance and optical properties. Cast acrylic is widely selected when machining quality, polished edges, custom colors, thicker gauges and premium visual appearance are important.
PMMA acrylic is also commonly described in the market as acrylic glass or plexiglass-type material. Specific trademarks such as PLEXIGLAS®, PERSPEX® and ACRYLITE® belong to their respective owners and should not be used as generic HSQY brand names.
HSQY Cast Acrylic Sheet Specifications
| Product | Cast Acrylic Sheet / Cell Cast PMMA Sheet |
| Material | Polymethyl Methacrylate / PMMA |
| Current Cast Sheet Thickness | Approximately 2–50 mm for the current HSQY cast acrylic sheet family |
| Standard Size | 1220 × 2440 mm |
| Additional Current Size | 1830 × 1220 mm and other project-specific dimensions |
| Custom Size | Cut-to-size and customized dimensions subject to production and fabrication requirements |
| Colors | Clear, white, black, red, yellow, blue, green, brown and custom colors |
| Surface Options | Glossy, frosted, embossed and customized surfaces according to specification |
| Typical Density | Approximately 1.19–1.20 g/cm³ for current HSQY cast PMMA products |
| Fabrication | Saw cutting, laser cutting, CNC routing, drilling, milling, engraving, polishing, bonding and thermoforming where suitable |
| Main Applications | Signage, retail displays, furniture, interior panels, glazing, aquariums, lighting, exhibition displays and custom fabricated acrylic products |
Optical transmission, impact performance, thickness tolerance, chemical resistance, UV performance and other technical values should be confirmed for the exact color, surface, thickness and production grade required by the project.

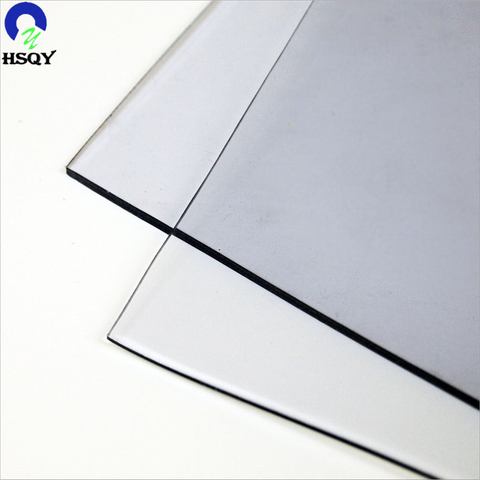

Clear Cast Acrylic Sheet
Clear cast acrylic sheet is selected where transparency, polished edges and premium visual appearance are important.
Common applications include display cases, retail fixtures, museum displays, signage, architectural features, protective glazing, lighting components and custom fabricated products.
Projects with strict optical requirements should specify minimum light transmission, maximum haze, allowable optical distortion, surface quality and edge-polishing requirements rather than relying only on the word "clear."
Colored Cast Acrylic Sheets
Colored cast acrylic can combine decorative appearance with the fabrication characteristics of PMMA.
HSQY's current cast acrylic range includes clear, white, red, black, yellow, blue, green and brown products, with additional custom colors available according to the project specification.
Color can be specified as opaque, translucent or transparent depending on the desired visual effect. For OEM branding or repeat production, provide a physical sample, Pantone reference or another agreed color target.
Glossy, Frosted and Embossed Cast Acrylic
| Surface | Appearance | Typical Applications |
| Glossy | Smooth, polished appearance with strong visual clarity or color saturation | Displays, signage, furniture, decorative panels and premium fabricated products |
| Frosted | Diffused matte appearance with reduced direct visibility | Privacy panels, partitions, signs, lighting and interior design |
| Embossed / Textured | Patterned decorative surface | Decorative panels, privacy screens, interiors and custom design projects |
Cast Acrylic vs. Extruded Acrylic
Cast and extruded acrylic are both PMMA, but their manufacturing processes create different purchasing advantages.
| Selection Factor | Cast Acrylic | Extruded Acrylic |
| Manufacturing | Acrylic monomer is polymerized using a casting process | Acrylic polymer is continuously extruded through a die |
| Thickness Range | Particularly useful when thicker gauges or custom thicknesses are required | Strong fit for continuously produced standard gauges |
| Thickness Tolerance | Casting naturally allows more gauge variation; tolerance must be specified for precision projects | Generally offers tighter thickness control |
| Internal Stress | Often selected for relatively low internal stress and demanding machining | Processing history and extrusion orientation should be considered during fabrication |
| CNC / Machining | Excellent option for routing, milling, engraving and polished-edge fabrication | Also machinable when appropriate parameters are used |
| Custom Colors | Well suited to custom-color and specialty-effect programs | Efficient for larger continuous production runs |
| Thermoforming | Suitable for heat forming after appropriate heating and process control | Often heats and forms more quickly in high-volume applications |
| Typical Buying Priority | Premium fabrication, custom colors, thick gauges, displays and high-quality finished edges | Tight gauge control, standard sheets, long production runs and cost efficiency |
For continuously extruded PMMA sheets and cut-to-size products, review our Extruded Acrylic Sheets .
Cast Acrylic Sheet Thickness Selection
Sheet thickness affects rigidity, weight, machining depth, edge appearance, thermoforming behavior and structural deflection.
| Thickness Direction | Typical Selection Direction |
| 2–3 mm | Signs, decorative panels, lightweight displays, picture frames and thin fabricated components |
| 4–6 mm | Retail displays, partitions, signs, cases, furniture accents and general fabrication |
| 8–12 mm | More rigid displays, glazing, shelving, thick signage and fabricated structures |
| 15–25 mm | Heavy displays, thick decorative panels, structural-looking components and specialized fabrication |
| 30–50 mm | Thick acrylic components, display structures and customized heavy-gauge applications |
These are application directions rather than engineering load ratings. Large glazing panels, shelves, aquariums and load-bearing components require calculation of span, support, pressure, temperature and allowable deflection.
4 × 8 Cast Acrylic Sheets
1220 × 2440 mm, commonly referred to as approximately 4 × 8 ft, is a standard format within HSQY's current cast acrylic sheet range.
This size is compatible with many CNC routers, sign-making operations, display fabrication processes and general sheet-conversion workflows.
Custom Cast Acrylic Sheet Sizes
Custom-cut dimensions can help improve material yield and reduce downstream cutting when production parts are smaller than standard sheets.
Buyers requesting custom sizes should provide length, width, thickness, dimensional tolerance, quantity, edge requirement and whether the protective masking must remain on the finished parts.
Cast Acrylic for Laser Cutting and Engraving
Cast acrylic is widely used in laser-cut and laser-engraved signs, lettering, awards, displays, decorative products and customized components.
Laser processing can create precise contours and engraved graphics, while edge appearance depends on material color, thickness, laser type, power, speed, focus and assist settings.
Thick sheets and critical finished edges should be tested using the actual laser equipment before commercial production.
CNC Machining Cast Acrylic
Cast acrylic is well suited to CNC routing, milling, drilling and engraving where clean edges and dimensional control are required.
CNC routing
Saw cutting
Milling
Drilling
Engraving
Countersinking
Edge profiling
Polishing
Bonding and assembly
Tool geometry, cutting speed, chip removal, heat generation and workpiece clamping should be controlled to reduce melting, chipping and stress.
Polished Acrylic Edges
Clear polished edges are an important reason cast acrylic is selected for retail fixtures, display cases, awards, furniture and premium fabricated products.
Edge finishing can include mechanical polishing, buffing or other suitable acrylic finishing methods depending on thickness and appearance requirements.
Buyers should specify whether edges are saw-cut, CNC-finished, polished or prepared for bonding.
Thermoforming Cast Acrylic
Cast PMMA can be heated and thermoformed into curved panels, covers, display components, lighting parts and decorative shapes.
Forming performance depends on thickness, heating uniformity, mold geometry, forming depth, cooling, color and surface texture.
Because thermal processing can change dimensions and surface appearance, finished-part dimensions should be validated using the actual production cycle.
Cast Acrylic for Signs and Advertising
Cast acrylic is commonly used for illuminated signage, dimensional letters, engraved signs, logo panels, retail graphics and premium advertising displays.
Clear, colored, translucent, frosted and custom-effect materials allow designers to control light, contrast and brand appearance.
Sign manufacturers should provide whether the project is illuminated or non-illuminated, indoor or outdoor, printed or engraved, and whether laser cutting, CNC routing or thermoforming is required.
Cast Acrylic for Retail and Museum Displays
Clear acrylic is frequently fabricated into display cases, risers, shelves, product holders, jewelry displays, museum covers and exhibition components.
Projects requiring premium appearance should define acceptable scratches, inclusions, optical distortion, edge quality, bonding appearance and protective masking.
Cast Acrylic for Furniture and Interior Design
Cast acrylic can be used in tables, shelves, decorative furniture, room dividers, wall features, architectural panels and customized interior installations.
Colored, frosted and embossed surfaces can provide different levels of transparency, privacy and decorative effect.
Structural furniture components should be designed according to acrylic stiffness, span, thickness, support and expected load rather than compared directly with glass or metal by thickness alone.
Cast Acrylic for Aquariums and Water-Contact Applications
Thick clear cast acrylic is commonly considered for aquarium panels, viewing windows and water-contact display structures because of its optical appearance, fabrication capability and suitability for thick-sheet applications.
Aquarium panel thickness must be engineered according to water depth, panel dimensions, support geometry, bonding design, safety factor and allowable deflection.
A general cast acrylic thickness table should not be used as a substitute for structural calculation on pressure-containing applications.

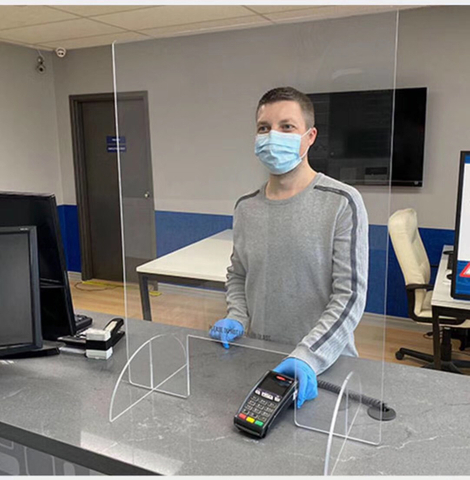

Cast Acrylic for Glazing and Protective Panels
Acrylic can be used for selected windows, partitions, protective panels, skylight components and architectural glazing applications.
Acrylic is less rigid than glass, so glazing thickness cannot be selected simply by replacing a glass panel with acrylic of identical thickness.
Wind load, panel dimensions, fixing method, thermal expansion, impact requirements and local glazing standards should be evaluated for the finished installation.
Thick Cast Acrylic Blocks and Display Components
In addition to standard cast sheets, HSQY supplies customized solid acrylic blocks and thick display components for jewelry, museums, retail displays and decorative applications.
Thick acrylic blocks can be machined and polished into cubes, rectangular blocks, bases, risers and other display shapes. Exact block dimensions, thickness and polishing requirements should be confirmed according to the project drawing.
Cast Acrylic vs. Polycarbonate
| Selection Factor | Cast Acrylic | Polycarbonate |
| Main Priority | Optical appearance, polished edges, weathering and premium fabrication | High-impact and safety-focused applications |
| Impact | Better breakage resistance than ordinary glass in many applications, but can crack under severe impact | Generally selected when significantly higher impact performance is required |
| Edge Polishing | Excellent fit for visually polished edges | Different finishing behavior |
| Material Selection | Displays, signage, glazing, aquariums and premium decorative fabrication | Guards, shields, safety glazing and impact-intensive applications |
Outdoor and UV Performance
PMMA acrylic is widely used in outdoor signage and glazing because suitable acrylic grades provide strong weathering performance.
Long-term appearance still depends on the exact PMMA formulation, color, surface, environmental exposure, cleaning method and finished installation.
Outdoor projects should identify expected UV exposure, temperature range, service period and acceptable color or optical change before final material approval.
Chemical Resistance and Cleaning
Cast acrylic is compatible with many normal environments, but it can be damaged by certain solvents and aggressive cleaning chemicals.
Applications involving chemicals, disinfectants, adhesives, paints or solvents should be tested using the actual chemical concentration, exposure duration, temperature and mechanical stress.
Avoid assuming that general "chemical resistance" language means PMMA is resistant to every solvent.
Acrylic Thickness Tolerance Matters
Thickness tolerance is especially important for CNC slots, grooves, mechanical assemblies, optical systems and components that fit into fixed hardware.
Cell-cast manufacturing can produce greater thickness variation than continuously extruded acrylic. Buyers requiring tight gauge control should therefore provide an acceptable minimum and maximum thickness rather than specifying only nominal thickness.
If tight thickness tolerance is more important than cast-specific benefits, an extruded acrylic product may be a better material choice.
Optical Requirements for Cast Acrylic
Optical projects should define measurable performance rather than relying only on descriptions such as "high transparency" or "crystal clear."
Important optical parameters can include:
Visible light transmission
Haze
Color or tint
Optical distortion
Surface scratches and defects
Inclusions or particles
Edge transparency
UV transmission or filtering requirement where applicable
How to Choose the Right Cast Acrylic Sheet
1. Define the Final Application
Specify signage, display, aquarium, glazing, furniture, lighting, decorative panel, acrylic block or another application.
2. Confirm Cast vs. Extruded Acrylic
Choose cast acrylic when machining, premium edges, thick gauges, custom colors or cast-specific optical requirements are important. Consider extrusion when tight thickness tolerance, long production runs or cost efficiency are priorities.
3. Select Thickness
HSQY's current cast sheet range is approximately 2–50 mm. Select thickness according to panel size, load, machining depth and finished-product rigidity.
4. Define Thickness Tolerance
Provide acceptable minimum and maximum thickness where components fit into slots, hardware or precision assemblies.
5. Select Clear or Colored Acrylic
Specify clear, opaque, translucent or transparent colored material together with any custom color reference.
6. Select the Surface Finish
Choose glossy, frosted, embossed or another required surface according to the visual and functional requirement.
7. Define Sheet Size
Standard HSQY cast acrylic includes 1220 × 2440 mm sheets, with additional and customized sizes available for suitable specifications.
8. Define Optical Requirements
For optical projects, provide light-transmission, haze, distortion or approved-sample requirements.
9. Define Fabrication
Specify laser cutting, CNC routing, drilling, engraving, polishing, bending, thermoforming or bonding.
10. Define Edge Quality
State whether the edges will remain saw-cut, CNC-machined, polished, bonded or hidden inside the final assembly.
11. Confirm Indoor or Outdoor Use
Specify UV exposure, temperature, service period and appearance requirements for outdoor products.
12. Confirm Chemical Exposure
Provide any cleaners, solvents, adhesives, paints or process chemicals that will contact the finished acrylic.
13. Approve a Sample
Evaluate color, transparency, thickness, machining, edge appearance and forming performance using a representative material sample before customized bulk production.
Custom Cast Acrylic Manufacturing and Fabrication
HSQY supports customized acrylic projects for sign manufacturers, display companies, distributors, fabricators, lighting companies, interior contractors and OEM buyers.
Custom requirements can include:
Custom cast acrylic thickness
1220 × 2440 mm sheets
Custom-cut sheet dimensions
Clear acrylic
White and black acrylic
Red, yellow, blue, green and brown acrylic
Custom color matching
Transparent, translucent and opaque color options
Glossy surfaces
Frosted surfaces
Embossed surfaces
Laser cutting
Laser engraving
CNC routing and milling
Drilling
Edge polishing
Heat bending and thermoforming where suitable
Bonding and assembly
Custom acrylic blocks
Protective masking
Custom export packaging
Quality Control for Cast Acrylic Sheets
Nominal thickness
Minimum and maximum thickness
Sheet width and length
Flatness
Surface scratches
Visual inclusions or particles
Color consistency
Light transmission where specified
Haze where specified
Optical distortion where specified
Surface texture
Protective masking
Laser-cut edge quality where required
CNC machining quality where required
Polished-edge appearance
Bonding performance where specified
Thermoforming performance where specified
Packaging and pallet condition
Packing and International Shipping
Acrylic surfaces can scratch during handling, so suitable protective masking and packaging should be selected according to the surface finish and final application.
Sheets can be protected with masking material and packed using suitable wrapping, cartons, edge protection and palletized export packaging according to dimensions and order requirements.
Thick acrylic sheets and blocks require additional attention to pallet weight, lifting, edge protection and safe handling.
Why Choose HSQY for Cast Acrylic Sheets?
2–50 mm Current Cast Sheet Range: HSQY's current colorful cast acrylic products cover a broad range of thin to thick PMMA sheets.
Clear and Colored Acrylic: Clear, white, black, red, yellow, blue, green, brown and project-specific colors can be discussed.
Multiple Surface Options: Glossy, frosted, embossed and customized finishes support signage, display and decorative applications.
Fabrication Support: Laser cutting, CNC routing, drilling, engraving, polishing, thermoforming and bonding requirements can be incorporated into the project specification.
Custom Acrylic Products: HSQY also supplies acrylic blocks, display components and customized optical or fabricated PMMA products.
Cast and Extruded Acrylic Options: Buyers can compare this category with our Extruded Acrylic Sheets or review the broader Acrylic Sheet range.
Information Needed for a Cast Acrylic Quote
| Application | Signage, display, glazing, aquarium, furniture, lighting, interior decoration or another application |
| Acrylic Type | Cast acrylic required or recommendation between cast and extruded acrylic |
| Thickness | Nominal thickness and acceptable tolerance |
| Sheet Size | 1220 × 2440 mm, other standard size or custom cut dimensions |
| Color | Clear, standard color, Pantone reference, physical sample or custom color |
| Transparency | Clear, transparent colored, translucent or opaque |
| Surface | Glossy, frosted, embossed or custom finish |
| Optical Requirement | Light transmission, haze, distortion or approved sample where applicable |
| Fabrication | Laser cutting, CNC, drilling, engraving, polishing, thermoforming or bonding |
| Edge Finish | Saw cut, CNC finished, polished or bond-ready |
| Service Environment | Indoor, outdoor, water contact, chemical exposure or another environment |
| Quantity | Trial quantity, regular order quantity and estimated annual demand |
| Destination | Destination country and port |
Cast Acrylic Sheet FAQ
What is cast acrylic sheet?
Cast acrylic sheet is a PMMA thermoplastic sheet manufactured using a casting process. It is widely used for signage, displays, glazing, furniture, aquariums and customized fabrication.
Is cast acrylic the same as PMMA?
Cast acrylic is a type of PMMA sheet. PMMA is the polymer material, while "cast" describes the manufacturing process used to produce the sheet.
What is the difference between cast and extruded acrylic?
Cast acrylic is produced using a casting process and is often selected for machining, thick gauges and custom colors. Extruded acrylic is produced continuously and generally offers tighter thickness tolerance and efficient large-volume production.
Is cast acrylic always clearer than extruded acrylic?
Not necessarily. High-quality products from both manufacturing methods can provide excellent transparency. Optical performance should be compared using actual light transmission, haze, distortion and grade-specific data rather than manufacturing method alone.
Which has better thickness tolerance, cast or extruded acrylic?
Extruded acrylic generally offers tighter thickness tolerance because of its continuous manufacturing process. Precision cast acrylic projects should specify acceptable minimum and maximum thickness.
What thickness cast acrylic does HSQY supply?
HSQY's current cast acrylic sheet range is approximately 2–50 mm. Thick acrylic blocks and customized fabricated components can be discussed separately.
Does HSQY supply 4 × 8 cast acrylic sheets?
Yes. 1220 × 2440 mm, approximately 4 × 8 ft, is a current standard HSQY cast acrylic sheet size.
What colors are available?
Current HSQY cast acrylic products include clear, white, black, red, yellow, blue, green and brown. Other custom colors can be discussed according to project requirements.
Can HSQY match a custom acrylic color?
Custom colors can be evaluated using a physical sample, Pantone reference or another agreed color standard. Final approval should use a production sample where color consistency is critical.
Is frosted cast acrylic available?
Yes. Frosted and other customized surface options are represented in HSQY's current cast acrylic product specifications.
Can cast acrylic be laser cut?
Yes. Cast acrylic is commonly laser cut and engraved for signage, awards, lettering, displays and decorative components. Processing parameters should be optimized for the specific thickness and laser system.
Can cast acrylic be CNC machined?
Yes. Cast acrylic can be routed, drilled, milled and engraved with suitable CNC tooling and cutting parameters.
Can cast acrylic edges be polished?
Yes. Clear polished edges are commonly specified for display cases, retail fixtures, awards and premium acrylic products.
Can cast acrylic be thermoformed?
Yes. Suitable cast acrylic can be heated and formed into curved or three-dimensional parts. Heating profile, thickness, mold and cooling conditions should be validated for the final product.
Can cast acrylic be bonded?
Yes. Acrylic components can be joined using compatible acrylic bonding systems. Joint design, surface preparation, stress and chemical compatibility affect finished bond quality.
Is cast acrylic suitable for outdoor signs?
Suitable PMMA grades are widely used in outdoor signs and displays. Confirm the exact color, surface, UV exposure and required service conditions for the project.
Is cast acrylic suitable for aquariums?
Thick clear cast acrylic can be considered for aquariums and viewing panels, but thickness and bonding design must be engineered according to water pressure, panel dimensions and safety requirements.
Is cast acrylic stronger than glass?
Acrylic and glass have different mechanical properties. Acrylic has useful breakage resistance and lower weight, while glass is significantly more rigid. Material selection should be based on impact, stiffness, thickness and application rather than a single "stronger" comparison.
Is cast acrylic stronger than polycarbonate?
Polycarbonate is generally the better choice when very high impact resistance is the main requirement. Cast acrylic is often selected when optical appearance, polished edges and premium fabrication are more important.
Does cast acrylic scratch?
Acrylic surfaces can scratch during fabrication, cleaning or handling. Protective masking and appropriate cleaning methods should be used where surface appearance is critical.
Is cast acrylic chemical resistant?
Acrylic is compatible with many environments but can be attacked by certain solvents and chemicals. Chemical-contact applications should be tested using the actual chemical, temperature and exposure duration.
Can HSQY make thick acrylic blocks?
Yes. HSQY currently supplies customized solid acrylic blocks and display components. Exact dimensions and polishing requirements should be confirmed from the drawing.
Can HSQY cut cast acrylic to size?
Custom dimensions and fabricated shapes can be discussed according to thickness, tolerance, quantity and machining requirements.
Can I request cast acrylic samples?
Available samples can be discussed for evaluating color, transparency, surface, thickness and fabrication performance before commercial production.
What information should I provide for a cast acrylic quotation?
Provide application, thickness, tolerance, sheet dimensions, color, transparency, surface finish, fabrication method, edge requirements, quantity and destination.
Request a Cast Acrylic Sheet Quote
Looking for a reliable cast acrylic sheet manufacturer, cast PMMA supplier or customized acrylic panels for signage, displays, furniture, glazing, aquariums or CNC fabrication?
Send HSQY your application, required thickness, dimensions, color, surface, optical requirements and estimated purchasing quantity. For machined parts, include drawings and tolerances. For glazing or aquarium applications, include panel dimensions, support conditions and loading requirements so the material specification can be evaluated correctly.
