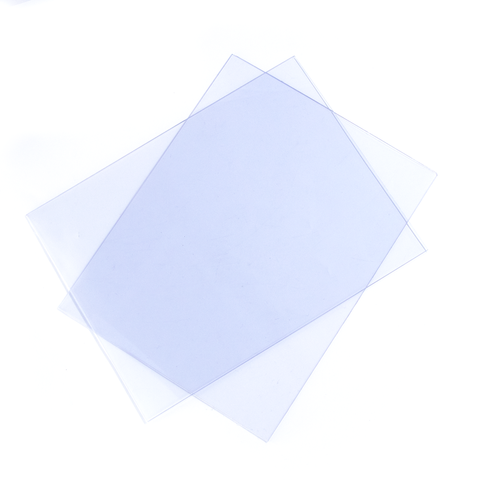

PVC Sheet for Box Window

What Is a PVC Sheet for Box Windows?

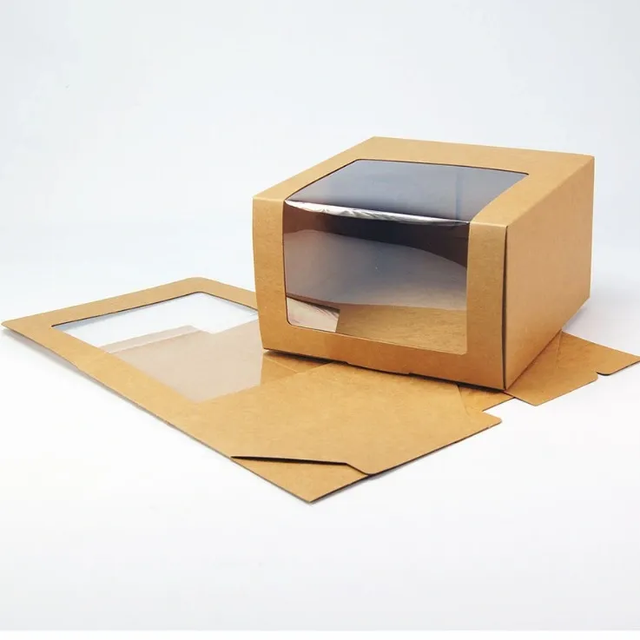

A PVC sheet for box windows is a clear rigid plastic sheet or film used to create transparent viewing windows in folding cartons, paperboard boxes and retail packaging. It allows customers to inspect the product without opening the package while helping protect the contents from dust, moisture and handling.

HSQY supplies transparent PVC window sheets in customized thicknesses, dimensions, finishes and sheet or roll formats for packaging converters, printing companies, box manufacturers and international distributors.

Common applications include bakery boxes, confectionery cartons, cosmetic packaging, gift boxes, toy packaging, stationery boxes, electronics packaging and other high-visibility retail cartons.

Key Benefits of Clear PVC Box Window Sheets

• High transparency: Clearly displays the color, shape, texture and appearance of the packaged product.

• Good rigidity: Helps maintain a flat and attractive window surface in folding carton applications.

• Reliable processing: Suitable for slitting, die-cutting, creasing, folding and window patching.

• Moisture resistance: Helps protect products from humidity, dust and external handling.

• Custom specifications: Thickness, dimensions, surface finish and packaging can be adjusted for different production lines.

• Cost-effective supply: Suitable for high-volume packaging production and wholesale purchasing.

PVC Sheet for Box Window Specifications

The following table shows commonly supplied specifications. Exact availability should be confirmed according to the required application, processing method and order quantity.

How to Choose the Right PVC Window Sheet Thickness

The correct thickness depends on the window dimensions, carton structure, product weight, required stiffness and window-patching equipment.

• 0.125-0.18 mm: Suitable for small windows, lightweight products and cost-sensitive carton packaging.

• 0.20-0.25 mm: A common range for bakery boxes, confectionery cartons, cosmetic packaging and general retail boxes.

• 0.28-0.30 mm: Provides greater stiffness for larger windows, premium packaging and products exposed to more handling.

• Above 0.30 mm: May be selected for larger structures, clear box components or applications requiring additional rigidity.

A sample test is recommended before mass production, especially when the window is large, the glue area is narrow or the packaging line operates at high speed.

Sheet or Roll PVC for Automatic Box Window Patching

PVC box window material can be supplied as cut sheets or rolls. The appropriate format depends on the converter's machinery, production volume and window-patching process.

PVC Window Sheets

Cut sheets are suitable for manual processing, short production runs, custom die-cutting, printing and packaging factories that require predetermined sheet dimensions.

PVC Window Film Rolls

Roll material is normally selected for automatic window patching and continuous converting. Roll width, core size, outside diameter, winding direction and joint requirements should be confirmed before production.

Processing Performance for Packaging Manufacturers

Clear PVC packaging sheets can be processed using common packaging converting methods. The exact grade should be matched to the customer's equipment, adhesive, ink system and required production speed.

• Roll slitting and sheet cutting

• Flatbed or rotary die-cutting

• Creasing and folding

• Automatic carton window patching

• Adhesive bonding to paperboard and cardboard

• Screen printing, UV printing and suitable offset printing processes

• Protective film application

Customers should conduct adhesion and ink compatibility tests before confirming bulk production because performance may vary according to surface treatment, ink, glue, temperature and machine settings.

Applications of PVC Box Window Sheets

Bakery and Confectionery Packaging

Transparent PVC windows allow consumers to view cakes, cookies, pastries, chocolates, candies and other packaged products while the paperboard carton provides branding and structural support.

Cosmetic and Personal Care Boxes

PVC window sheets are used in skincare, fragrance, makeup and personal care packaging where the product container, color and design contribute to shelf presentation.

Toy, Stationery and Electronics Packaging

Clear windows let buyers inspect the product model, accessories, color and configuration before purchase while helping prevent direct handling.

Gift and Premium Retail Packaging

Window packaging combines printed paperboard with a transparent display area, helping brands improve product visibility without using a completely clear plastic box.

PVC Window Sheets for Food Packaging

Food-contact-compliant PVC grades may be supplied for eligible bakery, confectionery and food display packaging applications when the requirement is specified before production.

Buyers should identify whether the material will have direct or indirect food contact and provide information about the food type, contact duration, temperature, grease exposure, moisture, steam, refrigeration and destination market.

The finished package should be evaluated as a complete system. The PVC sheet, paperboard, adhesive, printing ink and coating must all be suitable for the intended application. Relevant documentation should be confirmed before placing a bulk order.

PVC vs. PET vs. BOPP for Carton Windows

PVC, PET and BOPP can all be used for transparent carton windows, but each material has different processing and performance characteristics.

HSQY can help customers compare PVC and PET options based on window size, required stiffness, food-contact conditions, converting equipment, target cost and destination market.

Custom PVC Sheets for Box Window Packaging

HSQY provides customized PVC window sheet solutions for packaging manufacturers, carton converters, printing companies, wholesalers and brand owners.

• Custom thickness and tolerance

• Custom sheet dimensions and roll widths

• Glossy, matte and functional surface treatments

• Anti-static and anti-scratch options

• Protective film on one or both sides

• Custom transparency and tint

• Food-contact-compliant grades for eligible applications

• Customized export packaging and pallet configuration

Quality Control for PVC Packaging Window Sheets

Consistent PVC sheet quality is important for stable die-cutting, gluing, window patching and finished carton appearance.

Quality inspection may include:

• Thickness and thickness tolerance

• Sheet or roll dimensions

• Transparency and visual appearance

• Surface cleanliness and scratch inspection

• Flatness and edge quality

• Roll winding and slitting quality

• Packaging condition before shipment

Packaging, Production and International Shipping

PVC sheets are generally protected with PE film, kraft paper and pallet or tray packaging. PVC rolls can be wrapped with protective film and kraft paper according to roll dimensions and shipping requirements.

Production lead time depends on thickness, dimensions, surface treatment, order quantity, packaging requirements and current production scheduling. Standard specifications normally require less preparation than fully customized grades.

For international orders, please provide the destination port or delivery address so the sales team can evaluate packing, loading quantity and transportation options.

Why Choose HSQY as Your PVC Box Window Sheet Manufacturer?

• Manufacturer supply: Factory-based production for wholesale and bulk orders.

• Custom manufacturing: Flexible thickness, dimensions, finish and packaging options.

• Stable quality: Controlled thickness, surface appearance and cutting performance.

• Multiple material options: PVC and PET solutions can be evaluated according to the packaging application.

• Sample support: Samples can be arranged for material and processing evaluation.

• Export experience: Support for overseas packaging manufacturers, distributors and brand customers.

• Technical communication: Specification recommendations based on window size, processing equipment and end use.

What Information Is Needed for a PVC Window Sheet Quotation?

To receive an accurate factory quotation, please provide as much of the following information as possible:

• Required thickness or current material sample

• Sheet dimensions or roll width and length

• Estimated order quantity or monthly consumption

• Packaging application and product type

• Window dimensions and required stiffness

• Die-cutting, printing, folding or gluing requirements

• Direct or indirect food-contact conditions, if applicable

• Required certificates or destination-market standards

• Packaging method and destination port

Frequently Asked Questions About PVC Sheets for Box Windows

What thickness of PVC sheet is best for a box window?

Thicknesses between 0.15 and 0.30 mm are commonly used for folding carton windows. Small windows and lightweight products can use thinner material, while larger windows and premium cartons normally require greater stiffness. The final selection should be tested with the carton structure and window-patching equipment.

Can PVC window sheets be supplied in rolls?

Yes. PVC window material can be supplied as sheets or rolls. For roll orders, customers should provide the required width, roll length, core diameter, outside diameter, winding direction and machine requirements.

Can PVC sheets be used on automatic window patching machines?

Yes. Properly specified PVC window film can be used on automatic carton window patching equipment. Thickness tolerance, roll winding, surface condition, static control and adhesive compatibility should be confirmed before mass production.

Is clear PVC sheet suitable for bakery boxes?

PVC sheets are commonly used as viewing windows in bakery and confectionery cartons. For food-related applications, buyers should specify whether the window will have direct or indirect food contact and confirm the required compliance documentation.

Can PVC box window sheets be printed?

Suitable PVC grades can support screen printing, UV printing and selected offset printing processes. Ink adhesion should be tested because performance depends on the sheet surface, ink system, curing conditions and printing equipment.

What adhesive can be used for PVC carton windows?

The adhesive must be compatible with both the PVC window material and the coated or uncoated paperboard. Adhesion performance can be affected by surface treatment, glue amount, machine speed, temperature and available bonding area. A production trial is recommended.

Can HSQY provide anti-static or anti-scratch PVC sheets?

Anti-static, anti-scratch, matte and protective-film options can be discussed according to the packaging application, order quantity and required performance.

Is PVC window sheet recyclable?

PVC is technically recyclable, but actual collection and recycling availability varies by country, municipality and packaging construction. Combining plastic film, adhesive and paperboard can affect separation. Buyers with specific sustainability requirements can also discuss PET or other window material options.

Can I request a sample before placing a bulk order?

Yes. Sample support is available for customers who need to evaluate transparency, thickness, stiffness, printing, die-cutting or adhesive performance. Please provide the required specification and application when requesting samples.

What is the minimum order quantity for PVC box window sheets?

The typical minimum order quantity starts from approximately 1,000 kg. The final MOQ depends on thickness, dimensions, surface treatment, color, sheet or roll format and packaging requirements.

Request a Quote from a PVC Box Window Sheet Supplier

Looking for a reliable PVC sheet manufacturer for folding carton windows, bakery boxes, cosmetic packaging or retail display cartons?

Contact HSQY to request PVC window sheet samples, technical specifications, custom size recommendations, factory pricing and an international shipping quotation.

           Request a Quote
