1CP CPET Trays

1 Compartment CPET Trays Manufacturer for Ready Meals

HSQY supplies 1 compartment CPET trays for frozen ready meals, chilled prepared foods, airline catering, bakery products, central kitchens, meal delivery, institutional catering and industrial food production. The current category extends from compact 6–15 oz portion trays to 88 oz and 118 oz large-format food containers.

Crystallized polyethylene terephthalate provides the thermal stability needed for workflows that may include filling, heat sealing, chilling or freezing, transportation, microwave reheating, conventional oven reheating and direct serving. Selected HSQY models are published for approximately -40°C to +220°C, subject to validation of the exact tray, food, lidding film and heating process.

Quick answer: A 1CP CPET tray has one uninterrupted food cavity, making it suitable for pasta, rice, casseroles, curries, meat dishes, desserts and family-size prepared foods. Compared with a divided tray of the same external size, a single-compartment tray normally provides more usable volume and a simpler filling process.

Current HSQY 1CP CPET Tray Range

HSQY currently lists round, rectangular and square single-compartment CPET trays in white, black and blue. The following table organizes representative models by capacity and intended application.

Model	Capacity	Shape / Color	Published Dimensions	Weight / Case Pack	Typical Use
Model 028	6 oz	Round / White	Approx. 113 mm diameter × 48 mm	9 g / 1,440	Desserts, baked snacks and side portions
Model 023	7 oz	Round / White	Approx. 113 mm diameter × 48 mm	12 g / 1,440	Mini pies, desserts and bakery portions
Model 032	8 oz	Rectangle / Black	Approx. 123 × 100 × 35 mm	10 g / 900	Small ready meals and portion-controlled food
Model LL01	10 oz	Rectangle / White	6.30 × 3.94 × 1.30 in	13 g / 600	Airline meals, sides and small entrées
Model 009	12 oz	Rectangle / Black	Confirm approved drawing	Confirm by quotation	Compact prepared meals and airline food
Model 011	15 oz	Rectangle / Black	Confirm approved drawing	Confirm by quotation	Individual ready meals and entrées
Model 022	19 oz	Rectangle / White	6.48 × 4.98 × 1.87 in	17 g / 780	Deep individual meals and sauced dishes
Model 002	27 oz	Rectangle / Black	8.50 × 6.50 × 1.46 in	32 g / 450	Supermarket ready meals and frozen food

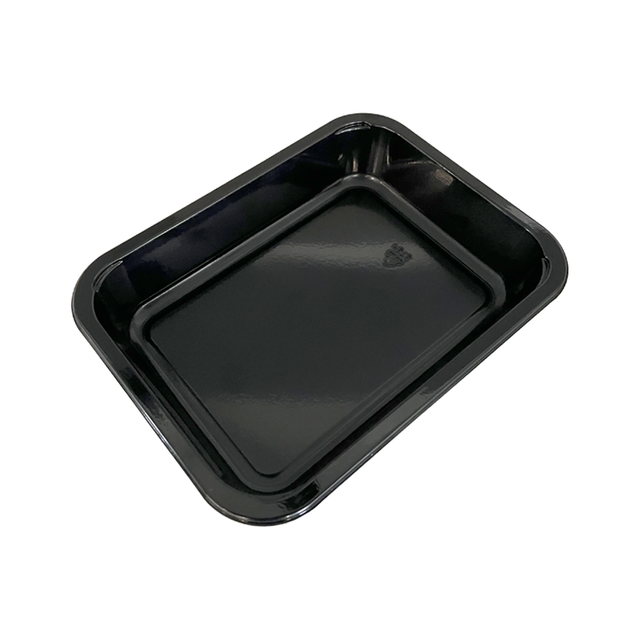

Model JC01	27 oz	Rectangle / Black	Approx. 8.48 × 6.37 × 1.47 in	Approx. 30 g / 600	Industrial meal packing
Model 029	40 oz	Square / White	Approx. 187 × 187 × 52 mm	32 g / 400	Lasagna, casseroles and family meals
Model 003	88 oz	Rectangle / Black	12.44 × 10.31 × 1.97 in	80 g / 140	Family-size and catering portions
Model 007	118 oz	Rectangle / Black	Confirm approved drawing	Confirm by quotation	Large catering and bulk meal packaging

The website contains product pages created at different times, so some MOQ, certification and packing fields use different units or wording. Confirm the final drawing, tray weight, case pack, minimum order and compliance documentation for the selected model.

Typical 1 Compartment CPET Tray Specifications

Item	Typical HSQY Options
Material	CPET, crystallized polyethylene terephthalate
Compartments	One uninterrupted food cavity
Capacity Range	Approximately 6 oz to 118 oz
Shapes	Round, rectangular and square
Colors	Black, white and blue; custom colors subject to review
Temperature Range	Selected grades: approximately -40°C to +220°C
Heating Methods	Qualified microwave and conventional oven use
Storage	Chilled, refrigerated and frozen applications
Sealing	CPET-compatible easy-peel, weld-seal and printed lidding films
Customization	Dimensions, depth, capacity, color, logo, film and export packing

Why Choose a Single-Compartment CPET Tray?

Maximum usable area: One continuous cavity accommodates large food items and mixed dishes.
Simpler filling: Fillers do not need to divide ingredients between multiple sections.
Flexible recipes: Suitable for pasta, rice, curry, casseroles, meat dishes, desserts and bakery products.
Heating development: One cavity can simplify heating validation compared with meals containing several different food densities.
Efficient tooling: Single-cavity geometry can simplify filling nozzles, sealing dies and inspection systems.
Wide capacity range: Small airline portions, standard meals, family packs and bulk catering formats are available.

1CP vs 2CP and 3CP CPET Trays

Selection Factor	1CP Tray	2CP Tray	3CP Tray
Food Layout	One open cavity	Main dish and one side	Protein, starch and vegetables
Usable Capacity	Usually maximizes space	One divider uses part of the volume	Multiple dividers use more volume
Filling	Simpler and faster	Two controlled portions	Three controlled portions
Heating	Often easier to optimize	Foods may heat differently	Greater uneven-heating risk
Best Fit	Pasta, curry, casseroles and pies	Entrée plus side	Complete portion-controlled meals

Applications of 1CP CPET Trays

Ready Meal and Frozen Food Packaging

Supermarket chilled ready meals
Frozen pasta, rice and meat dishes
Freezer-to-oven entrées
Meal-prep and diet-meal programs
Family-size casseroles and bulk portions

Airline, Railway and Institutional Catering

In-flight meals and side dishes
Railway catering meals
Hospital and healthcare meals
School and university meals
Meals on Wheels and community catering

Bakery and Oven-Ready Food

Pies, cakes and baked desserts
Lasagna and pasta bakes
Baked rice and gratin dishes
Bake-in-pack and reheat-in-pack applications after testing

How to Select the Correct Capacity and Depth

Nominal ounces are comparison values, not the final usable fill volume. Food density, sauce level, headspace, flange clearance and heating instructions determine the correct tray.

Record meal weight: Include minimum, target and maximum portions.
Measure food volume: Equal weights of rice, vegetables and sauce occupy different volumes.
Define headspace: Leave room for sealing, steam and transportation.
Check food shape: Whole meat portions and casseroles use the cavity differently.
Protect the flange: Keep oil, food and sauce away from the seal area.
Validate heating: Deep trays and large portions may require longer heating.
Confirm equipment fit: Check fillers, sealing tools, cartons, ovens and retail shelves.

Freezer-to-Oven and Microwave Performance

Selected HSQY models are published for approximately -40°C to +220°C. This material range is not an unrestricted consumer instruction. The final process must define the tray, food, storage condition, heating equipment, power or temperature and maximum time.

Use the actual food recipe and fill weight.
Include oil, sugar, salt, acid and alcohol content.
Test the longest frozen storage period.
Run the actual microwave or oven instruction.
Inspect the base, corners and flange for distortion.
Measure food center temperature and heating uniformity.
Confirm safe handling immediately after heating.

Can CPET Trays Be Used Under a Grill or Open Flame?

No. CPET trays should not contact open flames, broiler elements or uncontrolled radiant heat. Maintain the required distance from heating elements.

Can the Lidding Film Stay on During Heating?

Only when the exact film is designed and validated for the heating process. Some films must be removed, pierced or vented before use.

CPET Lidding Film and Heat-Sealing Compatibility

HSQY supplies related sealing film for CPET ovenable trays. The tray, lidding film and sealing machine must be tested as one packaging system.

Film Requirement	Function	Validation
Sealant Compatibility	Bonds to the CPET flange	Seal initiation and operating window
Easy Peel	Controlled consumer opening	Average and peak peel force
Weld Seal	Higher seal retention	Opening method and integrity
Ovenable Film	Stays attached during defined heating	Venting, shrinkage and seal stability
Anti-Fog Film	Maintains chilled product visibility	Condensation after cooling and storage
Printed Film	Branding, instructions and traceability	Ink, registration and barcode readability

How to Build a Reliable Sealing Window

Confirm the exact tray mold, color, weight and flange dimensions.
Select the required easy-peel or weld-seal film.
Inspect the flange for food, oil, sauce, scratches and distortion.
Adjust temperature, pressure and dwell time systematically.
Measure seal strength after chilling, freezing, transport and heating.
Use an approved package-integrity or leak test.
Validate the settings at the intended commercial line speed.

Can 1CP CPET Trays Be Used with MAP?

Some CPET trays can be integrated into modified atmosphere packaging, but CPET does not automatically mean high gas barrier. A MAP-ready package requires a tray, lidding film and seal that meet the oxygen-transmission and gas-retention specification.

Define the food, gas mixture, residual oxygen, headspace, target shelf life, storage temperature, OTR and integrity test. Shelf life must be established using the actual food and cold-chain process.

Automatic Filling and Tray-Sealing Line Compatibility

Denesting: Confirm trays separate without double picks or jams.
Conveyor stability: Check base geometry and guide-rail alignment.
Filling accuracy: Control portion weight, splash and headspace.
Tooling fit: Verify flange dimensions, corner radii and cutting profile.
Film tracking: Validate tension, registration and cut accuracy.
Cycle speed: Confirm stable seal quality at commercial throughput.

1CP CPET vs Other Food Tray Materials

Material	Heating and Storage	Main Advantage	Limitation
CPET	Qualified freezer, microwave and oven use	Dual-ovenable performance and rigidity	Variable recycling access
PP	Microwave and freezer applications	Low weight and cost efficiency	Lower typical oven-temperature range
APET	Cold and ambient packaging	Clear product visibility	Not intended for high-temperature oven use
Aluminum	Strong conventional oven performance	Fast heat transfer	Generally unsuitable for standard microwaves
Ovenable Fiber	Depends on board and coating	Paper-based presentation	Barrier and seal depend on coatings

Food-Contact Safety, Recycling and Sustainability

Food-contact suitability must be confirmed for the exact CPET resin, pigment, recycled-content level, lidding film and intended heating conditions. Request documentation for the final tray model and destination market rather than relying on a general statement about CPET.

CPET is PET-based and may contain recycled PET where the formulation and food-contact rules permit it. Actual recyclability depends on whether local systems accept opaque or crystallized PET trays. Color, labels, film, adhesives and food residue affect recovery.

Customization and Quality Control

HSQY can evaluate custom dimensions, depth, capacity, shapes, colors, embossed logos, printed lidding films and private-label export packing.

Tray dimensions, flange width and cavity geometry
Individual tray weight and material distribution
Crystallization and heat resistance
Frozen impact and thermal shock
Top-load compression and stacking
Nesting and denesting consistency
Flange flatness, seal strength and package integrity
Microwave and conventional oven performance
Case pack, carton strength and batch traceability

Common Problems and Corrective Actions

Problem	Possible Cause	Recommended Check
Tray warps	Excessive heat, hot oil or uneven food load	Test the maximum final heating cycle
Film peels off	Weak seal, contamination or wrong sealant	Rebuild the sealing window
Sauce leaks	Overfilling, channel leak or corner damage	Set a fill line and test after vibration
Uneven heating	Food is too deep, dense or unevenly placed	Adjust depth, placement and heating instructions
Frozen cracking	Cold impact or thin corners	Run frozen-drop and thermal-shock tests
Denesting jams	Static, compression or dimensional variation	Review mold, packing and line setup

Why Choose HSQY for 1 Compartment CPET Trays?

Capacity range from approximately 6 oz to 118 oz
Round, rectangular and square designs
White, black and blue options
Compact airline, standard ready-meal and large catering models
Dual-ovenable grades for validated freezer-to-oven use
Matching CPET lidding-film support
Custom size, depth, color, logo and mold development
Sample support for filling, sealing, freezing, transport and reheating tests

FAQ About 1 Compartment CPET Trays

What is a 1 compartment CPET tray?

It is a crystallized PET food tray with one uninterrupted cavity for single-dish meals, bakery products, ready meals and family-size food.

What capacities does HSQY offer?

The current category includes representative products from approximately 6 oz to 118 oz.

What shapes and colors are available?

HSQY lists round, rectangular and square trays in black, white and blue. Custom colors can be evaluated.

Are 1CP CPET trays oven-safe?

Selected models are dual-ovenable under validated conditions. The tray, food and heating process must be tested together.

Are 1CP CPET trays microwave-safe?

Qualified trays can be microwave reheated. Test the actual food because oil, sugar and uneven portions can create hot spots.

Can 1CP CPET trays go from freezer to oven?

Selected trays support freezer-to-oven workflows after thermal-shock testing with the actual meal and oven program.

What temperature can CPET trays withstand?

Selected HSQY models are published from approximately -40°C to +220°C, but approved time and temperature depend on the application.

Can the lidding film remain on during heating?

Only when the film is designed and validated for that instruction. Some films must be removed, pierced or vented first.

Can 1CP trays be sealed with easy-peel film?

Yes. Use a CPET-compatible film and validate seal temperature, pressure, dwell time and peel force.

Are sealed CPET trays leakproof?

Leak resistance depends on the tray flange, film, seal and handling. The tray alone cannot guarantee a leakproof package.

Can 1CP CPET trays be used for MAP?

Some can, but the tray, film and seal must meet the required barrier and package-integrity specification.

What foods are suitable for 1CP trays?

Typical foods include pasta, rice, curry, casseroles, meat dishes, baked meals, desserts, airline meals and family portions.

How do I choose the right capacity?

Use the actual food weight and volume, headspace, tray depth and heating method rather than nominal ounces alone.

What is the difference between 1CP and 2CP?

A 1CP tray has one open cavity, while a 2CP tray separates a main dish and one side dish.

What is the difference between CPET and PP?

CPET generally supports higher conventional oven temperatures, while PP is commonly selected for microwave and lower-temperature uses.

What is the difference between CPET and APET?

CPET is crystallized for heat resistance, while APET is mainly used for cold and ambient clear packaging.

Can raw food be baked in a CPET tray?

Some trays support bake-in-pack applications, but expansion, temperature, time and food release must be validated.

Can CPET trays be used under a grill?

No general grill or open-flame suitability should be claimed. Keep trays away from exposed heating elements.

Can HSQY customize a 1CP tray?

Yes. HSQY can evaluate custom dimensions, depth, capacity, color, embossing, lidding film and packing.

Are CPET trays recyclable?

They may be recyclable where local systems accept opaque or crystallized PET trays. Actual acceptance varies by market.

What is the typical MOQ?

Many HSQY product headers list 50,000 pieces, but selected detailed pages show other quantities. Confirm the exact model and quotation unit.

Can I request samples?

Yes. Test samples with the actual food, film, sealing machine, storage cycle, distribution and reheating process.

Request Samples and Wholesale Pricing

Provide the tray size, required capacity, food application, storage and heating process, lidding film, sealing equipment, quantity, packing, destination market and compliance requirements.
