HSQY Embossed Soundproof Polycarbonate Sheet

Embossed Polycarbonate Noise Barrier Sheet Manufacturer

HSQY embossed polycarbonate noise barrier sheet is a durable, impact-resistant and UV-resistant solid PC panel designed for highway noise barriers, railway sound barriers, urban elevated roads, tunnels and residential acoustic barrier systems.

Available in 6mm, 8mm, 10mm and 12mm thicknesses, HSQY polycarbonate sound barrier sheets provide sound reduction values of up to approximately 34 dB according to current product specifications. Clear, lake blue, green, brown and customized colors are available, together with glossy, matte and embossed surface options.

Compared with conventional glass panels, solid polycarbonate offers high impact resistance and lower weight, making it suitable for outdoor infrastructure projects where safety, visibility, weather resistance and easier installation are important.

Request a Noise Barrier Sheet Quote

Quick Answer: What Is an Embossed Polycarbonate Noise Barrier Sheet?

An embossed polycarbonate noise barrier sheet is a solid PC panel used as a transparent or translucent component in acoustic barrier systems. It combines the impact resistance of polycarbonate with an embossed surface that can diffuse transmitted light, reduce direct glare and provide increased visual privacy.

The acoustic performance of a complete noise barrier depends on sheet thickness, panel dimensions, supporting structure, sealing, installation and overall barrier design. Embossing mainly changes the sheet surface and optical appearance rather than acting as the primary source of sound insulation.

Embossed Polycarbonate Soundproof Sheet Video

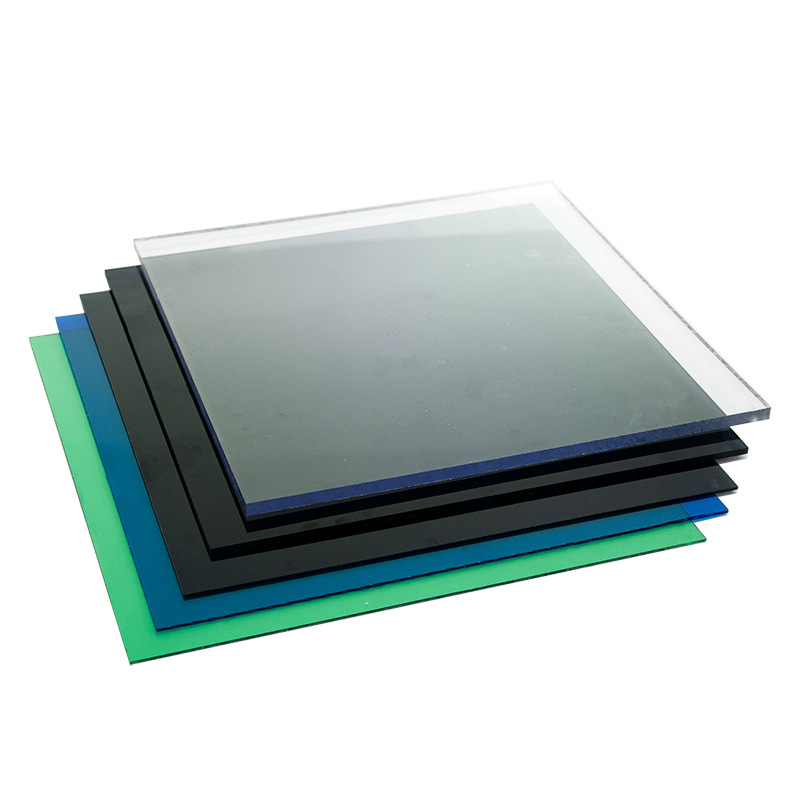

Polycarbonate Noise Barrier Sheet Images

Polycarbonate Sound Barrier Sheet Specifications

HSQY supplies solid polycarbonate acoustic barrier sheets for transportation infrastructure and outdoor noise-control projects. The following specifications are based on the current product range.

Get Technical Specifications & Price

Sound Reduction Performance by Thickness

The following values are reference sound-reduction figures from the current HSQY product specification. Final field performance of a complete acoustic barrier can vary depending on framing, joints, seals, panel dimensions and installation conditions.

Key Advantages of Polycarbonate Noise Barrier Sheets

High Sound Insulation Potential

Solid polycarbonate panels can form the transparent sound-reflective element of highway, railway and urban acoustic barrier systems. Current HSQY specifications indicate approximately 29–34 dB sound reduction depending on sheet thickness.

High Impact Resistance

Polycarbonate is widely selected for transportation infrastructure because of its high impact strength. This reduces the risk of dangerous shattering compared with conventional glazing materials and makes PC panels suitable for exposed roadside and railway environments.

Transparent Noise Control

Clear and tinted polycarbonate noise barrier panels allow daylight and visual connection to remain while the barrier system helps control traffic or railway noise. Transparent panels are often selected for bridges, elevated roads, scenic routes and locations where a fully opaque barrier is undesirable.

UV and Weather Resistance

UV-protected polycarbonate sheets are designed for long-term exterior exposure. Suitable UV protection helps reduce premature yellowing and degradation caused by sunlight and supports outdoor highway, railway and municipal applications.

Lightweight Compared with Glass

Polycarbonate has substantially lower weight than conventional glass panels of comparable size. Lower panel weight can simplify transportation, lifting and installation while reducing the load on the supporting noise-barrier structure.

Embossed, Matte and Glossy Surface Options

HSQY provides embossed, matte and glossy surface options. Glossy panels maximize visual clarity, while embossed or matte surfaces can diffuse light, reduce direct glare and provide additional visual privacy depending on project requirements.

Custom Colors and Dimensions

Clear, lake blue, green, brown and customized colors are available. Width, thickness, surface treatment and other specifications can be discussed for infrastructure contractors, engineering companies and project-based procurement.

Applications of Polycarbonate Acoustic Barrier Sheets

Highway Noise Barriers

Transparent polycarbonate sheets can be installed as part of highway and expressway noise-barrier systems to control traffic noise while preserving visibility and daylight along the roadway.

Railway and High-Speed Rail Sound Barriers

Solid PC panels are suitable for railway, metro and rail-corridor noise-control projects where impact resistance, outdoor durability and transparency are required.

Urban Elevated Roads and Bridges

Polycarbonate acoustic barrier panels can help limit road noise reaching nearby residential and commercial areas while avoiding the enclosed visual effect created by fully opaque barriers.

Tunnel and Infrastructure Projects

Depending on engineering design requirements, solid PC sheets can be incorporated into tunnel entrances, transport corridors and other infrastructure acoustic-control systems.

Residential and Municipal Noise Barriers

Noise-barrier panels can also be used between transportation routes and residential areas, schools, hospitals, public facilities and commercial districts where visibility and noise control are both required.

Polycarbonate Noise Barrier Application Examples

Embossed vs Glossy Polycarbonate Noise Barrier Sheet

How to Choose a Polycarbonate Noise Barrier Sheet

1. Confirm the Required Acoustic Performance

Start with the acoustic specification required by the project. The required sheet thickness should be selected together with the supporting frame, sealing system and complete barrier design.

2. Select the Sheet Thickness

HSQY currently offers 6mm, 8mm, 10mm and 12mm sheets. Thicker sheets generally provide greater mass and higher reference sound-reduction values, but structural loads, panel dimensions and project specifications should also be considered.

3. Choose Clear, Tinted or Custom Color

Clear panels are preferred when maximum visibility is required. Lake blue, green, brown and customized tints can help meet architectural, landscape or municipal design requirements.

4. Choose Glossy, Matte or Embossed Surface

Select glossy sheet when clarity is the priority. Choose embossed or matte surfaces when the project requires diffused light, lower direct glare or greater visual privacy.

5. Specify Outdoor UV Requirements

Highway, railway and municipal noise barriers are exposed to sunlight for long periods. Specify the required UV-protection configuration when requesting a quotation.

6. Provide Engineering and Project Details

For an accurate quotation, provide thickness, width, length, surface, color, quantity, acoustic requirement, application, destination country and any project-specific technical standards.

Send Your Project Requirements

Information Needed for a Project Quotation

To help HSQY recommend the appropriate polycarbonate noise barrier sheet and prepare a quotation, please provide the following information:

• Required sheet thickness: 6mm, 8mm, 10mm or 12mm

• Panel width and length

• Clear, lake blue, green, brown or custom color

• Glossy, matte or embossed surface

• Required acoustic or sound-reduction specification

• Required UV and outdoor-weathering performance

• Project type: highway, railway, metro, tunnel or residential

• Estimated order quantity

• Destination country or port

• Any required project standards, test reports or documentation

Certifications

HSQY provides product and company certification information to support international buyers and project evaluation. Please contact our team if your project requires specific test reports or certification documents.

HSQY Global Exhibitions

HSQY participates in international exhibitions to meet distributors, engineering companies, contractors and industrial buyers and discuss polycarbonate sheet applications and project requirements.

Embossed Polycarbonate Noise Barrier Sheet FAQ

How much noise can a polycarbonate noise barrier sheet reduce?

HSQY's current product specifications list reference sound-reduction values of approximately 29 dB for 6mm, 31 dB for 8mm, 32 dB for 10mm and 34 dB for 12mm sheets. Actual performance of the installed barrier depends on the complete system design, framing, joints and sealing.

Does an embossed surface make polycarbonate more soundproof?

The embossed surface mainly affects light diffusion, glare, privacy and appearance. Acoustic performance is primarily influenced by sheet thickness, mass and the construction of the complete noise-barrier system.

What thickness is best for a highway noise barrier?

HSQY offers 6mm, 8mm, 10mm and 12mm options. The correct thickness depends on the required acoustic rating, panel dimensions, wind load, supporting structure and engineering specification. Higher thicknesses generally provide higher reference sound-reduction values.

Can polycarbonate sheets be used for transparent highway noise barriers?

Yes. Clear solid polycarbonate panels are commonly used in transparent noise-barrier systems where project designers want to maintain visibility and daylight while controlling road or railway noise.

Is polycarbonate suitable for railway noise barriers?

Yes. Its impact resistance, relatively low weight, transparency and outdoor durability make solid polycarbonate suitable for many railway, metro and transportation acoustic-barrier projects when specified and installed according to the project engineering requirements.

Is UV protection required for outdoor noise barriers?

UV-protected polycarbonate is recommended for long-term exterior applications such as highways, railways and bridges. Suitable UV protection helps reduce yellowing and weather-related degradation caused by extended sunlight exposure.

What colors are available for polycarbonate sound barrier sheets?

Standard options include clear, lake blue, green and brown. Custom colors can be discussed for project orders according to quantity and specification requirements.

What is the maximum available width?

The current product specification supports widths up to approximately 1200mm. Contact HSQY with your required panel dimensions for confirmation and customization options.

Can HSQY provide custom embossed patterns and colors?

Custom surface, color and dimensional requirements can be discussed according to the project specification and order quantity. Provide your drawings, samples or detailed technical requirements when requesting a quotation.

Are samples available before a bulk order?

Sample support is available subject to specification and availability. Please provide the required thickness, color, surface type and intended application when requesting samples.

How do I request a quotation for a noise barrier project?

Send HSQY your required thickness, panel dimensions, surface, color, quantity, acoustic specification, application, project standards and destination country. Our team can then review the requirements and prepare a suitable quotation.

Why Choose HSQY Polycarbonate Noise Barrier Sheets?

HSQY supplies polycarbonate sheets for construction, transportation and industrial applications. For noise-barrier projects, we can support multiple thicknesses, colors, surface finishes and project-specific dimensions for distributors, contractors and engineering buyers.

Whether your project requires transparent highway noise barriers, railway acoustic panels, embossed PC sheets or customized sound-barrier panels, send us your technical requirements for evaluation and quotation.
