HSQY Heat Sealing Film 200mm For CPET Meal Trays

This sealing film is designed specifically for HSQY cpet trays, it can be used with all suitably sized cpet food trays. Please contact us directly before ordering to confirm the film is compatible for your trays.

Brand:
HSQY
Product Type:
Tray sealing film
Size:
W 200mm x L 500 Meters
Colour:
Clear

Availability:



Inquiry

Description

Description

200mm Tray Sealing Film Overview Video

What Is 200mm Tray Sealing Film?

200mm tray sealing film is rollstock lidding film slit to a nominal width of 200mm for compatible tray-sealing machines and mold layouts. It is commonly used with CPET ready-meal trays, bakery trays, airline-meal trays, institutional catering packs, and other prepared-food containers.

The current product is described as a PET/PE laminate in a standard 200mm × 500m roll. The PET or BOPET outer layer provides strength, clarity, dimensional stability, puncture resistance, and printability. The inner sealing layer must be selected to match the actual tray flange.

A 200mm roll width does not mean the film fits every tray with a dimension below 200mm. The required width depends on tray orientation, flange dimensions, mold cavities, film tracking, cutting clearance, registration marks, and the tray-sealer unwind system.

Tray Sealing Film Images

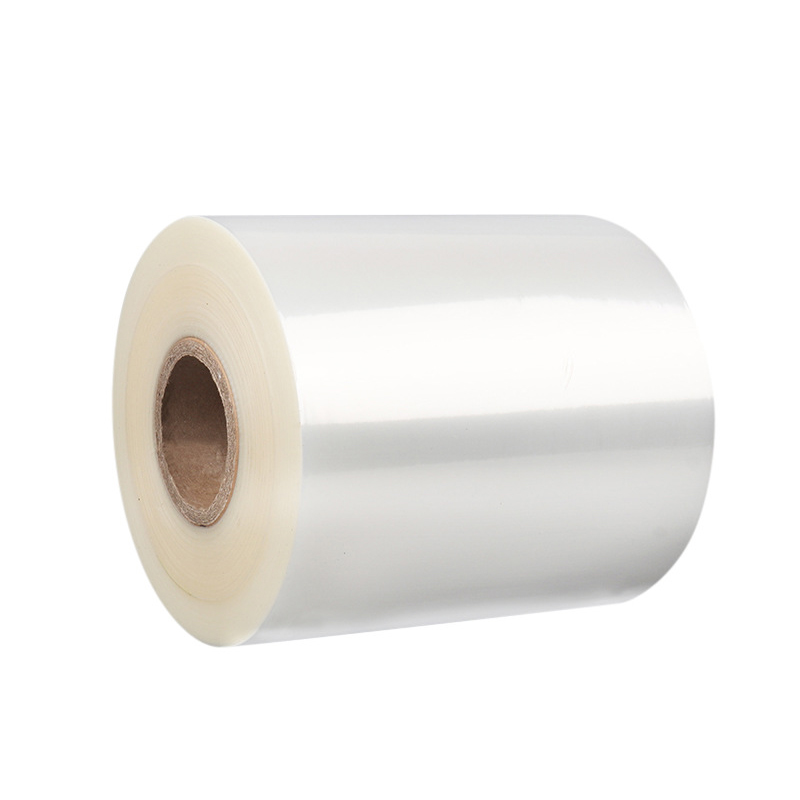

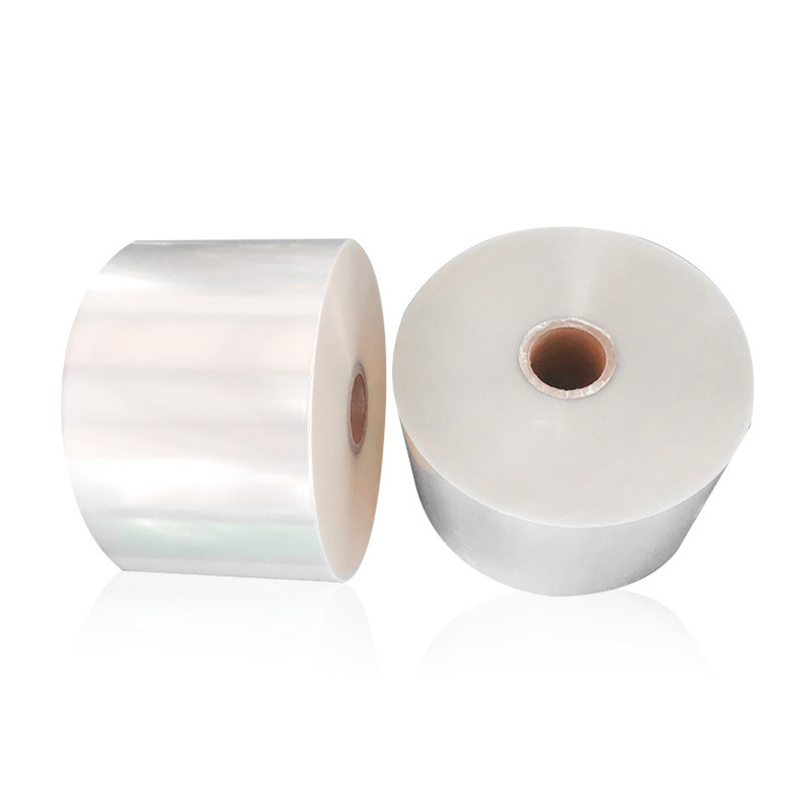

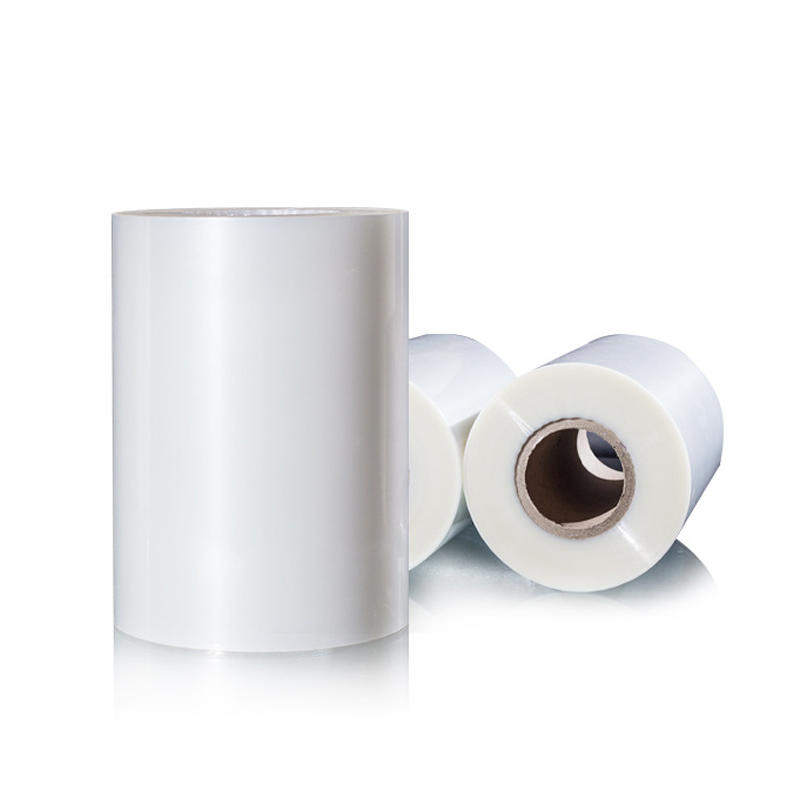

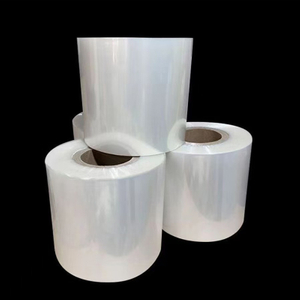

200mm PET PE tray sealing film roll 200mm Film Roll

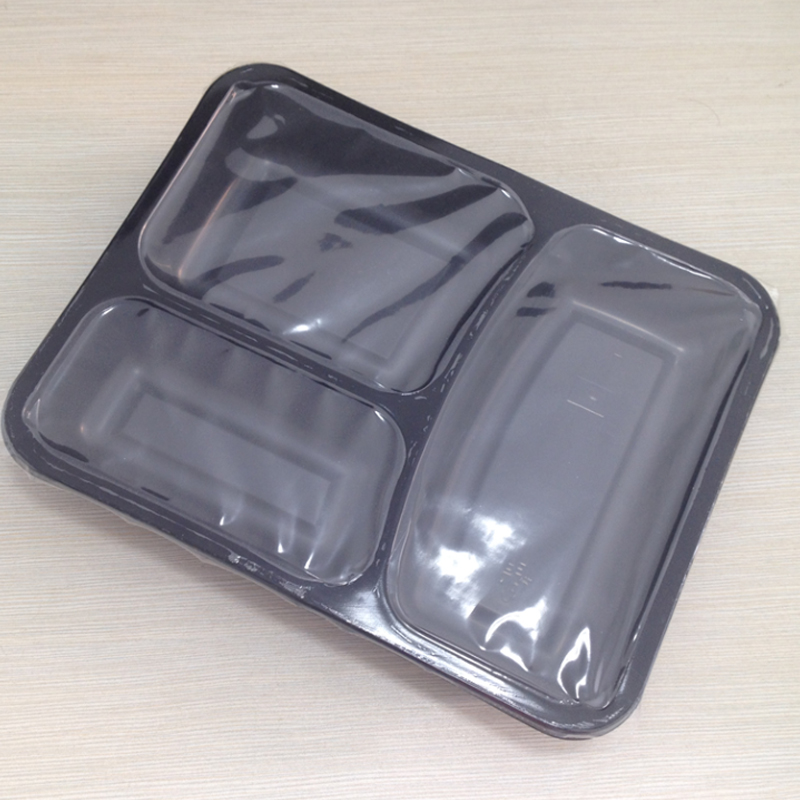

Compatible CPET food tray sealed with lidding film Sealed CPET Food Tray

Optional anti-fog 200mm tray sealing film for chilled food Optional Anti-Fog Clarity

Tray Sealing Film Data Sheets

Download the available product documents below. Confirm that the data sheet and test report apply to the exact film structure, tray material, seal type, thermal grade, thickness, and intended use.

PDF icon for tray sealing film data sheet Download Tray Sealing Film Data Sheet

PDF icon for tray sealing film test report Download Tray Sealing Film Test Report

Why Choose a 200mm Sealing Film Roll?

Defined machine width: A 200mm roll can match selected compact tray sealers and single- or multi-cavity tools.
500m standard length: Supports production planning, roll changes, and predictable material consumption.
Custom film structure: Coated PET, BOPET/PE, PET/PE, or another qualified structure can be selected according to the tray.
Easy-peel or lock-seal options: Choose consumer-friendly opening or a stronger permanent closure.
Optional anti-fog: Supports clearer refrigerated presentation for ready meals and products packed while warm.
Custom printing: Logos, meal names, cooking instructions, barcodes, QR codes, and date-code areas can be added.
Application-specific thermal grades: Selected films can be developed for freezing, microwave use, conventional ovens, or dual-ovenable systems.
Machine-trial support: Roll configuration and sealing conditions can be checked using the actual tray and equipment.

How the Film Structure Should Be Selected

Film Component	Primary Function	Selection Requirement
PET / BOPET Outer Layer	Provides clarity, tensile strength, dimensional stability, puncture resistance, and printability.	Confirm thickness, haze, gloss, shrinkage, printing, and required heating performance.
Laminating Adhesive or Primer	Bonds functional layers and maintains package integrity.	Confirm food-contact status, cure time, bond strength, odor, migration, and thermal resistance.
Sealant or Heat-Seal Coating	Creates the bond to the tray flange and controls peel or lock-seal behavior.	Match the exact CPET, APET, PET/PE, PP, or other sealing surface.
Optional Anti-Fog Layer	Spreads condensed moisture into a thinner transparent layer.	Specify anti-fog side, storage temperature, humidity, duration, and acceptance method.
Optional Barrier Layer	Reduces oxygen, moisture, aroma, or MAP gas transmission.	Specify OTR, WVTR, gas mixture, food type, and target shelf life.
Printing System	Adds branding, cooking instructions, identification, and traceability.	Select inks and adhesives compatible with the intended storage and heating cycle.

200mm Tray Sealing Film Specifications

The current page lists a wide application range. The table below retains those commercial values while clarifying that thermal, sealing, anti-fog, and barrier performance depend on the selected grade.

Property	Standard or Available Option	Selection Note
Product Name	200mm tray sealing film	Rollstock for compatible food-tray sealing equipment
Standard Structure	PET/PE laminate	Coated PET, BOPET/PE, PET/PE, and application-specific structures may be evaluated
Standard Width	200mm	Confirm actual roll-width tolerance
Custom Width Range	150–280mm	Custom slit width according to mold layout and machine limits
Thickness	0.05–0.10mm	Equivalent to approximately 50–100μm; confirm tolerance
Standard Roll Length	500m	Custom length depends on thickness, width, roll weight, core, and outer diameter
Color	Clear or custom printed	Confirm haze, gloss, print coverage, transparent windows, and eye marks
Seal Type	Easy peel, controlled peel, heat-release peel, or lock seal by grade	Do not assume all options are provided by one film
Anti-Fog	Optional	Specify test temperature, humidity, duration, and anti-fog side
Thermal Range	Selected application grades may be developed for approximately -40°C to +200°C	This is not a universal rating for every PET/PE film
Microwave Use	Available only with a validated microwave-grade film	Confirm whether the lid remains on, is pierced, vented, peeled back, or removed
Conventional Oven Use	Available only with a validated ovenable grade and compatible tray	Confirm maximum temperature, time, food load, and instructions
Freezer Use	Available only with a validated low-temperature grade	Test impact, puncture, seal retention, stacking, thawing, and peel behavior
Standard Barrier	General product protection	Do not claim MAP or high barrier without OTR and WVTR data
High Barrier	Optional EVOH or other barrier structure	Validate the complete tray-and-film package
Printing	Custom flexographic or gravure printing available	Confirm artwork, color count, repeat, eye mark, and thermal exposure
MOQ	1000kg	Trial quantities depend on available material, structure, width, printing, and specification
Lead Time	10–15 days after specification approval and deposit	Special thermal, barrier, or printed grades may require more time

What Does the -40°C to +200°C Range Mean?

The listed range should be treated as a portfolio-level reference for selected application-specific grades, not as a universal rating for every 200mm PET/PE roll.

Application	Film Requirement	Validation Required
Chilled Storage	Seal integrity, clarity, optional anti-fog, and stable peel force.	Refrigerated storage, condensation, handling, leakage, and shelf-life testing.
Frozen Storage	Low-temperature flexibility, puncture resistance, and seal retention.	Freezing, stacking, transport impact, thawing, and post-freeze peel tests.
Microwave Reheating	Microwave-grade film with clear venting, piercing, removal, or peel-back instructions.	Food temperature, steam pressure, package deformation, opening, and migration testing.
Conventional Oven	Ovenable PET-based or other qualified film with a compatible CPET tray.	Maximum temperature, cooking time, food oils, inks, adhesive, seal, shrinkage, and opening tests.
Dual-Ovenable Use	Film and tray validated for both microwave and conventional-oven use.	Separate microwave and oven cycles plus complete consumer instructions.

Can PET/PE Film Really Withstand 200°C?

A generic BOPET/PE or PET/PE laminate should not automatically be described as ovenable to 200°C. The PET outer layer may tolerate elevated temperature, while the PE sealant, adhesive, inks, coatings, tray flange, and complete package may have different limitations.

For conventional-oven applications, use only the exact structure that has been validated for the specified CPET tray, food product, maximum temperature, cooking time, sealing parameters, and whether the film remains attached during heating.

Tray Material Compatibility

Tray Material	Compatibility Guidance	Recommended Film Approach
CPET	Primary target for ready meals and bakery applications, but tray formulations and flange surfaces vary.	Use a CPET-compatible coated PET or qualified laminate; validate the thermal cycle separately.
APET / rPET	Often used for chilled foods and products not intended for conventional-oven heating.	Use a PET-compatible easy-peel or lock-seal grade after tray testing.
PET/PE or PET/EVOH/PE	The outside PE sealing surface can require a PE-compatible sealant.	Use BOPET/PE, PET/PE, or another qualified PE-seal grade.
PP / PP-EVOH-PP	A PP flange normally requires a PP-compatible sealing layer.	Use BOPET/CPP, EVOH/PP, or a qualified universal sealant.
PS / HIPS	Requires a PS-compatible coating or sealant.	Test the actual tray for seal strength, clean peel, and stress resistance.

Film compatibility is controlled by the actual tray sealing surface, not only the tray’s generic material name. Recycled content, coatings, pigments, slip agents, and flange condition can change sealing behavior.

Easy Peel, Lock Seal, and Heat-Release Peel

Seal Type	Opening Behavior	Typical Application
Easy Peel	Opens manually with controlled force and reduced tearing or tray damage.	Consumer ready meals, airline meals, chilled meals, and institutional catering.
Lock Seal / Weld Seal	Forms a stronger permanent closure and may require cutting or puncturing.	Liquid foods, tamper-evident packs, transport-sensitive products, and food service.
Heat-Release Peel	Maintains a secure cold seal and becomes easier to remove after a validated heating cycle.	Frozen or chilled meals designed to be peeled after microwave or oven reheating.

How to Confirm the Correct 200mm Roll Width

Measure the full mold and tray layout in the film-travel direction and across the web.
Confirm whether the tray is loaded lengthwise or crosswise.
Include both tray flanges and the required cutting margin.
Allow sufficient edge margin for stable film tracking.
Confirm whether printed film requires eye-mark and registration space.
Check the machine’s minimum and maximum film width.
Confirm core inside diameter, roll outside diameter, roll weight, and unwind direction.
Run a trial roll before approving high-volume production.

Tray-Sealing Machine Compatibility

Provide the machine manufacturer and model, manual or automatic operation, mold layout, cavity count, film width, core inside diameter, maximum roll outer diameter, roll weight, unwind direction, seal side, cutting method, eye-mark sensor, MAP function, production speed, temperature, pressure, and dwell time.

A 200mm roll should be tested for web tracking, film tension, cutting position, seal continuity, wrinkles, seal strength, peel behavior, tray distortion, anti-fog performance, and printed-film registration.

How to Establish the Sealing Window

The sealing window is the range of temperature, pressure, and dwell time that produces an acceptable seal without damaging the film or tray. Production trials should identify:

Minimum seal-initiation temperature
Maximum temperature before film or tray distortion
Minimum effective dwell time
Required sealing pressure
Seal strength immediately after sealing
Peel force after chilling, freezing, or reheating
Performance on clean and contaminated tray flanges
Consistency across every mold cavity and tray corner

Seal Integrity and Leak Testing

Potential Failure	Common Cause	Recommended Test or Correction
Incomplete Seal	Low heat, insufficient pressure or dwell time, uneven tooling, or incompatible sealant.	Build a seal-window matrix and inspect all mold cavities.
Channel Leak	Wrinkles, food particles, oil, sauce, moisture, damaged flange, or non-uniform pressure.	Use vacuum, pressure-decay, dye, or bubble testing with contaminated-flange trials.
Film Tearing	Excessive seal strength, unsuitable thickness, poor peel-tab design, or damaged film.	Measure peel force and review the tray and film structure.
Tray Distortion	Excessive temperature, long dwell time, high pressure, or inadequate tray stiffness.	Reduce thermal and mechanical load or select a more suitable tray and film.
Delamination	Insufficient adhesive cure, excessive heat, incompatible layers, or storage problems.	Verify lamination bond strength before and after thermal testing.

Anti-Fog, Barrier, and Printed Options

Optional Feature	Primary Benefit	Specification Needed
Anti-Fog	Helps maintain visibility by spreading condensed moisture into a thinner transparent layer.	Anti-fog side, food temperature, storage temperature, humidity, duration, and visual acceptance.
High Barrier	Reduces oxygen ingress and MAP gas loss using EVOH or another barrier structure.	OTR, WVTR, gas mixture, target shelf life, and complete tray barrier.
Custom Printing	Adds branding, cooking instructions, barcodes, QR codes, nutritional information, and traceability.	Artwork, colors, print repeat, eye mark, winding, and heating exposure.
Perforation or Venting	Supports steam release, produce respiration, or controlled package pressure.	Hole size, pattern, open area, location, and package process.

Recyclability Considerations

A PET/PE laminate contains more than one polymer family and should not automatically be described as recyclable in every market. Recyclability depends on the complete structure, layer proportions, adhesive, inks, coatings, tray material, labels, food residue, collection rules, and local infrastructure.

Where recyclability is a key requirement, compare the existing laminate with a qualified mono-PET, PE-dominant, PP-dominant, or other design-for-recycling solution that remains compatible with the tray and required thermal process.

Typical Applications

Chilled and frozen ready meals
Airline meals and railway catering
Institutional catering and central-kitchen meals
Bakery products in CPET trays
Supermarket deli and prepared-food trays
Food-service, meal-delivery, and takeout packaging
Private-label retail meals with custom printed lids
Meals requiring a validated microwave, conventional-oven, or dual-ovenable package
MAP packaging using a separately specified high-barrier film and tray

Explore HSQY's CPET tray sealing film category and complete lidding film range.

Information Required for an Accurate Quotation

Tray manufacturer, product code, material, flange structure, drawing, or physical sample
Tray outside dimensions, flange width, depth, compartments, and loading orientation
Tray-sealing machine brand, model, mold layout, cavity count, and commercial line speed
Confirmed 200mm width or the required custom slit width
Film thickness, roll length, core inside diameter, maximum outer diameter, roll weight, and winding direction
Required easy peel, controlled peel, heat-release peel, or lock seal
Food type, filling temperature, oil, moisture, sauce, powder, and contamination risks
Chilled, frozen, microwave, conventional-oven, dual-ovenable, or removal-before-heating process
Maximum temperature, heating time, whether the lid remains on, and venting or piercing instructions
Anti-fog, OTR, WVTR, MAP gas mixture, printing, eye marks, perforation, or coding requirements
Required food-contact, migration, quality, barrier, thermal, and destination-market documents
Trial quantity, annual volume, delivery destination, and launch schedule

Request 200mm Film Samples and Pricing

Customization Services

Standard 200mm width and custom widths from 150mm to 280mm
Custom 0.05–0.10mm thickness and tolerance
Custom roll length, core, roll weight, maximum outer diameter, and unwind direction
CPET-, APET-, PET/PE-, PP-, PS-, or application-specific sealing structures
Easy-peel, controlled-peel, heat-release, and lock-seal grades
Anti-fog, high-barrier, MAP, freezer, microwave, and ovenable development
Flexographic or gravure printing for branding, instructions, and traceability
Custom eye marks, print repeats, transparent windows, coding areas, perforation, and venting
Tray compatibility, sealing-window, peel-force, thermal-cycle, leak, and line trials
Custom cartons, roll labels, pallet marks, and international delivery

Production and Packaging Images

200mm tray sealing film production line Production Line

Precision winding for 200mm sealing film rolls Precision Winding

Export carton packaging for 200mm tray sealing film Carton Packaging

Quality and Compliance Documentation

HSQY can provide available quality-management, inspection, and material documentation for the approved film grade. Buyers should request the technical data sheet, certificate of analysis, food-contact declaration, migration or compliance reports, seal-strength or peel-force method, thermal test conditions, and roll inspection criteria.

ISO 9001 is a quality-management-system certification and should not be presented as product-specific food-contact approval. SGS or other compliance claims should identify the exact film structure, report number, tray, food type, temperature, duration, and intended conditions of use.

Quality and compliance documentation for 200mm tray sealing film

Global Exhibitions

2017 Shanghai Exhibition

2018 Shanghai Exhibition

2023 Saudi Exhibition

2023 American Exhibition

2024 Australian Exhibition

2024 American Exhibition

2024 Mexico Exhibition

2024 Paris Exhibition

Frequently Asked Questions About 200mm Tray Sealing Film

What is 200mm tray sealing film?

It is lidding-film rollstock slit to a nominal width of 200mm for compatible tray-sealing machines and mold layouts.

Does a 200mm film fit every tray below 200mm wide?

No. Fit depends on tray orientation, flange dimensions, mold cavities, tracking margin, cutting clearance, and the machine’s film path.

What is the standard roll length?

The current product uses a standard 500m roll. Custom length depends on thickness, width, core, roll weight, and machine limits.

What thicknesses are available?

The current page lists approximately 0.05–0.10mm, equivalent to 50–100μm.

Can 200mm sealing film be used with CPET trays?

Yes, when the sealing layer is compatible with the exact CPET flange. A physical tray sample and line trial are recommended.

Can the same film seal CPET, PP, and PET trays?

Not automatically. Different tray surfaces may require different seal coatings or sealant layers.

Is every 200mm PET/PE film oven-safe to 200°C?

No. Only a film specifically qualified with the exact CPET tray, food, temperature, time, and heating instructions should be used in a conventional oven.

Can the film be used in a microwave?

Selected microwave-grade films can be used after the complete package and venting, piercing, peel-back, or removal instructions have been validated.

Can the film remain on the tray during heating?

Some qualified grades can remain attached, while others must be removed, pierced, vented, or peeled back. Follow the approved package instructions.

Is the film freezer safe to -40°C?

Selected low-temperature grades may be developed for frozen distribution, but freezing, impact, stacking, seal retention, thawing, and peel performance must be tested.

What is the difference between easy peel and lock seal?

Easy-peel film opens with controlled manual force. Lock-seal film creates a stronger permanent closure and may require cutting or puncturing.

Is anti-fog available?

Yes. Anti-fog can be added for chilled foods where condensation may obscure the product.

Can the film be custom printed?

Yes. Printing can include logos, meal names, cooking instructions, barcodes, QR codes, and transparent viewing windows.

Is PET/PE tray sealing film recyclable?

It should not automatically be described as recyclable everywhere because PET and PE are different polymer families. Recyclability depends on the complete structure and local collection system.

Can I request samples before bulk production?

Yes, subject to material availability and specification. Provide the tray, machine details, thermal process, film dimensions, and required seal type.

About HSQY Plastic Group

HSQY Plastic Group supplies 200mm tray sealing film, other standard and custom-width CPET lidding films, CPET food trays, PET and PP trays, high-barrier films, anti-fog films, easy-peel films, plastic sheets, and related food-packaging products for international B2B customers.

The team can support tray compatibility, film-structure selection, roll conversion, easy-peel and lock-seal development, anti-fog and barrier requirements, thermal-cycle testing, printing, samples, production-line trials, quality documentation, export packing, and international delivery.

Contact HSQY for 200mm Tray Sealing Film
