How Are CPET Trays Made? Complete Manufacturing Process

How Are CPET Trays Made? Quick Answer

CPET trays are typically made through a combination of PET sheet extrusion, thermoforming, controlled crystallization, trimming, inspection, and packing. The process starts with a specially formulated PET resin system that may include crystallization-promoting additives, color masterbatch, and approved recycled PET where appropriate.

The PET material is first processed into a continuous sheet. The sheet is then reheated and formed into a heated mold using vacuum, pressure, or a combination of both. During the CPET thermoforming process, controlled heating promotes crystallization, which gives the finished tray significantly better heat resistance and dimensional stability than conventional amorphous PET trays.

After forming and crystallization, the trays are cooled, trimmed, inspected, stacked, and packed. Depending on the tray specification, manufacturers may also perform dimensional, sealing-rim, weight, appearance, impact, and temperature-resistance checks before shipment.

Manufacturing Step	Main Purpose
1. Material Preparation	Prepare PET resin, crystallization additives, color masterbatch, and other required materials
2. Sheet Extrusion	Produce a continuous PET sheet with controlled thickness and surface quality
3. Sheet Heating	Bring the sheet into the correct forming temperature window
4. Thermoforming	Form the heated sheet into the tray mold using vacuum and/or pressure
5. Crystallization	Develop the crystalline structure required for high-temperature dimensional stability
6. Cooling & Trimming	Stabilize the tray and remove excess sheet material
7. Quality Control	Inspect dimensions, weight, rim quality, appearance, and functional performance
8. Stacking & Packing	Prepare finished CPET trays for food manufacturers and packaging lines

       Request CPET Tray Pricing & Samples

What Is a CPET Tray?

CPET stands for Crystalline Polyethylene Terephthalate. It is a specialized form of PET engineered to develop a controlled crystalline structure during manufacturing.

The increased crystallinity provides the dimensional stability required for high-temperature food packaging. This is why CPET trays are widely used for frozen ready meals, airline meals, bakery products, prepared foods, institutional catering, and other applications that may need to move from freezer or refrigerator to microwave or conventional oven.

Depending on the specific CPET formulation and tray design, CPET food packaging can provide a wide service-temperature window. Some CPET tray systems are designed for conditions ranging from approximately -40°C to 220°C. Always follow the temperature and heating instructions specified for the individual tray.

Why Does Crystallization Matter in CPET Trays?

Crystallization is the most important difference between CPET and conventional amorphous PET packaging.

Standard APET packaging is valued for transparency and is widely used for cold and ambient-temperature applications. CPET is processed so that a greater portion of its polymer structure becomes crystalline. This crystalline structure significantly improves dimensional stability when exposed to elevated temperatures.

Because crystallization changes the way light passes through the material, conventional CPET trays are generally opaque rather than crystal clear. Black and white are among the most common CPET tray colors, although other colors can be developed according to formulation, application, and customer requirements.

CPET Tray Manufacturing Process Step by Step

Step 1: CPET Raw Material Selection and Preparation

Manufacturing begins with the selection of PET resin and the additives required to achieve the target CPET properties.

A CPET formulation may include PET resin, nucleating or crystallization-promoting masterbatch, color masterbatch, processing additives, and approved recycled PET depending on the tray design, regulatory requirements, and manufacturing system.

Material formulation is important because CPET must crystallize at a controlled rate during thermoforming. If the crystallization process is too slow, too fast, or uneven, tray appearance, forming accuracy, dimensional stability, and oven performance may be affected.

Step 2: Drying the PET Material

PET is sensitive to moisture during high-temperature processing. For this reason, the resin is normally conditioned and dried according to the material supplier's processing requirements before extrusion.

Proper material preparation helps maintain polymer quality and contributes to consistent sheet extrusion, mechanical performance, and surface quality.

Step 3: Extruding PET into CPET Thermoforming Sheet

The prepared PET formulation is fed into an extrusion system. Inside the extruder, the material is heated and converted into a controlled polymer melt.

The molten PET passes through a flat die to create a continuous sheet. The sheet then passes through controlled rollers that help regulate thickness, surface quality, cooling, and dimensional consistency.

Sheet quality is critical because variations in thickness can create inconsistent wall thickness after thermoforming. This may affect tray strength, rim flatness, sealing performance, material weight, and heating performance.

Step 4: Reheating the CPET Sheet

The extruded sheet is fed into a CPET thermoforming line and heated until it reaches the temperature range required for forming.

Temperature control across the entire sheet is important. Uneven heating can cause variations in material distribution, tray wall thickness, corners, compartments, and sealing flanges.

CPET thermoforming equipment typically requires a heating configuration capable of controlling both forming and crystallization conditions.

Step 5: Thermoforming the CPET Tray

Once the sheet reaches the required processing condition, it is positioned over or within a forming tool.

Vacuum, positive pressure, mechanical assistance, or a combination of forming techniques draws the heated material against the mold surface. The mold defines the final tray dimensions, compartments, corners, ribs, base geometry, and sealing flange.

Thermoforming allows manufacturers to produce single-compartment, two-compartment, three-compartment, rectangular, round, oval, airline, bakery, and customized CPET trays.

Step 6: Controlled Crystallization

During CPET thermoforming, heat and residence time are carefully controlled so that the PET develops the required level of crystallinity.

This is the stage that turns a thermoformed PET structure into a high-temperature CPET tray. Controlled crystallization enables the tray to retain its shape much more effectively during oven heating than conventional amorphous PET packaging.

The crystallization rate is influenced by the PET formulation, nucleating system, sheet properties, forming temperature, mold temperature, heating profile, and process time.

Step 7: Cooling and Dimensional Stabilization

After the required shape and crystalline structure have developed, the trays are cooled under controlled conditions.

Proper cooling helps stabilize dimensions and allows the trays to be removed from the mold without unacceptable distortion.

Step 8: Cutting and Trimming

The formed trays remain connected to surrounding sheet material after thermoforming. Cutting tools separate each tray and remove excess material.

Trimming accuracy is particularly important around the sealing flange. A consistent, flat flange helps the tray run reliably on automated filling and tray-sealing equipment.

Step 9: Inspection and Quality Control

Finished trays undergo quality-control checks according to the tray specification and intended application.

Inspection may include overall dimensions, tray depth, compartment dimensions, tray weight, flange flatness, appearance, stacking performance, wall distribution, mechanical integrity, temperature resistance, and sealing compatibility.

Step 10: Stacking, Counting and Packing

Approved CPET trays are stacked, counted, packed, and prepared for shipment.

Good denesting performance is important for customers using automatic tray feeding, filling, sealing, labeling, and ready-meal production lines.

What Types of Molds Are Used for CPET Trays?

The forming mold determines the basic geometry and many functional characteristics of a CPET tray.

Mold Type	Description
Single-Cavity Mold	Produces one tray position per forming area and may be useful for development or specific large formats
Multi-Cavity Mold	Forms multiple trays in each production cycle to improve manufacturing output
Custom Mold	Designed around a specific tray shape, capacity, compartment configuration, rim, or customer application

How Are Custom CPET Trays Designed?

Custom CPET tray development normally begins with the food product and packaging process rather than with the mold itself.

Important design parameters include tray capacity, overall dimensions, compartment layout, food weight, tray depth, heating method, oven temperature, microwave requirements, freezing conditions, filling-line equipment, sealing-film structure, denesting requirements, transportation conditions, and secondary packaging.

The rim or sealing flange is especially important. It must provide sufficient area and consistency for the selected lidding film and tray-sealing equipment.

       Discuss a Custom CPET Tray Project

CPET Tray Quality Control

CPET tray quality is not determined only by appearance. A tray must also perform correctly during stacking, food filling, sealing, refrigeration or freezing, transportation, reheating, and serving.

Defect Type	Possible Impact on Product Quality
Cracks or Splits	May reduce mechanical integrity and increase the risk of leakage or breakage
Uneven Wall Distribution	Can create weak areas and inconsistent heating performance
Uneven Sealing Flange	May reduce heat-seal consistency or cause leakage during packaging
Dimensional Variation	May cause problems with automatic denesting, filling, sealing, or secondary packaging
Poor Crystallization	May reduce dimensional stability during high-temperature use

How Is CPET Tray Temperature Resistance Tested?

Heat resistance is one of the critical performance characteristics of an ovenable CPET tray.

Testing conditions should reflect the intended application. Depending on the specification, trays may be evaluated after freezing, refrigeration, microwave reheating, conventional oven heating, or combinations of these conditions.

Manufacturers may evaluate dimensional stability, tray deformation, rim flatness, cracking, load-bearing performance, and other functional characteristics after thermal exposure.

Because tray geometry, weight, formulation, food load, and heating conditions affect performance, customers should follow the temperature and cooking parameters validated for the specific CPET tray rather than applying one universal temperature specification to every product.

How Are Lidding Films Applied to CPET Trays?

Lidding film is normally applied after the empty CPET tray reaches the food manufacturer or meal packer. The food is filled into the tray and a compatible film is heat-sealed to the tray flange using tray-sealing equipment.

Depending on the application, the lidding film may provide easy-peel performance, anti-fog properties, printed branding, puncture resistance, or additional oxygen and moisture barrier.

Lidding Film Benefit	Description
Food Protection	Helps protect the packed meal against external contamination
Shelf-Life Support	Suitable barrier films can help manage oxygen and moisture according to the food application
Leak Resistance	A properly matched tray, film, and sealing process can create a secure package
Easy-Peel Opening	Optional peelable structures can improve consumer convenience
Branding	Printed lidding films can carry product information and brand graphics

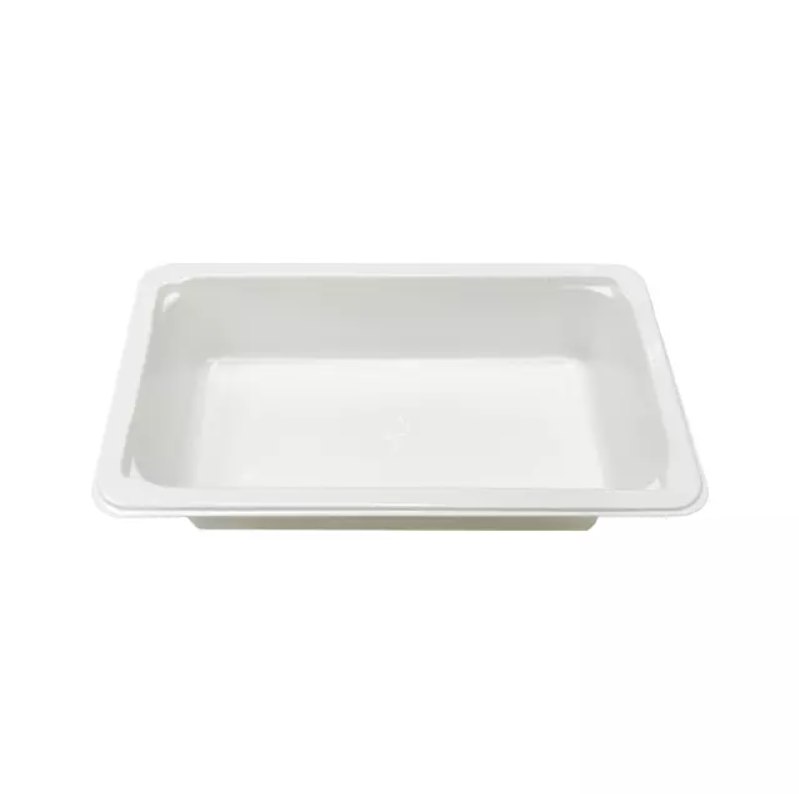

What Colors Are CPET Trays?

CPET trays are generally opaque because the controlled crystalline structure scatters light. Black and white are widely used commercial colors.

Black CPET trays are widely associated with premium ready meals, airline catering, and prepared-food packaging, while white CPET trays are commonly used for airline meals, bakery products, institutional catering, and other applications.

Other colors may also be developed depending on customer requirements, production volume, pigment system, recyclability objectives, and food-contact compliance.

Why Are CPET Trays Used for Ready Meals?

One of CPET's biggest advantages is that the same tray can support multiple stages of the ready-meal supply chain.

A meal can be filled into the tray, sealed, chilled or frozen, transported through the cold chain, displayed at retail, and reheated by the consumer. Certain CPET tray designs can be used in both microwave and conventional oven applications when the specific tray has been designed and validated for those conditions.

CPET trays also offer rigidity, dimensional stability, stackability, compatibility with automated food-packaging equipment, and a wide range of compartment configurations.

CPET vs PP vs Aluminum Food Trays

Feature	CPET Trays	PP Trays	Aluminum Trays
High-Temperature Oven Use	Excellent for appropriately designed ovenable trays	Generally more limited and grade-dependent	Excellent
Microwave Use	Suitable when the specific CPET tray is approved for microwave use	Widely used for microwave reheating	Generally not used in conventional microwave ovens unless specifically permitted
Freezer Applications	Excellent	Application and grade dependent	Good
Rigidity	High	Generally more flexible	High but can permanently deform when bent
Appearance	Typically opaque; commonly black or white	Wide range of colors and appearances	Metallic appearance
Recyclability	PET material is recyclable where suitable collection and recycling infrastructure exists	PP is recyclable where suitable infrastructure exists	Highly recyclable where collected

CPET Trays vs PP Trays

Both CPET and polypropylene trays are widely used for prepared-food packaging, but their performance profiles are different.

Property	CPET Trays	PP Trays
Rigidity	High rigidity and good dimensional stability	Generally more flexible
Heat Resistance	Designed for demanding high-temperature applications, including certain oven-ready meals	Well suited to many microwave and hot-fill applications but conventional oven capability is grade dependent
Typical Application	Frozen and chilled ovenable ready meals, airline meals, bakery products	Microwave meals, takeaway food, chilled foods, foodservice
Relative Cost	Typically selected when higher thermal performance justifies the material	Often economical for mainstream microwave and foodservice applications

The correct material depends on the actual heating temperature, heating method, food type, filling process, sealing system, distribution conditions, and target cost.

CPET Trays vs Aluminum Trays

Aluminum and CPET are both common materials for ovenable food packaging, but they behave differently during heating and consumer use.

Property	CPET Trays	Aluminum Trays
Heat Conductivity	Relatively low compared with metal	Excellent heat conductivity
Conventional Oven Use	Suitable for validated CPET tray specifications	Excellent
Microwave Convenience	Suitable for CPET trays designed for microwave use	Normally restricted in conventional microwave ovens unless appliance and packaging instructions explicitly permit use
Design Flexibility	Excellent thermoformed shapes, ribs, compartments, colors, and custom formats	Good forming flexibility with metallic appearance

Recycled PET and CPET Tray Manufacturing

Recycled PET can be incorporated into certain food-packaging structures when the material source, manufacturing process, regulatory requirements, and final application allow it.

The amount of recycled content should not be presented as one universal percentage for every CPET tray. It varies by manufacturer, tray construction, market, regulation, material source, and customer specification.

PET can technically be recycled into new PET products. However, whether a used CPET tray is actually recycled depends on local collection, sorting, recycling infrastructure, color, additives, contamination, and local recycling rules.

Material	Recycling Potential	Important Consideration
CPET / PET	PET material can be recycled into PET streams where appropriate infrastructure is available	Collection, sorting, colors, additives, and local acceptance affect actual recycling
PP	Recyclable thermoplastic	Actual recycling depends on local PP collection and sorting systems
Aluminum	Widely recyclable where collected	Food contamination and collection systems can affect recycling outcomes

Common Applications of CPET Food Trays

• Frozen ready meals: Meals that may be stored frozen and reheated before consumption.

• Chilled ready meals: Prepared meals sold through supermarkets and foodservice channels.

• Airline catering: CPET airline trays provide compact formats and oven-reheating capability.

• Bakery products: Certain CPET trays can support bake-in-tray applications.

• Institutional catering: Hospitals, schools, care facilities, and other large-scale meal programs.

• Meal delivery: Applications requiring strong, heat-resistant packaging for prepared foods.

• Multi-compartment meals: One-, two-, and three-compartment designs help separate different food components.

What Should Food Manufacturers Consider When Buying CPET Trays?

For commercial food packaging, choosing a tray based only on capacity is not enough. Tray specifications should be matched to the complete food production and heating process.

Specification	Why It Matters
Tray Dimensions	Must fit filling equipment, sealing tooling, secondary packaging, and storage systems
Capacity	Determines portion size and required headspace
Tray Weight & Thickness	Influences rigidity, cost, transport weight, and thermal performance
Temperature Requirement	Must match freezing, refrigeration, microwave, oven, and cooking conditions
Lidding Film	Tray and film must provide compatible sealing performance
Easy-Peel Requirement	Influences film selection and consumer opening experience
Anti-Fog Requirement	May improve package visibility for chilled products
Food-Contact Compliance	Must meet applicable requirements for the destination market and application

Why Choose HSQY CPET Trays?

HSQY supplies CPET food trays for ready meals, airline catering, baking, frozen food, and foodservice applications.

Available options include different capacities, tray shapes, one-, two-, and three-compartment designs, black and white colors, and customized tray development according to project requirements.

For a new CPET packaging project, provide the required tray dimensions, capacity, food type, food weight, oven or microwave conditions, sealing-film requirements, annual quantity, and destination market. These details make it easier to evaluate the appropriate tray solution.

       Get a CPET Tray Quote

FAQ About CPET Tray Manufacturing

How Are CPET Trays Manufactured?

CPET trays are typically manufactured by extruding a specially formulated PET material into sheet, reheating the sheet, thermoforming it in a mold, controlling crystallization, cooling the formed tray, trimming excess material, inspecting the finished product, and stacking it for shipment.

What Is CPET Made From?

CPET is based on polyethylene terephthalate, or PET. CPET formulations use material and processing systems designed to promote controlled crystallization during manufacturing. Color masterbatch and other additives may also be included according to the tray specification.

What Is the Difference Between PET and CPET Trays?

Conventional APET trays have a largely amorphous structure and are commonly used for clear cold-food packaging. CPET trays develop significantly more crystallinity during processing, giving them much better dimensional stability at elevated temperatures. CPET trays are therefore generally opaque and are commonly used for ovenable ready meals.

Why Are CPET Trays Usually Black or White?

CPET's crystalline structure naturally reduces transparency. Color masterbatch is commonly added during material preparation, and black and white are widely used commercial CPET tray colors.

What Temperature Can CPET Trays Withstand?

Some CPET food-packaging systems are designed for conditions from approximately -40°C to 220°C, allowing freezer-to-oven applications. The actual approved temperature and heating duration depend on the tray formulation, dimensions, food load, and product specification, so the manufacturer's instructions should always be followed.

Are CPET Trays Oven Safe?

CPET is widely used for ovenable food packaging because controlled crystallization provides high-temperature dimensional stability. However, only use a tray within the oven temperature and heating duration specified for that particular product.

Are CPET Trays Microwave Safe?

Many CPET trays are designed for microwave reheating as well as conventional oven use. Microwave suitability should still be confirmed for the specific tray and complete package, including the lidding film.

Can CPET Trays Go Directly From Freezer to Oven?

Freezer-to-oven performance is one of the major applications of CPET. Suitable CPET trays can tolerate a very wide temperature range, but the exact freezer, oven, food-load, and cooking conditions must be validated for the tray being used.

Are CPET Trays Recyclable?

CPET is PET-based and can technically be recycled within suitable PET recycling systems. Actual recyclability depends on local collection and sorting infrastructure, tray color, additives, food contamination, and the rules of the local recycling program.

Can Recycled PET Be Used to Make CPET Trays?

Recycled PET can be incorporated into some CPET packaging structures when the recycled material, production process, food-contact requirements, and local regulations permit it. The recycled-content percentage varies by product and manufacturer.

Can CPET Trays Be Customized?

Yes. CPET trays can be developed in different capacities, dimensions, depths, shapes, colors, sealing-flange designs, and compartment layouts. Custom molds can be developed for sufficiently large commercial projects.

What Information Is Needed to Develop a Custom CPET Tray?

Useful information includes tray dimensions, capacity, food type, portion weight, number of compartments, required color, microwave or oven conditions, freezing requirements, sealing-film type, sealing-machine dimensions, annual demand, destination market, and applicable food-contact requirements.

What Lidding Film Is Used with CPET Trays?

The correct lidding film depends on the tray sealing layer, heating conditions, required peel strength, anti-fog requirements, barrier requirements, food type, and tray-sealing equipment. Easy-peel, anti-fog, printable, and barrier lidding-film options are available for different CPET applications.

Conclusion

CPET tray manufacturing is more than a simple plastic-forming process. The performance of an ovenable CPET tray depends on material formulation, sheet extrusion, precise heating, thermoforming, controlled crystallization, cooling, trimming, mold design, and quality control.

Controlled crystallization is especially important because it gives CPET the dimensional stability required for demanding freezer-to-microwave and freezer-to-oven food applications.

For food manufacturers, tray dimensions, portion size, heating conditions, sealing-film compatibility, automatic denesting, food-contact requirements, and annual volume should all be considered when choosing or developing a CPET tray.

HSQY supplies CPET trays for ready meals, frozen foods, baking, airline catering, and foodservice applications, with standard and customized tray solutions available for commercial projects.

       Contact HSQY for CPET Trays
