HSQY PETG Sheets Vaquform 0.5mm clear PETG plastic sheet

HSQY 0.5mm clear PETG sheet is designed for desktop vacuum forming, thermoforming and transparent formed parts. Available in rolls or sheets with custom sizes and clear or colored options.
  • PETG FILM

  • HSQY

  • PETG

  • 1MM-7MM

  • Transparent or Colored

  • Roll: 110-1280mm Sheet: 915*1220mm/1000*2000mm

  • 1000 KG.

Availability:

Product Description

0.5mm Clear PETG Sheet for Vaquform Desktop Vacuum Forming

HSQY 0.5mm Clear PETG Sheet is a transparent glycol-modified copolyester sheet designed for desktop vacuum forming, thermoforming, prototypes and transparent formed components. It offers a practical combination of optical clarity, toughness and forming performance for manufacturers and plastic fabricators.

PETG is a non-crystalline copolyester related to PET. Its material characteristics make it suitable for applications requiring clear appearance, formed details and further fabrication. The 0.5mm thickness is particularly relevant to lightweight vacuum-formed products and prototype development.

HSQY supplies PETG in sheet and roll formats. Transparent and colored options are available, with customized dimensions according to production requirements. Buyers can specify the vacuum forming machine, usable forming area, required sheet dimensions and application when requesting a quotation.

Material: PETG (Glycol-Modified Copolyester)
Featured Thickness: 0.5mm
Color: Transparent or Colored
Roll Width: 110mm–1280mm
Standard Sheet Sizes: 915 × 1220mm / 1000 × 2000mm
Supply Format: Sheets and Rolls
MOQ: 1000kg (subject to specification confirmation)

Request a PETG Sheet Quotation

PETG Plastic Sheet Product Video

Clear PETG Plastic Sheet Images

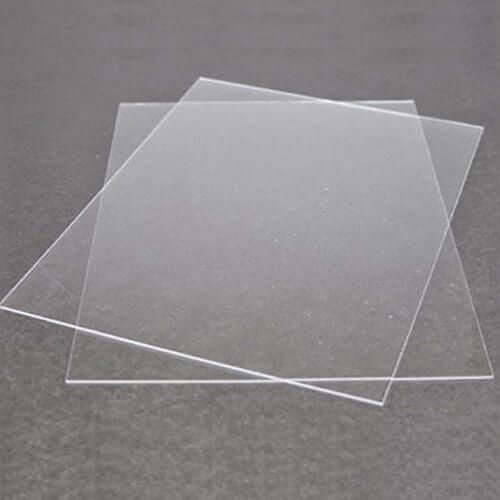

Clear transparent plastic sheet sample

Transparent Plastic Sheet Sample

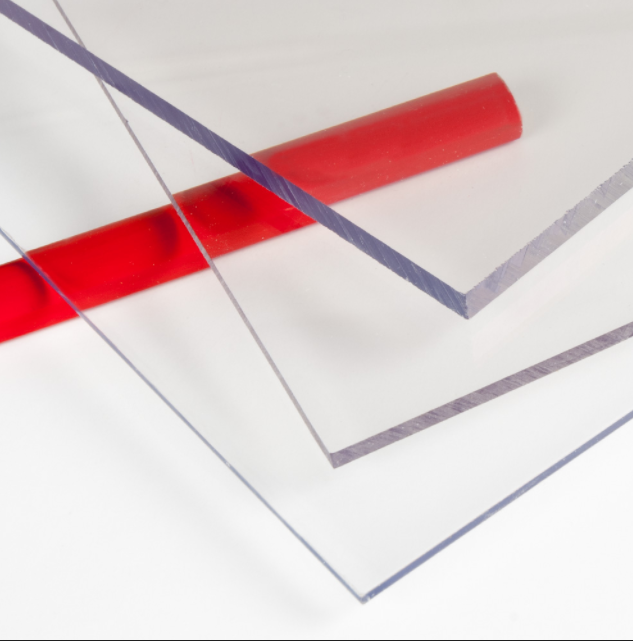

Custom cut transparent plastic sheet panel

Custom Cut Transparent Sheet Sample

0.5mm Clear PETG Sheet Specifications

The featured product is 0.5mm clear PETG sheet for vacuum forming. HSQY also lists additional PETG thicknesses and customized formats. Please confirm the exact thickness, tolerance and dimensions required for your application before placing a bulk order.

Property Specification
Material PETG (Glycol-Modified Copolyester)
Featured Thickness 0.5mm
Other Thicknesses Additional 1mm–7mm options listed in the product specifications; confirm availability
Color Transparent or Colored
Roll Width 110mm–1280mm
Standard Sheet Size 915 × 1220mm
Standard Sheet Size 1000 × 2000mm
Supply Format Rolls, Standard Sheets and Custom Cut Sheets
Applications Vacuum Forming, Thermoforming, Packaging, Displays and Fabrication
MOQ 1000kg

Key Advantages of Clear PETG Plastic Sheet

High Optical Clarity

Clear PETG sheet provides good transparency and a smooth surface appearance. It is suitable for products where visibility, presentation and transparent material construction are important.

Excellent Thermoforming Performance

PETG is widely used in vacuum forming and thermoforming because suitable grades can be heated and formed into different shapes. It is suitable for prototypes, transparent covers, packaging components and molded display parts.

Good Toughness and Fabrication Performance

PETG offers useful toughness and resistance to cracking during many forming and fabrication operations. Compared with conventional acrylic sheet, suitable PETG grades are generally less prone to chipping during cutting and machining.

Suitable for Detailed Formed Parts

When matched with suitable molds and forming conditions, PETG can reproduce product contours and molded details. Heating uniformity, mold design and forming depth should be considered during production development.

Multiple Fabrication Options

Depending on the selected grade and thickness, PETG sheet can be processed by cutting, die cutting, punching, drilling, routing, bending, printing and bonding. Processing trials are recommended for specific production requirements.

Custom Sheet and Roll Dimensions

HSQY offers sheet and roll formats with customized dimensions. Buyers can specify the required width, length, thickness and packaging configuration to match their equipment and material consumption.

PETG Sheet for Desktop Vacuum Forming

0.5mm PETG sheet is suitable for evaluating lightweight vacuum-formed parts and prototype products. The material is heated until it reaches an appropriate forming condition and then drawn against a mold using vacuum pressure.

For desktop vacuum forming equipment such as Vaquform-style machines, the sheet dimensions must match the usable clamping area. Buyers should confirm the machine model, clamp frame dimensions and required sheet size before ordering.

Step 1: Prepare the PETG Sheet

Cut the PETG sheet to the dimensions required by the vacuum forming machine. Check the sheet thickness, surface condition and protective masking before processing.

Step 2: Secure the Sheet in the Frame

Place the sheet evenly in the machine's clamping frame. Make sure the material is properly secured to prevent slipping or uneven forming during heating.

Step 3: Heat the PETG Material

Heat the sheet evenly according to the processing recommendations for the selected PETG grade and machine. Heating time and temperature depend on material thickness, heater design and forming conditions.

Step 4: Apply Vacuum Pressure

Once the material reaches the appropriate forming condition, apply vacuum pressure to draw the softened PETG sheet against the mold surface. Mold design and ventilation influence the final formed shape.

Step 5: Cool and Remove the Formed Part

Allow the formed material to cool sufficiently before removing it from the mold. Premature removal may result in distortion or dimensional changes.

Step 6: Trim and Inspect

Trim the formed part to its final dimensions and inspect the surface, transparency, corners, wall thickness and overall shape.

Applications of Clear PETG Sheet

Vacuum Forming and Thermoforming

PETG is suitable for manufacturing formed transparent parts, prototype components, protective covers and shaped packaging products. Its forming characteristics make it useful for applications requiring clear appearance and molded details.

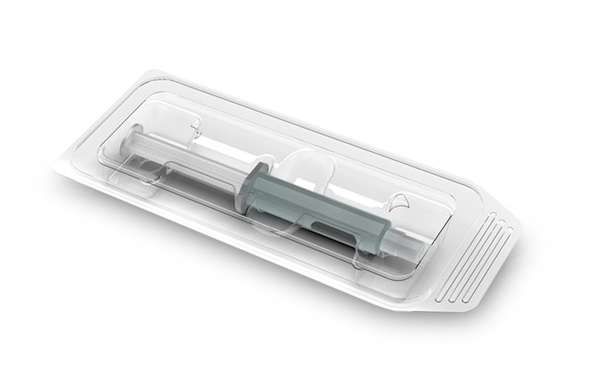

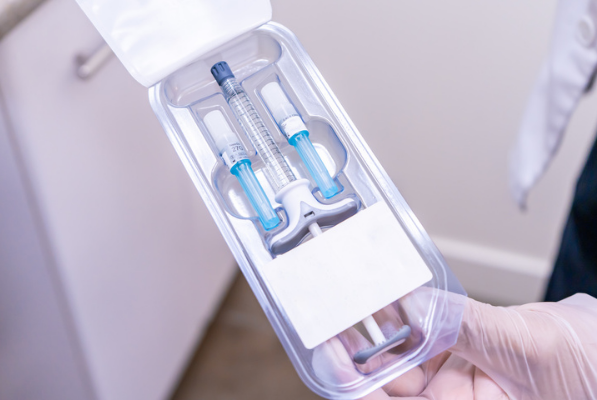

Blister Packaging and Transparent Packaging

Suitable PETG grades can be used for blister packaging, transparent formed inserts and packaging components. The material thickness and forming characteristics should match the packaging design and required product protection.

Retail Displays and Point-of-Purchase Displays

Clear PETG sheet is suitable for display stands, product holders, retail fixtures and point-of-purchase displays. Its transparency helps present merchandise while allowing different shapes and configurations to be fabricated.

Indoor Signage and Printed Displays

PETG can be used for indoor signs, menu displays, graphic panels and promotional materials. Printing, painting and other decorative processes should be selected according to the surface condition and ink compatibility.

Protective Covers and Transparent Components

PETG sheet can be fabricated into transparent covers, lightweight guards and equipment components where the selected thickness provides the required stiffness and performance.

Model Making and Prototyping

The 0.5mm PETG sheet is useful for product development, model making and prototype vacuum forming. It allows manufacturers to evaluate material appearance, formed geometry and production feasibility before larger manufacturing runs.

Request PETG Samples and Bulk Pricing

PETG Sheet Processing and Fabrication

PETG sheet can be used in different fabrication processes depending on its thickness, grade and intended application. Manufacturers should evaluate material compatibility with their equipment before starting mass production.

  • Vacuum Forming: Heating and shaping PETG against a mold using vacuum pressure.

  • Thermoforming: Producing shaped components using suitable heating and forming equipment.

  • Die Cutting: Cutting sheet material into defined shapes and dimensions.

  • Drilling and Routing: Machining holes, openings and finished edges.

  • Printing: Applying graphics and decorative finishes with compatible printing systems.

  • Bonding: Joining PETG components with suitable adhesives or bonding methods after compatibility testing.

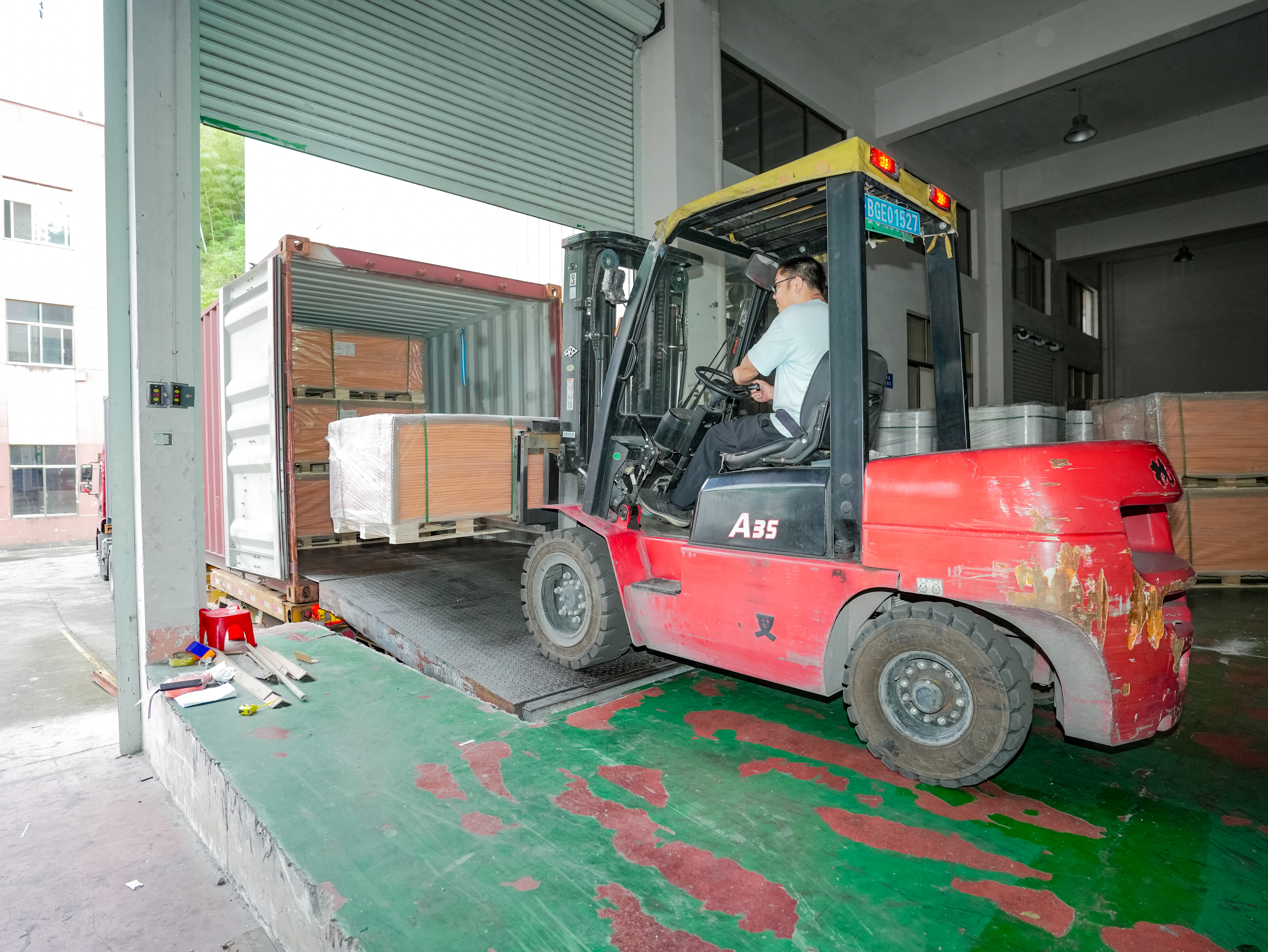

PETG Sheet Packaging and Delivery

HSQY supplies PETG plastic sheets and rolls for industrial buyers, fabricators and packaging manufacturers. Packaging can be arranged according to sheet dimensions, roll specifications and transportation requirements.

  • Sheet Packaging: Flat sheets protected with suitable wrapping materials.

  • Roll Packaging: Protective wrapping according to roll width and diameter.

  • Protective Masking: One-side or two-side masking can be discussed according to specification.

  • Pallet Packaging: Export packaging arranged according to order dimensions and weight.

  • Container Loading: Loading arrangements for international shipments.

  • Delivery Terms: FOB, CIF and EXW, subject to order agreement.

Quality Control and Certification Documents

For PETG sheet purchasing, buyers should evaluate material clarity, thickness consistency, surface quality, forming performance and dimensional accuracy. Technical data sheets and applicable compliance documents can be requested for the selected material grade.

For food-contact, medical, outdoor or other regulated applications, buyers should confirm that the exact PETG grade and manufacturing specification meet the requirements of the intended market.

HSQY company quality certification documents

Company Quality and Certification Documents

Global Exhibitions

HSQY participates in international exhibitions to communicate with plastic sheet distributors, thermoforming manufacturers, packaging companies and industrial buyers. These exhibitions provide opportunities to discuss material specifications, product development and customized plastic sheet solutions.

HSQY 2017 Shanghai exhibition

2017 Shanghai Exhibition

HSQY 2018 Shanghai exhibition

2018 Shanghai Exhibition

HSQY 2023 Saudi exhibition

2023 Saudi Exhibition

HSQY 2023 American exhibition

2023 American Exhibition

HSQY 2024 Australian exhibition

2024 Australian Exhibition

HSQY 2024 American exhibition

2024 American Exhibition

HSQY 2024 Mexico exhibition

2024 Mexico Exhibition

HSQY 2024 Paris exhibition

2024 Paris Exhibition

Frequently Asked Questions About Clear PETG Sheet

What is 0.5mm clear PETG sheet used for?

0.5mm clear PETG sheet is used for desktop vacuum forming, lightweight thermoformed components, prototypes, transparent packaging and formed display parts.

Is 0.5mm PETG sheet suitable for Vaquform desktop vacuum forming machines?

The 0.5mm PETG sheet is intended for desktop vacuum forming applications. Buyers should confirm the machine model, clamp frame dimensions and usable forming area to ensure sheet compatibility before ordering.

What thicknesses are available for PETG plastic sheets?

This product focuses on 0.5mm clear PETG sheet. Additional thicknesses are listed in the HSQY PETG range. Please contact us to confirm availability for your required thickness and supply format.

Does PETG sheet need pre-drying before vacuum forming?

Pre-drying requirements depend on the PETG grade, material storage conditions and processing recommendations. Follow the applicable technical data sheet and verify material condition before production.

Can PETG sheet be cut, drilled and fabricated?

Yes. Suitable PETG grades can be cut, die-cut, punched, drilled and routed using appropriate tools and processing conditions. Testing is recommended for the required finished dimensions and surface quality.

Can PETG sheet be printed or bonded?

PETG can be printed and bonded using compatible inks, adhesives and processing methods. Surface preparation and compatibility tests should be conducted before mass production.

Is clear PETG sheet suitable for outdoor use?

Standard PETG should not automatically be considered UV-resistant for long-term outdoor exposure. If your application requires outdoor use, request an appropriate UV-protected grade and confirm its performance documentation.

Is PETG sheet suitable for food-contact applications?

Food-contact suitability depends on the specific PETG resin grade, manufacturing conditions and destination-market regulations. Please request applicable compliance documentation before using the material for food-contact products.

What standard PETG sheet sizes does HSQY offer?

The listed standard sheet sizes include 915 × 1220mm and 1000 × 2000mm. Roll widths range from approximately 110mm to 1280mm. Customized dimensions can be discussed according to production requirements.

What is the MOQ for clear PETG plastic sheets?

The current HSQY product listing specifies an MOQ of 1000kg. Please confirm the final minimum order quantity according to thickness, size, color and packaging requirements.

Can I request PETG samples before placing a bulk order?

Sample availability can be discussed according to the required thickness, dimensions and application. Testing samples before bulk production is recommended for vacuum forming and fabrication projects.

What information is needed for a PETG sheet quotation?

Please provide the required thickness, sheet size or roll width, quantity, color, application, vacuum forming machine model, destination country and any specific technical or compliance requirements.

Request a PETG Sample and Factory Quotation

About HSQY Plastic Group

HSQY Plastic Group supplies plastic sheets, films and packaging materials to international manufacturers, distributors and industrial buyers. Our product portfolio includes PETG sheets, APET sheets, PVC rigid sheets, PVC soft films, polycarbonate sheets, PP sheets and food packaging materials.

For PETG sheet projects, we work with customers to discuss material specifications, thickness, dimensions, color, forming requirements and supply formats. Our team can assist buyers in identifying suitable material options for their production applications.

Whether you are a thermoforming manufacturer, packaging converter, display fabricator or plastic sheet distributor, contact HSQY to discuss your PETG sheet requirements.
