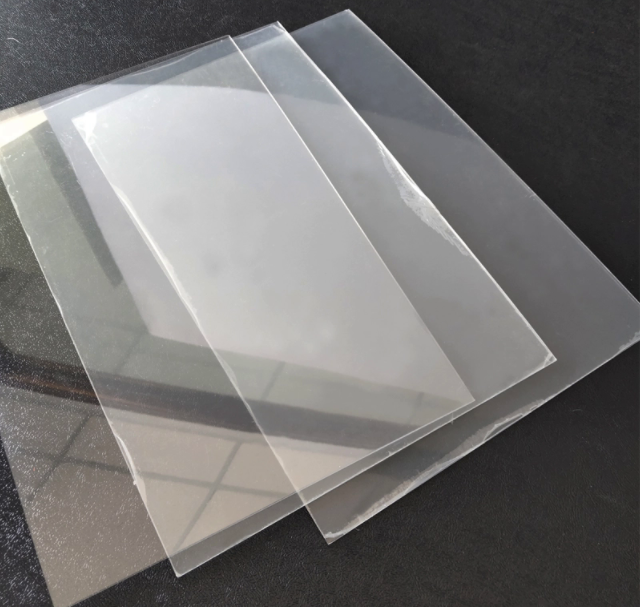

HSQY 0.5mm clear PETG plastic sheet

0.5mm Clear PETG Sheet for Thermoforming & Fabrication

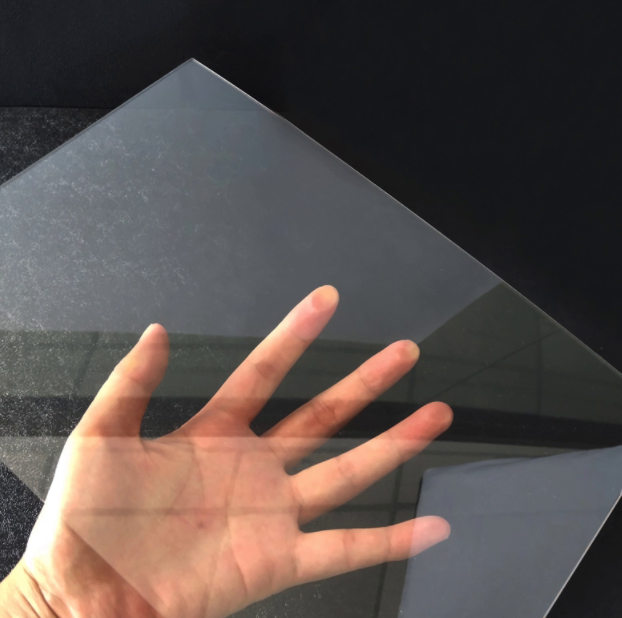

HSQY 0.5mm clear PETG sheet is a transparent glycol-modified copolyester sheet designed for thermoforming, vacuum forming, printing, displays, protective covers, packaging and fabricated plastic components.

At a nominal thickness of 0.5mm, or 500 microns, PETG provides a useful balance between flexibility, transparency and dimensional stability. It is particularly suitable for lightweight thermoformed parts, packaging prototypes, transparent covers, printed display components and other applications where very thick rigid sheet is unnecessary.

HSQY supplies PETG in both roll and sheet formats. The current product range includes roll widths from approximately 110mm to 1280mm, standard sheets including 915×1220mm and 1000×2000mm, and customized dimensions for industrial conversion.

This page focuses specifically on 0.5mm clear PETG sheet. Other PETG thicknesses from approximately 0.15mm to 7mm can be discussed separately according to forming depth, rigidity, roll or sheet format and end-use requirements.

       Request 0.5mm PETG Sheet Quote

What Is Clear PETG Sheet?

PETG is a glycol-modified copolyester related to PET. Glycol modification reduces the tendency of the material to crystallize during normal sheet processing, helping PETG maintain transparency while providing useful thermoforming and fabrication performance.

PETG is valued for its combination of optical clarity, toughness and relatively forgiving fabrication characteristics. Depending on grade and thickness, it can be vacuum formed, pressure formed, cut, die-cut, punched, drilled, routed, bent, printed and bonded.

Compared with standard clear acrylic, PETG is generally more resistant to chipping and cracking during fabrication. Compared with polycarbonate, PETG can offer easier forming and fabrication for many indoor display, packaging and fabricated-plastic applications.

PETG Technical Data Sheet

The following PETG data sheet is retained from the original HSQY product page. Buyers should confirm that the document applies to the exact PETG grade, thickness and specification being quoted.

           PETG Film Technical Data Sheet PDF

0.5mm Clear PETG Sheet Specifications

The featured product on this page is nominally 0.5mm thick. The broader HSQY PETG range covers additional gauges, but buyers should specify the exact thickness, tolerance, dimensions, optical requirements and processing method when requesting a quotation.

Why Choose 0.5mm PETG Sheet?

Useful Balance of Flexibility and Rigidity

At 0.5mm, PETG is substantially thinner and more flexible than multi-millimeter rigid panels while still providing more body than very thin packaging film. This makes the gauge suitable for lightweight formed components, covers, overlays, packaging and fabricated parts.

High Visual Clarity

Clear PETG is suitable for applications where product visibility, printed graphics or transparent protective coverage are important. Buyers with optical requirements should specify light transmission, haze, surface quality and acceptable defects.

Good Thermoforming Capability

PETG is widely selected for vacuum and pressure forming because suitable grades can reproduce detailed mold geometry while maintaining useful clarity and toughness.

Resistance to Chipping and Cracking

PETG generally provides stronger resistance to chipping and cracking than conventional acrylic during many fabrication operations, making it attractive for drilled, punched, formed and fabricated transparent components.

Easy Mechanical Fabrication

Depending on thickness and grade, PETG can be mechanically cut, die-cut, punched, drilled, routed, scored and bent using suitable tooling and processing conditions.

Thermoforming 0.5mm PETG Sheet

0.5mm PETG is particularly relevant to lightweight thermoformed products because the material can be heated and drawn over or into a mold without requiring the material thickness associated with structural plastic panels.

Potential processes include vacuum forming, pressure forming and other thermoforming methods appropriate to the selected PETG grade.

Forming performance depends on more than nominal sheet thickness. Mold depth, draw ratio, draft angle, corner radius, heating system, mold temperature, plug assistance and cycle time all influence final wall-thickness distribution and clarity.

Many PETG thermoforming grades can be processed without a separate predrying step when correctly stored and handled, but this should not be treated as a universal rule. Follow the technical data sheet for the exact resin grade and check material condition before production.

What Can Be Thermoformed from 0.5mm PETG?

PETG Sheet Fabrication Methods

Cutting and Die Cutting

Thin 0.5mm PETG can be cut using suitable knives, guillotines, dies or production cutting equipment. Tool sharpness and cutting clearance should be optimized to avoid excessive burrs or edge deformation.

Punching and Drilling

PETG's toughness makes it suitable for many punched and drilled components when appropriate tooling, feed speed and edge distances are used.

Bending and Cold Forming

Selected PETG components can be bent or cold formed. Minimum radius and forming method should be established through trials to avoid stress marks or dimensional distortion.

Bonding

PETG can be bonded using suitable adhesive or welding systems. Adhesive compatibility should be tested because some chemicals can affect appearance or induce stress cracking.

Printing and Decorating

PETG can be printed, painted, decorated or hot stamped when the ink, pretreatment and curing system are compatible with the selected surface.

Clear PETG Sheet Applications

Vacuum Forming and Thermoforming

PETG is widely selected for formed transparent components, packaging, prototypes and covers where clear appearance and relatively easy forming are required.

Retail Displays and POP Components

Clear PETG is suitable for point-of-purchase displays, transparent shelves, holders, menu components and merchandising fixtures where clarity and fabrication performance are important.

Signage

PETG can be used for selected indoor signs and printed graphics. Long-term outdoor signage should use a specifically validated UV-resistant or UV-coextruded PETG grade.

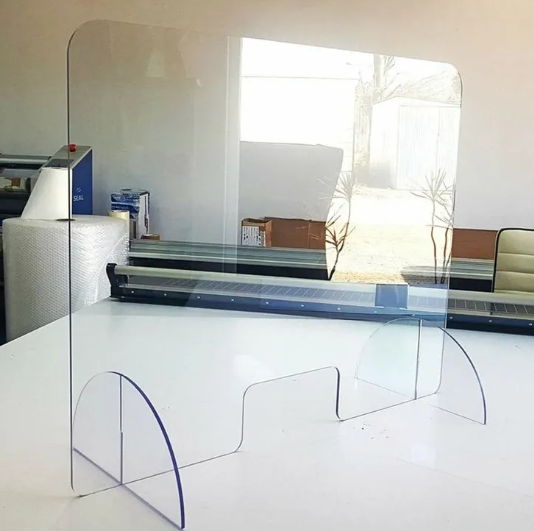

Protective Covers and Baffles

PETG can be fabricated into clear lightweight guards, covers and baffles where the selected thickness provides sufficient stiffness and impact performance.

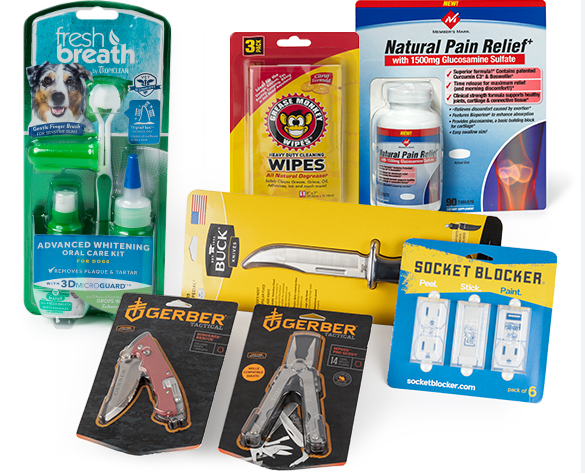

Packaging

Appropriate PETG grades can be used for transparent packaging, formed inserts, boxes and other packaging components. Food-contact applications require a resin grade and production specification supported by applicable documentation.

Card and Printed Materials

PETG and related copolyester materials can be used in selected card and printed-laminate structures where transparency, printability, bonding and flex performance meet the finished-card specification.

PETG Application Images

PETG vs Acrylic vs Polycarbonate

Is Standard PETG Suitable for Outdoor Use?

Standard clear PETG should not automatically be marketed as a long-term outdoor weather-resistant sheet.

Extended ultraviolet exposure can affect the appearance and properties of standard PETG. Applications such as outdoor signage, exposed guards or exterior displays should specify a UV-stabilized or UV-protected PETG grade developed for the expected service environment.

Buyers requiring UV resistance should provide expected service period, geographic location, temperature range and weathering standard rather than relying on a generic “weather resistant” claim.

Food-Contact PETG Sheet

PETG is available in grades intended for food-contact applications, but food-contact compliance is grade-specific rather than an automatic property of every transparent PETG sheet.

Buyers requiring food packaging should specify the destination market, food type, contact duration, contact temperature and intended forming process. HSQY should then provide documentation applicable to the exact resin and finished sheet specification.

Food-contact suitability should not be inferred solely from a general SGS or ISO certificate.

Chemical Resistance of PETG

PETG provides useful resistance to many commonly encountered chemicals and cleaning products, but chemical resistance varies significantly with chemical type, concentration, temperature, exposure time and applied stress.

For industrial guards, laboratory components, retail cleaning environments or chemical-contact applications, test the exact PETG grade with the intended substance before commercial use.

Protective Masking and Surface Quality

Clear PETG applications are sensitive to scratches, dust and surface defects. Protective masking can therefore be an important purchasing parameter for display, printing and fabricated transparent products.

Buyers should specify whether one-side or two-side protective film is required, the masking adhesion level, whether masking must remain attached during cutting, and whether it must be removed before thermoforming.

Optical-grade projects should also define acceptable scratches, black spots, bubbles, gels, dust and surface contamination in the purchasing specification.

Important Technical Parameters for PETG Buyers

How to Choose a 0.5mm PETG Sheet

1. Confirm 0.5mm Is the Correct Gauge

Consider final rigidity, forming depth, finished wall thickness and product load. A deeper thermoformed product may require a thicker starting sheet.

2. Specify Roll or Sheet Format

Continuous thermoforming lines may prefer roll stock, while printing, fabrication, prototyping and manual forming applications may use flat cut sheets.

3. Define Optical Requirements

Specify whether standard commercial clarity is sufficient or whether the application requires controlled light transmission, haze, tint and surface-defect limits.

4. Provide Thermoforming Information

Provide the forming-machine type, mold dimensions, draw depth, cycle target and finished-product drawing when thermoforming performance is critical.

5. Specify Printing or Bonding

Tell HSQY if the PETG will be screen printed, digitally printed, laminated, coated, glued or solvent bonded so surface compatibility can be evaluated.

6. Define Indoor or Outdoor Use

Standard PETG is generally more appropriate for indoor applications. Specify a UV-protected grade where long-term outdoor exposure is required.

7. Confirm Regulatory Requirements

Food contact, medical, flame-retardant, antistatic, UV-resistant or other specialty applications require the correct product grade and supporting documentation.

Information Needed for a PETG Sheet Quote

To receive an accurate PETG recommendation and quotation, please provide:

• Featured 0.5mm thickness or another required gauge

• Thickness tolerance

• Roll width or sheet dimensions

• Clear, tinted, frosted, matte or custom color

• Roll or sheet supply format

• Thermoforming, printing, fabrication or packaging application

• Mold depth and thermoforming process where applicable

• Required optical clarity or haze

• Protective masking requirement

• Printing or surface-treatment requirement

• Indoor or outdoor application

• UV-resistance requirement if applicable

• Food-contact or other compliance documentation

• Order quantity and annual demand

• Destination country and port

       Get PETG Sheet Price & Sample

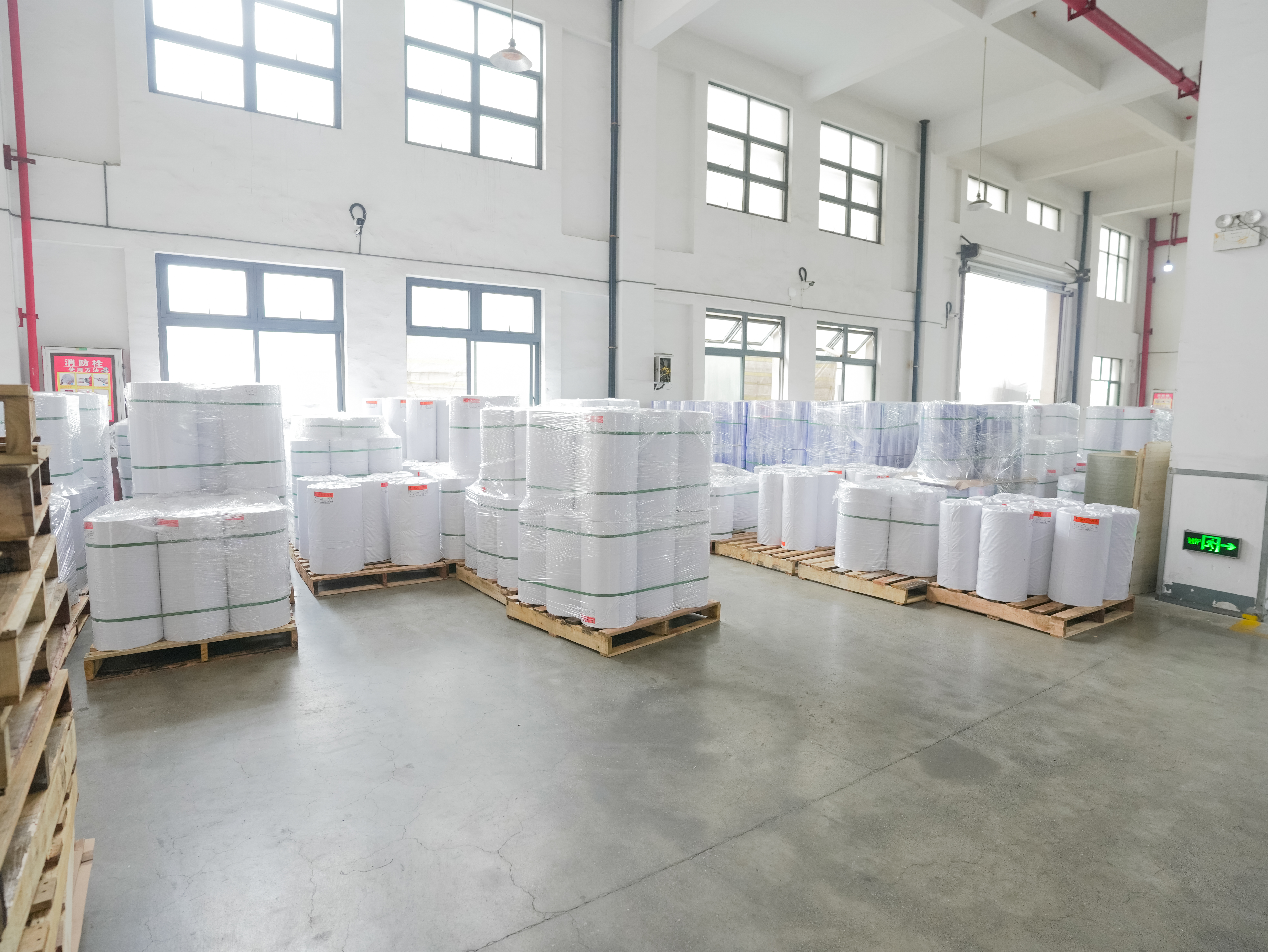

Packing and Delivery

Clear PETG requires careful handling because scratches and surface contamination can remain visible in the finished transparent product.

HSQY can arrange export packing according to sheet size, roll format, protective-film requirement, pallet configuration and shipping method. Buyers should specify whether protective masking is required on one or both surfaces.

HSQY Global Exhibition

HSQY participates in international industry exhibitions to meet plastic distributors, thermoforming companies, packaging manufacturers and industrial material buyers.

Quality and Certification Documentation

The current product page includes company and product-related certification imagery. Buyers should confirm which certificate or test report applies specifically to the PETG grade, thickness, color and application being ordered.

Food-contact, UV-resistant, flame-retardant, antistatic, medical or other specialty claims should be supported by documentation applicable to the actual supplied grade.

FAQ About 0.5mm Clear PETG Sheet

What is 0.5mm PETG sheet?

It is a glycol-modified copolyester sheet with a nominal thickness of 0.5mm, equivalent to 500 microns. It is used for thermoforming, packaging, printing, displays, covers and fabricated transparent components.

Can 0.5mm PETG sheet be vacuum formed?

Yes. 0.5mm PETG can be suitable for lightweight vacuum-formed parts, packaging, covers and prototypes. Final suitability depends on draw depth, mold geometry and required finished-wall thickness.

Does PETG need predrying before thermoforming?

Many PETG thermoforming grades can be processed without predrying when properly stored, but this is grade- and condition-dependent. Follow the processing recommendations for the exact resin and sheet.

Is PETG clearer than PET?

Both materials can provide high transparency. PETG's glycol modification is particularly useful for maintaining clarity during many forming and fabrication operations where crystallization or stress whitening can otherwise become a processing concern.

What is the difference between PET and PETG?

PETG is a glycol-modified copolyester related to PET. The modification changes crystallization and processing behavior, making suitable PETG grades especially useful for thermoforming, fabrication and bonding applications.

Is PETG better than acrylic for thermoforming?

PETG is often selected when easier forming and greater resistance to chipping or cracking are priorities. Acrylic may be preferred for other requirements such as specific optical or outdoor-weathering performance. The correct material depends on the application.

Is PETG stronger than acrylic?

PETG generally offers greater impact toughness and resistance to cracking than standard acrylic, although exact mechanical performance depends on the compared grades, thickness and test method.

Can 0.5mm PETG be cut with a knife?

Thin PETG can be scored, cut or die-cut using suitable sharp tooling. The best method depends on production quantity, edge-quality requirement and sheet dimensions.

Can PETG sheet be printed?

Yes. PETG can be printed and decorated using compatible ink and treatment systems. Always test ink adhesion and curing conditions before bulk production.

Can PETG sheet be bonded?

Yes. Suitable PETG grades can be adhesive bonded or welded using appropriate systems. Adhesive compatibility and finished appearance should be tested before production.

Is standard PETG sheet UV resistant?

Standard PETG should not automatically be treated as a long-term outdoor UV-resistant material. Use a UV-stabilized or UV-protected grade where outdoor service is required.

Can PETG be used for food packaging?

Food-contact PETG grades are available, but regulatory suitability must be confirmed for the exact resin, sheet specification and destination market.

What PETG thicknesses does HSQY supply?

This product page focuses on 0.5mm. The current HSQY source also lists customized PETG thicknesses from approximately 0.15mm to 7mm, subject to product format and application.

What PETG sheet sizes are available?

Current standard formats include roll widths from approximately 110mm to 1280mm and sheet sizes such as 915×1220mm and 1000×2000mm. Customized sizes can also be discussed.

What is the MOQ for PETG sheet?

The current HSQY product listing states an MOQ of approximately 1,000kg. Customized colors, specialty grades or cut-to-size products may have different production requirements.

Can I request PETG samples before bulk ordering?

Sample testing is recommended for thermoforming, printing, cutting, bonding, optical-quality and packaging trials before a bulk purchase.

What information should I provide for a PETG quotation?

Provide thickness, tolerance, roll width or sheet size, quantity, application, thermoforming or fabrication process, optical requirement, protective masking, compliance documents and destination port.

About HSQY Plastic Group

HSQY supplies PETG, APET, GAG, RPET, PVC, PP and other plastic sheet materials for thermoforming companies, packaging manufacturers, printers, plastic fabricators and international distributors.

PETG projects can be evaluated according to thickness, sheet or roll dimensions, transparency, surface quality, protective masking, thermoforming performance, printing requirements and applicable regulatory documentation.

If you are replacing an existing PETG supplier, send the current material sample, technical data sheet or finished-product drawing so HSQY can compare thickness, optical appearance, rigidity and processing performance.

       Contact HSQY for 0.5mm PETG Sheet
