PETG FILM
HSQY
PETG
1MM-7MM
Transparent or Colored
Roll: 110-1280mm Sheet: 915*1220mm/1000*2000mm
1000 KG.
| Availability: | |
|---|---|
Product Description
HSQY Plastic Group supplies 0.5mm crystal clear PETG sheets in 600 × 900mm dimensions for signage, retail displays, thermoforming, card-related components and plastic fabrication. PETG is a transparent glycol-modified copolyester known for its good impact resistance, optical clarity and processing versatility. The material can be cut, drilled, printed and thermoformed according to the requirements of different applications.
The featured specification is 0.5mm thickness with a standard sheet size of 600 × 900mm. HSQY also supports customized dimensions and other thickness requirements subject to production confirmation. This product is suitable for manufacturers, plastic processors, advertising material distributors and wholesale buyers.
Download the PETG technical data sheet to review material properties, optical performance, mechanical characteristics and relevant testing methods.
The following specifications describe the featured 0.5mm clear PETG sheet. Please contact HSQY to confirm production tolerances and customized requirements before placing a bulk order.
| Property | Specification |
|---|---|
| Material | PETG (Glycol-Modified Polyethylene Terephthalate) |
| Featured Thickness | 0.5mm |
| Standard Sheet Size | 600 × 900mm |
| Color | Crystal Clear / Transparent |
| Density | Approximately 1.27g/cm³ |
| Light Transmittance | 91% at 1mm, according to the supplied technical data sheet |
| Processing Methods | Thermoforming, Vacuum Forming, Cutting, Drilling, Die Cutting and Printing |
| Applications | Signage, Retail Displays, Plastic Components and Thermoformed Products |
| Customization | Customized Thicknesses and Sheet Dimensions Available Upon Confirmation |
| Minimum Order Quantity | 1000kg |
The following values are taken from the supplied PETG technical data sheet. They are typical material reference values and should not be treated as guaranteed specifications for every thickness or production batch.
| Test Property | Typical Value | Test Method |
|---|---|---|
| Density | 1.27g/cm³ | ISO 1183-1 |
| Light Transmittance | 91% at 1mm | ASTM D1003 |
| Tensile Strength | Greater than 45MPa | ISO 527-2 |
| Elongation at Break | Greater than 35% | ISO 527-2 |
| Elastic Modulus | 2020MPa | ISO 527 |
| Vicat Softening Temperature | 80°C | ISO 306 |
Note: The 91% light transmittance value is measured on 1mm PETG material. Actual optical performance at 0.5mm should be confirmed for the specific supplied grade.
Clear PETG sheet provides good optical transparency and a smooth surface finish. It is suitable for applications where product visibility, appearance and light transmission are important, including signage, retail displays and transparent plastic components.
PETG offers good toughness and impact resistance compared with many conventional transparent plastics. Its resistance to cracking makes it useful for protective covers, formed components and display products that require a combination of transparency and durability.
PETG is widely used in thermoforming and vacuum forming because of its forming characteristics and ability to produce different shapes. It can be used for lightweight formed components, transparent covers, packaging prototypes and custom plastic parts. Processing temperatures and forming conditions should follow the specific material grade and equipment requirements.
PETG sheets can be processed using common fabrication methods, including cutting, drilling, die cutting, printing and bending. These processing options allow manufacturers to produce customized plastic components for different commercial and industrial applications.
The featured product is supplied in 0.5mm thickness and 600 × 900mm sheet dimensions. HSQY can discuss other thicknesses, sheet dimensions and customized supply requirements according to the application and order quantity.
Clear PETG sheets can be used for printed signage, promotional displays, information panels and advertising components. Their transparent appearance allows manufacturers to create visually attractive display products.

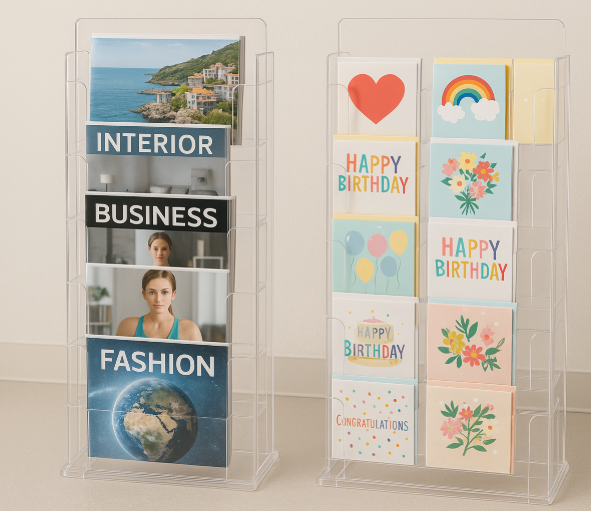

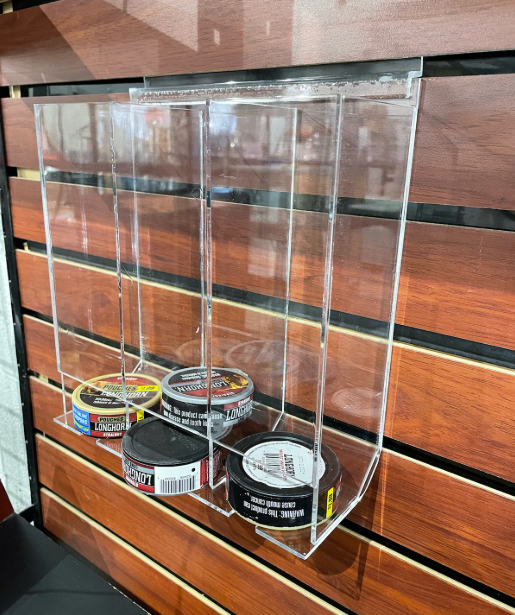

PETG is suitable for retail display components, transparent holders, product presentation panels and protective covers where visibility and fabrication flexibility are required.
PETG sheets can be thermoformed into customized shapes for lightweight covers, formed components, packaging prototypes and other plastic products. The final sheet thickness should be selected according to forming depth and finished wall thickness requirements.
Clear PETG material can be considered for selected card-related plastic components. Buyers should confirm the required gauge, lamination structure and downstream processing compatibility before selecting the material for a specific card application.
PETG and acrylic are both transparent thermoplastic materials used in signage, displays and plastic fabrication. The best choice depends on the required impact resistance, surface finish, optical clarity and manufacturing process.
| Comparison | PETG Sheet | Acrylic Sheet |
|---|---|---|
| Transparency | Good optical transparency | Excellent optical clarity |
| Impact Resistance | Generally higher impact toughness | More susceptible to brittle cracking |
| Thermoforming | Good thermoforming and vacuum forming characteristics | Requires process-specific temperature control |
| Surface Hardness | Generally more susceptible to scratching | Generally better scratch resistance |
| Typical Applications | Formed components, protective covers and displays | Rigid signage, decorative panels and display glazing |
PETG is generally preferred when impact toughness and forming flexibility are important. Acrylic may be more suitable when surface hardness and optical clarity are the primary requirements. Material selection should be based on the finished product design and operating environment.
Discuss Your PETG Material Requirements
Crystal Clear PETG Sheet
PETG Sheet for Signage Applications
PETG Sheet for Retail Displays
HSQY provides product and quality documentation to support customer evaluation and purchasing requirements. Please contact our team for current certificates and documentation applicable to the supplied material.
HSQY participates in international exhibitions to meet plastic material buyers, distributors and manufacturing partners. These events provide opportunities to discuss material specifications, new applications and customized supply requirements.
2017 Shanghai Exhibition
2018 Shanghai Exhibition
2023 Saudi Exhibition
2023 American Exhibition
2024 Australian Exhibition
2024 American Exhibition
2024 Mexico Exhibition
2024 Paris Exhibition
The featured standard sheet size is 600 × 900mm with a thickness of 0.5mm. Other sheet dimensions can be discussed according to your project requirements and order quantity.
Yes. HSQY can discuss customized thicknesses and sheet dimensions. Please provide your required thickness, width, length, application and estimated order quantity for confirmation.
The supplied PETG technical data sheet reports 91% light transmittance at 1mm thickness, tested according to ASTM D1003. Optical performance at 0.5mm should be confirmed for the specific grade.
Yes. PETG is widely used for thermoforming and vacuum forming because of its forming characteristics. It can be processed into various shapes and customized plastic components. Actual processing temperatures and conditions should be determined according to the material grade and forming equipment.
PETG generally offers better impact toughness and forming flexibility, while acrylic typically provides better surface hardness and optical clarity. PETG is often selected for thermoformed products and impact-resistant components, whereas acrylic is commonly used for rigid display panels and decorative applications.
Yes. PETG sheets can be processed through cutting, drilling, die cutting and printing. The appropriate processing method depends on sheet thickness, equipment and the required finished product.
The current listed minimum order quantity is 1000kg. Please contact HSQY to discuss bulk purchasing and customized production requirements.
A4 samples are available for initial evaluation, with freight collected from the buyer. Contact our sales team to confirm sample availability and shipping arrangements.
Please provide the required thickness, sheet dimensions, application, processing method, estimated quantity and destination country. If you have a technical drawing or material specification, you can also send it to our team for evaluation.
Get PETG Sheet Pricing and Samples
HSQY Plastic Group supplies plastic sheets, films and packaging materials to manufacturers, distributors, wholesalers and industrial buyers worldwide. Our product range includes PETG, PET, APET, GAG, PVC, PP and other plastic materials for different processing and commercial applications.
For 0.5mm clear PETG sheet projects, our team can discuss sheet dimensions, thickness requirements, optical properties, processing methods and bulk purchasing requirements. We welcome inquiries from international importers, plastic processors, advertising material suppliers and manufacturers.
