PS HIPS High Impact Polystyrene Sheet Rolls for Packaging
HSQY PS HIPS (High Impact Polystyrene) sheet rolls, branded as TOP LEADER, are general-purpose thermoplastic materials designed for thermoforming, vacuum blister forming, die cutting and packaging applications.
The current product specification covers widths from 300mm to 1400mm and thicknesses from 0.2mm to 2.0mm. Transparent, semi-transparent and opaque options are available, together with glossy or matte surfaces, Pantone/RAL colors and customized patterns.
HIPS sheet rolls can be supplied for B2B converters and manufacturers in packaging, electronics, consumer goods and other thermoforming applications. Functional options listed in the current product specification include anti-static, conductive, static dissipative, printing, coating, EVOH and waterproof configurations.
Roll weights are available from 50kg to 200kg or customized according to project requirements. The current MOQ is 1 ton, with listed monthly production capacity of 3000–5000 tons.
Request HIPS Sheet Roll Pricing Request a Sample

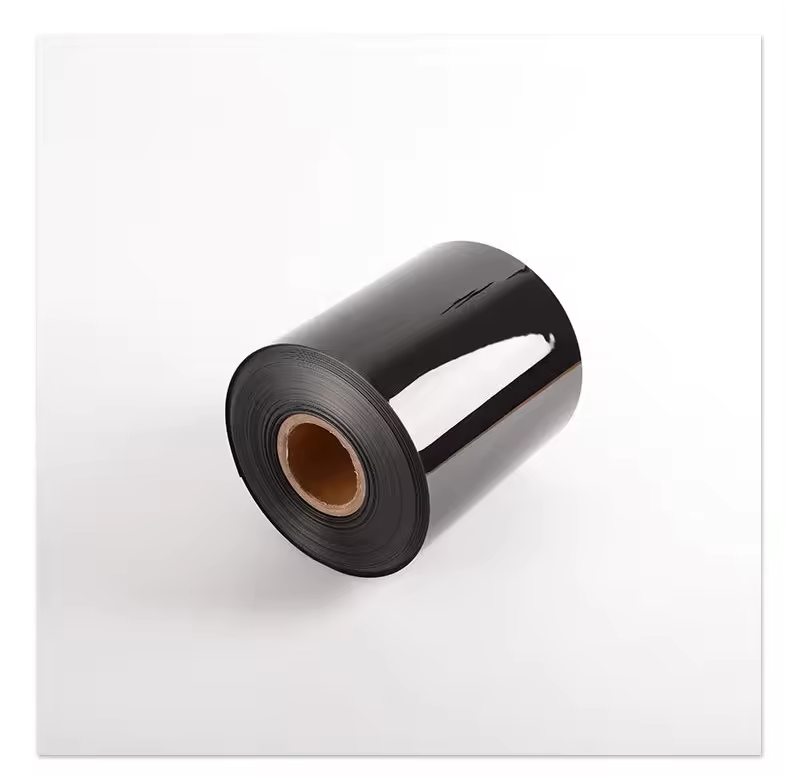

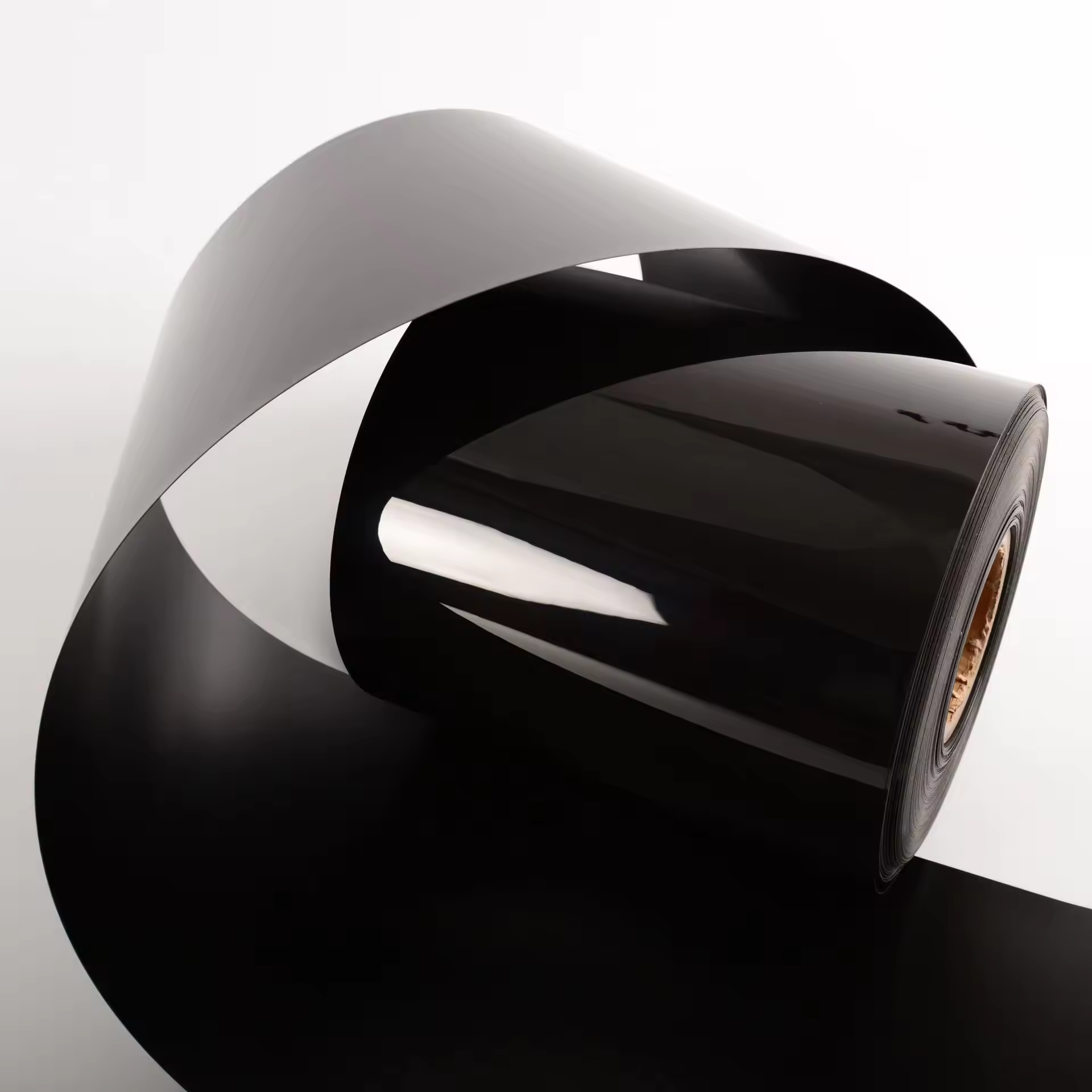

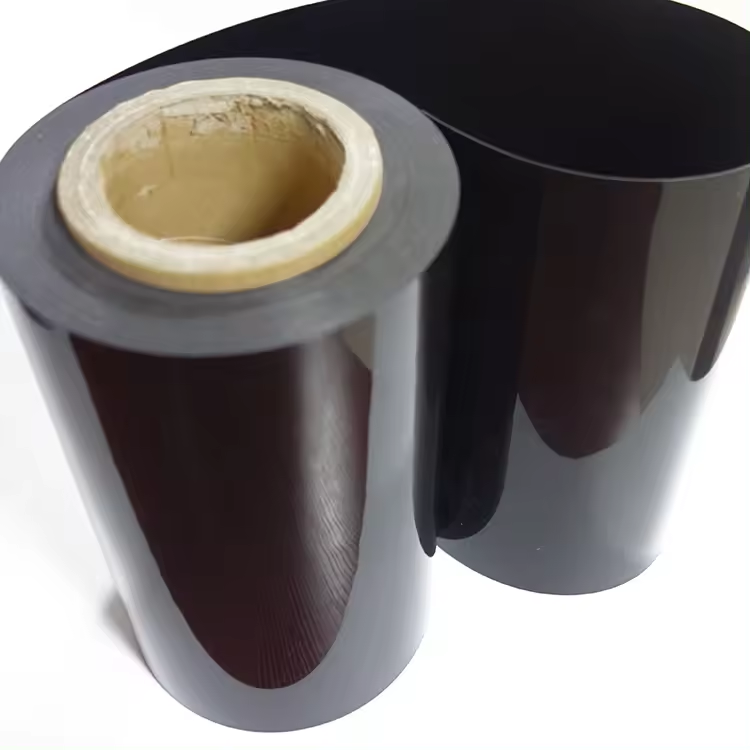

PS HIPS Sheet Roll Product Display

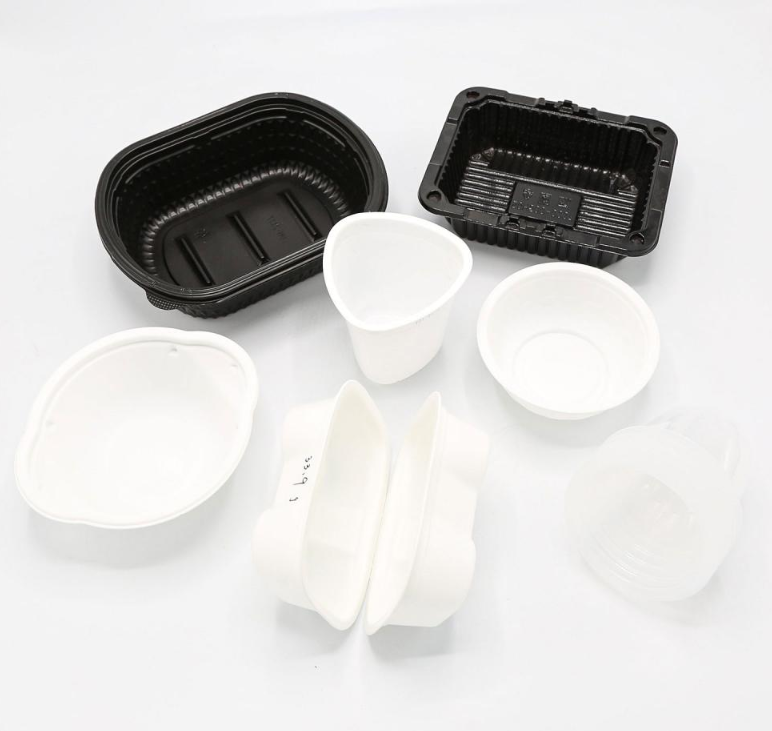

Food Packaging Application
Consumer Goods Application
PS HIPS Sheet Roll Specifications
| Property |
Details |
| Product Name |
PS HIPS Sheet Roll |
| Brand |
TOP LEADER |
| Material |
High Impact Polystyrene (HIPS) |
| Color |
Pantone/RAL Colors, Custom Patterns |
| Width |
300–1400mm |
| Thickness |
0.2–2.0mm |
| Surface |
Glossy, Matte |
| Transparency |
Transparent, Semi-Transparent, Opaque |
| Special Features |
Anti-static, Conductive, Static Dissipative, Printing, Coating, EVOH, Waterproof |
| Processing Technology |
Thermoforming, Vacuum Blister Forming, Die Cutting |
| Weight per Roll |
50–200kg, Customized |
| MOQ |
1 Ton |
| Monthly Production |
3000–5000 Tons |
| Certifications |
SGS, ROHS, ISO, TDS, MSDS |
| Payment Terms |
Credit Card, T/T, L/C, Western Union, PayPal |
| Delivery Methods |
Ocean Shipping, Air Transportation, Express, Land Transportation |
Final thickness, width, roll weight, surface, color and functional configuration should be confirmed according to the intended thermoforming process and finished product before bulk production.
Send Your HIPS Sheet Specifications
Physical and Chemical Properties
The following values are retained from the existing product data. Buyers requiring specific engineering performance should confirm the applicable material grade, thickness, formulation and test method before using these values for product design.
| Property |
Value |
| Density |
1.05 g/cm³ |
| Conductivity |
10⁻¹⁶ S/m |
| Thermal Conductivity |
0.08 W/(m·K) |
| Young's Modulus |
3000–3600 MPa |
| Tensile Strength |
46–60 MPa |
| Elongation |
3–4% |
| Charpy Impact Test |
2–5 kJ/m² |
| Glass Transition Temperature |
80–100°C |
| Coefficient of Thermal Expansion |
8×10⁻⁵/K |
| Heat Capacity |
1.3 kJ/(kg·K) |
| Water Absorption (ASTM) |
0.03–0.1% |
| Degradation Temperature |
280°C |
HIPS Sheet Rolls for Thermoforming
Thermoforming is one of the primary processing technologies listed for this HIPS sheet roll. The material can also be used for vacuum blister forming and die cutting according to the required finished-product geometry.
For thermoforming projects, the starting sheet thickness, roll width, mold size, forming depth and minimum finished-wall requirement should be confirmed before selecting the final specification.
| Thermoforming Parameter |
Information to Confirm |
| Sheet Thickness |
Required thickness within 0.2–2.0mm |
| Roll Width |
Required width within 300–1400mm |
| Roll Weight |
50–200kg or customized |
| Mold Size |
Finished mold length and width |
| Forming Depth |
Maximum draw or cavity depth |
| Surface |
Glossy or matte |
| Appearance |
Transparent, semi-transparent or opaque |
| Color |
Pantone/RAL color or custom pattern |
Key Features of PS HIPS Sheet Rolls
Impact Performance: The existing product data lists Charpy impact strength of 2–5 kJ/m². Buyers requiring a defined impact value should confirm the applicable material grade and test conditions.
Thermoforming Capability: Suitable for thermoforming, vacuum blister forming and die cutting according to the current product specification.
Custom Width and Thickness: Widths from 300mm to 1400mm and thicknesses from 0.2mm to 2.0mm support different converting and forming requirements.
Color and Pattern Options: Pantone/RAL colors and customized patterns are listed as available for project-specific appearance requirements.
Surface Options: Glossy and matte surface specifications are available according to the intended application.
Functional Options: Existing product specifications list anti-static, conductive, static dissipative, printing, coating, EVOH and waterproof options. Final performance should be confirmed for the exact supplied configuration.
Production Capacity: Current product information lists monthly capacity of approximately 3000–5000 tons.
Standard HIPS and Functional HIPS Options
| Option |
Purchasing Consideration |
| Standard HIPS |
Thickness, width, color, surface and forming requirements |
| Anti-static HIPS |
Required surface resistance and test method |
| Conductive HIPS |
Required conductivity or resistance range |
| Static Dissipative HIPS |
Target electrical performance and end-use environment |
| Printed / Coated HIPS |
Printing or coating method, surface compatibility and adhesion requirements |
| EVOH Configuration |
Required barrier structure and finished packaging application |
Applications of PS HIPS Sheet Rolls
The existing product information positions PS HIPS sheet rolls for packaging and manufacturing applications that use thermoforming, vacuum forming or die-cutting processes.
| Application |
Typical Use |
| Food Packaging |
Thermoformed food trays and other packaging products using an appropriate material grade |
| Electronics Packaging |
Formed packaging for electronic components and appliances |
| Automotive Parts |
Selected lightweight thermoformed components subject to performance requirements |
| Consumer Goods |
Toys, gardening products and household-product components |
| Laboratory Products |
Selected disposable or formed components subject to application and material validation |
For food-contact, electronics or other regulated applications, buyers should confirm the applicable material grade and supporting documentation for the exact supplied product rather than relying only on general product-family documentation.
Discuss Your HIPS Thermoforming Project
Information Required for a HIPS Sheet Roll Quote
| Purchasing Requirement |
Information to Provide |
| Application |
Thermoforming, vacuum blister forming, die cutting or other use |
| Thickness |
Required thickness between 0.2mm and 2.0mm |
| Width |
Required roll width between 300mm and 1400mm |
| Roll Weight |
50–200kg or customized requirement |
| Color |
Pantone/RAL reference or custom pattern |
| Transparency |
Transparent, semi-transparent or opaque |
| Surface |
Glossy or matte |
| Functional Requirement |
Standard, anti-static, conductive, static dissipative, coating, EVOH or other listed option |
| Quantity |
Trial order, regular order quantity and expected monthly demand |
| Destination |
Country, port and required delivery method |
Get a HIPS Sheet Roll Quote
Packing and Delivery
Sample Packaging: Small rolls can be packed in protective boxes for sample or trial evaluation.
Bulk Packing: Existing product information lists PE film or kraft paper wrapping, with roll weights of approximately 50–200kg or customized.
Container Loading: The current reference loading quantity is approximately 20 tons per container, subject to actual roll dimensions, packing and transport weight limits.
Delivery Methods: Ocean shipping, air transportation, express and land transportation are listed as available options.
Delivery Terms: EXW, FOB, CNF and DDU.
Lead Time: Generally approximately 15–20 working days depending on order quantity and production requirements.
Product Documents
The existing product specification lists SGS, ROHS, ISO, TDS and MSDS.
Buyers should confirm which reports, declarations or data sheets apply to the exact HIPS grade, color, functional formulation and intended application before using them for product approval.
TDS and MSDS are technical and safety documents rather than independent product certifications, so applicable compliance requirements should be evaluated against the exact destination market and end use.
Frequently Asked Questions About PS HIPS Sheet Rolls
What are PS HIPS sheet rolls?
PS HIPS sheet rolls are high impact polystyrene materials supplied in roll form for thermoforming, vacuum blister forming, die cutting and selected packaging or industrial applications.
What thicknesses are available?
The current product specification lists thicknesses from 0.2mm to 2.0mm.
What widths are available?
Available roll widths are listed from 300mm to 1400mm.
What is the roll weight?
The current product information lists roll weights from 50kg to 200kg, with customized roll weight also available.
Can HIPS sheet roll be thermoformed?
Yes. Thermoforming, vacuum blister forming and die cutting are all listed processing technologies for this product.
What colors are available?
Pantone and RAL colors are listed as available, together with customized patterns.
Are glossy and matte surfaces available?
Yes. Both glossy and matte surfaces are listed in the current specification.
Can HIPS be supplied as transparent, semi-transparent or opaque?
The current product specification lists transparent, semi-transparent and opaque appearance options.
Are anti-static or conductive HIPS options available?
Anti-static, conductive and static dissipative options are listed in the existing product specification. Required electrical performance should be defined before production.
Can HIPS sheet rolls be used for food packaging?
Food packaging is listed as an application in the existing product information. Buyers should confirm the exact HIPS grade and applicable food-contact documentation for the destination market and intended use before production.
What is the density of the HIPS sheet?
The existing physical-property table lists a density of 1.05 g/cm³.
What is the MOQ?
The current product specification lists a minimum order quantity of 1 ton.
Can I request a sample?
The existing product information states that samples are available. Confirm the required thickness, width, color, surface and courier arrangement when requesting a sample.
What is the typical production lead time?
Existing product information lists a typical lead time of approximately 15–20 working days, depending on order quantity.
What information should I provide for a quotation?
Provide the required thickness, width, roll weight, color, surface, transparency, processing method, functional requirements, quantity, destination and applicable documentation requirements.
Request HIPS Sheet Roll Pricing
About HSQY Plastic Group
HSQY Plastic Group supplies PS HIPS sheet rolls and other plastic sheet materials to international B2B customers for thermoforming, packaging and industrial converting applications.
HSQY works with thermoforming companies, packaging converters, manufacturers, distributors and other industrial buyers requiring standard or customized plastic sheet specifications.
For PS HIPS sheet roll projects, provide the required thickness, width, roll weight, color, surface, processing method and quantity so the sales team can confirm the appropriate specification and quotation.
