PET GAG Sheet for Food Packaging, Blister Trays and Folding Boxes

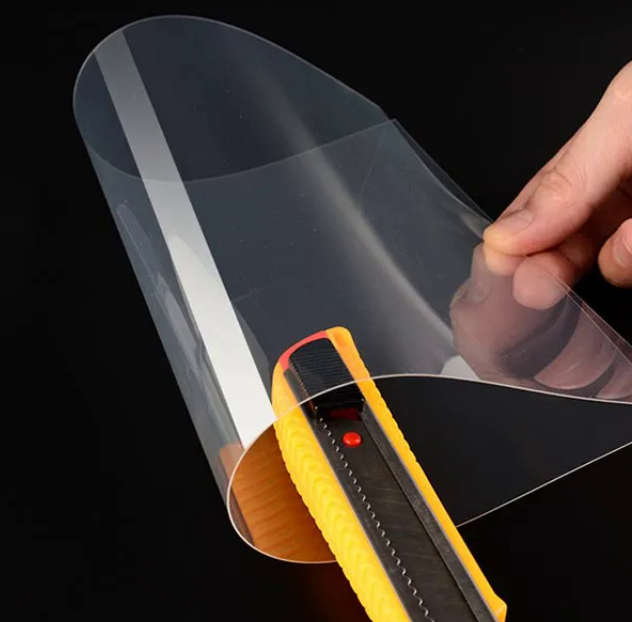

HSQY PET GAG Sheet is a transparent, three-layer co-extruded plastic sheet with a PETG/APET/PETG (A/B/A) structure. It combines PETG outer layers with an APET core to provide a balance of transparency, rigidity, toughness and thermoforming performance for food packaging, blister trays, folding boxes, clamshells and other rigid packaging applications.

HSQY Plastic Group supplies GAG sheets in thicknesses from 0.15 mm to 3 mm, roll widths from 110 mm to 1280 mm, and standard cut-sheet sizes including 915 × 1220 mm and 1000 × 2000 mm. Custom dimensions, transparent or colored grades, and roll configurations can be discussed according to customer requirements.

The PETG surfaces help improve forming and converting behavior, while the APET core contributes rigidity and allows material-cost optimization compared with using PETG throughout the entire sheet. This makes GAG suitable for packaging manufacturers seeking a balance between processing performance and material cost.

Whether you manufacture transparent food trays, retail blister packaging, folding boxes or protective packaging components, HSQY can discuss GAG sheet grades and custom specifications for your production equipment and finished-product design.

Request PET GAG Sheet Pricing

What Is PET GAG Sheet?

GAG sheet is a multilayer polyester sheet typically manufactured by co-extruding two PETG surface layers around an APET core. It is also described as a PETG/APET/PETG sheet or G-PET-G sheet.

PETG is glycol-modified polyethylene terephthalate, known for useful toughness and converting performance. APET is amorphous polyethylene terephthalate, commonly used in clear rigid packaging because of its transparency and stiffness.

Combining these materials in an A/B/A construction allows the sheet to use PETG where its surface properties are most useful while retaining APET in the central layer. The exact layer ratio can be customized according to processing, mechanical strength and packaging design requirements.

PETG/APET/PETG Three-Layer Structure

The final performance of a GAG sheet depends on the PETG surface thickness, APET core thickness, raw material grade and production conditions. For thermoforming, folding, printing or bonding applications, the layer structure should be selected according to the intended conversion process.

PET GAG Sheet Specifications

Specification Note: Actual dimensions, layer ratio, tolerances and material performance depend on the selected production grade. Confirm technical specifications, certification scope and delivery conditions before placing an order.

Get GAG Sheet Specifications and Pricing

PET GAG Sheet Technical Data Sheet

Review the PET GAG sheet data sheet for additional product information. Please confirm the latest technical document and material grade before commercial production.

Download PET GAG Sheet Data Sheet (PDF)

Key Benefits of PET GAG Sheets

High Transparency and Gloss

Clear GAG sheet provides attractive transparency for food packaging, blister packs, transparent boxes and retail displays. Optical appearance depends on sheet thickness, raw material quality, surface finish and processing conditions.

Balanced Toughness and Rigidity

PETG outer layers can improve toughness and surface performance, while the APET core contributes structural support. The final mechanical properties depend on the layer ratio, sheet thickness and forming conditions.

Good Thermoforming Performance

GAG sheets can be evaluated for thermoforming and vacuum forming into trays, blisters and packaging components with complex shapes. Forming temperatures, heating conditions and drying requirements should be confirmed for the selected grade.

Folding and Bonding Performance

The PETG surface layers can provide useful converting characteristics for transparent folding boxes and other packaging applications. Folding, creasing, adhesive bonding and solvent compatibility should be evaluated with production samples.

Chemical Resistance

PET-based GAG sheet offers useful resistance to a range of substances encountered in packaging applications. Compatibility with specific chemicals, inks, cleaning agents or adhesives must be tested under actual use conditions.

Cost-Efficient Multilayer Construction

Using PETG on the outer surfaces and APET in the core can reduce the PETG content compared with a full PETG sheet. This may offer a favorable balance between processing performance and material cost for suitable packaging applications.

Applications of PET GAG Sheets

Food Packaging Trays: Suitable GAG grades can be formed into transparent trays and containers for selected food packaging applications. Direct food-contact use requires appropriate material qualification and documentation.

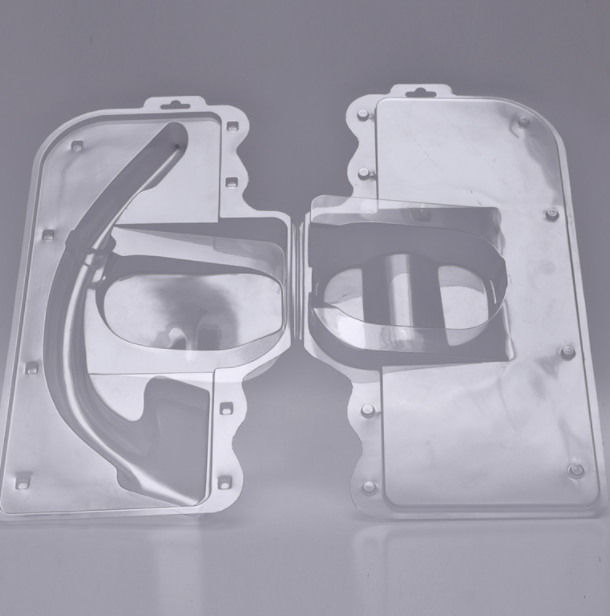

Blister Packaging: GAG sheet can be vacuum formed into rigid blister cavities for consumer goods, accessories, electronic products and retail items.

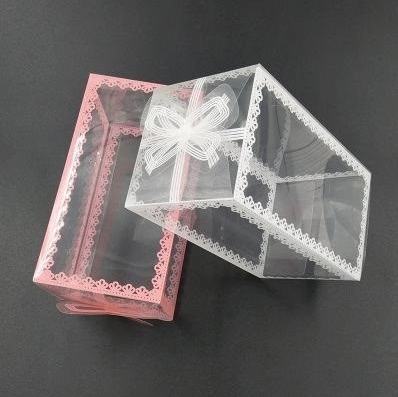

Transparent Folding Boxes: Clear GAG sheet is useful for packaging converters producing folding cartons and transparent boxes that require attractive appearance and reliable converting performance.

Clamshell Containers: GAG sheet can be considered for hinged-lid packaging and other formed containers where toughness and dimensional stability are required.

Electronic Packaging: The material can be used for selected protective trays, inserts and transparent packaging components. Electrostatic-sensitive applications require separately qualified ESD or anti-static properties.

Decorative and Retail Display Components: GAG sheet can also be evaluated for selected decorative panels, display items and fabricated plastic components where its optical and mechanical characteristics are suitable.

GAG Sheet vs. APET Sheet vs. PETG Sheet

GAG, APET and PETG are transparent polyester-based sheet materials. Their construction and processing properties differ, so the best choice depends on the finished product, forming process and cost requirements.

Thermoforming and Processing PET GAG Sheets

Heating and Forming

The selected GAG sheet should be heated uniformly using an appropriate processing temperature profile. The recommended forming conditions depend on the material grade, total thickness, PETG layer ratio and thermoforming equipment.

Vacuum Forming and Mold Design

GAG sheet can be formed into trays, packaging cavities and custom shapes with suitable molds. Deep draws, sharp corners and complicated geometries should be evaluated to achieve acceptable wall-thickness distribution and finished-part strength.

Folding, Die Cutting and Bonding

For transparent folding boxes, confirm creasing, bending, trimming and adhesive compatibility with the intended production process. PETG surface layers can offer useful converting characteristics, but samples should be evaluated before commercial production.

Drying and Material Preparation

Drying requirements depend on the selected grade, moisture content, storage conditions and forming equipment. Follow material-specific processing recommendations and confirm operating conditions during production trials.

How to Choose the Right PET GAG Sheet

Thickness: Select a gauge that meets the finished product's rigidity, forming depth, folding and strength requirements.

Width and Sheet Size: Specify roll width or cut-sheet dimensions according to your equipment and mold layout.

Layer Structure: Discuss the PETG surface-to-APET core ratio according to thermoforming, folding, bonding and material-cost requirements.

Appearance: State your transparency, color, gloss and surface quality requirements.

Processing Method: Provide details about vacuum forming, thermoforming, die cutting, folding, printing or adhesive bonding.

Food-Contact Requirements: Identify the destination market, food type and intended contact conditions if the GAG sheet will be used for food packaging.

Order Quantity: Include the required volume, expected delivery schedule and destination.

Discuss Custom PET GAG Sheet Requirements

PET GAG Sheet Packaging and Delivery

HSQY provides protective packing arrangements for GAG sheet rolls and cut sheets. Packaging can be selected according to material thickness, dimensions, order quantity and international transport conditions.

Sample Packing: A4-size samples can be packed in PP bags or protective boxes.

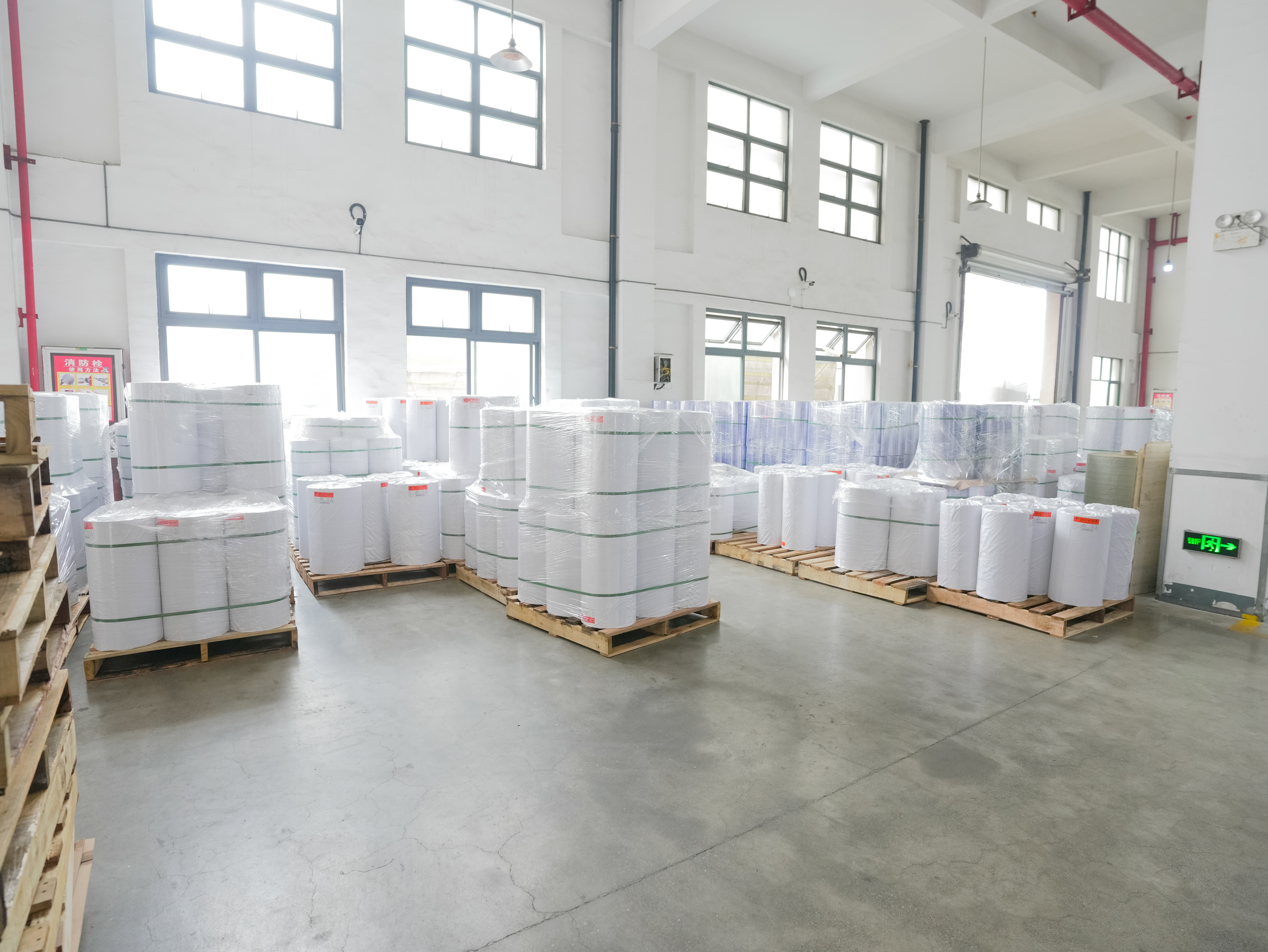

Roll Packing: Rolls can be wrapped with PE film or kraft paper, subject to specifications and shipment requirements.

Sheet Packing: Cut sheets can be packed in cartons or other protective packaging according to customer requirements.

Pallet Packing: The listed reference range is 500–2000 kg per plywood pallet, depending on product size and handling requirements.

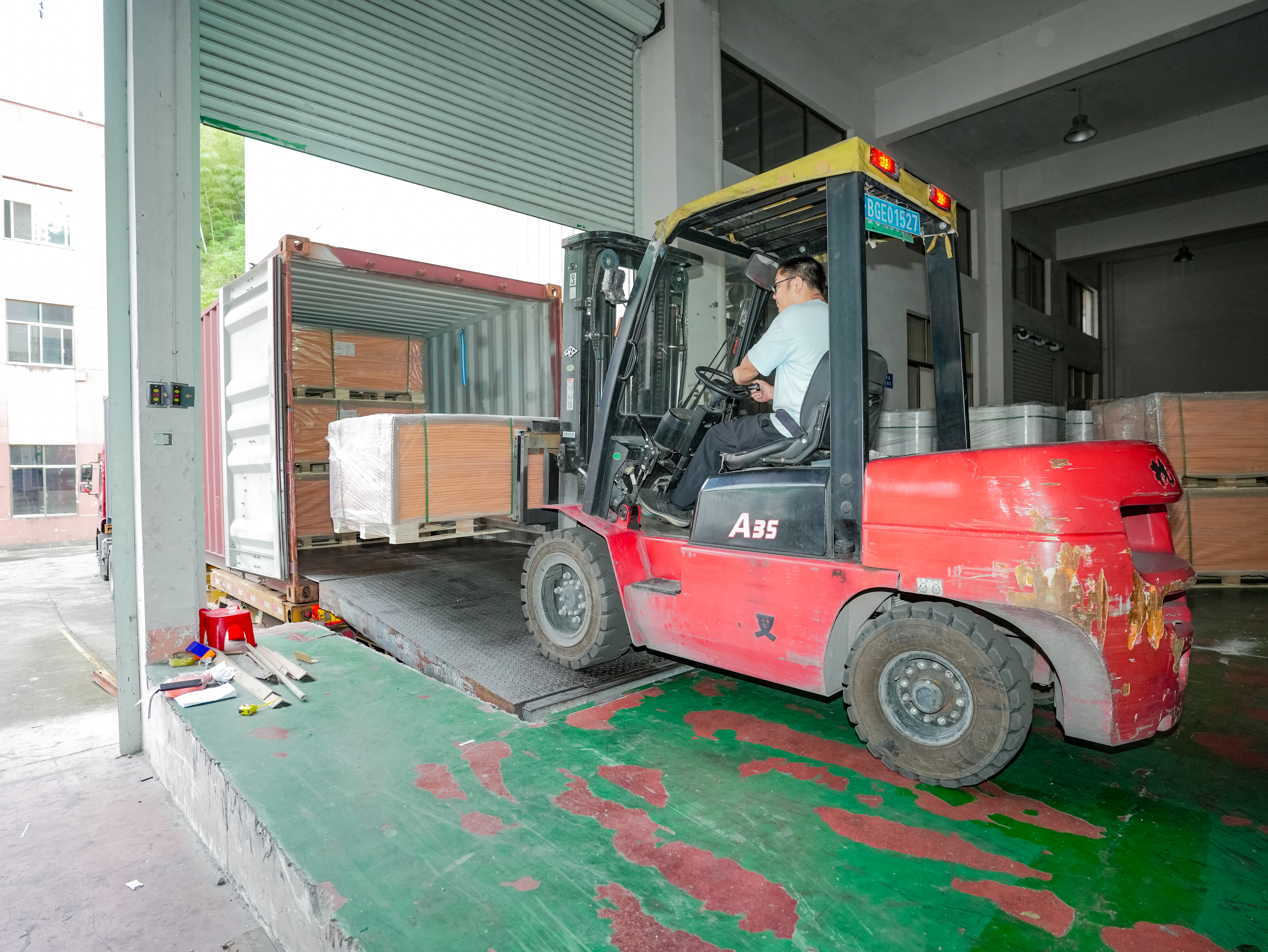

Container Loading: The original product information lists approximately 20 tons per container. Actual loading depends on packing arrangements and transport weight limits.

Lead Time: The reference production lead time is 7–15 days for 1–20,000 kg. Larger orders are subject to production scheduling.

Quality and Certification Documents

HSQY Plastic provides product information and can discuss available quality documentation for selected PET GAG sheet grades. Buyers should request current reports and verify that each document applies to the specific material and intended use.

The original product information references SGS reports and ISO 9001:2008 documentation. Please confirm the current certificate version, validity and scope. Food-contact compliance must be assessed separately according to the relevant destination-market requirements.

HSQY Plastic at International Exhibitions

HSQY Plastic Group meets packaging manufacturers, converters and distributors at international plastics and packaging exhibitions. These events provide opportunities to discuss GAG sheet specifications, thermoforming applications and international supply cooperation.

Why Choose HSQY Plastic for GAG Sheets?

Three-Layer Material Supply: HSQY supplies PETG/APET/PETG GAG sheet for packaging manufacturers and industrial converters.

Customized Dimensions: Buyers can discuss thickness, roll width, sheet size, color and specific processing requirements.

Application Support: HSQY can discuss material selection for vacuum forming, thermoforming, blister packaging, folding boxes and other applications.

Bulk Order and Export Arrangements: Sample supply, bulk packing, commercial terms and shipment requirements can be discussed with our team.

Frequently Asked Questions About PET GAG Sheets

What is a PET GAG sheet?

A PET GAG sheet is a multilayer polyester sheet typically made with PETG outer layers and an APET core. This PETG/APET/PETG construction combines useful surface toughness and converting performance with core rigidity.

What does GAG stand for in plastic sheets?

GAG refers to a three-layer PETG/APET/PETG sheet, also described as G-PET-G or an A/B/A construction. PETG forms the two outer layers, while APET forms the central layer.

What is the difference between GAG and PETG sheet?

GAG uses PETG surface layers and an APET core, while a PETG sheet is primarily made from glycol-modified PET. GAG can provide a balance of PETG surface performance, APET rigidity and material cost, depending on the layer ratio.

Is GAG sheet suitable for thermoforming?

Yes. Suitable GAG grades can be used for thermoforming and vacuum forming into trays, blisters, containers and other packaging components. Actual process settings depend on material thickness, layer ratio and mold design.

Can PET GAG sheets be used for food packaging?

Selected GAG grades can be used for food packaging when the material structure and documentation meet the applicable requirements. Direct food-contact compliance should be confirmed according to the destination market, food type and intended conditions of use.

What thicknesses of PET GAG sheet are available?

HSQY lists GAG sheet thicknesses from 0.15 mm to 3 mm. The appropriate thickness depends on the packaging design, forming depth, rigidity and processing requirements.

What roll widths and sheet sizes are available?

Roll widths range from 110 mm to 1280 mm. Listed cut-sheet sizes include 915 × 1220 mm and 1000 × 2000 mm. Customized sizes can be discussed according to production requirements.

Can PET GAG sheet be used for transparent folding boxes?

Yes. GAG sheet can be considered for transparent folding boxes and retail packaging. Creasing, folding, bonding and finished-box performance should be tested using the intended converting equipment.

Does GAG sheet require pre-drying before thermoforming?

Pre-drying requirements depend on the material grade, moisture condition and processing equipment. The correct material preparation should be confirmed through supplier guidance and production trials.

Can GAG sheet be printed or glued?

Selected GAG grades can be evaluated for printing and adhesive bonding. Compatibility depends on the inks, adhesives, surface condition and processing method.

Is PET GAG sheet recyclable?

GAG is made from PET-family polymers. The recyclability of the finished product depends on its formulation, labels, adhesives, local sorting technology and available recycling systems.

What is the minimum order quantity for PET GAG sheets?

The listed minimum order quantity is 1000 kg. Final order quantities may vary according to thickness, roll width, color and customization requirements.

Can I request PET GAG sheet samples?

Yes. Contact HSQY to discuss available A4-size or other material samples for forming, folding or other processing evaluations. Sample terms and delivery charges can be confirmed before shipment.

How can I get a quotation for PET GAG sheets?

Please provide the required thickness, roll width or sheet size, color, application, processing method, estimated quantity and delivery destination. If available, include your finished-product drawing and technical requirements.
