China GAG Plastic Sheet factory and manufacturers

China GAG Plastic Sheet Manufacturer and Supplier

HSQY Plastic Group is a China-based supplier of GAG plastic sheets and film rolls featuring a three-layer PETG/APET/PETG (A/B/A) co-extruded structure. Our GAG sheets are supplied to packaging manufacturers, thermoforming companies, plastic fabricators, distributors and industrial buyers seeking transparent, rigid polyester materials for a range of converting applications.

Manufactured in Jiangsu, China, HSQY GAG sheets combine PETG outer layers with an APET core to provide a balance of transparency, rigidity, toughness and processability. The multilayer structure offers useful surface characteristics while allowing material-cost optimization compared with an equivalent solid PETG construction.

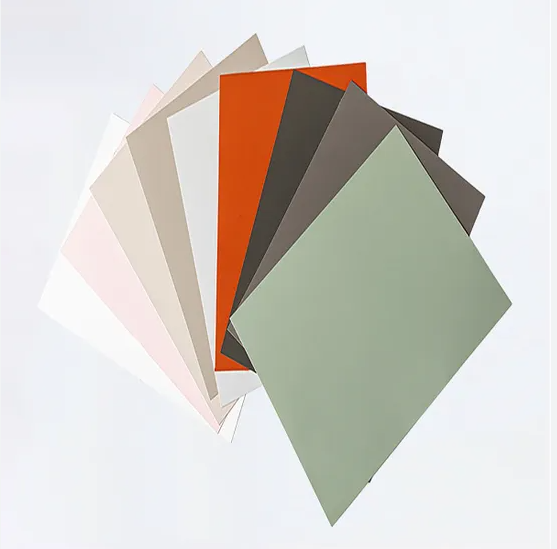

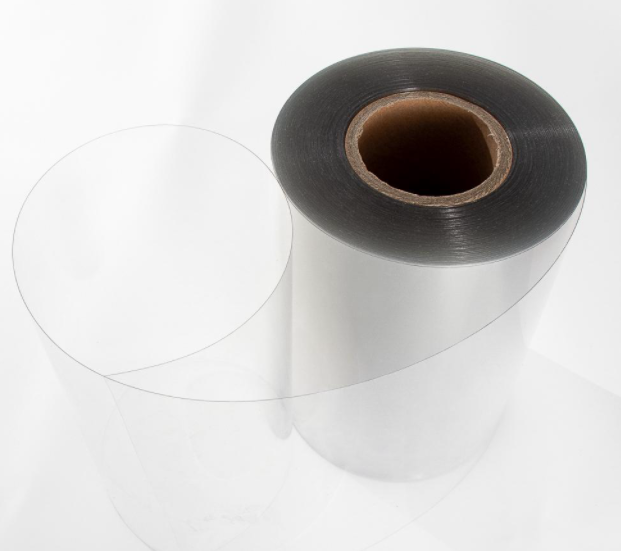

HSQY offers GAG sheets in thicknesses from 0.15 mm to 3 mm and roll widths from 110 mm to 1280 mm. Transparent and customized colored sheets are available in rolls or cut-sheet formats, subject to production specifications. The listed minimum order quantity is 1000 kg.

For wholesale buyers and packaging converters, we can discuss customized sheet thickness, roll width, sheet dimensions, PETG/APET layer construction, protective packaging and international delivery arrangements. Provide your application, processing requirements and order volume to receive a suitable quotation.

Request Factory Pricing for GAG Sheets

What Is GAG Plastic Sheet?

GAG plastic sheet is a transparent, multilayer polyester sheet typically manufactured by co-extruding PETG outer layers and an APET middle layer. It is also called PETG/APET/PETG sheet, G-PET-G film or three-layer GAG sheet.

PETG is glycol-modified polyethylene terephthalate, a polyester valued for its toughness and converting characteristics. APET is amorphous polyethylene terephthalate, commonly used for rigid transparent packaging because of its clarity and stiffness.

The combination of PETG surfaces and an APET core makes GAG a practical option for selected thermoforming, folding, die cutting, bonding, printing and decorative applications. Final properties depend on the selected grade, total thickness, layer ratio and converting process.

PETG/APET/PETG Three-Layer Structure

GAG sheet uses an A/B/A construction with PETG on both surfaces and APET in the center. Each layer contributes to the overall appearance, rigidity and processing performance of the material.

The PETG surface-layer thickness and APET core proportion can be selected according to the required forming, folding, bonding and finished-product performance. Specific layer ratios should be agreed before production.

China GAG Plastic Sheet Specifications

Specification Note: Dimensions, tolerances, PETG/APET layer ratios, processing characteristics and commercial terms should be confirmed for the selected GAG sheet grade and production order.

Get Wholesale GAG Sheet Specifications

GAG Plastic Sheet Applications

Thermoforming Packaging: GAG sheets can be converted into selected trays, clamshells, protective inserts and rigid packaging components using suitable thermoforming equipment.

Decorative Film and Panels: GAG material can be used in selected decorative sheet products, retail fixtures, surface applications and fabricated display components where its properties meet the intended requirements.

Transparent Folding Boxes: Suitable GAG grades can be cut, creased and folded into clear presentation boxes or retail packaging. Folding and bonding performance should be validated before commercial production.

POP and Retail Displays: GAG sheets can be considered for transparent display components, sign holders and packaging presentation products where appearance and converting performance are important.

Blister Packaging: Suitable grades can be thermoformed or vacuum formed into clear blister packaging for hardware, cosmetics, accessories and consumer goods.

Electronic Packaging: Clear trays and protective components can be manufactured from selected GAG grades. Electrostatic-sensitive applications require separately qualified anti-static or ESD materials.

Food Packaging: Selected GAG formulations may be suitable for food packaging when the material and applicable documents meet the destination market's food-contact requirements.

Why Choose PETG/APET/PETG GAG Sheet?

Good Transparency

Transparent GAG sheet is suitable for selected clear packaging and display applications. Actual light transmittance, haze and gloss depend on thickness, surface quality and material grade.

Balanced Rigidity and Toughness

The APET core contributes rigidity, while PETG surface layers provide useful toughness and converting characteristics. Final mechanical properties depend on material construction and processing conditions.

Thermoforming Performance

Suitable GAG grades can be used in vacuum forming and thermoforming applications. Heating settings, moisture preparation, mold geometry and forming depth should be confirmed during production trials.

Fabrication and Converting Options

GAG sheets can be considered for cutting, folding, drilling, selected printing and bonding processes. Compatibility with specific inks, tools and adhesives should be evaluated before bulk production.

Efficient Multilayer Construction

The PETG/APET/PETG structure uses PETG on the surfaces and APET in the middle. This can reduce PETG material use compared with a solid PETG sheet of the same thickness, depending on the required layer ratio.

Customizable Specifications

HSQY can discuss thicknesses, roll widths, sheet dimensions, colors and packing arrangements to meet different production and purchasing requirements.

GAG Sheet vs. APET Sheet vs. PETG Sheet

GAG, APET and PETG are PET-family materials used in packaging and fabrication. Their structures differ, making them suitable for different production methods and commercial requirements.

Custom GAG Sheet Manufacturing and Wholesale Supply

HSQY works with industrial customers to discuss GAG sheet specifications for packaging conversion, decorative materials and fabricated products. Clear technical requirements help establish suitable production conditions and commercial quotations.

Thickness and Dimensional Requirements

Specify the sheet thickness, width, length and tolerances required for the intended production equipment. Custom dimensions are subject to manufacturing confirmation.

Material Construction

Provide any required PETG surface-layer ratio, appearance criteria, color and converting properties. Layer construction should be selected according to the finished product and application.

Production and Processing Requirements

Tell us whether the material will be thermoformed, folded, printed, die-cut, bonded or fabricated into decorative components. Processing details help determine the most suitable material grade.

Order Quantity and Delivery

Provide the expected order volume, purchasing schedule, preferred packing method and destination. Production and shipment arrangements can then be confirmed according to material availability.

Discuss Custom GAG Sheet Orders

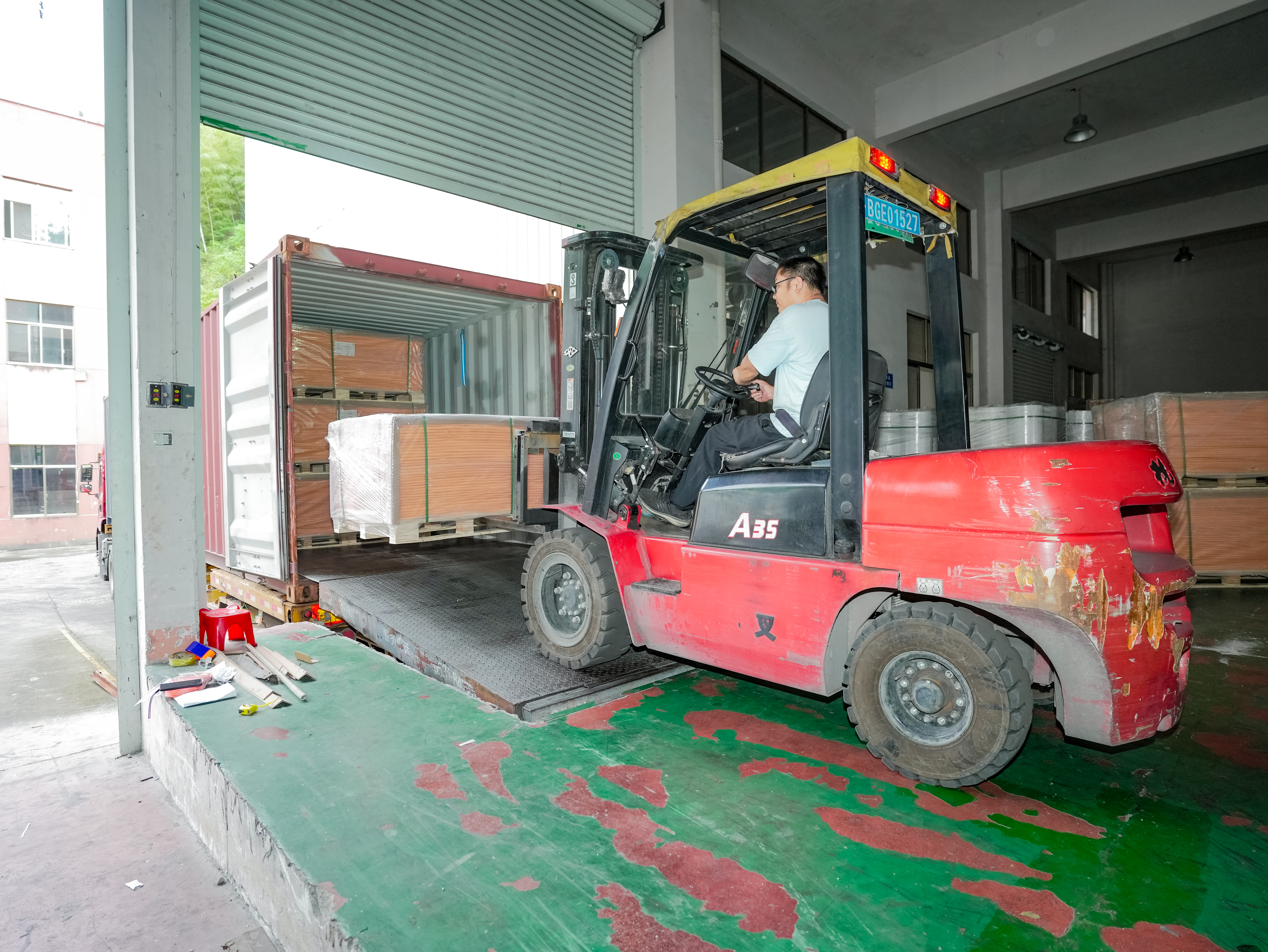

Packing and Delivery

HSQY supplies GAG sheets with protective packaging arrangements for handling, storage and international transportation. The final packing method is selected according to material thickness, size, order quantity and shipment requirements.

Sample Packaging: A4-size sheets packed in PP bags within protective boxes.

Sheet Packing: Reference packing of 30 kg per bag or customized as required.

Pallet Packing: Reference packing of 500–2000 kg per plywood pallet, depending on dimensions and handling requirements.

Container Loading: Approximately 20 tons per container, subject to packing configuration and transport weight restrictions.

Delivery Terms: EXW, FOB, CNF and DDU, subject to final agreement.

Reference Lead Time: Generally 10–14 working days depending on order quantity, material specification and production schedule.

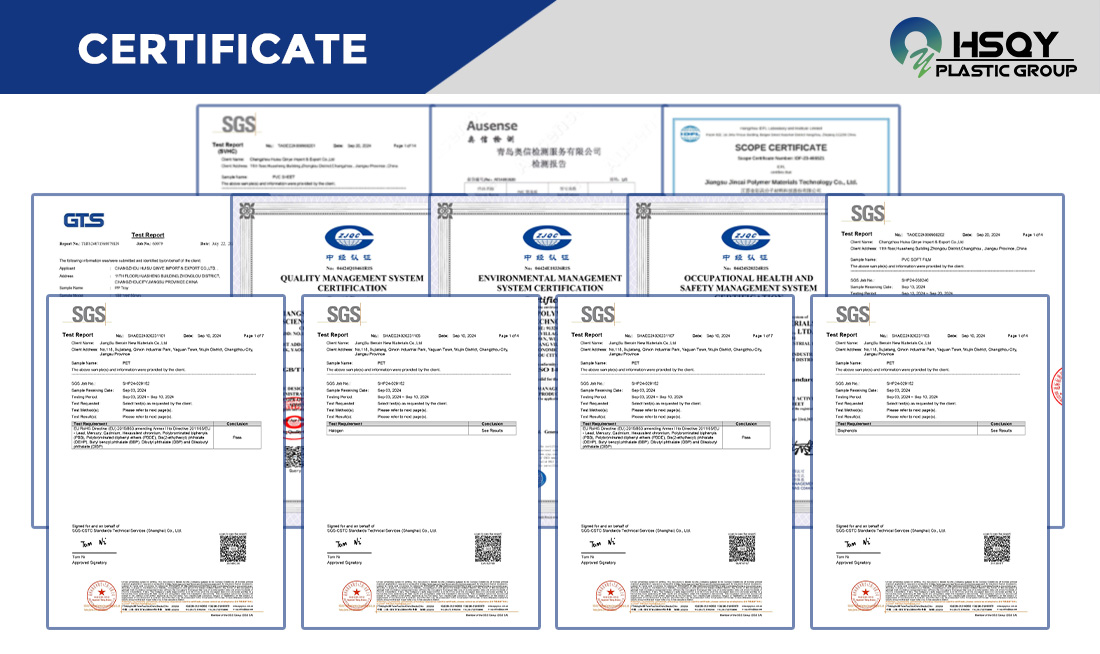

Quality Control and Product Documentation

HSQY can discuss applicable GAG sheet technical specifications, material reports and quality documentation according to the selected product grade and purchasing requirements.

Buyers should confirm critical requirements such as sheet thickness, dimensional tolerances, appearance, material structure and converting performance before approving commercial production.

The original product information references SGS testing and ISO 9001:2008 documentation. Please request current certificates and verify their validity and scope. Food-contact suitability must be assessed separately for the exact material grade and intended market.

HSQY Plastic at International Exhibitions

HSQY Plastic Group connects with packaging manufacturers, converters, distributors and industrial buyers at international plastics and packaging exhibitions. These events provide opportunities to discuss GAG plastic sheet applications, wholesale orders and customized material specifications.

Why Choose HSQY Plastic as Your GAG Sheet Supplier?

China-Based Supply: HSQY supplies GAG plastic sheets and film from Jiangsu, China, to packaging and industrial customers.

PETG/APET/PETG Material Options: Our GAG product range offers transparent or colored multilayer polyester materials for a variety of converting applications.

Customized Specifications: Buyers can discuss thickness, width, color, roll format, sheet size and relevant material requirements.

Bulk Order Support: HSQY works with manufacturers, wholesalers and distributors on production quantities, packing, delivery schedules and export arrangements.

Application Discussions: Customers can share their thermoforming, decorative film, folding-box or display-product requirements when selecting a suitable GAG grade.

Frequently Asked Questions About China GAG Plastic Sheets

What is GAG plastic sheet?

GAG is a three-layer PET-based sheet with PETG on both outer surfaces and APET in the center. This PETG/APET/PETG structure provides a balance of transparency, rigidity and converting performance for selected applications.

Where is HSQY GAG plastic sheet manufactured?

HSQY supplies GAG plastic sheet manufactured in Jiangsu, China, for customers in packaging, thermoforming, decorative materials and other industrial markets.

What is the difference between GAG, APET and PETG?

GAG combines PETG surface layers with an APET core. APET is amorphous PET, while PETG is glycol-modified PET. Their converting characteristics and costs differ according to material grade and construction.

What thicknesses of GAG sheet can HSQY supply?

The listed thickness range is 0.15–3 mm. Specific gauges and tolerances should be confirmed according to the requested order and production requirements.

What GAG film roll widths are available?

HSQY lists GAG roll widths from 110 mm to 1280 mm. Buyers can discuss custom width, roll format and packing requirements.

Can GAG sheets be used for thermoforming?

Yes. Suitable GAG grades can be thermoformed or vacuum formed into packaging trays, blisters and other components. The correct process settings depend on grade, thickness, mold geometry and equipment.

Can GAG plastic sheets be used for decorative applications?

GAG can be considered for selected decorative sheets, retail displays and fabricated panels. Suitability depends on the surface requirements, fabrication method and intended conditions of use.

Is GAG sheet suitable for printing and folding?

Selected GAG grades can be evaluated for printing, folding, scoring and adhesive bonding. Processing trials should confirm ink adhesion, crease quality and adhesive compatibility.

Are GAG PET sheets suitable for food packaging?

Selected GAG grades may be suitable for food packaging when the formulation and documentation meet the applicable food-contact requirements. Buyers should confirm the specific material grade, food type, contact conditions and destination market.

What quality certificates are available?

The original product information references SGS testing and ISO documentation. Please contact HSQY for current certificates, relevant material reports and their applicable scope.

Is GAG plastic sheet recyclable?

GAG is made with PET-family polymers. Actual recycling acceptance depends on the finished product design, additives, labels, adhesives and available local recycling systems.

What is the minimum order quantity for GAG sheets?

The listed MOQ is 1000 kg. Final quantities may vary according to the requested thickness, color and custom production specifications.

How long does GAG sheet production and delivery take?

The reference production lead time is generally 10–14 working days, depending on order quantity, material specifications and production scheduling. Shipping time depends on the destination and agreed transport method.

Can I request GAG sheet samples from HSQY?

Yes. Contact HSQY to discuss available A4-size samples or other sizes for material evaluation. Sample and freight arrangements, including international courier services, can be confirmed before dispatch.

How do I request a wholesale GAG sheet quotation?

Please provide the required thickness, roll width or sheet dimensions, color, application, estimated quantity, packing requirements and shipping destination. Include drawings or technical requirements where available.

About HSQY Plastic Group

Changzhou Huisu Qinye Plastic Group Co., Ltd. is based in Changzhou, Jiangsu, China, and has over 20 years of experience in the plastic materials industry. The company's product range includes GAG sheets, PET sheets, PVC sheets, CPET trays, polycarbonate materials and other plastic products.

HSQY serves international customers seeking plastic sheet materials for packaging, thermoforming, industrial fabrication and distribution. Our team can discuss customized specifications, material samples, bulk ordering and shipment arrangements.

Request GAG Plastic Sheet Samples and Factory Pricing

Looking for a GAG plastic sheet manufacturer or supplier in China? HSQY Plastic can discuss PETG/APET/PETG material specifications for packaging, thermoforming, decorative applications and wholesale distribution.

Send us your required thickness, width, color, application, order quantity and destination to discuss suitable GAG grades, samples, pricing and lead times.
