Clear Hard Pet Plastic Sheet High Quality Petg Gag Plastic Sheet For Vacuum Forming

Clear Hard GAG PET Sheet for Vacuum Forming

HSQY Clear Hard GAG PET Sheet is a transparent, three-layer co-extruded polyester sheet with a PETG/APET/PETG (A/B/A) structure, designed for vacuum forming, thermoforming, blister packaging, rigid plastic trays and transparent packaging components. It combines PETG surface toughness with an APET core to provide a balance of clarity, rigidity and converting performance.

HSQY supplies GAG plastic sheets and rolls in thicknesses from 0.15 mm to 3 mm, roll widths from 110 mm to 1280 mm, and standard cut-sheet sizes including 915 × 1220 mm and 1000 × 2000 mm. Custom dimensions, clear or colored grades and roll configurations can be discussed according to production requirements.

The PETG outer layers offer useful surface toughness and forming characteristics, while the APET core contributes stiffness and dimensional support. This multilayer structure can be a practical choice for packaging converters seeking the processing characteristics of PETG surfaces without using solid PETG throughout the entire sheet.

For vacuum forming manufacturers, blister packaging companies, plastic tray producers and distributors, HSQY can discuss sheet thickness, roll width, material grade, layer structure and custom specifications to match the intended mold and finished product.

Request a GAG Vacuum Forming Sheet Quote

What Is GAG PET Sheet for Vacuum Forming?

GAG PET sheet is a multilayer rigid polyester sheet made from PETG outer layers and an APET middle layer. It is also known as PETG/APET/PETG sheet or G-PET-G film. The material can be heated and formed into three-dimensional packaging components with suitable vacuum forming or thermoforming equipment.

During vacuum forming, the sheet is heated to a suitable forming condition and drawn against a mold through vacuum pressure. After cooling, the formed part can be trimmed, cut and prepared for further assembly or packaging operations.

The quality of the formed product depends on sheet thickness, PETG/APET layer ratio, material moisture condition, heating profile, mold geometry, vacuum distribution and cooling conditions. Samples should be tested with the intended equipment before bulk production.

PETG/APET/PETG Three-Layer Material Structure

GAG sheet uses an A/B/A construction in which the two PETG surface layers surround an APET core. This structure is designed to combine useful surface characteristics and rigidity for forming and fabrication applications.

The PETG surface-layer thickness and APET core ratio can affect thermoforming behavior, rigidity, toughness, folding and bonding performance. Customers requiring deep draws or demanding formed shapes should discuss the construction and performance requirements before ordering.

Clear Hard GAG PET Sheet Specifications

Note: Dimensions, thickness tolerances, PETG/APET layer ratios, optical appearance and processing characteristics depend on the selected product grade. Please confirm available specifications and technical documentation before placing an order.

Get GAG Sheet Specifications & Pricing

Key Benefits of GAG PET Sheet for Vacuum Forming

High Transparency and Gloss

Clear GAG sheet offers an attractive transparent appearance for formed trays, blister packs and retail packaging. Actual optical clarity and surface quality depend on material formulation, thickness and manufacturing conditions.

Good Vacuum Forming Characteristics

Suitable GAG grades can be heated and formed into a range of plastic packaging shapes. The PETG outer layers contribute useful forming characteristics, while the APET core helps maintain rigidity. Proper equipment settings and mold design remain essential.

Balanced Toughness and Stiffness

The multilayer PETG/APET/PETG construction provides a useful combination of toughness and stiffness. Finished-part strength depends on sheet gauge, forming depth, layer structure and product geometry.

Multiple Converting Options

GAG sheets can be considered for vacuum forming, thermoforming, die cutting, folding, drilling and selected bonding operations. Compatibility should be tested for the intended equipment, adhesives and finished packaging requirements.

Cost-Efficient Composite Construction

Using PETG surfaces with an APET core can reduce the proportion of PETG resin compared with a full PETG sheet. This may help balance material cost and processing performance for suitable applications.

Custom Sizes and Colors

HSQY offers different GAG sheet thicknesses, roll widths, cut-sheet sizes and color options. Customers can discuss custom specifications based on their vacuum forming machines and packaging designs.

Applications of Clear Hard GAG PET Sheet

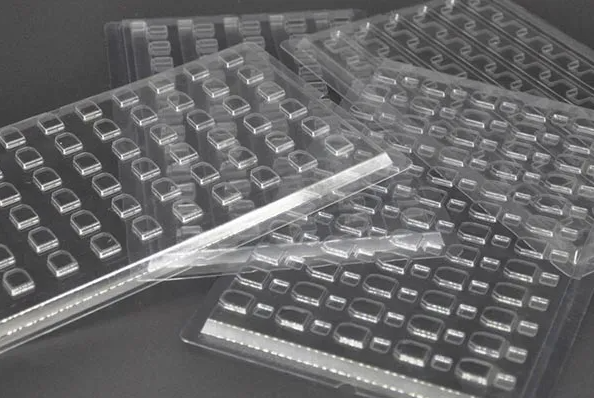

Blister Packaging: GAG sheet can be vacuum formed into transparent blister cavities for hardware, toys, cosmetics, consumer accessories and retail products.

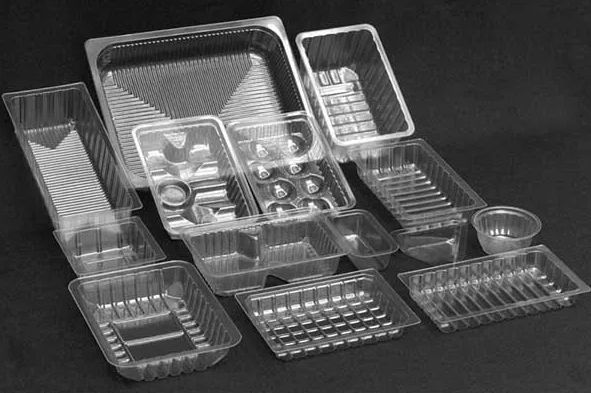

Vacuum-Formed Trays: Suitable GAG grades can be formed into trays and protective inserts for packaging, transport and product display.

Clamshell Packaging: GAG can be used for selected transparent clamshell and hinged-container designs when the material meets the required forming and mechanical performance.

Folding Boxes: The PETG outer layers provide useful converting characteristics for selected transparent folding cartons and packaging components.

Electronic Packaging: GAG can be used for formed protective trays and inserts. Applications involving electrostatic-sensitive components require separately qualified anti-static or ESD properties.

Food Packaging: Suitable GAG grades may be used for transparent food packaging trays and containers where the material construction and documentation meet the applicable requirements for the intended use.

Decorative Components: Clear or colored GAG sheet can also be considered for selected decorative panels, display products and fabricated plastic components.

How to Vacuum Form GAG PET Sheet

1. Material Preparation

Inspect the GAG sheet for cleanliness, thickness consistency, surface condition and moisture exposure. Drying requirements depend on the selected grade, storage conditions and forming process.

2. Controlled Heating

Heat the sheet uniformly to an appropriate forming condition. The temperature profile should be selected according to the total sheet thickness, PETG surface layers and APET core structure.

3. Vacuum Forming

Apply vacuum to draw the heated GAG sheet against the mold. Proper mold venting and vacuum distribution are important for cavity definition and consistent material distribution.

4. Cooling and Demolding

Allow the formed product to cool sufficiently before release from the mold. Cooling conditions should support dimensional stability and reduce unwanted distortion.

5. Trimming and Inspection

Trim the formed part and inspect appearance, wall-thickness distribution, dimensional accuracy and mechanical performance before approving volume production.

How to Select GAG Sheet for Vacuum Forming

Sheet Thickness: Select the appropriate gauge according to the cavity depth, part dimensions, required rigidity and mechanical loading.

Forming Depth: Provide the target cavity depth, draw ratio and mold geometry to help evaluate suitable sheet thickness and material construction.

Sheet Width: Specify roll width or cut-sheet size according to the vacuum forming machine and mold layout.

Layer Ratio: Discuss the PETG outer-layer thickness and APET core ratio when the product requires particular forming or mechanical characteristics.

Optical Appearance: Confirm transparency, gloss, color and acceptable surface defects for visible packaging.

Additional Converting: Specify printing, folding, bonding, die cutting or welding operations planned after vacuum forming.

Food-Contact Requirements: For food packaging, provide the intended food type, contact conditions and destination market to confirm suitable materials and documents.

Order Details: Include the estimated quantity, preferred packing method and shipping destination.

Discuss Your Vacuum Forming Requirements

GAG Sheet vs. APET Sheet vs. PETG Sheet for Vacuum Forming

GAG, APET and PETG are all polyester-based materials that can be used in selected vacuum forming applications. Their different structures influence mechanical performance, processing behavior and material cost.

PET GAG Sheet Technical Data Sheet

Review the PET GAG sheet data sheet for additional material information. For vacuum forming applications, please request the latest grade-specific processing recommendations, thickness tolerances and available technical documents.

Download PET GAG Sheet Data Sheet (PDF)

Packaging and Delivery Options

HSQY supplies GAG sheet rolls and cut sheets with protective packing arrangements for handling, storage and international transportation. Packing can be discussed according to the ordered dimensions, surface requirements and shipment quantity.

Sample Packaging: A4-size sheets packed in PP bags or protective boxes.

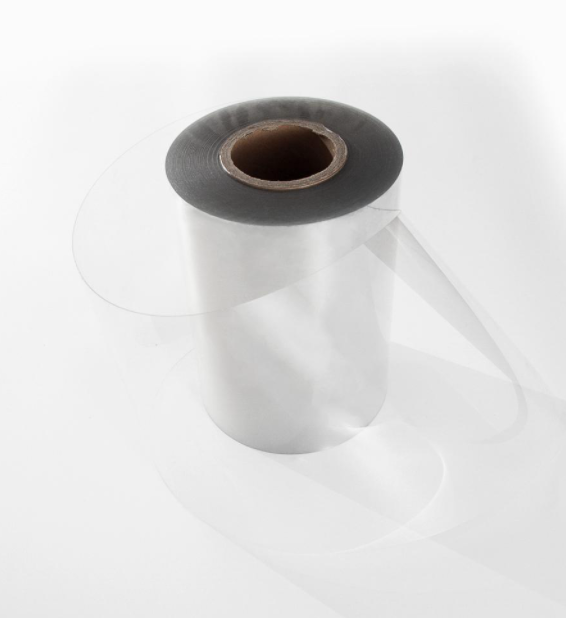

Roll Packaging: Rolls wrapped in PE film or kraft paper.

Sheet Packaging: Cut sheets packed in cartons or customized packaging.

Pallet Packaging: Reference packing of 500–2000 kg per plywood pallet, subject to product dimensions and handling requirements.

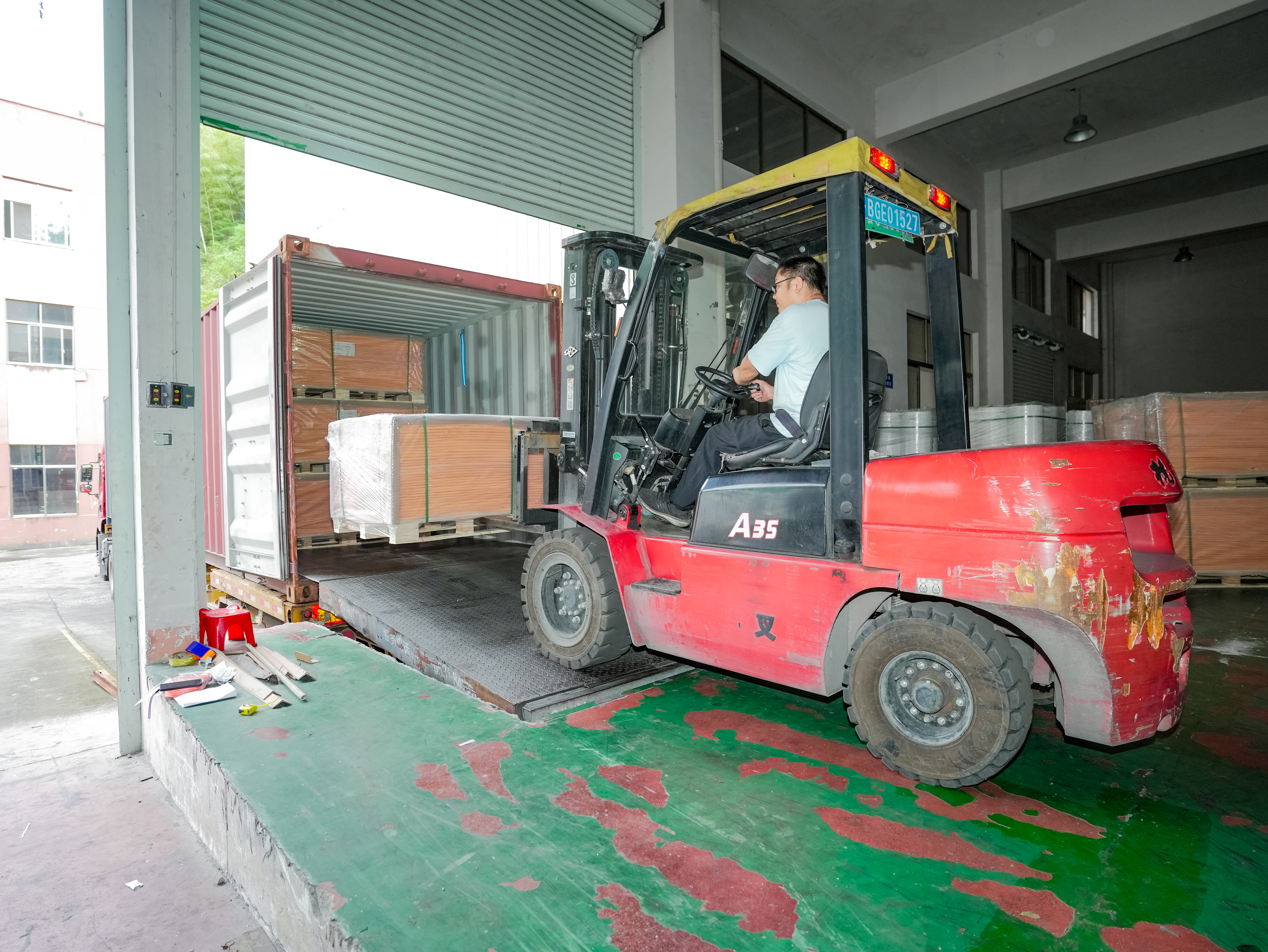

Container Loading: The listed reference is approximately 20 tons per container, subject to transportation limits.

Delivery Terms: EXW, FOB, CNF and DDU, subject to final agreement.

Reference Lead Time: 7–15 days for 1–20,000 kg, with larger orders subject to production scheduling.

Quality and Certification Documents

HSQY can discuss available inspection reports and quality documents for the selected GAG sheet grade. The original product information references SGS and ISO 9001:2008 documentation. Please request current copies and confirm their validity and scope.

For food-contact packaging, applicable material compliance must be established separately according to the destination market, food type and intended conditions of use. An ISO quality management certificate does not independently establish food-contact suitability.

HSQY Plastic at International Exhibitions

HSQY Plastic Group participates in international plastics and packaging exhibitions to connect with vacuum forming companies, thermoforming manufacturers, packaging converters and wholesale buyers. These events provide opportunities to discuss custom GAG sheet specifications and packaging projects.

Why Choose HSQY Plastic for GAG Vacuum Forming Sheets?

Three-Layer Material Supply: HSQY offers PETG/APET/PETG sheets and rolls for vacuum forming, packaging and industrial converting applications.

Customized Dimensions: Customers can discuss sheet thickness, roll width, cut-sheet size, color and material structure according to production requirements.

Vacuum Forming Application Support: Buyers can provide mold drawings, forming depth and equipment specifications to discuss suitable material grades.

Bulk Supply and Export Arrangements: HSQY works with packaging manufacturers and international distributors on samples, order quantities, packing and shipping requirements.

Frequently Asked Questions About GAG Sheet for Vacuum Forming

What is GAG PET sheet for vacuum forming?

GAG PET sheet is a three-layer PETG/APET/PETG plastic sheet designed for selected forming and packaging applications. It combines PETG outer layers with an APET core to provide transparency, rigidity and useful converting characteristics.

Can GAG sheet be vacuum formed?

Yes. Suitable GAG grades can be vacuum formed into trays, blister cavities, inserts and other packaging products. The forming conditions depend on thickness, material structure and mold design.

What is the difference between GAG sheet and PETG sheet?

GAG sheet has PETG outer layers with an APET core, while solid PETG sheet is primarily composed of glycol-modified PET. GAG can provide a balance of PETG surface characteristics and APET rigidity with lower PETG resin content.

What thicknesses of GAG plastic sheet are available?

HSQY lists GAG sheet thicknesses from 0.15 mm to 3 mm. The correct gauge depends on the required forming depth, finished-part rigidity and packaging design.

What roll widths and sheet sizes can HSQY supply?

Roll widths range from 110 mm to 1280 mm. Listed sheet sizes include 915 × 1220 mm and 1000 × 2000 mm. Customized dimensions can be discussed.

Is GAG sheet suitable for deep-draw vacuum forming?

Suitable GAG grades may be used for deep-draw forming. The allowable draw ratio, wall-thickness distribution and part strength depend on material thickness, layer ratio, tooling and processing conditions. Trials are recommended.

Does GAG PET sheet require pre-drying?

Drying requirements depend on the material grade, moisture condition, storage history and forming equipment. Follow the applicable material processing guidance and confirm the settings during production trials.

Can clear GAG sheets be used for food packaging?

Certain GAG grades can be considered for food packaging. Direct food-contact suitability depends on the material formulation and the applicable requirements of the destination market. Request grade-specific documentation before ordering.

Can GAG sheet be printed, folded or glued?

Suitable GAG grades can be evaluated for printing, folding, die cutting and adhesive bonding. Compatibility depends on the sheet surface, ink or adhesive system, gauge and processing conditions.

Is GAG sheet suitable for blister packaging?

Yes. GAG sheet can be vacuum formed into blister packaging for selected retail goods, accessories and industrial products. The material must be matched to cavity depth and mechanical requirements.

Is GAG plastic sheet recyclable?

GAG contains PET-family polymers. The recyclability of a finished product depends on its construction, additives, labels, adhesives and available local recycling systems.

What is the minimum order quantity?

The listed MOQ is 1000 kg. Final minimum quantities may vary depending on dimensions, color and custom material requirements.

Can I request GAG sheet samples for vacuum forming trials?

Yes. Contact HSQY to discuss A4-size or other available samples. If you require trial material for a production machine, provide the preferred thickness, width and sample dimensions. Sample and freight arrangements can be confirmed before dispatch.

What information is needed for a GAG sheet quotation?

Please provide thickness, roll width or sheet size, color, vacuum forming application, mold depth, estimated quantity and delivery destination. Product drawings and quality requirements will help with material selection.

About HSQY Plastic Group

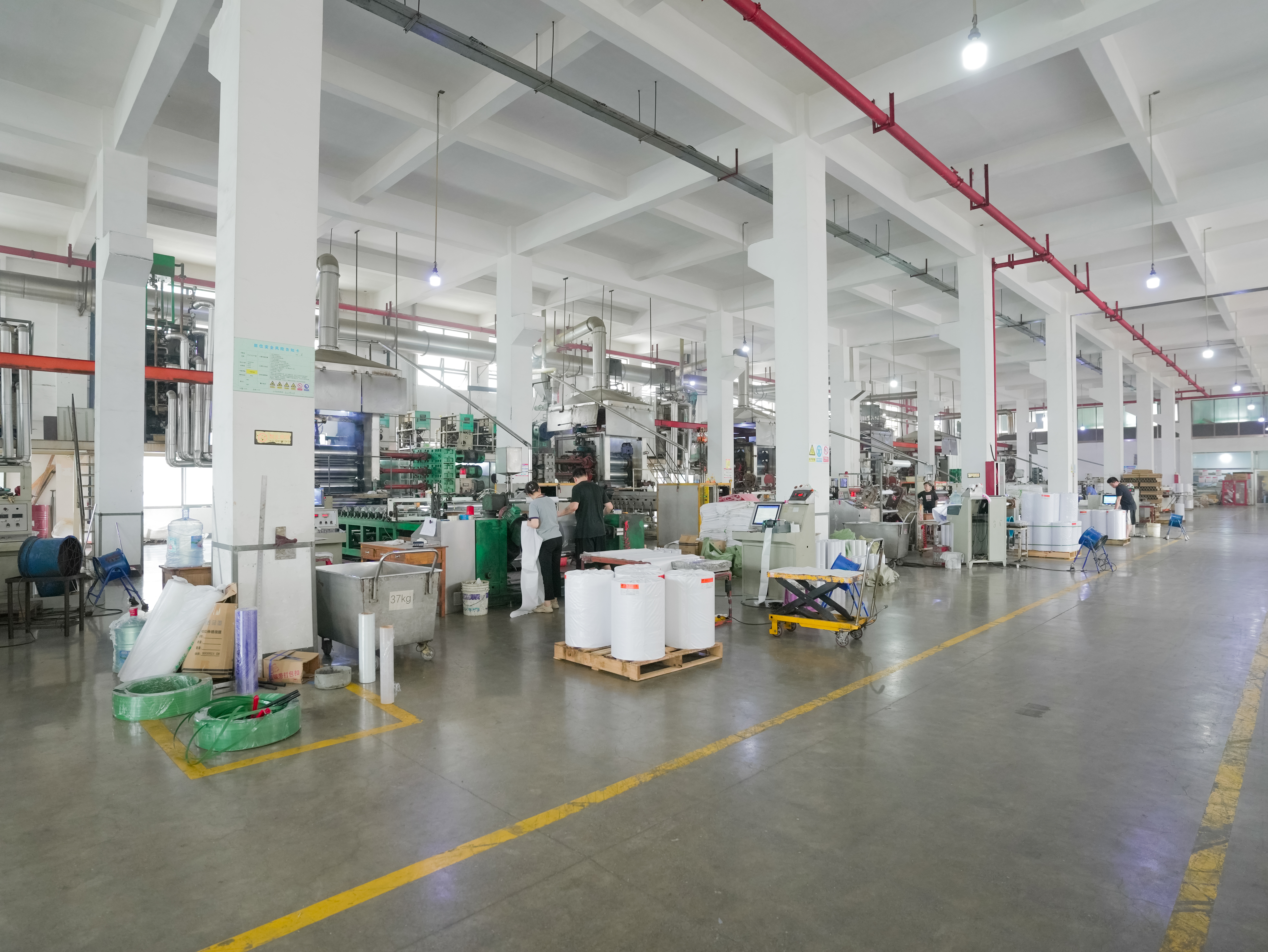

Changzhou Huisu Qinye Plastic Group Co., Ltd., based in Jiangsu, China, supplies plastic sheets, films and packaging materials for manufacturers, converters and distributors. The company's product portfolio includes GAG sheets, PETG sheets, APET sheets, CPET trays, PP packaging products and other plastic materials.

HSQY works with international customers to discuss customized material specifications, vacuum forming applications, samples, order quantities and export arrangements.

Request GAG PET Sheet Samples and Bulk Pricing

Looking for clear hard PETG/APET/PETG sheets for vacuum forming, blister packaging, transparent trays or custom plastic components? HSQY Plastic can discuss material specifications and supply arrangements for your manufacturing project.

Send us your required thickness, width, sheet or roll format, forming application, estimated quantity and delivery destination to discuss suitable grades, samples and pricing.
