HSQY High Glossy Plastic GAG Film Sheet

High Gloss GAG PET Film Sheet for Premium Packaging

HSQY High Gloss GAG PET Film Sheet is a rigid, three-layer co-extruded polyester sheet with a PETG/APET/PETG (A/B/A) structure. It features a glossy surface appearance and is suitable for selected transparent packaging, retail display boxes, blister packs, decorative components and thermoformed products.

The PETG outer layers contribute surface characteristics, toughness and converting performance, while the APET core provides rigidity and dimensional support. The multilayer construction helps combine attractive presentation with practical processing requirements for packaging manufacturers and plastic converters.

HSQY supplies GAG film and sheet in thicknesses from 0.15 mm to 3 mm, roll widths from 110 mm to 1280 mm, and cut-sheet sizes including 915 × 1220 mm and 1000 × 2000 mm. Clear and customized colored grades are available for discussion.

For high-gloss packaging projects, surface gloss, gloss uniformity, optical appearance and resistance to handling damage are important evaluation factors. Buyers can specify their preferred finish, sheet thickness, inspection method and other application requirements when requesting samples or quotations.

Request High Gloss GAG Sheet Pricing

What Is High Gloss GAG PET Film?

High gloss GAG PET film is a multilayer polyester material consisting of PETG outer surfaces and an APET middle layer. It is also known as GAG plastic sheet, PETG/APET/PETG film or G-PET-G sheet.

The glossy surface gives the sheet a reflective, polished appearance that can improve the visual presentation of retail packaging, transparent boxes and decorative plastic components. The degree of gloss depends on the material formulation, extrusion surface finish, thickness and production conditions.

Unlike a coating-based decorative finish, the surface appearance of a standard glossy GAG sheet can be influenced directly by the co-extruded material and finishing conditions. If a project requires a special coating, anti-scratch treatment or a defined gloss level, those requirements should be specified separately.

PETG/APET/PETG Three-Layer Structure

GAG sheet has an A/B/A construction that uses PETG surface layers and an APET core. Each layer contributes to the overall processing and mechanical characteristics of the finished material.

The PETG-to-APET layer ratio should be confirmed according to the required finish, stiffness, forming conditions and fabrication methods. Final gloss performance must be assessed on the selected production grade.

High Gloss GAG Film Sheet Specifications

Specification Note: Thickness tolerances, PETG/APET layer ratios, gloss, color and converting properties depend on the selected grade. Confirm the required specifications and available technical documents before ordering.

Get High Gloss GAG Sheet Specifications

Understanding High Gloss Surface Quality

Surface Gloss

Gloss describes how strongly a surface reflects light in a particular direction. A glossy sheet has a more reflective appearance than a matte sheet. Where numerical gloss requirements apply, buyers should specify the agreed test method, measurement geometry and acceptance limits.

Gloss Uniformity

Consistent gloss across the sheet helps produce a uniform appearance in folding boxes, decorative parts and display packaging. Buyers can specify permitted appearance variations across the roll width or cut-sheet surface.

Transparency and Haze

Surface gloss is different from light transmittance and haze. A sheet can be glossy without meeting a particular transparency requirement. Buyers should confirm these properties separately when packaging visibility is critical.

Scratch and Defect Inspection

Scratches, streaks, contamination, gels and other visible defects can be especially noticeable on reflective plastic surfaces. Suitable handling, visual inspection and protective packing can help maintain appearance during processing and transport.

Surface Protection During Processing

Clean equipment, proper roll handling and suitable protective packing can reduce unwanted marks. If a project requires a protective film or a special abrasion-resistance level, these should be specified and confirmed separately.

Key Benefits of High Gloss GAG Plastic Sheet

Attractive High Gloss Appearance

A glossy surface offers a polished visual finish for transparent and decorative packaging products where appearance is important.

Balanced Stiffness and Toughness

PETG surface layers and the APET core provide a useful combination of toughness and rigidity. Actual mechanical performance depends on thickness, grade and layer construction.

Versatile Packaging Conversion

Suitable GAG grades can be evaluated for thermoforming, folding, cutting and selected printing or bonding processes. Compatibility must be verified using the intended equipment and materials.

Cost-Efficient Multilayer Design

PETG outer layers combined with an APET core use less PETG resin than an equivalent solid PETG sheet. The resulting material cost depends on the selected layer ratio and purchasing conditions.

Custom Size and Color Options

HSQY offers various sheet thicknesses, roll widths, standard cut-sheet sizes and customized colors for packaging converters and other industrial buyers.

Applications of High Gloss GAG PET Film

Premium Retail Packaging: High gloss GAG sheet can be used for selected clear retail boxes, presentation packaging and decorative packaging components requiring a reflective finish.

Clear Folding Boxes: Suitable grades can be cut, creased and folded into transparent boxes. Folding quality, crack resistance and joining compatibility should be confirmed before production.

Blister Packaging: GAG film can be thermoformed into transparent blister cavities for selected consumer products, accessories and retail packaging.

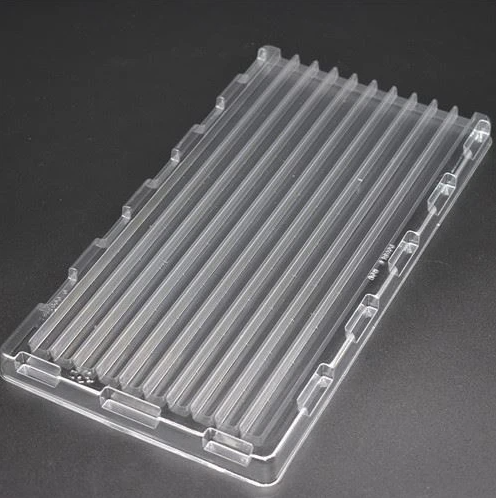

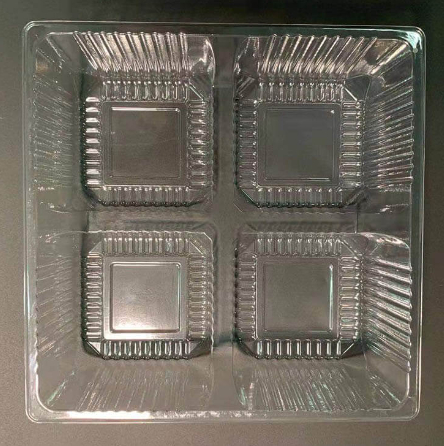

Thermoformed Trays and Clamshells: Suitable material grades can be used for formed trays and containers when the required mold depth, stiffness and appearance are achieved.

Display and Decorative Components: Glossy GAG can be considered for certain decorative sheets, product presentation panels and fabricated display components.

Electronic Packaging: Selected GAG grades can be used for protective packaging components. Electrostatic-sensitive products require separately qualified anti-static or ESD materials.

Food Packaging: Selected GAG formulations may be suitable for food packaging when applicable documentation confirms compliance for the destination market and intended contact conditions.

High Gloss GAG vs. Standard GAG vs. Matte PET Sheet

Different surface finishes can produce very different visual results, even when sheets have similar base materials. The correct choice depends on reflectivity, clarity, surface appearance and processing requirements.

How to Choose High Gloss GAG Film for Your Project

Gloss Requirement: Specify the desired appearance and any numerical gloss limit, including the agreed measurement method and angle where necessary.

Sheet Thickness: Select the required gauge according to package rigidity, forming depth, product dimensions and processing equipment.

Roll or Sheet Dimensions: Provide roll width, sheet size, core diameter, winding configuration and any cut-to-size requirements.

Optical Appearance: Confirm transparency, haze, color and allowable surface defects separately from the required gloss level.

Converting Method: Describe whether the sheet will be thermoformed, folded, printed, die-cut or bonded, and identify any critical surface requirements.

Surface Protection: Specify handling, packing and any protective-film needs where the visible finish must remain free from excessive scratching.

Order Information: Include estimated quantity, destination, required delivery date and applicable documentation needs.

Discuss Your High Gloss Sheet Requirements

PET GAG Sheet Technical Data Sheet

Review the existing PET GAG data sheet for general material information. For high-gloss applications, request current grade-specific data covering surface appearance, gloss measurements, sheet tolerances and processing requirements.

Download PET GAG Sheet Data Sheet (PDF)

Packaging and Delivery Options

Protective handling and packing are important for maintaining the appearance of glossy plastic surfaces. HSQY supplies GAG sheet rolls and cut sheets with packing arrangements suited to material size and transport requirements.

Sample Packaging: A4-size sheets packed in PP bags or protective boxes.

Roll Packaging: Rolls wrapped in PE film or kraft paper according to shipment needs.

Sheet Packaging: Cut sheets packed in cartons or customized protective packaging.

Pallet Packaging: Reference packing of 500–2000 kg per plywood pallet, depending on dimensions and handling requirements.

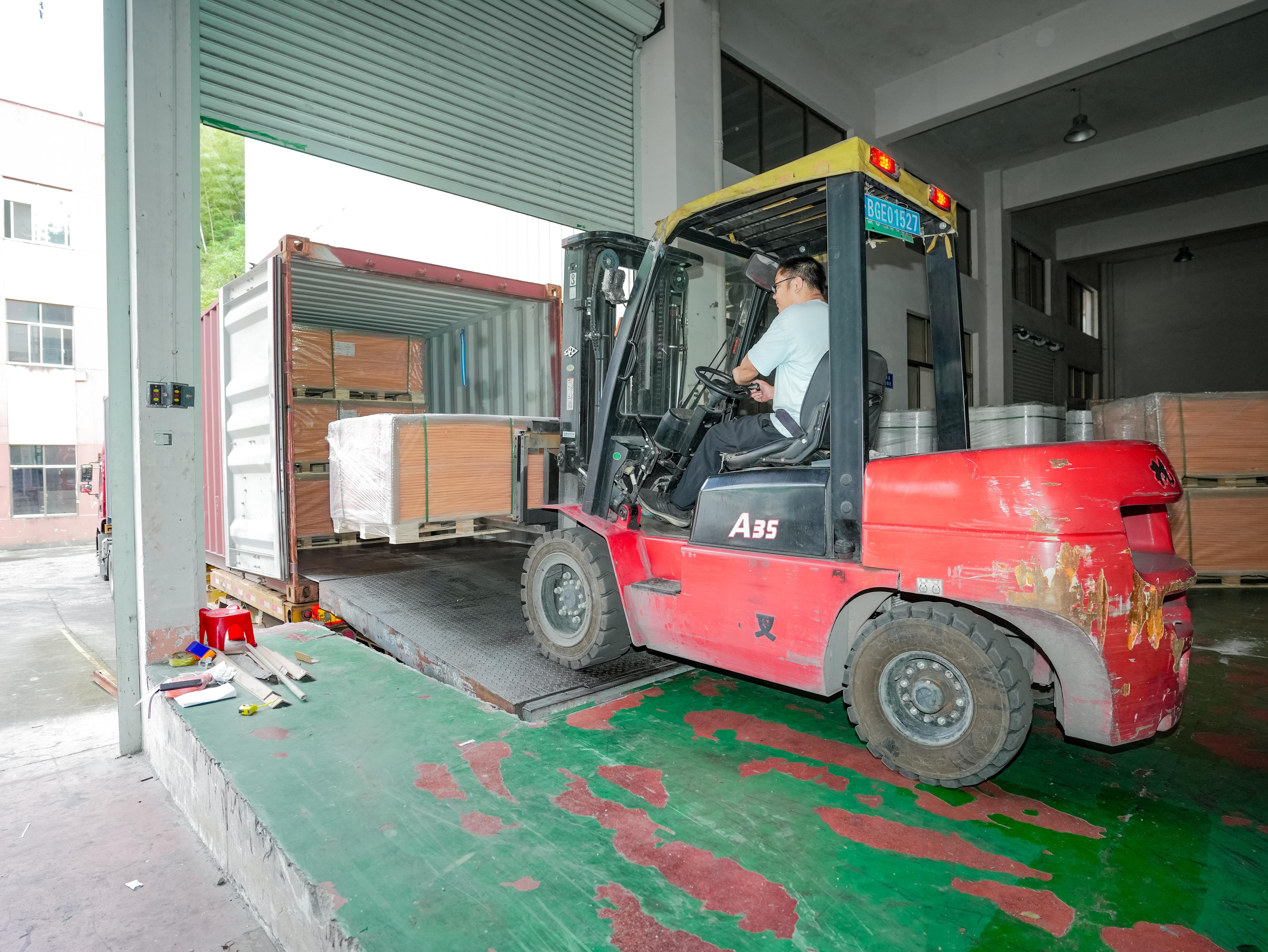

Container Loading: Approximately 20 tons per container as a reference, subject to packing configuration and transportation limits.

Delivery Terms: EXW, FOB, CNF and DDU, subject to final commercial agreement.

Reference Lead Time: 7–15 days for 1–20,000 kg, with larger orders subject to production confirmation.

Quality and Certification Documents

HSQY can discuss applicable technical specifications, inspection reports and quality documents for selected GAG film grades. Buyers requiring a defined surface finish should confirm the visual acceptance criteria and any necessary gloss testing before approving production.

The original product documentation references SGS and ISO 9001:2008. Please request current certificates and confirm their validity and coverage. Food-contact suitability requires separate confirmation for the exact formulation, destination market and intended use.

HSQY Plastic at International Exhibitions

HSQY Plastic Group participates in international plastics and packaging exhibitions to connect with packaging manufacturers, distributors and industrial buyers. These events provide opportunities to discuss GAG film applications, surface appearance requirements, custom material specifications and bulk orders.

Why Choose HSQY Plastic for High Gloss GAG Sheet?

Three-Layer Polyester Materials: HSQY supplies PETG/APET/PETG sheet and film for packaging and industrial converting applications.

Appearance-Focused Material Selection: Buyers can discuss high-gloss surface appearance, transparent or colored options and application-specific quality criteria.

Custom Dimensions: Different thicknesses, roll widths and cut-sheet sizes can be discussed according to production equipment and packaging design.

Sample and Bulk Supply Support: HSQY works with converters and distributors on samples, wholesale quantities, packing and export arrangements.

Frequently Asked Questions About High Gloss GAG PET Sheet

What is high gloss GAG PET sheet?

It is a three-layer PETG/APET/PETG polyester sheet with a glossy surface appearance, used for selected packaging, display, decorative and thermoforming applications.

What is the difference between high gloss GAG and standard GAG sheet?

Both can have the same PETG/APET/PETG structure. High gloss GAG is selected for a more reflective surface appearance, while standard GAG finishes vary by material grade and production conditions.

Is high gloss the same as high transparency?

No. Gloss describes directional surface reflection, while transparency relates to transmitted light. Haze measures light scattering. These properties should be evaluated separately.

How is gloss measured on GAG sheet?

Gloss can be evaluated using a gloss meter and an agreed measurement method. The measurement angle and acceptance limits should be specified according to the application and relevant testing procedure.

What is the material structure of GAG film?

GAG film has PETG outer layers with an APET core. This symmetrical three-layer construction is commonly written as PETG/APET/PETG or A/B/A.

What thicknesses are available?

HSQY lists GAG film and sheet thicknesses from 0.15 mm to 3 mm. Final grade availability and thickness tolerances should be confirmed when ordering.

What roll widths and sheet sizes are available?

Roll widths range from 110 mm to 1280 mm. Listed cut-sheet sizes include 915 × 1220 mm and 1000 × 2000 mm, with customized dimensions available for discussion.

Can high gloss GAG sheet be thermoformed?

Suitable grades can be evaluated for thermoforming or vacuum forming. Heating, moisture preparation, mold geometry and cooling conditions should be confirmed, and the final surface appearance should be inspected after forming.

Can glossy GAG film be printed, folded or bonded?

Selected grades may be suitable for these operations. Printing and bonding compatibility depend on surface condition, ink or adhesive system and processing settings. Trials are recommended before bulk production.

Is high gloss GAG film scratch-resistant?

A glossy finish does not automatically provide a specific scratch-resistance rating. If abrasion or scratch resistance is critical, buyers should define a test method and ask whether an appropriate grade or surface treatment is available.

Can glossy GAG sheet be used for food packaging?

Selected formulations may be suitable for food packaging when the material and supporting documentation meet the requirements of the destination market and intended contact conditions.

Is GAG plastic sheet recyclable?

GAG consists of PET-family polymers. Actual recycling acceptance depends on the finished product, additives, labels, adhesives and locally available recycling systems.

What is the minimum order quantity?

The listed MOQ is 1000 kg, subject to confirmation for the selected thickness, color and custom production requirements.

Can I request samples to evaluate the gloss finish?

Yes. Contact HSQY to discuss available A4-size or other samples for visual inspection, gloss comparison and processing trials. Sample and freight arrangements can be confirmed before dispatch.

What information is needed for a high gloss GAG sheet quotation?

Please provide your required thickness, width, sheet or roll format, color, surface finish, application, estimated quantity and delivery destination. If a numerical gloss requirement applies, include the measurement method and target value.

About HSQY Plastic Group

Changzhou Huisu Qinye Plastic Group Co., Ltd., based in Jiangsu, China, supplies plastic sheets, films and packaging materials to manufacturers, converters and distributors. Its product range includes GAG sheets, PETG and APET sheets, CPET trays, PP packaging materials and other industrial plastic products.

HSQY works with international buyers to discuss custom material dimensions, surface appearance requirements, sample evaluation, bulk orders and export arrangements.

Request High Gloss GAG Sheet Samples and Pricing

Looking for glossy PETG/APET/PETG film or sheet for premium retail packaging, clear folding boxes, blister packaging, thermoformed trays or decorative components? HSQY Plastic can discuss suitable grades, custom dimensions and bulk supply arrangements.

Send us your required thickness, width, color, gloss requirements, application, estimated order quantity and shipping destination to discuss samples and quotations.
