GAG FILM
HSQY
GAG
0.15MM-3MM
Transparent or Colored
Roll: 110-1280mm Sheet: 915*1220mm/1000*2000mm
1000 KG.
| Availability: | |
|---|---|
Product Description
HSQY 1mm transparent GAG PET sheet is a three-layer co-extruded polyester sheet designed for thermoforming, blister packaging, clear folding boxes, protective packaging, displays and other applications requiring a practical balance of transparency, toughness, rigidity and processing performance.
The sheet uses a PETG/APET/PETG (A/B/A) structure. PETG outer layers provide useful surface, forming, folding and fabrication characteristics, while the APET core contributes rigidity and helps control material cost compared with using PETG throughout the full sheet thickness.
HSQY supplies GAG PET sheet in thicknesses from 0.15mm to 3mm, roll widths from 110mm to 1280mm, and standard cut-sheet sizes including 915 × 1220mm and 1000 × 2000mm. Customized widths, sheet dimensions, colors and packing configurations are available for bulk projects.
For thermoforming projects, buyers are encouraged to provide forming depth, mold geometry, material thickness, roll configuration, finished-product drawings and application requirements so the appropriate specification can be evaluated before mass production.
GAG PET sheet, also described as PETG/APET/PETG sheet or G-PET-G sheet, is a co-extruded polyester sheet consisting of two PETG surface layers surrounding an APET core.
This construction is designed to combine the processing characteristics of PETG surfaces with the stiffness and cost efficiency of an APET center layer. It can be considered when standard APET does not provide sufficient forming, folding, bonding or impact performance, while full PETG construction is not necessary for the finished application.
| Layer | Material | Main Function |
|---|---|---|
| Outer Layer A | PETG | Surface toughness, forming, folding, printing and bonding performance |
| Core Layer B | APET | Rigidity, dimensional support and material-cost control |
| Outer Layer A | PETG | Provides the second functional PETG surface for the symmetrical structure |
A 1mm GAG PET sheet provides greater stiffness than thin-gauge packaging sheet while remaining suitable for many thermoforming, folding, display and fabricated applications.
It can be evaluated for larger thermoformed components, rigid clear folding boxes, transparent protective packaging, display components and other products where additional rigidity is required. Final sheet thickness should be selected according to part dimensions, forming depth, load requirements, processing method and required finished-part strength.

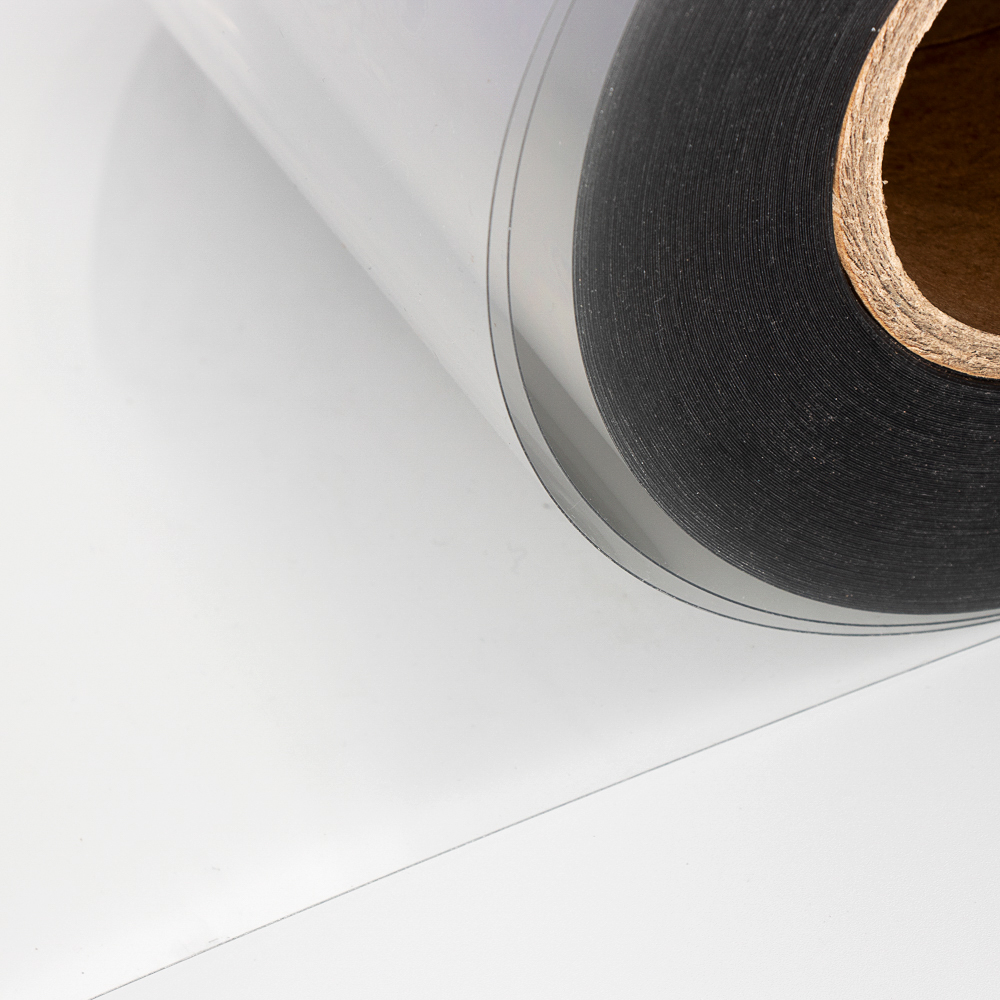

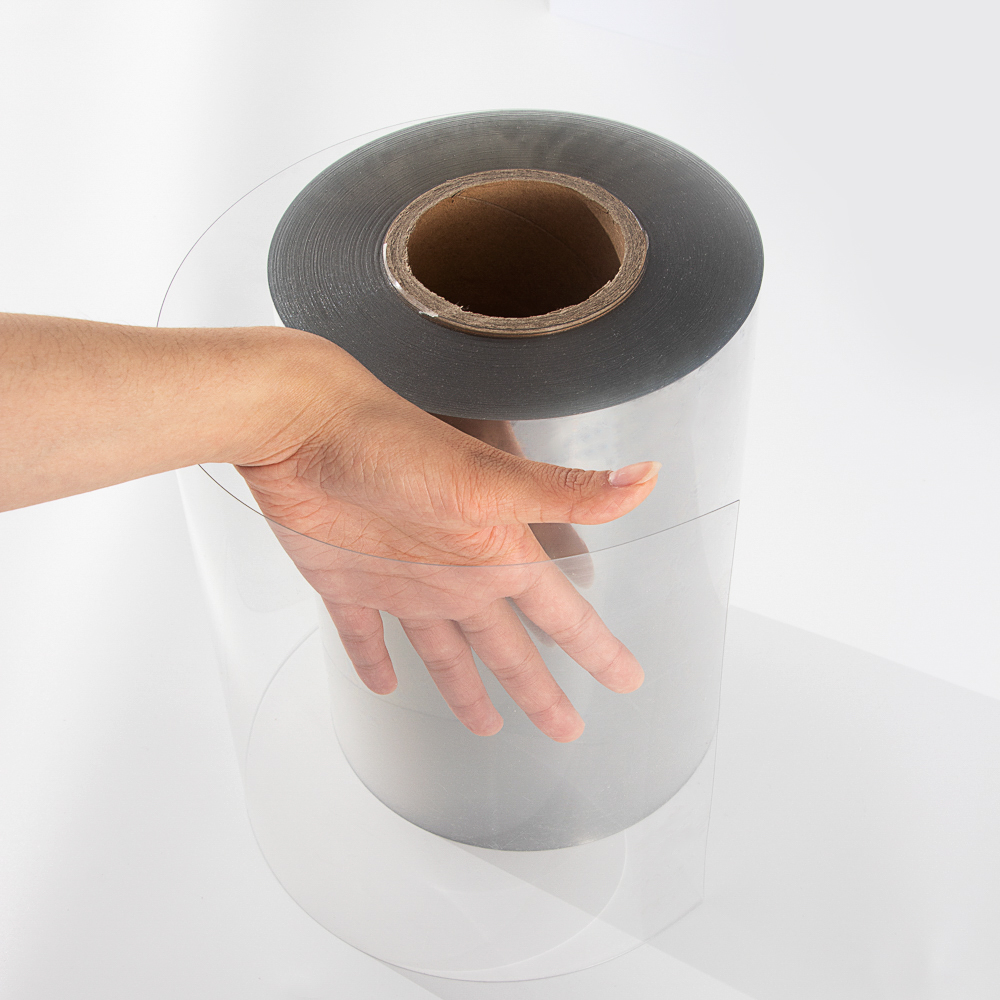

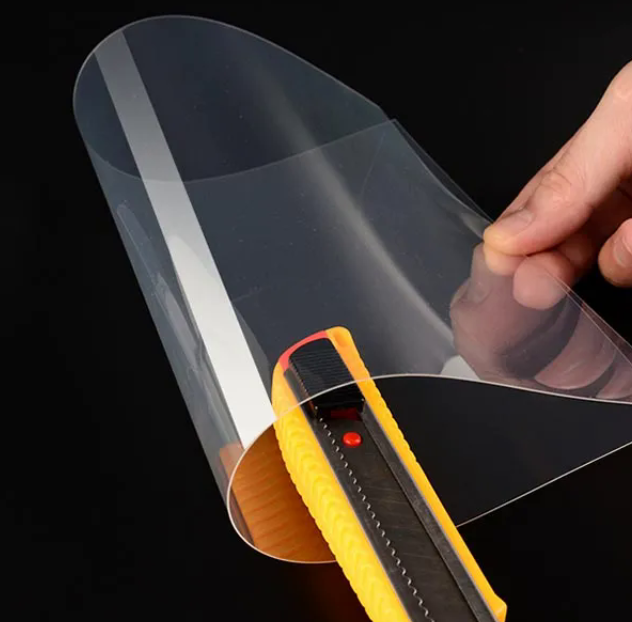

Transparent PET GAG Sheet

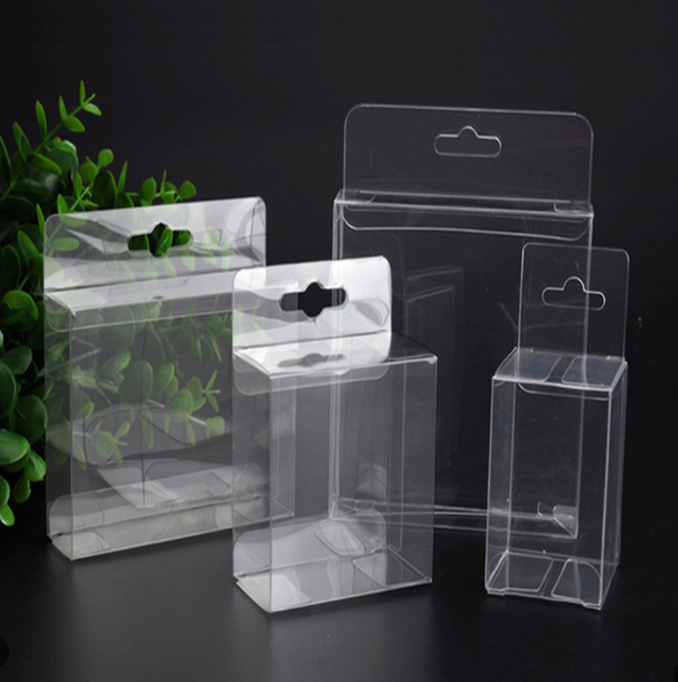

PET GAG Sheet for Clear Folding Boxes

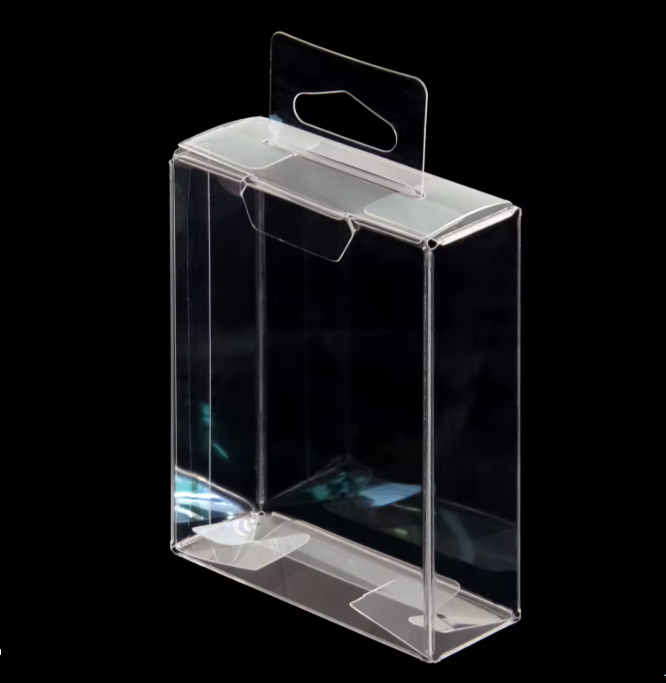

PET GAG Sheet for Blister and Thermoformed Trays
GAG PET sheet can be supplied as rolls or cut sheets for thermoforming, vacuum forming, folding, cutting and other converting processes. Final tolerances, layer ratios, roll configurations and application-specific requirements should be confirmed for each project.
| Property | Details |
|---|---|
| Product Name | GAG PET Sheet / PETG-APET-PETG Sheet |
| Featured Thickness | 1mm |
| Available Thickness | 0.15mm–3mm |
| Structure | PETG / APET / PETG, A/B/A Co-extruded Structure |
| Density | 1.33–1.35 g/cm³ |
| Roll Width | 110mm–1280mm |
| Standard Sheet Sizes | 915 × 1220mm, 1000 × 2000mm, Customized |
| Color | Clear / Transparent, Customized Colors |
| Supply Format | Rolls and Cut Sheets |
| Typical Applications | Thermoforming, blister packaging, folding boxes, transparent trays, displays and fabricated components |
| MOQ | 1000 kg |
| Reference Production Capacity | 50 tons per day, subject to specification and production schedule |
| Quality Documentation | SGS, ISO 9001:2008 and RoHS documentation referenced in current product information; request current applicable documents |
| Payment Terms | T/T, L/C, Western Union, PayPal |
| Delivery Terms | EXW, FOB, CNF, DDU |
| Reference Lead Time | Approximately 7–15 days for 1–20,000kg; larger orders subject to production confirmation |
High Transparency: Suitable for clear packaging, blister packs, folding boxes and display applications where product visibility is important.
Thermoforming Performance: PETG outer layers can provide useful forming performance for applications involving deeper draws or more demanding geometries.
Balanced Toughness and Rigidity: PETG surfaces contribute toughness while the APET core provides structural rigidity.
Folding and Fabrication: Suitable grades can be cut, die-cut, drilled, folded, thermoformed and fabricated into packaging and industrial components.
Printing and Decoration: GAG sheet can be evaluated for printing and decorative applications. Ink and surface compatibility should be confirmed before mass production.
Bonding Applications: PETG surfaces can support selected gluing, bonding and sealing processes when matched with the appropriate adhesive or production method.
Chemical Resistance: Polyester sheet provides useful resistance to many substances encountered in common packaging and display applications.
PET-Based Multilayer Construction: Both PETG and APET belong to the polyester material family. Actual recyclability depends on local recycling systems and the complete finished package.
GAG, APET and PETG are all used for transparent packaging and thermoforming, but they offer different balances of rigidity, toughness, forming performance and material cost. The best option depends on the finished product and converting process.
| Comparison | GAG PET Sheet | APET Sheet | PETG Sheet |
|---|---|---|---|
| Structure | PETG / APET / PETG | APET | PETG |
| Transparency | High | High | High |
| Rigidity | Good balance from APET core | Good | Application dependent |
| Thermoforming | Suitable for standard and more demanding forming applications | Commonly used for standard thermoforming | Suitable for demanding and deep forming |
| Folding / Bonding | PETG surfaces can improve processing performance | Application dependent | Good processing performance |
| Typical Cost Position | Typically between APET and full PETG, depending on structure | Usually economical for standard clear packaging | Usually higher than standard APET |
| Typical Applications | Blisters, folding boxes, complex thermoforming, displays | Standard trays, blisters and clamshell packaging | Deep forming, displays and demanding fabricated parts |
Thermoforming and Vacuum Forming: Clear formed components, trays, inserts and packaging parts.
Blister Packaging: Transparent retail packaging for electronics, hardware, cosmetics and consumer products.
Clear Folding Boxes: Transparent boxes for cosmetics, gifts, stationery and retail products requiring folding and bonding.
Clamshell and Protective Packaging: Clear formed packaging where product visibility and toughness are required.
Electronics Packaging: Transparent protective packs and formed inserts for electronic products and components.
Displays and Decorative Applications: Display panels, printed components, retail displays and transparent fabricated parts.
Selected Food Packaging: Food-contact applications can be considered when the exact grade and applicable documentation meet the requirements of the intended market and use conditions.
Successful thermoforming depends on more than nominal sheet thickness. Buyers should match the material specification to the finished-part geometry, production equipment and required package performance.
| Selection Factor | Information to Confirm |
|---|---|
| Finished Product | Blister, tray, clamshell, folding box, insert, display or fabricated component |
| Thickness | Starting gauge, required rigidity and finished wall thickness |
| Forming Depth | Cavity depth, draw ratio, sharp corners and product geometry |
| Machine Type | Roll-fed or sheet-fed thermoformer, vacuum forming or pressure forming |
| Roll Configuration | Width, roll weight, core diameter, outer diameter and winding requirements |
| Optical Requirements | Clarity, haze, tint, appearance and acceptable surface defects |
| Printing / Bonding | Printing method, ink, adhesive, sealing process and folding requirements |
| Documentation | Required material, quality or application-specific documentation for the destination market |
To receive a more accurate quotation and suitable material recommendation, please provide the finished application, required thickness, roll width or sheet dimensions, color, forming process, forming depth, roll configuration, order quantity, annual demand, packing requirements, required documentation and destination country or port.
For complex thermoforming or folding-box projects, a finished-product drawing, sample or mold information can help confirm whether the selected GAG construction is appropriate before commercial production.
PET GAG Sheet Packaging

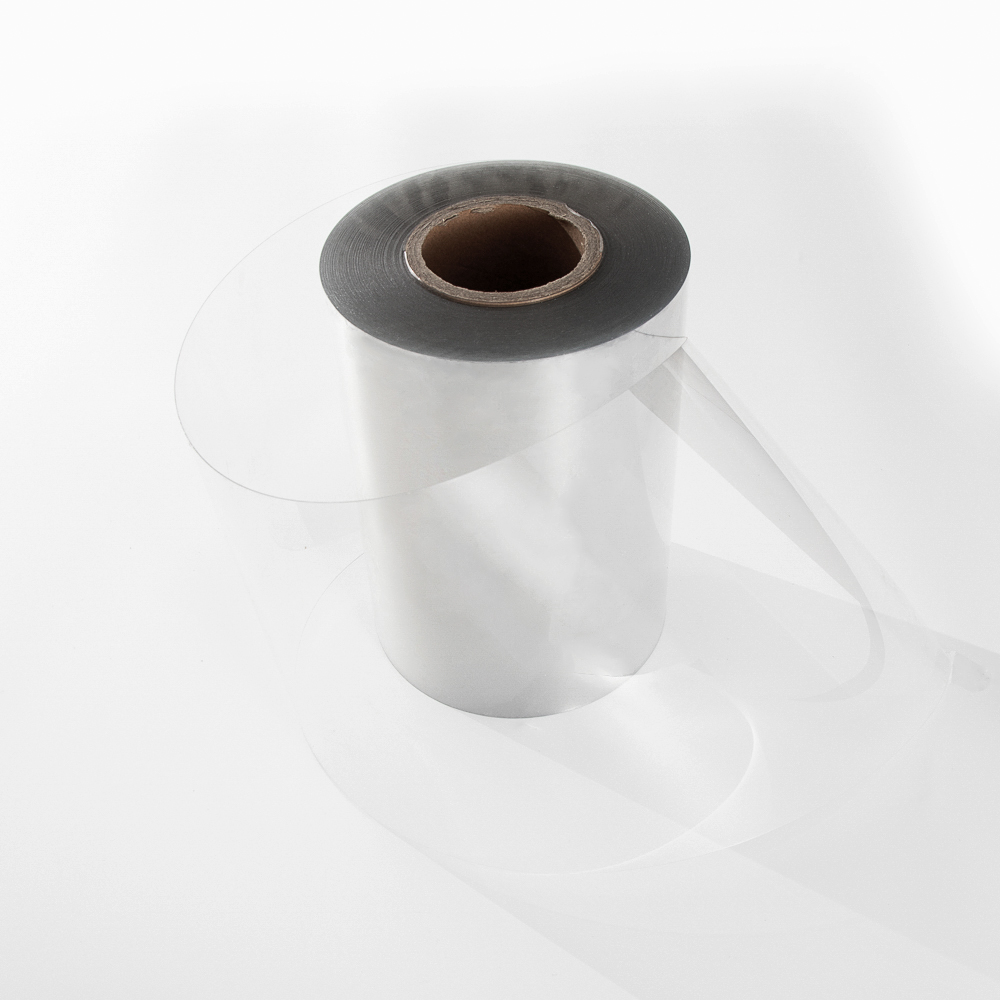

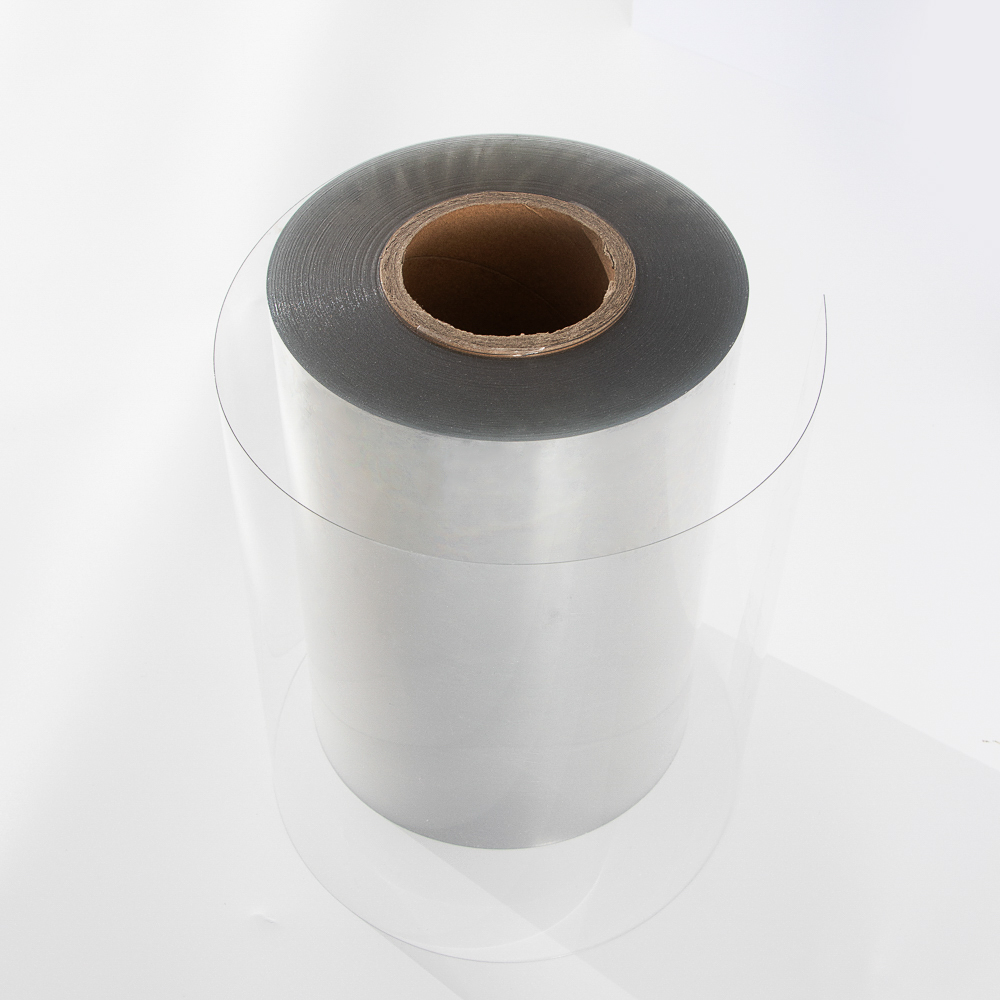

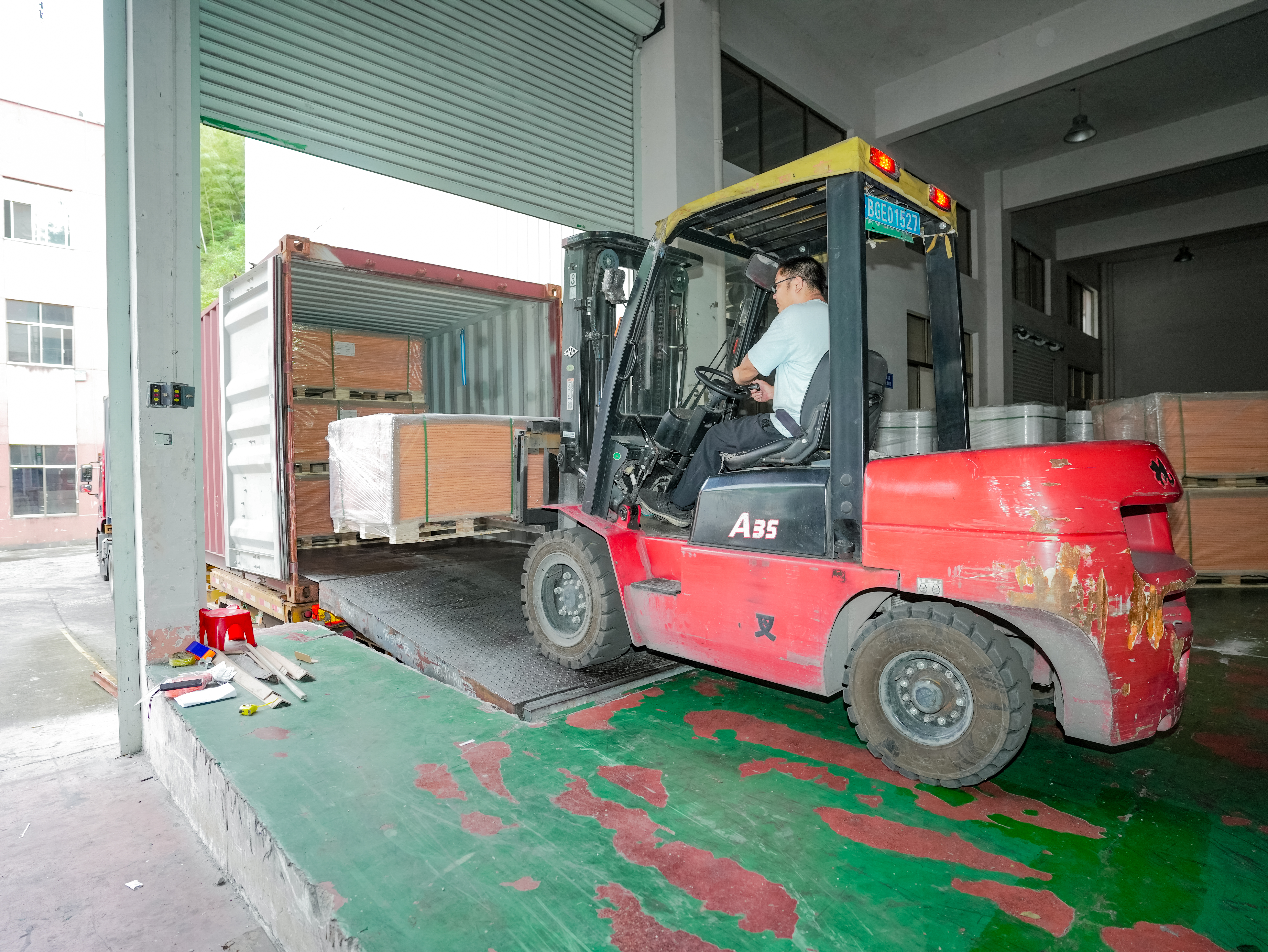

PET GAG Sheet Roll Packaging
Sample Packaging: A4-size sample sheets can be packed in protective bags or cartons.
Roll Packaging: Rolls can be protected with PE film, kraft paper or agreed export packing materials.
Sheet Packaging: Cut sheets can be packed in cartons or customized according to dimensions and shipping requirements.
Pallet Packaging: Reference pallet loads are approximately 500–2000kg depending on material format and packing configuration.
Container Loading: Approximately 20 tons per container is referenced as a general loading level. Actual loading depends on roll dimensions, pallet configuration and applicable transport limits.
Delivery Terms: EXW, FOB, CNF and DDU can be discussed according to the commercial order.
Reference Lead Time: Approximately 7–15 days for 1–20,000kg, subject to specification, quantity, color and production schedule.
Current product information references SGS, ISO 9001:2008 and RoHS documentation. Buyers should request the latest applicable certificates, technical documents and product-specific reports for the exact GAG PET sheet grade before approval.
For food-contact or other regulated applications, documentation should be confirmed according to the exact resin, additives, layer structure, intended contact conditions and destination-market requirements.

HSQY Plastic Group participates in international plastics and packaging exhibitions to meet packaging converters, thermoforming manufacturers, distributors and industrial buyers and discuss material specifications, samples and supply programs.
2017 Shanghai Exhibition
2018 Shanghai Exhibition
2023 Saudi Exhibition
2023 American Exhibition
2024 Australian Exhibition
2024 American Exhibition
2024 Mexico Exhibition
2024 Paris Exhibition
HSQY Plastic Group supplies PET sheet materials including APET, PETG and GAG for thermoforming companies, packaging converters, printing companies, distributors and industrial manufacturers.
GAG PET sheet projects can be supported with customized thicknesses, roll widths, cut-sheet sizes, colors, roll configurations, sample evaluation and export packing according to the finished-product requirements.
Send your required thickness, width, finished application, forming depth, quantity and destination to discuss a suitable GAG PET sheet specification and quotation.
GAG PET sheet is a three-layer co-extruded polyester sheet normally consisting of PETG outer layers and an APET center layer. It is commonly described as a PETG/APET/PETG or A/B/A structure.
No. Full PETG sheet uses PETG through most or all of the sheet thickness, while GAG uses PETG surface layers with an APET core. The GAG construction is designed to combine PETG surface characteristics with APET rigidity and cost control.
APET is widely used for standard clear packaging and thermoforming. GAG adds PETG outer layers that can provide useful improvements in forming, folding, bonding and toughness for more demanding applications.
A 1mm GAG PET sheet can be evaluated for rigid thermoformed parts, transparent folding boxes, protective packaging, displays and fabricated clear components where greater stiffness is required than thin packaging sheet.
Yes. GAG PET sheet is commonly used for thermoforming and vacuum forming. Actual performance depends on sheet thickness, PETG layer ratio, forming depth, mold geometry, heater settings and production equipment.
Drying requirements can depend on material moisture, storage conditions, sheet thickness and processing temperature. Buyers should follow the processing guidance applicable to the supplied grade and validate the sheet on their actual thermoforming equipment.
Yes. GAG is commonly considered for clear folding boxes because PETG surfaces can provide useful folding and bonding characteristics. Creasing, folding radius, adhesive and production speed should be tested with the actual package design.
GAG PET sheet can be evaluated for printing applications. Ink adhesion, surface treatment and printing method should be tested using the actual sheet before bulk production.
A suitable GAG grade can be considered for selected food-packaging applications. Food-contact suitability must be confirmed for the exact material structure, resin, additives, intended food type, contact conditions and destination market.
The current HSQY range lists thicknesses from 0.15mm to 3mm. The featured product is 1mm transparent GAG PET sheet.
Current product information lists roll widths from 110mm to 1280mm. Buyers using automatic thermoforming lines should also specify width tolerance, roll weight, core diameter and maximum outer diameter.
Yes. GAG PET sheet can be supplied in roll and cut-sheet formats. Standard reference sheet sizes include 915 × 1220mm and 1000 × 2000mm, with customized dimensions available according to production requirements.
The current listed MOQ is 1000kg. Customized colors, dimensions, structures or other special specifications may require different production quantities.
Sample availability can be confirmed according to thickness and specification. Trial production is recommended for evaluating forming, folding, printing, bonding and finished-product appearance before a commercial order.
Please provide the required thickness, roll width or sheet size, color, finished application, forming process, forming depth, roll configuration, order quantity, packing requirement, destination and any required product documentation.
