PVC Gypsum Ceiling Film for Decorative Ceiling Tiles

HSQY manufactures decorative PVC gypsum ceiling film for laminating gypsum ceiling tiles, gypsum boards, mineral fiber boards, cement boards and other interior ceiling substrates.

The film provides a decorative, smooth and easy-to-clean surface for suspended ceiling tiles used in offices, shops, hotels, schools, hospitals, restaurants, residential interiors and other commercial buildings.

The standard product has a nominal thickness of approximately 0.075mm, a standard width of 1220mm and a reference roll length of 500m. Customized thicknesses, widths, roll lengths, patterns, colors and surface finishes are available according to the production process and order quantity.

More than 100 decorative designs can be developed, including white, pearl, marble, wood grain, metallic, geometric, floral, embossed, high-gloss and three-dimensional visual effects.

This product is a lamination film for manufacturing PVC-faced gypsum ceiling tiles. It is not a heat-stretched ceiling membrane installed directly into perimeter tracks.

The film is normally bonded to the face of a prepared gypsum board using a compatible adhesive and hot-press or cold-lamination process. The completed ceiling tile can then be cut, edge-finished, packed and installed in a suitable T-grid ceiling system.

Standard decorative film should not automatically be described as fireproof, permanently waterproof or suitable for every building project. Flame-retardant, low-VOC and restricted-substance-controlled grades require separate specifications and supporting test reports.

Explore additional HSQY embossed PVC film products or contact HSQY for a customized ceiling-film pattern and production sample.

Request PVC Ceiling Film Pricing    Request Pattern Samples

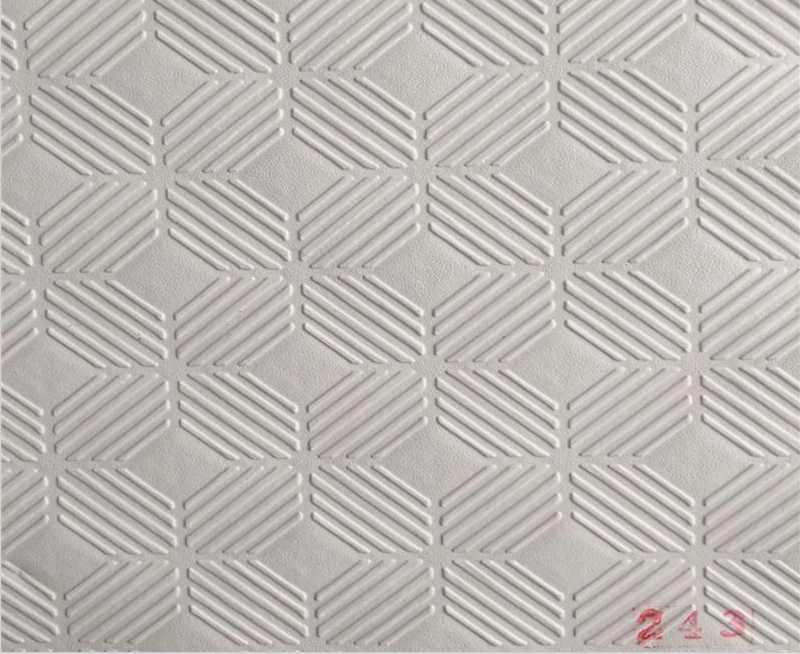

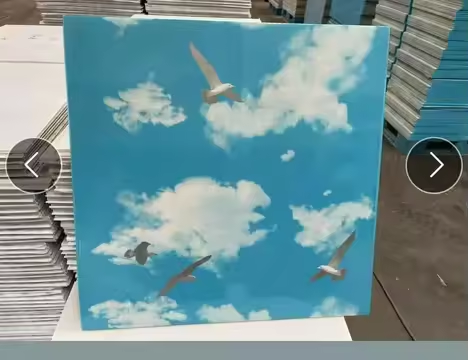

PVC Gypsum Ceiling Film Images

What Is PVC Gypsum Ceiling Film?

PVC gypsum ceiling film is a thin printed or embossed polyvinyl chloride decorative film used as the visible face layer of laminated gypsum ceiling tiles and related interior boards.

During ceiling-tile production, the film is unwound from a roll, coated with or contacted by an appropriate adhesive, aligned with the substrate and laminated onto the prepared board surface.

The film creates the finished color, pattern, gloss and texture of the ceiling tile. It can also improve surface cleanability and reduce direct moisture contact with the front face of the gypsum board.

The finished ceiling board may combine a PVC decorative face, gypsum or another board substrate, edge treatment and a metallic or aluminum-foil backing according to the ceiling manufacturer’s design.

The product is also described as PVC ceiling lamination film, embossed PVC film for gypsum tiles, decorative PVC ceiling foil, PVC facing film and PVC gypsum-board film.

PVC Gypsum Ceiling Film Specifications

Final specifications should identify the nominal thickness, tolerance, width, roll length, core diameter, roll weight, winding direction, pattern number, color standard, gloss, embossing, adhesive system and intended substrate.

PVC Gypsum Ceiling Film vs. PVC Stretch Ceiling Membrane

Buyers should not use the two terms interchangeably because the required thickness, flexibility, processing equipment, installation system and performance tests are different.

Decorative Colors, Patterns and Surface Finishes

Pattern selection should be confirmed using a physical sample because screen displays cannot accurately reproduce gloss, metallic effects, embossing depth or final color.

Gypsum Board Lamination Process

Board Surface Preparation

The gypsum board surface should be flat, clean, dry and free from loose paper fibers, dust, oil and contamination that could reduce adhesive strength.

Adhesive Application

A compatible adhesive should be selected according to the PVC formulation, board facing, lamination speed, curing method and required heat and humidity resistance.

Film Alignment and Tension

The web should remain centered and under controlled tension to prevent wrinkles, pattern distortion, edge misalignment and telescoping.

Hot or Cold Lamination

Temperature, pressure, nip condition and line speed should be adjusted to achieve uniform bonding without shrinking, stretching, blistering or damaging the printed pattern.

Curing and Conditioning

Laminated boards should be conditioned for the adhesive supplier’s recommended time before cutting, stacking, edge wrapping, testing or shipment.

Cutting and Edge Finishing

The finished boards can be cut into standard ceiling-tile sizes, trimmed and edge-finished according to the required square, tegular or customized profile.

Compatible Board Substrates

Surface Performance and Maintenance

Easy-to-Clean Surface

A smooth PVC surface is generally easier to wipe than untreated paper-faced gypsum board and can reduce the visibility of dust and light stains.

Front-Surface Moisture Resistance

The PVC layer can reduce direct moisture contact with the front face of the board, but complete water resistance depends on the substrate, edges, joints, backing, adhesive and installation.

Stain and Chemical Resistance

Resistance to cleaners, oils, disinfectants and construction chemicals depends on the PVC formulation, printing ink, exposure time and temperature.

Scratch and Abrasion Resistance

Printed decorative film can be scratched by abrasive handling. Finished boards should be protected during cutting, stacking, transport and installation.

Color and Pattern Durability

Indoor color durability depends on ink, PVC formulation, lighting, heat exposure, cleaning chemicals and production controls. Direct sunlight or long-term outdoor use requires separate testing.

Fire Performance and Building Compliance

Fire performance must be defined using an applicable test standard and the exact tested product construction.

A test result for the gypsum board, PVC film or adhesive alone should not automatically be presented as the fire rating of the complete ceiling tile or installed ceiling system.

Buyers should identify the required country, project type, test method, flame-spread classification, smoke requirement and complete board structure before selecting a flame-retardant film.

Test reports should state the PVC formulation, nominal thickness, color, printed surface, adhesive, substrate, specimen orientation and test result.

Indoor Environmental and Restricted-Substance Requirements

Building-material requirements vary by country and project. RoHS should not be used as the primary evidence of building-product or indoor-air compliance.

Depending on the destination market, buyers may request information concerning REACH substances, heavy metals, phthalates, formaldehyde, volatile organic compounds, smoke generation and flame-retardant additives.

The PVC film, ink, coating, adhesive and substrate should be evaluated as a complete laminated ceiling product where project compliance is required.

Applications of PVC Gypsum Ceiling Film

• Office ceilings: White, pearl and geometric ceiling-tile designs for commercial offices.

• Retail interiors: Decorative ceiling tiles for shops, showrooms and shopping centers.

• Hotels: Marble, metallic, embossed and premium decorative finishes.

• Restaurants: Easy-to-clean decorative ceiling surfaces for dining areas.

• Schools: Neutral and patterned suspended ceiling tiles for classrooms and public areas.

• Hospitals and clinics: Smooth ceiling surfaces subject to project hygiene and compliance requirements.

• Residential interiors: Decorative gypsum ceiling tiles for kitchens, living areas and corridors.

• Public buildings: Ceiling systems for reception areas, halls and community facilities.

• OEM ceiling-tile production: Customized patterns for local gypsum-board and ceiling-tile manufacturers.

PVC Film, Aluminum Foil and Finished Ceiling Tile Structure

Recommended Quality-Control Tests

• PVC resin, additive and formulation verification.

• Nominal thickness and thickness tolerance.

• Roll width and width tolerance.

• Roll length, roll weight, core diameter and outside diameter.

• Winding direction, winding tension, telescoping and edge alignment.

• Reference basis weight and batch consistency.

• Pattern number, color and batch-to-batch color difference.

• Pattern repeat length and registration accuracy.

• Gloss, matte level and embossing depth.

• Ink adhesion, rubbing resistance and cleaning resistance.

• Surface scratches, black spots, gels, holes, wrinkles and contamination.

• Dimensional change under lamination temperature.

• Adhesive wetting and PVC-to-board peel strength.

• Bond retention after heat and humidity exposure.

• Resistance to blistering, bubbling, curling and delamination.

• Finished-board flatness and sag performance.

• Scratch, stain and chemical-cleaning tests where required.

• Flame, smoke, VOC or restricted-substance tests for special projects.

• Carton, pallet and container-loading inspection.

Custom PVC Ceiling Film Options

• Nominal 0.075mm gypsum ceiling film.

• Customized thicknesses from approximately 0.06mm to 0.08mm.

• Standard 1220mm width and customized roll widths.

• Reference 500m roll length and custom roll lengths.

• Customized paper-core diameter and roll weight.

• Printed side in or printed side out winding.

• White, pearl, gold, silver, marble, wood grain and stone patterns.

• High-gloss, matte, frosted, pearl and embossed finishes.

• Customer-provided color and pattern development.

• Pattern swatches and trial rolls for lamination testing.

• Flame-retardant and restricted-substance-controlled grades subject to testing.

• Customized cartons, roll labels, pallets and shipping marks.

Information Required for a PVC Ceiling Film Quote

• Required thickness and tolerance.

• Required roll width and width tolerance.

• Required roll length, roll weight and maximum outside diameter.

• Required paper-core diameter.

• Printed side in or printed side out winding direction.

• Color, pattern number and surface finish.

• Required pattern repeat length and registration tolerance.

• Gypsum board, mineral fiber board, cement board or other substrate.

• Board surface material and moisture condition.

• Hot pressing, cold lamination or another production process.

• Adhesive type and reference coat weight.

• Lamination temperature, pressure and line speed.

• Required peel strength and humidity resistance.

• Required flame, smoke, VOC or restricted-substance standards.

• Destination country and project requirements.

• Initial order quantity and estimated annual demand.

• Packing, destination port and required delivery date.

Send Your PVC Ceiling Film Requirements

Packaging and Delivery

Sample packing: Pattern swatches and small trial rolls can be protected with PE bags and packed in rigid cartons.

Standard roll packing: Each PVC film roll can be wrapped with protective film and packed inside a round or rectangular export carton.

Core protection: Roll ends and paper cores can be protected to reduce crushing, edge damage and contamination during handling.

Pallet packing: Cartons can be stacked on plywood or fumigation-free export pallets according to roll dimensions and handling requirements.

Container loading: Loading quantity depends on roll length, carton dimensions, pallet arrangement, container type and legal weight restrictions.

Production lead time: Standard orders normally require approximately 7-14 days after the design, specification, sample, packaging and deposit are confirmed.

PVC Gypsum Ceiling Film Data Sheets

The data-sheet and test-report links supplied with the original page are retained below.

Before publication, confirm that both PDF files are uploaded and that they apply to the exact PVC film thickness, color, pattern, formulation and manufacturing location.

   Download PVC Gypsum Ceiling Film Data Sheet

   Download PVC Gypsum Ceiling Film Test Report

Certificates and Compliance Documents

Available documents may include product specifications, safety data sheets, restricted-substance reports, physical-property reports, flame-test reports and quality-management certificates.

SGS should be described according to the exact test performed rather than presented as a universal product certification.

RoHS relates primarily to hazardous-substance restrictions in electrical and electronic equipment and should not be used as the principal evidence of building-material compliance.

ISO 9001 is a quality-management-system standard. It does not independently establish flame, VOC, moisture, indoor-air or environmental performance for the PVC film.

The certificate holder, production location, standard edition, scope and validity period should be checked before publishing any certificate claim.

HSQY Global Exhibitions

Why Choose HSQY as Your PVC Gypsum Ceiling Film Supplier?

• PVC decorative film developed for gypsum ceiling-tile lamination.

• Standard nominal thickness of approximately 0.075mm.

• Standard 1220mm width and customized widths.

• Reference 500m roll length and custom roll formats.

• More than 100 white, marble, metallic, wood-grain and embossed designs.

• High-gloss, matte, pearl, frosted and textured surfaces.

• Pattern matching and customized color-development support.

• Samples for adhesive and lamination-line testing.

• Customized paper cores, roll weights and winding directions.

• Quality inspection against approved samples and specifications.

• Export cartons, pallets and international shipping support.

Before bulk production, HSQY recommends testing the selected film with the customer's actual gypsum board, adhesive, laminating equipment, operating temperature, pressure and line speed.

Contact HSQY for Samples and Pricing

Frequently Asked Questions About PVC Gypsum Ceiling Film

What is PVC gypsum ceiling film?

It is a thin printed or embossed PVC film laminated onto gypsum ceiling tiles or boards to provide the visible decorative surface.

Is PVC gypsum ceiling film the same as stretch ceiling film?

No. Gypsum ceiling film is laminated onto a rigid board. Stretch ceiling membrane is heated and tensioned inside perimeter tracks without a gypsum-board substrate.

Is the PVC film installed directly into a T-grid ceiling?

No. The film is first laminated onto the gypsum ceiling tile during manufacturing. The finished tile is then installed in a compatible T-grid system.

What is the standard thickness?

The standard nominal thickness is approximately 0.075mm, with customized specifications available around the 0.06-0.08mm range.

What is the standard film width?

The standard HSQY width is 1220mm. A 1230mm width and other customized widths can be discussed.

What is the standard roll length?

The reference roll length is approximately 500m, while custom lengths depend on the thickness, width, core and maximum roll weight.

What decorative designs are available?

Options include white, pearl, marble, wood grain, stone, gold, silver, floral, geometric, embossed and customized printed designs.

Can HSQY match a customer’s pattern?

Yes. Customers can provide a physical sample, color reference or design file for technical and minimum-order evaluation.

What surface finishes are available?

Available finishes include high gloss, semi-gloss, matte, pearl, frosted and embossed textures.

Can the PVC film be laminated onto mineral fiber board?

It may be suitable after the board surface, porosity, adhesive, acoustic requirements and processing conditions have been tested.

Can the film be laminated onto cement board?

Yes, subject to testing of surface alkalinity, moisture, adhesive compatibility and long-term bond strength.

What adhesive should be used?

The adhesive should be selected according to the PVC formulation, board surface, lamination process, curing system and required humidity resistance.

Can the film be hot laminated?

Yes. Hot lamination can be used after the film, ink, adhesive, temperature, pressure and line speed have been validated.

Can the film be cold laminated?

A compatible cold-lamination adhesive may be used according to its curing and production requirements.

How can wrinkles be prevented during lamination?

Control roll tension, film alignment, board flatness, adhesive coating, nip pressure, temperature and line speed.

How is PVC-to-gypsum bond strength tested?

Bond strength can be evaluated using an agreed peel or adhesion test after normal conditioning and after heat or humidity exposure.

Is PVC gypsum ceiling film waterproof?

The PVC face improves front-surface moisture resistance, but the complete ceiling tile is not automatically waterproof. The substrate, edges, backing, adhesive and installation must also be evaluated.

Is the PVC film fireproof?

It should not be described as completely fireproof. Flame performance must be supported by an applicable test report for the exact film or complete ceiling-board construction.

Is a flame-retardant grade available?

An application-specific flame-retardant formulation can be evaluated according to the required test standard, thickness, color and substrate.

Does RoHS prove that the film is an eco-friendly building material?

No. RoHS primarily concerns restricted substances in electrical and electronic equipment. Building projects may require separate VOC, REACH, flame, smoke or indoor-air documentation.

Is ISO 9001 a product-performance certificate?

No. ISO 9001 relates to an organization’s quality-management system and does not replace product-specific tests.

Can the PVC ceiling surface be cleaned?

It can generally be wiped with a soft cloth and mild cleaner after chemical compatibility has been confirmed. Abrasive pads and aggressive solvents should be avoided.

Can PVC ceiling film be used outdoors?

The standard product is intended for interior ceiling applications. Outdoor exposure requires a separately tested UV- and weather-resistant grade.

What winding direction should be specified?

Confirm whether the printed face should be wound inside or outside based on the unwind direction of the lamination line.

What is the minimum order quantity?

The reference MOQ is approximately 2000kg. Customized colors, printing cylinders and exclusive patterns may require a higher quantity.

Are pattern samples available?

Existing pattern swatches and small trial rolls may be available for appearance and lamination testing.

What is the production lead time?

Standard production generally requires approximately 7-14 days after the pattern, specification, sample, packaging and deposit are confirmed.

What information is required for a quotation?

Provide the thickness, width, roll length, core, winding direction, pattern, substrate, adhesive, lamination process, required tests, quantity, packing and destination.

Get a Custom PVC Ceiling Film Quote

About HSQY Plastic Group

HSQY Plastic Group supplies PVC gypsum ceiling films, embossed PVC films, decorative PVC sheets, printable PVC films, PET sheets, PP sheets and customized plastic materials to international B2B customers.

HSQY supports gypsum-board manufacturers, ceiling-tile factories, lamination companies, building-material importers and distributors with pattern samples, specification development, trial production, quality inspection and export packing.

Request a Quote and Sample
