PVC PVDC Film for Pharmaceutical Blister Packaging
HSQY PVC PVDC film is a thermoformable pharmaceutical blister material designed for tablets, capsules, nutraceuticals, and other moisture- or oxygen-sensitive solid-dose products. The rigid PVC layer provides forming stability and blister rigidity, while the PVDC coating improves protection against water vapor, oxygen, and aroma transmission.
PVC thickness, PVDC coating weight, roll width, color, core size, and winding direction can be matched to the buyer's blister design and packaging line. For accurate material selection, please provide the drug sensitivity, target barrier level, cavity depth, machine model, forming web width, lidding foil specification, and annual demand.
Recommended for: pharmaceutical blister packs for tablets, hard capsules, soft capsules, nutraceuticals, veterinary products, and selected healthcare products after application-specific validation.
Customization: PVC base thickness, PVDC coating weight, clear or colored film, slit width, roll diameter, core size, and packing method.
PVC PVDC Pharmaceutical Film Video
What Is PVC PVDC Film?
PVC PVDC film is a multilayer forming web used in pharmaceutical blister packaging. A non-plasticized rigid PVC film acts as the thermoformable support layer. A controlled PVDC coating is applied to increase moisture and oxygen barrier performance while retaining the transparency and processing advantages of PVC.
Compared with mono PVC blister film, PVC PVDC film is better suited to products that require stronger environmental protection during storage and distribution. The required PVDC coating level should be selected according to the formulation's sensitivity, target shelf life, blister cavity geometry, climate zone, sealing system, and validated packaging process.
PVC PVDC Film Structure
| Structure |
Main Function |
Typical Application |
| PVC / PVDC Duplex |
Combines rigid PVC thermoforming with an added moisture and oxygen barrier coating. |
Standard to high-barrier blister packaging for tablets, capsules, and nutraceuticals. |
| PVC / PE / PVDC Triplex |
Uses a PE intermediate layer to support improved forming behavior for deeper or more demanding cavities. |
Deep-draw blister designs and products requiring a higher barrier structure. Available through the related composite film range. |
For extremely moisture-sensitive products, the final package may require a higher-barrier PVDC grade, PCTFE-based laminate, or cold-form aluminum structure. Material selection should be confirmed through stability studies and packaging-line trials.
PVC PVDC Film Product Image
PVC PVDC Film for Pharmaceutical Blister Packaging
PVC PVDC Film Specifications
| Property |
Available Specification |
| Product Name |
PVC PVDC Coated Rigid Film for Pharmaceutical Blister Packaging |
| Standard Structure |
Rigid PVC substrate with PVDC coating; related PVC/PE/PVDC triplex film available for suitable projects |
| PVC Base Thickness |
Typical pharmaceutical range: 0.20 mm to 0.45 mm; custom thickness subject to technical confirmation |
| PVDC Coating Weight |
Customized according to target barrier; common industry selections include 40, 60, 90, and 120 g/m², subject to HSQY grade availability |
| Roll Width |
Slit or jumbo roll width customized to the blister packaging line |
| Core and Roll Diameter |
76 mm core or customized; maximum roll diameter confirmed according to machine and shipping requirements |
| Color |
Clear, clear with blue tint, white, amber, or customized color subject to formulation and compliance review |
| Surface and Appearance |
Smooth, clean, glossy surface with controlled transparency, color, coating uniformity, and roll quality |
| Lidding Compatibility |
Designed for heat sealing with compatible pharmaceutical PTP aluminum foil after sealing-window validation |
| Primary Applications |
Thermoformed blister packs for tablets, capsules, nutraceuticals, veterinary products, and selected healthcare products |
| Minimum Order Quantity |
Normally 1,000 to 2,000 kg depending on thickness, coating weight, width, color, and order configuration |
| Payment Terms |
T/T, L/C, or other agreed terms |
| Trade Terms |
FOB, CIF, EXW, or other agreed Incoterms |
Note: The values above describe typical supply options and should not replace the final HSQY technical data sheet, approved specification, sample evaluation, stability study, or packaging-line validation.
How to Select the Right PVC PVDC Film
| Buyer Requirement |
Recommended Direction |
Information Needed |
| Moderate moisture protection |
PVC/PVDC duplex with a coating level selected for the target shelf life |
Product sensitivity, climate zone, shelf-life target, and current blister structure |
| Higher moisture or oxygen protection |
Higher-barrier PVDC coating or an upgraded multilayer structure |
Required WVTR, OTR, storage conditions, and stability-study results |
| Deep blister cavity |
Evaluate PVC/PE/PVDC triplex or another deep-draw structure |
Cavity depth, draw ratio, forming area, tooling drawing, and machine heating configuration |
| Existing material replacement |
Match the approved reference film before optimization |
Current TDS, structure, thickness, coating weight, width, core, roll diameter, and sample |
Key Features of PVC PVDC Pharmaceutical Film
Improved moisture and oxygen barrier: The PVDC coating provides stronger environmental protection than mono PVC film.
Reliable thermoforming: The rigid PVC base supports cavity definition, web handling, dimensional stability, and blister rigidity.
Custom barrier design: Coating weight and multilayer structure can be selected according to the required protection level and forming geometry.
Clear product visibility: Transparent grades support visual inspection and attractive retail presentation.
PTP foil compatibility: The forming web can be evaluated with compatible pharmaceutical aluminum lidding foil through sealing trials.
Custom converting: Width, core, roll diameter, winding direction, color, and packing can be configured for the buyer's equipment and logistics.
Applications of PVC PVDC Film
Pharmaceutical tablet blister packs
Hard capsule and soft capsule blister packs
Nutraceutical and dietary supplement packaging
Veterinary solid-dose blister packaging
Selected healthcare products requiring a transparent thermoformed barrier package
Explore the complete PVDC coated PVC film range or contact HSQY for a structure recommendation.
PVC PVDC Film Application Images

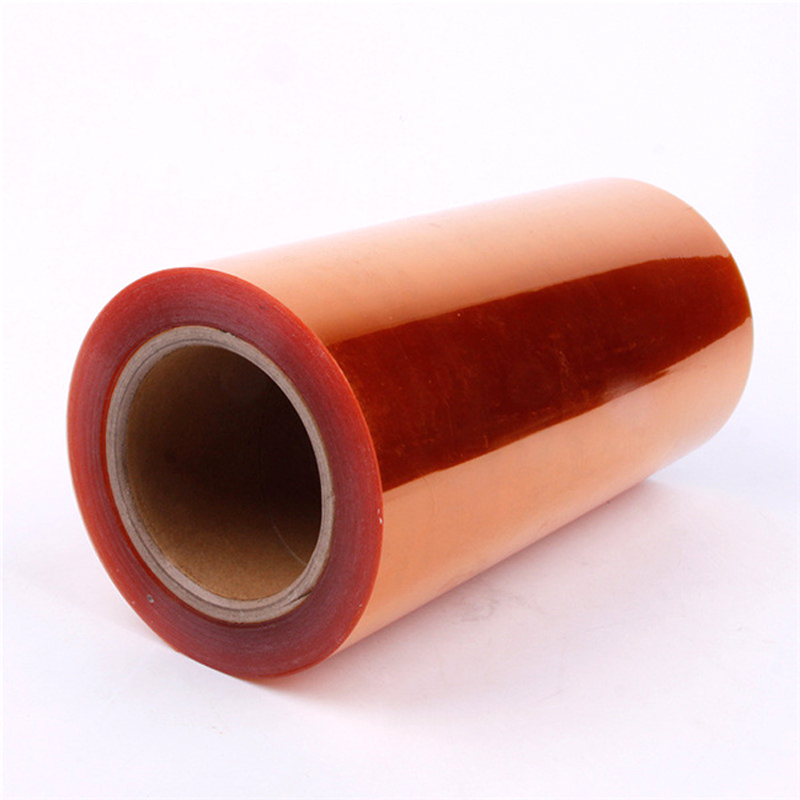

![PVC PVDC film used for pharmaceutical tablet blister packs]( "PVC PVDC Film for Blister Packs")
PVC PVDC Film for Pharmaceutical Blister Packs

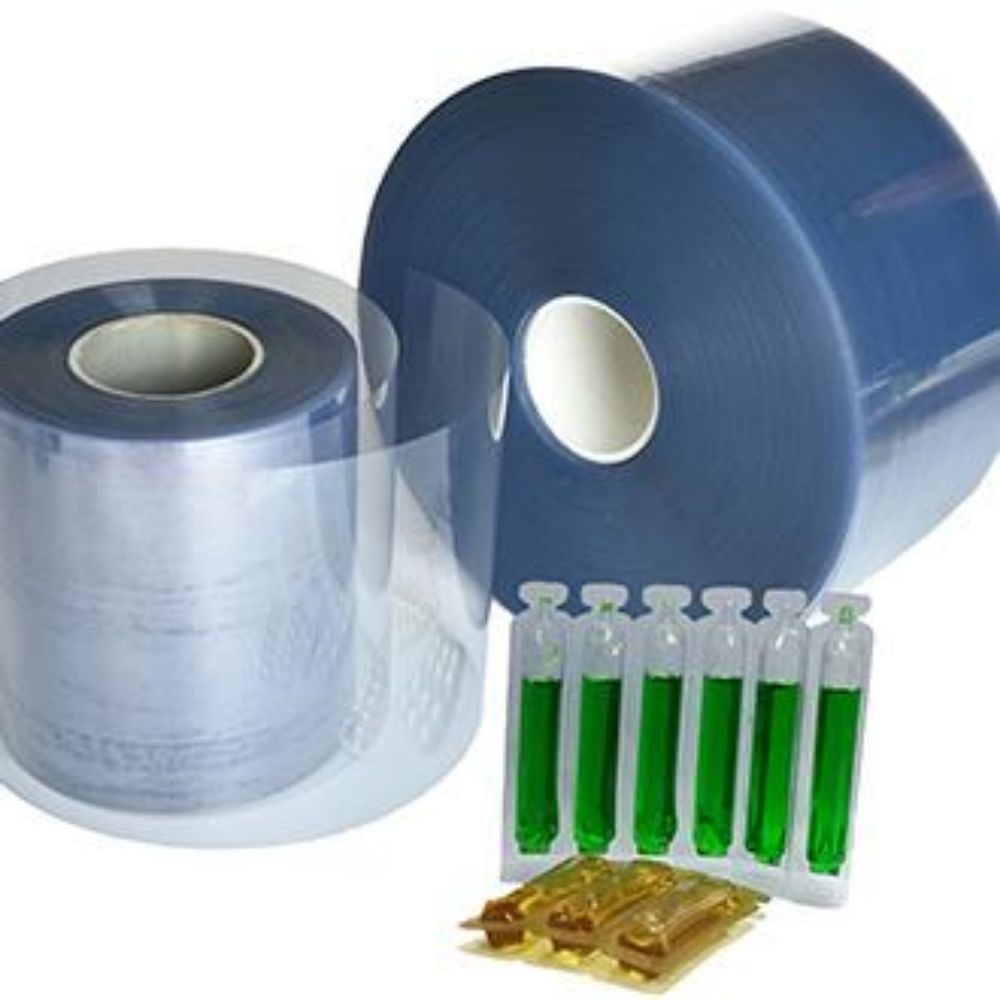

![PVC rigid forming film for pharmaceutical and healthcare packaging]( "PVC Rigid Sheet for Medical Packaging")
Rigid PVC Forming Film for Pharmaceutical Packaging
Processing and Sealing Recommendations
Forming temperature, heating time, plug assistance, forming pressure, sealing temperature, sealing pressure, and dwell time depend on the film structure, PVC thickness, PVDC coating, cavity depth, machine design, line speed, and lidding foil. A universal processing window should not be used for every blister line.
HSQY recommends testing production-standard samples on the intended blister machine and checking cavity thickness distribution, web shrinkage, curl, coating integrity, seal strength, channel leaks, appearance, and barrier performance before commercial approval.
Quality and Pharmaceutical Documentation
Documentation should be confirmed for the exact material grade and destination market. Depending on the specification and order, buyers may request a technical data sheet, certificate of analysis, safety data sheet, barrier test data, migration or extractables information, RoHS and REACH reports, color and dimension inspection records, and other agreed regulatory documents.
RoHS and REACH documents support restricted-substance and chemical-compliance review, but they do not by themselves establish suitability for pharmaceutical primary packaging. Please state any required pharmacopoeial, food-contact, quality-system, or customer-specific standard in the inquiry so HSQY can confirm the applicable documentation before order approval.
Available Download Documents
Lead Time for PVC PVDC Film
| Quantity |
Estimated Production Time |
| 1 to 3,000 kg |
Approximately 7 days |
| 3,001 to 10,000 kg |
Approximately 10 days |
| 10,001 to 20,000 kg |
Approximately 15 days |
| More than 20,000 kg |
To be confirmed according to the production schedule |
Lead time is estimated after technical specification approval, deposit receipt, artwork or color confirmation when applicable, and final production scheduling.
Packaging and Delivery Options
Sample packaging: Cut-sheet or short-roll samples packed to reduce contamination, scratching, moisture exposure, and transport damage.
Production-roll packaging: Protective wrapping, end protection, carton or kraft packaging, and palletizing according to roll size and shipping method.
Pallet packaging: Export pallets with roll stabilization and moisture protection.
Container loading: Approximately 20 tons in a 20-foot container, subject to roll dimensions, pallet configuration, and destination restrictions.
Shipping ports: Shanghai, Ningbo, Qingdao, or another agreed port in China.
Trade terms: FOB, CIF, EXW, or another mutually agreed Incoterm.
![Kraft packaging for PVC PVDC pharmaceutical film rolls]( "Kraft packaging for PVC PVDC film")
Kraft Packaging
![Pallet packaging for PVC PVDC pharmaceutical film rolls]( "Pallet packaging for PVC PVDC film")
Pallet Packaging
Certifications and Test Reports
The following image is retained from the original page. Buyers should verify that each certificate or report applies to the exact PVC PVDC grade, manufacturing site, specification, and validity period required for the order.
![RoHS and REACH certificates and test reports for HSQY plastic materials]( "ROHS and REACH Certifications")
Information Required for a PVC PVDC Film Quotation
Required structure: PVC/PVDC or PVC/PE/PVDC
PVC thickness and PVDC coating weight
Required WVTR and OTR, including test conditions
Roll width, core diameter, maximum roll diameter, and winding direction
Color and transparency requirement
Blister machine brand, model, line speed, and heating configuration
Cavity drawing, cavity depth, and forming area
PTP aluminum foil specification and current sealing parameters
Required pharmaceutical, food-contact, chemical, or customer-specific documentation
Trial quantity, annual quantity, destination country, and delivery terms
Send these details through the HSQY contact page to receive a more accurate material recommendation, sample plan, lead time, and quotation.
Global Exhibitions
![HSQY Plastic Group at the 2017 Shanghai exhibition]( "2017 Shanghai Exhibition")
2017 Shanghai Exhibition
![HSQY Plastic Group at the 2018 Shanghai exhibition]( "2018 Shanghai Exhibition")
2018 Shanghai Exhibition
![HSQY Plastic Group at the 2023 Saudi exhibition]( "2023 Saudi Exhibition")
2023 Saudi Exhibition
![HSQY Plastic Group at the 2023 American exhibition]( "2023 American Exhibition")
2023 American Exhibition
![HSQY Plastic Group at the 2024 Australian exhibition]( "2024 Australian Exhibition")
2024 Australian Exhibition
![HSQY Plastic Group at the 2024 American exhibition]( "2024 American Exhibition")
2024 American Exhibition
![HSQY Plastic Group at the 2024 Mexico exhibition]( "2024 Mexico Exhibition")
2024 Mexico Exhibition
![HSQY Plastic Group at the 2024 Paris exhibition]( "2024 Paris Exhibition")
2024 Paris Exhibition
Frequently Asked Questions About PVC PVDC Film
What is the difference between PVC film and PVC PVDC film?
Mono PVC provides good thermoforming and blister rigidity but offers a relatively limited moisture and oxygen barrier. PVC PVDC film adds a PVDC coating to improve barrier performance while retaining the processing advantages of rigid PVC.
How do I choose the correct PVDC coating weight?
Select the coating level according to the drug's moisture and oxygen sensitivity, required shelf life, climate zone, blister cavity depth, expected coating thinning after forming, and target WVTR and OTR. Stability testing and machine trials should confirm the final grade.
What PVC thickness is commonly used for pharmaceutical blisters?
Pharmaceutical rigid PVC forming webs are commonly supplied within a thinner roll-film range than general industrial PVC sheet. HSQY lists a typical pharmaceutical range of 0.20 mm to 0.45 mm, with the final thickness selected according to cavity size, rigidity, push-through performance, and machine requirements.
Can PVC PVDC film be heat sealed with PTP aluminum foil?
Yes. PVC PVDC forming film is commonly paired with compatible pharmaceutical PTP aluminum foil. The sealing lacquer, temperature, pressure, dwell time, line speed, and tooling must be validated together to achieve reliable seal strength and package integrity.
What is the difference between duplex and triplex blister film?
Duplex film normally uses a PVC/PVDC structure. Triplex film adds an intermediate layer, commonly PVC/PE/PVDC, to improve forming behavior for deeper cavities or more demanding structures. The correct option depends on draw depth, barrier target, and machine conditions.
Can HSQY customize the width, color, core, and roll diameter?
Yes. Slit width, jumbo-roll width, clear or colored appearance, core diameter, maximum roll diameter, winding direction, and packaging can be customized after technical review and minimum-order confirmation.
What documents should I request for pharmaceutical use?
Request the grade-specific TDS, COA, SDS, barrier test data, dimensional and appearance specification, and any required pharmacopoeial, food-contact, migration, restricted-substance, quality-system, or customer-specific documents. Document availability must be confirmed for the exact product and manufacturing site.
Can I obtain samples for machine testing?
Sample availability depends on the required structure, thickness, coating weight, width, and color. Provide the blister machine details and current material specification so HSQY can recommend a more representative production-standard sample. Sample freight and special converting costs may apply.
What is the MOQ for PVC PVDC film?
The normal MOQ is approximately 1,000 to 2,000 kg, depending on the PVC thickness, PVDC coating weight, roll width, color, converting requirements, and whether the specification is standard or customized.
How long does PVC PVDC film production take?
Standard orders may require approximately 7 to 15 days after specification approval and deposit receipt. Customized coatings, colors, widths, documentation, or large-volume orders may require a longer confirmed schedule.
How should PVC PVDC film be stored?
Keep the rolls in their original protective packaging in a clean, dry indoor area away from direct sunlight, heat, moisture, dust, chemicals, and mechanical damage. Follow the grade-specific storage conditions, shelf life, and conditioning instructions provided with the approved material.
How can I get an accurate PVC PVDC film quotation?
Send the required structure, PVC thickness, PVDC coating weight, roll width, core and roll diameter, color, winding direction, annual quantity, destination, machine model, lidding foil, barrier target, and required documentation through the HSQY contact page.
About HSQY Plastic Group
HSQY Plastic Group supplies rigid PVC films, PVDC coated PVC films, pharmaceutical composite films, PET films, PP sheets, and thermoformed packaging products to international B2B buyers. The team supports specification matching, sample preparation, custom converting, quality inspection, export packaging, and international delivery.
For pharmaceutical packaging projects, HSQY recommends confirming the exact forming-web structure, barrier requirement, machine conditions, lidding foil, test methods, and regulatory documentation before commercial production.
