Clear Pvc Sheet 1Mm Rolls For Blister Packing

HSQY 1mm clear rigid PVC sheet roll is designed for blister packaging, clamshells, trays and thermoforming. Available with custom widths, colors, roll sizes and surface options for packaging converters.
  • Clear PVC rigid sheet

  • HSQY Plastic

  • HSQY-210119

  • 0.1mm-3mm

  • Clear White, Can Customized Color

  • A4 500*765mm, 700*1000mmm Can Customized size

  • 1000 KG.

Availability:

Product Description

1mm Clear Rigid PVC Sheet Roll for Blister Packaging

HSQY 1mm clear rigid PVC sheet roll is designed for blister packaging, clamshell packaging, thermoformed trays, retail display packaging and other rigid plastic forming applications. The 1mm gauge provides higher stiffness than thinner packaging films, making it suitable for applications that require a more rigid formed structure.

The material can be supplied as master rolls, slit rolls or converted sheets according to the customer's thermoforming equipment. Clear PVC offers direct product visibility, while selected colors, matte surfaces and other specifications can be discussed for customized packaging projects.

The featured product has a nominal thickness of 1mm. Related rigid PVC specifications can be supplied in other thicknesses according to roll width, roll diameter, forming depth, finished-part rigidity and processing requirements.

1mm Clear PVC Sheet Roll Product Images

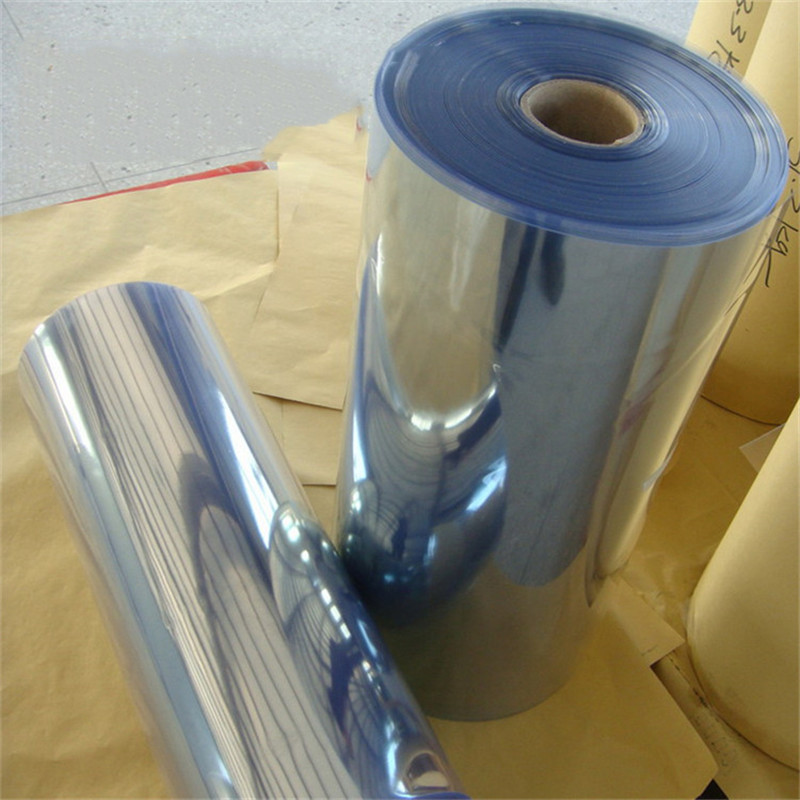

1mm clear rigid PVC sheet roll for blister packaging

1mm Clear Rigid PVC Sheet

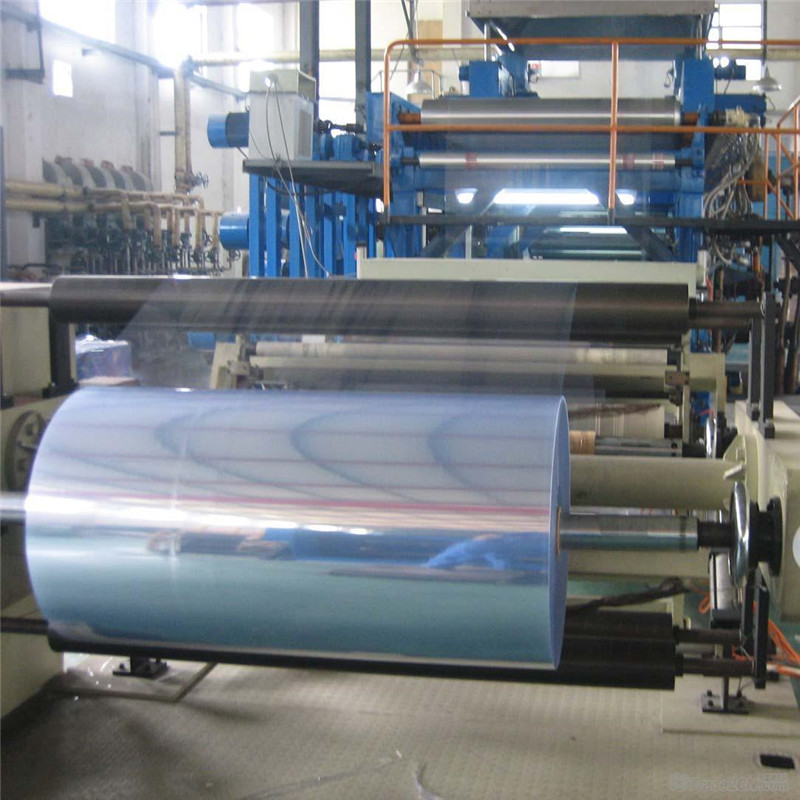

Clear PVC sheet for blister thermoforming

Clear PVC for Thermoforming

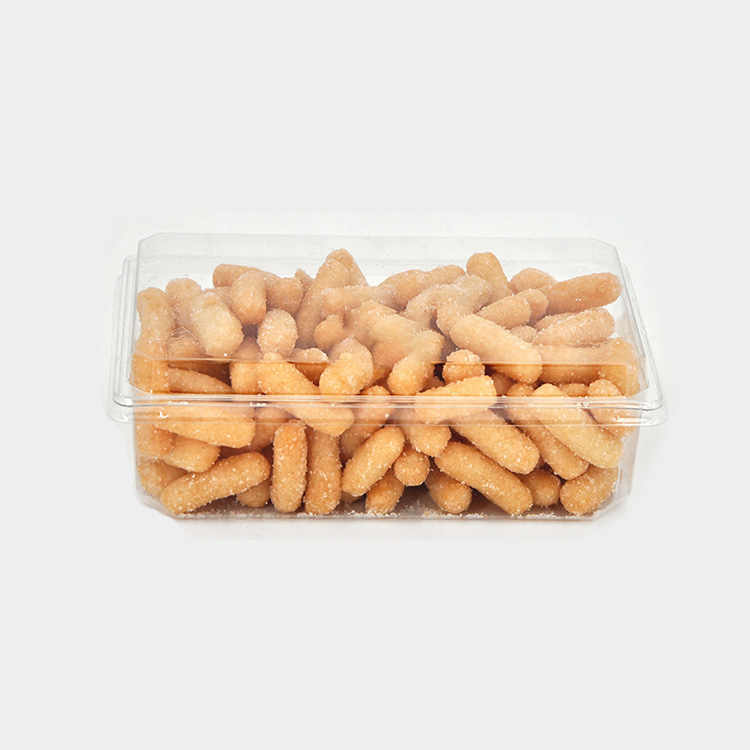

Clear rigid PVC blister packaging application

Blister Packaging Application

1mm Clear PVC Blister Sheet Specifications

Product Name 1mm Clear Rigid PVC Sheet Roll for Blister Packaging
Material Rigid Polyvinyl Chloride (PVC)
Featured Thickness 1mm / 1000 microns
Custom Thickness Other rigid PVC gauges available according to application, width and supply format
Maximum Reference Width Up to approximately 1280mm, subject to thickness and roll specification
Supply Format Master rolls, slit rolls, flat sheets and cut-to-size sheets
Appearance Clear / transparent; selected colors available
Surface Options Glossy, matte or customized surface according to grade
Thermoforming Vacuum forming, pressure forming and compatible thermoforming processes
Printing UV offset, screen printing and other compatible processes after testing
Secondary Processing Cutting, die cutting, punching, folding, welding and trimming according to grade
Main Applications Blister packaging, clamshells, thermoformed trays, retail packaging, inserts, display packaging and formed plastic components
MOQ 500kg as listed for the current product; confirm the final order quantity for the specified roll width and grade
Samples A4 sheets, cut pieces or limited trial material according to availability

Why Choose 1mm PVC for Blister Packaging?

A 1mm rigid PVC sheet is substantially thicker and more rigid than lightweight packaging film. This makes it useful where the finished blister, clamshell or thermoformed component requires additional stiffness, dimensional stability or resistance to deformation during handling.

  • Higher Rigidity: Suitable for larger or more structurally demanding formed packaging.

  • Clear Product Visibility: Transparent PVC allows the packaged product to remain visible.

  • Thermoforming Capability: Suitable grades can be formed into blister shells, clamshells, trays and inserts.

  • Custom Roll Width: Roll width can be configured to suit forming-machine and trim requirements.

  • Custom Roll Configuration: Core diameter, roll weight, outside diameter and winding direction can be discussed according to equipment.

  • Printing Compatibility: Suitable surfaces can be evaluated for screen or offset printing.

  • Color Options: Clear and selected customized colors are available according to order requirements.

Applications of 1mm Clear PVC Sheet Roll

Retail Blister Packaging

Clear PVC can be thermoformed into rigid blister shells for hardware, tools, stationery, accessories, household products, cosmetics and other suitable retail goods. The 1mm gauge can be considered where additional formed-part rigidity is required.

Clamshell Packaging

Rigid PVC can be formed into clear clamshell packaging for products requiring visibility and a more rigid protective shell. Hinge design, cavity depth and closing method should be considered together with sheet thickness.

Cosmetic and Personal-Care Packaging

The clear material can be evaluated for formed cosmetic packaging, inserts, display shells and presentation packaging where product visibility and rigid construction are important.

Electronics and Component Trays

PVC can be formed into trays and product-positioning inserts for suitable electronic accessories and industrial components. Anti-static properties are not universal and require a dedicated material specification where needed.

Medical and Pharmaceutical Packaging Projects

Medical or pharmaceutical packaging requires application-specific PVC formulations and supporting documentation. A general 1mm commercial PVC sheet should not automatically be treated as a pharmaceutical-grade blister material. Buyers should provide the exact end use, packaging process, regulatory requirements and required documents before material selection.

Roll Specifications to Confirm Before Ordering

For roll-fed thermoforming, thickness alone is not enough to define a usable specification. Roll geometry should match the feeding, unwinding and heating system of the customer's equipment.

Parameter Information Required
Thickness 1mm nominal thickness and required tolerance
Roll Width Required finished slit width
Core Diameter Required inner core diameter for the machine unwind station
Maximum Roll Diameter Maximum outside diameter accepted by the machine
Roll Weight Target or maximum roll weight
Winding Direction Specify where required by printing or forming equipment
Surface Glossy, matte or customized requirement
Optical Quality Clarity, haze, tint, gloss and acceptable appearance standard where critical

How to Select PVC for Thermoforming

The correct PVC specification depends on the finished package rather than thickness alone. During thermoforming, the heated material stretches across the mold, so wall thickness can decrease significantly in deep cavities and corners.

For a new package, provide the finished length, width, depth, cavity geometry, product weight, thermoforming machine type and required rigidity. A drawing or formed sample can help evaluate whether 1mm material is appropriate.

Trial forming is recommended before commercial production to verify heating behavior, cavity definition, wall-thickness distribution, trimming, transparency and finished-part stiffness.

Printing and Secondary Processing

Suitable rigid PVC surfaces can be used with screen printing, UV offset printing and other compatible printing processes. Ink system, surface treatment, drying conditions and adhesion should be tested on the exact production material before volume printing.

PVC can also be mechanically cut, die cut, punched, trimmed, folded or welded according to the selected grade and finished product design.

Information Required for a Quote

  • 1mm thickness or required alternative thickness

  • Roll width

  • Core diameter

  • Maximum roll diameter

  • Required roll weight or roll length

  • Clear or customized color

  • Glossy or matte surface

  • Thermoforming machine type

  • Finished blister, clamshell or tray dimensions

  • Maximum forming depth

  • Printing requirements if applicable

  • Any special functional requirements

  • Required technical or regulatory documentation

  • Order quantity and estimated annual consumption

  • Destination country or port

Technical Data and Test Reports

The following existing HSQY PVC documents are retained for reference. Because several documents cover different PVC products, confirm that the relevant report applies to the exact 1mm PVC grade being purchased.

Certificates and Quality Documents

Available certificates and test documents should be matched to the exact PVC formulation, production site and end-use requirement. Management-system certificates or restricted-substance reports should not be treated as blanket approval for regulated food, medical or pharmaceutical applications.

HSQY PVC sheet certificates and quality documents

Global Exhibitions

HSQY Plastic Group participates in international exhibitions to meet packaging manufacturers, thermoforming companies, plastic converters, distributors and other professional buyers.

HSQY Plastic Group at 2017 Shanghai Exhibition

2017 Shanghai Exhibition

HSQY Plastic Group at 2018 Shanghai Exhibition

2018 Shanghai Exhibition

HSQY Plastic Group at 2023 Saudi Exhibition

2023 Saudi Exhibition

HSQY Plastic Group at 2023 American Exhibition

2023 American Exhibition

HSQY Plastic Group at 2024 Australian Exhibition

2024 Australian Exhibition

HSQY Plastic Group at 2024 American Exhibition

2024 American Exhibition

HSQY Plastic Group at 2024 Mexico Exhibition

2024 Mexico Exhibition

HSQY Plastic Group at 2024 Paris Exhibition

2024 Paris Exhibition

Frequently Asked Questions About 1mm Clear PVC Blister Sheet

What is 1mm clear rigid PVC sheet used for?

It is used for applications such as rigid blister packaging, clamshells, thermoformed trays, product inserts, retail display packaging and other formed plastic components that require greater stiffness than thin packaging film.

Is 1mm PVC suitable for thermoforming?

Yes. Suitable 1mm rigid PVC grades can be thermoformed or vacuum formed. Actual forming performance depends on heating conditions, mold geometry, cavity depth, draw ratio and machine configuration.

Why choose 1mm instead of a thinner PVC film?

A 1mm sheet provides greater stiffness and can be useful for larger clamshells, trays, display shells or other packaging that requires a stronger formed structure. Thinner films may be more appropriate for lightweight applications.

Can the roll width be customized?

Yes. Customized widths can be discussed according to production capability and thermoforming-machine requirements. The existing PVC range supports widths up to approximately 1280mm for selected specifications.

Can you customize the core diameter and roll size?

Roll configuration can be discussed according to the customer's unwind equipment. Provide the required core diameter, maximum roll diameter, target roll weight, slit width and winding requirements.

Can 1mm clear PVC be printed?

Suitable PVC surfaces can be used with screen printing, UV offset printing and other compatible printing processes. Ink adhesion and processing conditions should be tested on the exact material before mass production.

Is this PVC automatically suitable for pharmaceutical blister packaging?

No. Pharmaceutical primary packaging requires a dedicated material specification and appropriate supporting documentation. The correct PVC grade should be selected according to the medicine, blister design, barrier requirements, lidding material, packaging line and destination market.

Is the PVC sheet automatically food-contact compliant?

No. Food-contact suitability depends on the exact PVC formulation, additives, food type, contact conditions and destination-market requirements. Request the appropriate grade and documentation for the intended application.

Can I request a sample for thermoforming tests?

Sample sheets, cut pieces or limited trial material can be discussed according to availability. Testing representative material with the intended forming equipment and mold is recommended before commercial production.

What is the minimum order quantity?

The current product listing specifies an MOQ of 500kg. Confirm the final order quantity according to roll width, grade and other specified requirements.

What information should I provide for a quotation?

Please provide thickness, roll width, core diameter, roll diameter or roll weight, surface, color, forming process, finished package dimensions, forming depth, printing requirements, quantity, required documents and destination.

About HSQY Plastic Group

HSQY Plastic Group supplies rigid PVC sheet and rollstock for thermoforming, blister packaging, clamshells, printing, folding and industrial plastic conversion. Clear, colored, matte and application-specific PVC grades are available for manufacturers, converters and distributors.

For 1mm PVC roll projects, HSQY can discuss thickness tolerance, slit width, core diameter, roll weight, roll diameter, surface, optical appearance, samples, technical documents, packing and bulk-supply requirements according to the customer's production line.
