0.1mm 0.2mm 0.3mm Custom Size Thin Pvc Plastic Sheet

200 Micron Clear PVC Window Film for Packaging

HSQY manufactures 200 micron clear PVC window film for paper boxes, folding cartons, gift packaging, cosmetic boxes, toy boxes, bakery boxes, electronics packaging and other retail display applications.

A thickness of 200 microns is equal to 0.2mm. It provides a practical balance of transparency, flexibility, dimensional support and die-cutting performance for packaging windows that allow customers to view the product inside the box.

The featured product is available in standard and customized thicknesses from approximately 125 to 300 microns. Standard sheet sizes include 700 × 1000mm, 750 × 1050mm, 915 × 1830mm and 1220 × 2440mm.

HSQY can customize sheet size, thickness, transparency, color tint, gloss, matte level, anti-block performance, printing treatment, protective film, packing quantity and cut dimensions according to the buyer's window-patching, die-cutting and box-production equipment.

This product is a rigid or semi-rigid PVC packaging window material rather than soft PVC curtain or table-cover film. The final hardness and flexibility should be confirmed according to window size, carton structure, bending requirements and machine speed.

Request PVC Window Film Pricing    Request a Material Sample

What Is PVC Clear Window Material?

PVC clear window material is a transparent plastic sheet that is die cut and attached to the inside of a paperboard, kraft-paper or corrugated packaging box.

The transparent window allows consumers to see the packaged product without opening the box. This can improve product presentation, make colors and shapes visible and help buyers verify the contents at the point of sale.

A PVC window insert usually does not provide the complete structural strength or barrier performance of the package. Its performance also depends on the paperboard, adhesive, window overlap, carton design and closure method.

The material can be converted into rectangular, square, round, oval, curved, heart-shaped and other customized window profiles. It can also be creased or folded around one or more sides of a box when the selected PVC grade and structure are suitable.

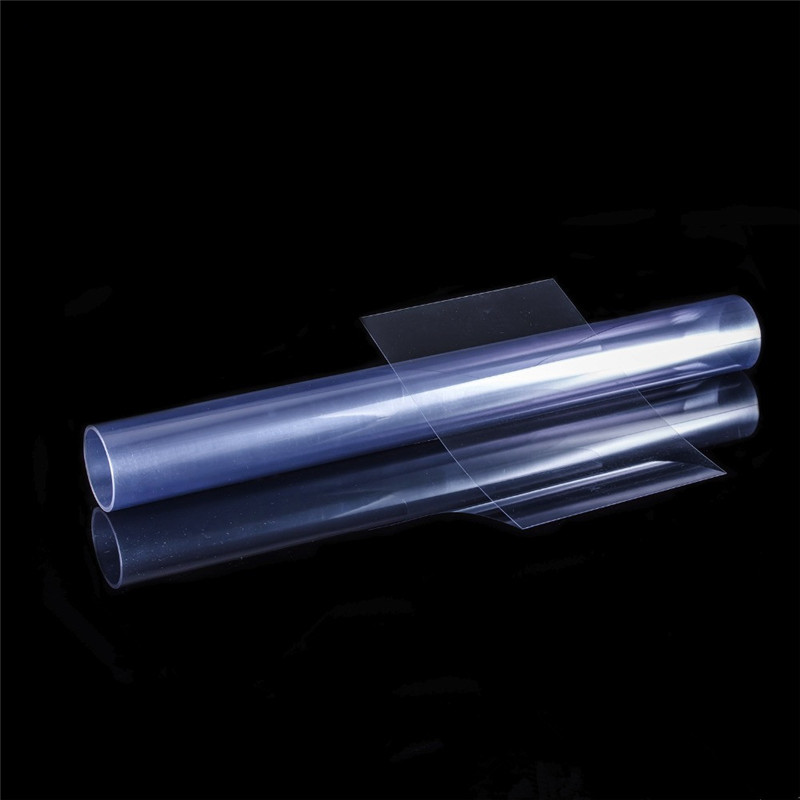

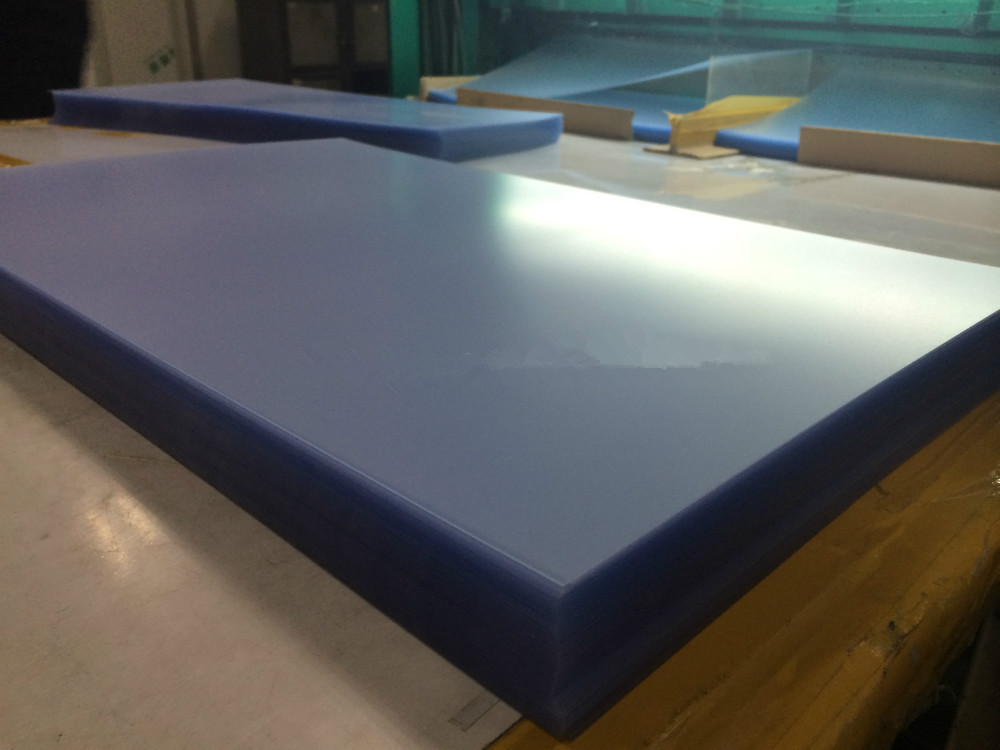

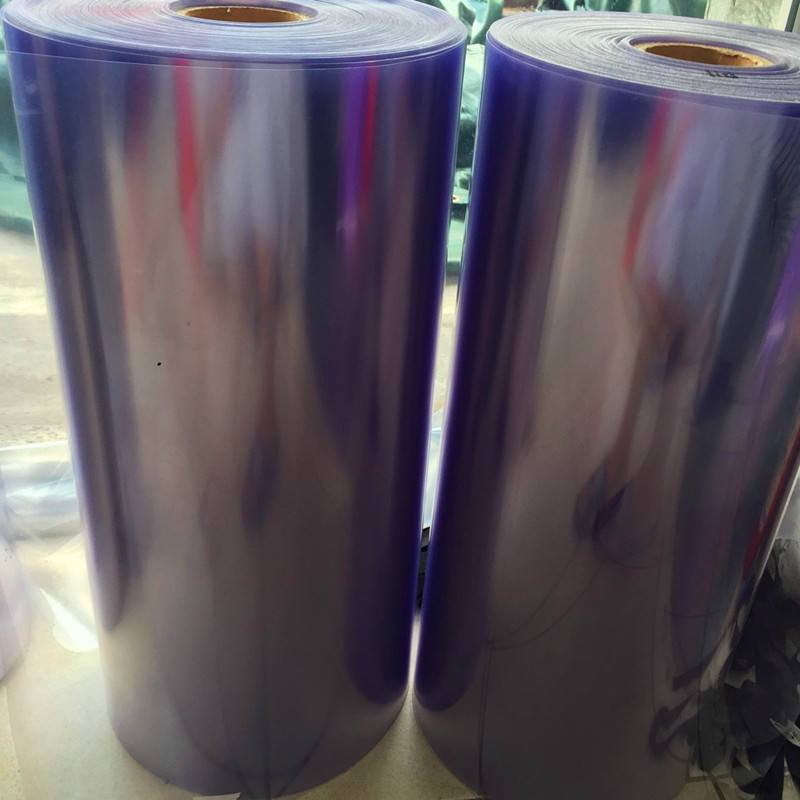

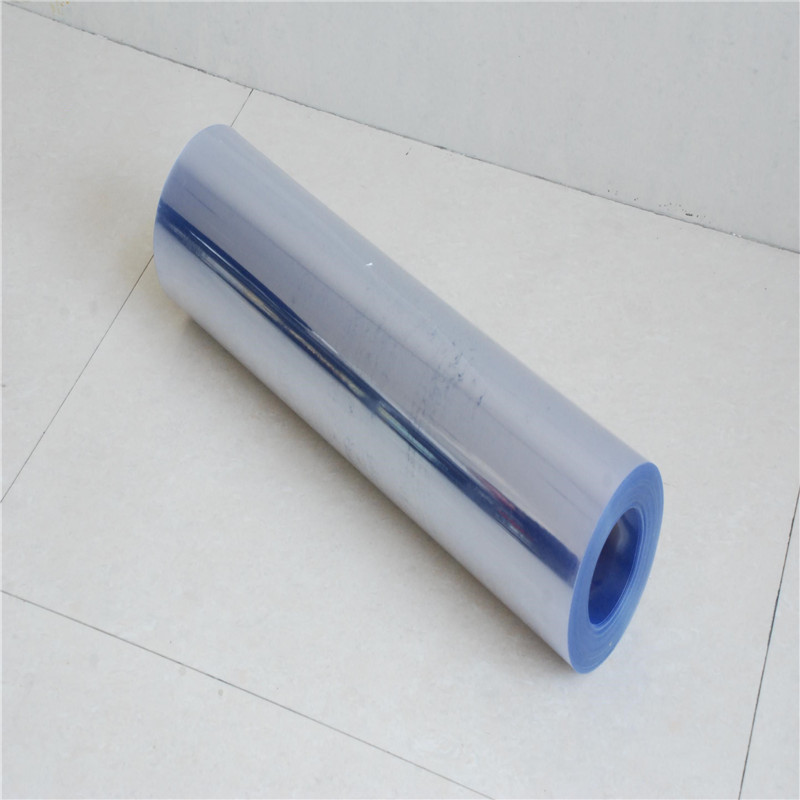

PVC Clear Window Sheet Images

200 Micron PVC Window Film Specifications

Final thickness tolerance, size tolerance, hardness, clarity, haze, surface finish, anti-block level, treated side, packaging and compliance requirements should be confirmed in an approved written specification.

Why Use 200 Micron PVC for Box Windows?

A 200 micron PVC window provides greater stiffness and dimensional support than very thin packaging films while remaining flexible enough for die-cutting, gluing and selected folded-window designs.

Balanced Window Stiffness

The 0.2mm gauge helps the window remain relatively flat across medium-size openings while avoiding the weight and converting difficulty of a much thicker sheet.

Clear Product Presentation

Clear PVC provides product visibility for cosmetics, toys, baked goods, gifts, electronics and other retail products.

Die-Cutting Performance

Suitable PVC grades can be die cut into simple or customized shapes using properly maintained tools and controlled cutting pressure.

Adhesive and Window-Patching Compatibility

The material can be attached to compatible paperboard using a suitable packaging adhesive after surface and bond-strength testing.

Moisture Resistance

PVC itself has low water absorption and helps protect the viewing area from normal humidity and incidental contact with moisture.

Custom Appearance

Glossy, matte, frosted, tinted and printed options can be evaluated for different branding and packaging designs.

PVC Window Film Thickness Guide

The correct thickness depends on the window area, unsupported span, box dimensions, required flatness, adhesive overlap, automatic machine speed, shipping conditions and target material cost.

Clear PVC Window Film Surface Options

Glossy Clear Surface

A glossy clear surface provides high visual contrast and is commonly selected when maximum product visibility is required.

Matte or Frosted Surface

Matte and frosted surfaces reduce glare and create a diffused appearance for premium, decorative or partially concealed packaging.

Anti-Block Surface

Anti-block or lightly dusted surfaces can help sheets separate more easily during feeding, die cutting and automatic window patching.

Blue-Tint Clear PVC

A controlled blue tint can visually offset the naturally warm appearance of PVC. The tint should be approved using a physical production sample.

Printable or Treated Surface

Corona treatment or primer coating can be supplied when compatible printing inks, coatings or adhesives require a controlled surface.

Window Patching, Gluing and Converting

Automatic Window Patching

PVC sheets can be cut into window patches and attached to paperboard using automatic or semi-automatic window-patching equipment.

Sheet flatness, static level, surface blocking, cut dimensions and adhesive open time can affect machine feeding and production speed.

Adhesive Compatibility

Standard paper glue may not bond reliably to every PVC surface. Buyers should use an adhesive designed for plastic-to-paper bonding and test initial tack, final bond strength, aging and temperature resistance.

Die Cutting

The material can be die cut into simple or irregular shapes. Tool sharpness, cutting clearance, material temperature and pressure affect edge quality and dimensional accuracy.

Creasing and Folding

Selected PVC grades can be creased and folded for corner windows, transparent sleeves and multi-panel window structures. Crease design should be tested to control stress whitening and cracking.

Printing and Branding

Logos, patterns, warning text and decorative graphics can be printed using compatible screen, UV or other specialized plastic-printing systems.

The printer model, ink chemistry, curing method, treatment side and post-print folding or gluing process should be tested before bulk production.

Common PVC Window Shapes and Box Designs

Applications of 200 Micron PVC Window Film

Cosmetic Packaging

Transparent windows display bottles, tubes, jars, palettes and gift sets while allowing the printed carton to carry brand graphics and product information.

Toy Packaging

PVC window panels allow customers to inspect the toy's shape, color and accessories without opening the box.

Bakery and Confectionery Boxes

Clear windows can be used on cupcake, cake, biscuit, chocolate and confectionery cartons when the selected material and complete package meet the required food-packaging conditions.

Gift and Premium Packaging

Glossy or frosted PVC windows can be combined with kraft paper, specialty paper, foil stamping and printed cartons for gift sets and premium retail products.

Electronics and Accessories

Applications include packaging for cables, chargers, headphones, small electronic devices and consumer accessories.

Apparel and Textile Products

Clear windows can show socks, underwear, scarves, caps, gloves, ties and other textile products while keeping them inside a printed carton.

Stationery and Promotional Products

Window boxes are used for pens, notebooks, craft products, gift sets, promotional kits and office supplies.

PVC vs. PET and PLA Window Film

Food-Packaging and Product-Contact Requirements

A standard PVC window sheet should not automatically be described as suitable for direct food contact.

Suitability depends on the exact PVC resin, stabilizers, processing aids, pigments, recycled content, surface treatment, adhesive and destination-market requirements.

Buyers should specify whether the window will directly touch food, whether an inner liner separates the product from the window and the expected contact time and temperature.

The complete package must also be evaluated, including the paperboard, printing ink, varnish, adhesive and any internal tray or liner.

An ISO quality-management certificate does not by itself establish direct food-contact compliance for the PVC window material.

Recycling and Environmental Claims

Recycling acceptance depends on local collection infrastructure, the ability to separate the PVC window from the paperboard and the presence of ink, adhesive, coating and contamination.

The complete window box should not automatically be described as recyclable simply because the individual plastic or paper components can theoretically be recycled.

Claims such as biodegradable, compostable, eco-friendly or 100% recyclable should only be used when they are supported by the exact supplied material, the complete packaging structure and the applicable test or certification.

Buyers with mono-material, curbside-recycling or compostable-packaging objectives should discuss PET, PP, cellulose or certified compostable alternatives before selecting the window material.

Recommended Quality-Control Tests

• Thickness, length, width and diagonal tolerance.

• Transparency, haze, color tint and gloss.

• Gels, fisheyes, flow marks, black spots and visible impurities.

• Scratches, creases, edge damage and surface contamination.

• Sheet flatness, curl and dimensional stability.

• Anti-block performance and sheet separation.

• Static behavior during feeding and window patching.

• Die-cutting accuracy and edge quality.

• Creasing, folding and stress-whitening performance.

• Adhesive wetting, initial tack and aged bond strength.

• Printing, ink adhesion, curing and rub resistance where required.

• Restricted-substance and food-contact testing where applicable.

Storage and Handling

• Store the material indoors in a clean and dry environment.

• Avoid direct sunlight, high temperatures and rapid temperature changes.

• Keep sheets flat and evenly supported.

• Avoid excessive stacking pressure that may create blocking or surface marks.

• Protect the material from dust, oil, moisture and adhesive contamination.

• Allow cold material to reach the production-room temperature before opening sealed packaging.

• Use clean gloves for high-clarity packaging applications.

• Use older stock first and verify surface treatment after extended storage.

Custom PVC Window Material Options

• Featured 200 micron / 0.2mm clear PVC window sheet.

• Thicknesses from approximately 125 to 300 microns.

• Standard and customized sheet dimensions.

• Natural clear, blue-tint clear and customized transparent colors.

• Glossy, matte, frosted and anti-block surfaces.

• Rigid and semi-rigid formulations.

• Corona-treated and primer-coated printing surfaces.

• Custom die-cut window blanks.

• Rectangular, round, oval, curved and custom shapes.

• Protective film or interlayer options.

• Customized sheet quantity, bags, cartons and pallet packing.

• A4 samples for clarity, adhesive and converting tests.

Information Required for a Quotation

• Required thickness and thickness tolerance.

• Sheet length, width or finished window dimensions.

• Natural clear, blue-tint, frosted or customized appearance.

• Required hardness and flexibility.

• Glossy, matte, anti-block or treated surface.

• Paper-box window, transparent sleeve, corner window or other structure.

• Manual, semi-automatic or automatic window-patching process.

• Adhesive type and paperboard material.

• Die-cutting, creasing, folding or printing requirements.

• Packaged product and direct-contact conditions.

• Trial quantity, first order and estimated annual demand.

• Packaging, pallet, destination port and required delivery date.

Send Your PVC Window Film Requirements

Packing and Delivery

Sample packing: A4 or limited-size samples can be protected with PE film and packed in bags, envelopes or cartons.

Sheet packing: Sheets can be wrapped with PE film and kraft paper. A reference packing quantity is approximately 100 sheets per bag, subject to thickness and dimensions.

Bag weight: A reference package weight is approximately 30kg, or it can be customized according to handling requirements.

Surface protection: Interlayer paper, protective film or anti-block treatment can be discussed for scratch-sensitive and high-clarity specifications.

Pallet packing: Approximately 500-2,000kg can be loaded on a plywood pallet, depending on sheet size and transport limits.

Container loading: Reference loading is approximately 20 tons, subject to packaging dimensions, pallet arrangement and legal weight restrictions.

Lead time: Production normally takes approximately 5-20 days after the material specification, quantity, packaging and payment are confirmed.

Certifications and Quality Documents

HSQY can provide available SGS, restricted-substance and quality-management documents for review.

Buyers should verify the document number, test date, tested product description, formulation, thickness, color and application scope before relying on a report.

ISO management-system certification describes factory-management processes. It should not be presented as direct proof that every PVC window sheet is approved for food contact, toys, cosmetics, electronics or another regulated application.

Why Choose HSQY as Your PVC Window Film Supplier?

HSQY Plastic Group supplies PVC sheets, PET sheets, PP sheets, thermoforming materials and packaging films to paper-box manufacturers, packaging converters, printers, distributors and international brand suppliers.

• Featured 200 micron clear PVC packaging window material.

• Customized thicknesses from approximately 125 to 300 microns.

• Standard and customized sheet dimensions.

• Glossy, matte, frosted and anti-block surfaces.

• Natural clear, blue-tint and custom transparent colors.

• Printing, die-cutting, creasing and window-patching grades.

• Samples for clarity, adhesive and converting trials.

• Customized packing quantities and export pallets.

• Bulk production support for packaging converters and distributors.

HSQY recommends testing the selected PVC window material with the buyer's actual paperboard, adhesive, die-cutting tool, printing system and window-patching equipment before approving a bulk order.

Explore more PVC sheet for box window products or view the complete clear PVC sheet range.

Contact HSQY for Samples and Pricing

Frequently Asked Questions About PVC Window Film

What is 200 micron PVC window film?

It is a transparent PVC packaging sheet with a nominal thickness of 200 microns, or 0.2mm, used to create viewing windows in paper boxes and folding cartons.

Is 200 microns the same as 0.2mm?

Yes. One thousand microns equal one millimeter, so 200 microns equal 0.2mm.

What is PVC window film used for?

It is used for cosmetic boxes, toy packaging, bakery boxes, gift cartons, electronics packaging, apparel boxes and other retail packaging that requires product visibility.

What thicknesses are available?

Available thicknesses include approximately 125, 150, 180, 200, 220, 240, 250, 280 and 300 microns.

How do I choose the correct PVC window thickness?

Consider the window dimensions, unsupported span, required stiffness, box structure, adhesive overlap, converting speed and material cost.

Can PVC window film be supplied in custom sizes?

Yes. HSQY supplies standard sheets and customized length, width and finished window dimensions.

Can the PVC be die cut into custom shapes?

Yes. Rectangular, round, oval, curved and customized shapes can be produced according to drawings and production feasibility.

Can PVC window film be used on automatic window-patching machines?

Suitable grades can be used on automatic equipment. Sheet flatness, static, anti-block performance, dimensions and adhesive compatibility should be tested on the actual machine.

What adhesive should be used for PVC box windows?

Use an adhesive designed for bonding PVC to the selected paperboard. Test initial tack, drying, final bond strength, aging and temperature resistance.

Can 200 micron PVC film be folded?

Selected grades can be creased and folded for corner windows or transparent sleeves. The crease design and material formulation should be tested first.

Is anti-block PVC window film available?

Yes. Anti-block or lightly treated surfaces can be supplied to improve sheet separation and machine feeding.

Can the window film be matte or frosted?

Yes. Glossy, matte, light-frosted and customized surface finishes can be supplied.

Can PVC window film be printed?

Selected treated grades can be screen, UV or otherwise specially printed. Printer, ink, curing and adhesion compatibility must be tested.

Is PVC window film suitable for bakery boxes?

It can be used in bakery-box structures when the exact PVC grade, adhesive and complete package are suitable for the intended contact conditions and market requirements.

Is standard PVC window film approved for direct food contact?

Not automatically. Direct food-contact suitability depends on the exact formulation, supporting documents, food type, contact temperature, duration and destination market.

Is PVC window film biodegradable?

Do not describe a standard PVC window sheet as biodegradable without specific material identification and applicable biodegradation or compostability test evidence.

Is PVC window packaging recyclable?

Recycling depends on local PVC collection, the ability to separate the window from paperboard and the complete package's ink, adhesive and coating structure.

What is the difference between PVC and PET window film?

They differ in clarity, stiffness, crease performance, adhesive compatibility, heat behavior, recycling acceptance and cost. The final choice should be based on the complete packaging design.

What is the standard MOQ?

The standard MOQ is approximately 1,000kg. Trial quantities may be evaluated for selected standard thicknesses, sizes and surfaces.

Are samples available?

A4 or limited-size samples may be available for checking transparency, hardness, anti-block performance, die cutting and adhesive compatibility. Courier freight is normally paid by the buyer.

What is the production lead time?

Normal production takes approximately 5-20 days after the specification, quantity, packaging and payment are confirmed.

What information is required for a quotation?

Provide the thickness, dimensions, transparency, hardness, surface finish, window design, paperboard, adhesive, processing method, quantity, packaging and destination.

Get a Custom PVC Window Film Quote

About HSQY Plastic Group

Changzhou Huisu Qinye Plastic Group Co., Ltd. supplies PVC window sheets, clear PVC film, PET sheet, PP sheet, thermoforming materials and customized packaging products to international B2B customers.

HSQY supports paper-box manufacturers, packaging converters, printers, wholesalers and distributors with material selection, sample testing, customized thicknesses, sheet cutting, quality inspection, technical documents and export packaging.

Request a Quote and Sample
