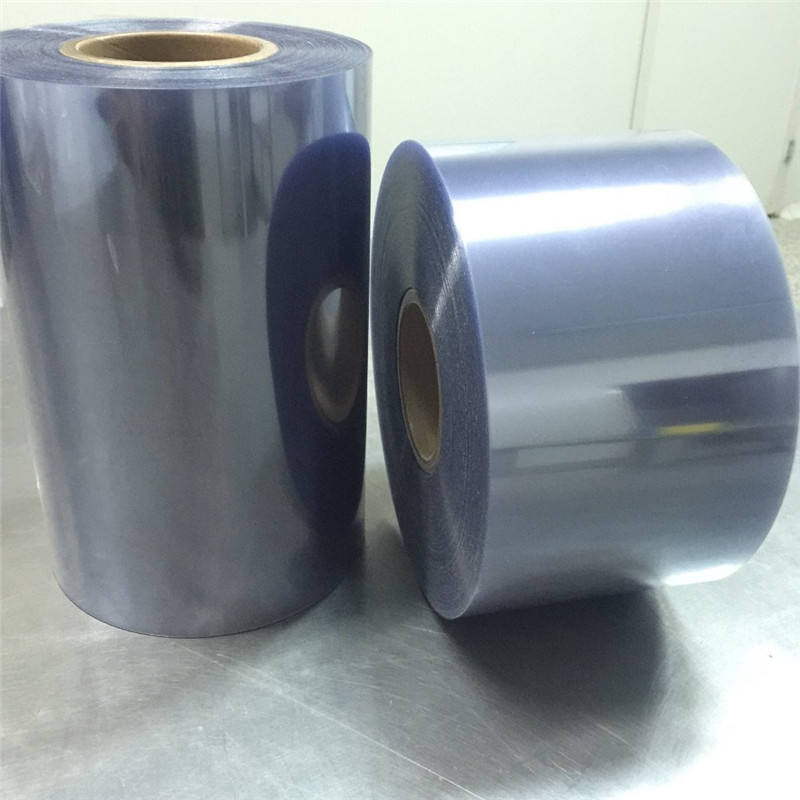

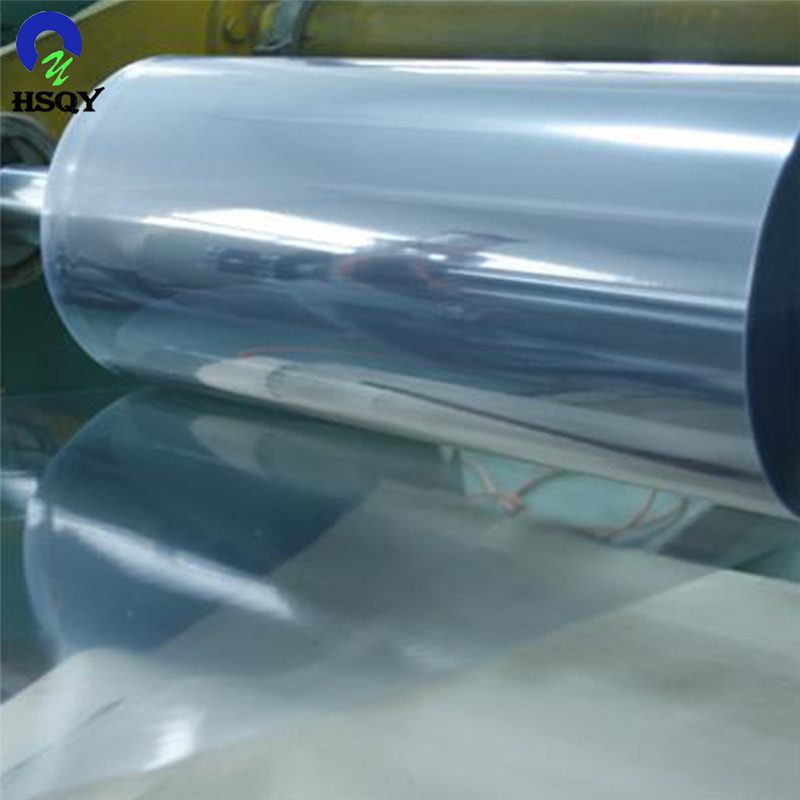

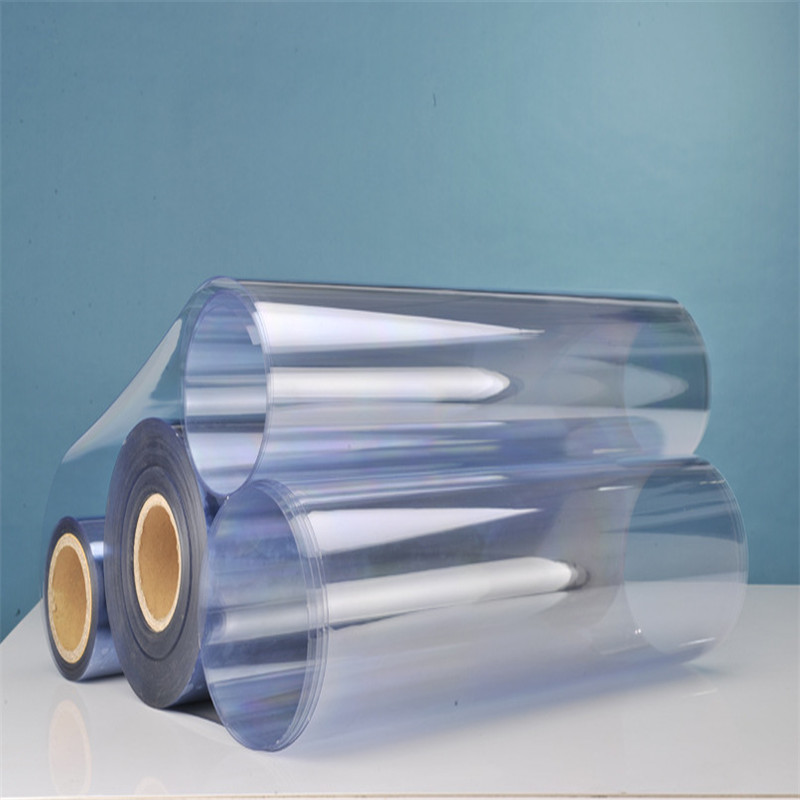

200/300/400 Microns Pvc Sheet Rolls

High optical clarity: Displays packaged products clearly and supports attractive retail presentation.

Reliable thermoformability: Suitable for vacuum forming and conventional thermoforming when the correct grade and process conditions are used.

Consistent rigidity: Helps formed parts, blister cavities and folding-box structures retain their shape.

Moisture and chemical resistance: Supports protective packaging and selected industrial uses.

Printable and convertible: Can be specified for offset printing, screen printing, die cutting, folding, gluing and welding, subject to process testing.

Custom manufacturing: Thickness, width, color, surface and roll format can be matched to the buyer’s equipment and finished-product requirements.

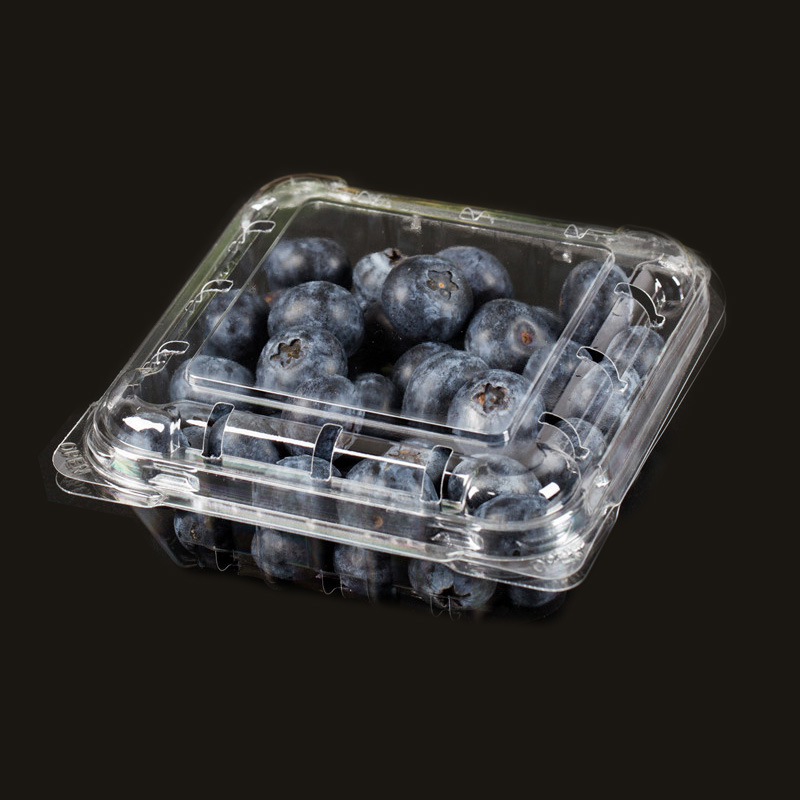

Thermoformed blister packaging: Hardware, tools, toys, stationery, cosmetics, electronics accessories and general consumer products.

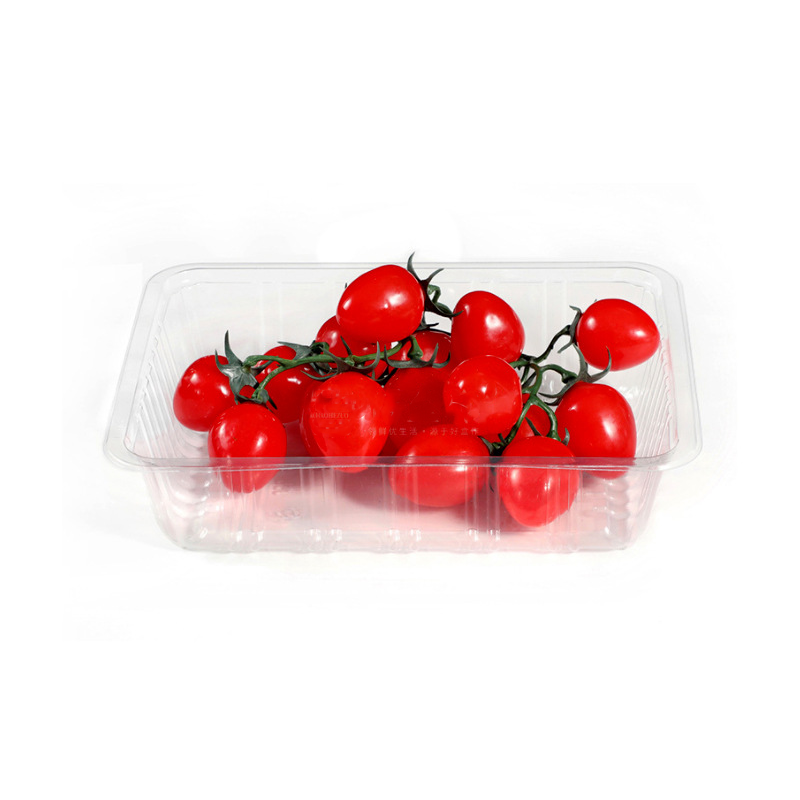

Vacuum-formed trays and inserts: Product positioning, display protection and component organization.

Folding boxes and window packaging: Transparent packaging that improves product visibility.

Printing and stationery: Printed covers, cards, templates, binding covers and promotional materials.

Industrial fabrication: Protective covers, partitions, liners and converted plastic components.

1. Required thickness: 200, 300, 400 microns or another gauge.

2. Roll width, roll length, roll weight or outside-diameter limit.

3. Clear, tinted, white or customized color.

4. Glossy, matte or other required surface treatment.

5. End use and converting process, such as thermoforming, printing or folding boxes.

6. Required compliance, migration, flame, environmental or customer-specific testing.

7. Estimated order quantity and destination port.

       PVC Clear Sheet Data Sheet (PDF)

       Flammability of PVC Rigid Sheet (PDF)

       PVC Gray Board Test Report (PDF)

       PVC Clear Film Data Sheet (PDF)

       PVC Sheet Test Report (PDF)

       20mm Gray Board Test Report (PDF)

       PVC Sheet for Offset Printing Test Report (PDF)

What is the difference between 200, 300 and 400 micron PVC sheet rolls?

The main difference is thickness and resulting stiffness. A 200 micron roll is 0.20 mm thick, a 300 micron roll is 0.30 mm thick and a 400 micron roll is 0.40 mm thick. Thicker material generally provides greater rigidity and shape retention, while thinner material forms more easily and reduces material usage.

Is clear rigid PVC sheet suitable for thermoforming and vacuum forming?

Yes. Clear rigid PVC sheet is widely used for thermoforming and vacuum forming. The correct grade and thickness should be selected according to cavity depth, draw ratio, tooling, forming temperature and required finished-part stiffness. Production trials are recommended for new designs.

Can HSQY customize the width, color and surface finish?

Yes. Width, roll format, clear or tinted color, glossy or matte finish and other requirements can be customized. Send the equipment limits and end-use requirements so feasibility and minimum order quantity can be confirmed.

Can clear PVC film be printed, die-cut, folded or glued?

Clear rigid PVC film can be converted by printing, die cutting, folding, gluing and selected welding processes. Ink, adhesive and processing conditions should be tested with the chosen surface and formulation before mass production.

Is this PVC sheet approved for food, medical or pharmaceutical packaging?

Approval depends on the exact formulation, destination market and application. RoHS and ISO management-system certificates alone do not establish food-contact, medical or pharmaceutical compliance. State the required FDA, EU, pharmacopoeia, migration or customer-specific standard before ordering so the appropriate grade and supporting documents can be reviewed.

What is the minimum order quantity for clear PVC sheet rolls?

The typical MOQ is approximately 500–1,000 kg. The final MOQ depends on thickness, width, color, surface, material grade and whether the specification is standard or customized.

Can I request a PVC sheet sample before placing a bulk order?

Yes. Stock A4 sheets or small roll samples may be available for material and forming evaluation. Sample availability depends on the requested gauge and grade, and international courier freight is normally paid by the buyer.

What information is required for a clear PVC sheet roll quotation?

Provide thickness, width, roll length or roll weight, color, surface, end use, converting method, required certification, order quantity and destination port. These details allow HSQY to recommend the appropriate grade and calculate an accurate quotation.
