0.5mm 1mm Transparent Rigid PVC Sheets

0.5mm and 1mm Transparent Rigid PVC Sheets

HSQY manufactures 0.5mm and 1mm transparent rigid PVC sheets for clear folding boxes, paper-box windows, printing, thermoforming, vacuum forming, retail displays, protective inserts and industrial plastic conversion.

The material combines clear product visibility, practical rigidity, dimensional support, low moisture absorption and compatibility with common cutting, printing, folding and forming processes.

A 0.5mm clear PVC sheet is lighter and easier to score, fold and shallow-form. It is commonly selected for transparent cartons, packaging windows, printed covers, display inserts and lightweight thermoformed packaging.

A 1mm clear PVC sheet provides greater stiffness and shape retention. It is better suited to rigid display panels, protective inserts, formed components, durable packaging and fabricated parts requiring additional support.

HSQY supplies transparent rigid PVC in rolls, flat sheets and custom-cut pieces. Roll width, sheet dimensions, color tint, transparency, surface finish, protective film, recycled-content level and export packaging can be customized.

Printing-grade, folding-box-grade, thermoforming-grade, antistatic, UV-stabilized, impact-modified and flame-retardant PVC are separate technical options. Buyers should specify the actual processing method and required test standard before ordering.

Request Clear PVC Sheet Pricing    Request Material Samples

Transparent Rigid PVC Sheet Overview Video

Watch the video below to learn more about HSQY transparent rigid PVC sheets, available thicknesses, surface finishes, roll production and packaging applications.

What Is Transparent Rigid PVC Sheet?

Transparent rigid PVC sheet is a clear thermoplastic material manufactured from a rigid polyvinyl chloride compound. Unlike flexible PVC film, it contains a formulation designed to retain useful stiffness and dimensional stability.

Depending on its formulation and manufacturing process, rigid PVC can be printed, cut, die cut, scored, folded, punched, drilled, bonded, vacuum formed or thermoformed.

The terms clear rigid PVC sheet, transparent PVC film, rigid vinyl sheet, PVC folding-box sheet and PVC thermoforming sheet are sometimes used for related products. Buyers should specify thickness, hardness, supply form and application because these names do not always describe the same grade.

A general-purpose clear PVC sheet should not automatically be treated as printing grade, pharmaceutical grade, food-contact grade, long-term outdoor grade or tested flame-retardant material.

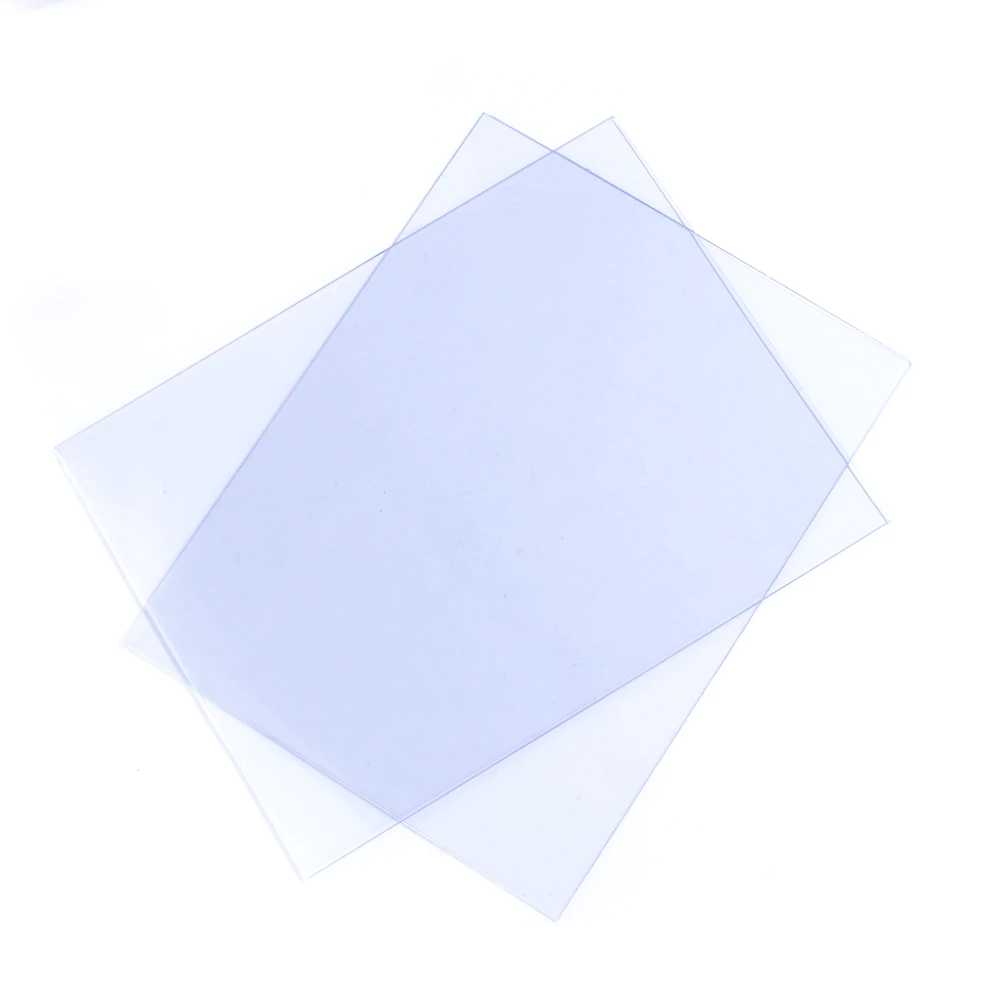

Transparent Rigid PVC Sheet Images

Transparent PVC Sheet Application Images

Transparent Rigid PVC Sheet Specifications

Final thickness tolerance, dimensions, transparency, haze, color, surface finish, hardness, formulation and functional properties should be confirmed in an approved written specification.

0.5mm vs. 1mm Clear PVC Sheet

Thickness selection should also consider the unsupported span, product weight, forming depth, bending radius, rigidity requirement, printing method and assembly equipment.

Key Features of Transparent Rigid PVC Sheets

Clear Product Visibility

Transparent PVC allows packaged products, printed graphics and display contents to remain visible. Final clarity depends on the resin, stabilizer system, recycled content, thickness and surface finish.

Practical Rigidity

Rigid PVC provides shape retention for folding cartons, packaging windows, display panels, thermoformed components and fabricated inserts.

Moisture Resistance

The non-porous PVC surface has low water absorption and is suitable for many packaging and display applications exposed to normal humidity.

Chemical Resistance

PVC resists many acids, alkalis, oils and common chemicals. Compatibility depends on chemical concentration, temperature, exposure time and mechanical stress.

Printing and Decoration

Suitable grades can be offset printed, screen printed, UV printed, foil stamped, embossed or decorated with compatible labels and coatings.

Folding and Die-Cutting

Box-grade PVC can be die cut, scored, creased and folded into transparent cartons. Tool design and material orientation affect whitening, cracking and fold quality.

Thermoforming Capability

Thermoforming-grade PVC can be heated and formed into blisters, trays, clamshell inserts and protective components using validated processing conditions.

Custom Colors and Finishes

Natural clear, blue-tint, transparent colors, opaque colors, glossy, matte, frosted and textured finishes can be customized.

Transparent PVC Sheet for Folding Boxes

Transparent rigid PVC is used to manufacture clear folding cartons for cosmetics, gifts, toys, electronics, stationery, hardware and other retail products.

• Die-cutting of carton profiles, tabs, slots, hooks and hanging holes.

• Scoring and creasing for straight folds and defined corners.

• Offset, screen or UV printing for branding and product information.

• Foil stamping, embossing and decorative finishing.

• Adhesive bonding, ultrasonic welding or suitable plastic-joining methods.

• Manual or automated box assembly after material testing.

Buyers should test sheet direction, crease depth, fold radius, stress whitening, adhesive strength and automated feeding before approving bulk production.

Transparent PVC Sheet for Printing

Transparent rigid PVC can be used for printed packaging, signs, promotional displays, covers, labels and advertising products. Printing performance depends on surface energy, ink chemistry, sheet flatness and curing conditions.

Ink adhesion, color density, drying, curing, scratch resistance, blocking and post-print folding should be tested using the final sheet specification.

Vacuum Forming and Thermoforming

Suitable rigid PVC grades can be formed into transparent trays, blister packs, clamshell inserts, protective covers and retail packaging.

Select a Thermoforming Grade

Folding-box and printing formulations may not provide the same forming behavior as a dedicated thermoforming grade. The final application should be stated in the purchase specification.

Control Heating Uniformity

Uneven heating can produce thin corners, webbing, distortion, weak flanges and inconsistent cavity definition.

Evaluate Forming Depth

Deep cavities require greater material distribution. Starting thickness should be selected according to cavity depth, corner radius and minimum finished-wall requirement.

Control Shrinkage and Cooling

Material orientation, mold temperature and cooling time can affect part dimensions, flange flatness and stacking performance.

Complete Machine Trials

Test the selected sheet on the actual thermoforming machine, mold, heating zones and production speed before approving the order.

Cutting, Bonding and Fabrication

Cutting and Die-Cutting

Clear PVC can be guillotine cut, knife cut, die cut, routed or machined. The suitable method depends on thickness, quantity, edge-quality requirements and equipment.

Adhesive Bonding

Use an adhesive developed for PVC and the second substrate. Bond strength should be checked after curing, aging, temperature exposure and product filling.

Welding

Compatible PVC components can be joined using high-frequency welding, ultrasonic welding, heat welding or other validated methods.

Drilling and Punching

Hole diameter, tool sharpness, feed speed and distance from the sheet edge should be controlled to reduce cracking and burrs.

Clear, Blue-Tint, Frosted and Colored PVC

Natural Clear PVC

Natural clear PVC is selected when product visibility and transparent presentation are the primary requirements.

Blue-Tint Clear PVC

A controlled blue tint can visually reduce the naturally warm appearance of PVC. Final tint should be approved using a physical production sample.

Frosted and Matte PVC

Frosted and matte surfaces reduce glare, partially obscure the product and create a diffused or premium appearance.

Transparent Colored PVC

Red, yellow, blue, green and other transparent colors can be customized according to an approved physical sample or color reference.

Protective Film

Protective film can reduce scratching during cutting, printing, fabrication and transportation. Film adhesion should be matched to the PVC surface and removal process.

Extruded vs. Calendered PVC Sheets

Material should be selected according to optical quality, processing behavior and final performance rather than production-process name alone.

PVC vs. PETG, APET, Acrylic and Polycarbonate

Applications of Transparent Rigid PVC Sheets

• Folding boxes: Clear cartons for cosmetics, gifts, toys, electronics, hardware and retail products.

• Packaging windows: Transparent windows for paperboard cartons and printed boxes.

• Thermoformed packaging: Blisters, trays, clamshell inserts and protective covers.

• Printing: Offset-printed sheets, screen-printed graphics, labels and decorative panels.

• Retail displays: Point-of-sale inserts, shelf displays, signs and promotional panels.

• Stationery: Covers, dividers, binding materials and document-protection products.

• Industrial fabrication: Protective inserts, separators, templates, guards and custom-cut parts.

• Regulated packaging: Only when a qualified grade and product-specific documentation are supplied.

Explore additional PVC clear sheet products for packaging, printing, folding-box and thermoforming applications.

Food and Pharmaceutical Packaging Requirements

Standard industrial PVC sheet should not automatically be described as suitable for direct food contact, pharmaceutical packaging or medical-device packaging.

Suitability depends on the exact PVC resin, stabilizer, lubricant, impact modifier, pigment, recycled-content level and manufacturing controls.

Buyers requiring food-contact material should specify the destination market, food type, contact time, contact temperature, forming process and whether the PVC directly contacts the product.

Pharmaceutical and medical packaging may require additional controls for composition, cleanliness, barrier performance, traceability and regulatory documentation.

RoHS and ISO management-system certificates do not replace product-specific food-contact, pharmaceutical or medical testing.

UV Resistance and Outdoor Use

Standard transparent rigid PVC is primarily recommended for indoor packaging, printing, display and fabrication.

Long-term sunlight exposure can affect clarity, color, impact strength and surface appearance. Outdoor projects should specify a UV-stabilized formulation and required weathering test.

Expected climate, sunlight intensity, temperature range, installation method and target service life should be provided before material selection.

Flame-Retardant PVC Sheet Options

A transparent PVC sheet should not be marketed with a specific fire or flame classification unless the exact formulation and thickness have been tested according to the required standard.

Buyers should provide the target test method, required rating, thickness, color, orientation and final application.

The term “fireproof” should not be used because plastic sheet can still ignite, soften, melt, smoke or lose mechanical integrity under fire exposure.

Virgin and Recycled-Content PVC

Transparent Rigid PVC Sheet Data Sheets

Download the available technical documents for reference. Confirm that each document applies to the exact thickness, resin grade, color, surface finish, recycled-content level and production batch being ordered.

   Download Transparent PVC Sheet Data Sheet

   Download Transparent PVC Sheet Test Report

Recommended Quality-Control Tests

• Raw-material and formulation verification.

• Thickness and thickness tolerance.

• Width, length, squareness and cutting tolerance.

• Transparency, haze, gloss, color and blue-tint consistency.

• Surface scratches, water marks, black spots, gels and impurities.

• Sheet flatness, curl, roll winding and edge quality.

• Printing adhesion, drying, curing and scratch resistance.

• Folding, crease whitening and cracking performance.

• Adhesive or welded-joint strength.

• Thermoforming shrinkage, cavity definition and wall distribution.

• Impact, puncture and fabricated-part performance.

• Packaging, labels, pallet protection and batch traceability.

Custom Transparent PVC Sheet Options

• Featured thicknesses of 0.5mm and 1mm.

• Additional thicknesses from approximately 0.05mm to 6.5mm.

• Master rolls, slit rolls, flat sheets and cut-to-size pieces.

• Natural clear, blue-tint, transparent colors and opaque colors.

• Glossy, matte, frosted, embossed and fine-texture surfaces.

• Printing-grade, box-grade and thermoforming-grade formulations.

• Virgin-resin or selected recycled-content structures.

• Antistatic, impact-modified, UV-stabilized and tested flame-retardant grades.

• Protective film, interlayer paper and custom packaging.

• Samples for printing, folding, bonding and thermoforming trials.

Information Required for a Quotation

• Required thickness and tolerance.

• Roll width, sheet size or finished cut dimensions.

• Roll weight, diameter, core and winding direction.

• Natural clear, blue-tint, transparent color or opaque color.

• Glossy, matte, frosted, embossed or other surface.

• Printing, folding, window, thermoforming or fabrication application.

• Printer, ink, adhesive, mold or converting-equipment details.

• Virgin or recycled-content requirement.

• Food-contact, RoHS, REACH, UV or flame-rating requirements.

• Trial quantity, initial order and annual volume.

• Packaging, pallet, destination port and delivery date.

Send Your Clear PVC Sheet Requirements

Manufacturing Process Images

Packaging and Delivery

Standard packaging: Kraft paper, PE film, protective bags, cartons and export pallets can be used to protect sheets and rolls.

Roll core: A 76mm paper core can be supplied for roll products, subject to the final roll specification.

Sample packaging: A4 sheets, custom pieces or small rolls can be packed in protective bags, boxes or cartons.

Sheet packaging: A reference package weight is approximately 30kg or can be customized according to dimensions and handling requirements.

Pallet packaging: Approximately 500-2,000kg can be loaded on a plywood pallet, depending on sheet or roll dimensions.

Container loading: Reference loading is approximately 20 tons, subject to dimensions, pallet configuration and legal weight limits.

Custom packaging: Labels, logos, carton marks, protective film and private-label packaging can be discussed.

Lead time: Standard production normally takes approximately 10-14 days after specification, quantity, packaging and payment confirmation.

Certificates and Compliance Documents

Available documentation may include product test reports, RoHS-related documents, ISO 9001 quality-management certification and ISO 14001 environmental-management certification.

Buyers should confirm which documents apply to the exact formulation, thickness, color, recycled-content level and production specification.

ISO management-system certificates do not by themselves establish food-contact, pharmaceutical, medical, outdoor-weathering or flame-classification compliance.

Why Choose HSQY as Your Clear PVC Sheet Supplier?

HSQY Plastic Group supplies transparent rigid PVC sheets, folding-box materials, printable PVC sheets, thermoforming materials, PET sheets, PP sheets and customized packaging products.

• Featured 0.5mm and 1mm transparent PVC sheets.

• Rolls, standard sheets and custom-cut pieces.

• Clear, blue-tint, colored, matte and frosted options.

• Printing, folding-box and thermoforming grades.

• Custom widths, lengths, roll weights and tolerances.

• Protective film and private-label packaging.

• Samples for printing, folding and forming tests.

• Technical-document and export-delivery support.

Before bulk production, HSQY recommends testing the selected sheet using the buyer's actual printer, ink, die-cutting tool, adhesive, folding equipment, thermoforming machine or fabrication process.

Contact HSQY for Samples and Pricing

HSQY Global Exhibitions

Frequently Asked Questions About Transparent Rigid PVC Sheets

What is a transparent rigid PVC sheet?

It is a clear, rigid polyvinyl chloride material used for folding boxes, packaging windows, printing, displays, vacuum forming, thermoforming and fabricated plastic components.

What is the difference between 0.5mm and 1mm PVC sheet?

A 0.5mm sheet is lighter and easier to fold or shallow-form. A 1mm sheet is stiffer and provides stronger support for displays, formed parts and larger packaging structures.

Can transparent PVC sheet be supplied in rolls?

Yes. Master rolls and slit rolls can be supplied with customized width, roll diameter, roll weight, core and winding direction.

What standard sheet sizes are available?

Common sizes include 700 × 1000mm, 915 × 1830mm and 1220 × 2440mm. Custom-cut dimensions are also available.

Can clear PVC sheets be used for folding boxes?

Yes. Suitable box-grade PVC can be printed, die cut, scored, folded and bonded into clear retail cartons.

Can transparent PVC sheets be printed?

Selected grades can be offset printed, screen printed or UV printed. Ink, surface treatment, curing and adhesion should be tested before mass production.

Can rigid PVC sheets be thermoformed?

Yes. Thermoforming-grade PVC can be formed into trays, blisters, inserts and protective packaging. Heating, mold design, draw depth and cooling must be tested.

Can transparent PVC sheet be laser cut?

Laser processing of PVC can release corrosive and hazardous chlorine-containing fumes and can damage unsuitable equipment. Mechanical cutting, die-cutting or CNC methods are generally preferred unless a specialist system is specifically designed for PVC and local safety requirements are followed.

What adhesive should be used for clear PVC?

Use an adhesive developed for PVC and the second substrate. Initial tack, final bond strength, aging, temperature and appearance should be tested.

Is transparent rigid PVC suitable for food packaging?

Only a food-contact grade supported by appropriate documentation should be used. Suitability depends on the formulation, food type, temperature, duration and destination-market requirements.

Does RoHS mean that PVC is food safe?

No. RoHS addresses restricted substances for relevant electrical and electronic products. It does not replace food-contact migration testing or declarations.

Is transparent PVC suitable for pharmaceutical packaging?

Pharmaceutical packaging requires a specialized grade, controlled production and application-specific quality and regulatory documentation.

Are UV-resistant clear PVC sheets available?

UV-stabilized formulations can be evaluated. Standard transparent PVC should not be assumed to provide long-term outdoor weather resistance.

Are flame-retardant transparent PVC sheets available?

Tested flame-retardant grades may be available. Provide the required test standard, rating, thickness, color and final application.

Can recycled PVC be used in transparent sheets?

Selected recycled-content formulations may be available. Recycled content can affect clarity, color, impurities and processing consistency.

Is transparent PVC recyclable?

Recycling depends on local PVC collection, product size, color, printing, labels, adhesives, contamination and the design of the finished product.

Are transparent PVC samples available?

A4 sheets, custom pieces or limited roll samples may be available for checking clarity, thickness, printing, folding, bonding and thermoforming.

What is the MOQ?

The standard MOQ is approximately 1,000kg. Custom colors, uncommon widths, functional formulations and special packaging may require a different minimum quantity.

What is the production lead time?

Standard production normally takes approximately 10-14 days after the specification, quantity, packaging and payment are confirmed.

What information is needed for a quotation?

Provide the thickness, dimensions, quantity, color, surface finish, supply form, application, printing or forming method, required documents, packaging and destination.

Get a Custom Clear PVC Sheet Quote

About HSQY Plastic Group

HSQY Plastic Group supplies transparent rigid PVC sheets, printable PVC materials, folding-box sheets, thermoforming sheets, PET sheets, PP sheets and customized packaging products.

HSQY supports packaging converters, printers, thermoforming manufacturers, display producers, importers and distributors with custom dimensions, colors, surfaces, samples, technical documents, export packaging and bulk production.

Request a Quote and Sample
