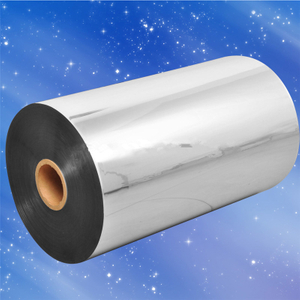

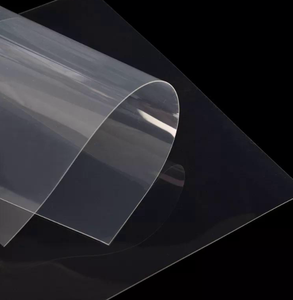

PET/EVOH/PE High-Barrier Thermoforming Film

HSQY PET/EVOH/PE thermoforming film combines PET rigidity, EVOH oxygen barrier and PE heat sealing for MAP meat, seafood, cheese and ready meals. Custom 0.18–1.5mm rolls up to 1500mm wide.
  • HSQY

  • PET Laminated Film

  • Clear, Colored

  • 0.18mm to 1.5mm

  • max. 1500 mm

  • 1000 KG.

Availability:

PET/EVOH/PE Thermoforming Sheet

PET/EVOH/PE High-Barrier Thermoforming Film

HSQY PET/EVOH/PE thermoforming film is a multilayer high-barrier packaging material designed for food packaging, thermoformed trays and other applications requiring controlled oxygen transmission, reliable heat sealing and strong forming performance.

The structure combines PET for rigidity, clarity and thermoforming support, EVOH for oxygen and aroma barrier performance, and PE for heat sealing, flexibility and moisture resistance. This combination makes the film suitable for meat, poultry, seafood, cheese, processed foods, ready meals and other oxygen-sensitive packaged products.

Available thicknesses range from 0.18mm to 1.5mm, with widths up to 1500mm. Clear and customized color options are available according to project requirements. The material can be evaluated for vacuum forming, pressure forming, deep-draw thermoforming and form-fill-seal packaging.

Final barrier performance depends on the complete multilayer structure, EVOH grade and thickness, total film thickness, temperature, relative humidity, forming depth, lidding film and seal integrity. Buyers requiring defined OTR, WVTR or shelf-life performance should provide the applicable test conditions and packaging requirements before production.

       Request PET/EVOH/PE Samples & Pricing

PET/EVOH/PE Thermoforming Film Video

Watch the product video to learn more about HSQY thermoforming materials, packaging applications and production capabilities.

How PET/EVOH/PE High-Barrier Film Works

PET/EVOH/PE is designed as a functional multilayer structure in which each material performs a different role. The performance of the finished film comes from the complete construction rather than from any single layer alone.

Layer Main Function Buyer Considerations
PET Provides rigidity, transparency, dimensional stability and thermoforming support. Confirm total thickness, forming depth, rigidity, clarity and tray dimensions.
EVOH Provides the principal oxygen, gas and aroma barrier function. Barrier performance depends on EVOH grade, layer thickness, temperature and relative humidity.
PE Provides heat sealing, flexibility, toughness and moisture resistance. Confirm compatibility with the selected lidding film and peel or weld requirements.

Depending on the final construction, additional bonding or tie layers may be incorporated between functional layers. When layer-level performance is critical, the approved material specification should identify the complete structure.

PET/EVOH/PE Thermoforming Sheet Specifications

The following specifications are based on the current HSQY product information. Final dimensional tolerances, multilayer construction, barrier performance and processing conditions should be confirmed before bulk production.

Property Details
Product Name PET/EVOH/PE High-Barrier Thermoforming Film
Material PET + EVOH + PE
Thickness 0.18mm–1.5mm
Width Up to 1500mm
Color Clear and colored options
Supply Form Thermoforming rollstock / sheet according to order specification
Primary Barrier Layer EVOH oxygen and aroma barrier layer
Heat-Sealing Layer PE sealing surface
Processing Vacuum forming, pressure forming, deep-draw thermoforming and selected form-fill-seal applications
Typical Applications Food packaging, medical containers, consumer-goods packaging and industrial components
Typical Food Applications Meat, poultry, seafood, cheese, processed meat, ready meals and other oxygen-sensitive foods
Barrier Performance High oxygen and aroma barrier; final OTR depends on structure and test conditions
MOQ 1000kg

       Get a Custom PET/EVOH/PE Specification

Key Features of PET/EVOH/PE Thermoforming Film

High Oxygen Barrier

The EVOH layer is used to reduce oxygen transmission through the packaging structure. This is particularly relevant for oxygen-sensitive foods where oxidation can influence appearance, flavor, aroma or shelf life.

Aroma and Gas Barrier

EVOH can also help reduce aroma loss and gas transfer, making the structure relevant to modified atmosphere packaging and other applications where gas retention is important.

Thermoforming Performance

The PET-based structural portion provides stiffness and forming support for vacuum forming, pressure forming and deep-draw applications. Actual forming performance depends on total thickness, temperature profile, mold design, draw ratio and production speed.

PE Heat-Sealing Surface

The PE layer provides a heat-sealing surface for use with a compatible top web or lidding film. Seal strength depends on the sealant materials, temperature, pressure, dwell time and condition of the tray flange.

Clear or Colored Options

Clear film supports visible product presentation, while colored structures can be discussed for projects requiring a specific appearance or packaging format.

Customized Thickness and Width

Thicknesses from 0.18mm to 1.5mm and widths up to 1500mm support a range of thermoforming machines, mold layouts and packaging formats.

EVOH Barrier Performance and Humidity

EVOH provides strong oxygen-barrier performance, but the measured barrier can change with relative humidity. Increasing moisture exposure can affect the oxygen-transmission performance of an EVOH-containing structure.

For this reason, OTR values should always be evaluated together with the film thickness, EVOH content, test temperature, relative humidity and measurement method. A single OTR number without test conditions is not sufficient to define packaging performance.

The PE and PET portions of the structure help protect and complement the EVOH layer. Water-vapor resistance should be evaluated using the complete multilayer structure rather than attributed to the EVOH layer alone.

OTR and WVTR for High-Barrier Packaging

Parameter What It Measures Information Needed
OTR The rate at which oxygen passes through the film. Test standard, temperature, relative humidity, thickness and units.
WVTR The rate at which water vapor passes through the structure. Temperature, humidity gradient, film thickness, method and units.
Whole-Pack Barrier Barrier of the formed tray, lid and seals as a complete package. Tray design, forming depth, lidding film, seal width and storage conditions.

PET/EVOH/PE for Modified Atmosphere Packaging

Modified atmosphere packaging changes the gas composition surrounding the packaged food before sealing. Maintaining the selected atmosphere requires suitable barrier performance from both the thermoformed bottom web and the lidding film.

PET/EVOH/PE can be evaluated as a high-barrier thermoforming web for MAP meat, poultry, fish, seafood, cheese and prepared-food applications where oxygen ingress and gas loss must be controlled.

The bottom web alone does not determine package shelf life. Lidding-film barrier, residual oxygen, gas mixture, seal integrity, leakage, storage temperature and the characteristics of the packaged food must also be considered.

       Discuss Your MAP Packaging Project

PET/EVOH/PE vs. PET/PE Thermoforming Film

Selection Factor PET/PE PET/EVOH/PE
PET Structural Layer Yes Yes
PE Sealing Layer Yes Yes
Dedicated EVOH Layer No Yes
Oxygen Barrier Suitable where very low oxygen transmission is not the primary requirement. Designed for higher oxygen-barrier requirements, subject to structure and test conditions.
Typical Application General thermoformed and heat-sealed packaging. MAP and oxygen-sensitive food packaging.

Thermoforming and Deep-Draw Performance

PET/EVOH/PE material can be processed by vacuum forming, pressure forming and selected deep-draw thermoforming processes. The flat web is heated and drawn into the mold before filling and sealing.

During deep forming, material thickness is redistributed. Sidewalls and corners can become thinner than the original flat web, which can influence both mechanical strength and barrier performance.

Buyers should provide tray dimensions, cavity depth, corner radius, mold layout, machine model and production speed whenever possible so the appropriate film thickness and structure can be evaluated.

Heat Sealing and Lidding Film Compatibility

The PE side of the PET/EVOH/PE structure provides the sealing surface. Final package performance depends on compatibility between the thermoformed web and the selected top film.

Weld or Lock Seal

A strong weld or lock seal can be selected where package integrity and gas retention are priorities, including selected modified atmosphere packaging applications.

Peelable Seal

Peelable structures can be considered where controlled consumer opening is required. Required peel strength should be defined and validated with the actual lidding film and packaging machine.

Seal performance is affected by temperature, pressure, dwell time, flange contamination, package geometry and product temperature. Trial sealing on the actual packaging line is recommended before final approval.

Applications of PET/EVOH/PE Thermoforming Film

Fresh Meat Packaging

High-barrier PET/EVOH/PE can be evaluated for beef, pork, lamb and processed-meat packaging where oxygen control, product presentation and package integrity are important.

Poultry Packaging

Poultry and processed poultry products can use high-barrier thermoformed trays or bottom webs where the required shelf life and gas-retention performance justify the structure.

Fish and Seafood Packaging

PET/EVOH/PE can be considered for fish, seafood and chilled products requiring controlled oxygen exposure. Sharp shells, bones, product purge and seal contamination should also be considered during package design.

Cheese and Dairy Packaging

Cheese blocks, sliced cheese and selected dairy products can benefit from structures designed to control oxygen transfer, retain aroma and provide reliable heat sealing.

Ready Meals and Prepared Foods

High-barrier thermoformed packaging can be evaluated for prepared meals, fresh pasta and other refrigerated foods where controlled atmosphere and package integrity support the required shelf life.

Medical and Industrial Packaging

Selected PET/EVOH/PE structures may also be evaluated for medical containers, consumer packaging and industrial components. Suitability depends on the specific barrier, cleanliness, processing and documentation requirements of the application.

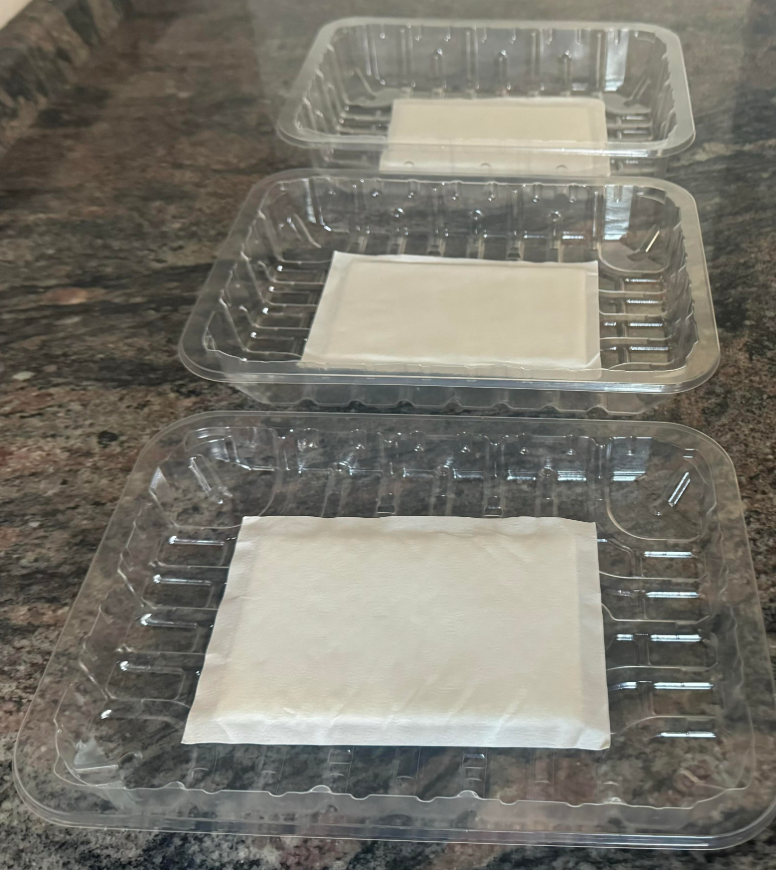

PET/EVOH/PE Thermoforming Film Applications

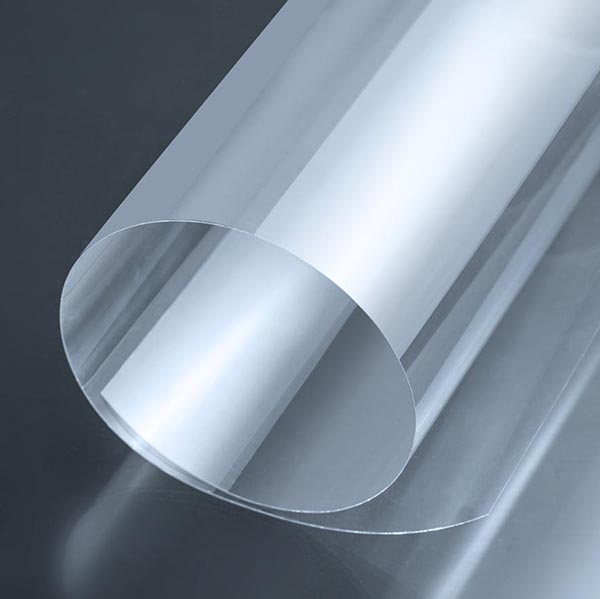

PET EVOH PE thermoforming film

PET/EVOH/PE Thermoforming Film

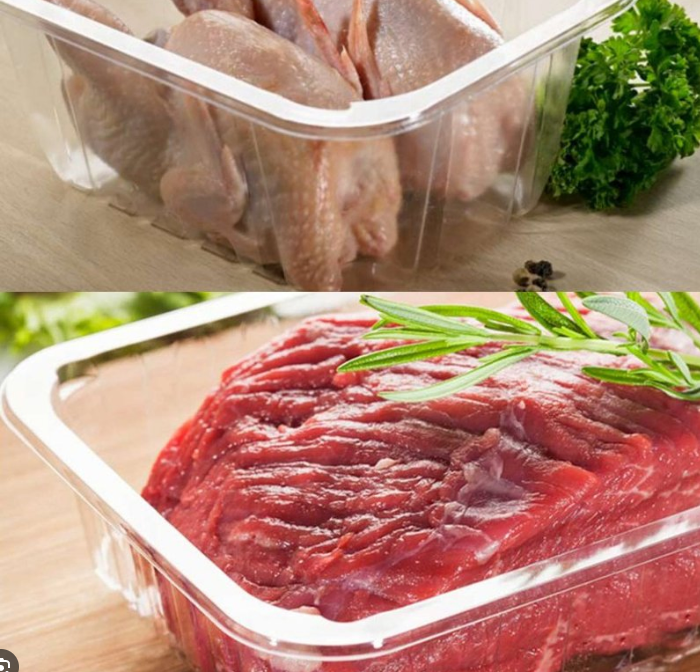

PET EVOH PE film for meat packaging

High-Barrier Film for Meat Packaging

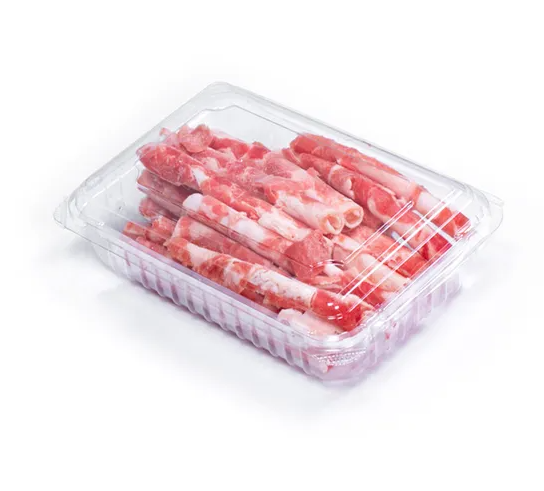

PET EVOH PE high barrier meat packaging film

High-Barrier Meat Packaging Application

How to Select PET/EVOH/PE Thermoforming Film

High-barrier film should be specified according to the packaged product and production process rather than thickness alone. Providing complete application information helps determine an appropriate structure for trial production.

Requirement Information to Provide
Packaged Product Meat, poultry, seafood, cheese, ready meal, medical product or other application
Thickness Existing thickness or required stiffness and forming performance
Width Machine working width and required finished roll width
Forming Depth Cavity depth, mold dimensions, corner radius and draw ratio
Packaging Machine Machine manufacturer, model and line speed where available
OTR Requirement Required oxygen-transmission target and applicable test conditions
WVTR Requirement Required water-vapor transmission target and test conditions
Packaging Method MAP, standard top seal, vacuum-assisted system or another process
Gas Mixture Required MAP gas composition where applicable
Lidding Film Top-film structure, sealant material and reference sample if available
Seal Requirement Peelable, lock seal, weld seal or required peel strength
Storage Conditions Storage temperature, relative humidity and target shelf life
Order Information Trial quantity, annual volume, destination and required delivery schedule

       Send Your High-Barrier Film Requirements

Frequently Asked Questions About PET/EVOH/PE Film

What is PET/EVOH/PE thermoforming film?

PET/EVOH/PE is a multilayer thermoforming material combining PET for structure and clarity, EVOH for oxygen and aroma barrier performance, and PE for heat sealing and moisture resistance.

Why is EVOH used in food packaging?

EVOH is used primarily to reduce oxygen and gas transmission. This makes it useful for oxygen-sensitive foods and modified atmosphere packaging where controlled oxygen ingress is important.

Is EVOH a moisture-barrier material?

EVOH should not be treated as the primary moisture-barrier layer. Its oxygen-barrier performance is affected by humidity, so the complete multilayer structure should be evaluated for both oxygen and water-vapor transmission.

What thicknesses are available?

The current product range is 0.18mm to 1.5mm. The appropriate thickness depends on forming depth, tray size, rigidity, barrier target and packaging equipment.

What is the maximum width?

The current specification lists widths up to 1500mm. Provide your thermoforming-machine working width and roll requirements when requesting a quotation.

Is PET/EVOH/PE suitable for MAP?

PET/EVOH/PE can be evaluated for modified atmosphere packaging where enhanced oxygen barrier and gas retention are required. The complete package, including the lid and seal, must be validated.

Can PET/EVOH/PE be used for deep-draw thermoforming?

Yes, suitable structures can be evaluated for deep-draw thermoforming. Because the film becomes thinner in heavily drawn areas, forming depth and mold geometry should be considered when specifying the starting thickness.

What foods can use PET/EVOH/PE packaging?

Typical applications include meat, poultry, seafood, cheese, processed meat, fresh pasta, ready meals and other products requiring controlled oxygen exposure.

What is the difference between PET/PE and PET/EVOH/PE?

PET/PE combines a PET structural layer with a PE sealing layer. PET/EVOH/PE adds a dedicated EVOH barrier layer for applications requiring enhanced resistance to oxygen and gas transmission.

What OTR can PET/EVOH/PE achieve?

OTR depends on the complete structure, EVOH grade and thickness, overall film thickness, temperature and relative humidity. A meaningful OTR value must therefore include the applicable test conditions and units.

Can PET/EVOH/PE use easy-peel lidding film?

A peelable package can be developed when the lidding-film sealant is compatible with the PE sealing surface. Peel force should be tested using the actual materials and tray-sealing conditions.

Can PET/EVOH/PE use a weld or lock seal?

Weld or lock seals can be considered where stronger package integrity and gas retention are required, provided the top film is compatible with the PE sealing surface.

Is PET/EVOH/PE automatically suitable for every food-contact market?

Food-contact suitability should be confirmed for the exact multilayer structure and destination market. Buyers should identify required declarations, migration testing or other documentation when requesting material approval.

Can PET/EVOH/PE be used for medical packaging?

Selected structures may be evaluated for medical or pharmaceutical packaging, but suitability depends on the application, sterilization method, cleanliness, barrier requirements and required documentation.

Can I request samples?

Yes. Sample evaluation is recommended before bulk production. Whenever possible, test the material using the actual thermoforming mold, packaging machine, food product, lidding film and sealing conditions.

What is the MOQ?

The current product information lists an MOQ of 1000kg. Customized structures, widths, colors and specialized barrier or sealing requirements may affect final order conditions.

What information is needed for a quotation?

Provide thickness, width, packaged product, forming depth, machine model, required OTR or WVTR, MAP gas mixture if applicable, lidding-film structure, sealing requirement, quantity and destination.

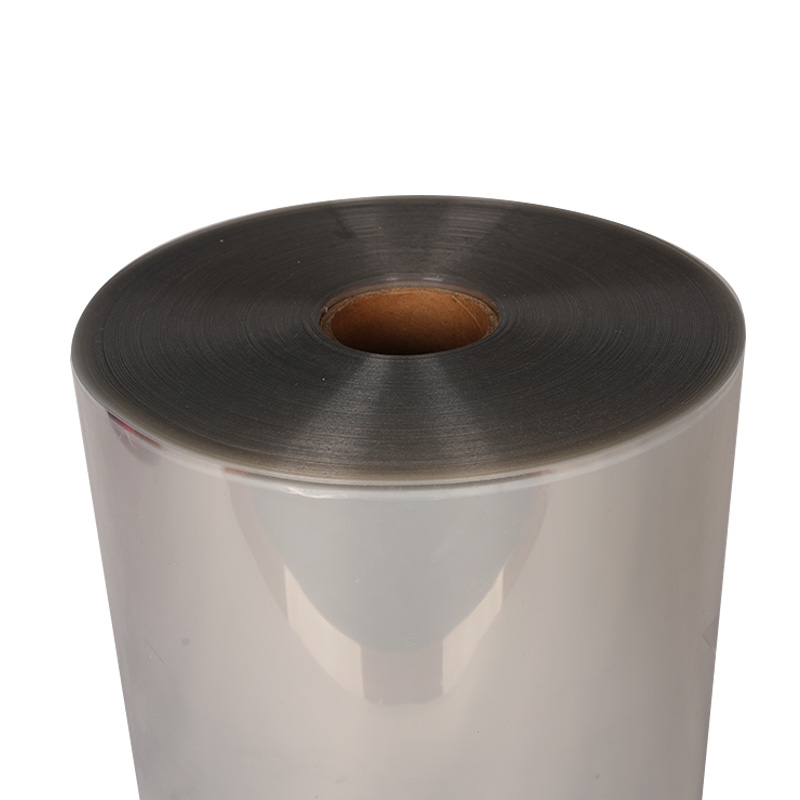

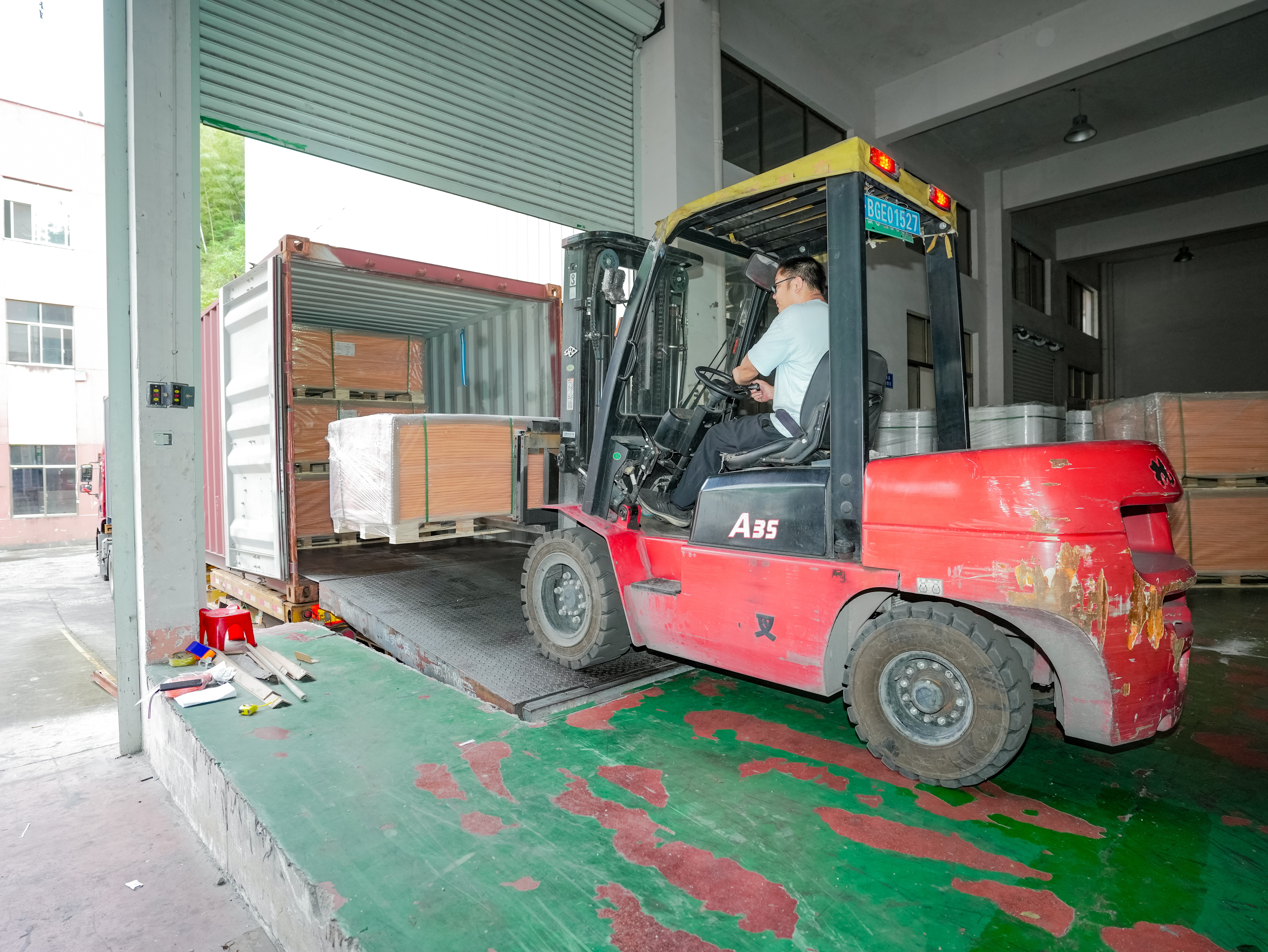

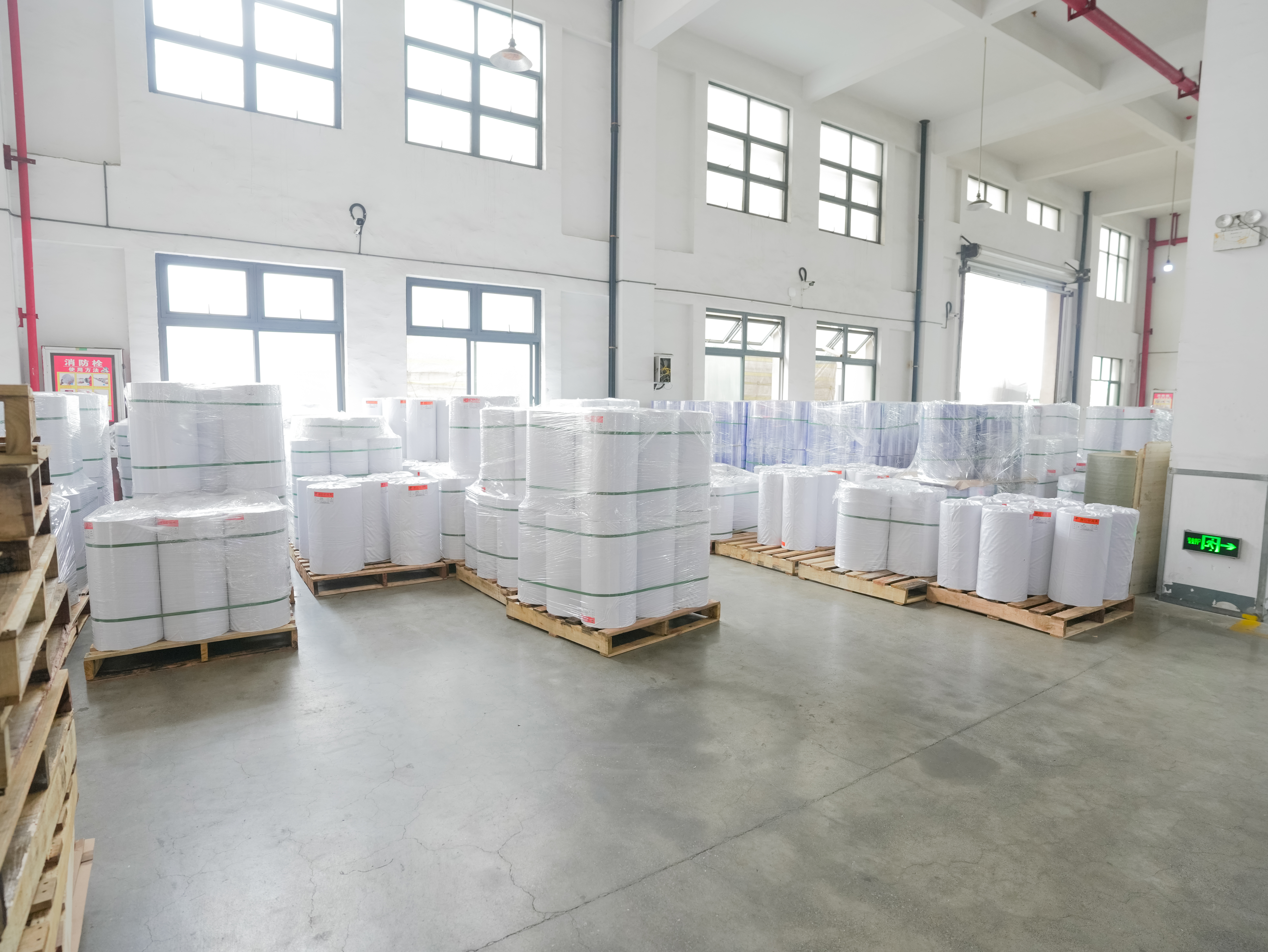

Packing and Delivery

PET/EVOH/PE rolls and sheets are packed to help protect the material surface, edges and winding during storage, handling and international transportation. Packing configuration depends on roll dimensions, weight and shipment requirements.

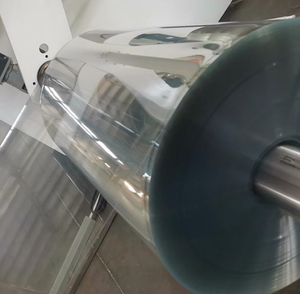

PET EVOH PE thermoforming film packing

PET/EVOH/PE Film Packing

PET EVOH PE high barrier film pallet packing

High-Barrier Film Pallet Packing

About HSQY Plastic Group

HSQY Plastic Group supplies thermoforming sheets, multilayer packaging films and other plastic packaging materials to food processors, packaging converters, distributors and professional users in international markets.

PET/EVOH/PE projects can be discussed according to thickness, width, forming depth, barrier target, sealing system, packaged product and annual consumption.

HSQY at International Packaging Exhibitions

HSQY meets food processors, packaging manufacturers, converters and distributors at international plastics and packaging exhibitions to discuss material specifications, samples and sourcing projects.

HSQY international plastics and packaging exhibition

HSQY International Packaging Exhibition

Product and Quality Documentation

Buyers requiring food-contact declarations, migration reports, barrier test reports, restricted-substance documentation or management-system certificates should identify the required documents and destination market before ordering.

Test reports and declarations should be checked against the exact PET/EVOH/PE structure and production specification rather than assumed to apply to every available grade.

HSQY PET EVOH PE product certification and documentation

Request a PET/EVOH/PE Thermoforming Film Quote

Looking for high-barrier PET/EVOH/PE film for meat, poultry, seafood, cheese, prepared foods or other thermoforming applications? Send HSQY your thickness, width, forming depth, packaging machine, barrier requirement and expected order volume.

For projects requiring defined OTR, WVTR, MAP gas retention, easy peel, lock seal or market-specific documentation, include the applicable performance targets and test conditions so the material specification can be reviewed before trial production.
