UV Resistant Colored Corrugated Polycarbonate Roofing Sheet
HSQY UV resistant colored corrugated polycarbonate roofing sheet is a lightweight and impact-resistant plastic roofing material designed for greenhouses, skylights, canopies, commercial roofs, agricultural buildings, public facilities and other daylight roofing applications.
Made from polycarbonate (PC), the corrugated wave structure provides additional rigidity while allowing natural light to pass through the roofing system. The UV-resistant surface treatment helps reduce yellowing and weathering caused by long-term sunlight exposure.
HSQY corrugated polycarbonate sheets are available in 0.7 mm to 3.0 mm thicknesses with clear, clear blue, clear green, brown, silver, milk-white and customized color options. Width, length and corrugated profile can be discussed according to roofing structure and project requirements.
Clear grades can provide high natural light transmission, while colored and opaque options allow project buyers to balance daylight, shade, privacy and architectural appearance according to the roofing application.
Corrugated Polycarbonate Roofing Sheet Video

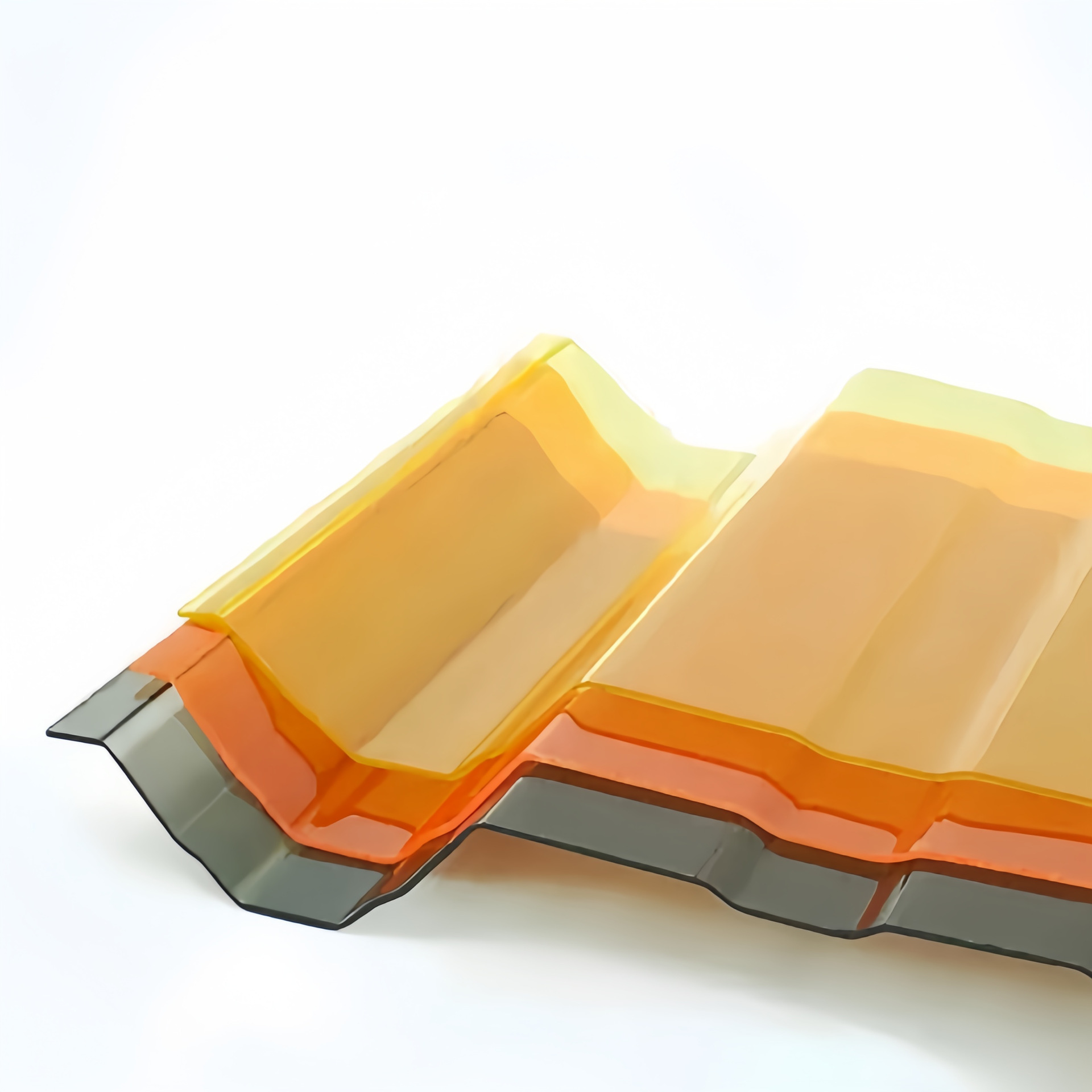

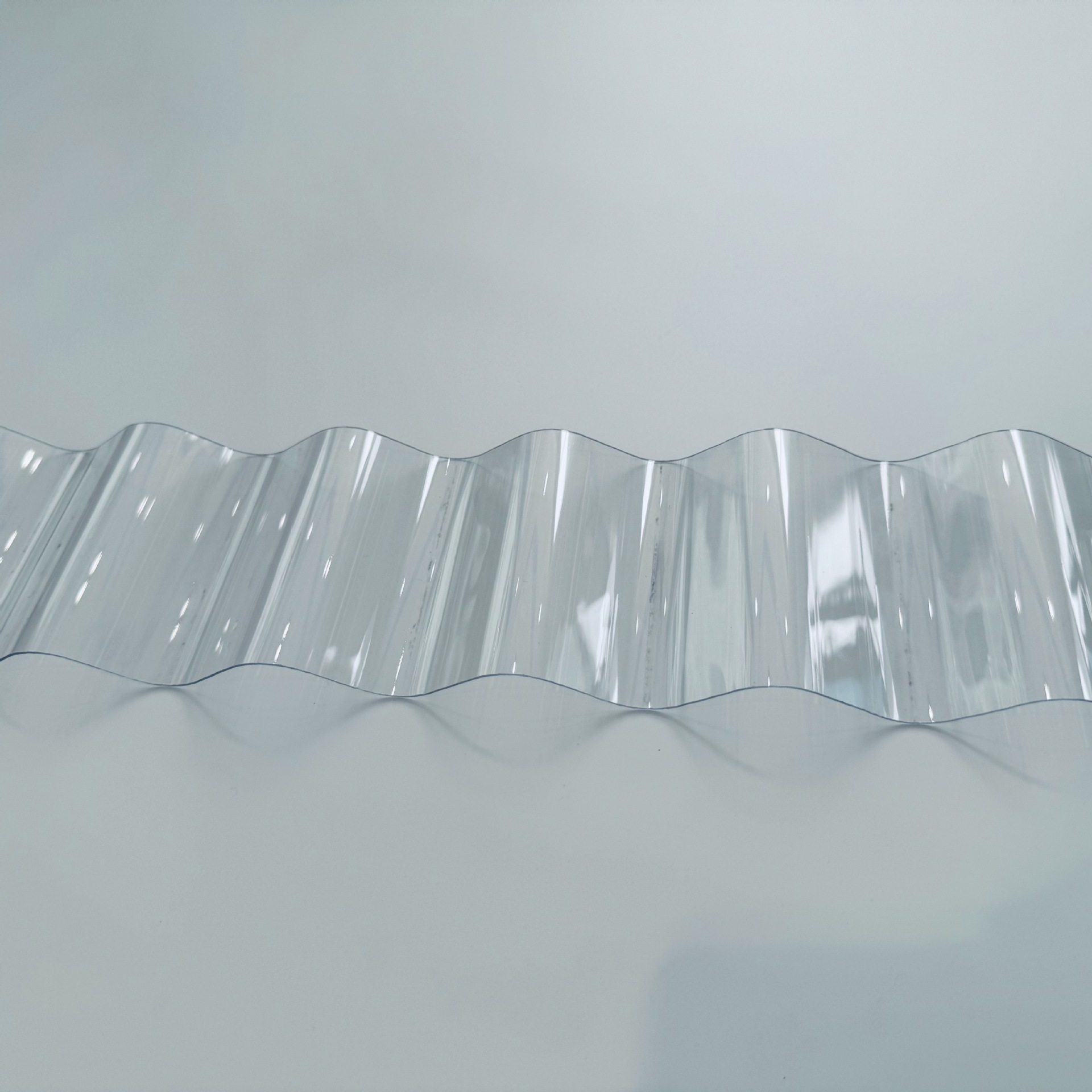

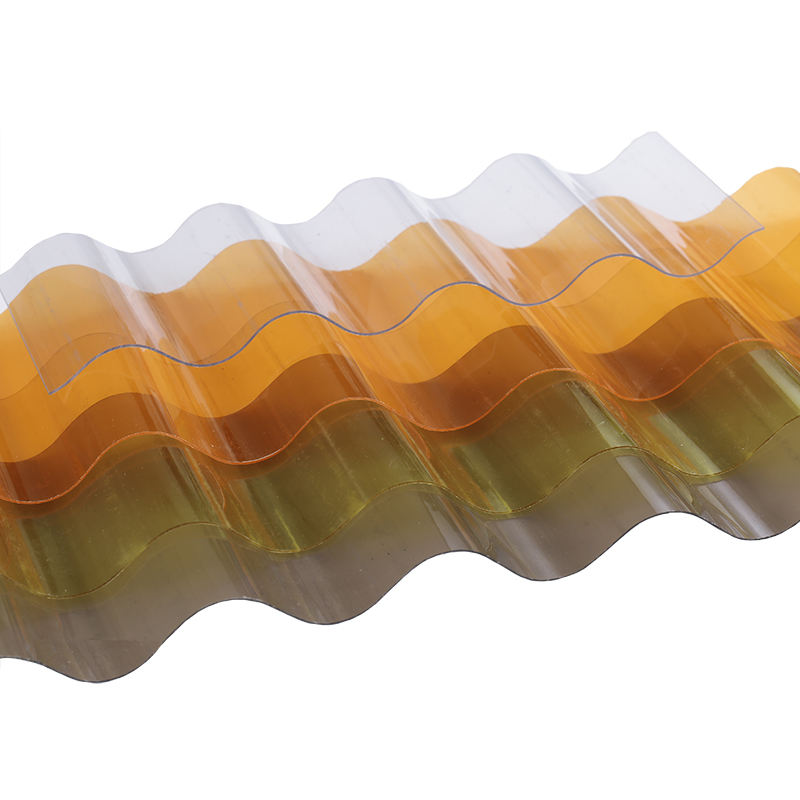

Corrugated Polycarbonate Sheet Product Images
Corrugated Polycarbonate Roofing Sheet Specifications
HSQY supplies corrugated polycarbonate sheets in multiple thicknesses, colors and customized roofing profiles. The appropriate specification should be selected according to roof structure, span, local weather conditions and installation requirements.
| Property |
Details |
| Product Name |
UV Resistant Colored Corrugated Polycarbonate Roofing Sheet |
| Brand |
HSQY |
| Material |
Polycarbonate (PC) |
| Sheet Type |
Corrugated / Wave / Profiled Polycarbonate Sheet |
| Thickness |
0.7 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, Customized |
| Width |
Customized |
| Length |
Customized according to project requirements |
| Colors |
Clear, Clear Blue, Clear Green, Brown, Silver, Milk-White, Customized |
| UV Protection |
UV-resistant surface treatment |
| Light Transmission |
Up to more than 85% for suitable clear grades; depends on color, thickness and profile |
| Temperature Range |
-40°C to +120°C according to current product information |
| Profile |
Multiple corrugated profiles and customized wave shapes available |
| Typical Applications |
Greenhouses, Skylights, Canopies, Commercial Roofs, Agricultural Buildings, Walkways and Public Facilities |
Note: Light transmission, structural performance, fire performance, UV protection and temperature capability depend on the exact sheet grade, thickness, profile and testing conditions. Request the applicable technical data and test reports before specifying the material for a construction project.
Key Features of UV Resistant Corrugated Polycarbonate Sheet
1. UV Resistant for Outdoor Roofing
The UV-resistant surface treatment is designed to help reduce degradation and yellowing caused by long-term sunlight exposure, making the material suitable for outdoor roofing and daylighting applications.
2. High Natural Light Transmission
Suitable clear grades can provide light transmission above 85%, allowing natural daylight into greenhouses, skylights, commercial buildings and agricultural structures. Actual transmission varies with color, profile and thickness.
3. High Impact Resistance
Polycarbonate provides significantly higher impact resistance than many traditional transparent roofing materials, helping the panels withstand normal roofing impacts, hail and handling during installation.
4. Weather-Resistant Performance
Corrugated PC sheet is designed for outdoor exposure to sunlight, rain, wind, snow and changing temperatures when correctly specified and installed.
5. Lightweight Roofing Material
Polycarbonate roofing panels are lightweight compared with many traditional roofing and glazing materials, helping simplify transportation, lifting, cutting and installation.
6. Easy to Cut and Drill
Corrugated polycarbonate sheets can be cut and drilled with suitable tools, allowing installers to adapt sheets to roof geometry and fixing requirements.
7. Multiple Color Options
Clear, blue, green, brown, silver, milk-white and customized colors provide different levels of daylight, shade and visual appearance for roofing projects.
8. Custom Corrugated Profiles
Different roofing structures use different wave pitches, depths and panel profiles. HSQY can discuss customized profiles according to project drawings and existing roofing systems.
Applications of Corrugated Polycarbonate Roofing Sheet
Corrugated polycarbonate panels are suitable for projects requiring a combination of daylight transmission, impact resistance, weather protection and lightweight roofing construction.
Greenhouses: Transparent and colored PC roofing sheets can provide natural daylight for agricultural greenhouses and growing structures.
Skylights and Rooflights: Corrugated clear polycarbonate panels can introduce daylight into warehouses, commercial roofs, agricultural buildings and industrial facilities.
Canopies and Awnings: Suitable for entrances, walkways, outdoor corridors, shelters and covered public spaces.
Commercial and Industrial Roofing: Can be used as daylight roofing panels or rooflight sections within suitable roofing structures.
Public Transportation Facilities: Potential applications include railway stations, bus shelters, airport facilities, ferry terminals and covered pedestrian areas.
Agricultural Buildings: Suitable for fish sheds, farm structures, storage areas and other agricultural daylighting projects.
![corrugated polycarbonate sheet roof application]( "Corrugated Polycarbonate Roofing Application")
Roofing Application

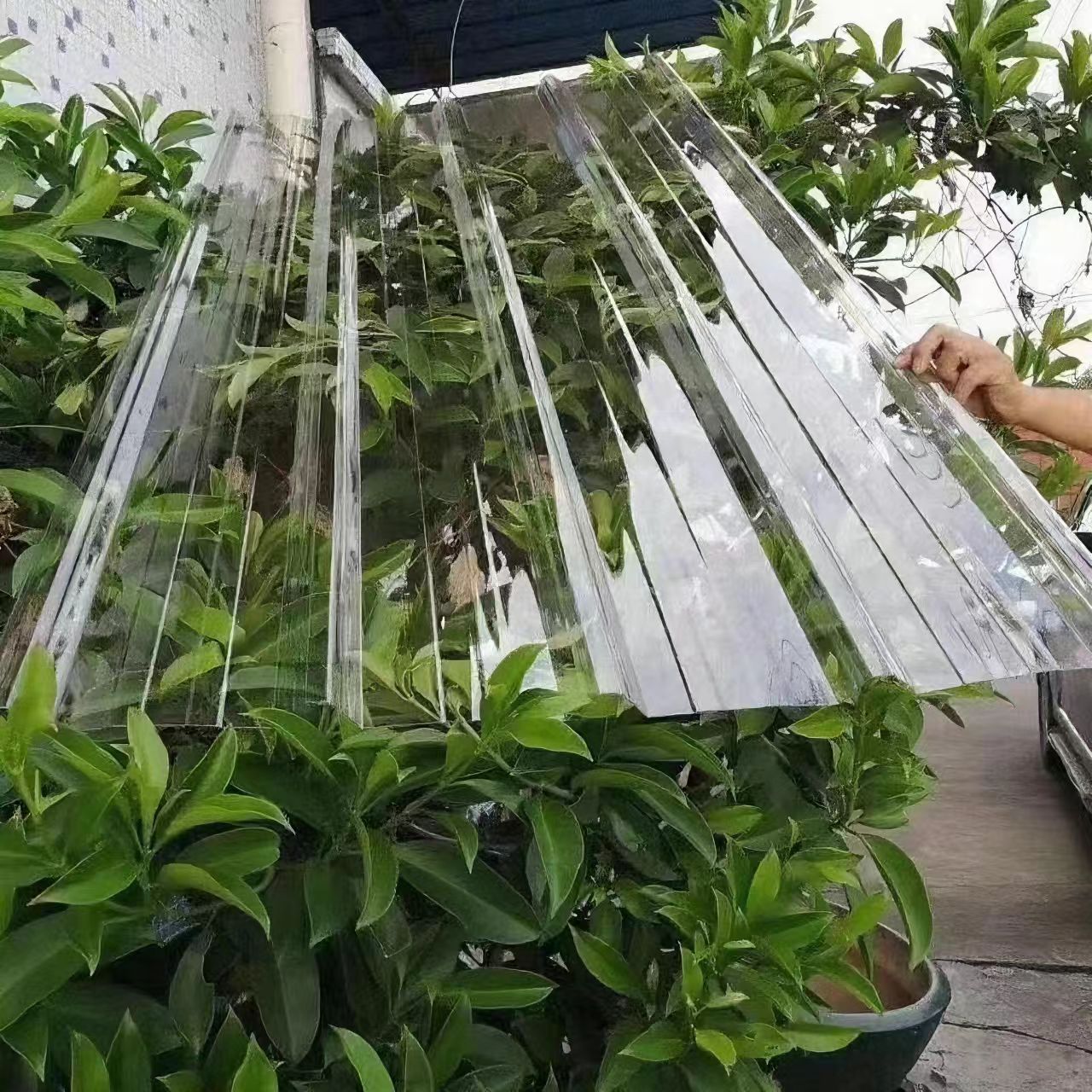

![corrugated polycarbonate greenhouse roofing sheet]( "Polycarbonate Greenhouse Roofing")
Greenhouse Roofing
Clear vs. Colored Corrugated Polycarbonate Roofing
Color selection affects daylight transmission, glare, shade and the visual appearance of a roofing system. The best option depends on how much natural light and solar control the project requires.
| Color Type |
Main Characteristic |
Typical Application |
| Clear |
Maximum natural daylight among available options |
Greenhouses, skylights and daylight roofing |
| Blue / Green |
Colored daylight with architectural appearance |
Canopies, walkways and commercial roofs |
| Brown |
Reduced direct light compared with clear sheet |
Patios, canopies and architectural roofing |
| Milk-White |
More diffused appearance and reduced direct visibility |
Commercial roofs, canopies and diffused daylight applications |
| Custom Color |
Project-specific visual and daylight requirements |
Architectural and OEM roofing projects |
How to Choose Corrugated Polycarbonate Roofing Sheet
For B2B roofing projects, the corrugated profile is just as important as sheet thickness and color. Providing complete project information helps HSQY determine whether an existing profile can be used or a customized wave profile is required.
Thickness: Available options include 0.7, 1.0, 1.2, 1.5, 2.0, 2.5 and 3.0 mm. Structural requirements should be evaluated according to roof span, supports and local loading conditions.
Corrugated Profile: Provide the wave pitch, wave height, effective width or an existing roofing profile drawing whenever possible.
Width and Length: Provide the required sheet dimensions based on roof layout, overlap and transportation requirements.
Color: Select clear for higher daylight transmission or colored sheets when shade, glare control or architectural appearance is more important.
UV Requirement: Confirm which side or sides will be exposed to direct sunlight and communicate any specific UV protection requirements.
Application: Specify whether the sheet will be used for a greenhouse, skylight, canopy, warehouse roof, agricultural building or public facility.
Local Conditions: Roof design should consider wind, snow, hail, temperature variation, rainfall and relevant local building requirements.
Corrugated Profile Matching for Roofing Projects
Corrugated roofing sheets are often installed together with metal roofing or on structures designed around a specific wave pattern. For this reason, accurate profile matching is important for overlap, fixing, waterproofing and overall installation quality.
For customized projects, provide a technical drawing or sample showing the corrugation pitch, wave height, overall width and effective cover width. HSQY can use this information to evaluate available profiles and customization feasibility.
Installation Considerations for Corrugated PC Roofing
Polycarbonate expands and contracts as temperature changes, so roofing design and fixing methods should allow for thermal movement. Final installation requirements should follow the project engineer, local building regulations and the applicable installation guide for the selected sheet profile.
Roof Slope: Use sufficient roof pitch to allow proper rainwater drainage and reduce standing water.
Thermal Expansion: Allow sufficient movement around fixing points and sheet overlaps.
Fasteners: Use roofing fasteners, washers and sealing components suitable for polycarbonate roofing.
UV Side: Install the UV-protected surface in the correct orientation according to the supplied sheet instructions.
Profile Overlap: Ensure side and end overlaps match the selected corrugated profile and local weather conditions.
Do Not Overtighten: Excessive fixing pressure may restrict natural sheet movement or damage the roofing panel.
Information Needed for a Fast Roofing Sheet Quote
To receive a more accurate corrugated polycarbonate sheet quotation, please provide the following project information.
1. Required thickness
2. Required sheet width and length
3. Corrugated profile drawing or sample
4. Required color
5. UV protection requirement
6. Roofing or construction application
7. Required quantity
8. Required test reports or certifications
9. Destination country or shipping port
Packaging and Delivery
Sample Packaging: Sample sheets can be protected with PE bags and cartons for transportation.
Sheet Packaging: Current product information lists approximately 30 kg per bag with PE film, or customized packing according to requirements.
Pallet Packaging: Plywood pallet packing can be arranged according to sheet size, quantity and export requirements.
Container Loading: Current product information lists approximately 20 tons per container, subject to sheet dimensions and packing configuration.
Delivery Terms: FOB, CIF and EXW are currently listed.
Lead Time: The current listed production lead time is approximately 7–15 days after deposit, depending on order quantity and customization.
![corrugated polycarbonate roofing sheet packaging and delivery]( "Corrugated Polycarbonate Sheet Packaging")
Certifications and Quality Documentation
Construction projects may require specific mechanical, UV, fire, weathering or quality documentation. Contact HSQY to request the current certificates and test reports applicable to the selected corrugated polycarbonate sheet grade.
Fire classification should be confirmed using the applicable test standard and current report rather than relying only on a general material description.
![HSQY corrugated polycarbonate sheet certification documentation]( "HSQY Polycarbonate Sheet Certifications")
Frequently Asked Questions
What is a corrugated polycarbonate roofing sheet?
A corrugated polycarbonate roofing sheet is a profiled plastic panel made from polycarbonate. Its wave or ribbed shape increases rigidity and makes it suitable for roofing, skylights, greenhouses, canopies and daylighting applications.
Are HSQY corrugated polycarbonate sheets UV resistant?
Yes. The current product is supplied with UV-resistant surface treatment designed to help reduce yellowing and degradation caused by sunlight exposure.
What thicknesses are available for corrugated polycarbonate roofing?
Current listed thicknesses include 0.7 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, 2.5 mm and 3.0 mm. Customized thickness requirements can also be discussed.
What colors are available for corrugated PC roofing sheets?
Current options include clear, clear blue, clear green, brown, silver and milk-white. Customized colors can also be discussed for project requirements.
How much light does clear corrugated polycarbonate transmit?
The current product information states that suitable clear sheets can provide more than 85% light transmission. Actual performance depends on color, thickness, profile and specific material grade.
Can corrugated polycarbonate sheet be used for greenhouse roofing?
Yes. Greenhouses are one of the main applications because clear corrugated PC roofing combines natural light transmission, impact resistance and outdoor weather performance.
Can corrugated polycarbonate panels be used for skylights?
Yes. Corrugated polycarbonate sheets are widely used as rooflights and skylight panels in warehouses, agricultural buildings, commercial roofs and other structures requiring natural daylight.
Are polycarbonate roofing sheets resistant to hail?
Polycarbonate has high impact resistance and is commonly selected for roofing exposed to hail and other outdoor impacts. Required sheet thickness, support spacing and profile should still be selected according to local weather and structural requirements.
Can HSQY match an existing metal roofing profile?
Customized corrugated profiles are available for discussion. Send HSQY a profile drawing showing wave pitch, height, total width and effective cover width so matching feasibility can be evaluated.
Can the width and length be customized?
Yes. The current HSQY product is listed with customized width, and project-specific sheet dimensions can be discussed according to profile, production and transportation requirements.
What is the temperature range of HSQY corrugated polycarbonate sheet?
The current product information lists a temperature performance range of approximately -40°C to +120°C. Final suitability should be confirmed according to load, duration, sheet grade and installation conditions.
Does polycarbonate roofing expand in hot weather?
Yes. Polycarbonate is a thermoplastic and naturally expands and contracts with temperature changes. Installation should provide sufficient allowance around fixing points and overlaps for thermal movement.
Which side of a UV protected polycarbonate sheet faces outward?
The UV-protected surface should face the direction of sunlight according to the marking and installation instructions supplied with the selected product. Confirm the orientation before removing protective film or fixing the sheet.
Is corrugated polycarbonate roofing fire resistant?
Polycarbonate products can have specific fire-performance classifications, but the applicable rating depends on the product grade and test standard. Request the current fire test report when a project requires a specific building-code classification.
What information should I provide for a quotation?
Provide the required thickness, width, length, color, profile drawing, quantity, UV requirement, roofing application, destination country or port and any required technical certifications.
Can I request samples before placing a bulk order?
Contact HSQY with your required thickness, color, profile and application to confirm current sample availability and shipping arrangements.
Why Choose HSQY as Your Corrugated Polycarbonate Sheet Supplier?
Multiple Thickness Options: Standard thicknesses from 0.7 mm to 3.0 mm are available for different roofing applications.
Custom Roofing Profiles: Different corrugated shapes can be discussed to match roof structures and existing roofing profiles.
Multiple Color Options: Clear and colored sheets allow buyers to balance daylight, shade and architectural appearance.
UV Resistant Options: Sheets are designed for outdoor applications requiring resistance to sunlight and weather exposure.
B2B Project Support: HSQY supplies roofing contractors, building material distributors, greenhouse builders and construction project buyers with customized polycarbonate sheet solutions.
About HSQY Plastic Group
HSQY Plastic Group has more than 20 years of experience supplying plastic sheet materials for construction, packaging and industrial applications. The company's product range includes solid polycarbonate sheet, multiwall polycarbonate sheet, corrugated polycarbonate sheet and other plastic sheet products.
For UV-resistant corrugated polycarbonate roofing sheets, greenhouse panels, skylight sheets, custom colors or customized roofing profiles, send HSQY your technical drawing, thickness, dimensions, quantity and destination information for evaluation and quotation.
