HSQY High Impact Resistant Polycarbonate Corrugated Sheet

Corrugated Polycarbonate Roofing Sheet Manufacturer

HSQY high-impact corrugated polycarbonate roofing sheet is a lightweight, UV-resistant and weather-resistant plastic roofing panel designed for skylights, greenhouses, industrial rooflights, agricultural buildings, canopies, walkways and public facilities.

Corrugated polycarbonate sheet combines high light transmission with strong impact resistance and a profiled structure that can be customized for different roofing systems. Clear grades can provide more than 85% light transmission according to the current HSQY product specification, helping introduce natural daylight into buildings while providing protection from outdoor weather.

HSQY supplies 0.7mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm and 3.0mm corrugated PC sheets in clear, clear blue, clear green, brown, silver, milk-white and custom colors. Widths, lengths and corrugated profiles can be customized according to roofing and cladding requirements.

Request Corrugated PC Sheet Quote

Quick Answer: What Is a Corrugated Polycarbonate Sheet?

A corrugated polycarbonate sheet is a profiled roofing or glazing panel made from polycarbonate resin. Its corrugated or trapezoidal cross-section improves rigidity while allowing the sheet to remain lightweight, transparent and easy to install.

It is widely used where natural daylight, impact resistance and outdoor durability are required, including industrial rooflights, agricultural buildings, skylights, greenhouses, canopies, shelters and transparent roofing systems.

The profile shape is particularly important for industrial roofing projects because the polycarbonate panel may need to match an existing metal roofing or cladding profile.

Corrugated Polycarbonate Roofing Sheet Video

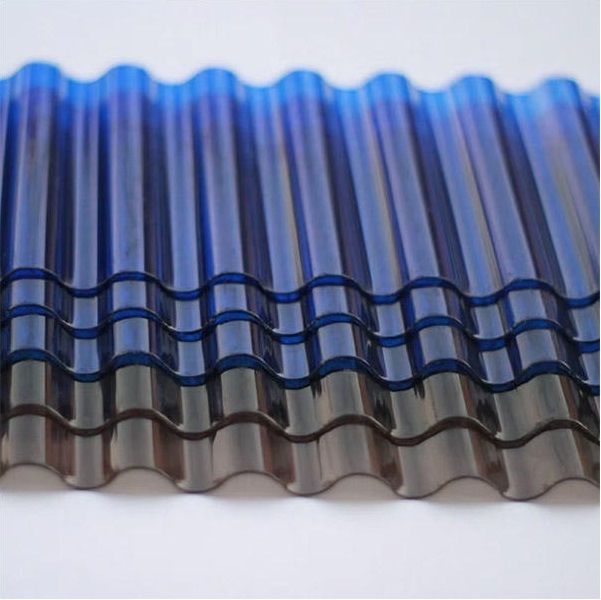

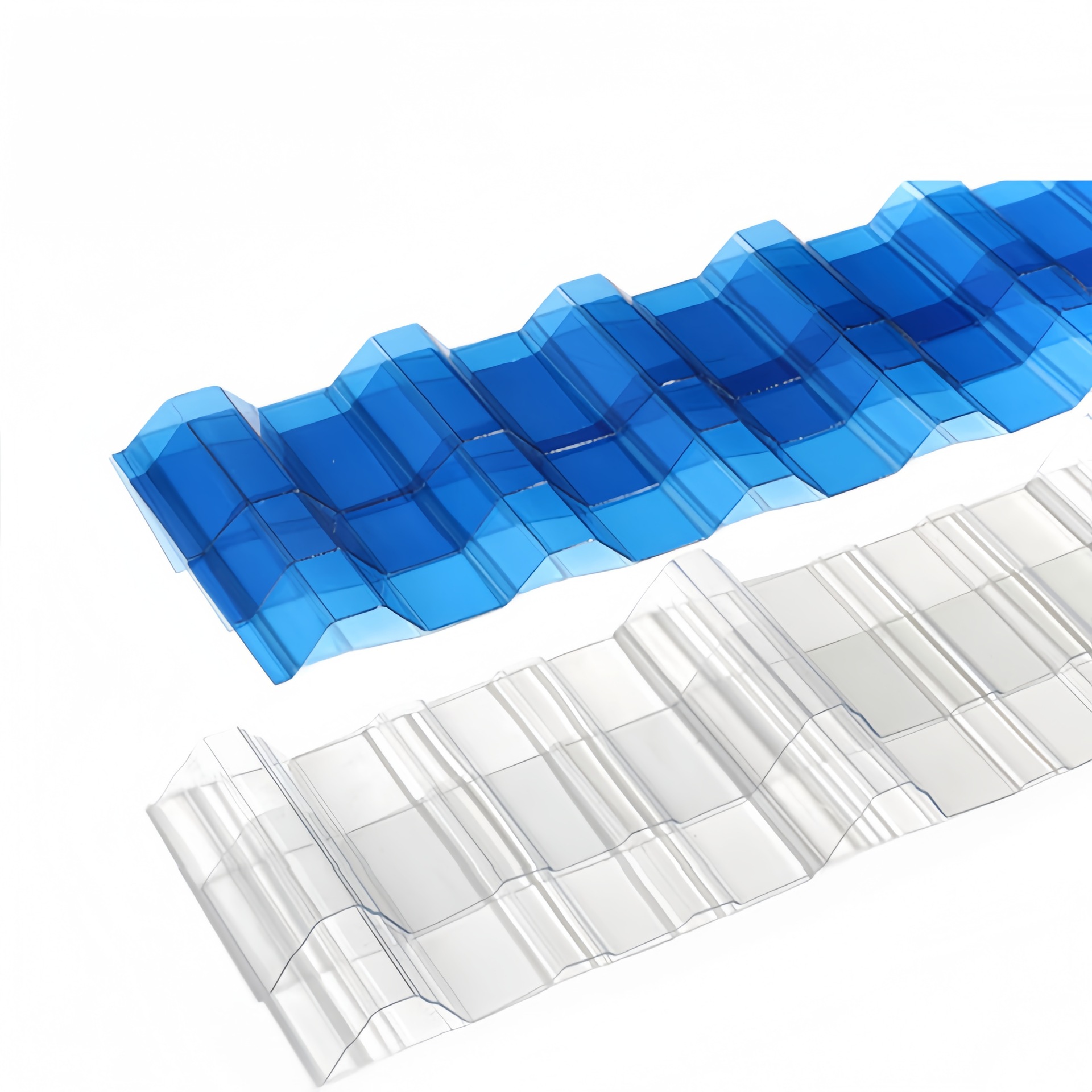

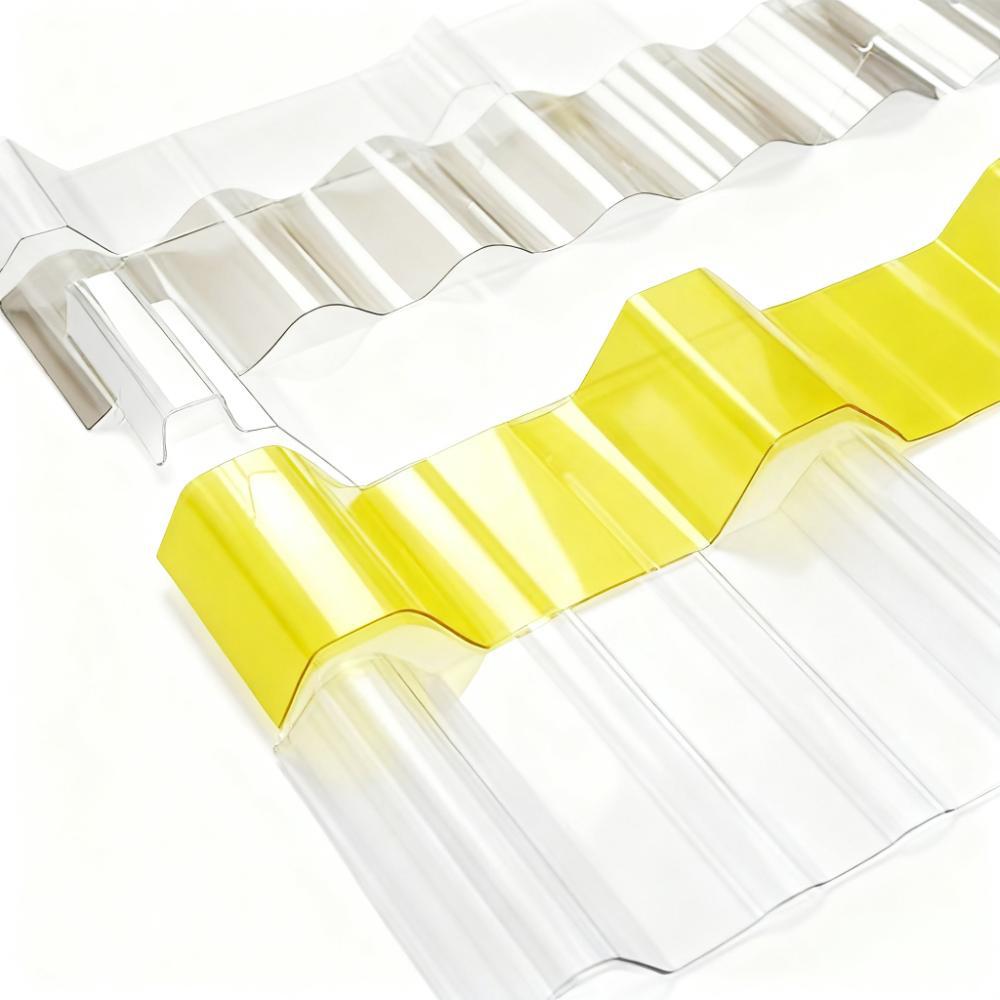

Corrugated Polycarbonate Sheet Images

Corrugated Polycarbonate Sheet Specifications

HSQY offers multiple thicknesses, colors and custom corrugated profiles for roofing, glazing and daylighting projects. Final dimensions and profile compatibility should be confirmed before bulk production.

Get Profile Drawing & Pricing

Key Advantages of Corrugated Polycarbonate Roofing Sheet

High Impact Resistance

Polycarbonate provides significantly higher impact resistance than conventional brittle glazing materials. This makes corrugated PC roofing suitable for applications exposed to accidental impact, hail and demanding outdoor conditions.

High Natural Light Transmission

Selected clear HSQY corrugated sheets can provide more than 85% light transmission according to current product specifications. High daylight transmission makes them useful for rooflights, skylights, greenhouses and industrial buildings.

UV and Weather Resistance

UV-resistant surface treatment helps reduce degradation caused by long-term sunlight exposure. A suitable UV-protected grade is recommended for exterior roofing, glazing and greenhouse applications.

Lightweight Roofing Material

Corrugated polycarbonate sheets are lightweight compared with traditional glass roofing. Lower sheet weight can simplify transport, lifting, handling and installation while reducing load on the supporting structure.

Resistant to Harsh Outdoor Conditions

Polycarbonate roofing panels are suitable for outdoor environments exposed to rain, wind, snow, temperature variation and hail when the correct thickness, profile, support spacing and installation system are selected.

Custom Corrugated Profiles

HSQY can discuss custom cross-sectional profiles for different roofing systems. Profile matching is particularly important when transparent polycarbonate rooflights must integrate with corrugated or trapezoidal metal roofing panels.

Multiple Colors for Daylight and Solar Control

Clear sheets maximize natural light, while blue, green, brown, silver, milk-white and custom colors can be selected when a project requires different levels of transparency, appearance, glare control or privacy.

Corrugated Polycarbonate Sheet Applications

Greenhouse Roofing

Transparent corrugated polycarbonate sheets can provide natural daylight and weather protection for greenhouses, garden structures, agricultural growing areas and related horticultural buildings.

Skylights and Industrial Rooflights

Corrugated PC rooflights can be integrated into warehouse, workshop, commercial and agricultural roofing systems to introduce natural daylight and reduce dependence on artificial lighting during daytime.

Commercial and Agricultural Buildings

The sheets are suitable for commercial sheds, agricultural structures, livestock buildings and other roof or wall daylighting applications requiring lightweight transparent panels.

Railway and Airport Facilities

Polycarbonate roofing panels can be used in railway stations, airport waiting areas, corridor roofs and similar public facilities where daylight, weather protection and impact resistance are required.

Bus Stations and Public Shelters

Corrugated polycarbonate panels are also suitable for bus stations, ferry terminals, walkways, shelters, awnings and canopy systems.

Fish Sheds and Agricultural Covers

Lightweight transparent roofing can provide daylight and weather protection for indoor fish sheds, agricultural covers and other specialized farming structures.

How to Choose a Corrugated Polycarbonate Roofing Sheet

1. Confirm the Roofing Profile

For replacement panels or rooflights installed together with metal roofing, the corrugation must match the existing roof profile. Provide the profile drawing, pitch, wave height, wave spacing and panel dimensions whenever possible.

2. Select the Appropriate Thickness

HSQY offers thicknesses from 0.7mm to 3.0mm. The correct thickness depends on sheet profile, panel length, support spacing, wind load, snow load, impact requirements and project engineering specifications.

3. Choose Clear or Tinted Sheet

Clear polycarbonate is preferred when maximum daylight is required. Tinted and opaque options can be selected when the project requires reduced light, glare control, privacy or a specific architectural appearance.

4. Confirm UV Protection

For outdoor roofing, specify the UV-protected side and installation orientation. The UV-protected surface should normally face the sunlight according to the product installation instructions.

5. Confirm Sheet Length and Thermal Expansion

Polycarbonate expands and contracts as temperature changes. Sheet length, fixing-hole size, fastener position, overlap and structural clearance should allow for thermal movement according to the installation design.

6. Check Roof Slope and Drainage

Roofing systems should have adequate slope and drainage to prevent standing water and allow rainwater to run off effectively. Final roof pitch should follow local building requirements and the specific roofing-system design.

7. Confirm Fixings and Accessories

Suitable fasteners, washers, sealing materials, side laps, end laps and supporting profiles are important for long-term weather-tight performance. Installation accessories should be compatible with the selected sheet profile and supporting structure.

Send Your Roofing Profile Drawing

Custom Polycarbonate Roofing Profiles

Corrugated polycarbonate sheets are often required to match existing steel, aluminum or other profiled roofing panels. A correct profile match allows the transparent rooflight to integrate more effectively with the surrounding roofing system.

HSQY can discuss customized cross-sectional shapes according to customer drawings and project quantities. When requesting a custom profile, provide a detailed drawing showing pitch, crown width, valley width, wave height, sheet width and any overlap geometry.

Corrugated Polycarbonate vs Solid and Multiwall Sheet

Information Required for a Corrugated Roofing Sheet Quote

Providing complete roofing information helps HSQY evaluate profile compatibility and prepare a more accurate quotation.

• Required thickness

• Sheet width and length

• Corrugated or trapezoidal profile drawing

• Wave pitch and wave height

• Clear, blue, green, brown, silver, milk-white or custom color

• Required light transmission or shading level

• UV protection requirement

• Application: greenhouse, skylight, industrial rooflight, canopy or other use

• Estimated quantity or total roofing area

• Destination country or port

• Project load, fire or certification requirements if applicable

Packaging and Delivery

HSQY provides export packaging suitable for corrugated polycarbonate roofing sheets and international container transportation.

• Sample Packaging: Sheets protected with PE bags and packed in cartons.

• Sheet Packaging: Approximately 30kg per bag with PE film, or according to customer requirements.

• Pallet Packaging: Approximately 500-2000kg per plywood pallet depending on sheet specifications.

• Container Loading: Approximately 20 tons depending on profile, thickness, dimensions and container configuration.

• Delivery Terms: FOB, CIF and EXW.

• Lead Time: Typically 7-15 days after deposit according to current product information, depending on profile and order volume.

Certifications

HSQY provides quality and certification documentation to support international buyers. If your roofing project requires specific fire, UV, impact, environmental or building-material test standards, please confirm the required standard with our team before ordering.

Corrugated Polycarbonate Roofing Sheet FAQ

What is corrugated polycarbonate roofing used for?

Corrugated polycarbonate roofing is commonly used for skylights, industrial rooflights, greenhouses, agricultural buildings, canopies, walkways, public shelters and transparent roof sections.

How much light does clear corrugated polycarbonate transmit?

Selected clear HSQY corrugated polycarbonate sheets can provide more than 85% light transmission according to current product information. Actual light transmission depends on thickness, color and surface configuration.

Is corrugated polycarbonate sheet UV resistant?

UV-resistant grades are available for exterior applications. The UV-protected surface should normally face outward toward sunlight according to the product installation requirements.

Is polycarbonate roofing resistant to hail?

Polycarbonate has high impact resistance and is commonly selected for roofing where hail and accidental impact are concerns. Actual hail performance depends on sheet thickness, profile, support spacing and installation conditions.

What thicknesses of corrugated polycarbonate sheet are available?

HSQY currently offers 0.7mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm and 3.0mm thicknesses, with customized specifications available according to project requirements.

Can HSQY match my existing metal roofing profile?

Custom profile development can be discussed. Send HSQY a drawing or detailed dimensions of your existing metal roofing profile, including pitch, wave height and overlap configuration, so that compatibility can be evaluated.

Which color is best for a greenhouse or skylight?

Clear sheet is usually selected when maximum natural light is required. Tinted or diffused colors may be preferred where glare, heat, privacy or architectural appearance needs to be controlled. The best option depends on the project.

Can corrugated polycarbonate sheets be cut and drilled?

Yes. Polycarbonate sheets can be cut and drilled with suitable tools. Correct drilling clearance and fixing methods are important because the material expands and contracts with temperature changes.

Does polycarbonate roofing expand in hot weather?

Yes. Polycarbonate undergoes thermal expansion and contraction. Installation details such as fixing-hole size, panel overlap and structural clearance should allow the sheet to move without excessive stress.

Can corrugated polycarbonate be installed with metal roofing?

Yes, provided the polycarbonate profile is compatible with the metal roofing system. Profile matching is commonly used to create transparent skylight or rooflight sections within metal roofs.

What information should I send for a custom roofing profile?

Provide a profile drawing showing wave pitch, height, width and overlap dimensions, together with thickness, sheet length, color, quantity, application and destination country.

How do I request a corrugated polycarbonate sheet quotation?

Send HSQY your required profile or profile drawing, thickness, width, length, color, quantity, UV requirement, application and delivery destination. For engineering projects, include relevant wind, snow, fire or certification requirements where applicable.

About HSQY Plastic Group

HSQY Plastic Group has more than 20 years of experience supplying plastic sheet solutions for construction, roofing, packaging and industrial applications. We support international buyers with multiple polycarbonate sheet types, customized profiles and export service.

For corrugated polycarbonate roofing projects, send us your profile drawing, sheet dimensions, color and quantity so that our team can evaluate the required specification.
