2mm Clear Corrugated Polycarbonate Roofing Sheet
HSQY 2mm clear corrugated polycarbonate roofing sheet is a transparent profiled plastic roofing panel designed for skylights, greenhouses, canopies, commercial roofs, agricultural buildings and other daylight roofing applications.
The clear polycarbonate material combines high natural light transmission with impact resistance, weather resistance and lightweight handling. The corrugated profile adds rigidity and allows the sheet to be integrated into suitable roofing and cladding structures.
This product is promoted in 2mm thickness with 3m and 5m length options. HSQY also lists other corrugated polycarbonate thicknesses from 0.7mm to 3.0mm, with customized widths and profiles available for different roofing projects.
Clear grades can provide light transmission above 85% according to the current product information. UV-resistant surface treatment helps reduce weathering and yellowing caused by long-term sunlight exposure.
Clear Corrugated Polycarbonate Roofing Sheet Video

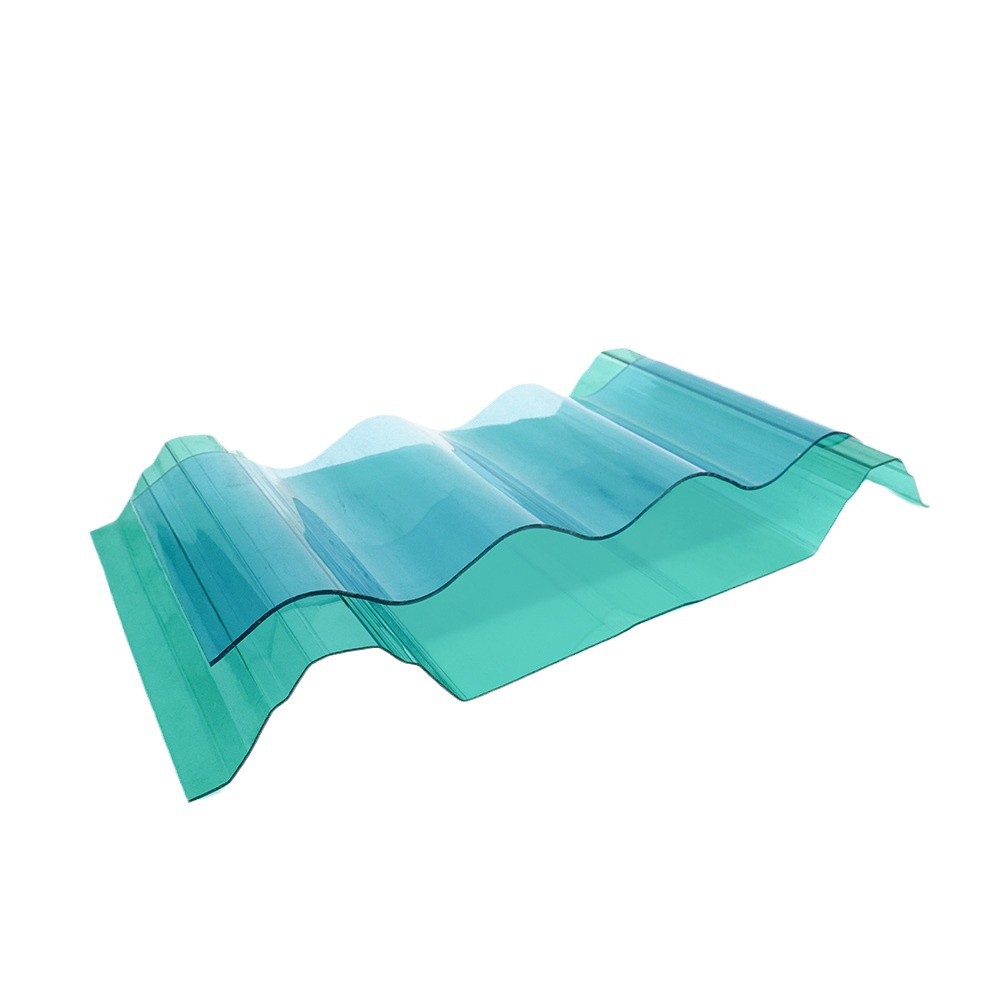

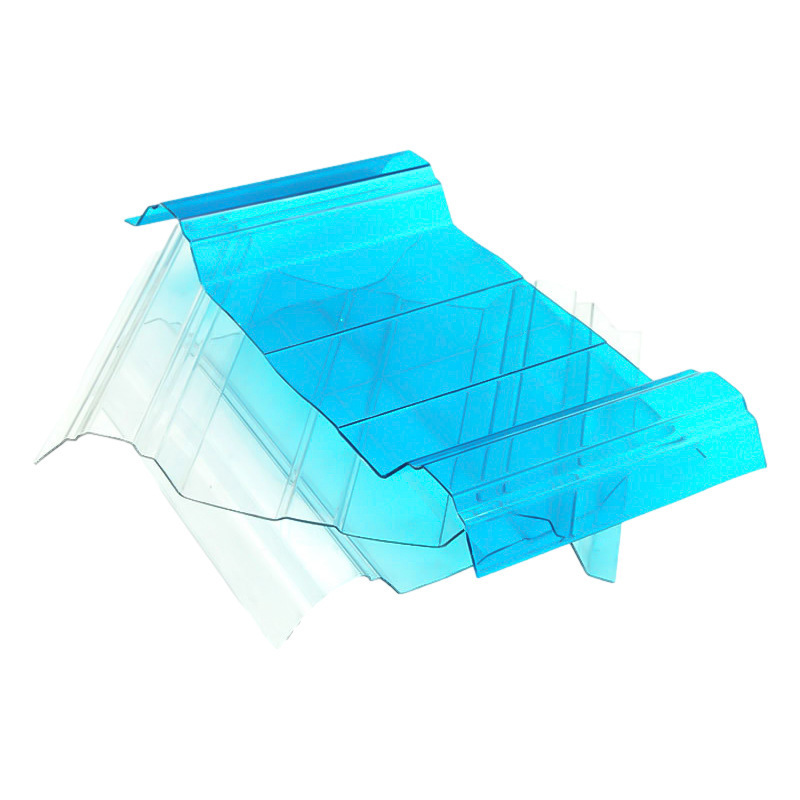

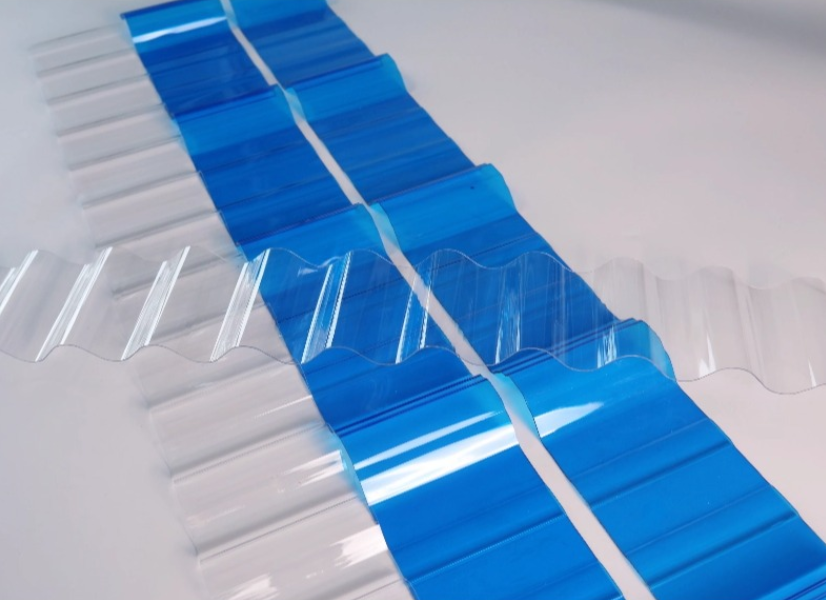

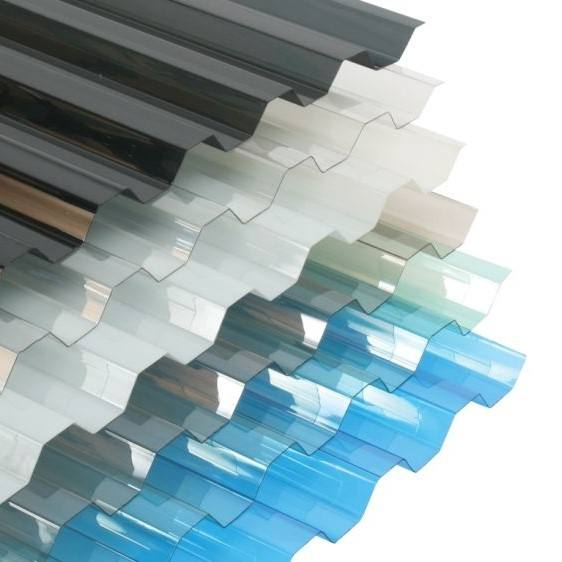

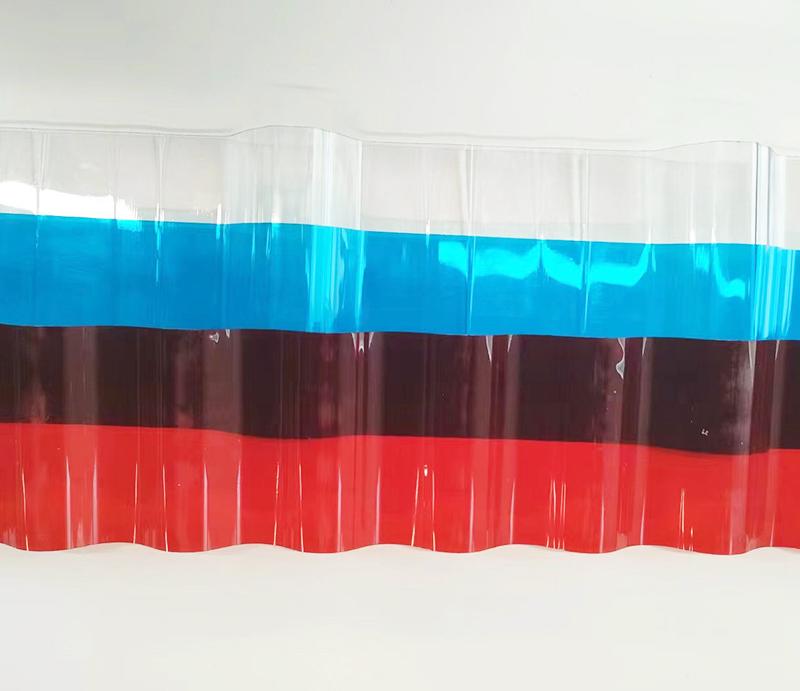

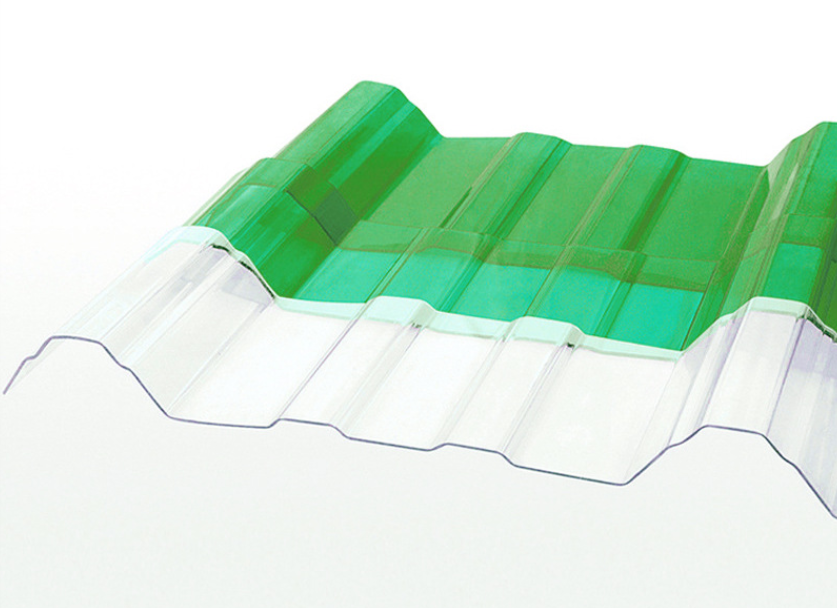

Clear Corrugated Polycarbonate Sheet Images
2mm Clear Corrugated Polycarbonate Sheet Specifications
The following specifications are based on the current HSQY product information. Exact dimensions, corrugated profile and project-specific technical properties should be confirmed before ordering.
| Property |
Details |
| Product Name |
2mm Clear Corrugated Polycarbonate Roofing Sheet |
| Brand |
HSQY |
| Material |
Polycarbonate (PC) |
| Sheet Type |
Corrugated / Profiled Roofing Sheet |
| Featured Thickness |
2.0 mm |
| Available Thickness Range |
0.7, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0 mm, Customized |
| Featured Lengths |
3m / 5m According to Current Product Name; Confirm Before Ordering |
| Width |
Customized |
| Color |
Clear; Other Colors Available in HSQY Corrugated PC Range |
| Light Transmission |
More Than 85% for Suitable Clear Grade According to Current Product Information |
| UV Protection |
UV-Resistant Surface Treatment |
| Temperature Range |
-40°C to +120°C According to Current Product Information |
| Profile |
Multiple Corrugated Profiles / Customized Shapes |
| Typical Applications |
Skylights, Greenhouses, Canopies, Commercial Roofing, Agricultural Buildings and Public Facilities |
Note: 3m and 5m are included in the current HSQY product name but are not separately listed in the original technical specification table. Confirm available sheet length, effective cover width, corrugated pitch and profile before placing a bulk order.
Why Choose 2mm Clear Polycarbonate Roofing Sheet?
A 2mm corrugated polycarbonate sheet provides greater material thickness than many lightweight roofing panels and can be considered for projects requiring a balance of transparency, rigidity, impact resistance and weather performance.
Final structural suitability depends on the corrugated profile, purlin spacing, roof pitch, fixing system, wind load, snow load and local building requirements. Thickness alone should not be used to determine structural capability.
Key Features of Clear Corrugated Polycarbonate Roofing
1. High Natural Light Transmission
Suitable clear HSQY corrugated polycarbonate sheets can provide more than 85% light transmission according to the current product information, helping reduce the need for artificial lighting in daylight roofing applications.
2. UV-Resistant Surface Treatment
The sheet surface is treated for UV resistance to help reduce degradation and yellowing associated with long-term sunlight exposure.
3. Impact-Resistant Polycarbonate
Polycarbonate provides high impact resistance compared with many conventional transparent roofing materials, making it suitable for demanding roofing, skylight and greenhouse applications.
4. Weather Resistance
Corrugated polycarbonate sheets are designed for outdoor roofing applications exposed to sunlight, rain and changing temperatures when correctly specified, supported and installed.
5. Lightweight Construction
Polycarbonate roofing sheets are lightweight and easier to transport, lift and position than many traditional glazing materials.
6. Easy to Cut and Drill
The sheets can be cut and drilled using suitable tools for plastic roofing materials, allowing adjustment to project dimensions and fixing layouts.
7. Wide Temperature Range
The current HSQY product information lists a temperature performance range of approximately -40°C to +120°C. Actual structural performance depends on load, duration and installation conditions.
8. Custom Roofing Profiles
HSQY offers different corrugated cross-sectional shapes and can discuss customized profiles for roofing projects requiring compatibility with existing structures.
Applications of Clear Corrugated Polycarbonate Sheet
Clear corrugated polycarbonate is particularly suitable for applications where natural daylight is an important part of the roof design.
Greenhouses: Clear panels provide natural daylight for greenhouse roofs, garden structures and agricultural growing facilities.
Skylights and Rooflights: Suitable for introducing daylight into commercial buildings, warehouses, workshops and agricultural structures.
Canopies: Suitable for walkways, entrance roofs, outdoor shelters and covered corridors.
Commercial Sheds: Clear roof panels can be integrated into suitable industrial and commercial roofing systems.
Agricultural Buildings: Applications include farm buildings, fish sheds and other structures requiring daylight and weather protection.
Public Facilities: Can be considered for railway stations, bus stations, ferry terminals, waiting areas and covered public walkways.
Clear Polycarbonate Roofing for Skylights and Rooflights
One of the main reasons to select clear corrugated polycarbonate instead of an opaque roofing panel is daylight transmission. Clear panels can be installed as complete roofing in suitable applications or incorporated as daylight sections within compatible roof systems.
For industrial rooflights, compatibility with the surrounding metal or; margin: 0 0 16px;"> For industrial rooflights, compatibility with the surrounding metal or fibre-cement roofing profile is important. Buyers should provide the existing roof profile or technical drawing so the corrugated polycarbonate profile can be matched correctly.
Clear Corrugated Polycarbonate vs. Colored Roofing Sheet
| Comparison |
Clear Corrugated PC Sheet |
Colored Corrugated PC Sheet |
| Main Priority |
Maximum daylight |
Balance daylight, shade and appearance |
| Typical Applications |
Skylights, greenhouses, rooflights |
Canopies, architectural roofs, walkways |
| Visual Effect |
Transparent / high daylight |
Tinted or diffused |
| Best Choice When |
Natural light is the main requirement |
Shade or architectural color is required |
3m vs. 5m Corrugated Polycarbonate Roofing Sheets
Sheet length should be selected according to roof slope length, transportation limitations, overlap requirements and installation method. Longer sheets can reduce the number of end joints, but thermal expansion and handling requirements become increasingly important as sheet length increases.
| Length |
Typical Consideration |
| 3m |
Easier handling for many greenhouse, canopy and smaller roofing projects. |
| 5m |
Can reduce end joints on longer roof slopes but requires greater attention to transport, handling and thermal movement. |
| Custom Length |
Contact HSQY with roof dimensions and profile requirements to confirm production feasibility. |
Corrugated Profile Matching for Roofing Projects
Corrugated polycarbonate rooflights are frequently installed together with metal roofing panels or other profiled roofing materials. The polycarbonate sheet should therefore match the surrounding roofing geometry as closely as possible.
For profile matching, provide a technical drawing or existing roof sheet sample showing overall width, effective cover width, corrugation pitch, wave height and profile shape.
Installation Considerations for Clear Polycarbonate Roofing
Polycarbonate naturally expands and contracts as temperature changes. Correct installation should therefore allow thermal movement rather than clamping the sheet rigidly in place.
UV-Protected Side: Install the UV-treated side toward direct sunlight according to the supplied product marking.
Roof Pitch: Use sufficient roof slope for rainwater drainage according to the selected roofing system and local conditions.
Thermal Movement: Allow appropriate expansion space around holes, overlaps and fixing points.
Support Spacing: Purlin spacing must be selected according to sheet thickness, profile, span, wind and snow loading.
Fasteners: Use roofing screws, washers and sealing components designed for polycarbonate roofing systems.
Pre-Drilling: Where required by the fixing system, holes should allow sufficient clearance for thermal movement.
Avoid Overtightening: Excessive fixing pressure can restrict sheet movement or damage the panel around the fixing point.
How to Choose Clear Corrugated Polycarbonate Roofing Sheet
Thickness: 2mm is the featured specification on this product page, while HSQY also lists 0.7–3mm options.
Length: 3m and 5m are featured product lengths; confirm actual availability and transportation requirements before ordering.
Width: Provide the required total and effective cover width.
Corrugated Profile: Provide pitch, wave height and existing roofing profile where matching is required.
Application: Specify greenhouse, skylight, canopy, rooflight, warehouse or other roofing use.
Loading Conditions: Provide relevant wind, snow or structural requirements when these are critical to the project.
Required Documentation: Identify any fire, UV, mechanical or other test reports required for your market or construction project.
Information Needed for a Fast Roofing Sheet Quote
1. Required thickness
2. Required length, such as 3m or 5m
3. Required total width and effective cover width
4. Corrugated profile drawing or sample
5. Roofing or skylight application
6. Required quantity or roofing area
7. Required test reports or certification
8. Destination country or shipping port
Packaging and Delivery
Sample Packaging: Sheets can be protected with PE bags and cartons for sample shipment.
Sheet Packaging: Current product information lists approximately 30kg per bag with PE film, or customized packaging as required.
Pallet Packaging: Approximately 500–2000kg per plywood pallet according to the current product information and actual sheet dimensions.
Container Loading: The current page lists approximately 20 tons per container, subject to sheet dimensions and loading configuration.
Delivery Terms: FOB, CIF and EXW are currently listed.
Lead Time: Current product information lists approximately 7–15 days after deposit depending on order quantity.
![clear corrugated polycarbonate roofing sheet packaging]( "Corrugated Polycarbonate Sheet Packaging")
Quality and Certification Documentation
Construction and roofing projects may require UV-weathering, impact, fire or other technical documentation. Contact HSQY to confirm which reports apply to the exact corrugated polycarbonate sheet grade being purchased.
Where a specific fire classification is required, use the current test report and applicable test standard rather than relying on a general material claim.
![HSQY corrugated polycarbonate sheet certification documentation]( "HSQY Polycarbonate Sheet Certifications")
Frequently Asked Questions
What is a clear corrugated polycarbonate roofing sheet?
It is a transparent polycarbonate panel formed into a corrugated or profiled shape for roofing, skylights, greenhouses and other daylighting applications.
Is 2mm polycarbonate suitable for roofing?
2mm corrugated polycarbonate can be used for suitable roofing applications, but structural suitability depends on the profile, span, support spacing, fixing method and local wind or snow loads rather than thickness alone.
Are 3m and 5m corrugated polycarbonate sheets available?
The current HSQY product name specifically lists 3m and 5m. Confirm current stock or production availability, profile and transportation requirements when requesting a quotation.
What thicknesses of corrugated polycarbonate sheet are available?
The current HSQY range lists 0.7, 1.0, 1.2, 1.5, 2.0, 2.5 and 3.0mm, with customized specifications also available.
How much light does clear corrugated polycarbonate transmit?
The current HSQY product information states that suitable clear sheets can provide more than 85% light transmission. Actual transmission depends on thickness, profile and material grade.
Is clear polycarbonate roofing UV resistant?
This HSQY product is listed with UV-resistant surface treatment designed to help reduce yellowing and degradation caused by sunlight exposure.
Can clear corrugated polycarbonate be used for a greenhouse?
Yes. Greenhouses are one of the main applications because clear corrugated polycarbonate provides natural daylight together with weather and impact resistance.
Can corrugated polycarbonate be used for skylights?
Yes. Clear corrugated polycarbonate is commonly used for skylights and rooflights in warehouses, commercial buildings, agricultural structures and covered public facilities.
Can HSQY match an existing metal roofing profile?
HSQY lists multiple corrugated cross-sectional shapes and customized profiles. Send a drawing or sample showing pitch, wave height and effective width so matching feasibility can be evaluated.
Does polycarbonate roofing expand and contract?
Yes. Polycarbonate is a thermoplastic and expands and contracts as temperature changes. Installation should allow sufficient movement around fixing points, overlaps and sheet ends.
Which side of a UV polycarbonate sheet faces the sun?
The UV-protected side should face outward toward direct sunlight according to the sheet marking and installation instructions supplied with the product.
Can corrugated polycarbonate sheets withstand hail?
Polycarbonate has high impact resistance and is widely used in outdoor roofing where hail resistance is important. Actual performance depends on sheet thickness, profile, support spacing, hail size and impact conditions.
What temperature range can the sheet handle?
The current HSQY product information lists approximately -40°C to +120°C. Application suitability should be confirmed according to duration, structural load and installation conditions.
Is corrugated polycarbonate roofing fire resistant?
Fire performance depends on the specific polycarbonate grade and applicable testing standard. Request the current fire test report if your construction project requires a particular classification.
Can corrugated polycarbonate roofing sheets be cut?
Yes. Polycarbonate sheets can be cut and drilled using suitable tools. Installation procedures should minimize vibration and provide appropriate clearance for thermal expansion.
What information should I provide for a quote?
Provide thickness, length, width, corrugated profile, quantity, application, required technical documentation and destination country or shipping port.
Can I request samples before placing a bulk order?
Contact HSQY with the required thickness, profile, dimensions and project application to confirm current sample availability and shipping arrangements.
Why Choose HSQY as Your Polycarbonate Roofing Sheet Supplier?
Multiple Thicknesses: HSQY currently lists corrugated PC sheets from 0.7mm to 3.0mm for different roofing applications.
Clear Daylighting Solutions: Clear grades are available for greenhouse, skylight and rooflight applications where natural light is important.
Custom Roofing Profiles: Different cross-sectional shapes can be discussed to match commercial and industrial roofing systems.
B2B Project Supply: HSQY supports roofing distributors, greenhouse companies, construction-material buyers and commercial roofing projects.
About HSQY Plastic Group
HSQY Plastic Group has more than 20 years of experience supplying plastic sheets for construction, packaging and industrial applications. Its polycarbonate product range includes solid, multiwall and corrugated roofing sheets.
For 2mm clear corrugated polycarbonate roofing sheets, 3m or 5m panels, greenhouse roofing, skylights or customized rooflight profiles, send HSQY your project dimensions, profile drawing and required quantity for evaluation and quotation.
