HSQY ESD ABS Plastic Sheet

ESD ABS Plastic Sheet for Electronics and Industrial Parts

HSQY ESD ABS plastic sheet is an anti-static ABS sheet supplied for electronics packaging, cleanroom fixtures, trays, equipment covers, automotive interior parts, and machined components. The current product range is listed in 0.3–6 mm thicknesses, widths up to 1600 mm, and black, white, or custom colors.

HSQY describes this grade as providing permanent anti-static performance. Because the current product data does not publish a numerical surface-resistance range or test method, buyers should request order-specific electrical data before approving the material for an ESD-control application.

Request ESD Data and a Quote Request a Sample

ESD ABS Sheet Specifications

The table below retains the specifications published on the current HSQY product page and identifies the electrical information buyers should confirm separately.

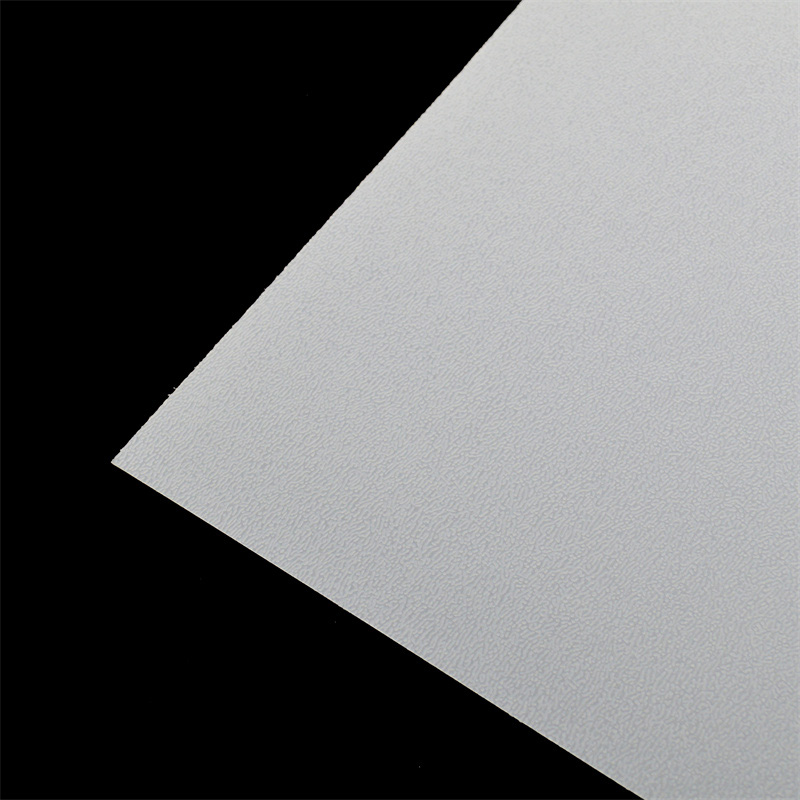

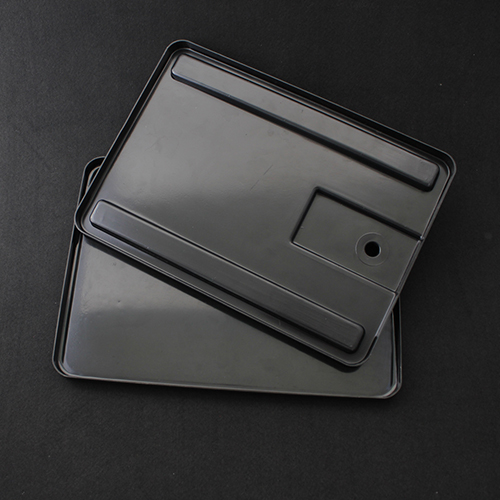

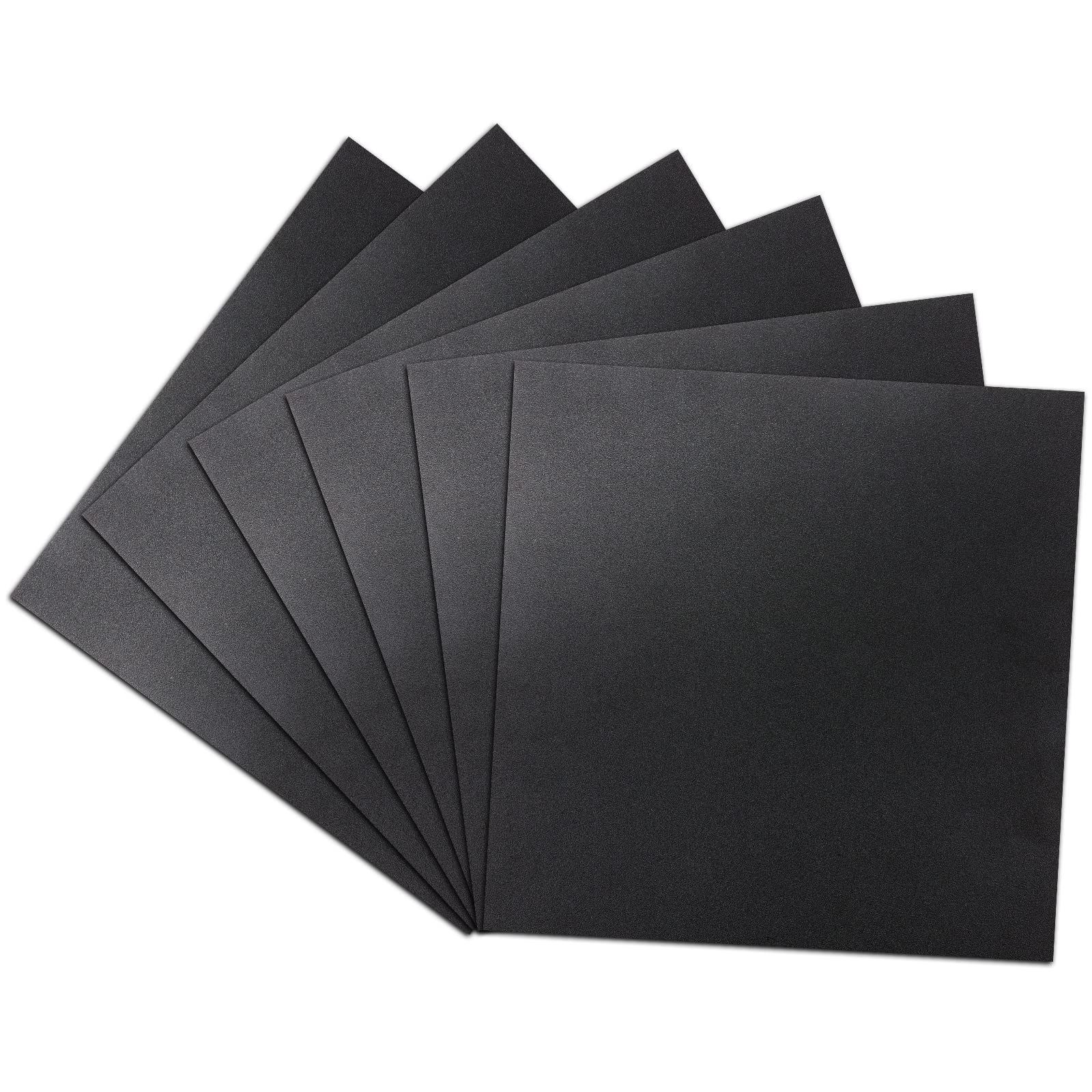

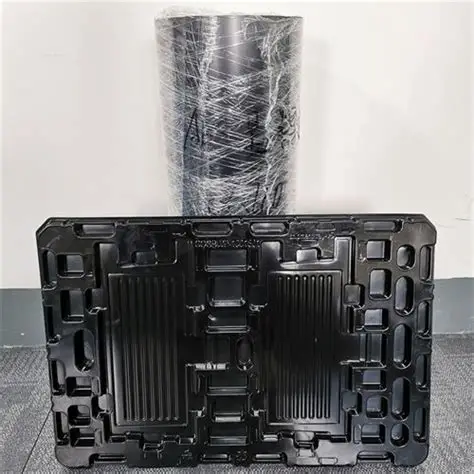

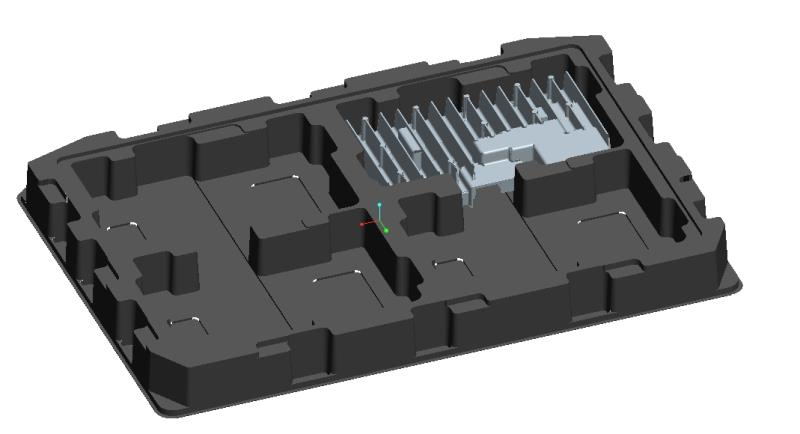

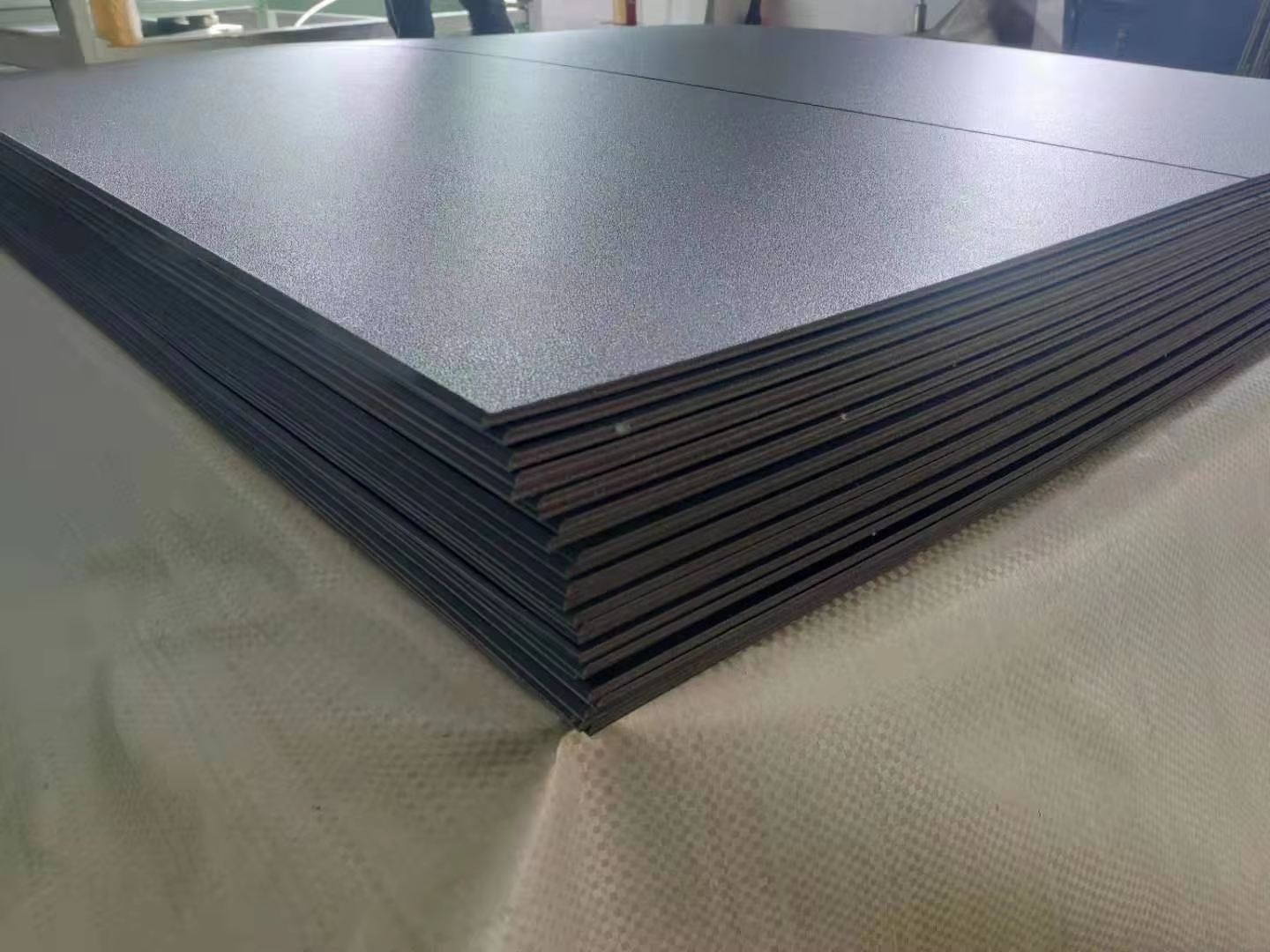

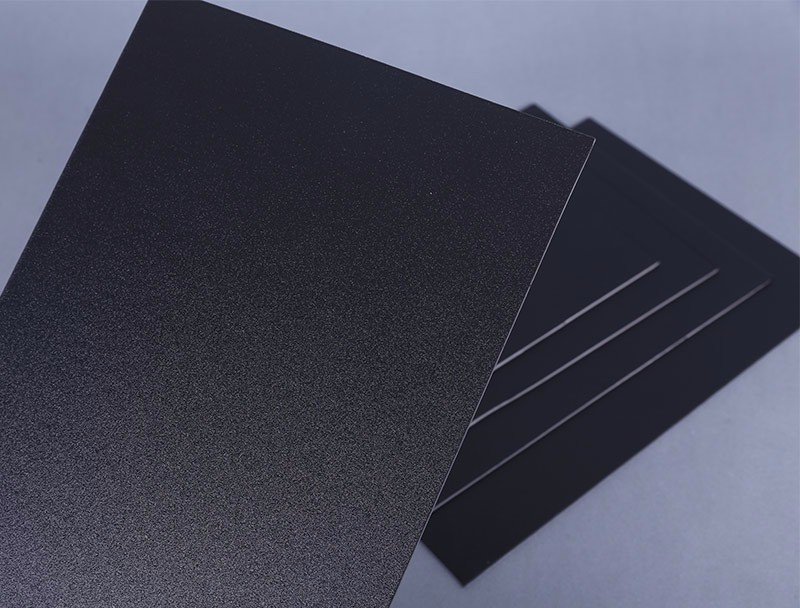

ESD ABS Sheet Images

Key Features of HSQY ESD ABS Sheet

• Static-control grade: intended for components and environments where an anti-static ABS material is required.

• Thin-sheet range: available from 0.3 mm to 6 mm with a listed maximum width of 1600 mm.

• Color options: black, white, and custom colors are listed.

• Machining options: suitable for cutting, drilling, routing, CNC machining, and fabrication.

• Forming options: thermoforming and vacuum forming are listed for trays, covers, shells, and packaging parts.

• Bulk sourcing: the current page lists a general MOQ of 3 tons, subject to the final specification.

Applications of ESD ABS Plastic Sheet

ESD ABS sheet is selected for fabricated or formed ABS parts that require specified static-control performance. Final suitability should be confirmed against the electrical, mechanical, thermal, cleanliness, and regulatory requirements of the application.

• Electronics packaging: trays, divider sheets, transport containers, and protective liners for sensitive components.

• Cleanroom parts: covers, trays, storage panels, work surfaces, and static-control fixtures.

• Automotive interiors: panels, covers, trim parts, and components associated with vehicle electronics.

• Machined parts: housings, brackets, panels, equipment covers, and industrial fixtures.

• Industrial handling: material-handling parts, production-line fixtures, storage components, and assembly-area parts.

ESD Performance Information to Confirm

A complete ESD specification requires more than the term “anti-static.” Procurement teams should confirm the following points with HSQY and include the agreed values in the quotation or technical data sheet.

ESD ABS Sheet vs. Standard ABS Sheet

The practical difference is the specified electrical behavior. Standard ABS should not be assumed to meet an ESD requirement unless the supplier provides the applicable resistance data for that grade.

Processing and Customization

HSQY lists cutting, drilling, routing, CNC machining, thermoforming, vacuum forming, and fabrication for this ESD ABS sheet. Black, white, and custom colors are available, and the page also lists custom sizes.

For a fabricated or formed part, provide the drawing, finished dimensions, tolerance, surface requirement, color, quantity, and target ESD performance. Confirm whether electrical performance is measured before or after the required processing operation.

Send Your Drawing or Specification

MOQ, Samples, and Quotation Information

The current page lists a general MOQ of 3 tons. It also states that A4 samples are available for material checking with freight collected. Final MOQ and sample availability may depend on the thickness, color, dimensions, and custom production requirements.

For an accurate quotation, provide:

• Required surface- and volume-resistance range, if applicable

• Test method or customer specification

• Thickness, width, length, and dimensional tolerances

• Black, white, or custom color

• Sheet supply or required machining/forming

• Quantity and annual purchasing estimate, when available

• Application and operating conditions

• Required technical, batch, or compliance documents

• Destination and preferred delivery terms

Company Certification Image

The current product page displays the company certification image below. Buyers should confirm the certificate scope, current validity, covered products, and applicability to the destination market before ordering.

HSQY Global Exhibitions

Related ABS Plastic Sheet Products

• ABS sheet product range

• Flame-retardant ABS plastic sheet

• Automotive ABS plastic sheet

• Thermoforming ABS plastic sheet

• 1 mm and 1.5 mm black ABS plastic sheet

Frequently Asked Questions

What is ESD ABS plastic sheet?

ESD ABS plastic sheet is an ABS-based sheet supplied with anti-static or electrostatic-discharge-control properties. It is used for trays, packaging, covers, fixtures, and machined parts that handle or operate near static-sensitive components.

What surface-resistance range does HSQY ESD ABS sheet provide?

The current HSQY page does not publish a numerical surface-resistance range. Request the value for the specific grade, along with the test method, voltage, conditioning, and whether the result applies before or after processing.

Does the sheet provide permanent anti-static performance?

HSQY describes the product as having permanent anti-static performance. Buyers should confirm how the ESD property is produced and request data showing performance over time and after the intended machining, forming, cleaning, or wear conditions.

What thicknesses and colors are available?

The listed thickness range is 0.3–6 mm with maximum width up to 1600 mm. Available colors are black, white, and custom colors, subject to order requirements.

Can ESD ABS sheet be machined or thermoformed?

Yes. HSQY lists cutting, drilling, routing, CNC machining, fabrication, thermoforming, and vacuum forming. Confirm the required tolerances and verify ESD performance after the selected process.

Can I request a sample?

The current page states that A4 samples are available for material checking with freight collected. Provide the required thickness, color, application, and ESD target when submitting a sample request.

What is the MOQ?

The listed MOQ is generally 3 tons. The final MOQ may vary according to thickness, color, dimensions, and custom production requirements.

What information is needed for an ESD ABS sheet quotation?

Provide the resistance requirement and test method, thickness, dimensions, tolerances, color, quantity, application, processing needs, documentation requirements, and destination. Attach a drawing for formed or machined components.

Request an ESD ABS Sheet Quote

Send HSQY your electrical, dimensional, processing, and commercial requirements to confirm the correct grade, available sample, MOQ, documentation, pricing, and production schedule.
