Clear PVC Sheet for Folding Box Video
Watch the video below to learn more about HSQY clear rigid PVC sheet for transparent folding boxes, retail packaging, printing, die-cutting and plastic box conversion.
What Is Clear PVC Sheet for Folding Boxes?
Clear PVC sheet for folding boxes is a transparent rigid polyvinyl chloride packaging material developed for manufacturing clear cartons, plastic folding boxes, packaging windows, display sleeves and printed retail boxes.
The material combines product visibility, practical rigidity, dimensional stability and folding-box conversion performance. Suitable grades can be die-cut, scored, creased, folded, printed, embossed, laminated, glued and converted into customized transparent packaging.
HSQY supplies clear rigid PVC packaging material in sheets and rolls. Available thicknesses range from 0.05 mm to 6 mm, while common folding-box projects generally use thinner grades selected according to carton dimensions, product weight, folding method and required stiffness.
Standard and customized options include glossy, matte, frosted, printable, antistatic, UV-resistant and scratch-resistant surfaces. Sheet dimensions, roll width, color, protective film, cutting tolerance and export packaging can also be customized.
For an accurate material recommendation, provide the finished box dimensions, packaged product weight, required thickness, printing method, folding process, annual volume and destination-market compliance requirements.
Request Clear PVC Sheet Pricing Request a Folding Test Sample

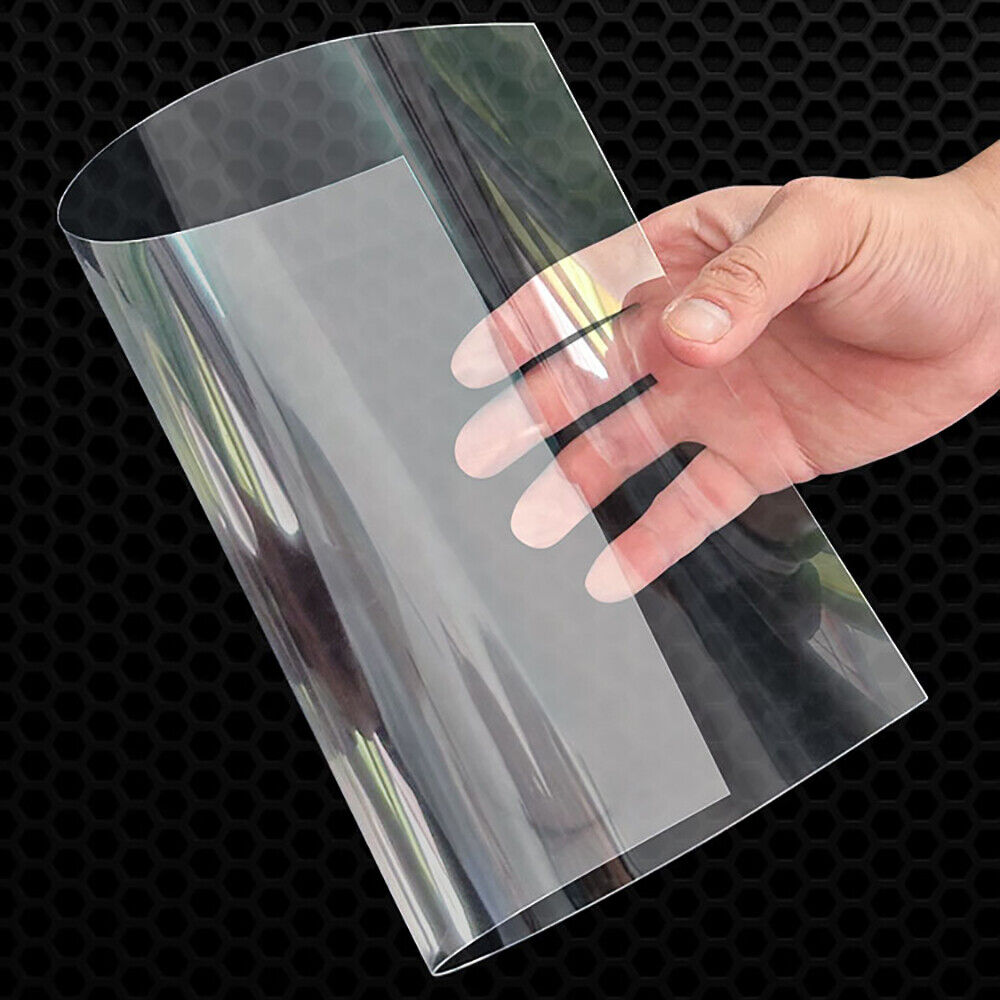

Clear PVC Folding Box Sheet Images
Clear PVC Sheet for Folding Box Specifications
| Property |
Available Specification |
| Product Name |
Clear PVC Sheet for Folding Boxes |
| Material |
Rigid polyvinyl chloride plastic |
| Production Process |
Extrusion or calendering, subject to grade and specification |
| Total Thickness Range |
0.05 mm-6 mm |
| Common Folding Box Thickness |
Approximately 0.2 mm-1.0 mm, subject to box dimensions, product weight and structural requirements |
| Standard Sheet Dimensions |
700 × 1000 mm, 915 × 1220 mm, 1220 × 2440 mm and customized sizes |
| Roll Width |
200 mm-1500 mm |
| Density |
Approximately 1.36 g/cm³; final value depends on formulation |
| Supply Form |
Sheets, rolls, slit rolls and customized cut sizes |
| Color |
Clear, blue-tinted, colored transparent and customized colors |
| Surface Options |
Glossy, matte, frosted, printable, antistatic, UV-resistant, scratch-resistant and customized |
| Conversion Methods |
Die-cutting, scoring, creasing, folding, printing, embossing, gluing, welding and thermoforming, subject to grade testing |
| Printing Options |
Screen printing, offset printing, UV printing, foil stamping and label application after compatibility testing |
| Protective Film |
Available according to surface protection and converting requirements |
| Available Documentation |
RoHS, REACH, SGS and ISO-related documentation for applicable products |
| Minimum Order Quantity |
1,000 kg |
| Sample |
Limited-size samples available for transparency, printing, folding and bonding tests |
| Loading Port |
Ningbo or Shanghai |
| Payment Terms |
30% deposit and 70% balance before shipment |
| Delivery Terms |
FOB, CIF and EXW |
| Typical Production Time |
Approximately 7-15 days after deposit and specification approval |
Thickness tolerance, dimensional tolerance, optical appearance, surface treatment and processing performance should be confirmed through the approved sample, technical data sheet and final purchase contract.
Key Benefits of Clear Rigid PVC Folding Box Sheet
High Product Visibility
Transparent PVC packaging allows customers to view the product without opening the box. This makes it suitable for retail packaging where appearance, color, shape and included accessories are important buying factors.
Folding and Creasing Performance
Appropriate folding-box grades can be scored and folded into square cartons, sleeves and locking structures. Correct material thickness, sheet direction, crease design and machine settings help reduce whitening, cracking and uncontrolled spring-back.
Practical Rigidity
Rigid PVC helps transparent folding cartons maintain their shape during assembly, product filling, handling and retail display. Thickness can be adjusted for lightweight products, hanging boxes or larger display cartons.
Printable and Decorative Surface
Properly prepared PVC surfaces can support printed branding, product information, decorative patterns, foil details and tactile effects. The ink system and curing method must be tested against the selected surface treatment.
Moisture-Resistant Packaging Surface
PVC does not absorb water like paperboard and can provide a practical surface barrier against moisture, dust and handling contamination. It should not automatically be considered a sealed or high-barrier packaging structure.
Multiple Surface Finishes
Glossy surfaces emphasize transparency and shelf appearance, while matte or frosted surfaces provide softer visual effects. Printable, antistatic and scratch-resistant options can be discussed for specialized projects.
Custom Sheet and Roll Supply
HSQY can supply standard sheets, customized cut sheets or slit rolls according to printing presses, die-cutting machines, folding-box production lines and material-utilization requirements.
How to Choose PVC Sheet Thickness for Folding Boxes
The correct thickness depends on the box dimensions, product weight, carton structure, hanging requirement, stacking pressure, printing method, folding process and assembly equipment.
| Thickness Direction |
General Characteristics |
Typical Applications |
| Approximately 0.2-0.3 mm |
Lightweight, flexible and easier to crease |
Small lightweight boxes, carton windows, sleeves and internal transparent inserts |
| Approximately 0.3-0.5 mm |
Balance of folding performance and structural rigidity |
Cosmetics, stationery, gifts, toys, cables and common retail folding cartons |
| Approximately 0.5-0.8 mm |
Increased stiffness and shape retention |
Larger boxes, heavier products, hanging cartons and protective display packaging |
| Approximately 0.8-1.0 mm |
Higher rigidity but greater creasing and folding requirements |
Large display boxes, heavier contents and reinforced packaging structures |
The ranges above are general selection directions rather than fixed specifications. A larger carton may require thicker sheet, while a complex folding structure may require a more flexible grade or adjusted crease design.
Automated production should be validated for stiffness, crease depth, sheet direction, spring-back, box opening, feeding stability, gluing and dimensional tolerance.
Folding, Creasing and Box Conversion Performance
Clear plastic folding boxes require a coordinated relationship between sheet thickness, machine direction, carton dimensions, score width, crease depth, die-cutting pressure, folding radius, adhesive and assembly method.
Die-cutting can create box profiles, locking tabs, hanging holes, windows and internal retaining structures.
Scoring or soft creasing helps create controlled fold lines and square carton corners.
Cold folding or controlled heat-assisted folding may be selected according to sheet thickness and box structure.
Adhesive bonding, ultrasonic welding or other assembly methods require compatibility testing.
Manual and automated carton assembly require different stiffness, spring-back and feeding characteristics.
Protective film may be used to reduce scratching during printing, die-cutting and transportation.
Buyers should complete printing, die-cutting, creasing, folding, gluing and automated line trials before approving mass production.
How to Reduce Whitening and Cracking at PVC Fold Lines
| Conversion Problem |
Possible Cause |
Recommended Check |
| White fold line |
Excessive crease pressure, unsuitable folding radius, incorrect sheet direction or material too rigid |
Adjust scoring depth, test a larger folding radius and confirm the recommended grade |
| Cracking during folding |
Sheet too thick, sharp crease, low processing temperature or unsuitable formulation |
Test thinner material, modify tooling or evaluate controlled heat-assisted folding |
| Corners do not remain square |
Insufficient stiffness, shallow crease or excessive spring-back |
Review thickness, scoring geometry and folding-box grade |
| Sheet breaks during die-cutting |
Excessive cutting pressure, damaged tooling or material-temperature mismatch |
Inspect die condition, reduce pressure and stabilize material before processing |
| Adhesive failure |
Incompatible adhesive, contamination, surface treatment or insufficient curing |
Test adhesive compatibility, clean the bonding area and follow curing requirements |
| Surface scratches |
Unprotected handling, conveyor contact or stacking friction |
Use protective film, clean processing surfaces and improve interlayer protection |
Printing and Decorative Options
Clear PVC folding boxes can be printed and decorated to improve branding, product information, shelf differentiation and premium presentation. The correct method depends on the sheet surface, ink chemistry, artwork, production volume and curing system.
Screen printing for logos, text, solid colors and decorative patterns.
Offset or UV printing for detailed graphics and multi-color retail designs.
Foil stamping and hot stamping for metallic logos and premium visual effects.
Embossing and debossing for raised or recessed branding.
Matte, frosted or selectively transparent areas for visual contrast.
Adhesive labels, barcodes, product information and tamper-evident labels.
Ink adhesion, curing temperature, color accuracy, abrasion resistance and resistance at the fold line should be tested before commercial production.
Clear PVC Sheet Applications
Clear PVC packaging sheet is suitable for retail projects that require direct product visibility, printable surfaces, customized carton structures and practical material rigidity.
Cosmetic boxes for skincare, makeup, perfume, beauty tools and personal-care products.
Secondary packaging for healthcare products and non-direct-contact medical accessories.
Electronics packaging for cables, chargers, adapters, accessories and small devices.
Toy packaging, collectible boxes, model packaging and hobby-product cartons.
Gift boxes, promotional packs, holiday packaging and premium display cartons.
Stationery boxes, office-supply packaging, craft packaging and transparent sleeves.
Plastic windows for paperboard cartons and combination packaging.
Hanging retail boxes with Euro slots or customized hanging structures.
Printed display packaging for hardware, tools, spare parts and promotional products.
PVC Sheet vs. PET and PETG for Folding Boxes
PVC, PET and PETG can all be used for transparent folding packaging, but they differ in processing behavior, stiffness, toughness, market acceptance, recycling considerations and cost. The final selection should be based on the complete packaging project rather than transparency alone.
| Selection Factor |
PVC |
PET |
PETG |
| Typical Positioning |
Cost-conscious transparent packaging with established printing and folding processes |
Clear packaging where PET recycling streams or PET-specific requirements are preferred |
Premium transparent packaging requiring additional toughness or forming flexibility |
| Folding Performance |
Good with the correct folding-box grade and crease design |
Requires grade, direction and crease validation |
Generally selected where toughness and processing flexibility are priorities |
| Printing and Bonding |
Established printing and adhesive options after surface testing |
Surface treatment and adhesive compatibility must be confirmed |
Printing and bonding require grade-specific validation |
| Sustainability Considerations |
Acceptance and recycling infrastructure vary by destination market |
Often selected where PET collection and recycling systems are established |
Recycling acceptance depends on local systems and grade identification |
| Best Selection Method |
Compare sample clarity, folding, printing, bonding, stiffness, impact behavior, compliance requirements and total converted-box cost |
Buyers serving markets with material restrictions, retailer packaging standards or specific recycling requirements should confirm material acceptance before approving PVC.
Sheet or Roll: Which Supply Form Should You Choose?
| Supply Form |
Advantages |
Suitable Buyers |
| Standard Sheets |
Convenient for flatbed printing, manual feeding, sample production and sheet-fed die cutting |
Printers, small-to-medium converters and customized packaging producers |
| Custom Cut Sheets |
Reduces secondary cutting and may improve material utilization |
Buyers with fixed press, die-cutting or carton dimensions |
| Rolls |
Suitable for continuous feeding, slitting and high-volume production |
Large converters and automated packaging-material processors |
| Slit Rolls |
Supplied closer to the required machine width |
Buyers using narrow-web printing, lamination or continuous conversion equipment |
Custom Clear PVC Packaging Sheet Options
HSQY supports customized PVC packaging material for folding-box manufacturers, printing companies, cosmetic packaging suppliers, electronics brands, gift-packaging businesses, converters and distributors.
Customized thickness, width, sheet dimensions, roll length and cutting tolerance.
Clear, blue-tinted, colored transparent, matte and frosted appearances.
Printable, antistatic, UV-resistant and scratch-resistant surface options.
Single-side or double-side protective film, subject to specification.
Sheet cutting, roll slitting and customized export packaging.
Formulation selection according to folding, impact, printing and bonding requirements.
Samples and trial material for printing, die-cutting, scoring, folding and gluing tests.
Information Required for a Clear PVC Sheet Quote
Providing complete project information helps HSQY calculate the correct specification, packing method and quotation.
Required thickness or current material specification.
Sheet dimensions, roll width or slit width.
Finished folding-box dimensions and carton structure.
Packaged product type and approximate weight.
Glossy, matte, frosted or other surface finish.
Printing, foil stamping, embossing or labeling process.
Manual or automated folding and assembly method.
Required protective film and packaging method.
Trial quantity, bulk quantity and estimated annual demand.
Destination port, target delivery date and trade term.
RoHS, REACH, food-contact, toy, medical or other compliance requirements.
Send Your PVC Sheet Requirements
Packaging and Delivery
Clear PVC sheets and rolls should be protected against scratches, dust, moisture, deformation and edge damage during storage, handling and international transportation.
Sheet packaging with protective film, plastic wrapping, kraft paper, cartons and pallets.
Roll packaging with protective film, kraft paper, end protection and pallet support.
Customized slitting and sheet cutting according to printing and box-converting equipment.
Corner protection and reinforced export packaging for large sheets.
FOB, CIF and EXW delivery terms available.
Loading through Ningbo or Shanghai ports.
Typical production time of approximately 7-15 days after deposit and specification approval.
Final lead time depends on thickness, dimensions, surface treatment, protective film, order quantity, production scheduling and packing requirements. Sea transit time is not included in the production lead time.
Quality and Packaging Compliance
Available documentation may include RoHS, REACH, SGS and ISO-related reports or certificates. Buyers should confirm which documents apply to the exact formulation, thickness, color, surface treatment and production batch.
Standard clear PVC packaging sheet should not automatically be assumed to meet direct food-contact, pharmaceutical, medical, toy or other regulated-use requirements.
Buyers must specify the intended product, contact conditions, destination country and applicable regulations so that HSQY can evaluate the appropriate grade and available supporting documentation.
Why Choose HSQY as Your Clear PVC Sheet Supplier?
HSQY Plastic Group supplies PVC, PET and other plastic sheet materials to packaging converters, printers, folding-box manufacturers, distributors and international brands.
Clear rigid PVC sheets and rolls for packaging conversion.
Customized thickness, width, dimensions and surface finish.
Printing, folding and bonding sample support.
Sheet cutting, roll slitting and protective-film options.
Available test reports and quality documentation.
Export packaging and container-loading support.
FOB, CIF and EXW quotation options.
Supply support for packaging manufacturers, distributors and OEM projects.
Samples should be tested with the buyer's actual printing press, die-cutting tool, scoring system, adhesive and assembly line before bulk production.
Contact HSQY for Samples and Pricing
Frequently Asked Questions About Clear PVC Folding Box Sheets
What is clear PVC sheet for folding boxes?
It is a transparent rigid plastic sheet used to manufacture clear cartons, display boxes, sleeves, packaging windows and printed retail packaging. The material can be die-cut, creased, folded, printed and bonded into customized box structures.
Can clear PVC sheet be folded without cracking?
Suitable folding-box grades can be folded without excessive cracking when the correct thickness, material direction, crease depth, tooling and folding radius are used. Sample testing is necessary before mass production.
Why does PVC turn white at the fold line?
Fold whitening may be caused by excessive scoring pressure, a sharp folding radius, incorrect material direction, low processing temperature or a grade that is too rigid for the box design.
What thickness is commonly used for PVC folding boxes?
Common folding-box projects generally use approximately 0.2 mm to 1.0 mm material. The correct thickness depends on box dimensions, product weight, stiffness, folding method and assembly equipment.
Is 0.3 mm PVC suitable for folding boxes?
A 0.3 mm sheet may be suitable for small and medium lightweight cartons, but the final decision depends on the box dimensions, packaged product and required rigidity. A converted-box test is recommended.
What sheet sizes and roll widths are available?
Standard sheet dimensions include 700 × 1000 mm, 915 × 1220 mm and 1220 × 2440 mm. Roll widths from 200 mm to 1500 mm and custom dimensions are also available.
Can clear PVC sheets be printed?
Yes. Suitable surfaces may support screen printing, offset printing, UV printing, foil stamping and label application. Ink adhesion and curing conditions must be tested with the actual sheet grade.
Can PVC folding boxes be glued?
Yes, but the adhesive must be compatible with PVC, the selected surface treatment and the intended use. Bond strength and curing time should be tested before production.
Is PVC sheet suitable for automatic box-folding machines?
It can be used after validating sheet stiffness, dimensional tolerance, feeding stability, scoring, spring-back, gluing and box-opening behavior on the actual production line.
What surface finishes are available?
Options may include glossy, matte, frosted, printable, antistatic, UV-resistant and scratch-resistant surfaces. Availability depends on thickness, width, formulation and quantity.
Can HSQY add protective film to the PVC sheet?
Protective film can be discussed for projects requiring additional surface protection during transportation, printing, die-cutting and assembly.
What is the difference between PVC, PET and PETG folding box sheets?
PVC is often selected for practical clarity, printing, folding performance and cost. PET and PETG offer different toughness, processing and recycling characteristics. Selection should consider the destination market, box design, equipment, compliance and budget.
Is clear PVC suitable for direct food packaging?
Standard PVC sheet should not automatically be considered suitable for direct food contact. The food type, contact conditions, destination market and applicable regulations must be provided before selecting a grade.
Can PVC sheet be used for cosmetic packaging?
Yes. It is commonly used for transparent secondary packaging and display boxes for cosmetics, skincare products, perfume and beauty accessories. Direct product contact and regulatory requirements must be evaluated separately.
Can HSQY provide custom colors and sizes?
Yes. HSQY supports customized thickness, sheet dimensions, roll width, color, surface, protective film, slitting, cutting and packaging according to production feasibility.
Are samples available for folding and printing tests?
Limited-size samples may be available for checking transparency, thickness, printing, die-cutting, scoring, folding, gluing and surface appearance. Sample and freight conditions should be confirmed.
What is the minimum order quantity?
The standard minimum order quantity is 1,000 kg. The MOQ may vary for special formulations, custom colors, uncommon widths or specialized surface treatments.
What is the production lead time?
Typical production time is approximately 7-15 days after the deposit and specifications are confirmed. Customized materials or large orders may require additional time.
What information is required for a quotation?
Provide the required thickness, sheet size or roll width, quantity, surface finish, color, printing process, box dimensions, product weight, assembly method, destination port and required compliance documents.
Get a Custom Clear PVC Sheet Quote
