UV-Stabilized Crystal Clear Polycarbonate Sheet
HSQY UV-stabilized crystal clear polycarbonate sheet is a solid PC panel with a polished surface for glazing, machine guards, protective panels, partitions and outdoor applications requiring transparency, impact resistance and weathering performance.
The current product range covers thicknesses from 1mm to 50mm, with a standard sheet size of 1220 × 2440mm. Length, color and processing can be customized according to project requirements.

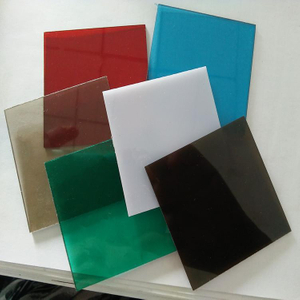

Available colors include clear, blue, green, opal, brown and grey. For outdoor projects, buyers should confirm the exact UV-stabilized grade, UV-protected side, expected exposure conditions and required service performance before bulk production.
HSQY also supports processing including precision cutting, engraving, bending, punching, polishing, bonding, thermoforming, UV flatbed printing and screen printing for B2B construction, industrial and fabrication projects.
Request UV PC Sheet Pricing Request a Sample
UV-Stabilized Polycarbonate Sheet Specifications
| Property |
Details |
| Product Name |
High Glossy Transparent Polycarbonate Plastic Sheet |
| Material |
Polycarbonate (PC) |
| Sheet Structure |
Solid Polycarbonate Sheet |
| Thickness |
1mm–50mm |
| Maximum Width |
1220mm |
| Length |
Customizable |
| Standard Size |
1220 × 2440mm |
| Colors |
Clear, Blue, Green, Opal, Brown, Grey, Customizable |
| Surface |
Crystal Clear, High Gloss / Polished Surface |
| UV Requirement |
UV-Stabilized Grade for Suitable Outdoor Applications; Exact UV Configuration to Be Confirmed |
| Processing |
Cutting, Engraving, Bending, Punching, Polishing, Bonding, Thermoforming, UV Printing, Screen Printing |
| Applications |
Glazing, Machine Guards, Protective Panels, Partitions, Construction, Greenhouse and Industrial Fabrication |
| Listed Documents |
ISO, ROHS, SGS, CE, REACH Document |
Final thickness, dimensions, UV protection, color, optical performance and mechanical requirements should be confirmed for the exact production grade before bulk production or engineering approval.
Send Your Polycarbonate Sheet Specifications
What Is UV-Stabilized Polycarbonate Sheet?
UV-stabilized polycarbonate sheet is a PC sheet designed with UV protection to improve resistance to sunlight and long-term weather exposure compared with untreated general-purpose polycarbonate.
Professional outdoor PC products commonly use a UV-protective surface layer or UV-resistant formulation. The protection may be applied on one side or both sides depending on the product grade.
For exterior applications, buyers should confirm whether the sheet has one-side or two-side UV protection, which side faces outward, and what weathering performance is supported by the applicable technical documentation.

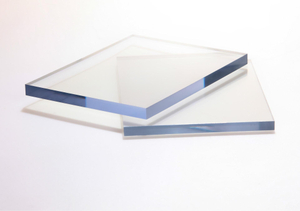

Crystal Clear Polished Polycarbonate Surface
The polished surface is intended for applications requiring transparency, clean appearance and visual access through the panel.
Optical clarity can vary with sheet thickness, tint, UV layer, production grade and surface condition. Buyers with a defined optical requirement should specify light transmission, haze, gloss or an approved physical sample.
Protective film should normally remain on the sheet during cutting and fabrication to reduce the risk of scratching the polished surface.
Key Features of UV-Stabilized Clear Polycarbonate Sheet
High Impact Resistance: Polycarbonate is widely selected for protective glazing and industrial panels because of its high impact strength. Exact impact values should be confirmed from the applicable technical data when engineering performance is required.
Crystal Clear Appearance: Clear polished PC sheet provides visibility and daylight transmission for glazing, partitions, machine windows and transparent guards.
UV-Stabilized Option: The product is positioned for UV-resistant applications. Confirm the exact UV protection, protected side and outdoor-performance requirements for the production grade.
Wide Temperature Capability: Polycarbonate is commonly selected across a broad service-temperature range. The allowable range for the finished application should be confirmed against the exact grade, loading and environment.
Dimensional Stability: Solid PC provides useful dimensional stability for fabricated panels while still requiring allowance for thermal expansion in large glazing installations.
Custom Fabrication: HSQY lists cutting, engraving, bending, punching, polishing, bonding, thermoforming and printing capabilities for customized B2B projects.
UV Polycarbonate Sheet for Outdoor Glazing
UV-stabilized solid polycarbonate can be used for suitable exterior glazing, protective screens, partitions, greenhouse panels and architectural applications.
Outdoor projects should consider UV protection together with panel thickness, support spacing, wind load, fixing method, thermal expansion, temperature range and local engineering requirements.
Where abrasion, repeated cleaning or vandalism is a major concern, buyers should confirm whether a separate hard-coated or abrasion-resistant PC grade is required because UV stabilization and abrasion resistance are different material functions.
Polycarbonate Sheet for Machine Guards and Safety Panels
Transparent solid PC is widely used for machine guards, equipment windows, protective barriers and workstation partitions because operators can maintain visibility while the panel provides physical separation.
| Guard Requirement |
Information to Confirm |
| Thickness |
Required PC thickness according to panel size and impact requirement |
| Panel Size |
Finished width × length and dimensional tolerance |
| Impact Requirement |
Applicable test standard or project safety requirement |
| Optical Requirement |
Clear visibility, tint, haze or approved sample |
| Mounting |
Frame, fasteners, hole positions and allowance for thermal movement |
| Environment |
Indoor or outdoor exposure, temperature and chemical contact |
Fabrication and Processing
| Process |
Purchasing Consideration |
| Precision Cutting |
Provide finished dimensions and tolerance |
| Engraving |
Confirm engraving pattern, depth and required appearance |
| Drilling / Punching |
Specify hole diameter, spacing and mounting loads |
| Bending |
Minimum bend radius depends on thickness and PC grade |
| Polishing |
Edge polishing can be specified where transparent finished edges are required |
| Bonding |
Use adhesive systems compatible with polycarbonate |
| Thermoforming |
Provide mold geometry, forming depth and finished wall-thickness requirement |
| Printing |
UV flatbed and screen printing are listed; ink compatibility should be tested |
Applications of UV-Stabilized Polycarbonate Sheet
| Application |
Typical Use |
| Glazing |
Transparent windows, protective glazing and architectural panels |
| Machine Guards |
Equipment windows, safety guards and workstation barriers |
| Construction |
Partitions, transparent panels and selected outdoor projects |
| Greenhouse |
Selected glazing applications using an appropriate UV-protected grade |
| Electronic Equipment |
Transparent covers and selected insulating components |
| Mechanical Equipment |
Housings, covers, frames and fabricated parts |
| Medical Equipment |
Selected components only when the required medical-grade material and regulatory documentation are confirmed |
![UV Stabilized Polycarbonate Sheet Application]()
Polycarbonate Sheet Application
![Crystal Clear Polycarbonate Sheet Industrial Application]()
Industrial Polycarbonate Application
Discuss Your UV Polycarbonate Project
What Buyers Should Confirm Before Ordering
| Purchasing Requirement |
Information to Provide |
| Application |
Glazing, machine guard, partition, construction, greenhouse or industrial fabrication |
| Thickness |
Required thickness within the 1–50mm range |
| Dimensions |
1220 × 2440mm standard size or required customized length |
| Color |
Clear, blue, green, opal, brown, grey or custom color |
| UV Protection |
Indoor, one-side UV, two-side UV or required project specification |
| Optical Requirement |
Light transmission, haze, tint, gloss or approved visual sample |
| Impact Requirement |
Required test method or project safety standard |
| Fabrication |
Cutting, drilling, bending, polishing, bonding, thermoforming or printing |
| Outdoor Exposure |
Climate, orientation, UV exposure and expected service conditions |
| Compliance |
Required ISO, ROHS, SGS, CE, REACH or project-specific documents |
| Quantity |
Trial quantity, project quantity and repeat demand |
| Destination |
Country, port and required delivery schedule |
Get a UV Polycarbonate Sheet Quote
Resources and Compliance Documents
The existing product information also lists ISO, ROHS, SGS and CE. Confirm which report, declaration or certificate applies to the exact thickness, color and PC grade being ordered.
These documents should not automatically be interpreted as proof of a particular impact rating, UV lifetime, fire rating, medical classification or safety-glazing standard unless the applicable report specifically covers that requirement.
Frequently Asked Questions About UV-Stabilized Polycarbonate Sheet
What is UV-stabilized polycarbonate sheet?
It is a polycarbonate sheet designed with UV protection to improve resistance to long-term sunlight and weather exposure compared with untreated general-purpose PC.
Is this polycarbonate sheet really unbreakable?
No material should be treated as absolutely unbreakable. Polycarbonate provides very high impact resistance, but sufficiently severe impact, loading, machining damage or installation stress can still cause failure.
What thicknesses are available?
The current HSQY backend specification lists a thickness range from 1mm to 50mm.
What is the standard sheet size?
The standard size is listed as 1220 × 2440mm, with customized length available.
What colors are available?
Existing product data lists clear, blue, green, opal, brown and grey, together with custom-color availability.
Is every polycarbonate sheet UV stabilized?
No. General-purpose PC and UV-protected PC are different product specifications. Outdoor applications should use a grade specifically confirmed for the required UV exposure.
Is the UV coating on one side or both sides?
The current product data does not specify whether UV protection is one-sided or two-sided. This should be confirmed for the exact production grade, particularly for outdoor installation.
Can UV-stabilized PC sheet be used outdoors?
A suitable UV-protected PC grade can be used for exterior applications. Final suitability depends on UV exposure, climate, thickness, installation and project requirements.
Is UV-stabilized the same as scratch resistant?
No. UV stabilization is intended to improve weathering performance, while abrasion or scratch resistance generally requires a different surface treatment or hard-coated grade.
Can polycarbonate sheet be used for machine guards?
Yes, solid clear PC is commonly used for machine guards and equipment windows. Thickness and mounting design should be selected according to the panel size, impact requirement and applicable safety standard.
Can the sheet be cut, drilled or bent?
Yes. HSQY lists cutting, engraving, bending, punching, polishing and other fabrication capabilities. Processing parameters should be matched to the sheet thickness and finished-part design.
Can UV polycarbonate sheet be thermoformed?
HSQY lists thermoforming as an available processing capability. Confirm the starting thickness, mold geometry, draw depth and UV-layer requirements before forming.
Is this sheet suitable for medical applications?
Only an appropriate medical-grade PC material with the required regulatory documentation should be used for medical applications. General ISO, ROHS, SGS, CE or REACH documents do not automatically make every PC sheet medical grade.
What information should I provide for a quotation?
Provide the required thickness, dimensions, color, UV configuration, optical requirement, fabrication process, application, quantity, destination and required technical documents.
Request UV Polycarbonate Sheet Pricing
About HSQY Plastic Group
HSQY Plastic Group supplies polycarbonate sheets and customized PC processing services for international B2B construction, industrial, protective glazing and fabrication projects.
Processing capabilities listed in the current product information include engraving, bending, precision cutting, punching, polishing, bonding, thermoforming, UV flatbed printing and screen printing.
For UV-stabilized crystal clear PC sheet projects, provide your thickness, dimensions, UV requirements, color, fabrication process, quantity and destination so the appropriate production specification can be confirmed.
Contact HSQY for Samples and Pricing
