Transparent Polycarbonate Sheet 4mm 6mm 10mm 16mm 25mm
HSQY transparent polycarbonate sheet is a solid PC material designed for glazing, construction, greenhouse panels, equipment protection and industrial fabrication applications requiring high transparency and impact resistance.
The current product range covers thicknesses from 1mm to 50mm, with 4mm, 6mm, 10mm, 16mm and 25mm as the standard featured thicknesses. Standard sheet size is 1220 × 2440mm, with customizable lengths available according to project requirements.
Available colors include clear, blue, green, opal, brown and grey, with customized colors also available. Buyers should specify whether the application requires indoor general-purpose PC or a UV-protected grade for long-term exterior exposure.
The sheet can be processed by cutting, engraving, bending, drilling, punching, polishing, bonding, thermoforming, UV printing and screen printing according to the current HSQY production capabilities.
Request Polycarbonate Sheet Pricing Request a PC Sheet Sample
Transparent Polycarbonate Sheet Product Display
Polycarbonate Sheet for Greenhouse
![Polycarbonate Sheet for Construction]()

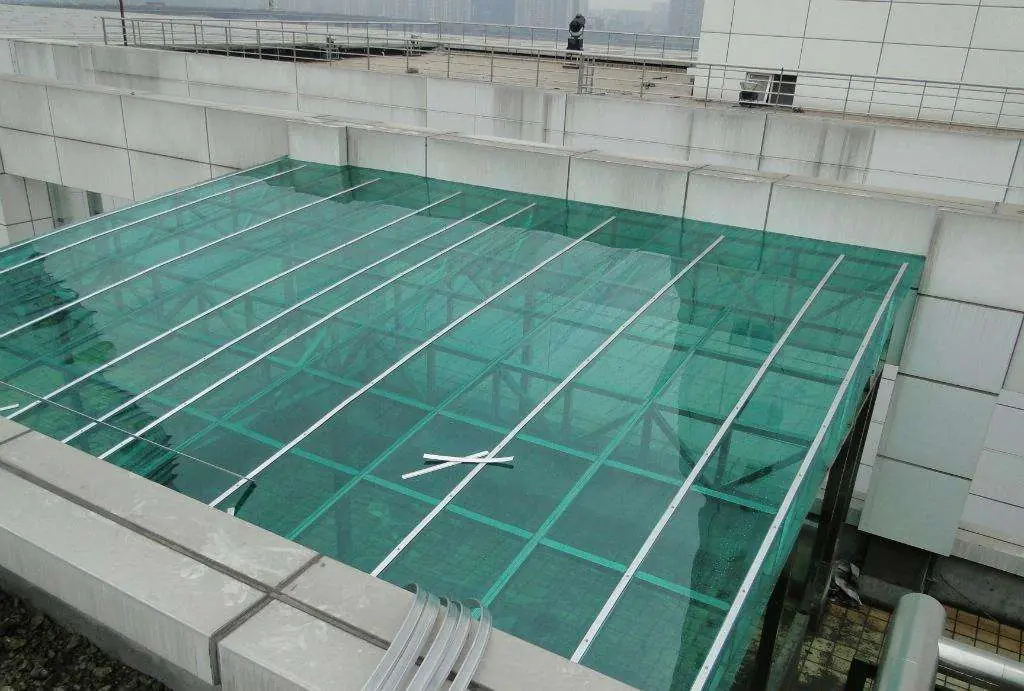

Polycarbonate Sheet Applications
Transparent Polycarbonate Sheet Specifications
| Property |
Details |
| Product Name |
Transparent Polycarbonate Sheet |
| Material |
Polycarbonate (PC) |
| Thickness Range |
1mm–50mm |
| Featured Thicknesses |
4mm, 6mm, 10mm, 16mm, 25mm |
| Maximum Width |
1220mm |
| Length |
Customizable |
| Standard Size |
1220 × 2440mm |
| Colors |
Clear, Blue, Green, Opal, Brown, Grey, Customizable |
| Processing Options |
Cutting, Engraving, Bending, Drilling, Punching, Polishing, Bonding, Thermoforming, UV Printing, Screen Printing |
| Main Applications |
Glazing, Greenhouses, Construction, Equipment Guards, Industrial Panels, Electronics and Fabricated Parts |
| Listed Documents |
ISO, ROHS, SGS, CE, REACH Document |
Final thickness tolerance, dimensions, color, optical transmission, UV protection and mechanical performance should be confirmed for the exact PC grade before bulk production or engineering approval.
Send Your PC Sheet Specifications
4mm vs 6mm vs 10mm vs 16mm vs 25mm Polycarbonate Sheet
Polycarbonate sheet thickness affects panel weight, rigidity, light transmission, bending behavior, machining requirements and structural performance. The correct thickness should therefore be selected according to the finished application rather than by price alone.
| Thickness |
General Purchasing Consideration |
| 4mm |
Relatively lightweight sheet for glazing, covers, signs and fabricated panels where lower thickness is acceptable |
| 6mm |
Additional rigidity for glazing, machine guards, partitions and selected construction applications |
| 10mm |
Greater panel stiffness for larger panels, equipment guards and projects with higher structural requirements |
| 16mm |
Thicker solid panel for applications requiring increased rigidity, mass and impact margin |
| 25mm |
Heavy-duty solid PC sheet for demanding fabricated or protective applications subject to engineering validation |
HSQY also lists thicknesses from 1mm up to 50mm. Availability of every thickness, color and size combination should be confirmed before quotation.
Light Transmission and Optical Clarity
Clear solid polycarbonate is selected for applications requiring visibility and daylight transmission. Optical performance varies with thickness, color, UV layer, surface condition and exact PC grade.
Buyers should not assume that 4mm, 10mm and 25mm sheets have exactly the same light transmission. When optical performance is critical, specify the required transmission, haze, color and approved visual standard before production.
Clear, tinted and opal colors will also provide different levels of light transmission and diffusion, so architectural and greenhouse projects should select color together with thickness.
UV-Protected Polycarbonate Sheet for Outdoor Use
Outdoor glazing requires more than general-purpose transparent polycarbonate. For greenhouse, roofing, facade or exterior-panel projects, buyers should confirm whether the required product includes an appropriate UV-protective layer.
UV protection can be supplied on one side or both sides depending on material grade and application. The protected side must be installed according to the product specification where single-side UV protection is used.
For long-term exterior projects, specify the climate, UV exposure, panel orientation, required warranty or service life and applicable project standard before material approval.
Key Features of Transparent Polycarbonate Sheet
High Impact Strength: Polycarbonate is widely selected where higher impact resistance is required than conventional glazing materials. Exact impact performance should be confirmed from the applicable material data sheet when engineering values are required.
High Transparency: Clear PC provides good light transmission for glazing, protective panels and transparent equipment applications. Actual transmission decreases or changes with thickness, tint and surface specification.
Wide Temperature Capability: The existing HSQY product information lists service performance from approximately -40°C to +120°C. Project-specific temperature limits should be confirmed against the exact PC grade and loading conditions.
Weather Resistance: UV-protected PC grades can be used in suitable exterior applications. Long-term weathering performance depends on UV configuration, climate, installation and sheet grade.
Dimensional Stability: Polycarbonate provides useful dimensional stability for fabricated panels and industrial parts, while thermal expansion should still be allowed for in large glazing installations.
Fabrication Capability: The current HSQY production program includes engraving, bending, cutting, punching, polishing, bonding, thermoforming, UV printing and screen printing.
Polycarbonate Sheet for Greenhouse and Construction
Transparent polycarbonate can be used for selected greenhouse glazing, architectural panels, partitions and other construction applications where daylight transmission and impact resistance are required.
For construction projects, sheet selection should consider thickness, panel dimensions, supporting-frame spacing, wind load, thermal expansion, fixing method, UV exposure and required building standards.
Where thermal insulation is the primary requirement, buyers should also compare solid polycarbonate with multiwall polycarbonate because the two constructions provide different structural and thermal performance.
Polycarbonate Sheet for Machine Guards and Industrial Panels
Solid PC sheet can be used for transparent machine guards, equipment windows, protective covers and industrial panels where operators need visibility together with impact-resistant protection.
For machine-guard applications, provide the required thickness, panel size, impact level, operating temperature, chemical exposure, mounting system and applicable safety standard when requesting a quotation.
Fabrication and Processing
| Process |
Project Consideration |
| Precision Cutting |
Provide finished dimensions, tolerance and edge-quality requirement |
| Engraving |
Confirm engraving depth, visual result and selected surface |
| Drilling / Punching |
Hole diameter, edge distance and mounting loads should be considered |
| Cold Bending |
Minimum bend radius depends on sheet thickness and exact PC grade |
| Thermoforming |
Confirm heating, forming depth, mold geometry and final wall-thickness requirements |
| Bonding |
Use an adhesive compatible with polycarbonate and the adjoining substrate |
| UV / Screen Printing |
Ink compatibility and adhesion should be validated before bulk production |
Applications of Transparent Polycarbonate Sheet
| Application |
Typical Use |
| Construction |
Transparent glazing, partitions, architectural panels and selected exterior projects |
| Greenhouses |
Transparent glazing where an appropriate UV-protected grade is specified |
| Machine Guards |
Transparent protective panels, equipment windows and safety covers |
| Electronic Equipment |
Selected insulating and protective components according to grade requirements |
| Mechanical Equipment |
Housings, covers, guards and fabricated engineering components |
| Medical Equipment |
Selected components only where the required medical-grade material and regulatory documentation are confirmed |
| Printing and Display |
UV printing, screen printing, display panels and fabricated visual components |
Discuss Your Polycarbonate Sheet Project
What Buyers Should Confirm Before Ordering
| Purchasing Requirement |
Information to Provide |
| Application |
Glazing, greenhouse, machine guard, partition, equipment panel or other use |
| Thickness |
4mm, 6mm, 10mm, 16mm, 25mm or other thickness within the available range |
| Sheet Size |
1220 × 2440mm or required customized length |
| Color |
Clear, blue, green, opal, brown, grey or customized color |
| Optical Requirement |
Required light transmission, haze, tint or approved visual sample |
| UV Protection |
Indoor, one-side UV, two-side UV or other project requirement |
| Structural Requirement |
Panel span, frame spacing, wind load, impact requirement and deflection limit |
| Fabrication |
Cutting, drilling, bending, thermoforming, bonding, printing or other processing |
| Fire Requirement |
Required fire test standard and classification where applicable |
| Compliance Documents |
REACH, ROHS, SGS, CE or other project-specific documentation |
| Quantity |
Trial order, project quantity and expected repeat demand |
| Destination |
Country, port and required delivery schedule |
Get a Polycarbonate Sheet Quote
Resources and Compliance Documents
The existing product information also lists ISO, ROHS, SGS and CE. Buyers should confirm which report, declaration or certificate applies to the exact PC sheet grade, thickness, color and destination market.
REACH and ROHS documents address specific regulatory requirements and should not automatically be interpreted as certification of impact strength, UV life, fire rating, food contact or medical suitability.
Frequently Asked Questions About Transparent Polycarbonate Sheet
What is a solid transparent polycarbonate sheet?
It is a solid thermoplastic PC panel used for transparent glazing, machine guards, industrial covers, partitions and construction applications where high impact resistance and visibility are required.
What thicknesses are available?
The existing HSQY specification lists a range from 1mm to 50mm. Featured standard thicknesses on this product page are 4mm, 6mm, 10mm, 16mm and 25mm.
What is the standard sheet size?
The current product specification lists a standard size of 1220 × 2440mm, a maximum width of 1220mm and customizable length.
Which is better: 4mm, 6mm or 10mm polycarbonate?
There is no single best thickness. 4mm provides lower weight, while 6mm and 10mm provide progressively greater panel thickness and rigidity. Selection should be based on panel dimensions, framing, loading, impact requirements and the finished application.
Are 16mm and 25mm sheets solid polycarbonate?
This product description identifies the material as transparent polycarbonate sheet with thicknesses including 16mm and 25mm. Buyers should confirm solid-sheet construction for the exact production order because HSQY also supplies other PC sheet constructions.
Is clear polycarbonate suitable for outdoor use?
Outdoor use requires an appropriate UV-protected PC grade. Confirm whether the required product has one-side or two-side UV protection and verify the outdoor performance requirements before ordering.
Does thicker polycarbonate transmit less light?
Light transmission can vary with thickness, color and material grade. Buyers requiring a defined optical value should request technical data for the specific thickness rather than applying one transparency value to every sheet.
Can polycarbonate sheet be used for greenhouse glazing?
Greenhouse glazing is listed as an application. For exterior greenhouse use, select an appropriate UV-protected PC grade and confirm the required thickness, light transmission, panel support and local structural requirements.
Can solid PC sheet be cold bent?
Suitable solid polycarbonate can be cold curved within the permitted bend radius. The minimum radius depends on sheet thickness and grade, so confirm the technical recommendation before installation.
Can polycarbonate sheet be cut and drilled?
Yes. HSQY lists precision cutting, engraving, punching and other fabrication capabilities. Tooling, feed rate, hole position and edge quality should be matched to sheet thickness and finished-part requirements.
Can polycarbonate sheet be thermoformed?
The existing HSQY processing capabilities include thermoforming. Provide the starting thickness, mold geometry, draw depth and finished wall-thickness requirement when requesting formed parts.
Is polycarbonate sheet lighter than glass?
Yes. Solid polycarbonate is substantially lighter than an equivalent glass panel, which can simplify handling and installation. Final panel weight depends on sheet thickness and dimensions.
What colors are available?
The current product specification lists clear, blue, green, opal, brown and grey, together with customizable colors.
Is every polycarbonate sheet medical grade?
No. Medical applications require an appropriate PC grade and application-specific regulatory documentation. The presence of general ISO, SGS, ROHS, CE or REACH documents should not be treated as proof that every sheet is medical grade.
Can I request a sample?
The existing product information states that samples are available, with freight covered by the buyer. Provide the required thickness, color and application when requesting a sample.
What information should I provide for a quotation?
Provide the required thickness, sheet dimensions, color, UV requirement, application, fabrication requirements, quantity, destination and required compliance or engineering documents.
Request Transparent PC Sheet Pricing
About HSQY Plastic Group
HSQY Plastic Group supplies transparent polycarbonate sheets and other plastic sheet materials to international B2B customers for construction, glazing, equipment protection, electronics and industrial fabrication.
HSQY provides processing services including precision cutting, engraving, bending, punching, polishing, bonding, thermoforming, UV printing and screen printing according to project requirements.
For 4mm, 6mm, 10mm, 16mm or 25mm transparent PC sheet projects, provide the required dimensions, color, UV configuration, fabrication process, quantity and destination so the appropriate material specification can be confirmed.
