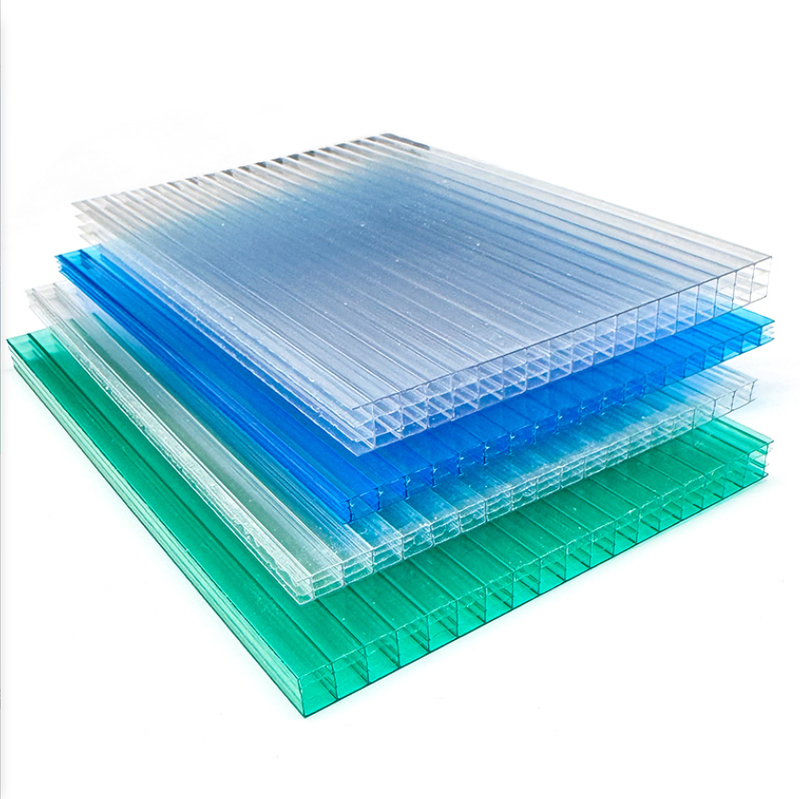

HSQY Multiwall Roof Panels Honeycomb Polycarbonate Plastic Sheet

HSQY multiwall polycarbonate sheets in twinwall, triplewall and honeycomb structures for roofing, greenhouses and skylights. 4–16mm thicknesses, widths up to 2100mm, UV protection and custom colors.
  • HSQY

  • Polycarbonate Sheet

  • Clear, Colored

  • 1.2 - 12 mm

  • 1220,1560, 1820, 2150 mm

Availability:

Multiwall Polycarbonate Sheet

Multiwall Polycarbonate Sheet Video

Multiwall Polycarbonate Sheets for Roofing, Greenhouses and Architectural Glazing

HSQY Plastic Group supplies multiwall polycarbonate sheets for greenhouse construction, roofing, skylights, carports, covered walkways, architectural glazing and industrial applications. Available structures include twinwall, triplewall and honeycomb designs, offering different combinations of light transmission, thermal insulation, weight and structural performance.

Manufactured from polycarbonate (PC), these hollow-structure sheets provide a lightweight alternative to solid glazing materials. Internal air channels help reduce heat transfer while allowing natural light to pass through. The multiwall construction also provides useful rigidity for roofing and glazing systems.

HSQY offers multiwall polycarbonate sheets in thicknesses from 4mm to 16mm, with a listed maximum width of 2100mm. Available colors include clear, blue, green, bronze and opal. Custom colors, sheet dimensions and structures can be discussed according to project requirements.

Selected products feature a co-extruded UV-protective layer designed to reduce ultraviolet exposure and help maintain long-term outdoor performance. The listed product specification includes a 10-year UV warranty, subject to the applicable product grade and warranty conditions.

Whether you are a greenhouse manufacturer, roofing contractor, building material distributor or architectural glazing company, HSQY can discuss suitable multiwall polycarbonate specifications for your project.

Request a Polycarbonate Sheet Quotation

Multiwall Polycarbonate Sheet Product Images

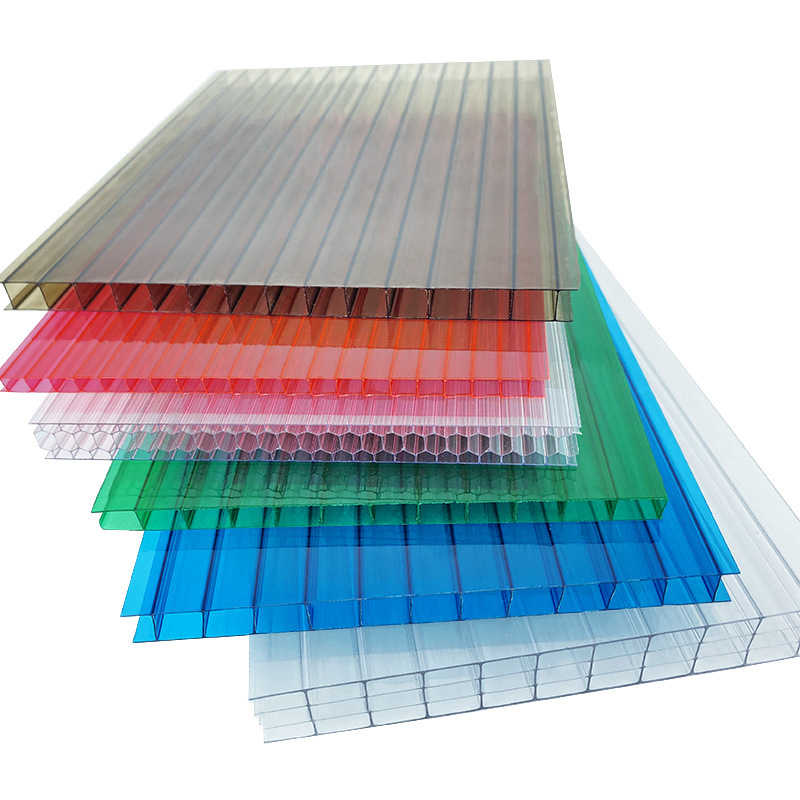

Multiwall polycarbonate hollow sheet cross-sectional structure

Multiwall Polycarbonate Hollow Structure

Honeycomb structure polycarbonate plastic sheet

Honeycomb Polycarbonate Sheet

Polycarbonate multiwall sheet used for roofing applications

Multiwall Polycarbonate Roofing Application

Greenhouse covered with transparent multiwall polycarbonate panels

Polycarbonate Greenhouse Glazing

Multiwall Polycarbonate Sheet Specifications

HSQY multiwall polycarbonate sheets are available in different thicknesses, structures and colors for roofing and glazing projects. The following table summarizes the listed product range. Actual availability and technical values should be confirmed for each selected specification.

Property Specification
Product Multiwall Polycarbonate Sheet
Material Polycarbonate (PC)
Structures Twinwall, Triplewall, Honeycomb
Thickness 4–16mm
Maximum Listed Width 2100mm
Sheet Length Custom length available, subject to production capability
Colors Clear, Blue, Green, Bronze, Opal and Custom Colors
Light Transmission Up to 80%, depending on thickness, structure and color
UV Protection Co-extruded UV Protective Layer Available
Warranty Listed 10-Year UV Warranty, subject to product-specific terms
Thermal Performance Improved insulation through hollow multiwall construction
Applications Greenhouses, Roofing, Skylights, Carports, Architectural Glazing and Noise Barriers
Minimum Order Quantity 1000 sqm, subject to confirmation

What Is Multiwall Polycarbonate Sheet?

Multiwall polycarbonate sheet is a hollow-structured thermoplastic panel made from polycarbonate resin. Unlike solid polycarbonate sheets, multiwall panels contain internal air channels or supporting ribs between their outer surfaces.

These internal chambers reduce material weight and help improve thermal insulation. The sheet structure also provides rigidity for applications such as greenhouse glazing, roofing, skylights and covered outdoor structures.

Multiwall polycarbonate panels are available in different configurations. Twinwall panels typically have two outer walls connected by internal ribs, while triplewall and honeycomb structures use additional internal support arrangements.

Types of Multiwall Polycarbonate Structures

Twinwall Polycarbonate Sheet

Twinwall polycarbonate consists of two outer layers connected by internal ribs, creating parallel hollow channels. This structure provides a practical balance of low weight, light transmission and thermal insulation.

Typical applications include greenhouse roofing, garden structures, skylights, covered walkways and residential roofing systems.

Triplewall Polycarbonate Sheet

Triplewall polycarbonate panels contain additional internal layers and supporting ribs compared with standard twinwall construction. The extra internal structure can improve panel stiffness and thermal insulation, depending on the design and thickness.

They are used in larger roofing systems, commercial greenhouses, skylights and architectural glazing projects where additional rigidity and insulation are required.

Honeycomb Polycarbonate Sheet

Honeycomb polycarbonate sheets feature a more complex internal cell structure designed to provide structural support while maintaining relatively low weight. The internal geometry helps distribute loads across the panel.

Honeycomb structures can be considered for architectural roofing, large glazing panels, industrial covers and other projects requiring specific structural and insulation characteristics.

Structure Construction Typical Applications
Twinwall Two outer walls with parallel internal ribs Greenhouses, skylights and general roofing
Triplewall Three-wall construction with additional internal support Commercial roofing and insulated glazing
Honeycomb Multi-cell internal support structure Architectural glazing and specialized roofing

Key Advantages of Multiwall Polycarbonate Sheets

  • Lightweight Construction: Hollow internal structures reduce panel weight compared with solid glazing materials of similar dimensions.

  • Thermal Insulation: Internal air chambers help reduce heat transfer and support energy-efficient building designs.

  • Natural Light Transmission: Clear and translucent panels allow daylight into greenhouses, roofing systems and architectural spaces.

  • Impact Resistance: Polycarbonate is an engineering thermoplastic known for its high impact resistance.

  • UV Protection: Co-extruded UV protective layers are available to help reduce ultraviolet degradation.

  • Structural Rigidity: Internal ribs and multiwall configurations provide support for roofing and glazing applications.

  • Weather Resistance: Suitable UV-protected grades can be used in outdoor applications when correctly installed.

  • Custom Options: Different thicknesses, colors, structures and dimensions can be specified for project requirements.

Multiwall Polycarbonate Sheet Light Transmission

Light transmission is an important factor when selecting polycarbonate sheets for greenhouses, skylights and daylighting systems. It determines how much visible light passes through the panel and reaches the space below.

Clear polycarbonate generally provides higher light transmission, while opal, bronze and colored sheets can reduce direct sunlight and provide different levels of shading. Actual light transmission depends on thickness, internal structure, color and surface treatment.

Color Light Characteristics Typical Applications
Clear High natural light transmission Greenhouses, skylights and transparent roofing
Opal Diffused light with reduced direct glare Canopies, daylighting and covered spaces
Bronze Reduced light transmission and solar shading Carports, patios and architectural roofing
Blue Colored light transmission Decorative and specialized glazing
Green Colored light transmission Decorative and selected agricultural applications

The listed maximum light transmission is up to 80%. Please request a technical datasheet for the exact light transmission value of your selected thickness, color and structure.

UV Protected Multiwall Polycarbonate Sheets

Long-term sunlight exposure can affect the appearance and mechanical properties of polycarbonate. UV-protected multiwall sheets use a specially formulated protective surface layer to help reduce ultraviolet degradation and maintain outdoor performance.

The UV layer is co-extruded onto the polycarbonate substrate during manufacturing. This creates an integrated protective surface rather than relying only on an externally applied coating.

For outdoor roofing, greenhouse glazing and skylight applications, buyers should confirm which side of the sheet contains the UV-protective layer. Installation must follow the manufacturer's instructions to ensure that the protected side faces the correct direction.

The listed HSQY product specification includes a 10-year UV warranty. Warranty coverage, permitted applications, installation requirements and performance conditions should be confirmed for the specific product before purchase.

Thermal Insulation Performance

Multiwall polycarbonate sheets provide thermal insulation through their internal air chambers. The hollow structure reduces direct heat transfer compared with a single solid sheet of similar material, making it useful for greenhouse covers and building glazing systems.

Thermal performance varies with sheet thickness, internal structure, air-channel geometry and installation conditions. Thicker and more complex multiwall configurations can generally provide improved insulation, but actual U-values should be obtained from the technical datasheet of the selected product.

For projects with specific energy-efficiency requirements, request thermal transmittance data and evaluate the complete glazing system, including supporting profiles, joints and sealing details.

Applications of Multiwall Polycarbonate Sheets

Greenhouse Roofing and Agricultural Glazing

Multiwall polycarbonate is widely used in greenhouse construction because it combines natural light transmission with thermal insulation. The hollow structure helps maintain a more stable indoor environment while allowing daylight to reach plants.

Clear and diffused panels can be selected according to crop requirements, climate conditions and greenhouse design. Sheet thickness and structure should be selected according to wind loads, support spacing and local installation standards.

Commercial and Residential Roofing

Multiwall PC sheets are suitable for selected commercial and residential roofing systems, including covered walkways, patio roofs, entrance canopies and outdoor shelters. Their relatively low weight helps simplify material handling and installation.

Skylights and Architectural Glazing

Architects and building contractors use multiwall polycarbonate for skylights, roof lights and translucent architectural elements. The material allows natural light to enter buildings while the internal structure provides insulation.

Carports and Covered Parking Areas

Bronze, opal and clear polycarbonate sheets can be used for carports and parking shelters. Color selection helps control light transmission and visual appearance while the sheet structure provides a lightweight roofing solution.

Industrial Roofing and Noise Barriers

Multiwall polycarbonate can be considered for industrial daylighting panels, translucent roof sections and selected noise barrier systems. For acoustic applications, sound transmission and structural performance must be verified against project-specific requirements.

Swimming Pool Covers and Outdoor Enclosures

Selected multiwall polycarbonate grades are suitable for evaluation in swimming pool enclosures, sunrooms and covered outdoor spaces where light transmission and insulation are required.

How to Choose the Right Multiwall Polycarbonate Thickness

The appropriate thickness depends on the panel span, supporting structure, local wind and snow loads, thermal insulation requirements and installation method. A thicker sheet does not automatically guarantee suitability for every roofing project.

Thickness Common Structure Potential Applications
4mm Twinwall Lightweight glazing and small greenhouse structures
6mm Twinwall Greenhouses and residential roofing
8mm Twinwall or other available structures Roofing, skylights and covered walkways
10mm Twinwall or Triplewall Greenhouses and commercial roofing
16mm Triplewall or Honeycomb Architectural glazing and projects requiring higher insulation

The structure options above are general selection guidance, not a guarantee that every combination is available. Confirm the actual structure, weight, load capacity and thermal data before specifying the material.

Installation Guide for Multiwall Polycarbonate Roofing

Install the UV-Protected Side Correctly

Before installation, identify the UV-protected surface using the manufacturer's protective film markings or installation instructions. Position the UV-protected side toward the sun as specified for the product.

Align the Internal Channels

For most multiwall roofing applications, internal channels should run in the direction recommended by the manufacturer, generally toward the lower edge of sloped panels to support drainage and ventilation.

Use Suitable Profiles and Sealing Accessories

Use compatible H-profiles, U-profiles, edge sealing tapes, gaskets and fastening systems. Appropriate accessories help protect the internal channels from dust, insects and moisture while supporting correct panel installation.

Allow for Thermal Expansion

Polycarbonate expands and contracts with temperature changes. Allow appropriate expansion gaps and avoid overtightening fasteners. Hole sizes, fastening distances and support spacing should follow the product installation guide.

Protect the Sheet Surface During Installation

Keep protective film in place during handling and installation where appropriate. Avoid dragging sheets across rough surfaces and remove protective film according to the manufacturer's instructions.

Quality and Product Certifications

For commercial and architectural applications, buyers should evaluate product specifications, manufacturing consistency and relevant technical documentation. Depending on the project, required information may include sheet thickness, weight, light transmission, UV protection, impact performance and fire test results.

HSQY Plastic Group quality certificates and documentation

Please request the applicable test reports and certificates for the selected polycarbonate grade if your project requires specific building, fire safety or weathering standards.

Wholesale Multiwall Polycarbonate Sheets from HSQY

HSQY Plastic Group supplies multiwall polycarbonate sheets for international distributors, greenhouse manufacturers, roofing contractors, construction material wholesalers and industrial buyers.

The product range includes different sheet thicknesses, hollow structures and colors for a variety of glazing and roofing requirements. Buyers can discuss customized dimensions and product specifications according to manufacturing availability.

For an accurate quotation, please provide the following information:

  • Required thickness: 4mm, 6mm, 8mm, 10mm or 16mm

  • Structure: Twinwall, Triplewall or Honeycomb

  • Sheet width and length

  • Color: Clear, Blue, Green, Bronze or Opal

  • UV protection requirements

  • Estimated order quantity in square meters

  • Intended application and installation environment

  • Delivery destination and required documentation

The listed minimum order quantity is 1000 sqm. Please confirm the MOQ for your selected structure, color and thickness before placing an order.

Get Wholesale Pricing and Technical Data

Global Exhibitions

HSQY Plastic Group participates in international exhibitions to connect with customers, distributors and manufacturers from different markets.

HSQY 2017 Shanghai Exhibition

2017 Shanghai Exhibition

HSQY 2018 Shanghai Exhibition

2018 Shanghai Exhibition

HSQY 2023 Saudi Exhibition

2023 Saudi Exhibition

HSQY 2023 American Exhibition

2023 American Exhibition

HSQY 2024 Australian Exhibition

2024 Australian Exhibition

HSQY 2024 American Exhibition

2024 American Exhibition

HSQY 2024 Mexico Exhibition

2024 Mexico Exhibition

HSQY 2024 Paris Exhibition

2024 Paris Exhibition

Frequently Asked Questions About Multiwall Polycarbonate Sheets

What is a multiwall polycarbonate sheet?

A multiwall polycarbonate sheet is a lightweight plastic panel with hollow internal chambers and supporting ribs. Its structure combines light transmission, rigidity and improved thermal insulation for roofing and glazing applications.

What is the difference between twinwall and triplewall polycarbonate?

Twinwall sheets have two outer walls connected by internal ribs, while triplewall sheets contain additional internal layers. Triplewall construction can provide greater rigidity and improved insulation depending on the thickness and design.

What is honeycomb polycarbonate sheet used for?

Honeycomb polycarbonate sheets use a multi-cell internal structure for lightweight support and rigidity. They can be considered for architectural glazing, specialized roofing and other applications requiring particular structural characteristics.

What thicknesses are available?

The listed HSQY multiwall polycarbonate sheet range covers 4mm to 16mm. Available structures and thickness combinations should be confirmed when requesting a quotation.

What is the maximum sheet width?

The listed maximum sheet width is 2100mm. Custom dimensions can be discussed according to the production requirements and selected product structure.

What colors are available?

Available colors include clear, blue, green, bronze and opal. Custom color requirements can be discussed with HSQY.

How much light can multiwall polycarbonate sheets transmit?

The listed product range offers light transmission of up to 80%. The actual value depends on thickness, structure, color and surface treatment. Please request the relevant technical datasheet for exact figures.

Are multiwall polycarbonate sheets UV protected?

UV-protected grades are available with a co-extruded protective layer. This layer helps reduce ultraviolet degradation during outdoor use. Confirm the UV protection specification and installation direction before ordering.

Do multiwall polycarbonate sheets come with a 10-year warranty?

The supplied product information lists a 10-year UV warranty. Actual coverage, performance conditions and exclusions depend on the specific grade and warranty documentation. Please request confirmation before purchase.

Are polycarbonate multiwall sheets suitable for greenhouses?

Yes. Multiwall polycarbonate sheets are commonly used for greenhouse glazing because they provide natural light transmission and thermal insulation. The appropriate thickness, color and structure depend on the greenhouse design and local climate.

Can multiwall polycarbonate sheets be used for outdoor roofing?

Yes. Suitable UV-protected grades can be used for outdoor roofing, skylights, carports and covered walkways. Correct support spacing, expansion allowances, sealing and fastening are essential.

Are multiwall polycarbonate sheets impact resistant?

Polycarbonate is known for its high impact resistance compared with many conventional glazing materials. Actual impact performance depends on sheet thickness, structure, temperature, support conditions and test method. For hail-prone projects, request grade-specific impact test data.

Can multiwall polycarbonate sheets be cut and bent?

Multiwall sheets can generally be cut using suitable tools and fabrication procedures. Cold bending may be possible within the manufacturer's specified minimum radius. Do not bend sheets across internal channels or beyond the recommended radius.

What accessories are required for installation?

Typical installation systems use compatible H-profiles, U-profiles, edge sealing tapes, gaskets and suitable fasteners. The exact accessories depend on sheet thickness, structure and roofing design.

What is the minimum order quantity?

The supplied product information lists an MOQ of 1000 square meters. Please confirm the final MOQ for your selected thickness, structure and color.

Are free samples available?

Sample availability can be discussed with HSQY. Please specify the required thickness, structure and color. Sample shipping arrangements and costs should be confirmed before dispatch.

How can I get a quotation for multiwall polycarbonate sheets?

Send your required thickness, structure, width, length, color, UV protection requirements, order quantity and delivery destination through the HSQY contact page. Our team can then confirm the suitable product specifications and quotation.

About HSQY Plastic Group

HSQY Plastic Group is a China-based plastic material supplier serving international manufacturers, distributors and commercial buyers. Our product portfolio includes polycarbonate sheets, PVC sheets, PET sheets, PP sheets and other plastic materials for industrial, construction, packaging and commercial applications.

We provide multiwall polycarbonate sheet options in different thicknesses, structures and colors for greenhouse manufacturers, roofing contractors, architectural projects and building material distributors.

Contact HSQY Plastic Group to discuss your multiwall polycarbonate requirements, request technical information and obtain a wholesale quotation.

Contact HSQY for Bulk Orders

Previous:
Next:

Product Category

START AN INFORMED RFQ

Let’s Find the Right Plastic Solution

Looking for plastic sheets, films, food packaging, or a customized solution? Tell us your material, size, quantity, and application requirements. Our team will help you select the right product and provide a competitive quote.
√  Application and conversion process
√ Thickness, width and roll format
√ Color, clarity and surface finish
√ Function, documents, quantity and destination
Request Our Best Quotation
Request Our Best Quotation

Our materials experts will help identify the right solution for your application, put together a quote and a detailed timeline.

Plastic Sheet

Trays

Lidding Films

Support

© COPYRIGHT  2026 HSQY PLASTIC GROUP ALL RIGHTS RESERVED.
