Flexible PVC Film for Screen Printing & Packaging

HSQY Flexible PVC Film is a soft vinyl roll material for screen printing, printed packaging bags, zipper pouches, promotional products and other converted applications requiring a flexible printable PVC substrate.

The HSQY PVC printing-film range covers approximately 0.05mm to 1.50mm thickness, with custom roll widths, normal-clear, super-clear, translucent and colored options, together with smooth, glossy and matte surfaces.

For screen-printing projects, buyers should provide the ink system, printing conditions, required film thickness, softness, surface finish, roll specification and any downstream cutting, welding, sealing or bag-making requirements before the final material grade is approved.

Request Screen Printing PVC Film Quote

Flexible PVC Film Video

Screen Printing PVC Film Images

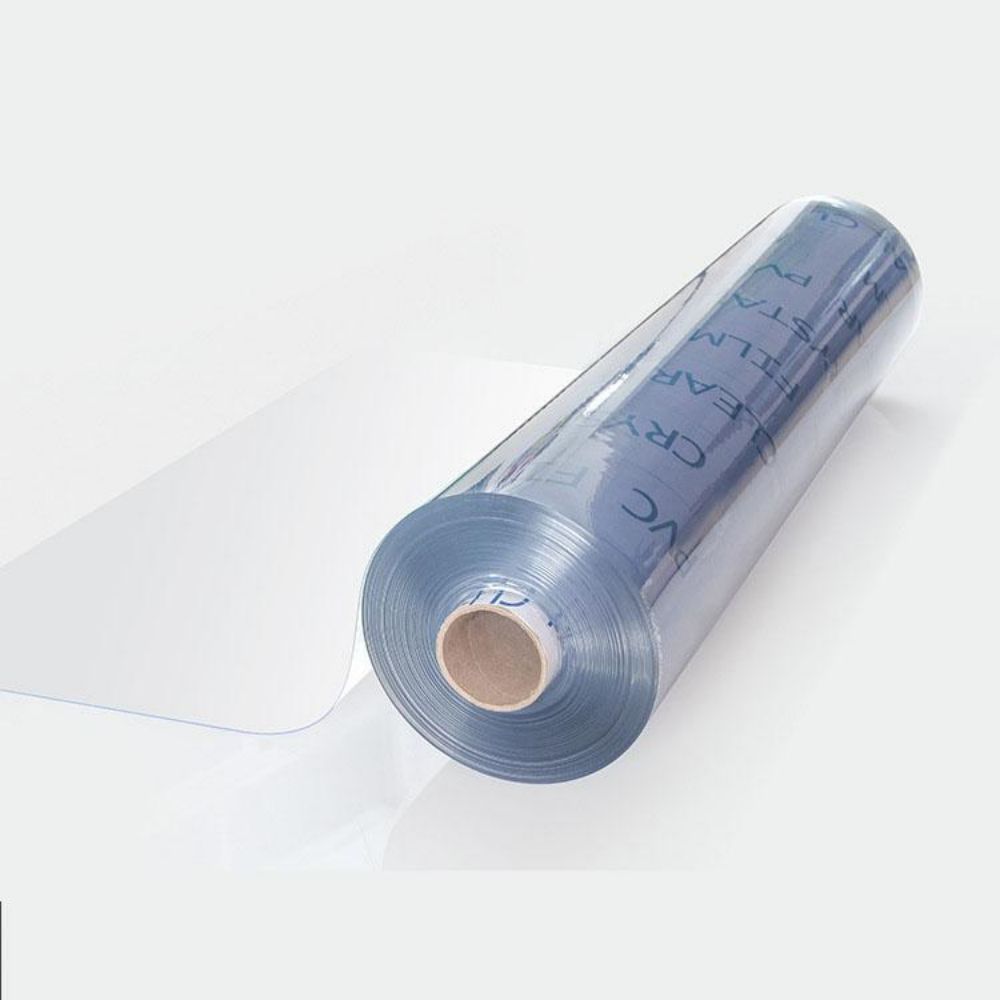

PVC Screen Printing Film Roll

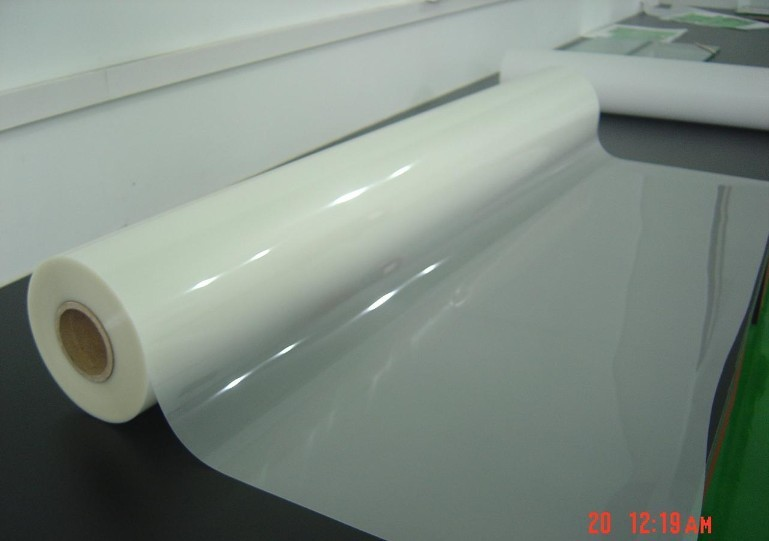

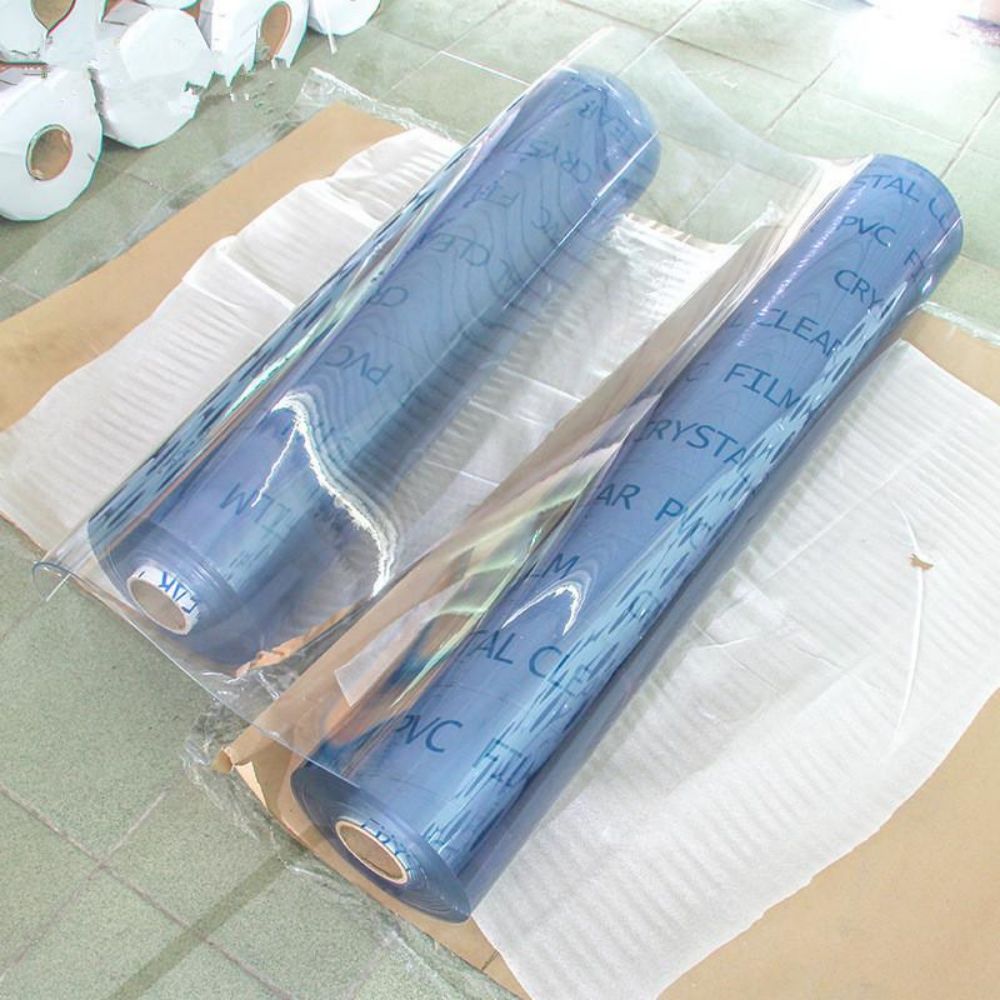

Clear PVC Printing Roll

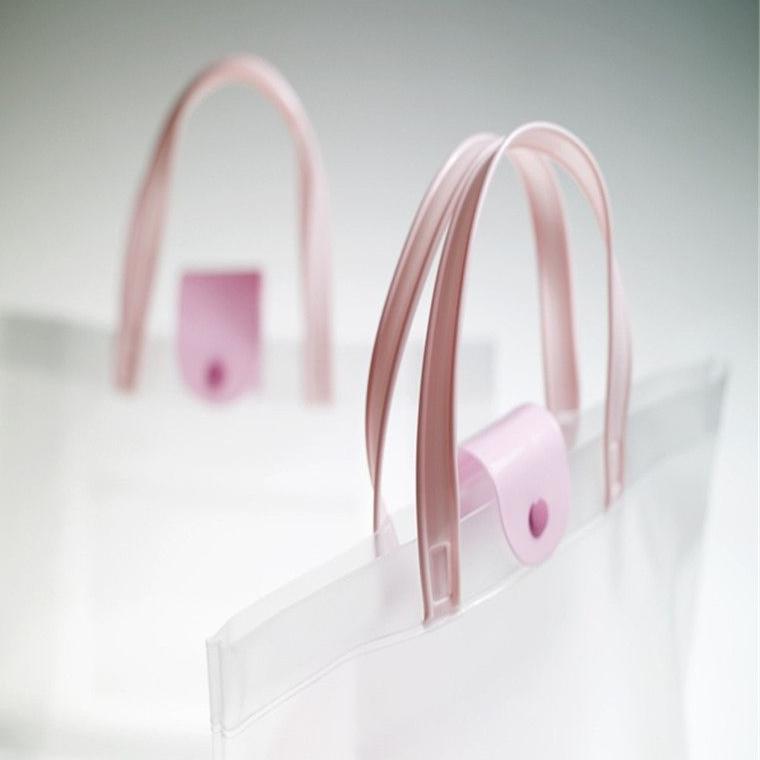

PVC Bag Application

Screen Printing PVC Film Specifications

What Is Flexible PVC Film for Screen Printing?

Flexible PVC screen printing film is a soft vinyl substrate supplied in rolls or sheets for printing with compatible screen-printing inks and subsequent fabrication.

The printing process transfers ink through a patterned screen onto the PVC surface. The finished result depends on the interaction between the film surface, ink chemistry, ink deposit, drying or curing conditions and subsequent handling.

For packaging and bag applications, screen printing is only one part of the production process. The film may later be cut, folded, welded, sealed, sewn or assembled with zippers and other components.

PVC Base Film vs. Self-Adhesive Screen Print Vinyl

If your application requires adhesive backing, release liner or static-cling performance, include that construction in the inquiry so the material requirement can be reviewed separately.

Screen Printing Ink Compatibility

Different screen-printing inks use different resin systems, solvents, curing methods and adhesion mechanisms. Ink compatibility should therefore be verified using the actual production ink.

For plasticized flexible PVC, the selected ink system should be suitable for flexible vinyl and should remain compatible with the required film formulation and finished-product flexibility.

For new projects, print a production-representative sample and evaluate adhesion, curing, color appearance and flexibility before approving the film for bulk production.

Surface Energy and Surface Preparation

Ink must wet the PVC surface sufficiently to produce consistent graphics and stable adhesion.

If the selected screen-printing ink requires a defined surface-energy level, primer, corona treatment or other surface preparation, the requirement should be included in the material specification before production.

The target treatment level should be established according to the actual ink supplier's recommendation and confirmed through printing tests.

Clear and Super Clear PVC for Screen Printing

White Ink and Reverse Printing on Clear PVC

Clear PVC allows graphics to be combined with transparent areas, but the printing design should account for the transparency of the substrate.

Projects can require opaque white ink, multiple print layers or reverse printing depending on how the graphics will be viewed in the finished product.

Provide the artwork orientation and whether the graphics will be viewed through the PVC so the printing construction can be evaluated before production.

Smooth, Glossy and Matte Screen Printing Film

How to Select Film Thickness

The HSQY printing-film range covers approximately 0.05mm to 1.50mm. The correct thickness depends on the printing equipment, finished packaging structure and downstream fabrication method.

Thin Screen Printing Film

Thin-gauge PVC provides high flexibility and lower finished-product weight, but material feeding, handling and registration should be tested using the actual gauge.

Medium and Thicker PVC Film

Increasing thickness provides more material body and can change printing, drying, folding, welding and finished-product feel.

Matching an Existing Printed Product

When replacing an existing PVC printing film, provide the current gauge, softness, surface, printed sample and finished bag or converted product where possible.

Softness, PHR and Finished Product Flexibility

Softness influences web handling, folding, bag feel, welding behavior and the amount of bending the printed product experiences in use.

Two PVC films with the same thickness can behave differently when their plasticizer level or hardness is different.

For repeat OEM production, buyers should provide the required PHR, Shore A hardness or an approved reference sample where precise softness matching is required.

Screen Printing for PVC Packaging Bags

Screen printing can be used to add logos, product information, warning text, decorative graphics and brand elements to flexible PVC bags and pouches.

The artwork should be positioned with the downstream bag-making process in mind, particularly where welded seams, zipper attachment areas or fold lines are required.

For production approval, the complete printed bag construction should be evaluated rather than testing an isolated flat film sample only.

Typical Screen Printed PVC Applications

Drying and Curing Requirements

Screen-printing ink must reach the required drying or curing condition before printed film is stacked, rewound or moved to the next converting stage.

Insufficient drying can lead to ink transfer, blocking or surface marking when printed PVC layers remain in contact.

Drying temperature, curing energy and production speed should be selected according to the ink supplier's recommendations and the heat sensitivity of the chosen PVC film.

High-Frequency Welding After Screen Printing

High-frequency welding can be evaluated for manufacturing printed PVC bags, pouches and other fabricated products.

Printed ink should normally be kept away from critical welding zones unless the complete printed construction has been tested and approved for the intended joint.

Welding performance depends on PVC formulation, thickness, softness, electrode geometry, pressure, power and cycle settings.

Heat Sealing and Sewing

Suitable flexible PVC grades can be evaluated for heat sealing according to the finished packaging construction.

Heat-seal temperature, pressure and dwell time should be established through trials using the exact film and printed construction.

Sewing can also be evaluated for products using zippers, fabric trim or reinforced edges, with needle, thread and stitch spacing selected according to the film thickness and softness.

Roll Width and Screen Printing Efficiency

Roll width should match the printing equipment, artwork layout and downstream cutting dimensions.

A suitable slit-roll width can reduce edge waste and simplify registration and cutting during repeat production.

For roll-fed processes, buyers should also specify preferred roll length, roll weight, core diameter, maximum roll diameter and unwind direction where relevant.

Anti-Blocking and Printed Film Handling

Soft PVC surfaces remain in close contact when wound or stacked, so blocking behavior is important for printing and subsequent converting.

If easy unwinding, sheet separation or high-speed production is required, include the required anti-blocking and roll-handling conditions in the material specification.

Printed film should also be fully dried or cured before stacking or rewinding to reduce the risk of ink transfer.

Dimensional Stability During Printing

Printing and drying can expose flexible PVC to tension and heat, which can influence registration and finished dimensions.

For multi-color screen printing or artwork requiring accurate registration, buyers should specify the acceptable dimensional tolerance and relevant production conditions.

Printed samples should be checked after drying or curing and after any subsequent welding or fabrication when dimensional accuracy is important.

Important Quality Parameters for Screen Printing Converters

Functional Requirements Should Be Confirmed Separately

Standard screen-printable flexible PVC should not automatically be assumed to provide a defined outdoor UV lifetime, flame classification, anti-static performance, low-temperature rating or chemical-resistance level.

If a finished product requires a specific functional property, provide the target value, test method and expected service conditions before the PVC formulation is selected.

Food-contact and medical packaging applications should also be evaluated separately according to the applicable destination-market requirements.

Information Required for a Screen Printing Film Quote

Please specify the finished application, such as printed bag, zipper pouch, stationery product, promotional packaging or another converted PVC product.

Provide the screen-printing ink system, drying or curing process, artwork coverage and any required surface-treatment or adhesion specification.

Specify the required film thickness, roll width, roll length or weight, core diameter, softness or hardness, transparency, color and surface finish.

Provide any downstream HF welding, heat sealing, sewing, zipper attachment, folding, cutting or lamination requirements.

Also provide the expected order quantity, repeat forecast, required technical documents and destination country or port.

Send Screen Printing Film Requirements

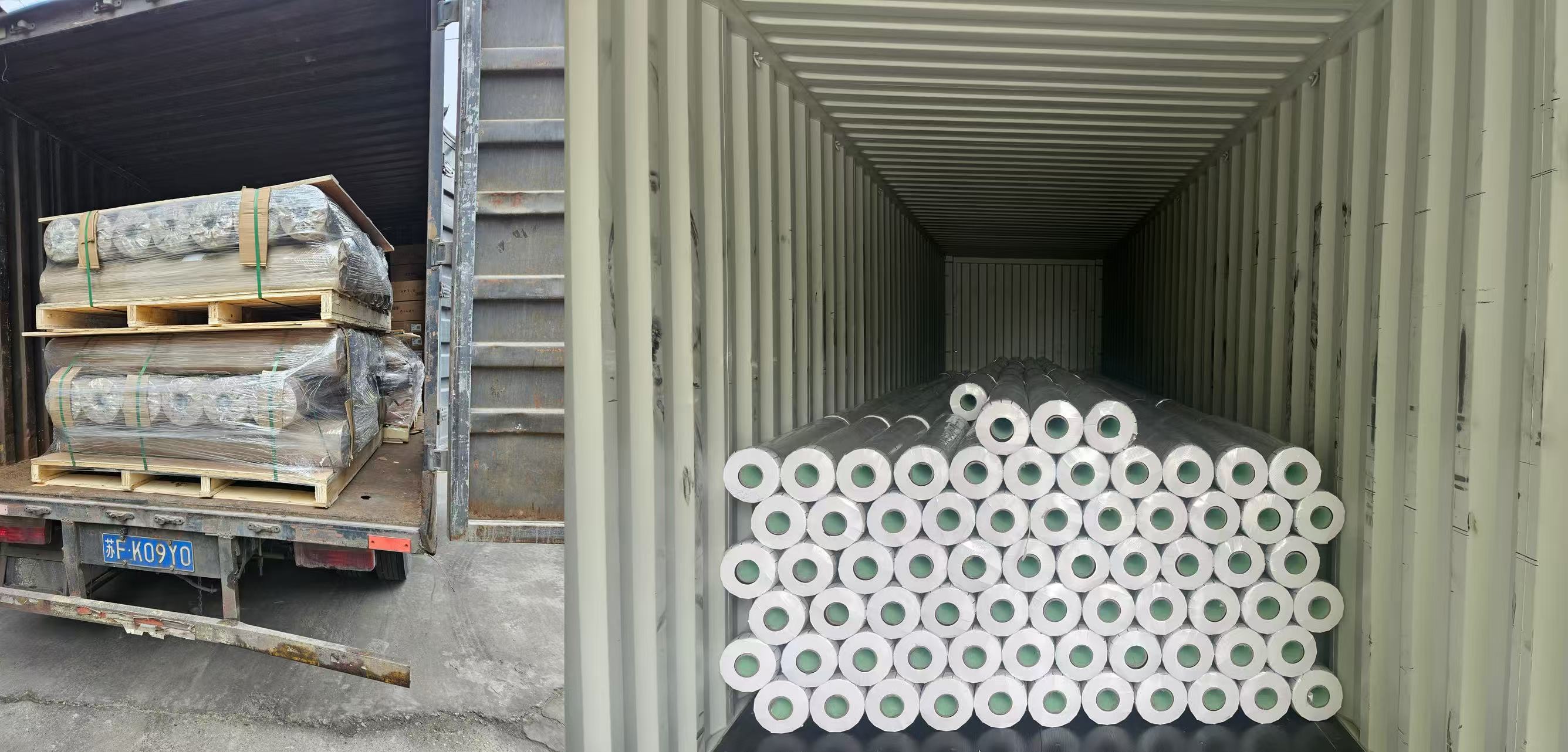

Packaging

Flexible PVC screen-printing film can be supplied in roll format according to the confirmed thickness, width, softness, surface and production specification. Protective roll packaging can be arranged according to roll dimensions, weight, core requirements and export transportation conditions.

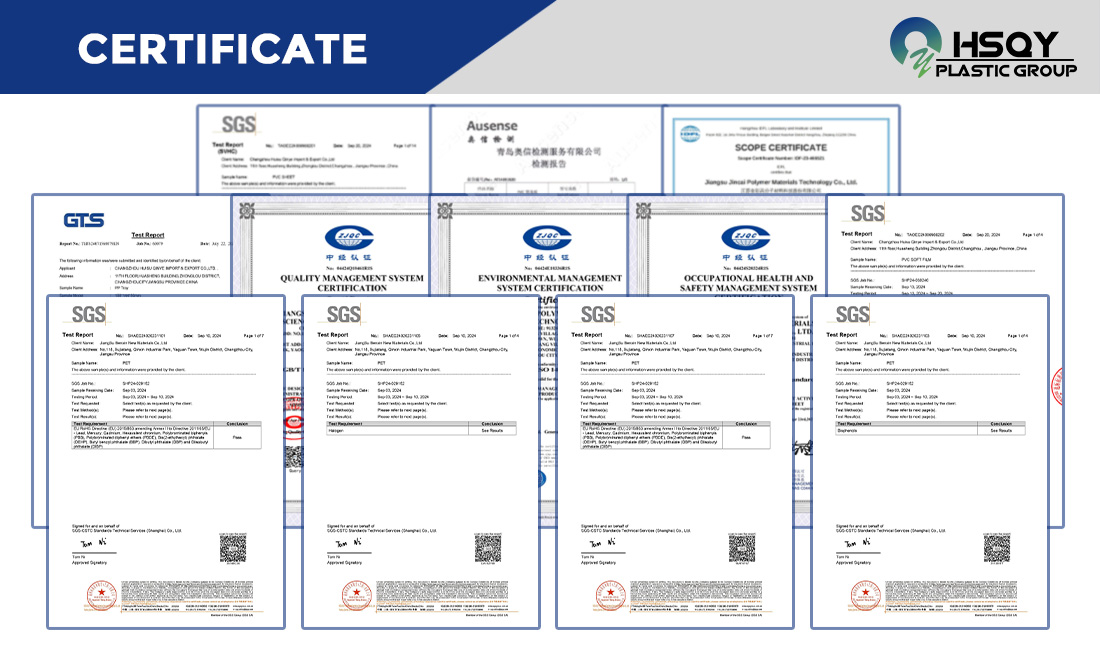

Quality and Compliance Documents

Current product information references EN71-3, REACH and non-phthalate related documentation. Buyers should confirm that available documents apply to the exact PVC formulation, thickness, color and destination market.

These general documents should not automatically be interpreted as confirmation of a specific ink system, outdoor service life, flame classification, food-contact suitability or another application-specific requirement.

HSQY Global Exhibitions

HSQY participates in international exhibitions and meets printing converters, PVC bag manufacturers, packaging companies, stationery manufacturers, distributors and importers from global markets.

HSQY Plastic Group – Global Exhibition Activities

Frequently Asked Questions About Screen Printing PVC Film

1. What is PVC film for screen printing?

It is flexible PVC roll or sheet material used as a substrate for compatible screen-printing inks and subsequent converting processes.

2. Is this product self-adhesive vinyl?

The standard product described on this page is flexible PVC base film and does not list a pressure-sensitive adhesive or release liner. Adhesive constructions should be specified separately.

3. Is this static-cling PVC film?

Static-cling performance is a separate material requirement. If the finished product needs to cling to glass or another smooth surface without adhesive, specify that requirement in the inquiry.

4. What thicknesses are available?

The HSQY printing-film range covers approximately 0.05mm to 1.50mm. The correct gauge should be selected according to the printing equipment and finished application.

5. Can clear PVC film be screen printed?

Clear and super-clear PVC grades can be evaluated for screen printing using compatible inks. White ink or reverse printing can be used where required by the finished graphic design.

6. Can colored PVC film be screen printed?

Colored PVC can be evaluated for screen printing, but the substrate color can influence printed appearance and ink opacity requirements.

7. Does PVC film require special screen-printing ink?

The ink should be selected for compatibility with flexible PVC and the intended curing or drying process. Final compatibility should be confirmed using the actual production ink.

8. Is surface treatment required before screen printing?

Surface-treatment requirements depend on the selected ink. Any required surface-energy level, primer or corona treatment should be specified before film production.

9. How should ink adhesion be tested?

Ink adhesion should be evaluated using the actual ink, drying or curing conditions and any subsequent bending, welding or handling that the printed product will experience.

10. Can screen-printed PVC be HF welded?

HF welding can be evaluated, but printed ink can affect the joint if it is located in the weld area. The complete printed construction should be tested before mass production.

11. Can screen-printed PVC be heat sealed?

Suitable constructions can be evaluated for heat sealing. Film formulation, ink location, temperature, pressure and dwell time should be tested together.

12. Can the film be used for printed PVC bags?

Yes. Flexible PVC can be evaluated for printed bags and pouches where the selected film, ink and bag-making process are compatible.

13. Can softness be customized?

Softness can be selected according to printing, folding and bag-converting requirements. Provide a PHR, Shore A hardness or approved sample where precise matching is required.

14. Are glossy and matte surfaces available?

Smooth, glossy and matte surfaces can be discussed according to the printing system, artwork and required finished appearance.

15. Can roll width and core size be customized?

Custom roll width, roll length, roll weight and core size can be discussed according to printing and converting equipment requirements.

16. Is screen-printable PVC automatically UV resistant?

No. Screen printability does not automatically provide a defined outdoor UV lifetime. Outdoor weathering requirements should be specified separately.

17. What is the MOQ?

The current standard MOQ is 1,000kg. Special surface treatments, colors or customized formulations may have different production requirements.

18. What information should I provide for a quotation?

Please provide the finished product, screen-printing ink system, film thickness, width, roll length or weight, core size, softness, clarity, color, surface finish, printing conditions, welding or sealing process, quantity and destination country or port.

Request a Screen Printing PVC Film Quote

HSQY supplies flexible PVC film for screen printing, printed packaging bags, zipper pouches, stationery products and professional converting applications.

The printing-film range covers approximately 0.05–1.50mm thickness with custom roll widths, adjustable softness, clear or colored grades and smooth, glossy or matte surfaces.

Send your ink system, film specification, finished-product design and expected quantity so our team can review the appropriate PVC film grade and quotation.
