Different Colors Flexible Soft Film Vinyl For Industrial Packing

Custom Color Flexible PVC Film for Industrial Packaging

HSQY Custom Color Flexible PVC Film is a soft vinyl roll material for industrial packaging, colored bags, zipper pouches, protective covers, promotional packaging and other converted products requiring customized color, flexibility and surface appearance.

Colored PVC film can be supplied in transparent colored, translucent or opaque grades. Typical colored-film specifications are approximately 0.3mm to 1.5mm thick, with customized roll widths, softness, surface finish and color appearance according to the finished application.

For OEM packaging projects, buyers should provide an approved color reference or physical sample together with the required thickness, transparency, softness, surface finish, roll specification and converting process before mass production.

Request Custom Color PVC Film Quote

Flexible PVC Film Video

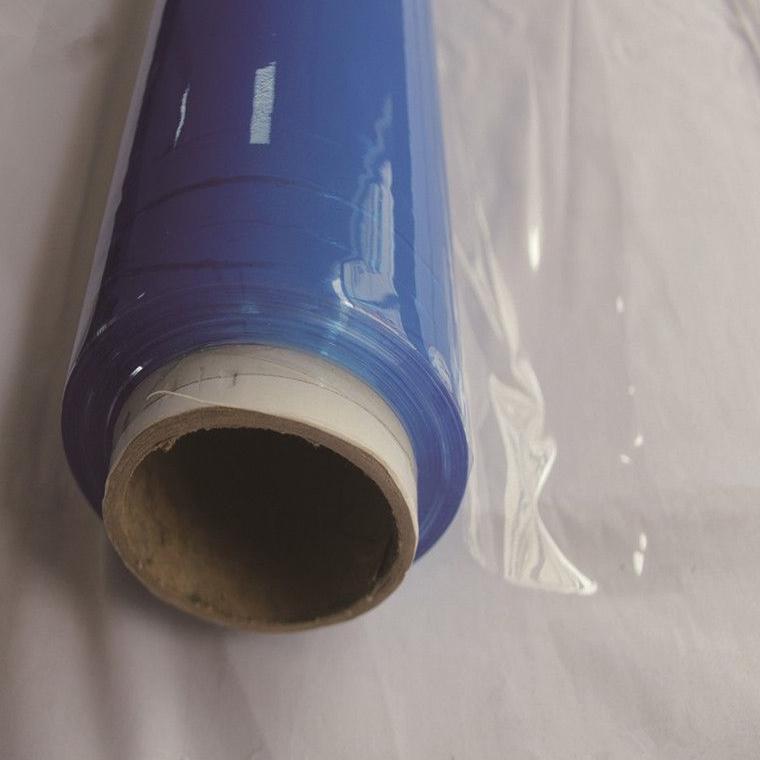

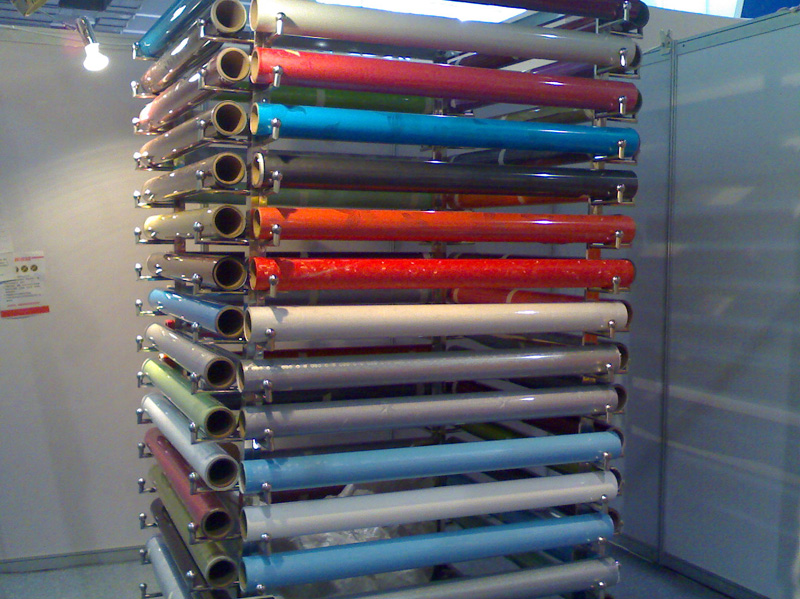

Custom Color PVC Film Images

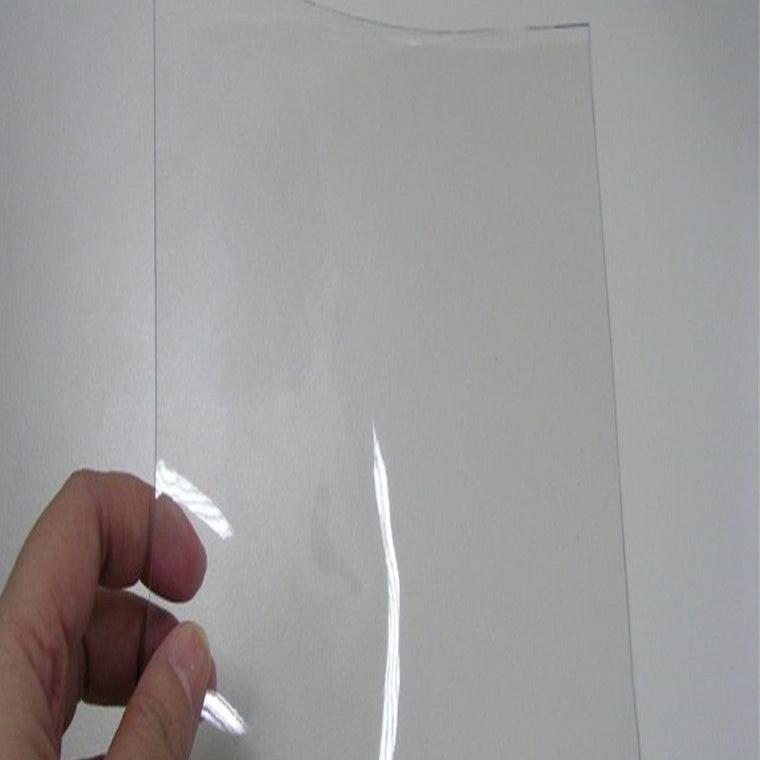

PVC Clear Sheet

PVC Clear Roll

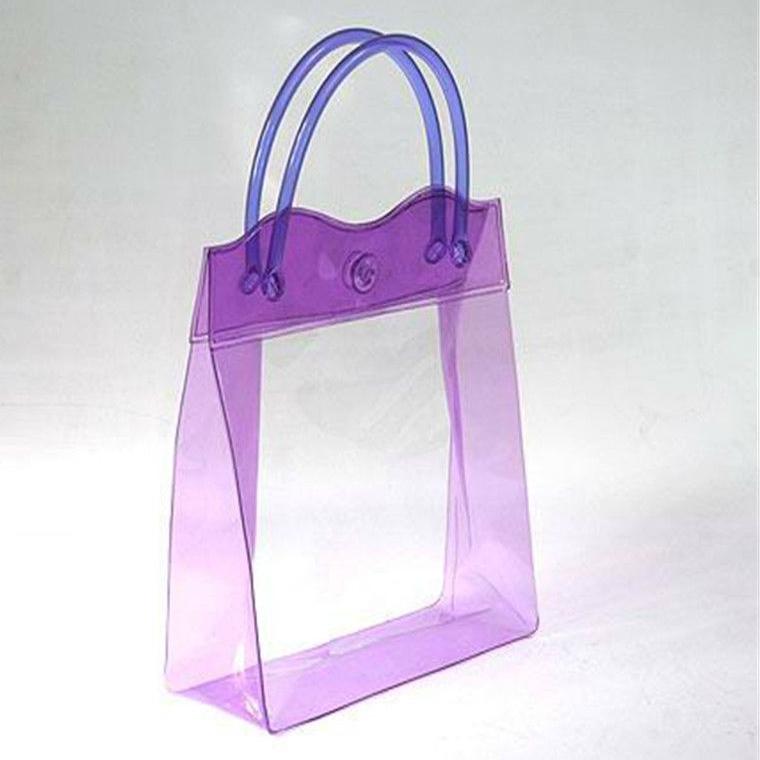

PVC Color Bag

Custom Color Flexible PVC Film Specifications

What Is Custom Color Flexible PVC Film?

Custom color flexible PVC film is a plasticized vinyl material manufactured with pigments or colorants to produce transparent colored, translucent or opaque flexible film.

Unlike surface printing alone, the base PVC film itself can be produced in the required color, allowing the finished material to retain its colored appearance through cutting, folding and conversion.

The final visual result depends on pigment formulation, film thickness, transparency, surface texture and lighting conditions, so color matching should be evaluated on the actual production thickness and surface.

Transparent Colored, Translucent and Opaque PVC

Color Matching for OEM Packaging

For custom color production, provide an existing PVC sample, finished product sample or agreed color reference whenever possible.

The target color should be evaluated using the intended production thickness because the same pigment formulation can appear lighter or darker when film gauge changes.

For repeat programs requiring tighter color control, buyers can specify an agreed color-tolerance method and acceptance range before bulk production.

Color Difference and Batch Consistency

Batch-to-batch color consistency is important for branded packaging, coordinated product ranges and repeat OEM orders.

Where a numerical color-difference requirement is used, the target ΔE value and measurement conditions should be agreed before production rather than assumed after the material has been manufactured.

An approved production sample should be retained as the reference for future repeat orders whenever color accuracy is commercially important.

How Thickness Affects PVC Film Color

Film thickness can influence the visual depth and opacity of colored PVC, especially for transparent and translucent grades.

A thicker transparent-colored film can appear visually deeper than a thinner film made with the same color formulation.

Color approval should therefore be completed on the intended production thickness rather than on a sample with a different gauge.

How Surface Finish Affects Color Appearance

Glossy surfaces reflect more direct light and can make a color appear brighter or more saturated.

Matte surfaces reduce direct reflection and can create a softer visual effect, while embossed textures can change how light is scattered across the film.

When precise appearance is required, color and surface finish should be approved together instead of treating them as separate specifications.

Industrial Packaging Applications

How to Select Colored PVC Film Thickness

Typical colored flexible PVC film specifications are approximately 0.3mm to 1.5mm, but the final gauge should be selected according to the packaging construction, required flexibility and converting process.

Flexible Bags and Pouches

Smaller bags and flexible pouches generally require a balance between low finished weight, easy folding and enough material body for the closure and seam design.

Larger Protective Packaging

Larger covers and packaging products can require more material body depending on panel dimensions, load, support and handling conditions.

Matching an Existing Colored Film

When replacing an existing colored PVC film, provide the current thickness, softness, surface finish, transparency and a physical color sample where possible.

Softness, PHR and Finished Bag Feel

Softness affects how PVC film folds, drapes, welds, sews and feels in the finished packaging product.

Two colored PVC films with the same thickness can behave differently when their formulations use different plasticizer levels or hardness values.

For repeat OEM production, provide the target PHR, Shore A hardness or an approved reference sample when precise softness matching is required.

Glossy, Matte and Embossed Colored PVC

High-Frequency Welding for Colored PVC Bags

High-frequency welding can be evaluated for joining compatible colored PVC layers used in bags, pouches and protective packaging products.

Welding performance depends on film thickness, formulation, softness, electrode design, pressure, power and production cycle.

The final material should be tested using the actual production color and formulation because changes in additives and pigment systems can affect processing conditions.

Heat Sealing and Fabrication

Suitable colored PVC grades can be evaluated for heat-sealing applications according to the finished packaging design and production equipment.

Seal conditions depend on formulation, thickness, temperature, pressure and dwell time, so production trials are recommended before bulk manufacturing.

Sewing, Zippers and Closures

Colored PVC packaging can be combined with sewing, zipper closures, fabric trim, handles or other components depending on the finished product construction.

Sewing performance depends on film thickness, softness, needle, thread, stitch spacing and reinforcement design.

For zipper bags, provide the zipper type and attachment method together with an existing sample or drawing where possible.

Printing on Colored PVC Packaging

Colored PVC film can be combined with logos, text, patterns and other printed graphics for branded or promotional packaging.

The base PVC color can influence printed ink appearance, particularly with transparent or partially opaque ink systems.

Provide the printing process, ink system and artwork requirements before production, and evaluate print adhesion using the exact colored film formulation.

Roll Width and Cutting Efficiency

Custom roll width should be selected according to the finished packaging dimensions, printing equipment and downstream cutting layout.

Selecting a suitable slit-roll width can reduce edge trimming and improve material utilization during bag and pouch production.

For repeat production, provide the required roll width, roll length or weight, core diameter and maximum roll diameter where applicable.

Anti-Blocking and Roll Handling

Flexible PVC surfaces remain in close contact when wound into rolls, so blocking behavior can influence unwinding and downstream converting.

If easy unwinding, automatic feeding or high-speed bag production is important, specify the required anti-blocking and roll-handling conditions before production.

Important Quality Parameters for Colored PVC Film

Functional Requirements Should Be Confirmed Separately

Standard colored flexible PVC should not automatically be assumed to provide anti-static, flame-retardant, UV-resistant, low-temperature or chemical-resistant performance.

If the finished packaging requires a defined functional property, provide the target performance value, applicable test method and service conditions before the formulation is selected.

Food-contact and medical applications should also be evaluated separately according to the destination market and applicable requirements.

Information Required for a Custom Color PVC Film Quote

Please specify whether the required film is transparent colored, translucent or opaque.

Provide an approved color sample or agreed color reference and any required color-tolerance specification.

Specify the required thickness, roll width, roll length or weight, softness or hardness and surface finish.

Provide the finished application and any HF welding, heat sealing, sewing, zipper attachment, printing or lamination requirements.

Also provide the estimated quantity, annual consumption, technical-document requirements and destination country or port.

Send Custom Color Film Requirements

Packaging

Custom color flexible PVC film can be supplied in roll format according to the confirmed thickness, width, softness, surface and color specification. Protective roll packaging can be arranged according to roll dimensions, weight, core requirements and export transportation conditions.

Quality and Compliance Documents

Current product information references EN71-3, REACH and non-phthalate related documentation. Buyers should verify that available documents apply to the exact formulation, thickness, color and destination market.

These general documents should not automatically be interpreted as confirmation of food-contact suitability, flame performance, outdoor UV resistance, electrical performance or another application-specific requirement.

HSQY Global Exhibitions

HSQY participates in international exhibitions and meets PVC converters, packaging manufacturers, bag producers, distributors, importers and other professional buyers from global markets.

HSQY Plastic Group – Global Exhibition Activities

Frequently Asked Questions About Custom Color PVC Film

1. What is custom color flexible PVC film?

It is flexible PVC film produced with a specified color formulation for packaging, bags, covers and other converted products.

2. Can PVC film be transparent and colored at the same time?

Yes. Transparent colored PVC retains see-through visibility while adding a selected color effect.

3. What is the difference between translucent and opaque PVC?

Translucent PVC allows some light to pass through, while opaque PVC provides a more solid appearance with limited visibility through the material.

4. How do I provide a custom color?

Provide an existing PVC sample, finished product sample or agreed color reference so the target appearance can be reviewed before production.

5. Can a ΔE color tolerance be specified?

Yes. Where numerical color control is required, the target ΔE value and measurement conditions should be agreed before production.

6. Does film thickness affect color?

Yes. Thickness can affect the apparent depth and opacity of transparent and translucent colored PVC, so color approval should use the intended production gauge.

7. What thicknesses are available?

Typical colored flexible PVC specifications are approximately 0.3mm to 1.5mm. Other gauges can be reviewed according to the finished application.

8. Can the softness be customized?

Softness can be selected according to folding, welding, sewing and finished packaging requirements. Provide a PHR, Shore A hardness or approved reference sample where precise matching is required.

9. Are glossy and matte surfaces available?

Glossy, matte, smooth and selected embossed surfaces can be discussed according to the required appearance and converting process.

10. Can colored PVC film be HF welded?

HF welding can be evaluated for compatible colored PVC constructions. Welding conditions should be tested using the exact production formulation and thickness.

11. Can colored PVC film be heat sealed?

Suitable grades can be evaluated for heat sealing. Temperature, pressure and dwell time should be determined through production testing.

12. Can logos be printed on colored PVC?

Yes. Printing can be evaluated according to the film surface, base color, ink system and printing process. Print adhesion should be tested before mass production.

13. Can custom roll widths be supplied?

Custom roll widths can be discussed according to cutting layout, printing equipment and converting requirements.

14. Can roll length, weight and core size be customized?

Roll configuration can be discussed according to film thickness, width, production equipment and material-handling requirements.

15. Is colored PVC suitable for outdoor use?

Outdoor performance depends on the exact formulation. If prolonged sunlight or weather exposure is expected, provide the required UV or weathering specification before material selection.

16. Is standard colored PVC flame retardant?

A defined flame rating should not be assumed for standard colored PVC. Provide the required test method and classification if flame performance is required.

17. What is the MOQ?

The current standard MOQ is 1,000kg. Custom colors and special formulations may have different production requirements depending on the specification.

18. What information should I provide for a quotation?

Please provide the color reference, transparency level, thickness, roll width, roll length or weight, softness, surface finish, finished application, welding or printing process, quantity and destination country or port.

Request a Custom Color Flexible PVC Film Quote

HSQY supplies transparent colored, translucent and opaque flexible PVC film for industrial packaging, bags, pouches, protective covers and professional converters.

Typical colored-film specifications are approximately 0.3–1.5mm thick, with custom roll widths, adjustable softness, multiple surfaces and custom color matching.

Send your approved color reference, material specification, converting method and expected quantity so our team can review the appropriate PVC film grade and quotation.

Contact HSQY for Pricing and Samples
