Flexible Soft Film Vinyl Sheet For UV Printing in PVC Material

HSQY supplies flexible PVC film for UV printing, with 0.05–1.50mm thickness, custom roll widths, clear or colored grades, smooth, matte or glossy surfaces, adjustable softness and a 1,000kg MOQ.
  • Transparent PVC Table Cover

  • HSQY

  • 0.5MM-7MM

  • clear,customizable col

  • customizable size

  • 1000 KG.

Availability:

Product Description

UV Printable Flexible PVC Film

HSQY UV Printable Flexible PVC Film is a soft vinyl roll material developed for UV inkjet and UV-curable printing applications requiring a flexible, smooth and customizable PVC substrate.

The HSQY PVC printing-film range covers approximately 0.05mm to 1.50mm thickness, with custom roll widths, clear, super-clear, translucent or colored grades and smooth, glossy or matte surface options.

For UV printing projects, buyers should provide the printer model, UV ink system, curing method, required film thickness, surface condition and post-print converting process before the final material grade is approved.

Request UV Printing PVC Film Quote

UV Printable PVC Film Images

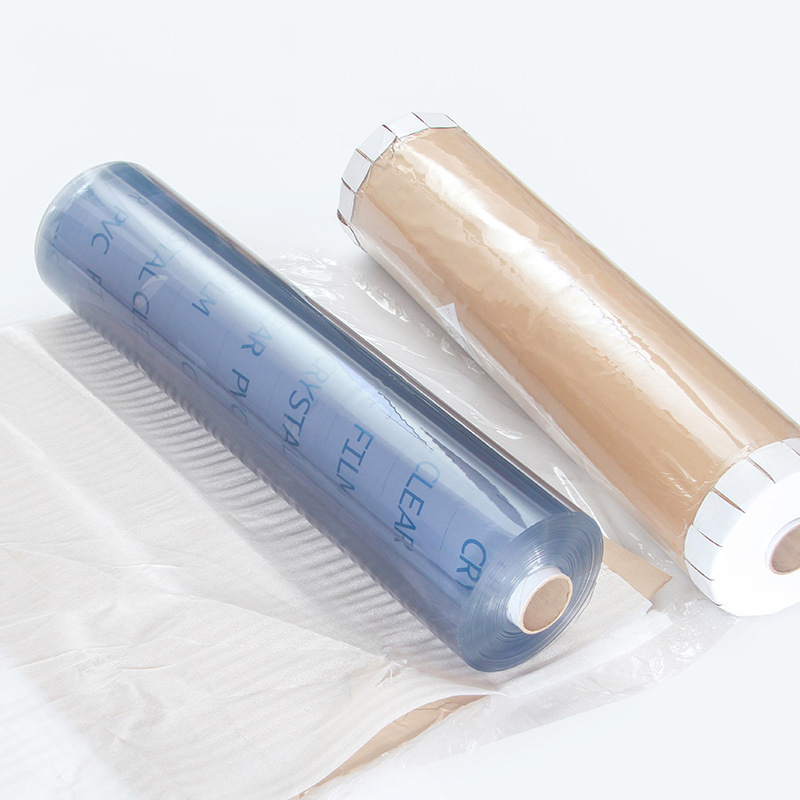

Clear flexible PVC film roll for UV printing

Clear PVC Film Roll

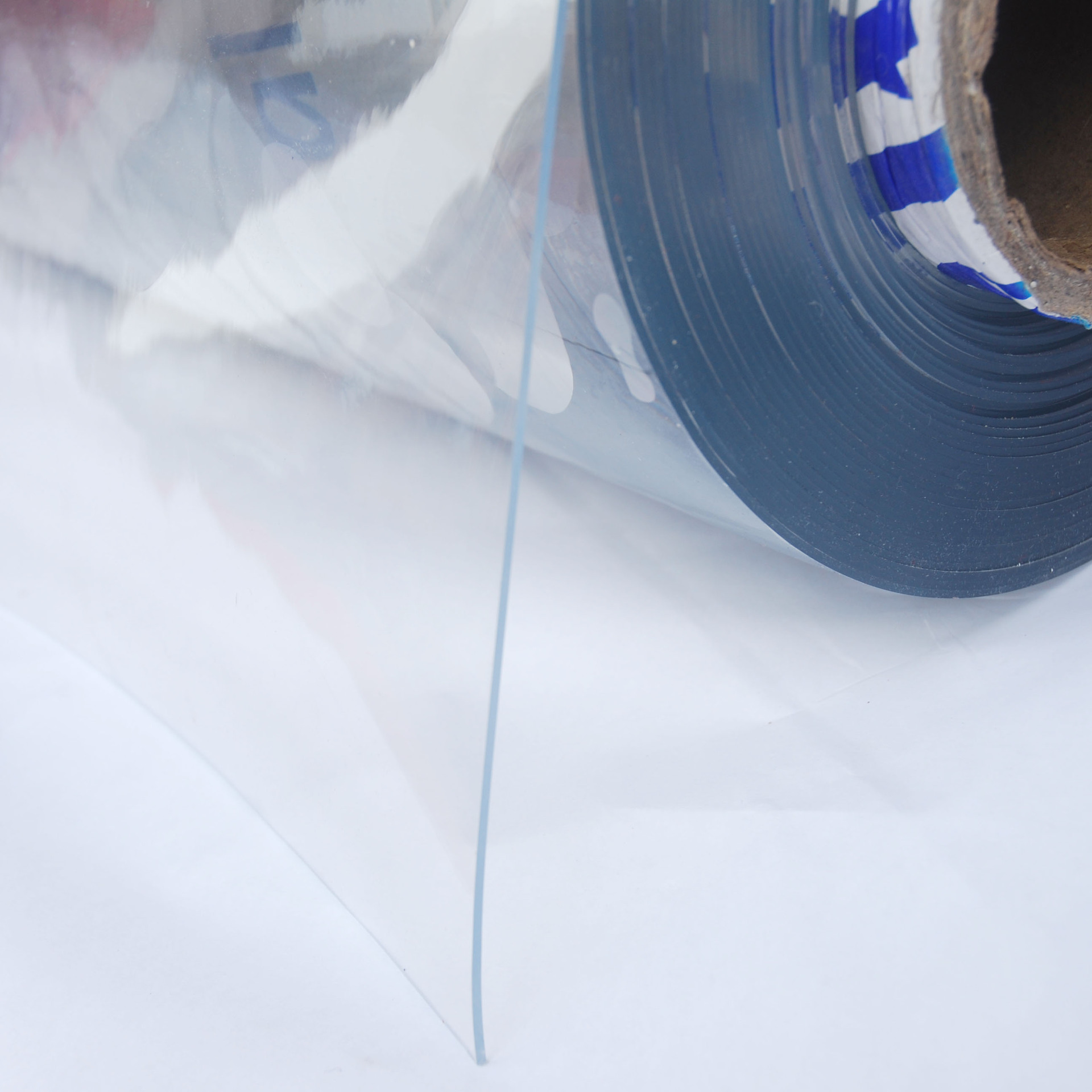

Transparent flexible PVC roll for UV printing applications

Transparent PVC Printing Roll

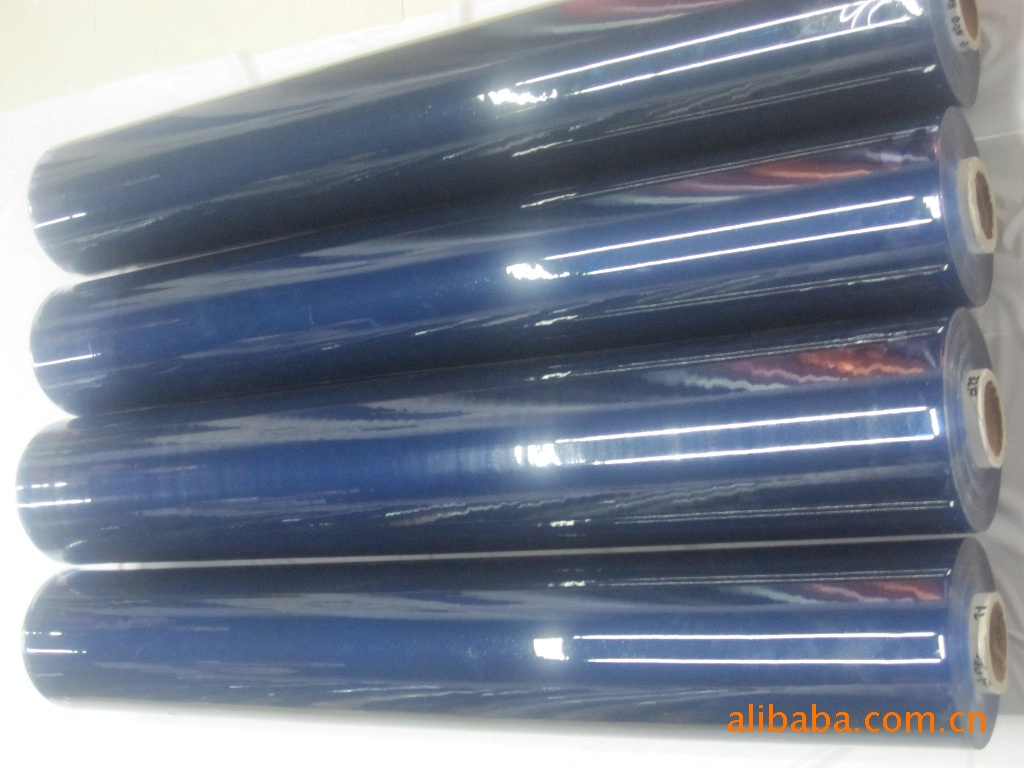

Flexible PVC film for UV printing

PVC Film for UV Printing

UV Printable Flexible PVC Film Specifications

Property Specification
Product Name UV Printable Flexible PVC Film
Material Flexible PVC
Printing Film Thickness Range Approximately 0.05mm–1.50mm; final thickness should be confirmed according to printer and finished application
Roll Width Custom width according to UV printer, cutting layout and converting requirements
Maximum Reference Width Up to approximately 2300mm depending on thickness, formulation and production process
Density Approximately 1.28–1.40 g/cm³ according to formulation
Transparency Normal Clear / Super Clear / Translucent / Colored
Surface Smooth / Glossy / Matte subject to printing requirements
Softness Selected according to printer feeding, bending and post-print converting requirements
Primary Printing Method UV Inkjet / UV-Curable Printing
Ink Compatibility Must be validated using the actual UV ink system and printer
Surface Energy Target should be confirmed according to UV ink supplier and printing process
Surface Treatment Primer, corona or other treatment requirements should be specified before production where required
Supply Format Master Roll / Slit Roll / Sheet / Converted Size
Typical Applications UV Printed Graphics / Promotional Products / Printed Packaging Components / Decorative Film / Transparent Graphics / Industrial Printed Parts
Quality Documents EN71-3 / REACH / Non-Phthalate related documentation subject to exact formulation and current report scope
MOQ 1,000kg

What Is UV Printable Flexible PVC Film?

UV printable flexible PVC film is a soft vinyl substrate selected for printing with UV-curable ink systems.

During UV printing, the ink is deposited onto the PVC surface and cured rapidly using ultraviolet energy. The printing result depends on the interaction between the ink formulation, PVC surface, curing energy and printing parameters.

A material being suitable for UV printing does not automatically mean the PVC itself has a defined outdoor UV-resistance rating. Outdoor service requirements should be specified separately.

UV Printing vs. UV-Resistant PVC

Term Meaning
UV Printing A printing process using UV-curable ink and ultraviolet curing equipment
UV Printable PVC PVC film whose surface and formulation are evaluated for compatibility with a UV printing system
UV-Resistant PVC A PVC formulation designed for specified ultraviolet or weathering exposure
Outdoor Printed Product Requires evaluation of both the printed ink system and the PVC substrate under the intended service conditions

Why Surface Energy Matters for UV Printing

UV ink must wet the PVC surface properly before curing. If the surface energy is too low for the selected ink system, the ink can show poor wetting, uneven appearance or weak adhesion.

The required surface-energy level should be confirmed with the UV ink and printer supplier because different ink chemistries can require different substrate conditions.

Where a defined dyne level, corona treatment, primer or chemical treatment is required, include that requirement in the approved PVC film specification.

UV Ink Adhesion Testing

Ink adhesion should be tested using the actual production UV ink, curing equipment and printing settings.

A general statement that PVC is printable is not sufficient for a production program because different inks and PVC formulations can behave differently.

Where the printed film will later be bent, folded, welded or laminated, adhesion should also be checked after the intended converting process.

Ink Flexibility After UV Curing

Flexible PVC products can be bent or folded after printing, so the cured UV ink must be suitable for the expected degree of flexing.

A rigid ink layer can crack or lose adhesion when the printed PVC is repeatedly bent. Buyers should therefore provide the required bending, folding or forming conditions when selecting the ink and film combination.

Production samples should be cured, conditioned and then tested using the actual bending radius or finished-product movement.

Smooth, Glossy and Matte UV Printing Surfaces

Surface Typical Appearance UV Printing Consideration
Smooth Uniform surface Ink wetting, adhesion and consistent image reproduction
Glossy Bright, reflective appearance Surface quality and visual print appearance
Matte Lower reflection Ink compatibility and finished visual effect

Clear and Super Clear PVC for UV Printing

Clear and super-clear PVC grades can be used where printed graphics are combined with transparent areas or where products behind the printed film should remain visible.

Transparent applications should specify whether white UV ink, reverse printing, multiple ink layers or a backing substrate will be used because these factors affect the final appearance.

For appearance-sensitive work, buyers should specify acceptable clarity, haze and visible surface defects before material approval.

Colored PVC for UV Printing

Colored flexible PVC can also be evaluated for UV printing where the base-film color forms part of the finished graphic design.

The substrate color can influence printed color appearance, particularly with transparent or partially opaque inks.

For repeat OEM programs, provide an approved PVC color reference and printed sample so future production can be evaluated against the same target.

How to Select UV Printing Film Thickness

HSQY's printing-film range covers approximately 0.05mm to 1.50mm, but the suitable gauge depends on the printer, media-feeding system and finished product.

Thin-Gauge UV Printing Film

Thin films can provide high flexibility and lower finished weight but require suitable web handling and tension control during printing.

Thicker UV Printing Film

Thicker film provides more material body but may require different feeding, curing and post-print converting conditions.

Matching an Existing UV Printing Film

When replacing an existing material, provide the current thickness, width, hardness, surface finish, printer model and printed sample where available.

Softness and PHR Requirements

Softness affects roll handling, printing stability, bending and the final feel of the printed product.

Two PVC films with the same thickness can perform differently if their formulations have different plasticizer levels or hardness values.

For repeat UV printing programs, buyers should provide the required PHR, Shore A hardness or an approved reference sample when precise material matching is required.

Roll Width and UV Printer Compatibility

Roll width should be selected according to the printer's usable media width and the finished graphic or cutting layout.

Custom slit widths can reduce trim waste and simplify repeat production when a fixed UV printer or converting line is used.

Provide the required roll width, roll length or weight, core diameter, maximum roll diameter and unwind direction when requesting a quotation.

UV Curing and Heat Exposure

UV printing exposes the substrate to curing energy and can also introduce heat depending on the printing system and production speed.

If dimensional stability is critical, provide the printer type, curing configuration, expected substrate temperature and allowable dimensional tolerance.

Printed samples should be evaluated after curing and conditioning where registration or finished dimensions are important.

Typical UV Printed PVC Applications

Application Typical Purchasing Priority
UV Printed Packaging Components Ink adhesion, flexibility and post-print converting
Promotional Graphics Print appearance, surface quality and roll consistency
Transparent Printed Graphics Clarity, white-ink requirements and image appearance
Decorative Printed Film Base film color, surface finish and ink adhesion
Industrial Printed Components Dimensional stability, curing and service conditions
OEM Printed PVC Products Thickness tolerance, print consistency and repeat-order control

Post-Printing Cutting and Converting

UV printed PVC film can be converted after printing by slitting, sheeting, die cutting, folding, welding, sealing or laminating according to the finished product.

Ink location and coverage should be considered before post-print welding or sealing because printed areas can behave differently from unprinted PVC surfaces.

Where the printed film will be bent or welded, the complete production sequence should be validated before mass production.

Important Quality Parameters for UV Printing Converters

Parameter Why It Matters
Thickness Tolerance Supports stable printer feeding and consistent finished-product feel
PHR / Shore A Hardness Controls flexibility, handling and post-print bending behavior
Surface Energy / Dyne Level Influences UV ink wetting and adhesion
Surface Treatment Relevant where primer or treatment is required by the ink system
UV Ink Adhesion Critical for printed-image durability during handling and converting
Ink Flexibility Important when the printed PVC will be folded or bent
Clarity / Haze Important for transparent printed products
Surface Quality Directly affects visible print defects
Width Tolerance Supports stable feeding and print registration
Roll Length / Weight Affects printer handling and production changeover frequency
Core ID Must match printer or unwind equipment
Shrinkage / Dimensional Stability Important during UV curing and post-print converting

Outdoor and Functional Requirements

UV printability does not automatically provide outdoor weather resistance.

For outdoor applications, buyers should specify the required service period, sunlight exposure, operating temperature and any accelerated-weathering test.

Flame-retardant, anti-static, UV-stabilized or other functional formulations should also be confirmed separately for the exact production grade.

Information Required for a UV Printing Film Quote

Please provide the UV printer manufacturer and model together with the UV ink brand or ink system where available.

Specify the required film thickness, roll width, roll length or weight, core diameter, softness or hardness, clarity, color and surface finish.

Provide any required dyne level, primer, corona treatment, ink-adhesion test or other surface-treatment specification.

Also provide the finished application and any post-print cutting, bending, welding, heat-sealing or laminating requirements.

Finally, provide the expected order quantity, annual consumption and destination country or port.

Send UV Printing Film Requirements

Packaging

UV printable flexible PVC film can be supplied in roll format according to the confirmed thickness, width, surface and printing specification. Protective roll packaging can be arranged according to roll dimensions, weight, core requirements and export transportation conditions.

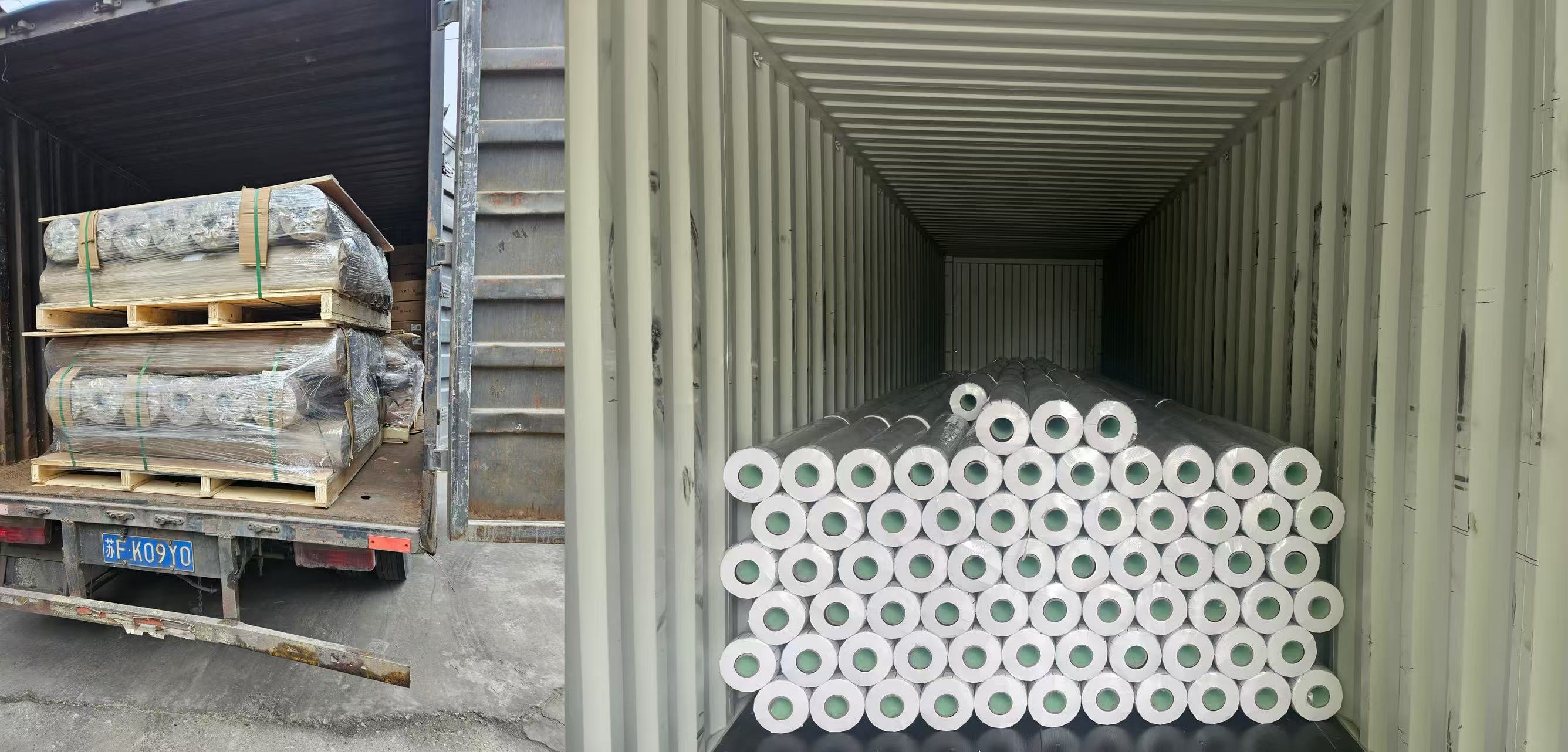

UV printable flexible PVC film roll packaging

Quality and Compliance Documents

Current product information references EN71-3, REACH and non-phthalate related documentation. Buyers should verify that available documents apply to the exact PVC formulation, thickness, color and destination market.

These general documents should not automatically be interpreted as confirmation of UV ink compatibility, outdoor UV resistance, flame performance, chemical resistance or another application-specific property.

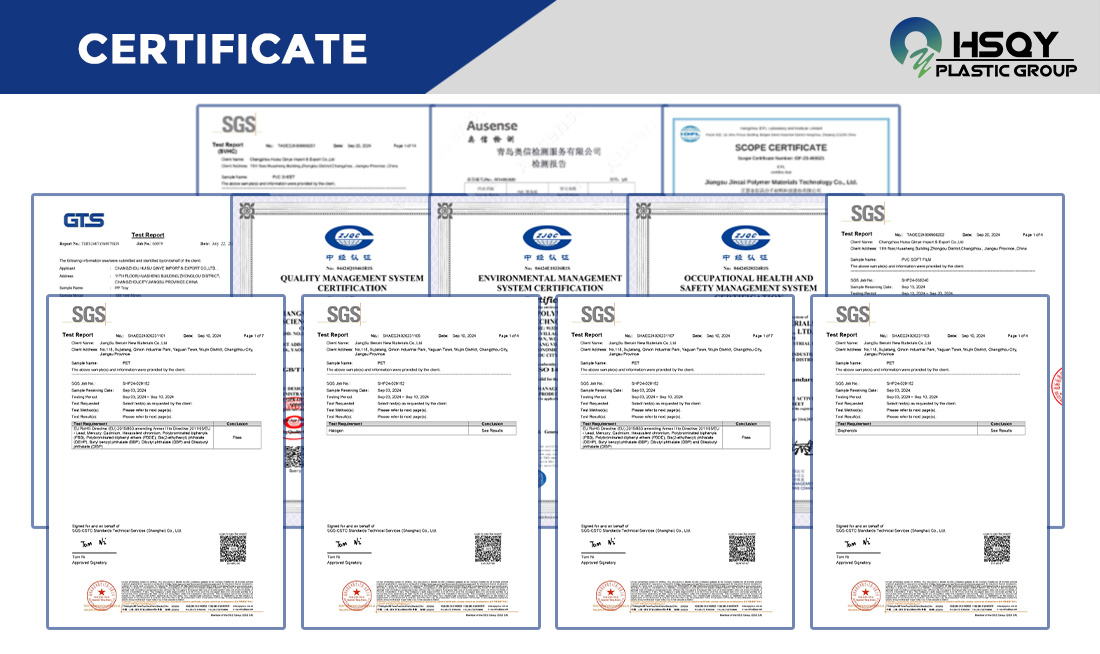

HSQY UV printable PVC film quality and compliance documents

HSQY Global Exhibitions

HSQY participates in international exhibitions and meets printing converters, graphic-product manufacturers, PVC processors, packaging companies, distributors and importers from global markets.

HSQY Plastic Group global exhibition activities

HSQY Plastic Group – Global Exhibition Activities

Frequently Asked Questions About UV Printable PVC Film

1. What is UV printable PVC film?

It is flexible PVC film selected for use with UV-curable printing systems. Compatibility should be validated using the actual printer, ink and curing conditions.

2. Is UV printable PVC the same as UV-resistant PVC?

No. UV printable refers to compatibility with UV-curable printing. UV-resistant PVC refers to material formulated for defined ultraviolet exposure or weathering performance.

3. What thicknesses are available?

HSQY's PVC printing-film range covers approximately 0.05mm to 1.50mm. The suitable thickness should be confirmed according to printer and finished product.

4. Can clear PVC film be UV printed?

Clear and super-clear PVC can be evaluated for UV printing. White ink, reverse printing and backing requirements should be specified where relevant.

5. Can colored PVC film be UV printed?

Colored PVC can be evaluated for UV printing, but the base-film color can influence the appearance of the printed inks.

6. Does UV printing require a specific dyne level?

Surface-energy requirements vary by UV ink and printer. The target dyne level should be confirmed with the ink-system supplier and validated by printing tests.

7. Is corona treatment required?

Not every UV printing system requires the same surface treatment. Corona, primer or another treatment should only be specified where required by the selected ink and printing process.

8. How should UV ink adhesion be tested?

Ink adhesion should be tested using the actual production ink and curing settings. Provide the required adhesion method or acceptance criteria where available.

9. Can the printed PVC film be bent?

Flexible PVC can be bent, but the cured UV ink must also have sufficient flexibility. Bending tests should be completed using the intended radius or finished-product design.

10. Can UV printed PVC film be welded?

Post-print welding can be evaluated, but ink coverage may affect weld performance. Printed and unprinted joint areas should be tested before bulk production.

11. Can UV printed PVC film be heat sealed?

Suitable constructions can be evaluated for heat sealing. Film formulation, ink location, temperature, pressure and dwell time should be tested together.

12. Can custom roll widths be supplied?

Custom roll widths can be discussed according to the UV printer's usable media width and the downstream converting layout.

13. Can roll length, weight and core size be customized?

Roll configuration can be discussed according to thickness, printer unwinding system, maximum roll diameter and handling requirements.

14. Are glossy and matte grades available?

Smooth, glossy and matte surfaces can be discussed according to UV ink compatibility and the required finished appearance.

15. Can softness be customized?

Softness can be selected according to printing, handling and post-print bending requirements. Provide a PHR, Shore A hardness or approved sample where precise matching is required.

16. Is the film suitable for outdoor UV-printed graphics?

Outdoor suitability depends on both the PVC formulation and UV ink system. Provide the required outdoor lifetime, UV exposure and weathering standard for separate evaluation.

17. What is the MOQ?

The current standard MOQ is 1,000kg. Customized surface treatment, colors or special formulations may have different production requirements.

18. What information should I provide for a quotation?

Please provide the UV printer model, ink system, film thickness, width, roll length or weight, core size, softness, transparency, color, surface finish, surface-treatment requirement, finished application, post-print process, quantity and destination country or port.

Request a UV Printable Flexible PVC Film Quote

HSQY supplies flexible PVC film for UV printing, transparent printed graphics, decorative products, printed packaging components and professional printing converters.

The printing range covers approximately 0.05–1.50mm thickness with custom roll widths, clear or colored grades and smooth, glossy or matte surface options.

Send your UV printer model, ink system, target PVC specification and expected quantity so our team can review the appropriate film grade and quotation.

Contact HSQY for Pricing and Samples

Previous:
Next:

Product Category

START AN INFORMED RFQ

Let’s Find the Right Plastic Solution

Looking for plastic sheets, films, food packaging, or a customized solution? Tell us your material, size, quantity, and application requirements. Our team will help you select the right product and provide a competitive quote.
√  Application and conversion process
√ Thickness, width and roll format
√ Color, clarity and surface finish
√ Function, documents, quantity and destination
Request Our Best Quotation
Request Our Best Quotation

Our materials experts will help identify the right solution for your application, put together a quote and a detailed timeline.

Plastic Sheet

Trays

Lidding Films

Support

© COPYRIGHT  2026 HSQY PLASTIC GROUP ALL RIGHTS RESERVED.
