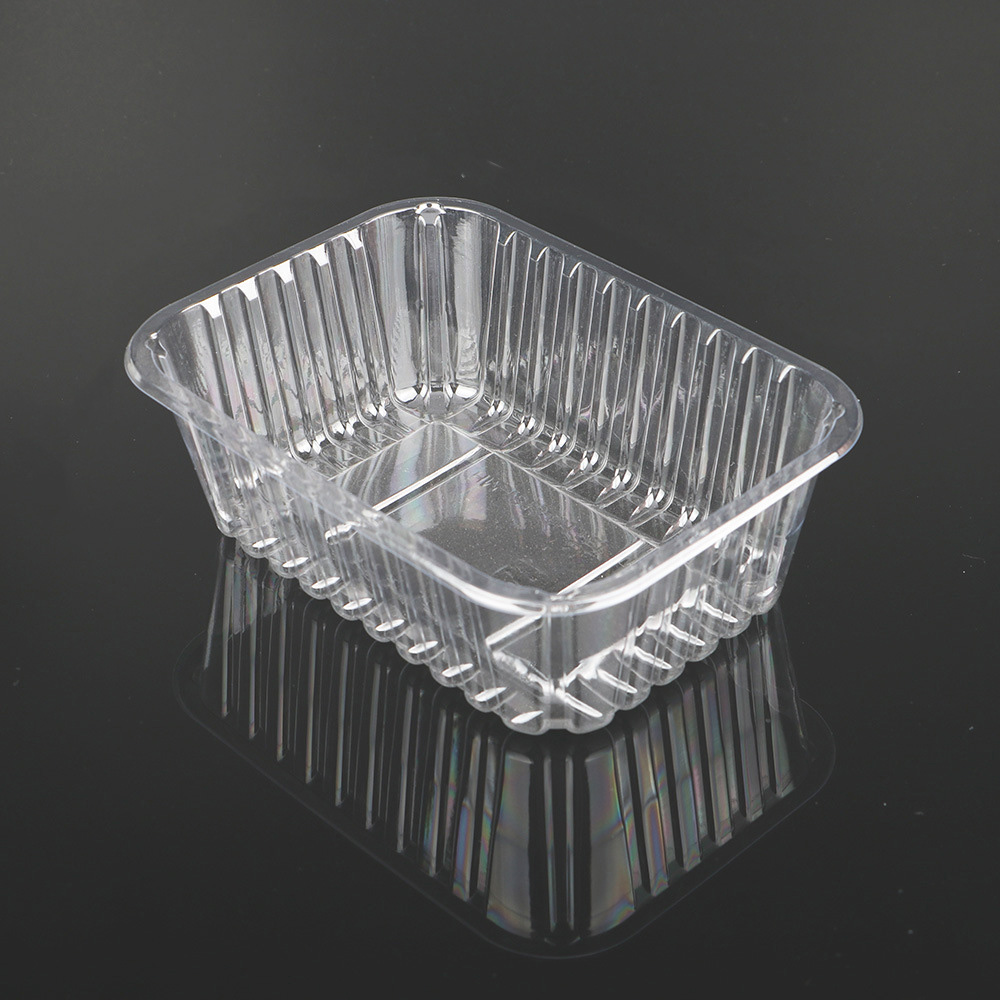

180×130×60mm Large Clear PET/PE Food Tray

180 × 130 × 60 mm Large Clear PET/PE Food Tray

HSQY large clear PET/PE food tray measures 180 × 130 × 60 mm, approximately 7.09 × 5.12 × 2.36 inches. The deeper 60 mm tray format combines a PET-based structural layer with a PE sealing layer for commercial chilled-food packaging applications.

The tray can be evaluated for fresh meat, poultry, seafood, fruit, vegetables, salads, deli products and prepared foods. Its clear structure supports product visibility, while the PE-based sealing surface allows the tray to be matched with a compatible heat-seal lidding film.

Request a PET/PE Tray Quote

Product Specifications

Application Note: Final tray suitability depends on the packed food, product weight, storage conditions, lidding-film structure, sealing parameters and packaging equipment. Commercial production should be validated using the intended complete packaging system.

PET/PE Material Structure

PET Structural Layer

The PET-based layer forms the main tray structure, supporting dimensional stability and clear product presentation during filling, retail display, storage and distribution.

PE Heat-Sealing Layer

The PE layer provides a heat-sealable surface around the tray flange. A compatible PE-sealant lidding film can be applied using controlled sealing temperature, pressure and dwell time.

PET/PE vs PET/EVOH/PE

PET/PE and PET/EVOH/PE are different packaging structures. PET/PE combines a PET-based structural layer with a PE sealing layer. PET/EVOH/PE adds an EVOH layer for projects requiring enhanced oxygen-barrier performance.

Key Features

60 mm Deep Tray Profile

The 180 × 130 mm footprint is combined with a 60 mm tray depth, giving this model a deeper profile for products requiring more vertical packing space than shallower PET/PE trays.

Clear Product Visibility

The clear tray format allows food processors, retailers and buyers to view the packed product through the tray, supporting product inspection and retail presentation.

Heat-Sealable Flange

The PE-based sealing surface allows the tray to be paired with a compatible lidding film. Final seal quality depends on film chemistry, flange cleanliness, sealing temperature, pressure and dwell time.

Commercial Food Packaging Format

The deeper rectangular format can be evaluated for food processors, supermarket suppliers, packaging distributors and other commercial chilled-food packaging projects.

Discuss Your PET/PE Tray Project

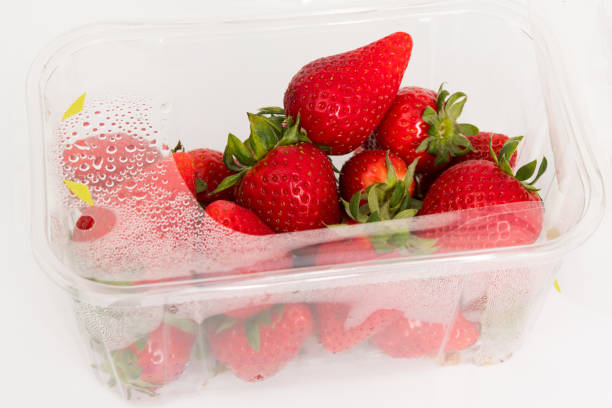

Food Packaging Applications

The 180 × 130 × 60 mm PET/PE tray can be evaluated for commercial food packaging applications including:

• Fresh meat packaging

• Poultry packaging

• Fish and seafood packaging

• Fresh fruit and vegetables

• Salads and prepared ingredients

• Deli products

• Chilled prepared foods

• Selected bakery products

Food suitability should be reviewed according to product size, fill weight, required seal, cold-chain conditions and the intended packaging process.

Why Choose a 60 mm Deep Food Tray?

Tray depth affects usable internal space, product presentation, headspace and case-packing efficiency. At 60 mm deep, this model provides more vertical space than many shallow retail meat or produce trays.

The deeper format can be useful for bulkier portions, stacked ingredients or products that require additional internal height. Final selection should still be based on the actual food dimensions and fill weight rather than tray depth alone.

Lidding Film Compatibility

Because the tray uses a PE-based sealing surface, the selected lidding film should contain a compatible sealant layer. A generic film described only as “PET film” should not be assumed to seal correctly to a PET/PE tray.

Before commercial production, buyers should verify sealing temperature, pressure, dwell time, peel or lock-seal requirements, flange cleanliness and finished package integrity on the intended tray-sealing equipment.

HSQY also supplies sealing film for PET/PE trays for projects requiring coordinated tray-and-film selection.

PET/PE Tray or High-Barrier Tray?

If the project has a defined oxygen-transmission, MAP gas-retention or shelf-life target, provide that requirement before selecting the tray structure.

Information to Provide for a Quote

For tray evaluation and quotation, please provide:

• Required order quantity

• Packed food or product type

• Product dimensions and fill weight

• Required tray size and depth

• Lidding-film information, if already selected

• Tray-sealing equipment information

• Storage and cold-chain conditions

• Required seal type

• Destination market

Request a Tray Evaluation

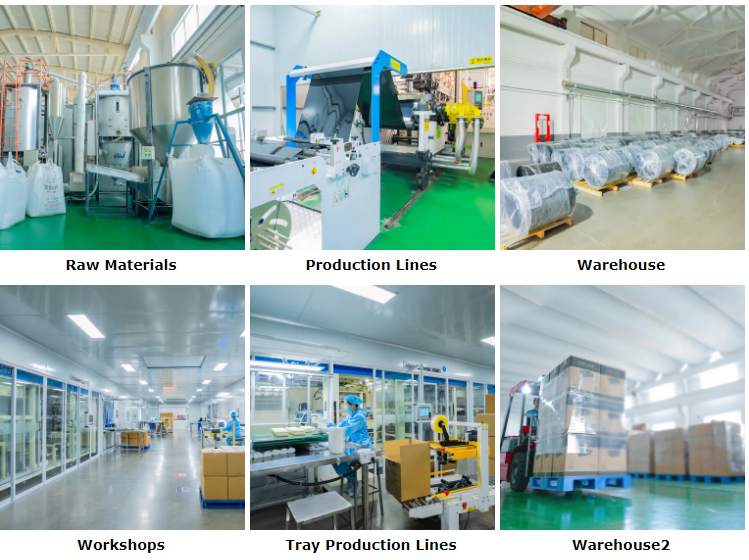

HSQY PET/PE Tray Supply

HSQY supplies PET/PE food trays for food processors, produce packers, meat and seafood businesses, supermarket suppliers, packaging distributors and other commercial packaging projects. The current product information lists a minimum order quantity of 30,000 pieces for this tray.

Frequently Asked Questions

What is the size of this large PET/PE food tray?

The listed tray size is 180 × 130 × 60 mm, approximately 7.09 × 5.12 × 2.36 inches.

What does PET/PE mean?

PET/PE describes a multilayer food-tray structure combining a PET-based structural layer with a PE-based sealing layer. PET provides the primary tray body, while PE provides a surface for heat sealing to a compatible film.

Why is this tray described as a large or deep tray?

The tray has a 60 mm depth, providing more vertical internal space than shallower PET/PE tray formats. Product dimensions and fill weight should be checked to confirm suitability.

Can the tray be heat sealed?

The PE sealing layer is designed to work with a compatible heat-seal lidding film. Final seal performance should be verified using the actual tray, film and tray-sealing equipment.

Which lidding film should be used?

A lidding film with a sealant layer compatible with the tray's PE sealing surface should be selected. Opening behavior, seal strength and machine settings should be confirmed through packaging trials.

Is PET/PE a high-barrier material?

Standard PET/PE should not automatically be considered a high oxygen-barrier structure. Projects requiring enhanced oxygen barrier should specify the target performance and evaluate a suitable barrier structure such as PET/EVOH/PE where appropriate.

Can this tray be used for MAP packaging?

MAP suitability depends on the required gas retention, tray structure, lidding-film barrier, seal integrity, packed food and storage conditions. A standard PET/PE tray should not automatically be assumed to provide the barrier required for every MAP application.

What is the reference temperature range?

The current product information lists a reference range of -40°C to +60°C. Actual suitability should be confirmed for the exact tray structure, product load, process and storage conditions.

Is this PET/PE tray suitable for microwave or conventional oven use?

This PET/PE tray should not be assumed to be suitable for microwave or conventional oven heating. Heated-food applications require a tray material specifically validated for the intended temperature and heating process.

What is the minimum order quantity?

The current product information lists a minimum order quantity of 30,000 pieces.

What information should I provide when requesting a quotation?

Please provide the required quantity, packed food, product dimensions, fill weight, lidding-film requirements, packaging equipment, storage conditions and destination market.

About HSQY Plastic Group

HSQY Plastic Group supplies PET/PE trays, PET/EVOH/PE trays, food packaging trays and compatible sealing materials for food processors, packaging distributors and commercial packaging projects.

HSQY at Industry Exhibitions

Request a Quote

Contact HSQY for the 180 × 130 × 60 mm large clear PET/PE food tray. Include your packed food, required quantity, product dimensions, sealing-film requirements and destination market so the tray and sealing system can be reviewed together.

Contact HSQY for a Quote
