Clear PVC transparent window film for packaging

HSQY clear PVC window film is available in 125–300 micron thicknesses and custom sheet sizes for paper box windows, carton inserts, die cutting and window-patching applications.
  • 1000 KG.

Availability:

Product Description

Clear PVC Transparent Window Film for Packaging

HSQY Clear PVC Transparent Window Film is designed for paper box windows, carton inserts and retail packaging applications where product visibility is required. The transparent PVC material can be cut and attached behind a die-cut opening in paperboard packaging to create a clear viewing window.

Available in thicknesses from 125 to 300 microns, HSQY PVC window sheets provide a clear appearance, uniform thickness and anti-sticking characteristics for packaging converters, printing companies, paper box manufacturers and distributors.

Standard sheet sizes include 700 × 1000mm, 750 × 1050mm, 915 × 1830mm and 1220 × 2440mm. Customized dimensions are also available to match different window-patching machines, cutting layouts and packaging designs.

Request PVC Window Film Quote

Clear PVC Window Film Specifications

HSQY supplies clear PVC window material in multiple thicknesses and standard sheet dimensions for packaging manufacturers. The appropriate specification should be selected according to window size, required stiffness, cutting method and packaging production equipment.

Specification Details
Product Clear PVC Transparent Window Film for Packaging
Material Polyvinyl Chloride (PVC)
Main Use Paper box windows, carton windows and transparent packaging inserts
Thickness 125, 150, 180, 200, 220, 240, 250, 280 and 300 microns
Thickness Range 0.125–0.30mm
Standard Sizes 700 × 1000mm, 750 × 1050mm, 915 × 1830mm, 1220 × 2440mm
Customized Sizes Available according to project requirements
Color Clear transparent
Surface Characteristics Anti-sticking, uniform thickness, controlled crystal-point and flow defects
Raw Material LG or Formosa Plastic PVC resin powder with processing aids and reinforcing agents
Packing PE film + kraft paper + tray packing
Packing Quantity Reference: up to 100 sheets per bag, depending on size and thickness
MOQ 1,000kg
Delivery Time 5–20 days, depending on specification and order quantity

Available PVC Window Film Thicknesses

HSQY offers nine thickness options between 125 and 300 microns. The correct thickness depends on the size of the transparent window, the unsupported film area, required stiffness and the capabilities of the customer's cutting and window-patching equipment.

Micron Equivalent Thickness
125 micron 0.125mm
150 micron 0.15mm
180 micron 0.18mm
200 micron 0.20mm
220 micron 0.22mm
240 micron 0.24mm
250 micron 0.25mm
280 micron 0.28mm
300 micron 0.30mm

For large windows or applications requiring greater stiffness, a thicker grade may be appropriate. For smaller windows and lightweight cartons, a thinner grade may be sufficient. Sample testing with the actual paperboard, adhesive and production equipment is recommended.

Key Features of Clear PVC Window Film

High Transparency

Clear PVC provides a transparent viewing area in paperboard cartons and packaging boxes. Consumers can see the packaged product while the paperboard retains the main structural and printed branding functions.

Uniform Thickness

Consistent thickness helps improve material feeding, cutting accuracy and window-patching stability. It is particularly important for manufacturers processing PVC sheets on automated packaging equipment.

Anti-Sticking Surface

Anti-sticking characteristics help individual PVC sheets separate more easily during handling and converting. This can support smoother feeding during cutting, die-cutting and window-patching operations.

Smooth Visual Appearance

The material is produced with attention to visible crystal points, flow defects and sheet consistency. A clean surface is important because imperfections are easy to notice in transparent retail packaging.

Custom Dimensions

Besides standard sheet sizes, customized dimensions can be discussed according to the customer's cutting pattern, paper box dimensions and window-patching process.

How PVC Window Film Is Used in Paper Box Packaging

A paper box window is normally created by die-cutting an opening in the paperboard carton and attaching a transparent PVC film or sheet behind the opening. The PVC provides product visibility while the paperboard provides the main box structure, printing surface and branding area.

This construction is commonly used when brands want consumers to see the product without producing an entire box from transparent plastic.

Window Cutting

The PVC material can be cut into rectangular, square or customized window inserts according to the carton design. Cutting accuracy should match the required bonding area around the paperboard opening.

Die Cutting

PVC sheets can be die-cut into customized shapes when packaging designs require non-standard window geometries. Cutting tools and machine settings should be matched to the selected film thickness.

Window Patching

During window patching, the PVC insert is positioned behind the die-cut carton opening and bonded to the paperboard. Sheet flatness, feeding performance, adhesive application and positioning accuracy all affect production efficiency.

Adhesive Bonding

The adhesive used for window patching must be compatible with both the PVC surface and the paperboard or carton coating. Bond strength can vary depending on adhesive chemistry, coating, application amount, drying conditions and storage environment.

For new projects, HSQY recommends testing the actual PVC material together with the customer's paperboard and adhesive before full-scale production.

Clear PVC Window Film Product Images

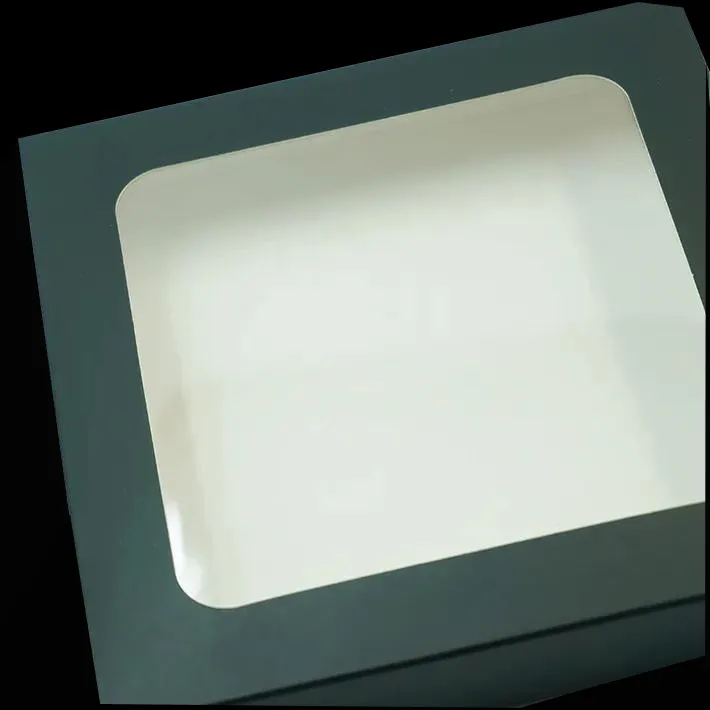

Clear PVC transparent window film for packaging

Clear PVC Packaging Window Film

Transparent PVC sheet for paper box windows

Transparent PVC Sheet for Box Windows

Applications of Clear PVC Window Film

Cosmetics and Personal Care Packaging

Transparent windows allow consumers to see perfume bottles, skincare containers, beauty accessories and cosmetic products while the printed carton provides branding and product information.

Gift and Retail Packaging

PVC window film can be used in gift boxes, promotional cartons and retail packaging where the product needs to remain visible while the paperboard provides structural support and decoration.

PVC clear window film packaging application

PVC Clear Window Packaging Application

Transparent PVC box window packaging application

Transparent Box Window Application

Bakery and Confectionery Boxes

Clear window packaging is widely used for bakery cartons, confectionery boxes and gift food packaging where visual presentation is important. When the PVC material is intended for direct food contact, the appropriate material grade and destination-market compliance documents must be confirmed before ordering.

Electronics and Accessories

PVC window film can be used in packaging for cables, chargers, electronic accessories, small devices and other products where consumers benefit from seeing the item before opening the carton.

Toys, Stationery and General Retail Products

Paperboard boxes with transparent PVC windows are also used for toys, pens, stationery, accessories and other retail products requiring a visible product display area.

Clear PVC window film for retail carton packaging

Clear PVC Retail Window Packaging

Transparent PVC box window film packaging example

Transparent PVC Box Window Film

PVC Window Film vs. Full Clear PVC Folding Box

PVC window film and PVC folding box sheet are both transparent packaging materials, but they perform different functions and should not automatically use the same specification.

Comparison PVC Window Film PVC Folding Box Sheet
Primary Structure Used as a transparent insert in a paperboard carton PVC forms the main transparent box body
Main Function Create a transparent viewing window Create a complete transparent carton
Typical Processing Cutting, die cutting, window patching and bonding Printing, die cutting, creasing, folding and bonding
Important Material Factors Transparency, flatness, anti-sticking and adhesive compatibility Rigidity, crease quality, folding performance and printability
Typical Thickness This product: 0.125–0.30mm Depends on folding box structure and rigidity requirements

How to Choose the Right PVC Window Film

1. Confirm the Window Size

Larger unsupported windows normally require greater stiffness than small carton windows. Provide the finished window dimensions when requesting material recommendations.

2. Confirm the Required Thickness

HSQY offers 125–300 micron grades. Existing material specifications or physical samples are useful when matching a current packaging design.

3. Check Machine Feeding Requirements

For automated window-patching equipment, material flatness, thickness consistency and sheet separation can affect feeding performance. Buyers should provide machine requirements when they are critical.

4. Test Adhesive Compatibility

PVC surfaces, coated paperboard and different adhesive chemistries can produce different bonding results. Production testing should be completed before large-volume orders.

5. Confirm Regulatory Requirements

If the packaging is used for food, cosmetics, toys or another regulated application, buyers should specify the destination market and required compliance documentation. Standard PVC window material should not automatically be assumed to meet every regulatory requirement.

PVC Window Film Packing and Delivery

HSQY clear PVC sheets are packed with PE film, kraft paper and tray packaging to help protect the transparent surface during handling, storage and international transportation.

A reference packing arrangement is up to 100 sheets per bag. The actual quantity per package depends on the selected thickness and sheet dimensions.

The standard minimum order quantity is 1,000kg. Typical delivery time is 5–20 days, depending on the selected thickness, dimensions, quantity and packaging requirements.

Frequently Asked Questions About Clear PVC Window Film

1. What is clear PVC window film used for?

Clear PVC window film is used as a transparent insert in paperboard packaging. It is commonly attached behind a die-cut opening so consumers can see the product inside the carton.

2. What thicknesses are available?

Available thicknesses are 125, 150, 180, 200, 220, 240, 250, 280 and 300 microns, equivalent to 0.125–0.30mm.

3. What standard sheet sizes can HSQY supply?

Standard sizes include 700 × 1000mm, 750 × 1050mm, 915 × 1830mm and 1220 × 2440mm. Customized dimensions are also available.

4. Can PVC window film be die-cut?

Yes. PVC window material can be cut or die-cut into customized shapes. Tooling and machine settings should be selected according to material thickness and required edge quality.

5. Can PVC film be used on automatic window-patching machines?

PVC film can be evaluated for automated window-patching equipment. Material thickness, flatness, sheet separation and machine feeding requirements should be confirmed through production testing.

6. Can PVC window film be glued to paperboard?

Yes. A suitable packaging adhesive can be used, but bond performance depends on PVC surface characteristics, paperboard coating, adhesive chemistry and drying conditions. Adhesive testing is recommended.

7. What does anti-sticking PVC mean?

Anti-sticking characteristics help reduce sheets adhering to each other during handling and processing. This can improve sheet separation and feeding during packaging conversion.

8. What is the MOQ?

The standard minimum order quantity is 1,000kg. Availability for customized thicknesses and dimensions should be confirmed when requesting a quotation.

9. What is the delivery time?

Typical delivery time is 5–20 days. Actual production time depends on specification, quantity and packaging requirements.

10. Are customized sheet sizes available?

Yes. Customized dimensions can be discussed according to the customer's carton design, cutting layout and production equipment.

11. Is clear PVC window film suitable for direct food contact?

Food-contact suitability depends on the exact PVC formulation, contact conditions and destination-market regulations. Buyers requiring direct food contact should confirm the appropriate grade and supporting compliance documentation before ordering.

12. What information should I provide for a quotation?

Please provide the required thickness, sheet dimensions, estimated quantity, packaging application and destination. For automated window-patching projects, providing the machine requirements, paperboard specification and adhesive type is also helpful.

Request a Clear PVC Window Film Quotation

HSQY supplies clear PVC window film and sheets for paper box manufacturers, carton converters, printing companies, packaging material distributors and wholesale buyers.

Whether you require 125-micron lightweight window material or a 300-micron PVC sheet for a larger transparent opening, HSQY can review the required dimensions and packaging application.

Send us your required thickness, sheet size, quantity and application to request samples and a quotation.

Contact HSQY for Pricing and Samples
