Continuous Gas Flush Map Tray Sealer, Automatic Commercial Food Tray Sealing Machine

HSQY PLASTIC offers manual and automated solutions, including assembly lines, MAP, VSP, and custom services. Our fully integrated meal packaging solutions help you efficiently automate packaging for fresh, portioned meals. If you need packaging for food or ready-to-eat meals in CPET, APET, or PP trays, we are your trusted partner.

Brand:
HSQY PLASTIC
Product Type:
Tray Sealing Machine

Availability:



Inquiry

Commercial Food Tray Sealing Machine

Commercial Food Tray Sealing Machine

The commercial food tray sealing machine provides a reliable, efficient way to seal food trays. It is ideal for small to medium-sized businesses, including restaurants, supermarkets, catering services, and food processing facilities. This machine helps maintain food freshness, prevents leaks, and improves packaging presentation.

HSQY PLASTIC is a leading supplier of tray sealer machines. Our products deliver efficient, hygienic, airtight packaging solutions for a range of industries. Designed for modern production lines, they ensure consistent sealing and extend shelf life. We offer manual, semi-automatic, and fully automatic tray sealers, with customizable options to suit your packaging requirements.

Food Tray Sealing Machine Catalog

Download Food Tray Sealing Machine

Commercial Food Tray Sealing Machine Specifications

Technical Parameter	Commercial Food Tray Sealing Machine
Model	HS580AT-S	HS580AT-E	HS580AT-V
Max. width of roll film (mm)	580	580	580
Max. diameter of roll film (mm)	220	220	220
Capacity (box/hour) output 3	1500	1400	1300
Displacement of vacuum pump (m3/h)	/	/	100
Power supply (v/hz)	220/50	220/50	220/50
Total power (kw)	2.5	2.5	5.5
Working air pressure (Mpa)	0.6～0.8	0.6～0.8	0.6～0.8
Equipment weight (kg)	281	281	360
Equipment size L × W × H(mm)	1600×940×1400	1600×940×1400	1600×940×1400
Gross weight of package (kg)	380	380	380
Packing box size L × W × H(mm)	1700×990×1490	1700×990×1490	1700×990×1490

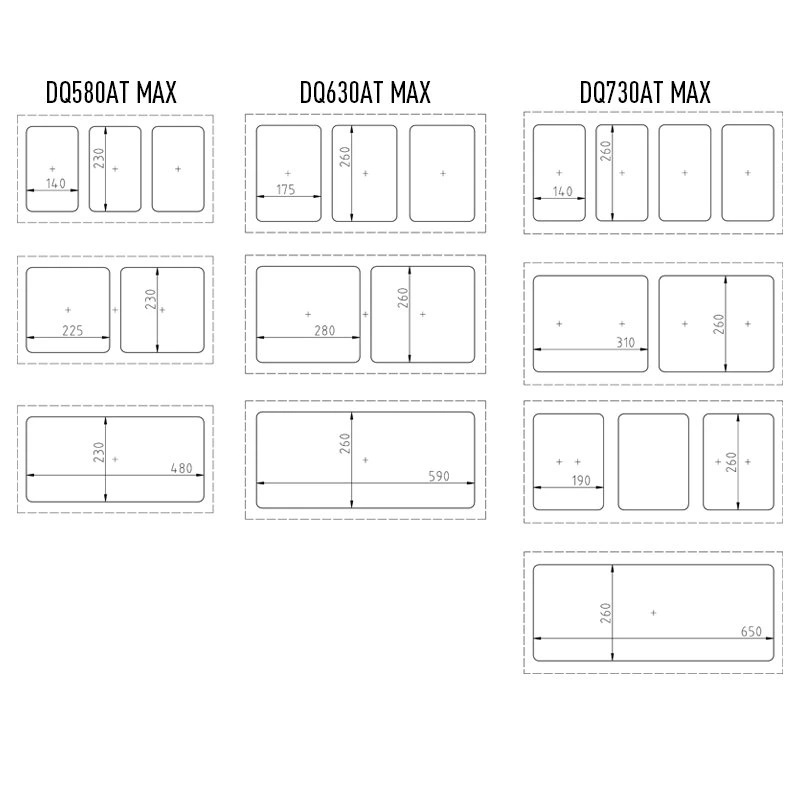

Maximum size of tray (mm) out of 3	200×140×60	200×140×60	200×140×60

Key Features of Commercial Food Tray Sealing Machine

Efficient Sealing Performance – Delivers strong, airtight seals to preserve food quality

Flexible Operating Options – Available in manual, semi-automatic, and automatic models

Wide Material Compatibility – Compatible with PP, PET, CPET, and aluminum trays

Compact Design – Space-saving construction suitable for commercial kitchens

Easy Operation – Simple controls with adjustable temperature and sealing time

Hygienic Construction – Constructed from food-grade stainless steel for safe food contact

Applications of Commercial Food Tray Sealing Machine

Takeaway and delivery meals
Fresh food packaging (meat, seafood, vegetables)
Ready-to-eat meals and meal prep services
Airline catering and food service
Frozen and chilled food packaging

Certifications

SGS and ISO 9001:2008 certifications for PVC strip curtains

Global Exhibitions

2024 Mexico Exhibition

2025 Philippines Exhibition

2024 Paris Exhibition

2023 Saudi Exhibition

2024 American Exhibition

2017 Shanghai Exhibition

2018 Shanghai Exhibition

2023 American Exhibition

FAQs About Commercial Food Tray Sealing Machine

Q1: What is a commercial tray sealing machine?

A commercial tray sealing machine seals food trays with plastic film to protect contents and extend shelf life.

Q2: Which industries use this machine?

It is commonly used in food processing, catering, supermarkets, and takeout businesses.

Q3: Can it seal different tray materials?

Yes, it is compatible with PP, PET, CPET, and aluminum trays.

Q4: Is it easy to operate?

Yes, most models feature simple controls and user-friendly interfaces.

Q5: What is the difference between manual and automatic models?

Manual machines require operator input for each cycle. Automatic machines operate continuously and require minimal supervision.
