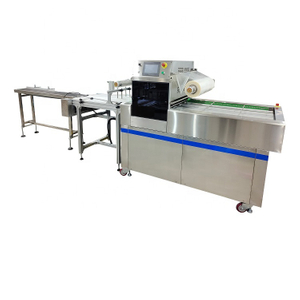

Continuous Automatic Food Tray Sealing Machine, Commercial Food Tray Sealer

HSQY PLASTIC offers manual and automated solutions, including assembly lines, MAP, VSP, and custom services. Our fully integrated meal packaging solutions help you efficiently automate packaging for fresh, portioned meals. If you need packaging for food or ready-to-eat meals in CPET, APET, or PP trays, we are your trusted partner.

Brand:
HSQY PLASTIC
Product Type:
Tray Sealing Machine

Availability:



Inquiry

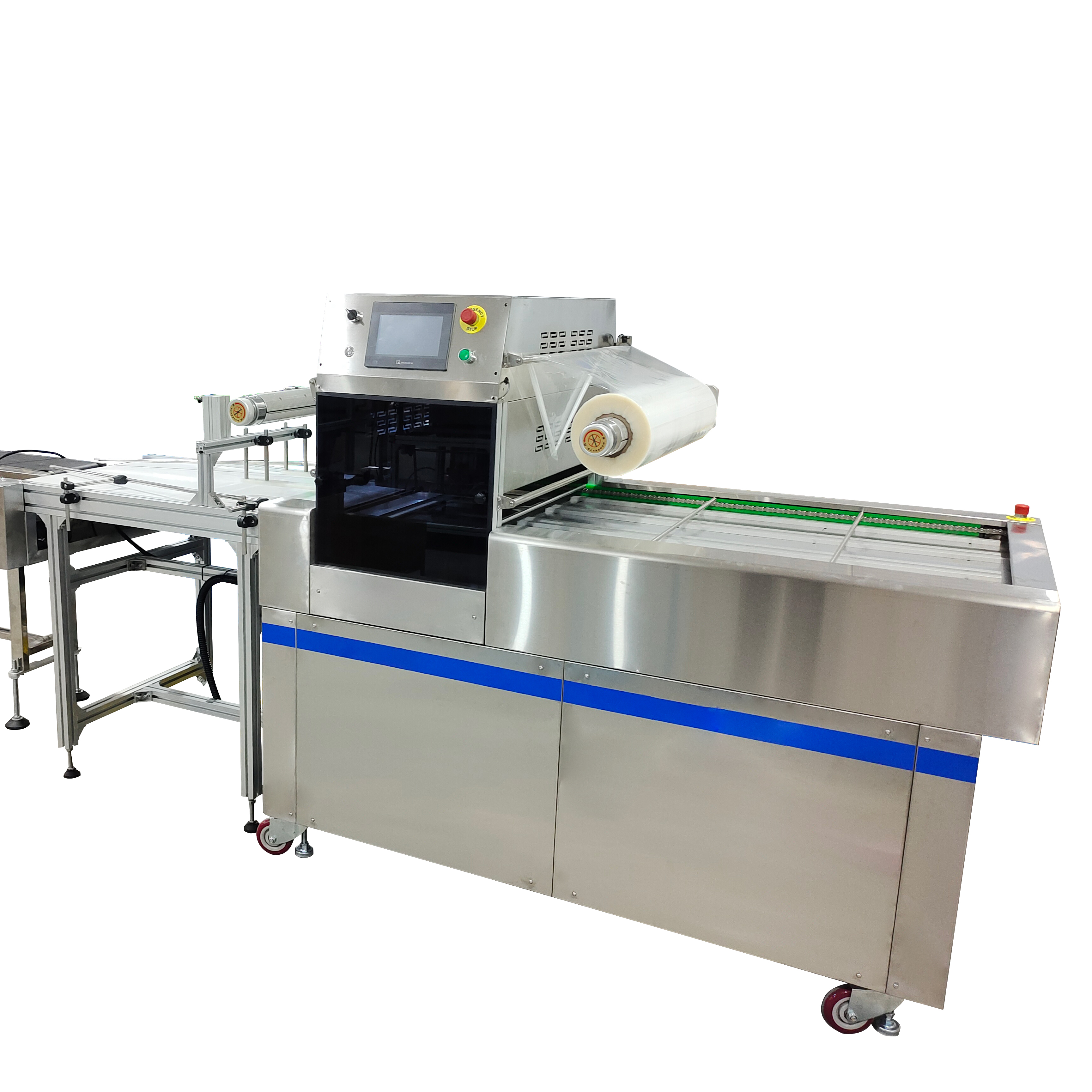

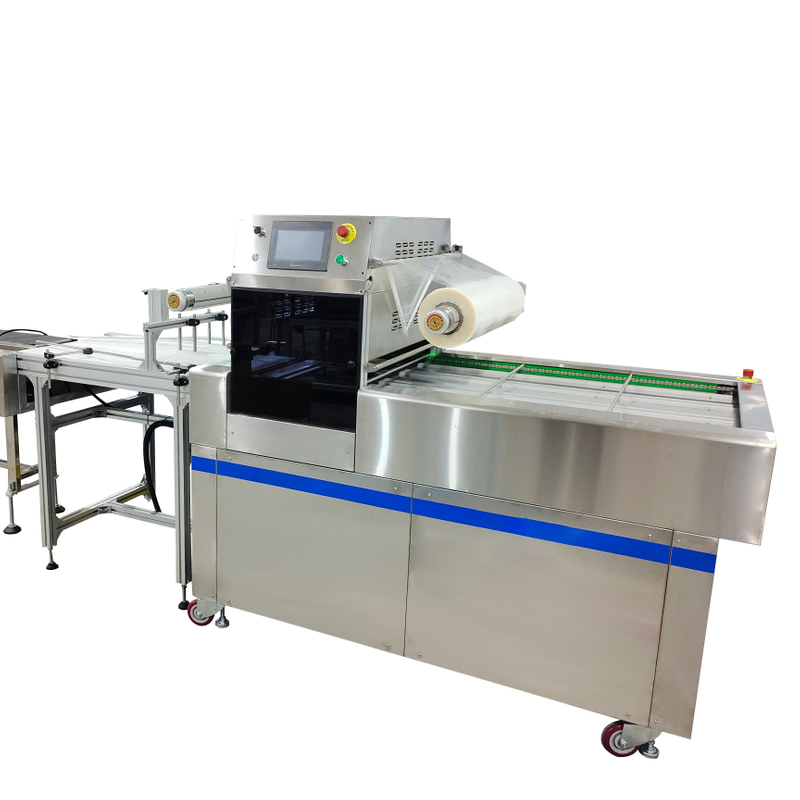

Commercial Food Tray Sealer

Commercial Food Tray Sealer

The commercial food tray sealer offers a reliable, efficient way to seal food trays. It is ideal for small- to medium-sized businesses, including restaurants, supermarkets, catering services, and food processing facilities. This machine helps preserve food freshness, prevents leaks, and improves packaging presentation.

HSQY PLASTIC is a leading supplier of tray sealer machines. Our products deliver efficient, hygienic, airtight packaging solutions for a range of industries. Designed for modern production lines, they ensure consistent sealing and extend shelf life. We offer manual, semi-automatic, and fully automatic tray sealers, with customizable options to suit your packaging requirements.

Food Tray Sealing Machine Catalog

Download Food Tray Sealing Machine

Commercial Food Tray Sealer Specifications

Technical Parameter	Commercial Food Tray Sealer
Model	HS810TG-S	HS810TG-E
Max. width of roll film (mm)	560	560
Max. diameter of roll film (mm)	220	220
Capacity (box/hour) output 6	2000	2000
Displacement of vacuum pump (m3/h)	/	/
Power supply (v/hz)	220/50	220/50
Total power (kw)	3.3	3.3
Working air pressure (Mpa)	0.6～0.8	0.6～0.8
Equipment weight (kg)	600	600
Equipment size L × W × H(mm)	2920×900×1520	2920×900×1520
Gross weight of package (kg)	1042	1042
Packing box size L × W × H(mm)	3007×1050×1650	3007×1050×1650

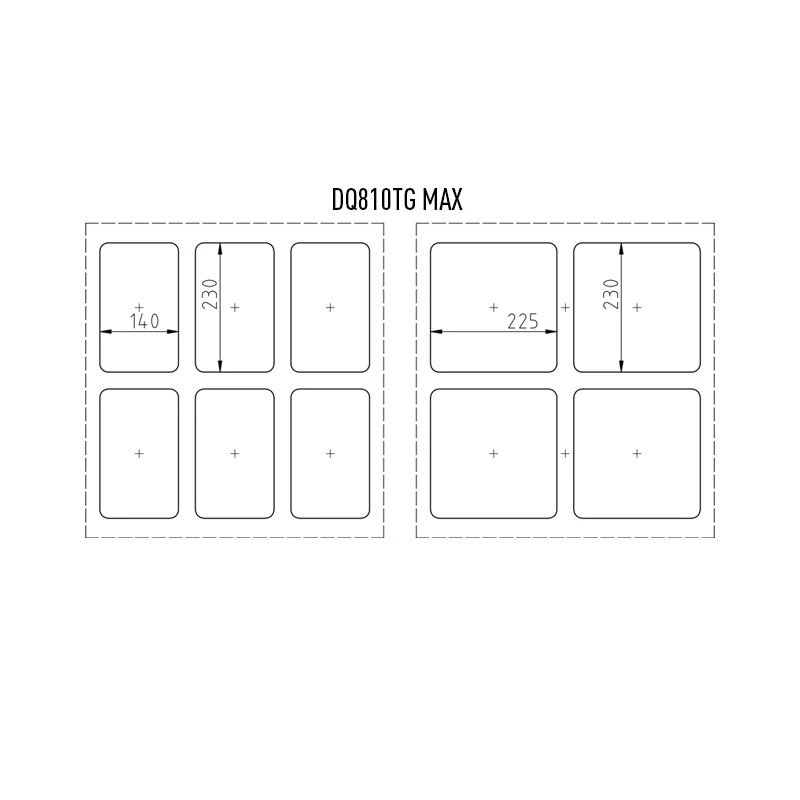

Maximum size of tray (mm) out of 6	200×140×60	200×140×60

Key Features of Commercial Food Tray Sealer

Efficient Sealing Performance – Delivers strong, airtight seals to preserve food quality

Flexible Operating Options – Available in manual, semi-automatic, and automatic models

Wide Material Compatibility – Compatible with PP, PET, CPET, and aluminum trays

Compact Design – Space-saving construction suitable for commercial kitchens

Easy Operation – Simple controls with adjustable temperature and sealing time

Hygienic Construction – Constructed from food-grade stainless steel for safe food contact

Applications of Commercial Food Tray Sealer

Takeaway and delivery meals
Fresh food packaging (meat, seafood, vegetables)
Ready-to-eat meals and meal prep services
Airline catering and food service
Frozen and chilled food packaging

Certifications

SGS and ISO 9001:2008 certifications for PVC strip curtains

Global Exhibitions

2024 Mexico Exhibition

2025 Philippines Exhibition

2024 Paris Exhibition

2023 Saudi Exhibition

2024 American Exhibition

2017 Shanghai Exhibition

2018 Shanghai Exhibition

2023 American Exhibition

FAQs About Commercial Food Tray Sealer

1. What is a commercial food tray sealer used for?

A commercial food tray sealer is a machine that seals food in trays with plastic film, creating airtight or modified-atmosphere packaging. This process helps preserve freshness, extend shelf life, and prevent contamination.

2. What types of trays can be used with a commercial food tray sealer?

Commercial food tray sealers are compatible with various tray types, such as PET, PP, CPET, and biodegradable materials. They can also be equipped with custom molds for different tray sizes and shapes.

3. What is the difference between MAP and vacuum tray sealing?

The difference between MAP (Modified Atmosphere Packaging) and vacuum sealing is that MAP replaces the air in the tray with a gas mixture to extend shelf life, whereas vacuum sealing removes all air before sealing. MAP better preserves food texture and appearance.

4. Can the machine handle high production volumes?

Fully automatic tray sealers are designed for high-speed production and can seal hundreds or thousands of trays per hour, making them suitable for industrial-scale operations.

5. Can the machine be customized?

Commercial tray sealers can be customized with different molds, sealing methods (MAP or vacuum), and automation levels to meet specific production requirements.

About HSQY Plastic Group

HSQY Plastic Group was founded in 2008. HSQY Plastic functions as both a manufacturer and trader, with certifications from SGS and TUV. Located in Changzhou, it operates advanced production facilities in Yiwu and Taizhou. The company specializes in plastics such as PVC, PET, CPET, PP, PC, PS, ABS, and PMMA. In 2019, we expanded into the food packaging industry and invested in a new factory. Our main products include PET, CPET, PP, PS, biodegradable food trays, lidding film, and machinery. We have built strong global partnerships and export worldwide, with annual exports exceeding $30 million. Through consistent quality, customized solutions, and efficient supply chains, we offer the most cost-effective plastic product solutions to our international clients.
