HSQY rPET Plastic Sheet For Thermoforming

HSQY recycled PET thermoforming sheet for clear trays, clamshells, blister packaging and inserts. Available in 0.12–6 mm thickness, widths up to 1400 mm and customized recycled-content grades.
  • HSQY

  • rPET

  • 1220x2440, Customized

  • Clear, Colored

  • 0.12mm - 6 mm

  • max 1400 mm.

  • 1000 KG.

Availability:

rPET Sheet

RPET Thermoforming Sheet for Clear Packaging

HSQY RPET thermoforming sheet is a rigid recycled polyethylene terephthalate material designed for manufacturing transparent food trays, clamshell packaging, blister packs, protective inserts and other thermoformed plastic products. Combining recycled PET content with good clarity, rigidity and forming performance, it is a practical solution for packaging converters and industrial manufacturers.

HSQY Plastic supplies recycled PET sheets in thicknesses from 0.12 mm to 6 mm and widths up to 1400 mm. Clear and colored options, high-gloss and matte finishes, and customized sheet or roll dimensions can be discussed according to production requirements.

Selected RPET grades can contain up to 100% post-consumer recycled PET, depending on the material formulation, processing requirements and intended application. The recycled-content percentage, product structure and applicable documents should be confirmed for the selected grade.

Whether you produce food packaging trays, clear clamshells, retail blister packaging or custom plastic inserts, HSQY can discuss suitable RPET sheet specifications for your thermoforming equipment, mold design and finished packaging requirements.

Request an RPET Thermoforming Sheet Quote

What Is RPET Thermoforming Sheet?

RPET thermoforming sheet is a PET-based plastic sheet made with recycled polyethylene terephthalate. It is supplied as rigid sheet or rollstock and converted into three-dimensional packaging products through controlled heating and forming.

During thermoforming, a suitable RPET sheet is heated until it becomes formable and then shaped using vacuum, pressure or other forming methods. The finished product is cooled, trimmed and prepared for subsequent packaging operations.

The forming performance depends on the recycled PET grade, thickness, moisture condition, heating profile, mold design and forming depth. Different applications may require different material characteristics and production settings.

RPET Thermoforming Sheet Specifications

Property Details
Product Name RPET Plastic Sheet for Thermoforming
Material Recycled Polyethylene Terephthalate (RPET)
Thickness 0.12–6 mm
Maximum Listed Width 1400 mm
Listed Sheet Size 1220 × 2440 mm, Customized
Color Clear, Colored
Surface Finish High Gloss, Matte and Selected Customized Finishes
Supply Format Rollstock or Cut Sheets, Subject to Specification
Recycled Content Up to 100% Post-Consumer Recycled PET for Eligible Grades
Forming Processes Thermoforming, Vacuum Forming, Pressure Forming and Blister Forming
Other Converting Processes Die Cutting, Trimming and Selected Printing Applications
Functional Options Anti-Fog, Anti-UV, Anti-Static, ESD and Print-Compatible Grades, Subject to Availability
Main Applications Food Trays, Clamshells, Blister Packs, Product Inserts and Retail Packaging
MOQ 1000 KG, Subject to Order Confirmation
Available Documentation Product Specifications and Applicable RoHS, REACH or GRS-Related Documents Upon Confirmation

Note: Actual availability depends on the selected thickness, width, color, surface treatment and material grade. Thermoforming performance and food-contact suitability must be validated for the intended application.

Get RPET Sheet Specifications and Pricing

Key Benefits of RPET Thermoforming Sheets

Good Transparency for Product Visibility

Clear RPET sheet provides product visibility for transparent trays, clamshells and retail packaging. Optical clarity and haze depend on the quality of recycled materials, sheet thickness, formulation and production conditions.

Reliable Thermoforming Potential

Suitable RPET grades can be formed into a range of packaging shapes using appropriately configured thermoforming equipment. Heating conditions, draw ratio and mold design should be selected to achieve the required part definition and wall-thickness distribution.

Mechanical Strength and Rigidity

RPET combines useful stiffness and strength for rigid packaging applications. Finished-part performance depends on material thickness, cavity depth, geometry, production conditions and expected loads.

Recycled PET Material Options

RPET uses recovered PET material in the production of new sheets. Buyers can specify recycled-content targets and request supporting documents for their chosen product grade.

Customized Sheet and Roll Dimensions

Sheet thickness, width, cut-sheet dimensions and roll specifications can be discussed according to customer equipment and packaging needs. Suitable sizing can help reduce unnecessary material trimming during converting.

Optional Surface Characteristics

Selected RPET grades may offer anti-fog, anti-static, ESD, UV-related or print-compatible performance. The available treatments should be confirmed individually, as they are not standard properties of every RPET sheet.

RPET Thermoforming Sheet Applications

Clear Food Trays: RPET can be formed into transparent food trays and packaging components where the selected grade and construction meet applicable food-contact requirements.

Clamshell Packaging: RPET is suitable for selected hinged-lid packaging used for bakery products, produce and retail goods. Forming depth, hinge design and mechanical strength should be validated.

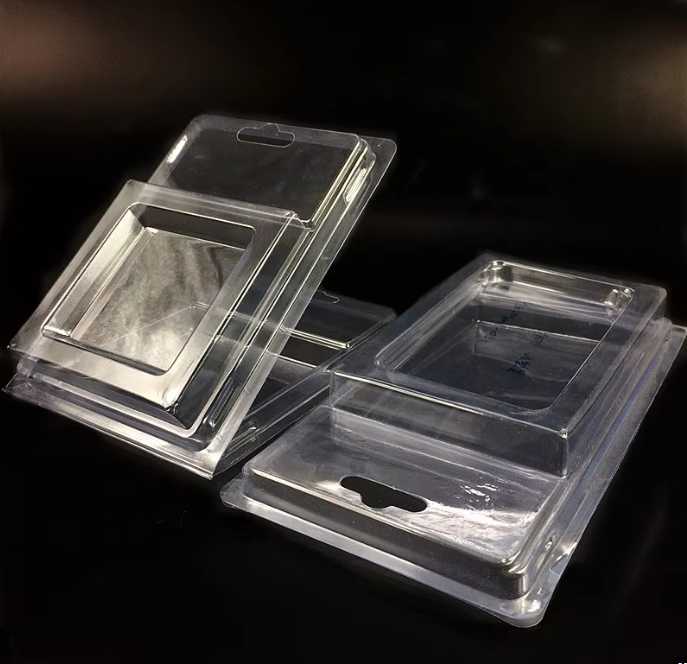

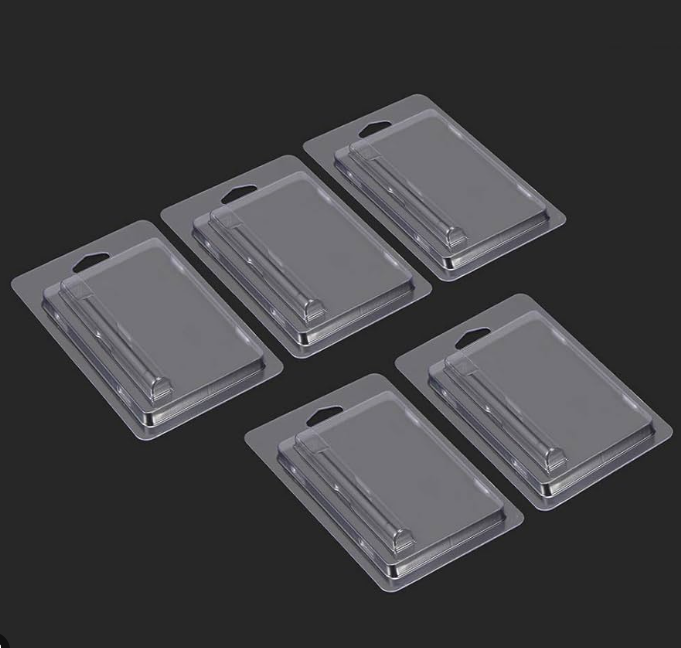

Blister Packaging: Clear RPET can be thermoformed into blister cavities used for consumer goods, electronics accessories, hardware and other products.

Protective Inserts: RPET can be formed into inserts and trays designed to position and protect products during transport, storage or retail display.

Retail Display Packaging: Transparent rigid RPET is suitable for selected display packs that require good product visibility and sufficient structural support.

Custom Vacuum-Formed Products: RPET sheets can be evaluated for other formed packaging components where the required material, gauge and forming conditions are compatible.

RPET Sheet Thermoforming Process

Thermoforming converts flat RPET material into three-dimensional products. The suitable process depends on the specific sheet grade, forming machine, mold construction and required finished-part properties.

Material Preparation

Inspect the RPET sheet or roll for cleanliness, moisture condition, visual defects and dimensional consistency. Material preparation and drying requirements should follow the supplier's recommendations and the actual processing conditions.

Sheet Heating

Heat the sheet uniformly using a temperature profile appropriate for the selected RPET grade and thickness. Avoid excessive sagging, uneven heating or material degradation.

Vacuum or Pressure Forming

Form the heated sheet against the mold using vacuum, pressure or a suitable forming combination. Deep-draw applications may require process adjustments to achieve satisfactory material distribution.

Cooling and Trimming

Cool the formed packaging sufficiently to maintain dimensional stability, then trim it according to the finished product design. Evaluate trim quality, wall thickness and part consistency during production trials.

Final Product Testing

Check the finished packaging for appearance, rigidity, dimensional accuracy, impact resistance and any food-contact or sealing requirements applicable to its intended use.

How to Choose RPET Sheet for Thermoforming

Thickness: Select the gauge according to tray dimensions, cavity depth, loading requirements and required mechanical strength.

Width: Specify roll or sheet width to match the thermoforming machine and mold layout.

Forming Depth: Provide the finished cavity dimensions and draw ratio to help evaluate suitable material thickness and forming conditions.

Optical Appearance: Confirm the required transparency, haze, surface finish and color.

Recycled Content: Specify the required recycled PET percentage and any supporting documentation.

Functional Treatments: Indicate any need for anti-fog, anti-static, ESD or other specialty performance.

Food-Contact Requirements: Provide the food type, contact temperature, storage conditions and destination market where relevant.

Order Requirements: State the desired quantity, delivery schedule, packing method and destination.

Discuss Your RPET Thermoforming Requirements

RPET vs. Virgin PET for Thermoforming

Both recycled PET and virgin PET sheets can be suitable for thermoforming. The appropriate choice depends on the required recycled content, material performance, appearance, regulatory documentation and cost.

Property RPET Sheet Virgin PET Sheet
Material Source Contains recycled PET Virgin PET resin
Transparency Good clarity possible, depending on grade Good clarity possible, depending on grade
Thermoforming Suitable grades available Suitable grades available
Recycled Content Specified percentage of recycled PET No recycled content in virgin-only formulation
Food Contact Requires qualified material and applicable documentation Requires applicable grade and documentation

Recycled Content and Quality Documentation

HSQY lists RPET options containing up to 100% post-consumer recycled PET. The final recycled-content level depends on the selected formulation, production requirements and intended use.

RoHS, REACH and GRS-related documents are referenced in HSQY's recycled PET product information. Customers should confirm current documents, validity and scope for the selected grade and purchasing requirements.

For food-contact applications, the recycled PET source, recycling process, material structure and intended use conditions must be assessed against applicable destination-market requirements. General quality or recycled-content certifications do not independently establish food-contact compliance.

RPET Sheet Technical Resources

Review the available RPET sheet technical specification for general material characteristics and processing information. Contact HSQY to request grade-specific tolerances, roll details and applicable test documents.

Download RPET Sheet Specification PDF

RPET Sheet Packing and Delivery

HSQY supplies RPET sheets and rolls for domestic and international customers. Protective packing can be arranged according to product dimensions, surface characteristics, order quantity and shipping requirements.

Sheet Packing: Cut-sheet packaging can be selected according to sheet dimensions, thickness and handling requirements.

Roll Packing: Roll protection, core dimensions, roll diameter and pallet configuration should be confirmed according to customer requirements.

Sample Packing: Small sheet samples can be arranged for material testing, subject to availability and delivery terms.

International Delivery: Export packing and shipment terms can be discussed according to destination, order quantity and available transportation arrangements.

Why Choose HSQY Plastic for RPET Thermoforming Sheets?

Wide Material Range: HSQY offers RPET sheet in multiple gauges, widths, colors and surface finishes for packaging manufacturers and industrial converters.

Customized Specifications: Buyers can discuss thickness, sheet size, roll format, recycled content and converting requirements for different thermoforming projects.

Packaging Application Support: Material selection can be discussed according to forming equipment, mold layout, finished packaging and quality requirements.

International Supply: HSQY works with manufacturers, distributors and professional buyers on material samples, bulk orders, packing arrangements and export communication.

RPET Thermoforming Sheet Frequently Asked Questions

What is RPET thermoforming sheet?

RPET thermoforming sheet is a recycled PET-based rigid sheet used to manufacture formed packaging products such as clear trays, clamshells, blister packs and protective inserts.

What is the difference between RPET and APET sheet?

RPET describes PET material containing recycled content, while APET describes amorphous PET. These terms refer to different material characteristics and are not necessarily mutually exclusive. A thermoforming sheet can incorporate recycled PET while retaining an amorphous PET structure.

What thicknesses are available?

HSQY lists RPET sheet thicknesses from 0.12 mm to 6 mm. The suitable gauge depends on the final product geometry, forming depth and mechanical requirements.

What is the maximum sheet width?

The product page lists a maximum width of 1400 mm. Please provide your required roll or sheet dimensions to confirm available specifications.

Can RPET sheets be used for deep-draw thermoforming?

Suitable RPET grades can be considered for deep-draw applications. The allowable draw ratio and final wall-thickness distribution depend on the material grade, initial sheet thickness, mold design and forming process. Production trials are recommended.

Is pre-drying required before thermoforming RPET sheet?

Drying requirements depend on the material grade, storage conditions, moisture level and processing method. Follow the relevant supplier instructions and validate processing conditions for your production equipment.

Can RPET sheet be used for food packaging?

Selected RPET grades may be suitable for food-contact packaging when the recycled feedstock, manufacturing process and material structure meet applicable requirements. Request documentation for the intended market, food type and contact conditions.

How much recycled PET can the sheet contain?

HSQY lists RPET options with up to 100% post-consumer recycled PET content. The available percentage should be confirmed for the selected product grade and intended application.

Can RPET sheet be recycled after use?

RPET is a PET-based material. Actual recyclability depends on the finished packaging construction, coatings, labels and local collection and recycling systems.

Does RPET sheet have anti-fog or anti-static properties?

These are available as specialty options for selected grades. They should not be assumed to apply to standard RPET thermoforming sheet without confirmation.

What is the minimum order quantity?

The product page lists a reference MOQ of 1000 kg. Final order requirements may vary by thickness, width, surface treatment and customization.

Can I request samples for thermoforming tests?

Yes. Contact HSQY to discuss sample availability and suitable sizes for material and thermoforming evaluation. Sample terms and freight can be confirmed before dispatch.

What information is required for a quotation?

Please provide the required thickness, width, roll or sheet dimensions, color, application, forming depth, recycled-content target, estimated quantity and delivery destination. Include food-contact and other documentation requirements where applicable.

About HSQY Plastic Group

Changzhou Huisu Qinye Plastic Group Co., Ltd. supplies plastic sheets, films and packaging materials for industrial and packaging applications. Its product portfolio includes RPET sheets, APET sheets, PETG sheets, PVC films and other materials for packaging manufacturers and converters.

HSQY supports professional buyers with material specification discussions, customized dimensions, samples, order arrangements and international supply communication.

Request RPET Thermoforming Sheet Samples and Pricing

Looking for a supplier of recycled PET thermoforming sheet for food trays, clamshells, blister packaging or custom plastic inserts? HSQY Plastic can discuss available RPET grades, material dimensions and custom supply arrangements for your production requirements.

Send us your thickness, width, finished-product application, drawing or forming depth, recycled-content requirements and estimated order quantity to discuss samples and quotations.

Need RPET Sheets for Your Thermoforming Project?

Contact HSQY Plastic to discuss recycled PET sheet specifications, custom sizes, material samples and bulk-order pricing.

Contact HSQY Plastic for a Quote

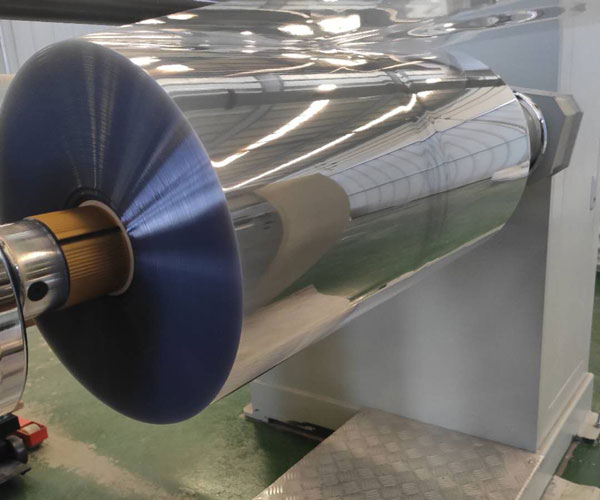

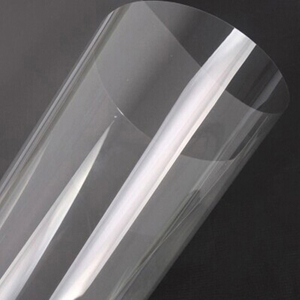

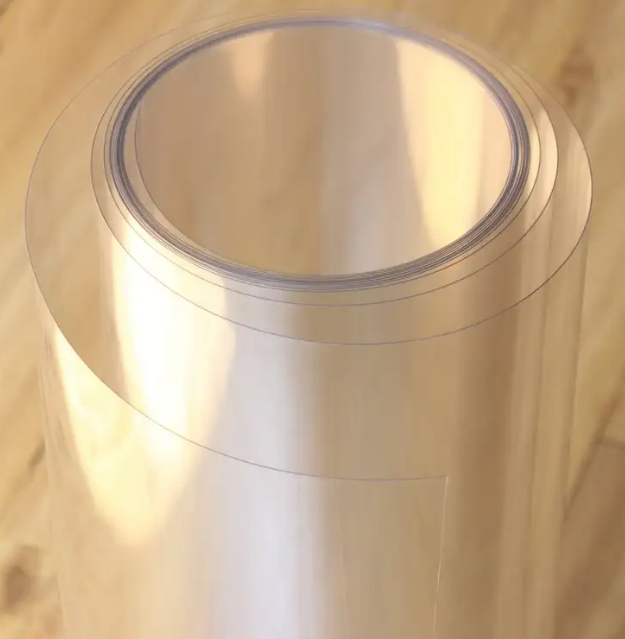

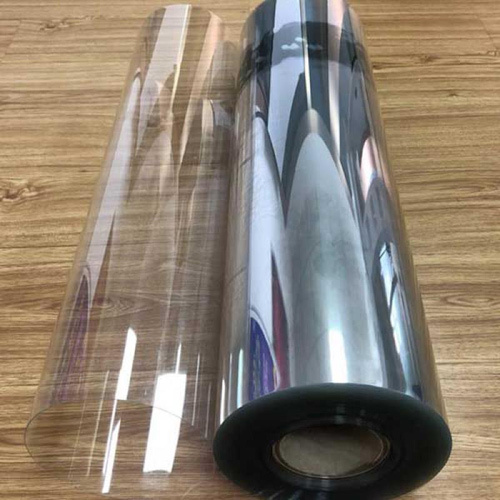

Original RPET Product Images

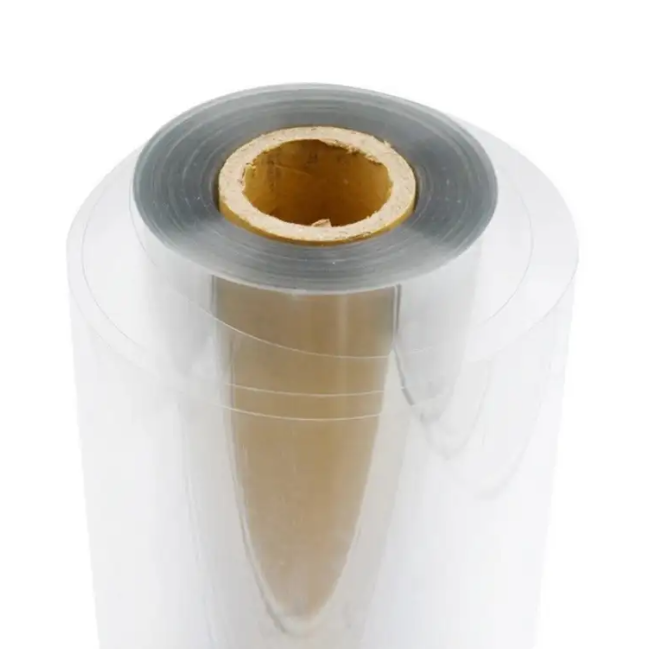

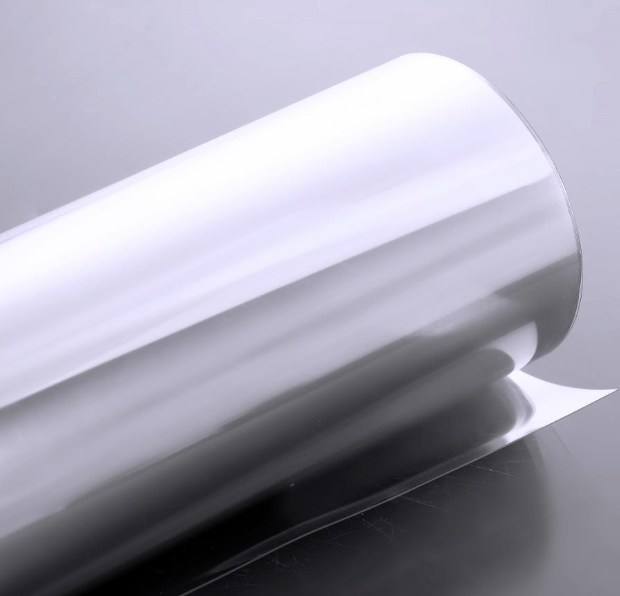

RPET sheet

RPET sheet

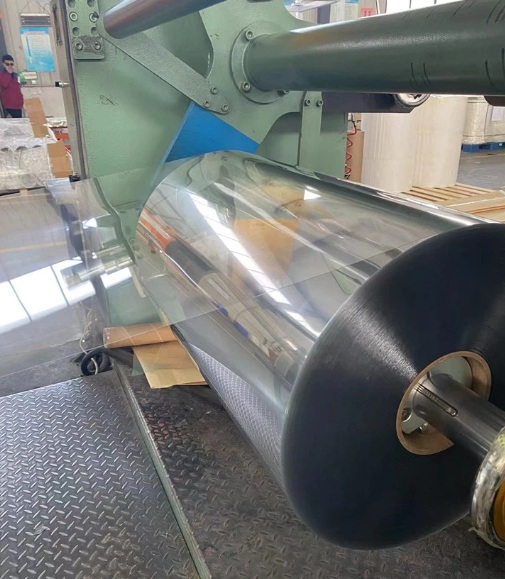

RPET sheet for thermoforming

RPET sheet for thermoforming

RPET sheet for thermoforming

RPET sheet for thermoforming

Certificate and Exhibition

Product certificate

HSQY exhibition

Meet the HSQY team and discuss RPET sheet specifications, thermoforming applications and custom supply requirements.

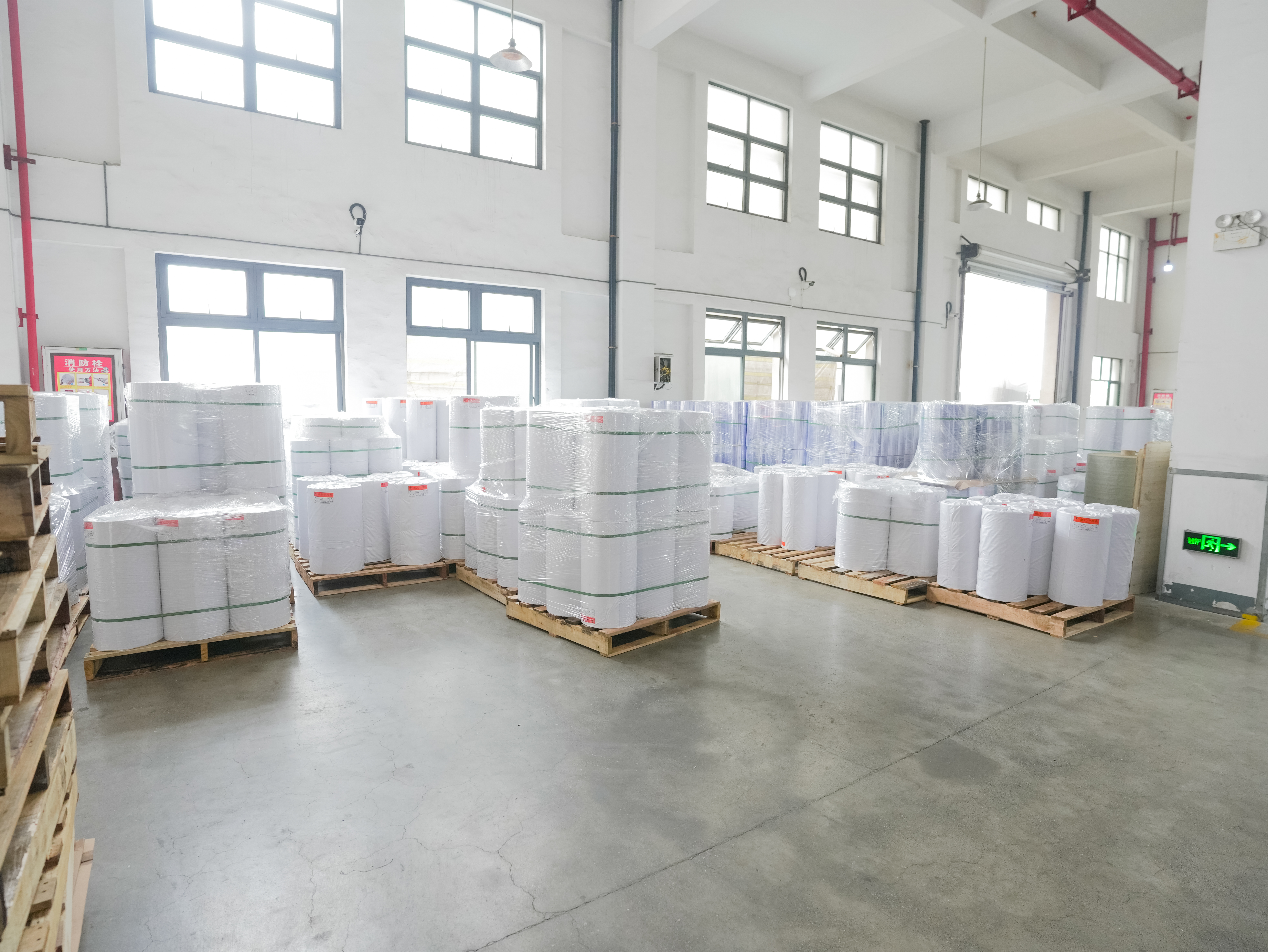

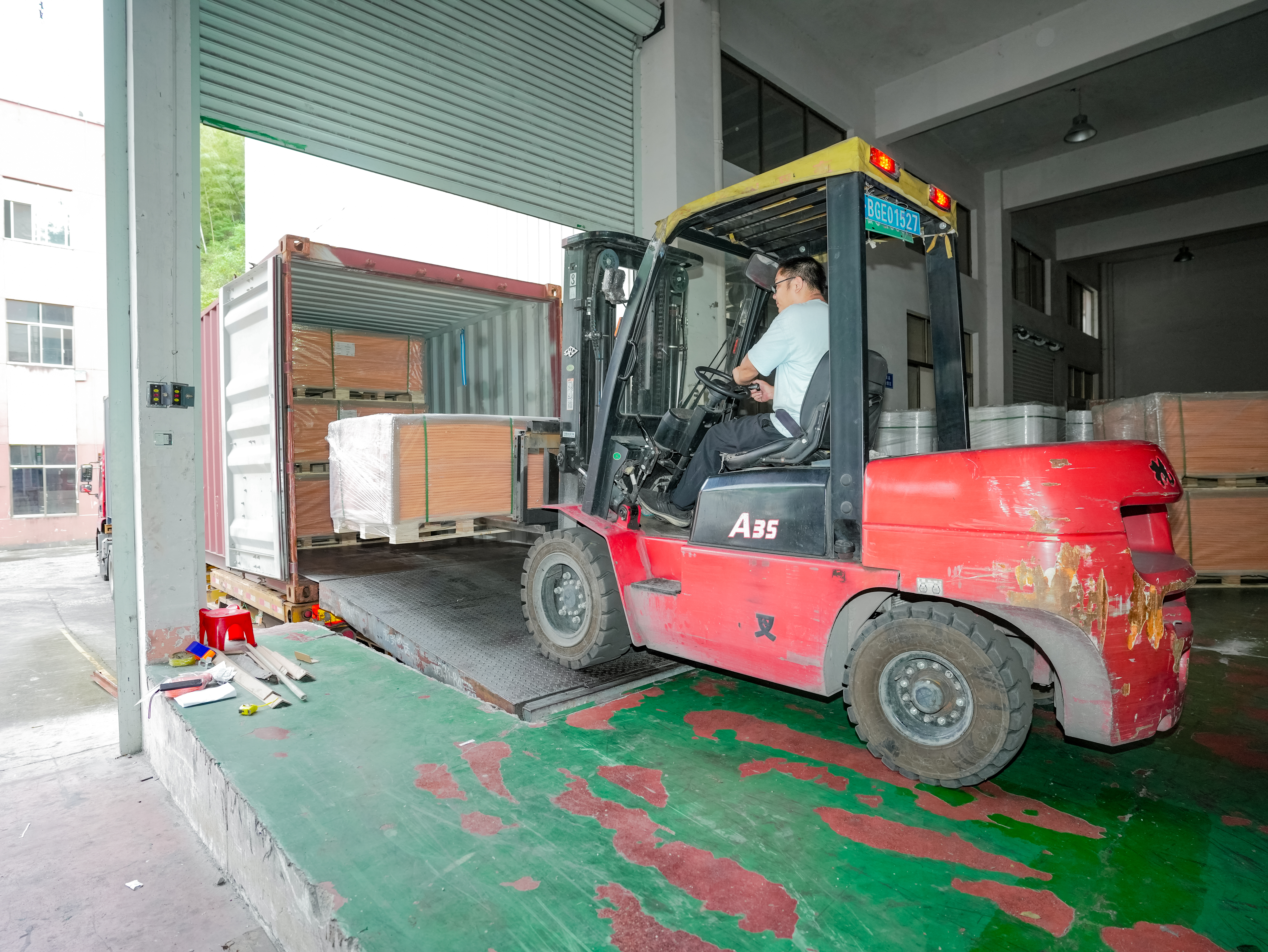

Packing and Delivery

RPET sheet packing and delivery
RPET sheet packing and delivery
