What Is 150mm Tray Sealing Film?
150mm tray sealing film is a clear lidding film supplied in a standard roll size of 150mm wide × 500m long for heat-sealing compatible food trays. This grade is primarily designed for HSQY CPET meal trays and can be customized for ready meals, airline catering, frozen foods, chilled prepared foods, bakery products, and other tray-packed applications.
The film uses a BOPET-based structure with a compatible sealing layer to create an airtight and liquid-resistant seal when the film, tray rim, sealing temperature, pressure, and dwell time are correctly matched. Because tray materials and heat-seal layers vary, compatibility should be confirmed through samples or a production-line trial before bulk ordering.
HSQY can provide clear film, printed film, easy-peel or weld-seal options, anti-fog treatment, custom thickness, custom roll dimensions, and packaging support according to the tray material and filling process.

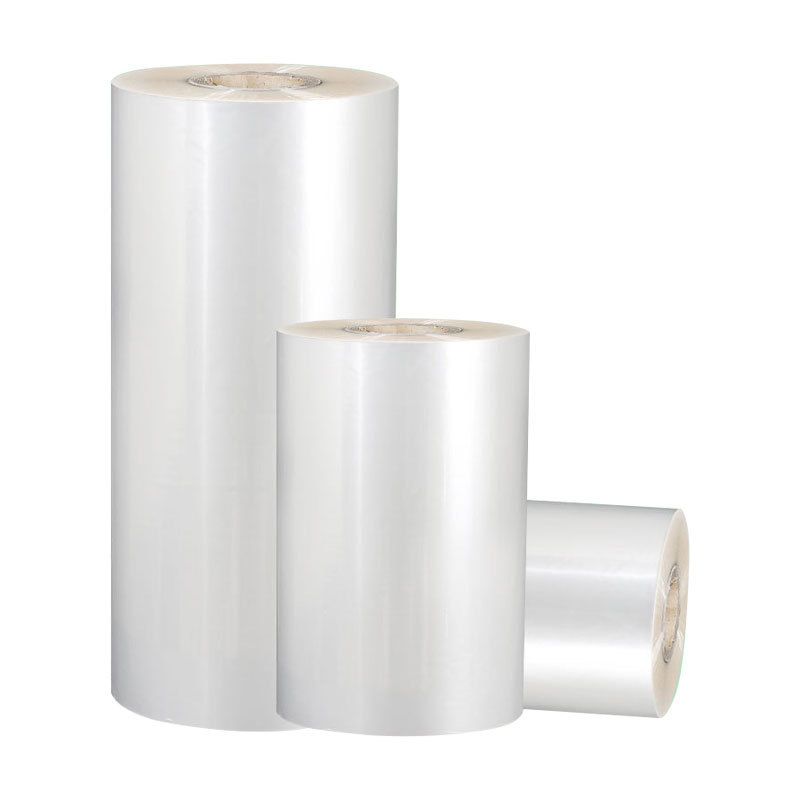

![150mm clear tray sealing film roll for CPET trays]( "150mm tray sealing film roll")
150mm Clear Lidding Film Roll
![BOPET PE laminated tray sealing film for food packaging]( "BOPET PE tray sealing film")
BOPET-Based Tray Lidding Film
![Custom printed tray sealing film roll for food trays]( "custom printed tray sealing film")
Clear or Custom Printed Film
Key Benefits of 150mm Food Tray Lidding Film
Reliable tray sealing: Creates a secure seal when matched with the correct tray rim and sealing conditions.
Clear product presentation: High transparency helps consumers see the packaged food.
Easy-peel or weld-seal options: Select convenient opening or stronger tamper-evident sealing.
Optional anti-fog performance: Helps reduce condensation on chilled products.
Custom printing: Supports branding, product information, instructions, and traceability marks.
Custom conversion: Thickness, roll width, roll length, core size, and outer diameter can be adjusted.
Suitable for automated tray sealers: Roll specifications can be matched to common commercial sealing equipment.
150mm Tray Sealing Film Specifications
| Property |
Standard or Available Option |
| Product Type |
Tray sealing film / lidding film |
| Standard Roll Size |
150mm width × 500m length |
| Material Structure |
BOPET-based film with compatible heat-seal layer; structure confirmed according to tray material |
| Thickness |
0.05–0.10mm, or customized |
| Other Roll Widths |
230mm, 280mm, or customized |
| Color |
Clear; custom printing available |
| Seal Type |
Easy peel, medium peel, or weld seal, subject to tray and application |
| Primary Tray Application |
CPET food trays; other tray materials require a matched sealing layer and trial |
| Anti-Fog |
Optional |
| Freezer Use |
Available for frozen-food applications; final grade should be validated |
| Microwave / Oven Use |
Application-specific ovenable grades are available; validate the exact film, tray, food load, time, and temperature before use |
| Minimum Order Quantity |
500kg |
| Typical Lead Time |
10–14 working days, depending on specification and order quantity |
| Payment Terms |
T/T 30% deposit and 70% balance before shipment |
| Delivery Terms |
EXW, FOB, CNF/CIF, DDU, and door-to-door options |
Which Tray Materials Can the Film Seal?
A lidding film does not seal correctly based on roll width alone. The heat-seal layer must be compatible with the tray flange material. HSQY recommends confirming the exact tray resin, flange construction, sealing machine, and thermal process before selecting the film.
| Tray Material |
Film Selection Guidance |
| CPET |
Primary application for this 150mm product; choose easy-peel or weld-seal grade according to the meal and heating process. |
| APET / RPET / PET |
Requires a PET-compatible sealing layer and line trial. Anti-fog is commonly requested for chilled display. |
| PET/PE |
Use a film matched to the PE sealing surface of the tray flange. |
| PP |
Requires a PP-compatible sealing layer, such as an appropriate CPP or specialized sealant grade. Standard BOPET/PE should not be assumed to seal directly to every PP tray. |
| Aluminium or Coated Paperboard |
Custom structures may be supplied after confirming the rim coating, temperature process, barrier requirement, and seal strength. |
Typical Applications
CPET ready-meal trays for ovenable and microwave meal programs
Airline, railway, institutional, and contract catering meals
Frozen prepared meals and chilled convenience foods
Bakery, dessert, pasta, rice, meat, and vegetable meal trays
Retail food packaging requiring clear presentation or custom printing
For a complete packaging system, review HSQY's CPET tray range and lidding film solutions.
Easy-Peel Film vs. Weld-Seal Film
Easy-peel film is designed to open cleanly with controlled peel force, improving convenience for ready meals and retail food packs. Weld-seal film forms a stronger permanent seal and may be preferred when tamper evidence, transport security, or maximum seal integrity is more important than easy opening.
The correct choice depends on the tray material, product weight, oil or moisture content, filling temperature, distribution conditions, and the required opening experience.
Sealing Conditions and Production-Line Testing
Seal quality is influenced by sealing temperature, pressure, dwell time, tray-flange cleanliness, film tension, tray rigidity, machine condition, and the product packed inside the tray. A film that performs well on one tray or machine may require different settings on another line.
Before mass production, test the film for seal continuity, peel force, leakage, burst resistance, fogging, printing registration, reel tracking, freezer performance, and any microwave or oven process required by the final package.
Information Required for an Accurate Quotation
To recommend the correct 150mm sealing film and reduce trial time, provide the following information with your enquiry:
Tray material and tray supplier
Tray top dimensions and flange width
Tray-sealing machine brand and model
Required roll width, roll length, core diameter, and maximum roll diameter
Easy-peel, medium-peel, or weld-seal requirement
Food type, filling temperature, storage temperature, and shelf-life target
Microwave, conventional oven, freezer, MAP, or retort process, if applicable
Anti-fog, barrier, perforation, or printed-design requirements
Estimated order quantity and destination port or delivery address
Request a Film Sample and Quote
Custom Tray Sealing Film Services
Custom film thickness and roll width
Custom roll length, paper core, and outer roll diameter
Easy-peel, weld-seal, anti-fog, and barrier options
Custom printed lidding film for private-label packaging
Custom cartons with customer logo or website information
Tray, film, mould, and sealing-machine matching support
FOB, CIF/CNF, DDU, and door-to-door shipping options
Quality and Certification Support
HSQY can provide available quality-management, inspection, and compliance documentation for the supplied film grade upon request. Food-contact suitability should be confirmed against the destination market, the exact film structure, the packed food, and the intended temperature process.
![HSQY plastic packaging film certificates and quality documentation]()
HSQY International Exhibitions
Production and Packing
Packing and Delivery
Sample Packaging: Small trial rolls packed in protective boxes.
Bulk Roll Packing: Rolls wrapped in protective PE film or kraft paper and packed to reduce moisture, dust, and transport damage.
Pallet Packing: Approximately 500–2000kg per plywood pallet, depending on roll dimensions.
Container Loading: Loading plans are optimized according to roll size, pallet configuration, and container type.
Delivery Terms: EXW, FOB, CNF/CIF, DDU, and door-to-door delivery can be discussed.
Lead Time: Generally 10–14 working days after deposit and specification confirmation.
Frequently Asked Questions
What is the standard size of this tray sealing film?
The standard product size is 150mm wide × 500m long. Other widths, lengths, paper-core sizes, and outer roll diameters can be customized for your tray-sealing machine.
Is the 150mm lidding film designed for CPET trays?
Yes. This product is primarily designed for suitably sized HSQY CPET food trays. Send the tray sample or complete tray specification before ordering so the sealing layer and peel strength can be confirmed.
Can one sealing film be used for CPET, PET, and PP trays?
Not automatically. CPET, APET/RPET, PET/PE, and PP tray rims may require different sealing layers. HSQY selects the film structure according to the exact tray material and verifies compatibility through a sample or line trial.
Is the film available with easy-peel performance?
Yes. Easy-peel, medium-peel, and stronger weld-seal options can be developed according to tray material, food type, target peel force, and heating process.
Can 150mm sealing film be used in an oven or microwave?
Ovenable and microwave-compatible grades are available for suitable CPET tray systems. The exact film, tray, food load, cooking temperature, and heating time must be validated together before commercial use.
Is anti-fog tray lidding film available?
Yes. Anti-fog treatment can be supplied for chilled meals, fresh food, meat, produce, and other applications where condensation may reduce product visibility.
Can HSQY print our logo and design on the lidding film?
Yes. Custom printing can include brand graphics, product information, preparation instructions, date-code areas, and traceability content. Provide the artwork, color requirements, print repeat, and annual quantity for evaluation.
Why does tray sealing film sometimes leak or peel unevenly?
Common causes include an incompatible sealing layer, contaminated tray rims, incorrect temperature, insufficient pressure or dwell time, uneven tooling, excessive film tension, damaged tray flanges, or unsuitable storage conditions. A controlled line trial normally identifies the correct settings.
What is the minimum order quantity and lead time?
The stated MOQ is 500kg. Typical production time is approximately 10–14 working days after the deposit, artwork approval, and final specification confirmation. Printed or special-barrier films may require additional time.
Can I request a sample before placing a bulk order?
Yes. Provide your tray material, dimensions, machine model, required seal type, and thermal process. HSQY can review the application and arrange a suitable trial sample when available; freight terms are confirmed with the quotation.
How should tray sealing film rolls be stored?
Store the rolls in their original protective packaging in a clean, dry area away from direct sunlight, excessive heat, moisture, dust, and strong odors. Allow cold-stored rolls to acclimatize before opening the packaging to reduce condensation.
About HSQY Plastic Group
HSQY Plastic Group supplies food trays, lidding films, flexible packaging films, and plastic sheet materials for international B2B customers. The team can assist with tray-and-film compatibility, roll conversion, printing, packaging, samples, and export delivery for ready-meal manufacturers, food processors, packaging distributors, and contract packers.
For the fastest recommendation, send your tray sample or drawing, tray material, sealing-machine model, required film width, thermal process, target seal type, and expected annual volume.
