020
2 Compartment
8.94 x 7.01 x 1.34 in.
41 oz.
28 g
400
50,000
| Availability: | |
|---|---|
020 - CPET Tray
HSQY Model 020 is a 41 oz rectangular black CPET food tray with two separate compartments. Its wide, shallow design measures approximately 227 x 178 x 34mm (8.94 x 7.01 x 1.34 inches), providing a practical packaging format for substantial ready meals, frozen prepared foods, institutional catering and foodservice distribution.
Made from crystalline polyethylene terephthalate (CPET), Model 020 is designed for food packaging programs requiring structural stability during filling, storage, transportation and qualified reheating. The two compartments allow a main course and a side dish to be packed in one container while helping reduce direct contact between different ingredients.
With its 41 oz (approximately 1,213ml) nominal capacity, Model 020 can be evaluated for larger prepared meals containing meat, poultry, fish, rice, pasta, potatoes and vegetables. The actual usable filling volume depends on the internal cavity dimensions, food density and required headspace.
Qualified CPET trays can be used for chilled or frozen food storage and subsequent reheating in microwave or conventional ovens. Model 020 should be evaluated under the heating conditions specified for the finished tray and its complete packaging system, including any lidding film.
HSQY offers compatible food packaging materials, including heat-sealable lidding films, for ready meal applications. Buyers can discuss seal strength, peelability, film barrier performance and compatibility with existing tray sealing equipment.
The published Model 020 packing specification is 400 pieces per carton, with a minimum order quantity of 50,000 pieces. Contact HSQY for samples, final technical drawings, available film structures and bulk quotations.
Request Model 020 Pricing & Samples

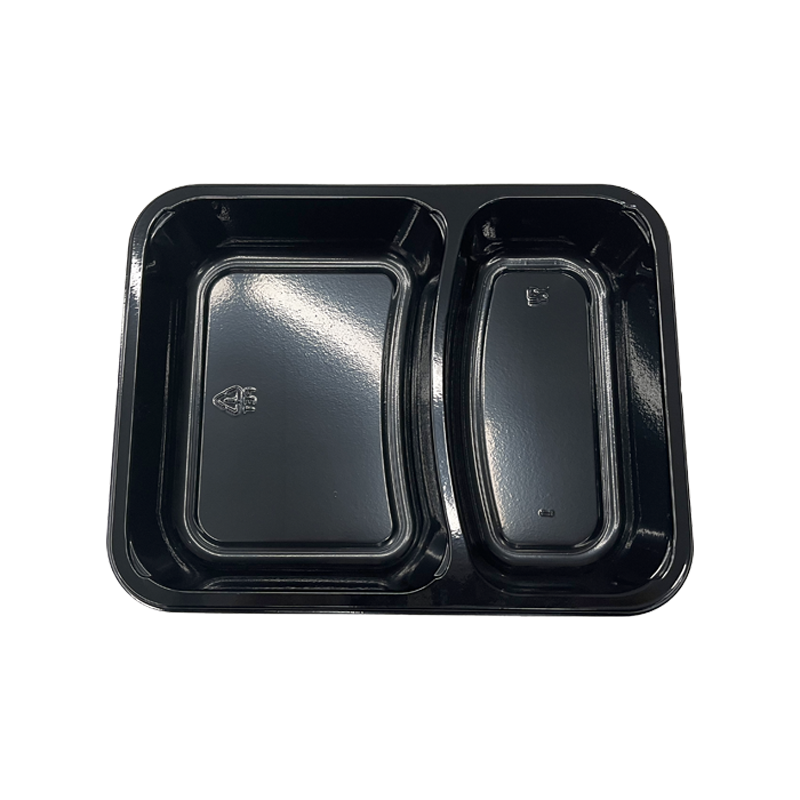

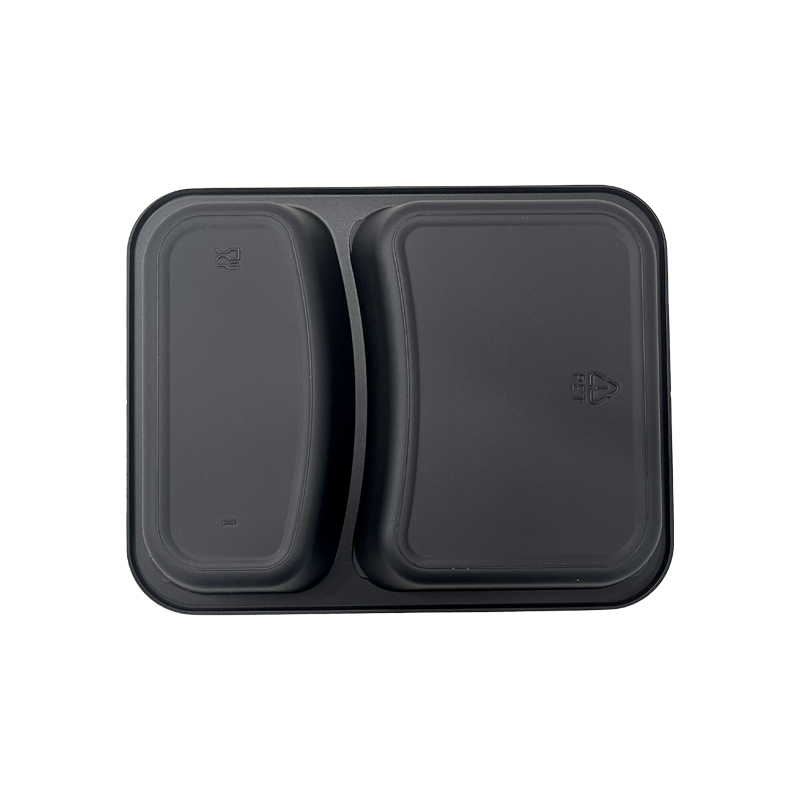

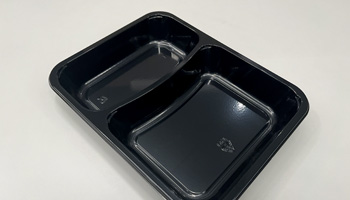

Model 020 – 41 oz Wide Rectangular Two-Compartment Black CPET Food Tray
Model 020 is a wide rectangular tray with two compartments and a nominal capacity of 41 oz. The specifications below are provided to help food manufacturers, caterers and packaging distributors evaluate the tray for their food portions, filling equipment and export requirements.
| Property | Model 020 Details |
|---|---|
| Product Name | Model 020 Black CPET Food Tray |
| Item Number | 020 |
| Material | Crystalline Polyethylene Terephthalate (CPET) |
| Capacity | 41 US fl oz / Approximately 1,213ml |
| Dimensions (L x W x H) | 8.94 x 7.01 x 1.34 inches |
| Approximate Metric Dimensions | 227 x 178 x 34mm |
| Compartment Configuration | 2 Compartments |
| Shape | Rectangle |
| Standard Color | Black |
| Published Weight Field | 28g (Weight Basis to Be Confirmed) |
| Case Pack | 400 Pieces per Carton |
| Minimum Order Quantity | 50,000 Pieces |
| Reference Temperature Range | Approximately -40°C to +220°C for qualified CPET tray applications |
| Heating Applications | Microwave and conventional oven, subject to approved conditions |
| Storage Applications | Chilled and frozen prepared foods |
| Packaging Closure | Compatible heat-sealable lidding films available for evaluation |
| Food Applications | Ready meals, frozen meals, airline catering, institutional catering and foodservice |
The published dimensions are nominal. The 28g figure appears in the original product weight field; its measurement basis should be confirmed before freight calculations. Buyers requiring precise filling volumes, flange dimensions or cavity measurements should request the current Model 020 technical drawing.
One of the distinguishing features of Model 020 is its wide rectangular footprint combined with a relatively shallow overall depth. The approximately 227 x 178mm format provides a broad packaging area, while the nominal 34mm height should be considered when selecting food portions and required headspace.
The two compartments help keep the main course separate from its accompanying side. This can be useful for meals combining meat and vegetables, rice and curry, or protein and potatoes. For foods containing sauces or liquids, the actual divider height and seal design should be checked.
The wide rectangular format can help present food components in an organized arrangement. It is suitable for evaluating ready meals that benefit from a larger surface area rather than a particularly deep container.
Food manufacturers can evaluate the two cavities against their required portion weights. The nominal 41 oz total capacity should not be used to estimate each compartment's capacity without an approved drawing or filling test.
Model 020 can be evaluated for repeatable meal assembly, tray filling and heat sealing on commercial packaging lines. Before production, buyers should verify tray nesting, denesting, flange geometry, sealing mold compatibility and finished-pack handling.
CPET stands for crystalline polyethylene terephthalate. It is a polyester packaging material processed to provide the dimensional stability needed for selected higher-temperature food packaging applications. Unlike conventional APET trays typically used for chilled food display, qualified CPET tray structures can support frozen storage and subsequent heating.
Qualified CPET trays may be used in both microwave and conventional ovens when the finished product has been tested for the intended heating conditions. This can allow a prepared meal to remain in its tray through appropriate storage, distribution and reheating stages.
Heating instructions should account for oven temperature, heating duration, food weight, the tray's structural performance and any attached lidding film.
The original CPET product information provides a reference operating range of -40°C to +220°C. Actual use at these temperatures depends on the selected tray grade, thickness, food load and qualified heating cycle. The full range should not be interpreted as unrestricted exposure to heat.
The molded CPET structure is designed to maintain its shape during normal filling and handling conditions. The black finish provides visual contrast for different food ingredients and supports a clean, professional presentation.
CPET belongs to the PET material family and can be recycled where suitable collection, sorting and processing systems are available. Actual acceptance varies by location, tray color and food contamination. Recycled content should be confirmed through the relevant material declaration rather than assumed.
Model 020 offers a rigid, glossy black format designed for food packaging. It can be paired with a suitable lidding film for sealed ready meals, with the seal structure selected according to the required opening characteristics, transport conditions and storage requirements.
Clear film options can allow customers to view the food inside the pack. Easy-peel and printed film formats can also be evaluated according to project requirements.
Model 020 can be evaluated for supermarket prepared meals containing a main food portion and a separate side dish. The wide layout can support organized presentation of chilled or frozen ready meals intended for reheating.
Airline caterers and contract catering operators can evaluate the two-compartment format for meals that require separate portions and controlled reheating. Final suitability depends on service equipment dimensions, available heating methods, meal weights and stacking requirements.
For airline applications, confirm the tray footprint and height against the approved catering trolley, oven and handling specifications before ordering.
Frozen food processors can evaluate Model 020 for meal programs involving filling, sealing, freezing, distribution and later reheating. Tray performance and package integrity should be validated using the actual filling product and temperature cycle.
Schools, hospitals, workplace cafeterias and other institutional kitchens can evaluate the two-compartment design for prepared meal distribution. It helps organize a main portion and an accompanying side within a single tray.
Meal delivery providers can evaluate the wide two-compartment format for larger prepared meals. A compatible sealed package should be tested for transport handling, potential leakage and reheating performance.
CPET trays may also be used for selected bakery products and heat-and-serve foods. The suitability of Model 020 depends on product dimensions, food weight, thermal processing conditions and any closure film used.
For commercial ready meal production, selecting a tray is only one part of the packaging process. The tray and lidding film must provide a compatible heat-seal interface that meets the requirements of the food product and the packing equipment.
Suitable films can be selected to match the CPET sealing flange and sealing equipment. Buyers should confirm the sealing temperature, pressure, dwell time, sealing jaw profile and film width using actual production samples.
Easy-peel films are useful when convenient opening is required, while stronger-seal structures may be considered for applications needing higher seal strength. Film selection should follow the intended storage, transport and reheating conditions.
High-barrier film structures may be considered for products that require oxygen or moisture transmission control. The appropriate barrier level and shelf-life performance must be evaluated using the actual food formulation and production process.
Whether the lidding film can remain on the tray during reheating depends on the film's approved temperature and heating specifications. Some films must be removed or vented before heating. The instructions for the complete tray-and-film system should always be followed.
For related packaging materials, explore CPET Tray Sealing Films.
Ask About Tray & Sealing Film Compatibility
HSQY supplies CPET trays in different dimensions, capacities, shapes and compartment arrangements. Buyers looking for alternative portion sizes can compare Model 020 with other one-, two- and three-compartment tray formats.
| CPET Range Property | Other Available Configurations |
|---|---|
| Additional Dimensions | 215 x 162 x 44mm (3 compartments); 164.5 x 126.5 x 38.2mm (1 compartment); 216 x 164 x 47mm (3 compartments); 165 x 130 x 45.5mm (2 compartments); custom dimensions |
| Additional Capacities | 750ml, 800ml, 1000ml and other capacities according to the selected model |
| Compartment Options | 1, 2 and 3 compartments; selected custom layouts |
| Shapes | Rectangular, square and round; custom shapes subject to tooling evaluation |
| Colors | Black, white, natural and customized colors subject to model availability |
These alternative configurations belong to the wider CPET product range and are not the standard dimensions or capacity of Model 020. Please specify the model and required meal capacity when requesting a quotation.
Model 020 belongs to HSQY's larger two-compartment CPET tray range. Buyers should select between models according to meal volume, tray footprint, depth and the requirements of their filling and sealing equipment.
| Model | Capacity | Dimensions | Tray Format |
|---|---|---|---|
| 014 | 15 oz | 6.50 x 5.12 x 1.79 in | Compact 2-compartment |
| JC02 | 25 oz | 8.48 x 6.37 x 1.47 in | Standard 2-compartment |
| 016 | 27 oz | 8.50 x 6.46 x 1.50 in | Medium 2-compartment |
| HS11 | 34 oz | 8.74 x 6.69 x 1.24 in | Large shallow 2-compartment |
| 018 | 41 oz | 8.46 x 6.36 x 1.72 in | Deeper 2-compartment |
| 020 | 41 oz | 8.94 x 7.01 x 1.34 in | Wide shallow 2-compartment |
Model 018 and Model 020 both list a nominal capacity of 41 oz, but their external dimensions differ. Model 020 has a wider footprint and shallower overall height, while Model 018 has a smaller footprint and greater depth. Selection should be based on the actual food, sealing mold and storage requirements.
Buyers can contact HSQY to discuss sample availability and delivery arrangements. Samples can be used to evaluate cavity volume, rigidity, tray stacking, food filling and lidding film seal compatibility before bulk purchasing.
The current Model 020 listing specifies 400 pieces per carton. Empty trays can be nested and packed for commercial distribution. Buyers should request the latest carton dimensions, gross weight and packing arrangement for accurate freight planning.
HSQY can discuss pallet packaging and international shipping arrangements according to the order quantity and destination. Available shipping terms and delivery schedules should be confirmed in the final quotation.
The published minimum order quantity for Model 020 is 50,000 pieces. This is separate from the 400-piece carton packing quantity. Confirm availability and production lead time before placing an order.
Get a Wholesale CPET Tray Quotation
Model 020 is made from CPET, or crystalline polyethylene terephthalate, a polyester material used for qualified ovenable food packaging applications.
The published nominal capacity is 41 US fluid ounces, approximately 1,213ml. Actual usable filling capacity depends on the food and headspace required.
The published dimensions are 8.94 x 7.01 x 1.34 inches, approximately 227 x 178 x 34mm. Confirm the final dimensions against the approved drawing before ordering sealing molds or automated filling equipment.
Model 020 has two compartments. They can be used to separate a main dish from vegetables, rice, pasta or another side portion.
The product specification gives a total nominal capacity of 41 oz but does not list the individual cavity volumes. Request an approved technical drawing or sample to confirm the volume of each compartment.
CPET is used for dual-ovenable packaging, and Model 020 belongs to HSQY's ovenable CPET tray range. Approved heating temperature, duration and food load should be confirmed through product-specific testing.
Qualified CPET trays can support frozen food applications. Confirm the permitted storage temperature, freezing duration and subsequent heating instructions for the selected tray and closure system.
The current product specification does not identify a separate lid as included. Buyers can discuss suitable heat-sealable lidding films and other closure arrangements with HSQY.
Leak resistance depends on the complete tray-and-film package, including flange geometry, sealing material and sealing parameters. The tray alone should not be considered a tested leakproof package.
Compatible easy-peel film structures may be evaluated according to the required seal strength and opening performance. Film and tray compatibility should be validated using actual sealing equipment.
Only if the selected film and complete package are approved for that heating method. Some films must be removed, peeled back or vented before reheating.
CPET can be recycled where suitable collection and processing systems accept the material. Acceptance of black trays varies by local recycling infrastructure and sorting technology.
Both are nominally 41 oz two-compartment CPET trays. Model 020 measures 8.94 x 7.01 x 1.34 inches, while Model 018 measures 8.46 x 6.36 x 1.72 inches. Model 020 is wider and shallower, so the best choice depends on the food and packaging equipment.
The published case pack is 400 pieces. Carton dimensions, gross weight and pallet loading quantities should be confirmed before shipment.
The published minimum order quantity is 50,000 pieces. Buyers requiring samples or trial evaluations can contact HSQY to discuss available arrangements.
Buyers can request the current technical drawing, material specifications and applicable food-contact or quality testing documentation. The available reports and their scope should be checked against the destination market's requirements.
Please specify Model 020, your required quantity, destination country, food type, portion weight, heating method, sealing film requirements and preferred shipping terms. An existing packaging drawing or food sample can help the team evaluate compatibility.
Changzhou Huisu Qinye Plastic Group Co., Ltd. (HSQY Plastic Group) supplies plastic sheets, thermoformed food packaging, CPET trays and lidding film solutions to commercial and industrial customers worldwide.
Our food packaging range includes CPET ovenable trays, PET food containers, PP trays and compatible sealing materials for ready meal manufacturers, food processors, catering companies and packaging distributors.
For Model 020, contact HSQY with your required food capacity, two-compartment layout, production volume and sealing requirements. Our team can discuss available samples, technical information and wholesale quotations.
