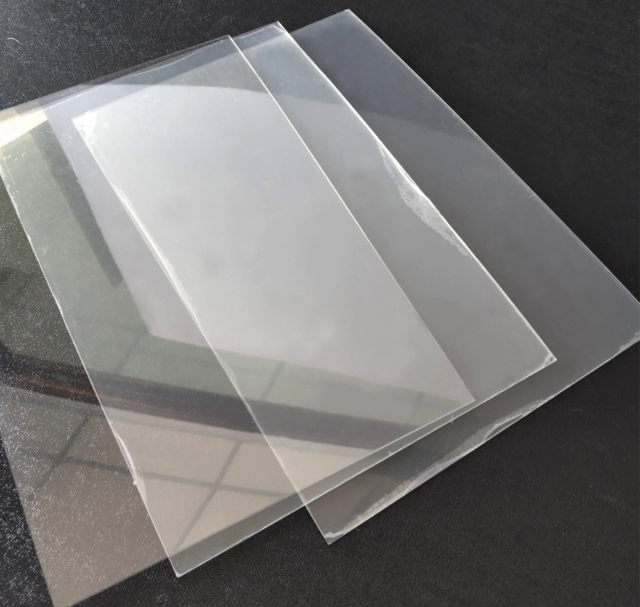

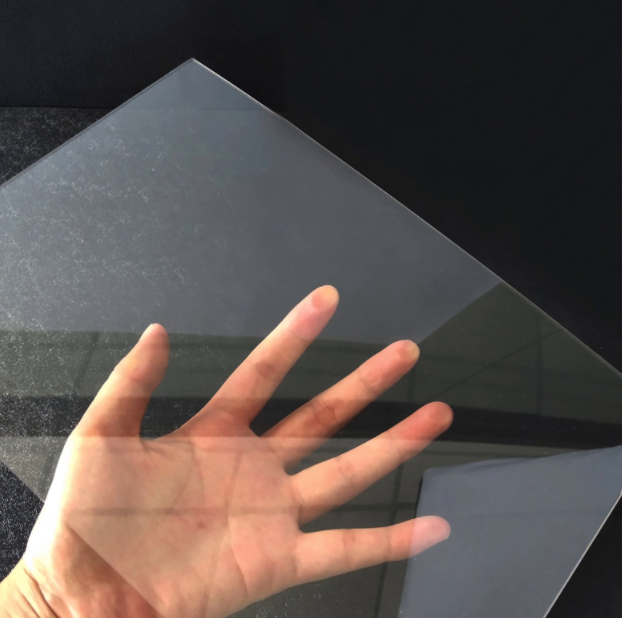

PETG Clear Sheet

Product Description

HSQY has established more than 20 years,we produce high quality PETG sheet&film,there are 5 production lines in our factory,the daily production capacity is 50 tons.

PETG is Known as GPET,is a non-crystalline copolyester,pos-sesses CHDM, It is conposed of TPA,EG and CHDM by conden-sation polymerization.While,CHDM of PETG is the reason that its performance is differ from PET.PETG has no crystallization tem-perature,can easily be molding and bonding without albinism which is the major defect of PET material.

DATE SHEET OF PETG FILM.pdf

Product Specifications

Product Features

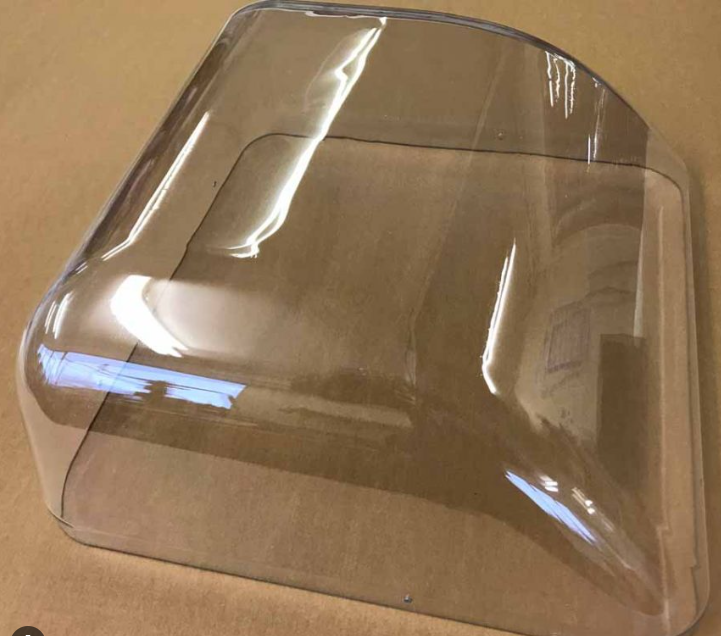

1.Outstanding thermoforming performance

PETG sheets are easy to produce products with complex shapes and large stretch ratios. Moreover, unlike PC board and impact-modified acrylic, this board does not need to be pre-dried before thermoforming. Compared with PC board or acrylic, its molding cycle is short, the temperature is low, and the yield is higher.

2.Toughness

The extruded sheet of PETG sheet is usually 15 to 20 times tougher than general acrylic and 5 to 10 times tougher than impact modified acrylic. PETG sheet has sufficient bearing capacity during processing, transportation and use, which helps prevent cracking.

3.Weather resistance

PETG sheet provides excellent weather resistance. It can maintain the toughness of the product and prevent yellowing. It contains ultraviolet absorbers, which can be co-extruded into a protective layer to protect the board from the harmful effects of ultraviolet rays.

4.Easy to process

PETG sheet can be sawed, die-cut, drilled, punched, sheared, riveted, milled and cold-formed without breaking. Slight scratches on the surface can be eliminated with a hot air gun. Solvent bonding is also a normal operation. It is easier to process than general acrylic, impact modified acrylic or PC board, and can be processed for flocking, electroplating, static electricity and other processing.

5.Excellent chemical resistance

PETG sheet can withstand a variety of chemicals and commonly used cleaning agents.

6.Eco-friendly and safety

The PETG sheet substrates are all environmentally friendly materials, which meet the requirements of food contact management.

7.Economy

It is cheaper than a polycarbonate board, and it is more durable than polycarbonate board.

Product Application

By using conventional molding methods, we can make PETG sheet from 0.15MM to 7MM, with outstanding toughness and high impact resistance, its impact resistance is 3~10 times that of modified polyacrylates, excellent molding performance, cold Bending is not white, no cracks, easy to print and decorate, widely used in indoor and outdoor signs, storage racks, vending machine panels, furniture, construction and mechanical baffles, etc.

PCTG card is mainly used in Europe, but it has also been more and more used in North America and Asia. The reason is that it has a wide processing range, high mechanical strength and excellent flexibility. Compared with PVC, it has high transparency, good gloss, easy printing and environmental protection advantages.

PETG materials are used in credit cards. Visa is one of the largest credit card companies in the world, with 580 million cards issued worldwide in 1998. The company has recognized glycol-based modified polyester (PETG) as its credit card material. For countries that require card materials to be more environmentally friendly, PETG can replace polyoxyethylene materials. Visa also pointed out: The results from 3 different experimental plants show that PETG meets all the requirements of the international credit card standard (150/IEC7810), so PETG cards may be widely used here.

ChangZhou HuiSu QinYe Plastic Group established more than 16 years, with 8 plants to offer all kinds of Plastic products, including PVC RIGID CLEAR SHEET,PVC FLEXIBLE FILM, PVC GREY BOARD, PVC FOAM BOARD, PET SHEET, ACRYLIC SHEET. Widely used for Package, Sign,D ecoration and other areas.

Our concept of considering both quality and service equally importand and performance gains trust from customers, that is why we have established good cooperation with our clients from Spain, Italy, Austria, Portugar, Germany, Greece, Poland, England, American, South American, India, Thailand, Malaysia and so on.

By choosing HSQY, you'll get the strength and stability. We manuacture the industry's broadest range of products and continuously develop new technologies, formulations and solutions. Our reputation for quality, customer service and technical support is unsurpassed in the industry. We continuously strive to advance sustainability practices in the markets we serve.
