gypsum ceiling film
HSQY Plastic
HSQY-210630
0.075mm
white / different color
1220mm*500m
2000 KG.
| Availability: | |
|---|---|
Product Description
HSQY Plastic Group supplies decorative PVC film for gypsum ceiling tile lamination with a focus on film flatness, consistent surface appearance and stable roll processing. The material is designed as a decorative facing layer for compatible gypsum ceiling boards and other suitable interior panel substrates.
The featured HSQY gypsum ceiling film is listed with a thickness range of approximately 0.06–0.07mm, while the featured product configuration is 0.075mm thick, 1220mm wide and supplied in a 1220mm × 500m roll format.
More than 100 decorative designs are referenced across the PVC ceiling film range, including white, colored, patterned and embossed appearances. Buyers can select film specifications according to their gypsum board, adhesive, lamination equipment and finished ceiling tile requirements.
This product is intended for ceiling tile manufacturers, gypsum board laminators, decorative panel converters, building material distributors and international importers requiring PVC facing film for repeated production.
Decorative PVC Ceiling Facing Film
Decorative PVC Film Surface
High-flatness PVC ceiling film is a thin decorative facing material used in the production of laminated gypsum ceiling tiles. The film is bonded onto a compatible rigid board and becomes the visible decorative surface of the finished ceiling panel.
Film flatness is important during continuous lamination because wrinkles, uneven winding or excessive dimensional variation can affect feeding, surface appearance and finished panel quality.
The finished result depends not only on the PVC film but also on the gypsum board surface, adhesive system, film tension, lamination pressure, temperature and line speed. Buyers should evaluate the selected film with their actual production process before repeated bulk production.
This PVC film is a lamination material for rigid ceiling boards. It is not a standalone flexible stretch ceiling membrane installed directly into perimeter tracks.
| Property | Specification |
|---|---|
| Product Name | High-Flatness Decorative PVC Film for Gypsum Ceiling Tiles |
| Alternative Names | PVC Ceiling Facing Film, Gypsum Ceiling Lamination Film, Embossed PVC Ceiling Film |
| Brand | HSQY Plastic |
| Model | Gypsum Ceiling Film |
| Product Code | HSQY-210630 |
| Material | Polyvinyl Chloride (PVC) |
| Published Thickness Range | Approximately 0.06–0.07mm |
| Featured Thickness | 0.075mm |
| Standard Width | 1220mm |
| Featured Roll Size | 1220mm × 500m |
| Reference Density | Approximately 1.36g/cm³ |
| Colors | White and Decorative Colors |
| Design Options | More Than 100 Listed Designs |
| Surface Options | Decorative, Printed and Embossed Surfaces According to Selected Design |
| Supply Format | PVC Film Rolls |
| Main Application | Lamination for Gypsum Ceiling Boards and Ceiling Tiles |
| Key Selection Factors | Flatness, Thickness, Width, Surface Appearance, Pattern and Lamination Compatibility |
| Customization | Width, Thickness, Color and Pattern According to Confirmed Requirements |
| Featured Product MOQ | 2000kg |
| Delivery Terms | FOB, CIF, EXW |
| Published Delivery Reference | 7–14 Days, Subject to Specification, Quantity and Production Arrangement |
A well-wound and suitably flat PVC film can support stable feeding through compatible lamination equipment. Roll condition should be checked together with film tension and machine settings.
Film flatness can help reduce the risk of wrinkles or uneven surface appearance during lamination, although final results also depend on adhesive application, board condition and equipment adjustment.
For patterned and embossed ceiling films, consistent film handling can support more uniform visual results across repeated ceiling tile production.
Where the finished ceiling tile requires repeatable pattern placement, buyers should evaluate film winding, pattern repeat and production-line alignment together.
| Surface Type | Typical Selection Considerations |
|---|---|

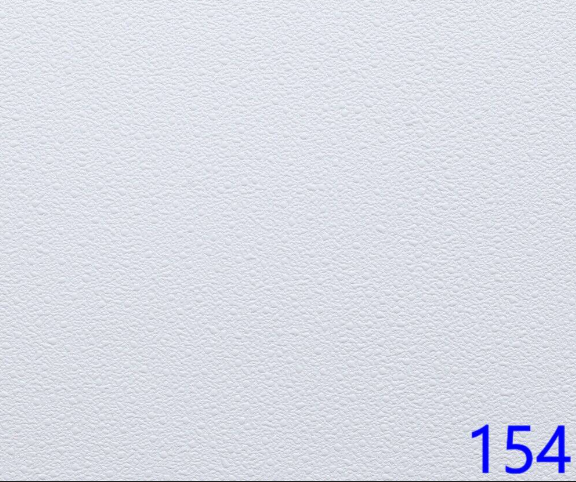

| White Film | Neutral appearance for standard gypsum ceiling tile collections |
| Embossed Film | Physical texture for decorative ceiling surfaces |

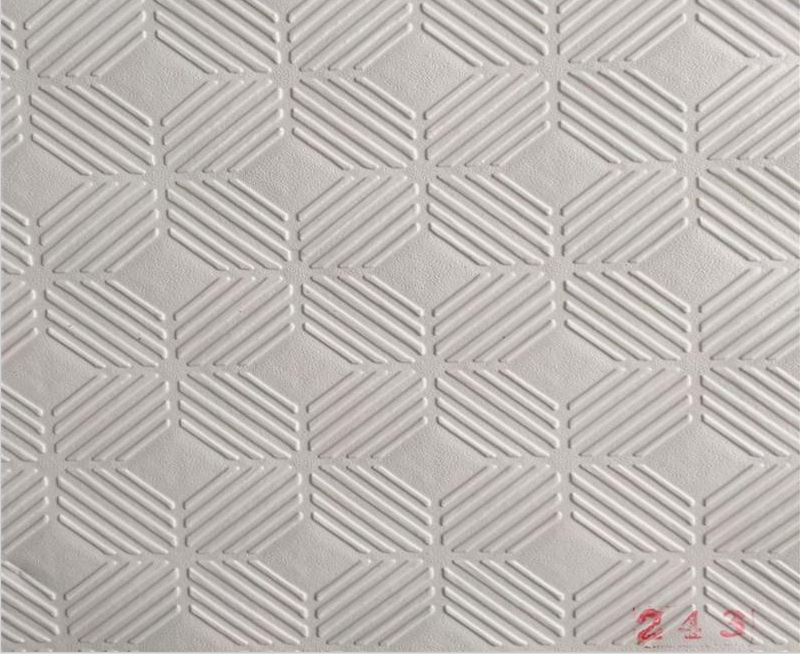

| Geometric Patterns | Modern visual appearance for decorative interior panels |
| Colored Patterns | Color coordination for specific ceiling product ranges |
| Custom Designs | Pattern reference, color requirements and order quantity should be provided |
Decorative PVC film can be laminated onto compatible gypsum boards to create finished ceiling tiles with white, patterned or embossed surfaces.
Board manufacturers can use different PVC film designs to develop multiple ceiling panel collections for residential and commercial interior markets.
After lamination and board processing, completed ceiling tiles can be installed in compatible suspended ceiling grid systems.
Building material importers and distributors can source different decorative PVC film designs for regional gypsum ceiling tile manufacturers and board converters.
PVC Film for Gypsum Ceiling Tile Lamination
Decorative Ceiling Panel Application
| Comparison | PVC Ceiling Facing Film | Stretch Ceiling Membrane |
|---|---|---|
| Main Function | Decorative surface layer for a rigid board | Independent flexible ceiling surface |
| Substrate | Laminated onto compatible gypsum or other rigid board | No rigid board facing required |
| Processing | Applied through a board lamination process | Prepared and installed as a flexible membrane |
| Installation | Finished rigid tile installed in a compatible grid | Membrane fixed under tension in dedicated profiles |
| Key Purchasing Factors | Flatness, width, thickness, pattern, roll quality and adhesion | Membrane width, welding, tension and installation compatibility |
Inspect the roll for visible waves, folds, uneven winding or other conditions that could affect continuous lamination.
Verify the nominal film thickness, width and acceptable tolerances against the production requirements.
Check color consistency, printing, embossing definition and pattern repeat according to the approved product reference.
Evaluate the selected PVC film with the actual board substrate and adhesive intended for commercial production.
Film behavior should be checked under the intended line speed, pressure, temperature and tension settings.
Review the completed panel for wrinkles, bubbles, edge condition, surface marks, pattern alignment and overall appearance.
PVC ceiling film should be packed to protect the roll surface, edges, decorative appearance and winding condition during handling and international transportation.
Roll Packaging: The product information references round carton bulk packing for the featured gypsum ceiling film.
Protective Packing: Rolls can be protected with suitable film, cartons or pallet arrangements according to the confirmed shipment requirements.
Pallet Configuration: Actual pallet weight and roll arrangement depend on film dimensions, roll weight and transportation requirements.
Container Loading: Loading quantity should be calculated according to the confirmed roll and pallet configuration.
Delivery Terms: FOB, CIF and EXW options are listed and should be confirmed with the final commercial agreement.
For decorative PVC ceiling film, important purchasing criteria may include film flatness, thickness consistency, width, roll condition, color consistency, pattern alignment, embossing definition and lamination compatibility.
The original product information references SGS and ISO 9001:2008 documentation. Buyers requiring specific material, chemical, fire-performance or project documentation should confirm that the applicable report covers the selected film grade and intended ceiling application.
HSQY Plastic Group participates in international trade exhibitions and communicates with gypsum ceiling tile manufacturers, building material distributors, plastic converters and international buyers.
2024 Mexico Exhibition
2025 Philippines Exhibition
2024 American Exhibition
2017 Shanghai Exhibition
2018 Shanghai Exhibition
2023 American Exhibition
It is a thin PVC facing film laminated onto compatible rigid ceiling boards to provide the visible decorative surface of the finished ceiling tile.
Suitable flatness can support consistent film feeding and help reduce surface wrinkles during lamination. Final results also depend on the board, adhesive and machine settings.
Published HSQY information references approximately 0.06–0.07mm, while the featured product specification lists 0.075mm.
The listed standard width is 1220mm. Custom requirements can be discussed according to board dimensions and production equipment.
The featured product configuration is 1220mm × 500m.
More than 100 decorative designs are referenced across the product range. Specific availability should be confirmed according to the selected specification.
Yes. Embossed decorative surfaces are among the listed options for PVC ceiling facing films.
Custom decorative requirements can be discussed according to the design reference, color, film specification and purchase quantity.
Yes. Gypsum ceiling board lamination is the primary listed application for this product.
No. PVC ceiling facing film is laminated onto a rigid board. Stretch ceiling membrane is installed as an independent flexible ceiling surface.
Manufacturers should evaluate film flatness, thickness, width, surface consistency, roll condition, substrate compatibility, adhesive and production-line settings.
The featured current product configuration lists an MOQ of 2000kg. Customized designs or specifications should be confirmed separately.
Please provide the required thickness, width, roll length, pattern, color, surface finish, board substrate, lamination method, purchase quantity, packaging requirements and delivery destination.
Changzhou Huisu Qinye Plastic Group Co., Ltd. is based in Changzhou, Jiangsu, China. HSQY supplies PVC films, PVC sheets, PET materials and other plastic products for packaging, decorative board manufacturing and industrial converting applications.
HSQY works with gypsum ceiling tile manufacturers, board laminators, decorative panel converters, building material distributors and international importers requiring bulk PVC ceiling film supply.
Company Information
Choose us, choose reliable quality and service:
(1) Profession and experience making us stably doing greatly in design service and qualify production for you.
(2) Efficiency team to ensure quick settling all your questions and concerns.
(3) Win-win conception as our action guide that we've always been doing well with our current partners to offer the best price-performance for you.
Packing details of ceiling embossed PVC film: packing with round cartons or square cartons and sponge films as your choice.
20' FCL: 100-160 rolls, 70000-80000 meters, 7000-8000 kg
40' FCL: 200-285 rolls, 160000-210000 meters, 14600-21000 kg
