What Is 280mm Tray Sealing Film?
280mm tray sealing film is a wide lidding-film roll developed for heat-sealing compatible CPET food trays on manual, semi-automatic, or automatic tray-sealing equipment. The standard roll size on this page is 280mm wide × 500m long, making it suitable for larger tray formats, multi-compartment meal trays, and tooling layouts that require a wider film web.
HSQY supplies PET- or BOPET-based lidding-film structures with an application-specific sealing layer. Available options include clear film, custom printing, easy peel, medium peel, weld seal, anti-fog, high barrier, freezer-compatible, microwave-compatible, and application-specific ovenable grades.
Film width alone does not determine tray compatibility. Before commercial production, the film should be tested with the actual CPET tray, flange design, sealing machine, tooling, food product, sealing temperature, pressure, dwell time, storage conditions, and reheating process.

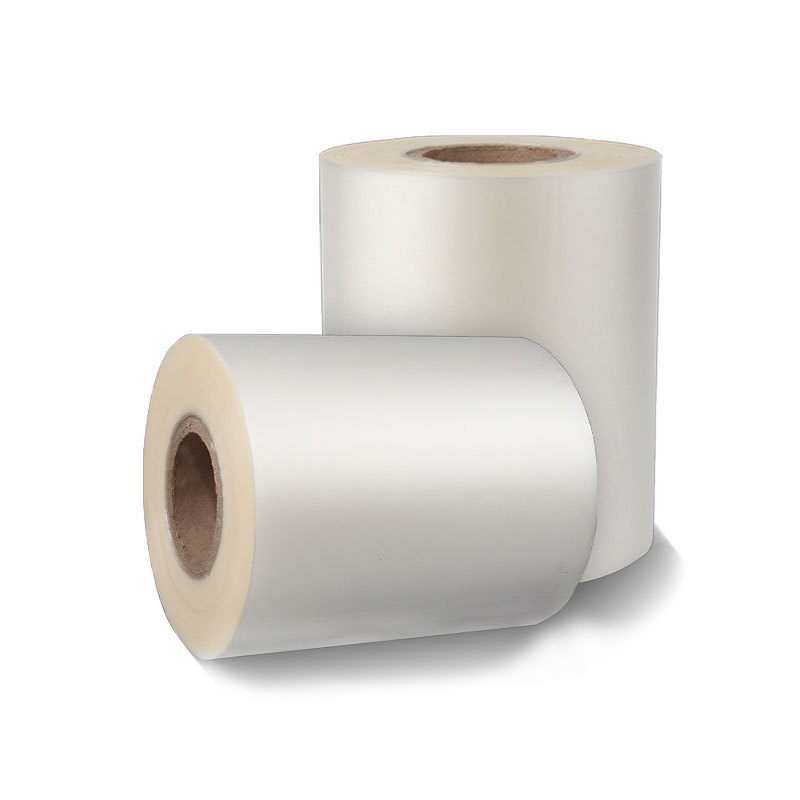

![Clear 280mm tray sealing film roll for large CPET food trays]( "280mm tray sealing film roll")
280mm Wide Clear Lidding Film

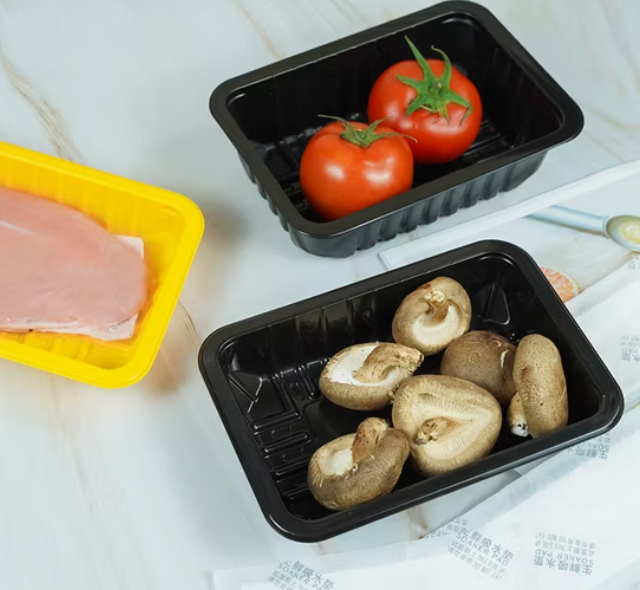

![Wide PET PE lidding film for CPET ready meal trays]( "280mm CPET tray lidding film")
Film for Large and Multi-Compartment Trays

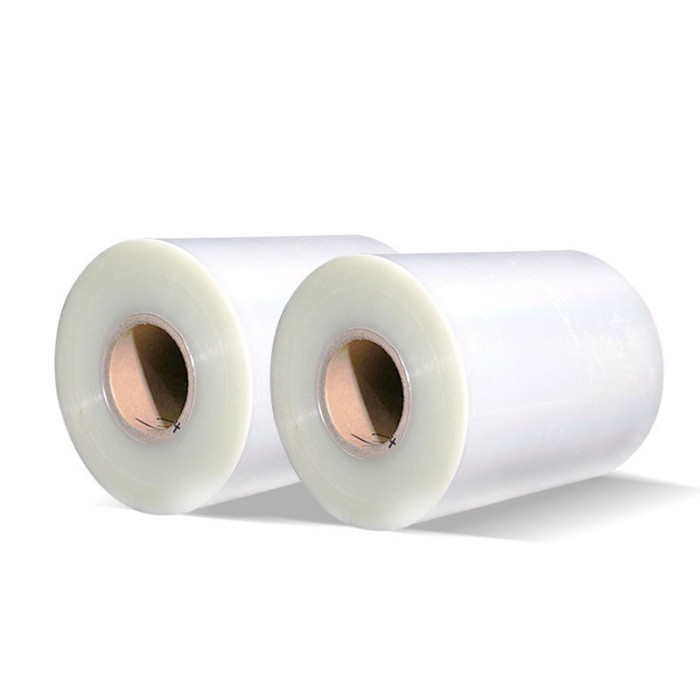

![Clear or custom printed 280mm sealing film for CPET trays]( "custom printed 280mm lidding film")
Clear or Custom Printed Film
Why Choose a 280mm Wide Lidding-Film Roll?
Wide-web coverage: Suitable for large tray openings and tray-sealer tooling that requires a wider film web.
Multi-compartment compatibility: Can be used for selected two-compartment, three-compartment, family-size, and catering trays after dimension confirmation.
Reduced edge waste: A correctly selected web width can reduce excessive trim while maintaining sufficient sealing margins.
Stable machine feeding: Roll configuration can be matched to the tray sealer's core, unwind system, maximum outer diameter, and tension settings.
Consumer-friendly opening: Easy-peel and medium-peel grades are available for convenient opening.
Optional anti-fog and barrier: Functional structures can support chilled display, MAP, and shelf-life requirements.
Custom printing: Supports branding, preparation instructions, product information, and traceability.
280mm Tray Sealing Film Specifications
The following information reflects the current commercial configuration of this product page. Final film structure, tolerances, sealing performance, thermal suitability, and compliance documentation should be confirmed in the approved technical specification.
| Property |
Standard or Available Option |
Selection Note |
| Product Type |
Wide tray sealing film / lidding film roll |
Supplied for commercial tray-sealing equipment |
| Standard Roll Size |
280mm width × 500m length |
Confirm required web width, trim margin, core, and maximum roll diameter |
| Typical Material Structure |
PET- or BOPET-based laminate with application-specific sealing layer; PET/PE options available |
The sealant must match the actual tray flange and thermal process |
| Thickness |
0.05–0.10mm, customizable |
Specify nominal gauge and tolerance |
| Other Roll Widths |
150mm, 230mm, or customized |
Use a narrower or wider roll only after confirming the machine and tray layout |
| Appearance |
Clear; custom printing available |
Confirm haze, gloss, colors, print repeat, and registration tolerance |
| Primary Tray Application |
Compatible CPET food trays |
Particularly relevant to wide, large-format, or multi-compartment trays |
| Seal Type |
Easy peel, medium peel, or weld seal |
Target peel force and failure mode should be agreed on the actual tray |
| Anti-Fog |
Optional |
Recommended for chilled, moist, and refrigerated products |
| Barrier |
Standard or high-barrier grade |
Specify OTR, WVTR, gas mixture, and shelf-life target for MAP |
| Freezer Use |
Freezer-compatible grades available |
Validate low-temperature toughness and seal retention |
| Microwave / Oven Use |
Application-specific grades available |
Do not assume every PET/PE structure is suitable for 200°C; validate the completed package |
| Minimum Order Quantity |
500kg |
Sample or trial quantities depend on stock and specification |
| Typical Lead Time |
7–15 days for standard commercial orders |
Printed, high-barrier, or special thermal grades may require more time |
| Payment Terms |
T/T, L/C, or other agreed terms |
Confirm accepted method in the commercial quotation |
| Delivery Terms |
EXW, FOB, CIF/CNF, DDU, or door-to-door |
Subject to destination and shipment size |
Is 280mm the Correct Film Width for Your Tray?
The lidding-film web must cover the full sealing-tool layout with sufficient allowance for registration, cutting, and edge trim. A 280mm roll is appropriate only when the tray dimensions and the tray-sealer tooling fit within the usable film width.
| Width-Selection Item |
Why It Matters |
Information to Provide |
| Tray Top Dimensions |
The film must cover the outer tray flange, not only the internal food cavity |
Maximum outside length and width of the tray flange |
| Tooling Layout |
Multi-cavity tools may place two or more trays across the web |
Number of cavities, tray orientation, gap, and cutting layout |
| Trim Margin |
Insufficient margin may cause misalignment; excessive margin increases waste |
Required edge allowance and acceptable trim waste |
| Print Registration |
Printed film requires accurate repeat and eye-mark positioning |
Print repeat, eye-mark location, artwork orientation, and registration tolerance |
| Machine Roll Limits |
The machine must accept the roll width, core, weight, and outer diameter |
Machine brand, model, core ID, maximum OD, and maximum roll weight |
Easy-Peel, Medium-Peel, and Weld-Seal Options
| Seal Type |
Opening Performance |
Typical Use |
| Easy Peel |
Controlled, consumer-friendly opening with reduced tearing or residue |
Retail ready meals, desserts, chilled foods, and convenience packs |
| Medium Peel |
Balances opening convenience and stronger distribution security |
Large meals, catering trays, and products exposed to rougher handling |
| Weld Seal |
Creates a stronger permanent seal and enhanced tamper evidence |
Liquid-containing meals, heavy products, and maximum-security packaging |
Optional Anti-Fog and High-Barrier Structures
Anti-fog treatment helps reduce condensation on the inside surface of the film and improves product visibility in refrigerated display. It is useful for chilled ready meals, meat, vegetables, bakery products, dairy, and foods with high moisture content.
High-barrier versions may incorporate EVOH or another barrier layer for modified atmosphere packaging. Buyers should provide the target oxygen transmission rate, water-vapor transmission rate, gas mixture, food type, storage temperature, and shelf-life target.
Ovenable and Microwaveable CPET Packaging
CPET trays are frequently selected for frozen, microwave, and conventional-oven meals. However, an ovenable tray does not automatically make every lidding film suitable for the same temperature. The PET carrier, sealant, adhesive, ink, coating, seal area, and complete package must all remain suitable during the specified heating cycle.
For oven or microwave projects, provide the maximum temperature, heating time, whether the film remains on the tray during cooking, venting requirements, food type, fill weight, freezer or chilled storage conditions, and the required food-contact regulations.
Typical Applications for 280mm Lidding Film
Large CPET ready-meal trays
Two-compartment and three-compartment meal trays
Family-size and catering meal trays
Airline, railway, hospital, school, and institutional meals
Frozen pasta, rice, meat, vegetable, and prepared meals
Bakery products, desserts, deli foods, and prepared snacks
MAP and extended-shelf-life food trays
Explore HSQY's CPET tray range and CPET sealing film solutions to build a compatible tray-and-film system.
Tray-Sealer Compatibility and Line Testing
Seal quality depends on the machine, sealing temperature, pressure, dwell time, film tension, tooling flatness, tray rigidity, flange cleanliness, food contamination, and production speed. Excessive heat can cause shrinkage or overly aggressive seals, while insufficient heat can cause incomplete bonding and leakage.
Before mass production, test roll feeding, web tracking, cutting accuracy, seal continuity, peel force, leakage, burst strength, wrinkling, print registration, anti-fog performance, freezer performance, MAP gas retention, microwave performance, and oven performance when applicable.
Information Required for an Accurate Quotation
Provide the following information so HSQY can confirm whether the 280mm roll is suitable and recommend the correct film structure:
Tray material, supplier, product code, drawing, or physical sample
Outside tray dimensions, flange width, compartments, and fill weight
Tray-sealing machine brand, model, tooling layout, and operating speed
Required 280mm width, thickness, roll length, core ID, maximum roll diameter, and roll weight
Easy-peel, medium-peel, or weld-seal requirement
Food type, filling temperature, storage temperature, and target shelf life
Freezer, microwave, conventional oven, MAP, hot-fill, pasteurization, or retort process
Anti-fog, barrier, perforation, venting, or printing requirements
Trial quantity, annual volume, delivery destination, and required date
Request 280mm Film Samples and Pricing
Custom Lidding-Film Services
Custom thickness and roll width
Custom roll length, paper core, roll weight, and outer diameter
Easy-peel, medium-peel, and weld-seal options
Anti-fog, high-barrier, freezer-compatible, and ovenable-grade options
Custom flexographic or gravure printing
Printed eye marks, repeat-length control, and winding-direction identification
Tray-and-film compatibility review and line-trial support
Custom cartons, roll labels, pallet marks, and export delivery
Quality and Compliance Documentation
HSQY can provide available quality-management, inspection, and material documentation for the supplied film grade. Buyers should request the technical data sheet, certificate of analysis, food-contact declaration, migration or compliance reports, roll inspection criteria, and destination-market documentation for the exact film structure and application.
ISO 9001 is a quality-management-system certification and should not be presented as product-specific proof of food-contact safety. Recyclability claims should also be evaluated for the completed tray-and-film package and the recycling infrastructure in the destination market.
![HSQY 280mm tray sealing film certificates and quality documentation]()
HSQY International Exhibitions
Production and Packing
Packing and Delivery
Sample Packaging: Trial rolls are packed in protective bags or cartons to reduce dust, moisture, scratching, creasing, and edge damage.
Roll Packing: Rolls may be approximately 30kg or customized, wrapped in PE film, kraft paper, or another suitable protective material.
Pallet Packing: Approximately 500–2000kg per plywood pallet may be used depending on roll dimensions and shipment conditions.
Roll Identification: Labels can show film grade, thickness, width, length, lot number, seal side, winding direction, net weight, and production date.
Container Loading: Loading plans are calculated from roll dimensions, pallet configuration, and container type rather than a universal fixed weight.
Delivery Terms: EXW, FOB, CIF/CNF, DDU, and door-to-door services can be discussed.
Lead Time: Typically 7–15 days for standard orders, subject to printing, structure, quantity, and production schedule.
Frequently Asked Questions
What is the standard size of this tray sealing film?
The standard roll size on this page is 280mm wide × 500m long. Thickness, roll length, core, outer diameter, and other roll specifications can be customized subject to production feasibility.
Which CPET trays require a 280mm film roll?
A 280mm roll may suit large trays, multi-compartment trays, or tooling layouts that place more than one tray across the film web. The actual tray outside dimensions, flange, cavity layout, and trim allowance must be checked.
Can 280mm lidding film be used on any tray-sealing machine?
No. The tray sealer must accept the 280mm web width, core size, roll weight, maximum outer diameter, winding direction, and film tension. Send the machine brand and model before ordering.
Is easy-peel 280mm tray sealing film available?
Yes. Easy-peel, medium-peel, and weld-seal versions can be evaluated. The target peel force and failure mode must be tested with the actual CPET tray and production conditions.
Is 280mm anti-fog lidding film available?
Yes. Anti-fog treatment can be supplied for chilled meals, meat, produce, bakery, dairy, and other moist foods where condensation may reduce visibility.
Can HSQY supply high-barrier 280mm film for MAP?
High-barrier structures can be evaluated for modified atmosphere packaging. Provide the required OTR, WVTR, gas mixture, food type, storage temperature, and target shelf life.
Can standard PET/PE lidding film be used at 200°C?
It should not be assumed that every PET/PE laminate is suitable for 200°C. Conventional-oven use requires an application-specific structure validated with the exact film, tray, food, temperature, heating time, and cooking method.
Can the 280mm film be custom printed?
Yes. Custom printing can include logos, graphics, preparation instructions, product information, traceability content, and date-code areas. Provide the artwork, colors, print repeat, eye-mark location, and annual volume.
Why does wide lidding film wrinkle or track incorrectly?
Common causes include uneven tension, incorrect roll alignment, unsuitable core or outer diameter, damaged roll edges, inconsistent film thickness, poor unwind control, tooling misalignment, or excessive heat shrinkage.
Why does the seal leak or peel inconsistently?
Leakage or inconsistent peel may result from incompatible sealant chemistry, contaminated tray rims, incorrect temperature, insufficient pressure or dwell time, uneven tooling, tray deformation, food oils, condensation, or unsuitable storage conditions.
Can the film seal APET, PET/PE, or PP trays?
Different tray materials may require different sealing layers. A grade developed for CPET should not automatically be used for APET, PET/PE, PP, aluminium, or coated paperboard without compatibility testing.
What is the minimum order quantity?
The current stated MOQ is 500kg. Sample and trial quantities depend on available stock, required film structure, roll width, and conversion requirements.
How long is the production lead time?
Typical lead time is approximately 7–15 days for standard orders after deposit and final specification approval. Printed, high-barrier, or special thermal grades may require additional time.
Can I request a sample before placing a bulk order?
Yes, subject to stock and specification. Send the tray sample, tray dimensions, machine model, required roll configuration, seal type, food application, storage conditions, and heating process.
How should 280mm lidding-film rolls be stored?
Store rolls in their original protective packaging in a clean, dry area away from direct sunlight, excessive heat, moisture, dust, solvents, and strong odors. Keep wide rolls properly supported and allow cold-stored material to acclimatize before opening.
About HSQY Plastic Group
HSQY Plastic Group supplies CPET, PET, PP, and other food trays together with tray sealing films, flexible packaging films, plastic sheets, and related packaging products for international B2B customers.
The team can support tray-and-film compatibility, wide-roll conversion, peel-force development, printing, anti-fog and barrier selection, samples, line trials, inspection documentation, export packing, and international delivery for food manufacturers, contract packers, packaging distributors, airline caterers, and institutional food-service suppliers.
Contact HSQY for 280mm Lidding Film
