What Is 230mm Tray Sealing Film?
230mm tray sealing film is a medium-width lidding-film roll developed for heat-sealing compatible CPET food trays on manual, semi-automatic, and automatic tray-sealing equipment. The standard roll size on this page is 230mm wide × 500m long.
The 230mm web is commonly selected for medium-format meal trays and tray-sealer tooling where 150mm film is too narrow but 280mm film would create unnecessary trim. HSQY can supply clear or printed film with easy-peel, medium-peel, weld-seal, anti-fog, high-barrier, freezer-compatible, microwave-compatible, and application-specific ovenable options.
The final film must be matched to the actual tray flange and packaging process. Roll width alone does not determine compatibility. The tray resin, sealant chemistry, machine, tooling, sealing temperature, pressure, dwell time, food product, storage conditions, and reheating cycle should be tested together before commercial production.

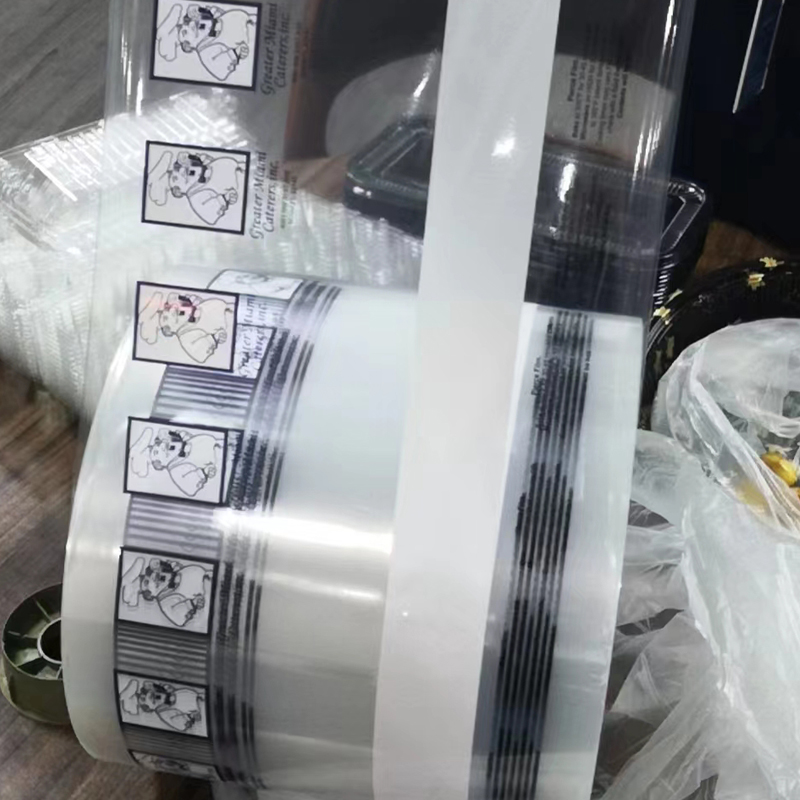

![Clear 230mm tray sealing film roll for CPET food trays]( "230mm tray sealing film roll")
230mm Wide Clear Lidding Film
![PET BOPET lidding film roll for medium-size CPET meal trays]( "230mm CPET tray lidding film")
Film for Medium-Format CPET Trays
![Clear or custom printed 230mm lidding film for food trays]( "custom printed 230mm sealing film")
Clear or Custom Printed Film
Why Choose a 230mm Wide Lidding-Film Roll?
Medium-width coverage: Suitable for selected CPET trays and tooling layouts that require more coverage than a 150mm web.
Material efficiency: A correctly selected 230mm roll can reduce unnecessary edge trim compared with an oversized film web.
Machine compatibility: Roll width, core, winding direction, outer diameter, and roll weight can be matched to the tray sealer.
Controlled seal performance: Easy-peel, medium-peel, and weld-seal grades can be selected according to the required opening behavior.
Optional anti-fog: Helps maintain visibility for chilled and high-moisture foods.
Optional high barrier: EVOH or another barrier layer can be considered for MAP and extended shelf-life applications.
Custom printing: Supports branding, product information, preparation instructions, traceability, and date coding.
Custom conversion: Thickness, roll length, core size, winding direction, and maximum roll diameter can be configured.
230mm Tray Sealing Film Specifications
The following values reflect the current commercial information for this product. Final film structure, tolerances, seal performance, thermal suitability, roll configuration, and compliance documents should be confirmed in the approved technical specification.
| Property |
Standard or Available Option |
Selection Note |
| Product Type |
Medium-width tray sealing film / lidding-film roll |
Supplied for tray-sealing equipment |
| Standard Roll Size |
230mm width × 500m length |
Confirm usable web width, trim margin, core, and maximum roll diameter |
| Typical Material Structure |
PET- or BOPET-based laminate with application-specific sealant; BOPET/PE options available |
The sealing layer must match the actual tray flange |
| Thickness |
0.05–0.10mm, customizable |
Specify nominal thickness and manufacturing tolerance |
| Other Standard Widths |
150mm and 280mm; custom widths available |
Select the smallest width that safely covers the tooling layout |
| Appearance |
Clear; custom printing available |
Confirm haze, gloss, print repeat, colors, and registration tolerance |
| Primary Application |
Compatible CPET food trays |
Provide tray material, supplier, drawing, or sample |
| Seal Type |
Easy peel, medium peel, or weld seal |
Target peel force and failure mode should be agreed on the actual tray |
| Anti-Fog |
Optional |
Recommended for chilled, refrigerated, and high-moisture foods |
| Barrier |
Standard or high-barrier grade |
Specify OTR, WVTR, gas mixture, and shelf-life target for MAP |
| Freezer Use |
Freezer-compatible grades available |
Validate low-temperature toughness and seal retention |
| Microwave / Oven Use |
Application-specific grades available |
Do not assume every BOPET/PE structure is suitable for 220°C |
| Minimum Order Quantity |
500kg |
Trial quantity depends on stock and required specification |
| Typical Lead Time |
Approximately 10–14 working days |
Printing, barrier structures, and special thermal grades may require more time |
| Payment Terms |
T/T 30% deposit and 70% balance before shipment |
Confirm in the commercial quotation |
| Delivery Terms |
EXW, FOB, CIF/CNF, DDU, or door-to-door |
Subject to destination and shipment size |
Is 230mm the Correct Film Width for Your Tray?
A 230mm roll should be selected only after checking the full sealing-tool layout. The usable film must cover the tray flange and include sufficient allowance for registration, cutting, and edge trim without creating unnecessary waste.
| Width-Selection Item |
Why It Matters |
Information to Provide |
| Tray Outside Dimensions |
The film must cover the outer sealing flange, not only the food cavity. |
Provide maximum outside tray length and width. |
| Tooling Layout |
One or more trays may be placed across the film web. |
Provide cavity count, tray orientation, spacing, and cutting layout. |
| Edge and Trim Allowance |
Insufficient margin can cause misalignment; excessive margin increases material waste. |
State the required edge allowance and acceptable trim. |
| Printed-Film Registration |
Printed film requires the artwork repeat and eye mark to align with the cutting tool. |
Provide print repeat, eye-mark location, artwork orientation, and tolerance. |
| Machine Roll Capacity |
The tray sealer must accept the web width, core, roll weight, and outer diameter. |
Provide machine brand, model, core ID, maximum OD, and maximum roll weight. |
Easy-Peel, Medium-Peel, and Weld-Seal Options
| Seal Type |
Opening Performance |
Typical Use |
| Easy Peel |
Peels with controlled force and reduced tearing or residue. |
Retail ready meals, desserts, chilled foods, and convenience packs. |
| Medium Peel |
Balances opening convenience and stronger distribution security. |
Prepared meals, catering trays, and products exposed to rough handling. |
| Weld Seal |
Forms a stronger permanent bond and enhanced tamper evidence. |
Liquid-containing meals, heavy products, and high-security packaging. |
Tray Material Compatibility
Tray sealing depends on the chemistry of the tray flange and sealing layer, not only on the PET carrier or the 230mm roll width. A physical tray sample is the most reliable basis for testing.
| Tray Material |
Compatibility Guidance |
Typical Application |
| CPET |
Primary application for this page. Use a CPET-compatible sealant and validate the heating cycle. |
Ready meals, frozen meals, airline and institutional catering. |
| APET / RPET / PET |
Requires a PET-compatible sealing layer; anti-fog is often requested for chilled display. |
Meat, produce, bakery, deli, desserts, and chilled meals. |
| PET/PE |
A PE-based sealant may bond to a PE-coated flange after compatibility testing. |
Chilled food and general prepared-food packaging. |
| PP |
Do not assume the CPET grade will seal PP; a PP-compatible sealant may be required. |
Microwave meals, dairy, dips, and prepared foods. |
| Aluminium or Coated Paperboard |
A custom sealing layer may be required according to the rim coating and heating process. |
Ready meals, bakery, and specialty food packs. |
Optional Anti-Fog and High-Barrier Film
Anti-fog treatment helps reduce condensation on the inside surface of the lidding film and improves product visibility in chilled display. It is useful for chilled ready meals, meat, produce, bakery, dairy, and foods with high moisture content.
High-barrier grades may include EVOH or another functional layer for modified atmosphere packaging. Buyers should provide the required oxygen transmission rate, water-vapor transmission rate, gas mixture, food type, storage temperature, and target shelf life.
Ovenable and Microwaveable CPET Packaging
CPET trays are frequently used for freezer-to-oven, chiller-to-oven, and microwaveable ready meals. However, the tray heat rating does not automatically apply to the lidding film. The PET carrier, sealant, adhesive, ink, coating, and completed seal must all remain suitable during the specified thermal cycle.
For oven or microwave applications, provide the maximum temperature, heating duration, whether the film remains on the tray during cooking, venting requirements, food type, fill weight, storage conditions, and applicable food-contact regulations.
Typical Applications for 230mm Lidding Film
Medium-format CPET ready-meal trays
Selected single-compartment and multi-compartment meal trays
Airline, railway, hospital, school, and institutional catering meals
Frozen pasta, rice, meat, vegetable, and prepared-food trays
Bakery products, desserts, deli foods, and prepared snacks
MAP and extended-shelf-life food trays
Private-label meals requiring custom printed lidding film
Explore HSQY's CPET tray range and CPET tray sealing film solutions to build a compatible tray-and-film system.
Tray-Sealer Compatibility and Line Testing
Seal quality depends on machine design, temperature, pressure, dwell time, film tension, tooling flatness, tray rigidity, flange cleanliness, food contamination, and production speed. Excessive heat can cause shrinkage or overly aggressive seals, while insufficient heat can cause incomplete bonding and leakage.
Before mass production, test roll feeding, web tracking, cut accuracy, seal continuity, peel force, leakage, burst strength, wrinkling, print registration, anti-fog performance, freezer performance, MAP gas retention, microwave performance, and oven performance when applicable.
Information Required for an Accurate Quotation
Provide the following information so HSQY can confirm whether the 230mm roll is suitable and recommend the correct lidding-film structure:
Tray material, supplier, product code, drawing, or physical sample
Outside tray dimensions, flange width, compartments, and fill weight
Tray-sealing machine brand, model, tooling layout, and operating speed
Required 230mm width, thickness, roll length, core ID, maximum outer diameter, and roll weight
Easy-peel, medium-peel, or weld-seal requirement
Food type, filling temperature, storage temperature, and target shelf life
Freezer, microwave, conventional oven, MAP, hot-fill, pasteurization, or retort process
Anti-fog, barrier, perforation, venting, or printing requirements
Trial quantity, annual volume, delivery destination, and requested delivery date
Request 230mm Film Samples and Pricing
Custom Lidding-Film Services
Custom thickness and roll width
Custom roll length, paper core, roll weight, and maximum outer diameter
Easy-peel, medium-peel, and weld-seal options
Anti-fog, high-barrier, freezer-compatible, and application-specific ovenable grades
Custom flexographic or gravure printing
Printed eye marks, repeat-length control, and winding-direction identification
Tray-and-film compatibility review and production-line trial support
Custom cartons, roll labels, pallet marks, and export delivery
Quality and Compliance Documentation
HSQY can provide available quality-management, inspection, and material documentation for the supplied film grade. Buyers should request the technical data sheet, certificate of analysis, food-contact declaration, migration or compliance reports, roll inspection criteria, and destination-market documents for the exact film structure and application.
ISO 9001 is a quality-management-system certification and should not be presented as product-specific proof of food-contact safety. Recyclability claims should also be evaluated for the completed tray-and-film package and the recycling infrastructure in the destination market.
![HSQY 230mm tray sealing film certificates and quality documentation]()
HSQY International Exhibitions
Production and Packing
Packing and Delivery
Sample Packaging: Trial rolls are packed in protective boxes to reduce dust, moisture, scratching, creasing, and edge damage.
Bulk Roll Packing: Rolls are wrapped in PE film, kraft paper, cartons, or another suitable protective material.
Pallet Packing: Approximately 500–2000kg per plywood pallet may be used depending on roll dimensions and shipment conditions.
Roll Identification: Labels can show film grade, thickness, width, length, lot number, seal side, winding direction, net weight, and production date.
Container Loading: Loading plans are calculated from roll dimensions, pallet configuration, and container type rather than a universal fixed weight.
Delivery Terms: EXW, FOB, CIF/CNF, DDU, and door-to-door services can be discussed.
Lead Time: Generally 10–14 working days after specification and deposit confirmation, subject to printing, structure, quantity, and production schedule.
Frequently Asked Questions
What is the standard size of this tray sealing film?
The standard roll size on this page is 230mm wide × 500m long. Thickness, roll length, core, maximum outer diameter, and other roll specifications can be customized subject to feasibility.
Which trays require a 230mm lidding-film roll?
A 230mm film roll may suit medium-format trays or tooling layouts that require more width than a 150mm web. The tray outside dimensions, flange, cavity layout, and trim allowance must be checked.
Can 230mm film be used on any tray-sealing machine?
No. The machine must accept the 230mm web width, core size, roll weight, maximum outer diameter, winding direction, and film tension. Provide the machine brand and model before ordering.
Is easy-peel 230mm tray sealing film available?
Yes. Easy-peel, medium-peel, and weld-seal versions can be evaluated. Target peel force and failure mode must be tested with the actual tray and production conditions.
Is anti-fog 230mm lidding film available?
Yes. Anti-fog treatment can be supplied for chilled meals, meat, produce, bakery, dairy, and other moist foods where condensation may reduce product visibility.
Can HSQY supply high-barrier 230mm film for MAP?
High-barrier structures can be evaluated for modified atmosphere packaging. Provide the target OTR, WVTR, gas mixture, food type, storage temperature, and target shelf life.
Can standard BOPET/PE film be used at 220°C?
It should not be assumed that every BOPET/PE laminate is suitable for 220°C. Conventional-oven use requires an application-specific structure validated with the exact film, tray, food, temperature, heating time, and cooking method.
Can the 230mm film be custom printed?
Yes. Custom printing can include logos, graphics, preparation instructions, product information, traceability content, and date-code areas. Provide artwork, colors, print repeat, eye-mark location, and annual volume.
Why does lidding film wrinkle or track incorrectly?
Common causes include uneven tension, incorrect roll alignment, unsuitable core or outer diameter, damaged roll edges, inconsistent thickness, poor unwind control, tooling misalignment, or excessive heat shrinkage.
Why does the seal leak or peel inconsistently?
Leakage or inconsistent peel can result from incompatible sealant chemistry, contaminated tray rims, incorrect temperature, insufficient pressure or dwell time, uneven tooling, tray deformation, food oils, condensation, or unsuitable storage conditions.
Can the film seal APET, PET/PE, or PP trays?
Different tray materials may require different sealing layers. A grade developed for CPET should not automatically be used for APET, PET/PE, PP, aluminium, or coated paperboard without compatibility testing.
What is the minimum order quantity?
The current stated MOQ is 500kg. Sample and trial quantities depend on available stock, film structure, roll width, and conversion requirements.
How long is the production lead time?
Typical lead time is approximately 10–14 working days after deposit and final specification approval. Printed, high-barrier, or special thermal grades may require additional time.
Can I request a sample before placing a bulk order?
Yes, subject to stock and specification. Send the tray sample, dimensions, machine model, required roll configuration, seal type, food application, storage conditions, and heating process.
How should 230mm lidding-film rolls be stored?
Store rolls in their original protective packaging in a clean, dry area away from direct sunlight, excessive heat, moisture, dust, solvents, and strong odors. Allow cold-stored material to acclimatize before opening.
About HSQY Plastic Group
HSQY Plastic Group supplies CPET, PET, PP, and other food trays together with tray sealing films, flexible packaging films, plastic sheets, and related packaging products for international B2B customers.
The team can support tray-and-film compatibility, roll conversion, peel-force development, printing, anti-fog and barrier selection, samples, line trials, inspection documentation, export packing, and international delivery for food manufacturers, contract packers, packaging distributors, airline caterers, and institutional food-service suppliers.
Contact HSQY for 230mm Lidding Film
