Heat Resistant Plastic Sheet

Heat-Resistant CPET Sheet for Ovenable Food Packaging

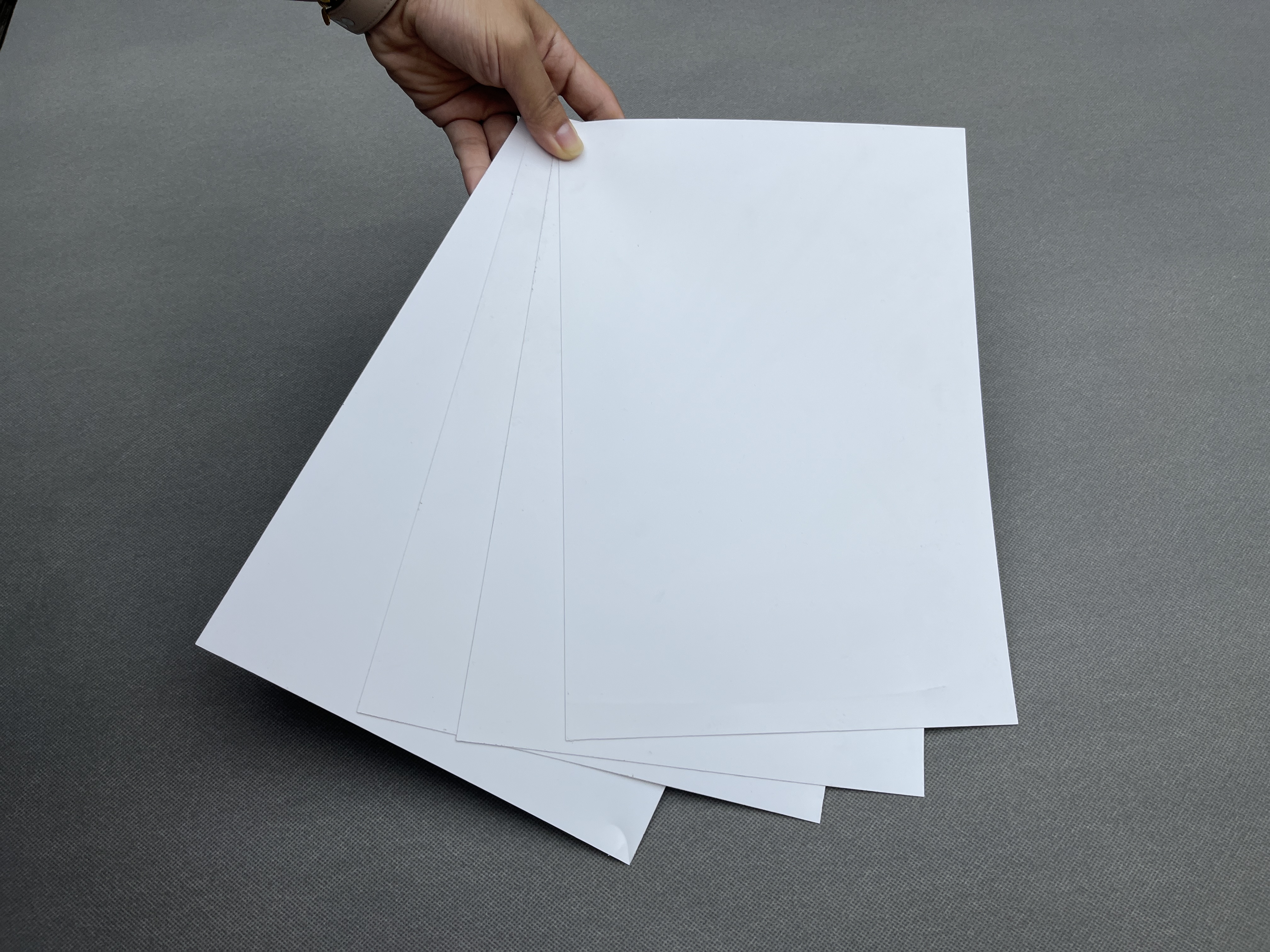

HSQY heat-resistant CPET sheet is a crystalline polyethylene terephthalate (CPET) material developed for thermoforming ovenable food trays, frozen ready-meal containers, airline catering trays and heat-resistant food packaging.

CPET sheet is designed for applications requiring better thermal stability than conventional amorphous PET. When processed under suitable thermoforming and crystallization conditions, it can be converted into rigid trays suitable for validated microwave and conventional-oven applications.

HSQY supplies CPET sheets in thicknesses from 0.1 mm to 3 mm, with roll widths from 80 mm to 1300 mm and a selection of flat sheet sizes. Black, white and other customized color options are available subject to the required material grade and application.

Whether you manufacture single-compartment meal trays, multi-compartment containers or customized ovenable packaging, HSQY Plastic can help you evaluate suitable CPET sheet dimensions, forming requirements and supply options.

Request a CPET Sheet Quote

What Is Heat-Resistant CPET Sheet?

CPET stands for crystalline polyethylene terephthalate. It is a PET-based material formulated to develop controlled crystallinity during processing. This crystalline structure improves thermal stability and helps properly formed containers maintain their dimensions during specified heating conditions.

Unlike standard APET sheets, which are commonly selected for clear, non-ovenable packaging, CPET sheets are primarily used for thermoforming heat-resistant food trays and containers. Black and white opaque CPET are common choices for ovenable ready-meal packaging.

The final temperature capability depends on the CPET formulation, crystallinity, sheet thickness, forming process and finished tray design. Buyers should evaluate the actual formed packaging under the intended oven or microwave conditions before commercial use.

Heat-Resistant CPET Sheet Specifications

Specification Note: Available sheet dimensions, surface finishes, colors and thermal properties depend on the selected product grade. Please confirm final technical specifications and relevant test documentation before ordering.

Get CPET Sheet Specifications & Pricing

Key Benefits of Heat-Resistant CPET Sheets

1. High Heat Resistance: Correctly formulated and thermoformed CPET packaging provides better dimensional stability at elevated temperatures than standard APET packaging. Its suitability for a specific oven cycle must be verified through finished-product testing.

2. Freezer-to-Oven Applications: Suitable CPET tray designs can be used for frozen meal storage followed by reheating in a microwave or conventional oven, supporting convenient heat-and-serve food packaging.

3. Good Thermoforming Performance: CPET sheet is suitable for forming food containers with different dimensions, shapes and compartment configurations when the forming conditions are correctly controlled.

4. Mechanical Strength and Rigidity: Finished CPET trays can provide good structural stability for filling, transportation, storage and reheating, depending on the selected sheet gauge and tray geometry.

5. Resistance to Oils and Fats: CPET materials offer useful resistance to many substances encountered in prepared-food packaging. Compatibility should be verified for the actual food product and heating conditions.

6. Customizable Specifications: HSQY offers multiple thicknesses, widths, sheet sizes, colors and surface finishes to meet different thermoforming and packaging requirements.

7. Food Packaging Applications: Suitable CPET grades can be considered for food-contact applications, subject to the applicable regulatory requirements and available supporting documentation.

Applications of Heat-Resistant CPET Plastic Sheets

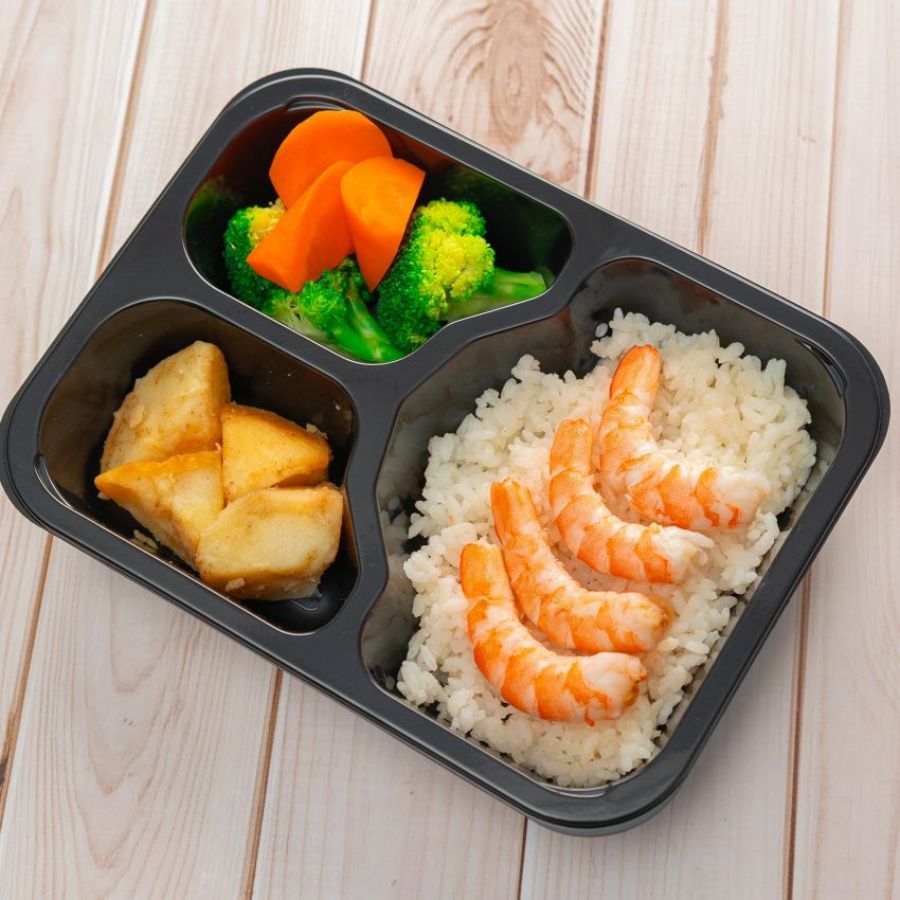

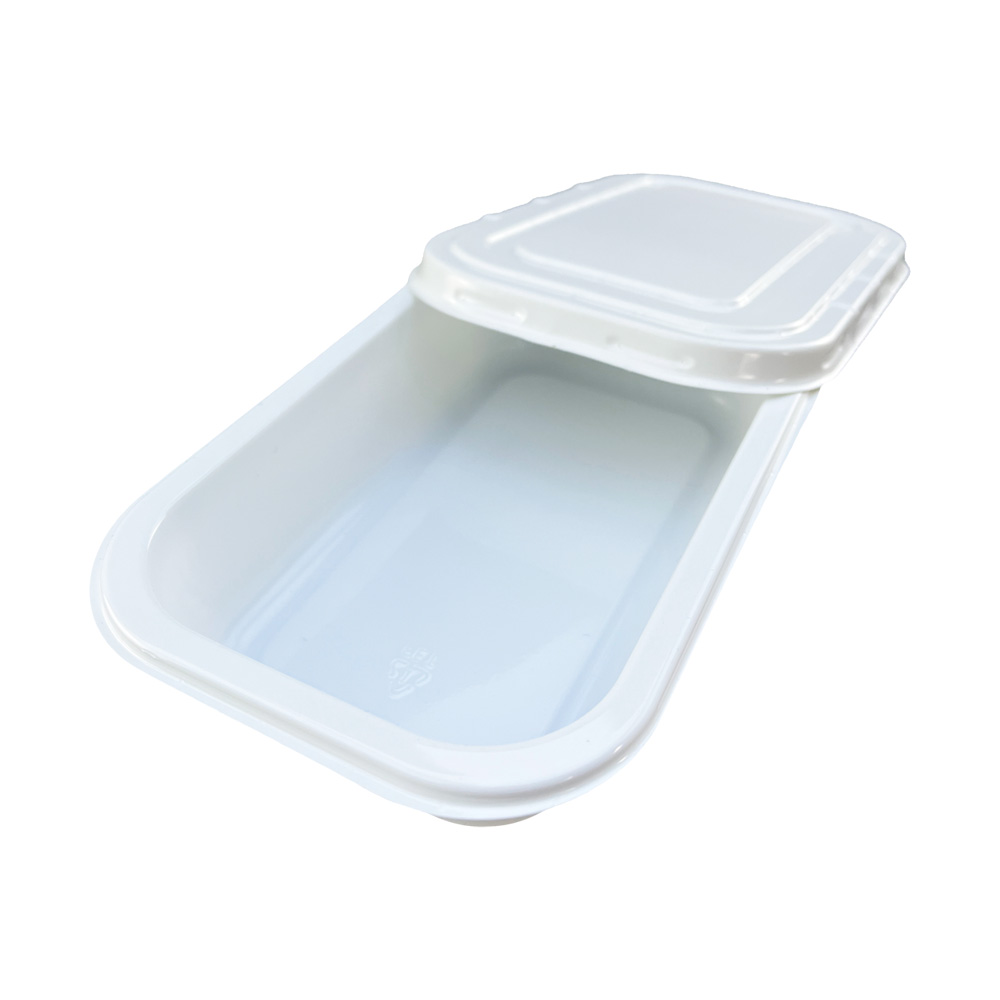

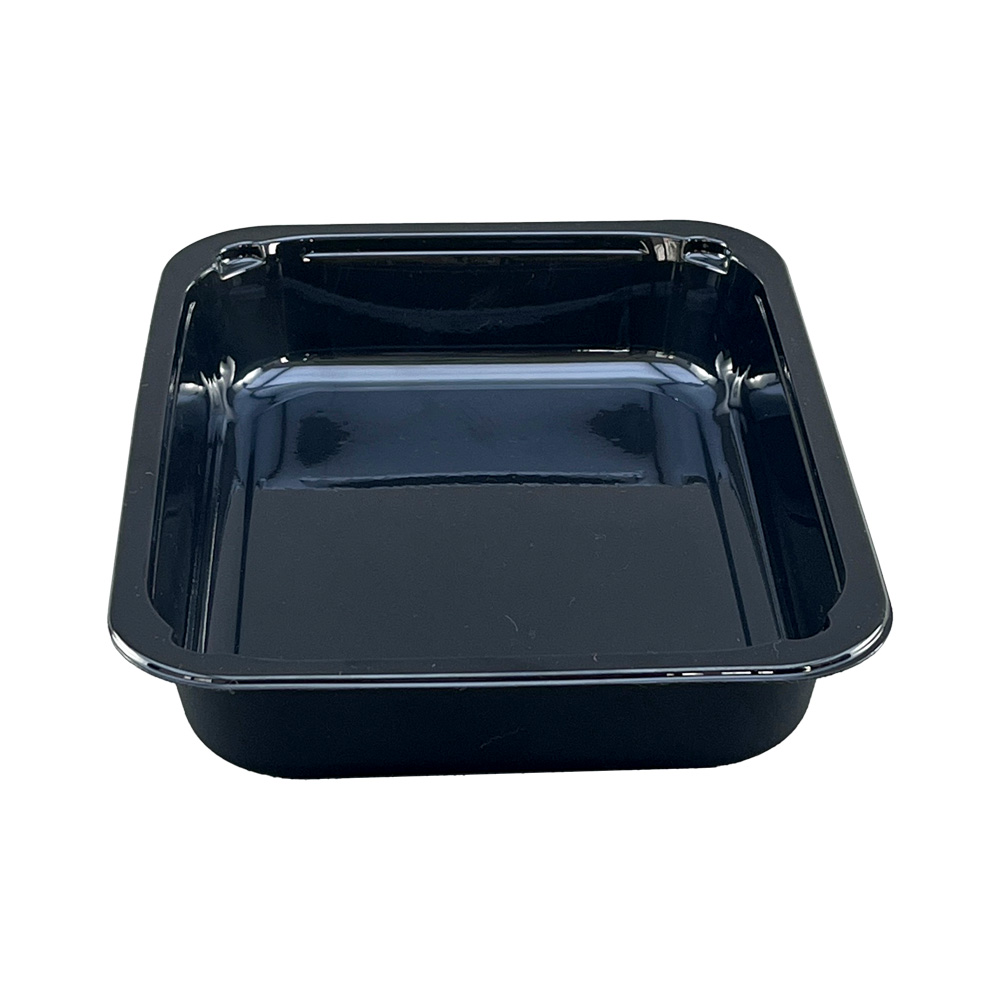

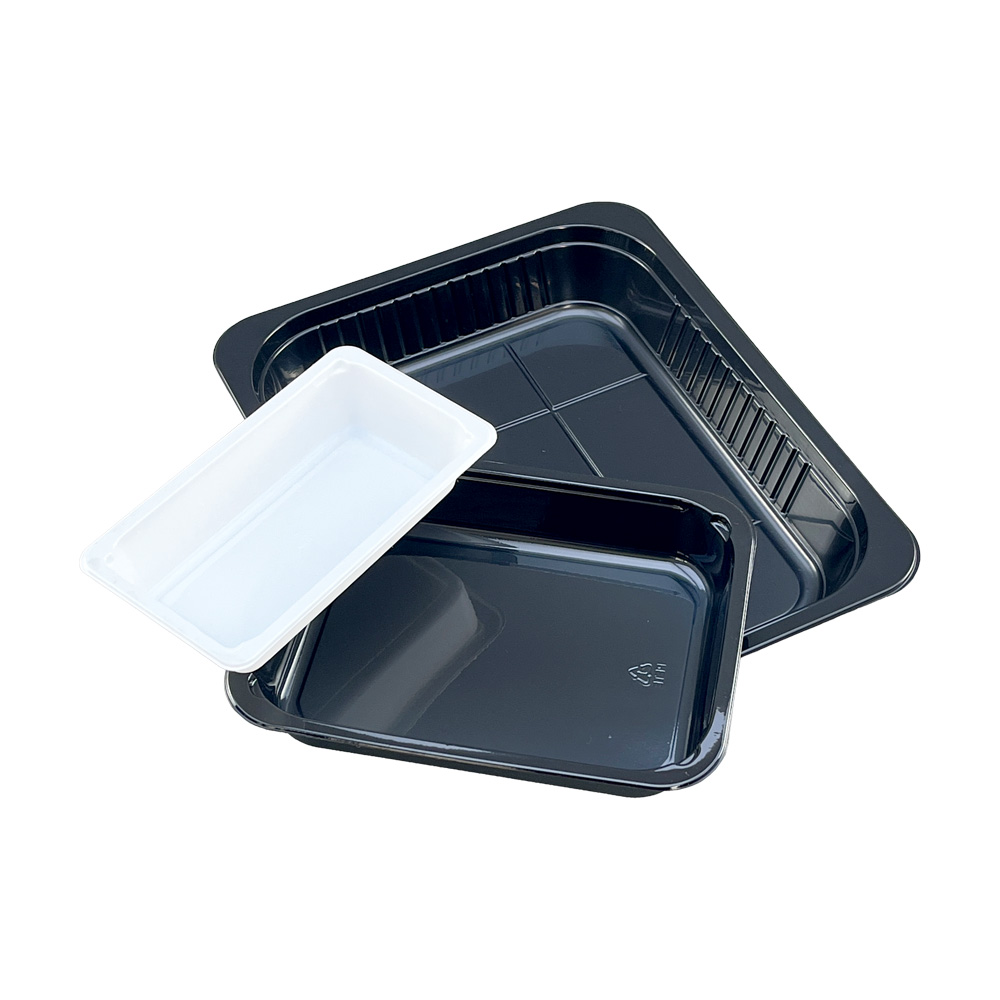

Ready-Meal Packaging: CPET sheets are widely used to manufacture ovenable meal trays for supermarkets, prepared-food manufacturers and convenience food brands.

Frozen Food Packaging: CPET can be used to manufacture trays intended for frozen meal storage and subsequent reheating under validated conditions.

Airline Catering Trays: CPET food trays are suitable for selected airline and institutional meal-service applications where controlled reheating and stable food presentation are required.

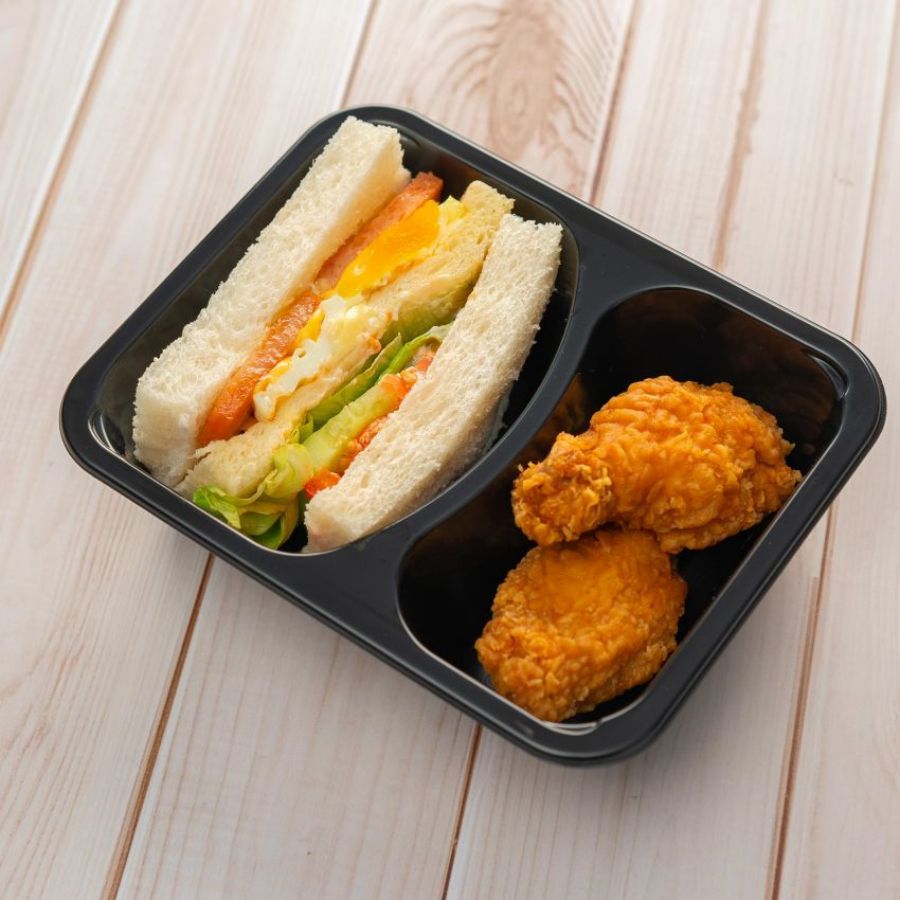

Multi-Compartment Meal Trays: CPET sheets can be thermoformed into divided food containers that separate main courses, side dishes and other meal components.

Bakery and Foodservice Packaging: Suitable CPET tray designs can be used for selected bakery items, prepared dishes and other applications that require ovenable packaging.

Custom Thermoformed Containers: CPET sheet can be evaluated for specialized thermoformed packaging where elevated-temperature resistance, dimensional stability and customized container design are important.

CPET Sheet vs. APET Sheet: What Is the Difference?

CPET and APET are both polyester-based materials, but they have different physical structures and are generally selected for different packaging requirements.

For food packaging requiring conventional-oven reheating, a validated CPET grade may be appropriate. For transparent packaging that does not require high-temperature performance, APET may offer a more suitable material choice.

CPET Sheet Thermoforming and Processing Guide

The performance of a finished CPET tray depends on both the supplied sheet and the thermoforming process. Processing conditions should be established through trials using the selected CPET grade and production equipment.

Sheet Heating and Forming

The sheet must be heated sufficiently for forming while avoiding excessive sagging, uneven heating or material degradation. Suitable heating conditions depend on sheet thickness, material formulation and machine design.

Mold Temperature and Crystallization

Controlled crystallization is important for developing the heat resistance of CPET trays. Mold temperature, forming cycle and cooling conditions should be adjusted to achieve the required final-part stability.

Tray Thickness and Design

The selected sheet thickness should be matched to tray depth, cavity geometry, expected food weight and strength requirements. Deep-drawn products may require additional attention to wall-thickness distribution.

Sealing and Finished Packaging

If the finished CPET tray will be sealed with a lidding film, the tray flange, sealing surface, lidding material and sealing conditions must be compatible. Final packaging should be tested for the intended food product, storage conditions and heating cycle.

How to Choose the Right CPET Sheet

Thickness: Choose a sheet thickness appropriate for tray dimensions, forming depth, finished-part rigidity and expected food weight.

Sheet or Roll Dimensions: Specify flat sheet size or roll width according to thermoforming machine dimensions and mold layout.

Color and Finish: Confirm whether black, white, matte, glossy or another appearance is required for the final packaging.

Thermal Requirements: Provide the expected reheating temperature, heating duration, food load and intended oven or microwave conditions.

Food-Contact Requirements: State the destination market and required regulatory documentation so the applicable grade and supporting documents can be confirmed.

Order Quantity: Indicate the estimated trial quantity, regular purchasing volume and required delivery destination.

Discuss Custom CPET Sheet Requirements

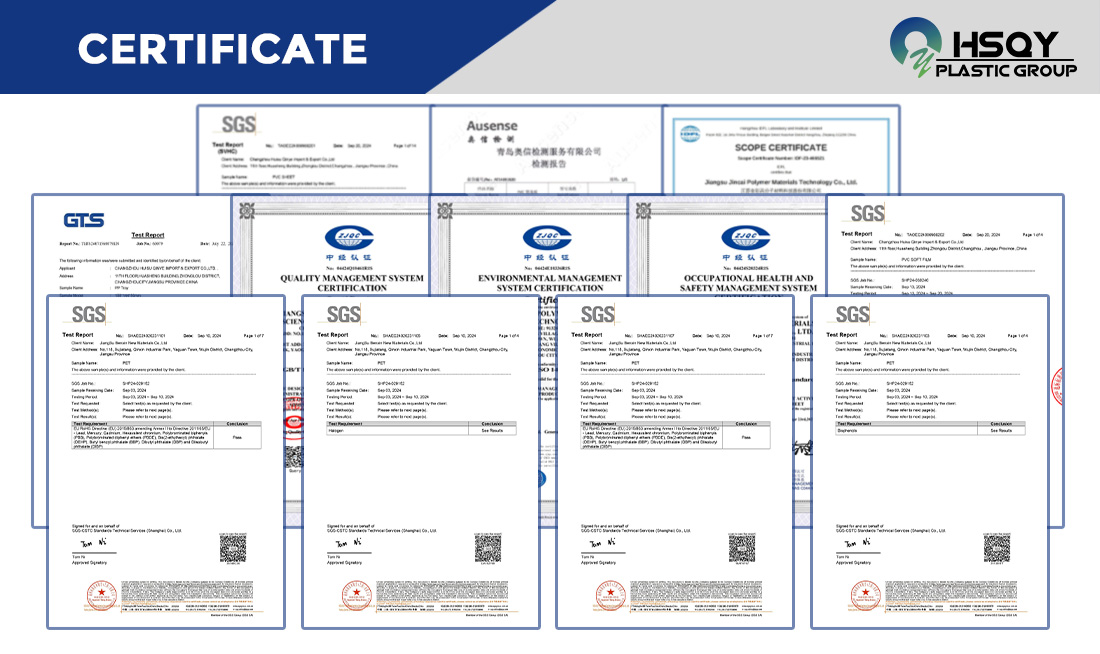

Quality and Product Documentation

HSQY Plastic provides product information and can discuss applicable test reports and documentation for specific CPET sheet grades. Food-contact suitability should be evaluated according to the intended application, food type, temperature conditions and destination market requirements.

Please confirm the relevant certificate or test report, its scope and the material grade covered before placing an order for regulated applications.

CPET Sheet Packing and Delivery

HSQY offers packaging arrangements for CPET sheets and rolls according to product dimensions, quantity and shipping requirements. Appropriate packing helps protect the sheets during handling, storage and international transportation.

Sample Packing: A4-sized samples can be packed in PP bags and protective cartons for evaluation.

Sheet Packing: Reference packing is approximately 30 kg per bag, with alternative options subject to confirmation.

Pallet Packing: Pallet loads may range from 500 kg to 2000 kg according to dimensions and shipment conditions.

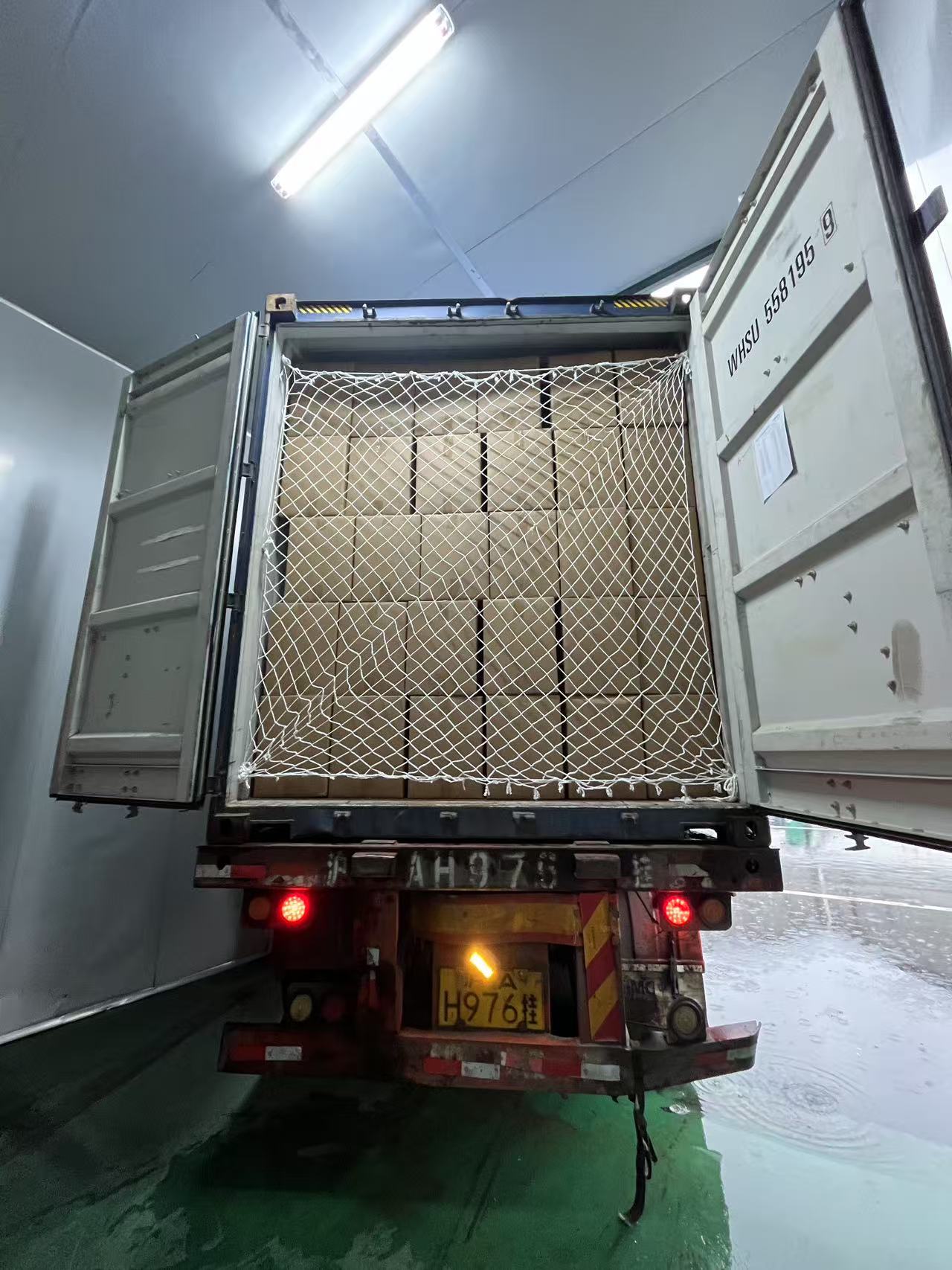

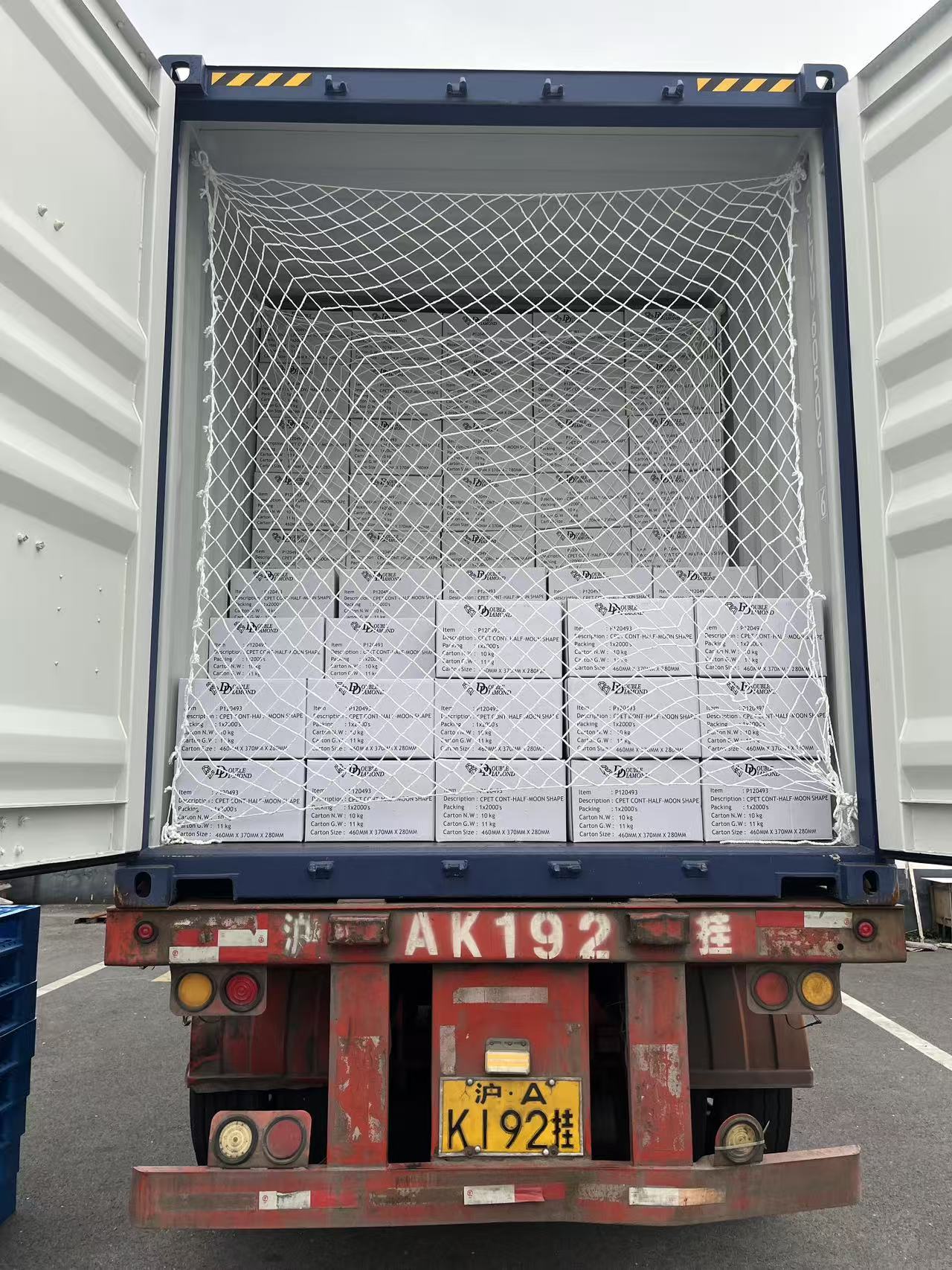

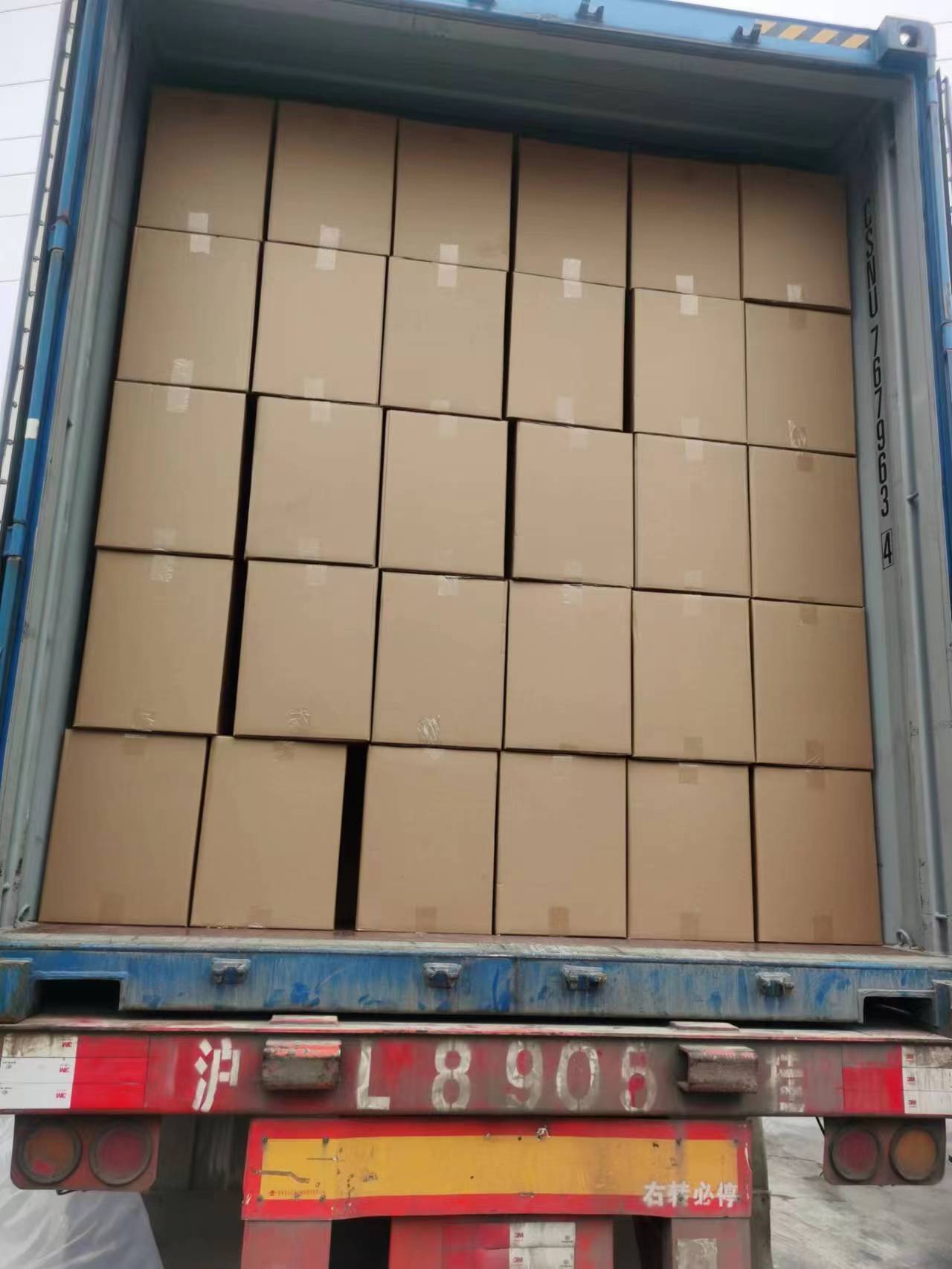

Container Loading: Bulk orders can be packed for container transportation. The exact loading capacity depends on packaging arrangements and applicable weight restrictions.

Sample Delivery: International courier options can be discussed, including DHL, FedEx, UPS, TNT and Aramex, where available.

Meet HSQY Plastic at International Exhibitions

HSQY Plastic connects with packaging manufacturers, distributors and professional buyers at international plastics and packaging exhibitions. These events provide opportunities to discuss CPET sheet specifications, food packaging applications and long-term supply cooperation.

Why Choose HSQY Plastic for CPET Sheets?

Custom Sheet and Roll Supply: HSQY provides CPET sheet material in a range of thicknesses, widths and cut-sheet dimensions for different thermoforming applications.

Application-Oriented Support: Our team can discuss the intended tray design, thermoforming conditions, thermal requirements and other purchasing specifications.

Food Packaging Material Portfolio: HSQY supplies CPET sheets and other plastic sheet and film materials for packaging manufacturers and industrial converters.

Sample and Order Support: Buyers can discuss material samples, customized specifications, packing requirements and international shipment arrangements.

About HSQY Plastic Group

Changzhou Huisu Qinye Plastic Group Co., Ltd. is a China-based supplier of plastic sheets, films and packaging materials serving domestic and international customers. Its product portfolio includes CPET sheets, PET sheets, PVC sheets and other materials for packaging and industrial applications.

HSQY works with packaging manufacturers, distributors and professional buyers to discuss customized material requirements, product samples, order arrangements and long-term supply cooperation.

Frequently Asked Questions About CPET Sheets

What is a CPET sheet?

A CPET sheet is a crystalline or crystallizable polyester sheet used to manufacture heat-resistant thermoformed containers. It is commonly selected for ovenable ready-meal trays, airline catering containers and frozen-food packaging.

Can CPET sheets be used in conventional ovens?

Suitable CPET grades can be thermoformed into containers designed for conventional-oven use. This product lists a reference heat resistance of 177°C (350°F). The approved heating temperature and duration must be confirmed through testing of the finished tray under actual use conditions.

Are CPET sheets suitable for microwave food trays?

Yes. Properly formulated and manufactured CPET trays can be suitable for microwave reheating. The final container, food product and any sealing film must be evaluated for the intended microwave conditions.

What thicknesses and sizes does HSQY offer?

HSQY lists CPET sheet thicknesses from 0.1 mm to 3 mm and roll widths from 80 mm to 1300 mm. Flat sheet sizes include 700 × 1000 mm, 915 × 1830 mm, 1000 × 2000 mm and 1220 × 2440 mm. Customized dimensions can be discussed.

What is the difference between CPET and APET sheets?

CPET develops crystallinity to improve heat resistance, making suitable grades useful for ovenable packaging. APET has an amorphous structure and is more commonly used for transparent, non-ovenable packaging such as clear food trays and clamshell containers.

Can CPET sheets be customized in color and surface finish?

Yes. Black and white are common options, while additional colors and surface finishes may be available according to the selected grade, specification and order requirements.

Can CPET sheets be used for frozen food packaging?

Yes. CPET is widely used to manufacture frozen ready-meal packaging. Suitable finished trays can support frozen storage and subsequent reheating when designed and tested for the required conditions.

Is CPET sheet safe for food contact?

CPET grades intended for food packaging can be evaluated against applicable food-contact requirements. Please request documentation for the selected grade and specify your destination market, food type and intended temperature conditions.

Are CPET sheets recyclable?

CPET is a PET-based material. Actual recyclability depends on the packaging structure, local collection systems, sorting capabilities and available recycling facilities.

Can I request CPET sheet samples before ordering?

Yes. Contact HSQY Plastic to discuss available A4-sized or customized samples, sample specifications, shipping charges and delivery arrangements.

What information is needed for a CPET sheet quotation?

Please provide the required thickness, sheet size or roll width, color, intended thermoforming application, heating requirements, order quantity and shipping destination. If available, include your tray design or technical specification.

Request Heat-Resistant CPET Sheet Pricing and Samples

Looking for heat-resistant CPET sheets for ovenable food trays or customized thermoforming applications? HSQY Plastic supplies CPET sheets and rolls for packaging manufacturers, converters and distributors.

Send us your required thickness, width, color, application, estimated quantity and delivery destination. Our team can help you discuss suitable specifications, sample availability and purchasing arrangements.
