4×8 Laminated PVC Foam Board for Cabinets and Wall Panels
HSQY manufactures 4×8 laminated PVC foam board for kitchen cabinets, bathroom vanities, wardrobes, furniture, decorative wall panels, partitions and interior cladding. The board combines a PVC or WPC foam core with PUR adhesive and a decorative surface film to provide a moisture-resistant, lightweight and easy-to-fabricate alternative to many wood-based panels.
Standard panels are available in 1220 × 2440mm sizes, with customized thicknesses, densities, surface films, colors and textures. Wood grain, marble, stone, solid color, metallic, matte and high-gloss finishes can be evaluated according to cabinet, furniture and wall-decoration requirements.
Standard size: 1220 × 2440mm / 4 × 8ft
Listed thickness range: 2mm–30mm
Reference density: 0.4–0.8g/cm³
Core options: PVC foam board or WPC foam board
Surface options: Wood grain, stone, marble, solid color, metallic, matte, high gloss or customized
Main applications: Cabinets, vanities, wardrobes, furniture, wall panels, partitions and decorative cladding
Laminated PVC Foam Board Video
Laminated PVC Foam Board Images

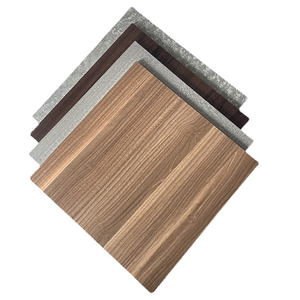

![4x8 laminated PVC foam board for interior wall panels and cabinets]( "4x8 laminated PVC foam board")
Laminated PVC Foam Board for Wall Panels

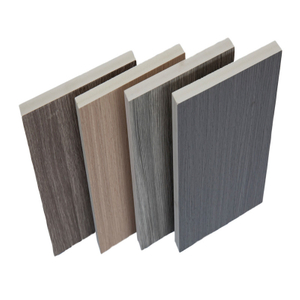

![Wood grain laminated PVC foam board for kitchen cabinets and furniture]( "Wood grain laminated PVC foam board")
Wood Grain Cabinet Board

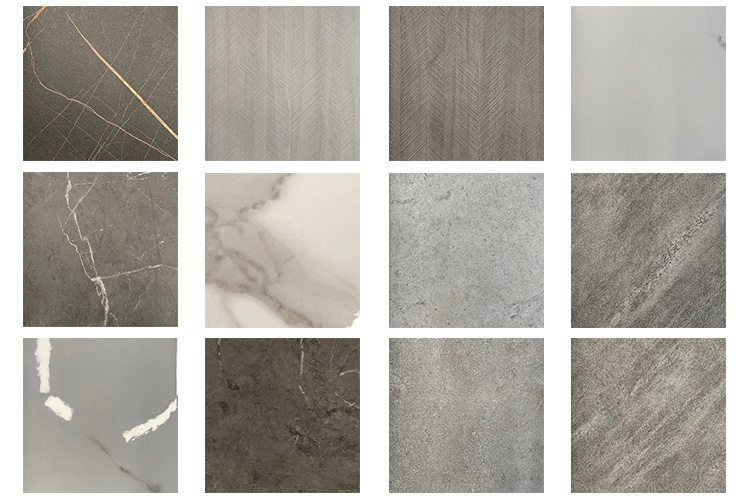

![Stone grain laminated PVC foam board for decorative interior cladding]( "Stone grain laminated PVC foam board")
Stone Grain Decorative Finish
What Is Laminated PVC Foam Board?
Laminated PVC foam board is a lightweight cellular PVC panel with a decorative surface bonded to one or both faces. The surface layer provides the required color, pattern, gloss and texture, while the foam core supplies thickness, rigidity, moisture resistance and machinability.
PUR hot-melt adhesive is commonly used because it creates a durable bond between the decorative film and the foam-board substrate. Lamination quality depends on the board surface, film structure, adhesive coat weight, pressure, temperature, curing and storage conditions.
Product-selection note: A lightweight wall panel and a load-bearing cabinet panel should not use the same specification. Cabinet boxes, shelves and doors normally require higher density, suitable thickness, screw-holding performance and edge finishing, while decorative wall panels can prioritize lower weight and installation efficiency.
Laminated PVC Foam Board Structure
| Layer |
Function |
Options to Confirm |
| Decorative surface |
Provides color, pattern, texture, gloss, stain resistance and surface appearance |
PVC film, PETG film, acrylic, HPL, metallic film or another approved finish |
| PUR adhesive |
Bonds the decorative layer to the board and helps resist peeling or delamination |
Adhesive grade, coat weight, curing time, heat and humidity resistance |
| PVC or WPC foam core |
Supplies thickness, rigidity, moisture resistance, screw holding and machinability |
Core type, density, thickness, color, recycled content and mechanical targets |
| Back surface |
Balances the board and provides a finished face for visible or two-sided applications |
Single-side lamination, matching double-side lamination or economical backing film |
Laminated PVC Foam Board Specifications
| Property |
Details |
| Product name |
4×8 Laminated PVC Foam Board for Cabinets and Wall Panels |
| Model |
HS-LFB |
| Core material |
PVC foam board or WPC foam board |
| Structure |
Decorative surface + PUR adhesive + foam-board core, with optional reverse-side lamination |
| Standard size |
1220 × 2440mm / 4 × 8ft |
| Maximum standard width |
1220mm |
| Listed thickness range |
2mm–30mm; practical availability depends on core type, density and surface material |
| Reference density |
0.4–0.8g/cm³ |
| Core colors |
White, black, light wood tone or customized |
| Decorative finishes |
Wood grain, marble, stone, solid color, metallic, matte, high gloss, textured or customized |
| Lamination |
One-side, two-side matching or two-side different designs |
| Processing services |
Cutting, slitting, CNC routing, drilling, grooving, edge profiling and edge banding subject to project |
| Main applications |
Kitchen cabinets, bathroom vanities, wardrobes, furniture, wall panels, partitions, ceilings and decorative cladding |
| MOQ |
3 tons according to the current specification table; in-stock designs may support different trial quantities |
| Payment terms |
T/T, L/C and other agreed commercial terms |
| Delivery terms |
EXW, FOB, CIF/CNF or agreed door-delivery service |
PVC Foam Core vs. WPC Foam Core
| Property |
PVC Foam Board |
WPC Foam Board |
| Composition |
Foamed PVC formulation |
Foamed PVC with wood powder or wood-fiber component |
| Weight |
Generally lighter at an equivalent thickness and density target |
Can be heavier and more wood-like |
| Machining |
Easy to cut, drill, route and bond using compatible methods |
More similar to wood-based machining, subject to formulation |
| Screw holding |
Depends strongly on density, surface skin, thickness and fastener design |
Can provide improved wood-like fastening in selected grades |
| Typical selection |
Wall panels, moisture-resistant cabinets, partitions and lightweight furniture |
Furniture and cabinet projects requiring a wood-like core or different fastening behavior |
Recommended Thickness and Density by Application
| Application |
Reference Thickness |
Reference Density |
Key Checks |
| Decorative wall panel |
5–12mm |
Approximately 0.45–0.60g/cm³ |
Flatness, surface appearance, adhesive installation and fire requirements |
| Kitchen or bathroom cabinet |
15–18mm |
Approximately 0.55–0.65g/cm³ or project-specific |
Screw holding, hinge fixing, shelf load, edge banding and long-term sag |
| Wardrobe and furniture carcass |
12–18mm |
Approximately 0.50–0.65g/cm³ |
Joint strength, fasteners, panel size, load and hardware compatibility |
| Tabletop or deep shelf |
18–20mm or reinforced construction |
Approximately 0.60–0.70g/cm³ |
Bending stiffness, span, support spacing, concentrated load and heat exposure |
| Partition or decorative divider |
8–18mm |
Project-specific |
Frame spacing, fixing system, acoustic target and panel flatness |
These values are selection references rather than guaranteed design limits. Final thickness and density must be validated using the actual panel size, hardware, support spacing, load, temperature and fabrication method.
Decorative Surface Options
PVC decorative film: Cost-effective wood grain, marble, solid color and textured finishes for general furniture and wall panels.
PETG film: High-gloss or matte premium appearance with improved surface performance in selected grades.
Acrylic surface: Deep high-gloss appearance and strong visual depth for premium cabinet doors and furniture.
HPL surface: Higher wear, scratch and heat resistance for demanding interior furniture applications, subject to weight and bonding requirements.
Metallic film or sheet: Brushed, mirror or industrial metal appearance for retail, hospitality and commercial interiors.
Custom design: Customer patterns, matched colors and project-specific textures can be evaluated according to MOQ and artwork.
Key Benefits of Laminated PVC Foam Board
1. Moisture-resistant core: PVC foam board does not swell like unsealed particleboard when exposed to normal humid interior conditions.
2. Decorative finished surface: Factory lamination reduces the need for painting or additional on-site finishing.
3. Lightweight handling: Cellular construction lowers panel weight compared with many solid plastic or mineral boards.
4. Easy fabrication: The board can be cut, routed, drilled, grooved and shaped using suitable woodworking or CNC equipment.
5. Resistant to rot and insects: The PVC-based core is not a nutrient source for termites, mold or wood-decay organisms.
6. Low-maintenance surface: Compatible laminated surfaces can be cleaned using non-abrasive methods and approved cleaners.
7. Broad design range: Wood, stone, marble, metallic, matte and high-gloss finishes support residential and commercial interiors.
Cabinet Manufacturing Requirements
Cabinet buyers should evaluate the structural board rather than selecting only by surface color. Core density, skin hardness, screw holding and hardware design determine whether a board is suitable for cabinet boxes, doors, shelves and drawers.
Screw holding: Specify face and edge screw-withdrawal requirements and test the intended fastener.
Hinge fixing: Confirm hinge-cup drilling, screw position, pilot-hole size and repeated opening cycles.
Shelf deflection: Evaluate shelf span, distributed load, support position and long-term creep.
Edge finishing: Use compatible PVC, ABS or decorative edge banding and validate adhesion and corner impact.
Joint design: Pilot drilling, suitable screws, PVC adhesive, brackets or dowels may be used according to the load.
Heat exposure: Keep cabinet panels away from uninsulated ovens, cooktops and high-temperature appliances unless the design is validated.
Applications of Laminated PVC Foam Board
Kitchen cabinets: Cabinet boxes, doors, drawer components, shelves and moisture-prone base units using a qualified density and hardware system.
Bathroom vanities: Moisture-resistant cabinet panels for washrooms, laundries and utility areas.
Wardrobes and furniture: Carcasses, doors, backs, decorative components, shelving and storage systems.
Wall panels and cladding: Decorative feature walls for homes, hotels, offices, shops and commercial interiors.

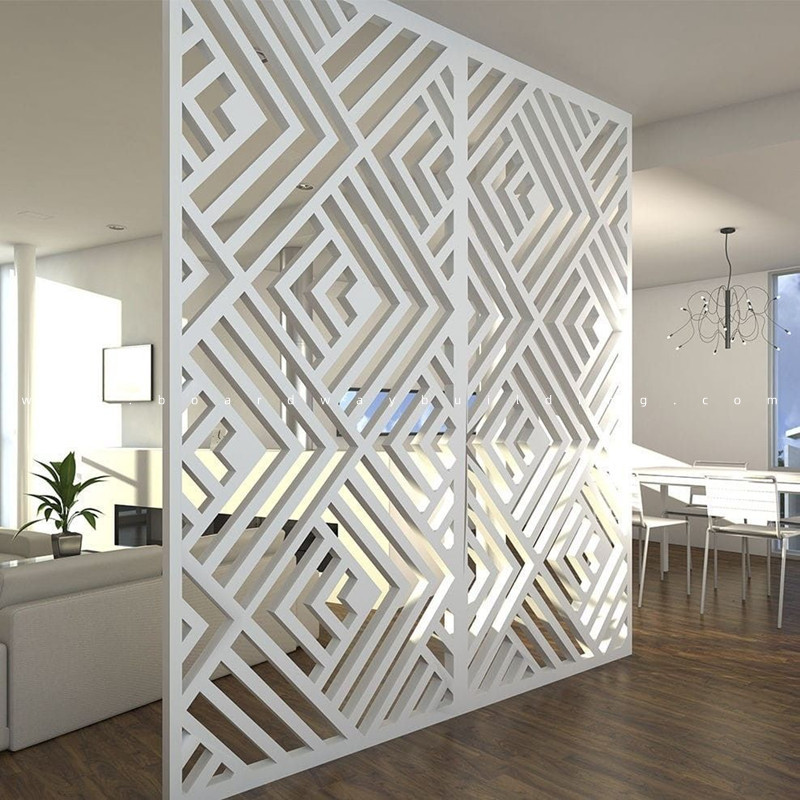

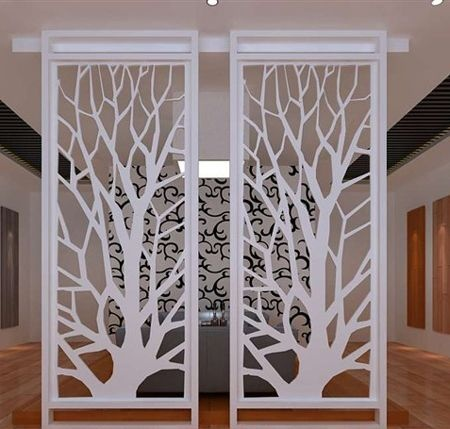

Partitions and dividers: Lightweight panels for zoning offices, retail areas, exhibitions and hospitality spaces.
Decorative ceilings and trim: Interior decorative elements where low weight and cleanable surfaces are beneficial.
![Laminated PVC foam board used for modern kitchen cabinets and furniture]( "Laminated PVC foam board cabinet application")
Cabinet and Furniture Application
![Decorative laminated PVC foam board for interior wall panel installation]( "Laminated PVC foam board wall panel")
Interior Wall Panel Application
Cutting, CNC Routing and Edge Banding
Cutting: Use a fine-tooth circular saw or panel saw with suitable feed speed to reduce chipping and edge melting.
CNC routing: Select tool geometry, spindle speed, feed rate and chip extraction for the board density and surface film.
Drilling: Use sharp drills and pilot holes near edges to reduce cracking or fastener pull-through.
Grooving: Confirm minimum remaining wall thickness and bend radius for V-groove folding or routed profiles.
Edge banding: Match edge material, adhesive, temperature, pressure and line speed to the foam core and decorative surface.
Protective film: Keep surface masking in place during machining when possible and remove it within the recommended period.
Moisture, Fire and Outdoor Use
PVC foam cores are moisture resistant, but the finished panel system still depends on joints, screws, edges, adhesives, wall conditions and installation. “Waterproof” should not be interpreted as approval for permanent immersion or an unsealed exterior façade.
Moisture: Validate dimensional stability, edge finishing, adhesive bond and hardware in the intended humidity and cleaning environment.
Fire: Request a report for the exact core, density, thickness, surface film and adhesive. Do not rely on a general “flame-retardant” claim.
Smoke development: Interior building regulations may control both flame spread and smoke, so the required test standard must be identified.
Outdoor use: Standard laminated boards are mainly intended for interiors. Exterior projects require UV, heat, cold, adhesive and weathering validation.
Quality Control
• Length, width, thickness, diagonal and squareness
• Density, weight per sheet and core uniformity
• Flatness, bow, warp and edge straightness
• Surface color, gloss, texture, scratches, bubbles and contamination
• Lamination adhesion, peel resistance and heat-humidity aging
• Flexural strength, impact behavior and compression performance where required
• Screw withdrawal, hinge testing and shelf-deflection testing for cabinets
• Packing, pallet stability, labels, batch traceability and container loading
Packaging and Delivery
Sample packing: Small boards can be protected with PE film or bags and packed in reinforced cartons.
Board protection: Full sheets can be wrapped with PE film, kraft paper, corner protectors and top-and-bottom cover boards.
Pallet packing: Boards can be secured on plywood or export pallets with straps and protective wrapping.
Pallet weight: Approximately 500–2000kg depending on sheet thickness, density and handling requirements.
Container loading: Loading plans are calculated according to sheet weight, pallet height and container payload.
Delivery terms: FOB, CIF, EXW and other agreed terms are available.
![Laminated PVC foam board protected and loaded for export shipment]( "PVC foam board container packing")
Export Board Packing

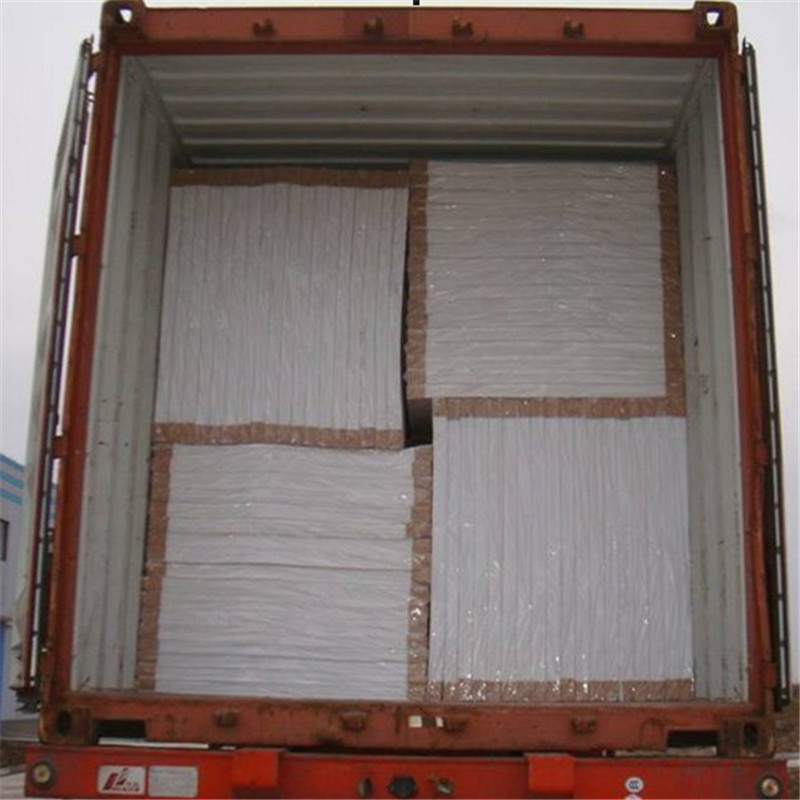

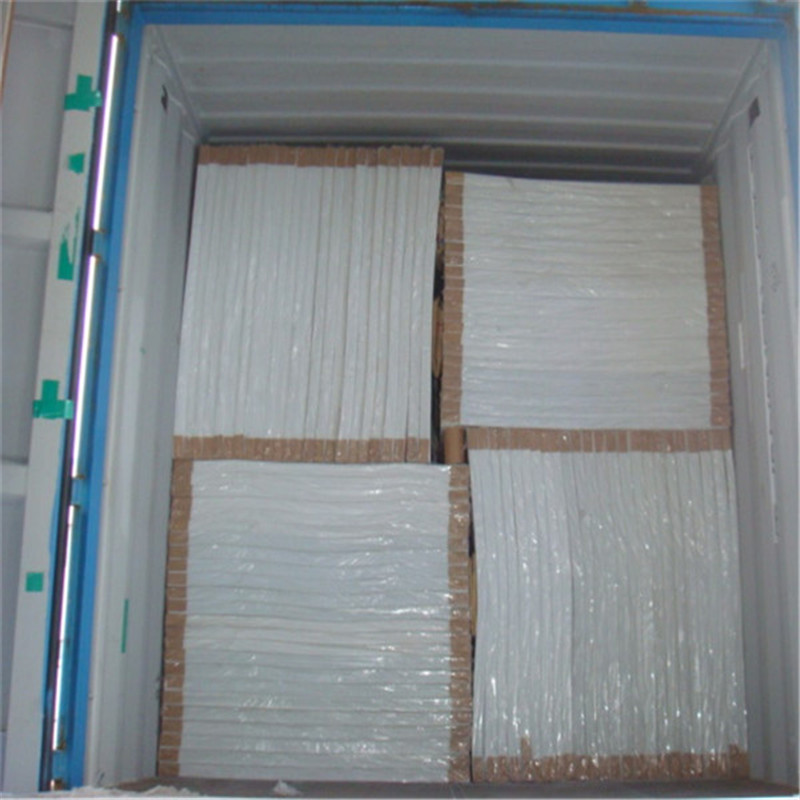

![4x8 laminated PVC foam board container loading and shipment]( "Laminated PVC foam board container loading")
Container Loading
HSQY Exhibition and Certificates
![HSQY Plastic Group international exhibitions and customer meetings]( "HSQY international exhibitions")
International Exhibitions

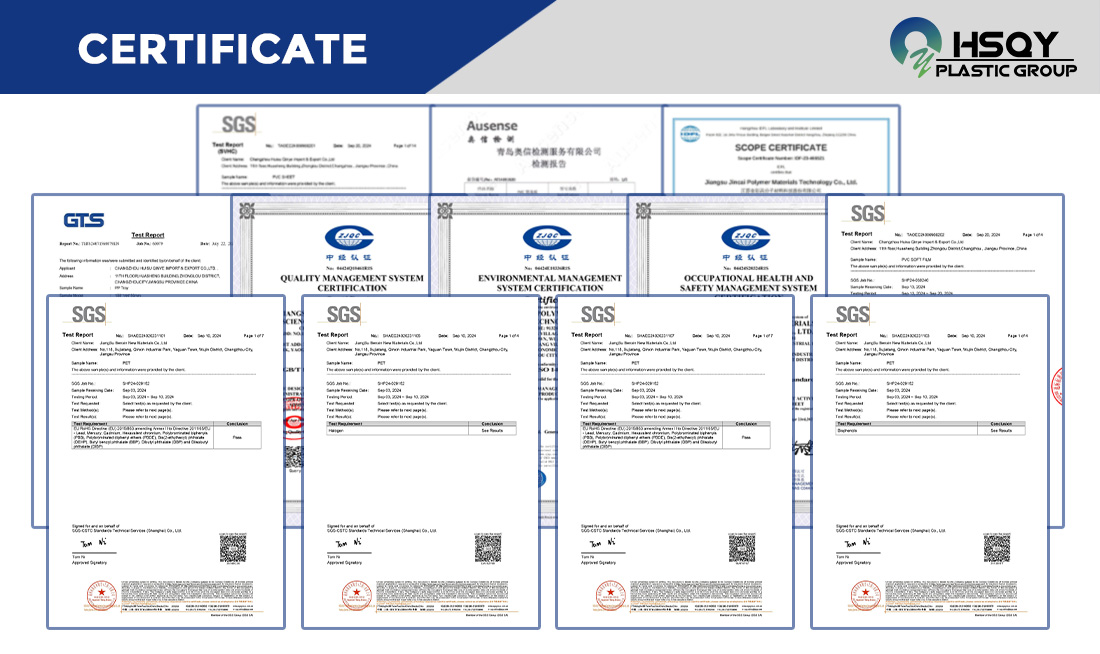

![HSQY quality certificates for laminated PVC foam board]( "HSQY PVC foam board certificates")
Quality and Compliance Documents
Information Required for an Accurate Quotation
1. Application: State wall panel, cabinet, vanity, wardrobe, shelf, furniture or another use.
2. Board size: Confirm 1220 × 2440mm or provide customized length and width.
3. Thickness and density: Provide the required thickness, density and load-bearing expectations.
4. Core: Confirm PVC foam board or WPC foam board and any recycled-content limit.
5. Surface: Send the film code, physical sample, color, pattern, gloss and texture.
6. Lamination: State one-side, matching two-side or different designs on each face.
7. Processing: Confirm cutting, CNC routing, drilling, grooving, edge banding or finished components.
8. Performance: Provide screw holding, impact, abrasion, fire, chemical and humidity requirements.
9. Quantity: Provide trial quantity, annual demand and number of designs.
10. Delivery: Provide packing requirements, destination port and target delivery date.
Frequently Asked Questions
What is laminated PVC foam board?
It is a cellular PVC or WPC foam panel bonded to a decorative film or sheet using PUR adhesive. The laminate provides the finished appearance, while the core provides thickness and rigidity.
Is 4×8 the standard board size?
Yes. The standard size is 1220 × 2440mm, approximately 4 × 8ft. Customized cutting and selected alternative lengths can be discussed.
What thickness is recommended for kitchen cabinets?
Cabinet carcasses commonly use 15–18mm boards. Final thickness and density depend on panel size, hardware, shelf span, loading and cabinet construction.
Can PVC foam board hold cabinet screws and hinges?
Suitable high-density grades can support cabinet hardware, but screw holding must be tested with the actual board, fastener, pilot hole, edge distance and hinge design.
Is laminated PVC foam board waterproof?
The PVC core is highly moisture resistant and does not swell like standard particleboard. The finished installation still requires sealed joints, suitable adhesives and protected hardware.
What decorative surfaces are available?
Wood grain, stone, marble, solid color, metallic, matte, high-gloss and textured finishes are available. PVC, PETG, acrylic, HPL and other surfaces can be evaluated.
Can both sides use the same decorative film?
Yes. Boards can use matching two-side lamination, different designs on each side or a decorative front with an economical backing surface.
How is the decorative surface bonded to the board?
PUR hot-melt adhesive is commonly used. Bond durability depends on the film, board surface, adhesive coat weight, pressure, temperature and curing conditions.
Can the board be cut with standard woodworking tools?
Yes. It can be cut, drilled and routed using sharp tools and suitable feed speeds. Fine-tooth blades and effective chip extraction improve edge quality.
Can HSQY provide CNC cutting and edge banding?
Custom cutting, CNC routing, drilling, grooving and edge banding can be discussed according to drawings, tolerances, order quantity and packaging requirements.
Is laminated PVC foam board flame-retardant?
Flame-retardant grades can be produced, but performance must be confirmed using a report for the exact core, density, thickness, adhesive and decorative surface.
Can the board be used outdoors?
Standard laminated boards are primarily designed for interiors. Outdoor projects require UV-resistant surfaces, weather-resistant adhesive and thermal-expansion testing.
What is the difference between PVC and WPC foam-board cores?

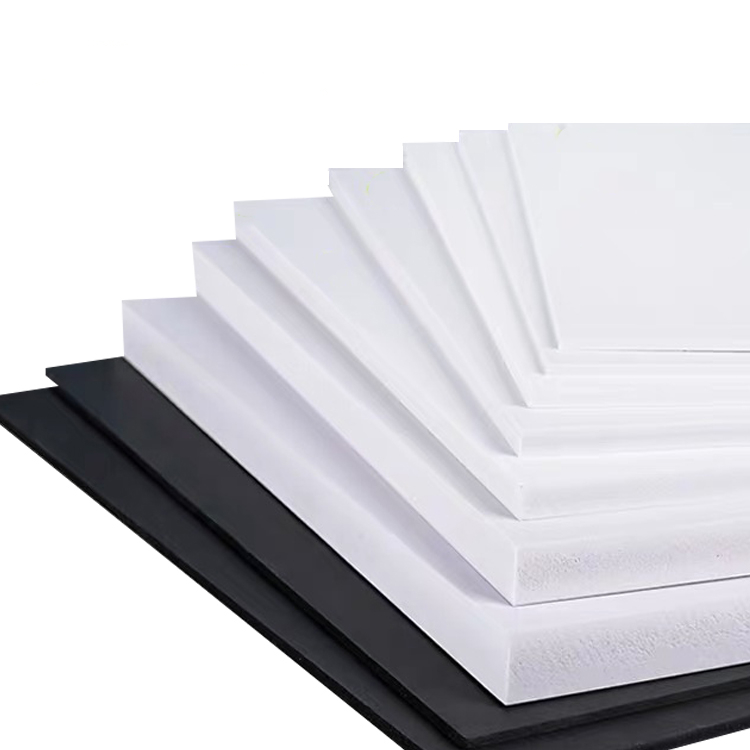

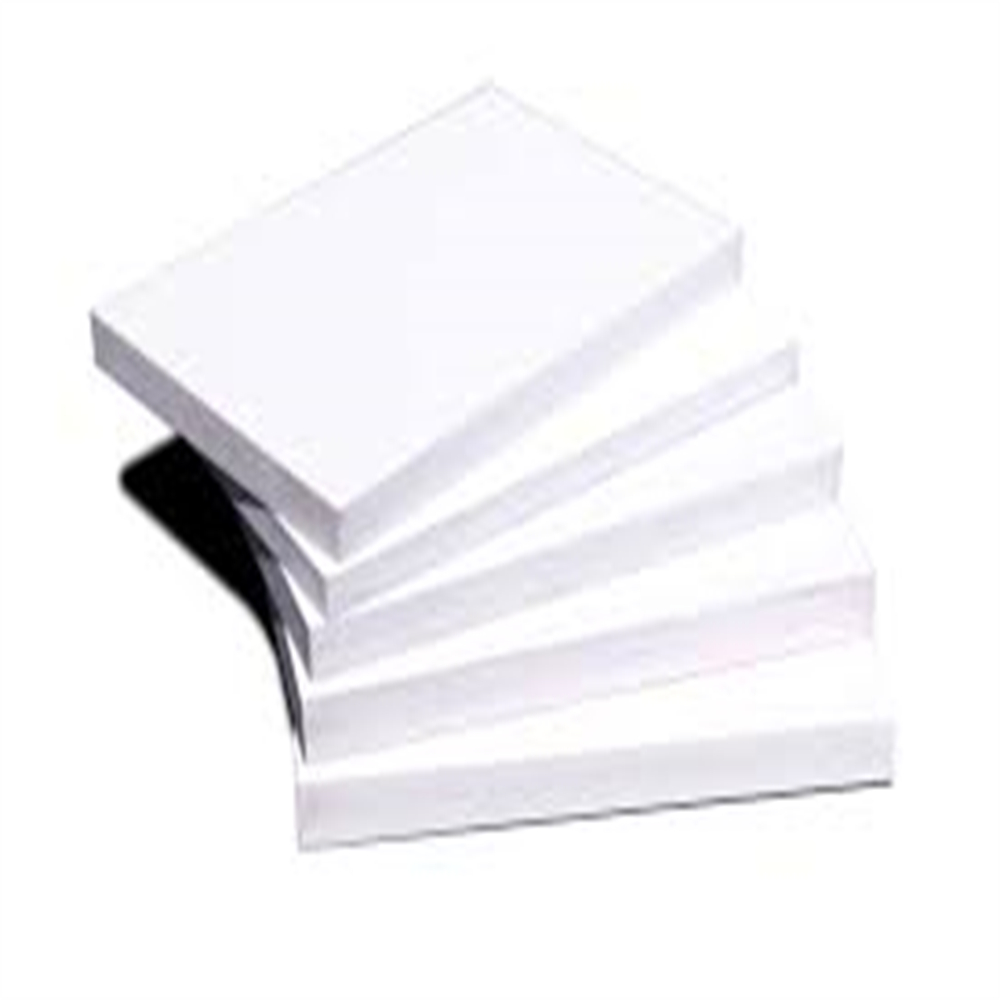

PVC foam board uses a foamed PVC formulation. WPC foam board contains a wood-powder or wood-fiber component and may provide a more wood-like feel and different fastening characteristics.
How should laminated PVC cabinet panels be cleaned?
Use a soft cloth with water or a cleaner approved for the decorative surface. Avoid abrasive pads, sharp tools and aggressive solvents unless compatibility has been tested.
What causes laminated surfaces to peel?
Common causes include an unsuitable adhesive, low coat weight, contaminated board surfaces, insufficient pressure or cure, excessive heat, moisture ingress or incompatible edge processing.
Can I request a physical sample?
Available color chips and board samples can be supplied for surface, density, machining, edge banding, hardware and cleaning evaluation.
What is the MOQ?
The current specification table lists 3 tons. In-stock films or standard board specifications may support different trial quantities, while custom patterns can require higher minimums.
How do I get an accurate quotation?
Send the application, size, thickness, density, core, surface design, lamination sides, processing, performance requirements, quantity and destination port.
Why Choose HSQY as Your Laminated PVC Foam Board Supplier?
HSQY Plastic Group supplies PVC sheets, PVC foam boards, WPC foam boards, decorative laminated panels and customized plastic materials to furniture manufacturers, cabinet factories, interior contractors and distributors.
HSQY can support core selection, surface-film matching, PUR lamination, sample approval, custom cutting, CNC processing, edge finishing, export packing and container planning. A complete drawing and performance specification will produce a more reliable recommendation than selecting only by color and thickness.

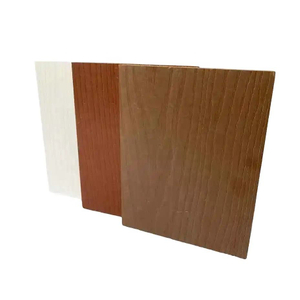

Need 4×8 laminated PVC foam board?
Send your board thickness, density, surface design, cabinet or wall-panel application, processing requirements, quantity and destination for a sample plan and quotation.
Contact HSQY Plastic
