Black ESD Anti-Static HIPS Sheet Roll for Electronic Packaging
HSQY supplies 0.2-1.8 mm black ESD anti-static HIPS sheet and roll for thermoformed electronic packaging. Made from high impact polystyrene modified with polybutadiene, the material combines impact resistance, dimensional stability, rigidity and controlled static protection for sensitive electronic components during production, handling, storage and transportation.
The material is suitable for vacuum forming IC trays, PCB and PCBA trays, semiconductor component carriers, FPC trays, SMT parts trays, protective covers and customized electronic packaging. Thickness, width, sheet size, roll format, surface finish, packaging and ESD performance can be confirmed according to the application and purchasing requirements.

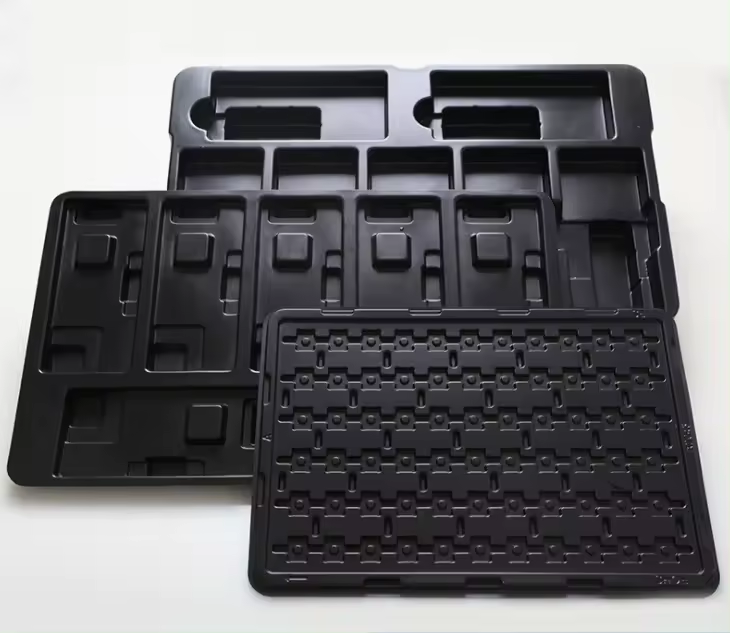

Black ESD HIPS sheet for thermoformed electronic packaging
![Certificates for HSQY ESD HIPS sheet]()
Related quality and compliance documents
What Is an ESD Anti-Static HIPS Sheet?
An ESD HIPS sheet is a high impact polystyrene sheet engineered to reduce static charge accumulation or provide a controlled path for electrostatic charge dissipation. Standard HIPS provides good impact strength and thermoforming performance, while the ESD grade is designed for packaging and handling applications involving electrostatic-sensitive devices.
The terms anti-static, static dissipative and conductive describe different levels of electrical performance. Buyers should specify the required surface resistance, test method, service environment and whether the ESD function must be temporary or long-term. The final resistance value should be confirmed on the approved material grade rather than inferred only from the product color or name.
ESD HIPS Sheet Specifications
| Property |
Details |
| Product Name |
Black ESD Anti-Static HIPS Sheet |
| Material |
High Impact Polystyrene (HIPS) modified with polybutadiene |
| Thickness |
0.2-1.8 mm |
| Supply Form |
Customized sheet or roll |
| Color |
Black |
| ESD Performance |
Anti-static ESD grade; confirm the required surface resistance and test method before ordering |
| Density |
1.04-1.06 g/cm³ |
| Tensile Strength |
15-30 MPa |
| Impact Strength |
0.09-0.16 N/m |
| Bending Strength |
29.4-50 MPa |
| Softening Point |
84-100°C |
| Melt Index |
2-9 g/10 min |
| Thermal Deformation Temperature |
70-84°C |
| Processing Method |
Vacuum forming, thermoforming, cutting and die cutting |
| Applications |
IC trays, PCB and PCBA trays, FPC trays, SMT component packaging, protective covers and electronic component carriers |
| Available Documents |
SGS, ISO 9001:2008 and RoHS-related documents as stated on the product page; confirm the exact report scope and validity for the ordered grade |
| MOQ |
500 kg |
| Payment Terms |
T/T, L/C, Western Union and PayPal |
| Delivery Terms |
EXW, FOB, CNF and DDU |
| Lead Time |
Normally 7-15 days for 1-20,000 kg; negotiable for larger orders |
The listed values are typical product data and may vary with thickness, formulation, ESD grade, color, production batch and test method. Confirm the final specification and test report before using the material for a regulated or performance-critical application.
How ESD HIPS Protects Electronic Components
Electronic components can be damaged by electrostatic discharge during assembly, packaging, internal logistics and shipment. ESD HIPS packaging is designed to reduce charge accumulation and control the movement of static electricity across the packaging surface, helping protect sensitive devices from immediate failure or latent damage.
The packaging material must be selected together with the tray design, grounding method, handling process, humidity conditions and ESD control program. For applications involving semiconductors, integrated circuits or precision electronic assemblies, provide the target surface resistance and applicable test standard when requesting a sample or quotation.
Key Features of Black ESD HIPS Sheet
Controlled static protection: Designed for electronic packaging applications that require anti-static or ESD-control performance.
High impact resistance: Polybutadiene modification improves toughness compared with general-purpose polystyrene and helps trays withstand handling and transportation.
Thermoforming performance: Suitable for vacuum forming and thermoforming customized trays, blisters, component carriers and protective packaging.
Dimensional stability: Maintains the required tray geometry and component pockets when the material grade and forming conditions are correctly matched.
Custom sheet and roll supply: Thickness, size, width and packaging can be selected for different thermoforming machines and tray designs.
Suitable for black ESD packaging: The black appearance is commonly used for electronic component trays and industrial protective packaging where light transmission is not required.
Thermoforming and Processing Guidelines
Black ESD HIPS sheet can be vacuum formed into trays, clamshells, carriers and custom protective components. Forming temperature, heating time, mold design, draw ratio, cooling conditions and sheet orientation should be optimized for the selected thickness and electrical grade.
The material can also be cut, die cut, drilled or fabricated for protective covers and separators. Before mass production, test the sheet on the intended equipment and verify pocket definition, wall-thickness distribution, shrinkage, flatness, impact performance and surface resistance after forming.

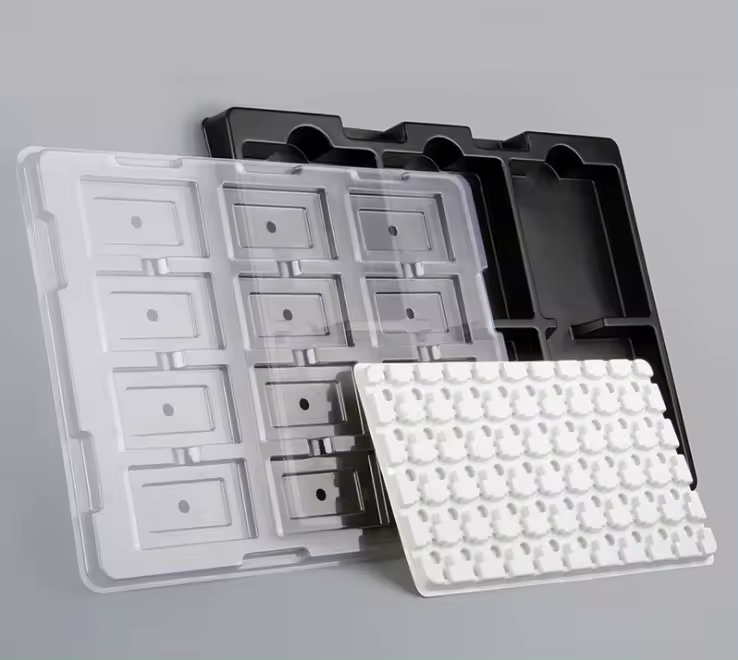

Applications of ESD HIPS Sheet and Roll
IC and semiconductor trays: Thermoformed trays for integrated circuits, chips and semiconductor components.
PCB and PCBA packaging: Handling, storage and transport trays for printed circuit boards and assembled circuit boards.
FPC and SMT component trays: Customized pockets for flexible printed circuits, connectors, capacitors, resistors, diodes and other precision parts.
Consumer electronics packaging: Protective trays and inserts for sensors, camera modules, mobile phone components and electronic subassemblies.
Protective covers and housings: Fabricated covers, dividers and temporary enclosures used in electronics manufacturing and internal logistics.
Reusable component carriers: Durable thermoformed packaging for repeated movement between production, testing, assembly and warehouse operations, subject to grade validation.
How to Specify the Required ESD Performance
Do not specify an ESD packaging material only as “anti-static.” The required electrical performance depends on the sensitivity of the component, grounding system, tray design, handling process and applicable ESD control standard. A procurement specification should identify the target surface resistance or resistivity, test method, test voltage, conditioning environment and acceptable tolerance.
Electrical target: Required anti-static, static-dissipative or conductive grade and the exact resistance range.
ESD technology: Confirm whether the project requires an internally modified material, a surface-coated material or another construction.
Service conditions: Temperature, humidity, expected service life, cleaning process and number of handling cycles.
Forming validation: Resistance and mechanical performance should be checked after thermoforming because sheet stretching and processing conditions can affect the finished tray.
Documentation: Request the relevant test report, material declaration and compliance documents for the specific production grade and batch.
Quality Control and Sample Approval
Quality inspection can include thickness, width, roll weight, surface appearance, color consistency, flatness, mechanical performance and ESD resistance according to the confirmed order specification. For thermoforming projects, approval should be based on material from the intended production grade rather than a visually similar standard HIPS sample.
A4 samples are available for preliminary evaluation. For a production trial, provide the thermoforming machine type, mold dimensions, forming depth, required tray structure and target electrical performance so that a more representative sample can be prepared.
Packing and Delivery
Sample packaging: A4-size samples packed in PP bags or boxes.
Sheet and roll packaging: Approximately 30 kg per bag or roll, wrapped with PE film or kraft paper according to the confirmed specification.
Pallet packaging: Approximately 500-2,000 kg per plywood pallet, depending on dimensions and transport requirements.
Container loading: Approximately 20 tons per standard container, subject to roll dimensions, pallet configuration and shipping limits.
Delivery terms: EXW, FOB, CNF and DDU.
Lead time: Normally 7-15 days for orders up to 20,000 kg; larger orders are scheduled according to the confirmed production plan.
How to Request a Quote
To receive an accurate quotation and material recommendation, provide the required thickness, width, sheet or roll format, roll weight, color, target surface resistance, test method, application, forming process, monthly quantity, packaging requirement and destination port.
Request an ESD HIPS Sample or Quote
Frequently Asked Questions
What is black ESD HIPS sheet used for?
Black ESD HIPS sheet is mainly used to thermoform trays, carriers, covers and protective packaging for ICs, semiconductors, PCBs, PCBAs, FPCs, SMT components, sensors and other electrostatic-sensitive electronic parts.
What is the difference between standard HIPS and ESD HIPS?
Standard HIPS provides impact resistance and thermoforming performance but is not designed to control static electricity. ESD HIPS includes an ESD-control system intended to reduce charge accumulation or dissipate charge according to the specified electrical grade.
Is anti-static HIPS the same as conductive HIPS?
No. Anti-static, static-dissipative and conductive materials represent different electrical performance levels. The correct grade should be selected using a defined surface resistance range and test method for the intended component and handling process.
What surface resistance does this ESD HIPS sheet provide?
The source product page identifies the material as an anti-static ESD grade but does not state one fixed resistance range. Provide the required value and test method so HSQY can confirm the suitable grade, sample and supporting report before production.
Can ESD HIPS sheet be vacuum formed?
Yes. The material is designed for vacuum forming and thermoforming electronic trays and component carriers. A forming trial is recommended to verify pocket definition, wall thickness, shrinkage, flatness and post-forming electrical performance.
What thicknesses are available?
The product is available in thicknesses from 0.2 mm to 1.8 mm according to the supplied specification. Confirm the required thickness tolerance, width, roll diameter and roll weight when requesting a quotation.
Can the sheet size and roll width be customized?
Yes. HSQY can supply sheet or roll formats according to the intended thermoforming equipment, mold size and packaging application. Minimum and maximum widths should be confirmed for the selected thickness and order quantity.
Does thermoforming affect the ESD performance?
It can. Heating, stretching, wall-thickness reduction and surface changes may affect the resistance measured on the finished tray. Electrical performance should therefore be tested after forming under the agreed conditioning and test procedure.
Are samples available for testing?
Yes. Free A4 samples are available for initial evaluation, with courier freight normally paid by the buyer. A production-grade trial sample is recommended when resistance, thermoforming depth or dimensional tolerance is critical.
What information is required for an ESD HIPS quotation?
Provide the thickness, width, sheet or roll format, target surface resistance, test method, forming application, tray dimensions, order quantity, packaging requirement and destination port. This information allows HSQY to recommend a suitable grade and prepare a more accurate quotation.
