Cooler and Freezer Plastic Door Strip Curtain Sheet

Cooler and Freezer PVC Strip Curtain Video

Watch the video below to learn more about HSQY cooler and freezer PVC strip curtain material, available surface options and typical cold-storage applications.

What Is a Cooler and Freezer PVC Strip Curtain?

A cooler and freezer PVC strip curtain is a flexible plastic barrier installed across cold-room doors, walk-in freezer entrances, refrigerated warehouse openings and other temperature-controlled access points. The overlapping PVC strips separate temperature zones while allowing employees, carts and forklifts to pass through without repeatedly opening and closing a solid door.

HSQY Plastic manufactures flexible PVC strip curtain sheets and rolls for coolers, freezers, refrigerated warehouses, loading docks, refrigerated trucks and industrial traffic entrances. The material helps reduce uncontrolled air exchange, maintain cleaner work zones and improve visibility across busy doorways.

Available options include clear, blue and orange strips; smooth, ribbed and lined surfaces; and low-temperature, anti-scratch and anti-insect formulations. Thickness, width, color, surface pattern, roll length, packaging and PVC formulation can be customized according to the project.

The precise operating-temperature range depends on the selected PVC formulation. Buyers should provide the minimum and maximum operating temperatures when requesting samples or quotations so that the appropriate grade can be confirmed.

Request PVC Strip Curtain Pricing    Request a Sample

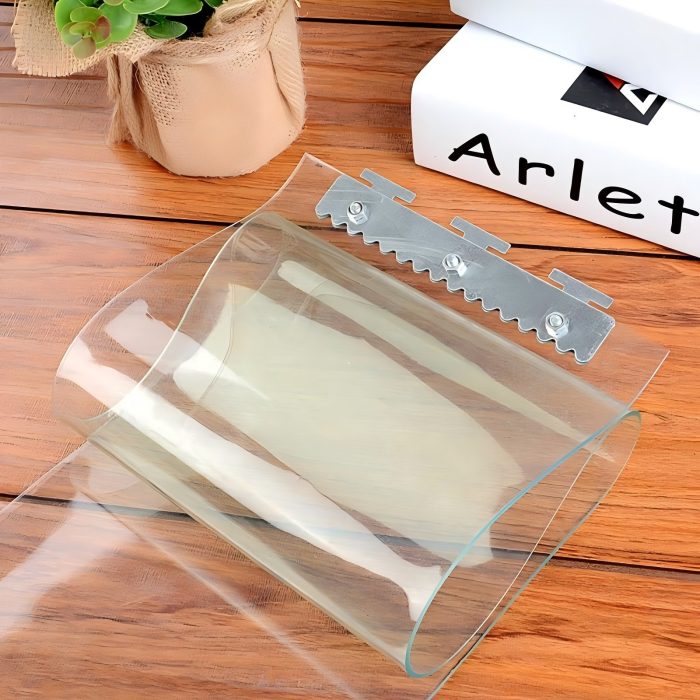

PVC Strip Curtain Product Images

PVC Strip Curtain Test Reports

Review the available test documents below. Documentation applicable to a specific order should be reconfirmed according to the selected formulation, specification and destination-market requirements.

   Download Plastic Door Curtain SGS Test Report

   Download PVC Curtain SGS Test Report

Cooler and Freezer PVC Strip Curtain Specifications

Product specifications should be confirmed against the approved sample, technical data sheet and final purchase contract. Requirements involving food-processing areas, restricted substances, flame performance, outdoor exposure or unusually low temperatures must be stated before production.

Key Benefits of Cold Room PVC Strip Curtains

Low-Temperature Flexibility

Low-temperature PVC formulations are designed for refrigerated environments where ordinary flexible PVC may become harder or less flexible. The required operating temperature should be confirmed before selecting a cooler or freezer grade.

Reduced Cold-Air Exchange

Overlapping PVC strips create a flexible barrier across an open doorway. This helps limit uncontrolled air movement between refrigerated and ambient-temperature areas while allowing frequent pedestrian or equipment access.

Clear Two-Way Visibility

Transparent strips allow employees and vehicle operators to see movement on the opposite side of the doorway. This is particularly important at entrances used by forklifts, pallet trucks, carts and production personnel.

Hands-Free Traffic Flow

Workers and equipment can pass directly through the flexible strips. After the traffic passes, the strips return toward their hanging position and re-form the barrier.

Dust, Insect and Airflow Separation

When properly selected and installed, PVC door strips can help separate dust, drafts and airborne contaminants between adjacent work zones. Yellow or orange anti-insect formulations are available for selected warehouse, food-handling and loading applications.

Replaceable Individual Strips

Damaged or worn strips can generally be replaced individually without replacing the complete curtain. Bulk rolls can also be stored on-site and cut into replacement strips when required.

Custom Manufacturing

HSQY supports custom thickness, width, length, color, surface profile, PVC formulation, roll weight and export packaging for refrigeration, logistics and industrial projects.

Smooth, Ribbed and Colored PVC Strip Options

Applications of Freezer and Cooler Door Strips

Walk-In Coolers and Freezer Doors

PVC strip curtains are installed behind or in front of walk-in cooler and freezer doors to reduce direct air exchange while employees enter and leave the temperature-controlled area.

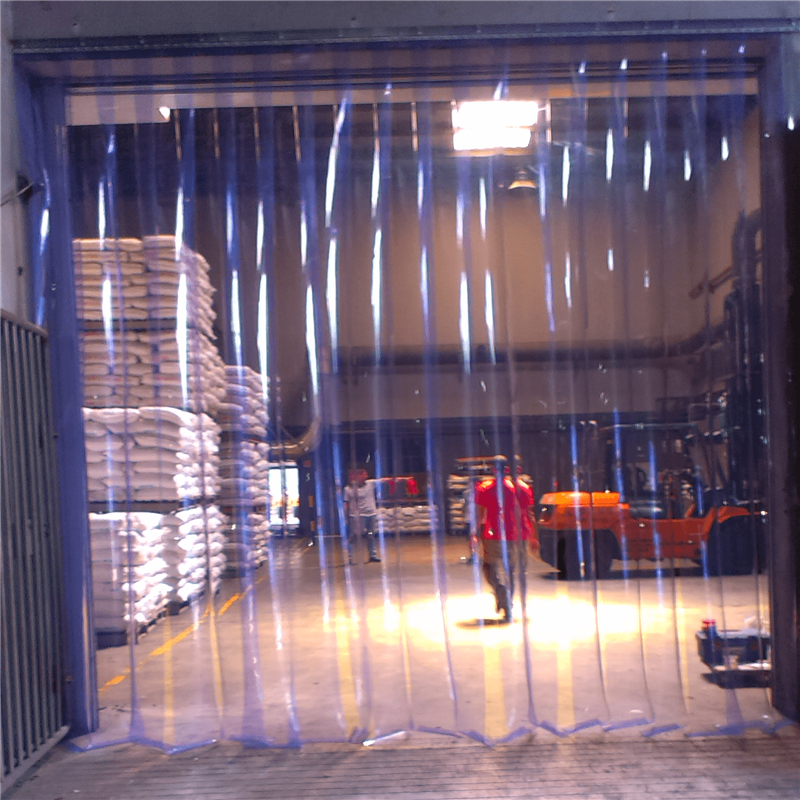

Refrigerated Warehouses

Wide and thick PVC strips can be used across warehouse openings that experience frequent pallet, cart or forklift movement between cold and ambient zones.

Refrigerated Trucks and Trailers

Plastic strip curtains can be installed at refrigerated vehicle openings to help limit the direct exchange of outside air during loading and unloading operations.

Food Processing and Preparation Areas

PVC strips can separate preparation, storage and processing zones while preserving convenient access. Regulatory and hygiene requirements must be confirmed for the intended market and facility.

Loading Docks and Logistics Centers

Strip curtains help separate loading areas from storage or production zones and can reduce drafts, airborne dust and uncontrolled airflow through frequently used doorways.

Industrial Traffic Entrances

Ribbed or heavier strips are suitable for selected entrances used by forklifts, carts and machinery where repeated contact with the curtain is expected.

Fume and Work-Zone Containment

Flexible PVC strips may be used in selected industrial separation and extraction areas. Chemical compatibility, fire performance and ventilation requirements should be evaluated before installation.

Explore the complete PVC strip curtain product range for refrigeration, warehouse and industrial door applications.

How to Choose PVC Strip Width and Thickness

Strip width and thickness should be selected according to the doorway height, traffic type, wind pressure, required temperature separation and ease of passage. Narrower or thinner strips are easier for pedestrians to pass through, while wider and thicker strips provide a heavier barrier for larger openings and vehicle traffic.

These are general selection directions rather than fixed engineering rules. Final sizing should consider the complete door dimensions, operating temperature, airflow, traffic frequency, vehicle size and required overlap.

How Much Overlap Should PVC Strip Curtains Have?

Overlap refers to the portion of one PVC strip that covers the neighboring strip. Increasing the overlap reduces open gaps and improves separation, but it also increases the total curtain weight and the force required to pass through it.

Customers requesting cut strips or a complete curtain layout should provide the door width, door height, mounting position, traffic type and preferred overlap. HSQY can then calculate the required strip length and approximate material quantity.

PVC Strip Curtain Roll vs. Complete Door Curtain

How to Measure a Door for PVC Strip Curtains

1. Measure the clear width of the doorway from one side of the opening to the other.

2. Measure the clear height from the intended mounting point to the floor or required lower edge.

3. Confirm whether the curtain will be mounted above the opening, on the wall face or inside the door frame.

4. Record the type and dimensions of equipment passing through the opening.

5. Identify the minimum operating temperature and the temperature difference between both sides.

6. Confirm whether the priority is easier passage, stronger temperature separation or resistance to frequent contact.

Photos or drawings of the doorway are useful for custom projects. Customers replacing existing strips should also provide the original strip width, thickness, length and mounting-hole pattern.

Installation and Maintenance Guidelines

Allow the Strips to Relax Before Installation

After transportation, rolls or cut strips should be stored flat or allowed to hang in the installation environment so that temporary curvature from packaging can reduce before final installation.

Install the Mounting System Securely

The hanger, rail or mounting plate must be suitable for the wall structure, doorway width, curtain weight and traffic conditions. Installation hardware should be inspected regularly for loosening or corrosion.

Maintain the Correct Floor Clearance

Strips should hang close enough to the floor to reduce open gaps without dragging excessively, folding under equipment or creating an avoidable trip risk.

Clean with Compatible Products

Use water, a soft cloth and a mild neutral cleaning product. Strong solvents, abrasive pads or incompatible chemicals can affect clarity, flexibility or surface appearance and should not be used without testing.

Replace Worn Strips

Replace strips that have become torn, excessively scratched, permanently deformed or too short to maintain the intended coverage. Routine replacement helps preserve visibility and doorway separation.

Information Required for a PVC Strip Curtain Quote

To receive an accurate quotation and material recommendation, provide the following information:

• Door width and height.

• Required strip thickness and width, if already known.

• Smooth, ribbed or lined surface.

• Clear, blue, orange or custom color.

• Minimum and maximum operating temperatures.

• Pedestrian, cart, pallet truck, forklift or machinery traffic.

• Bulk roll, replacement strip or customized cut-strip requirement.

• Required quantity or number of doorways.

• Destination country and delivery port.

• Required test reports, formulation restrictions or compliance standards.

Send Your Door Dimensions

Packing and Delivery Options

Sample packaging: Small rolls or cut-strip samples are wrapped in protective material and packed in cartons.

Roll packaging: Standard packaging is approximately 50 kg per roll, or customized according to the strip dimensions and customer requirements.

Cut-strip packaging: Pre-cut strips can be wrapped with protective film and packed in cartons or reinforced export packages.

Pallet packaging: Approximately 500–2000 kg can be packed on a plywood pallet, depending on roll dimensions and loading requirements.

Container loading: A standard container load is approximately 20 tons, subject to product dimensions, packaging and destination weight restrictions.

Delivery terms: FOB, CIF and EXW quotation options are available.

Lead time: Typical production time is approximately 7–15 days after the deposit and specifications are confirmed. Customized formulations, special packaging and larger quantities may require additional production time.

PVC Strip Curtain Certifications

HSQY can provide available SGS test reports and quality-management documentation for applicable PVC curtain products. Required documentation should be specified before ordering because certification scope may vary by formulation and destination market.

HSQY Global Exhibitions

HSQY Plastic Group participates in international exhibitions to meet distributors, cold-chain companies, industrial buyers and plastic-product converters from different markets.

Why Choose HSQY as Your PVC Strip Curtain Supplier?

HSQY Plastic Group supplies flexible PVC strip curtain sheets and rolls to distributors, installers, refrigeration companies, cold-storage operators and industrial buyers. Customers can order standard bulk material or request customized specifications for individual projects.

• Standard and customized thicknesses and widths.

• Smooth, ribbed, lined and colored surfaces.

• Standard, low-temperature, anti-scratch and anti-insect options.

• DOP and DOTP formulation options.

• Bulk rolls and customized cut-strip supply.

• Samples for appearance and application testing.

• Available SGS reports and quality documentation.

• Export packaging and container-loading support.

• FOB, CIF and EXW quotation options.

Whether you need low-temperature freezer PVC strips, ribbed PVC curtain rolls for forklift traffic or clear replacement strips for an existing cooler door, HSQY can manufacture the material according to your application and purchasing requirements.

Contact HSQY for Samples and Pricing

Frequently Asked Questions About Cooler and Freezer PVC Strip Curtains

What are cooler and freezer PVC strip curtains used for?

They are used across cold-room, walk-in cooler, freezer, refrigerated warehouse and refrigerated vehicle openings. The flexible strips help separate temperature zones while allowing people and equipment to pass through.

Can PVC strip curtains remain flexible inside a freezer?

Low-temperature PVC grades are designed to retain suitable flexibility in refrigerated environments. The exact minimum operating temperature varies by formulation and should be confirmed before ordering.

What is the difference between standard PVC and freezer-grade PVC strips?

Standard flexible PVC is intended for general indoor and industrial conditions. Freezer or low-temperature grades use a formulation selected to remain more flexible in colder environments. Buyers should provide the actual temperature range instead of selecting only by product name.

What thicknesses and widths are available?

Common thicknesses are 2 mm, 3 mm and 4 mm. Common widths are 150 mm, 200 mm, 300 mm and 400 mm. Custom thicknesses and widths can also be discussed.

How do I choose the correct strip width and thickness?

Selection depends on door height, traffic type, wind, temperature difference and required separation. Narrower strips are generally easier for pedestrians, while wider and thicker strips are more suitable for larger openings and vehicle traffic.

Should I choose smooth or ribbed PVC strips?

Smooth strips are suitable for general pedestrian entrances, clear visibility and easier cleaning. Ribbed strips are typically selected for openings with carts, pallets, forklifts or machinery because the raised ribs help reduce direct surface contact.

How much should PVC curtain strips overlap?

Lower overlap makes the curtain easier to pass through, while greater overlap provides more complete doorway coverage. Freezer, windy or pressure-sensitive openings generally require more overlap than light pedestrian entrances.

Can HSQY supply pre-cut replacement strips?

Customized cut lengths can be discussed. Provide the strip width, thickness, length, quantity and mounting-hole pattern so compatibility with the existing hanger can be evaluated.

Can PVC strip curtain colors be customized?

Yes. HSQY supplies clear, blue, orange and custom-colored PVC strip curtain material. Color availability, transparency and minimum quantity should be confirmed before production.

What are anti-insect PVC strip curtains?

Anti-insect strips are normally produced in yellow or orange-tinted formulations intended for selected entrances where flying-insect control is required. Their suitability should be evaluated with the facility’s complete pest-control system.

Are PVC strip curtains suitable for food-processing facilities?

They are commonly used to separate cold-storage and food-processing zones, but the selected formulation and documentation must meet the regulations and hygiene requirements of the destination market and facility.

How are PVC strip curtains cleaned?

Use a soft cloth, water and a mild neutral cleaner. Avoid abrasive tools and strong solvents that could scratch the surface or affect the PVC formulation.

Can damaged PVC strips be replaced individually?

Yes. Individual worn or damaged strips can normally be removed and replaced while retaining the existing hanger and the remaining curtain strips.

Does HSQY supply DOP-free PVC curtain options?

HSQY lists DOTP formulation options in addition to DOP-based products. Buyers with restricted-substance or destination-market requirements should provide the exact compliance standard before ordering.

What is the minimum order quantity?

The standard minimum order quantity is 1000 kg. The MOQ may vary for custom colors, special formulations, unusual dimensions or customized packaging.

Are samples available?

Samples can be discussed for checking the color, clarity, surface, thickness and low-temperature performance. Buyers should test the sample under their actual operating and installation conditions.

How long is the production lead time?

Typical production time is approximately 7–15 days after the deposit and specifications are confirmed. The final schedule depends on quantity, formulation, dimensions, packaging and current production capacity.

How can I get an accurate PVC strip curtain quotation?

Provide the door width and height, minimum operating temperature, traffic type, strip thickness, width, surface, color, overlap preference, order quantity and delivery destination. Photos or drawings of the doorway are also useful.

Get a Custom PVC Strip Curtain Quote
